Products Description

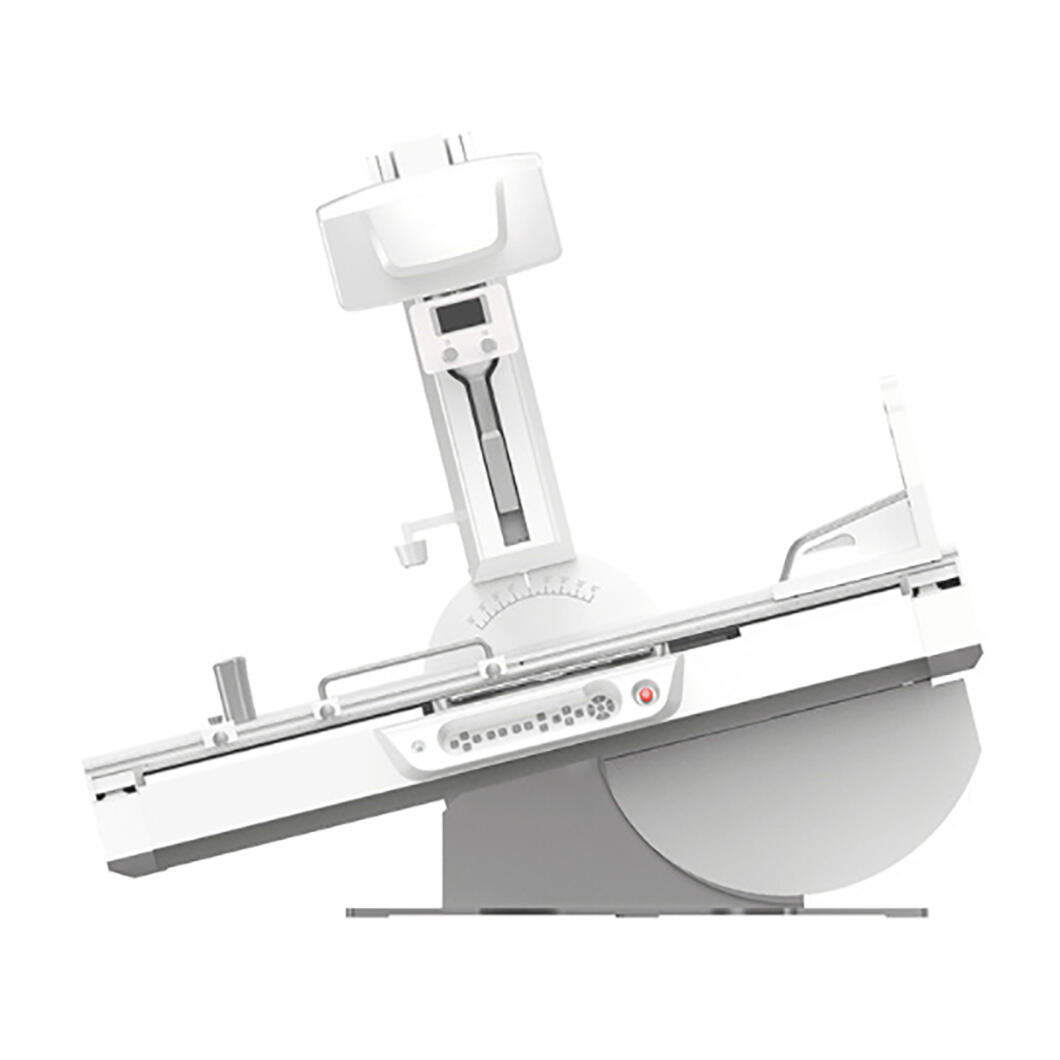

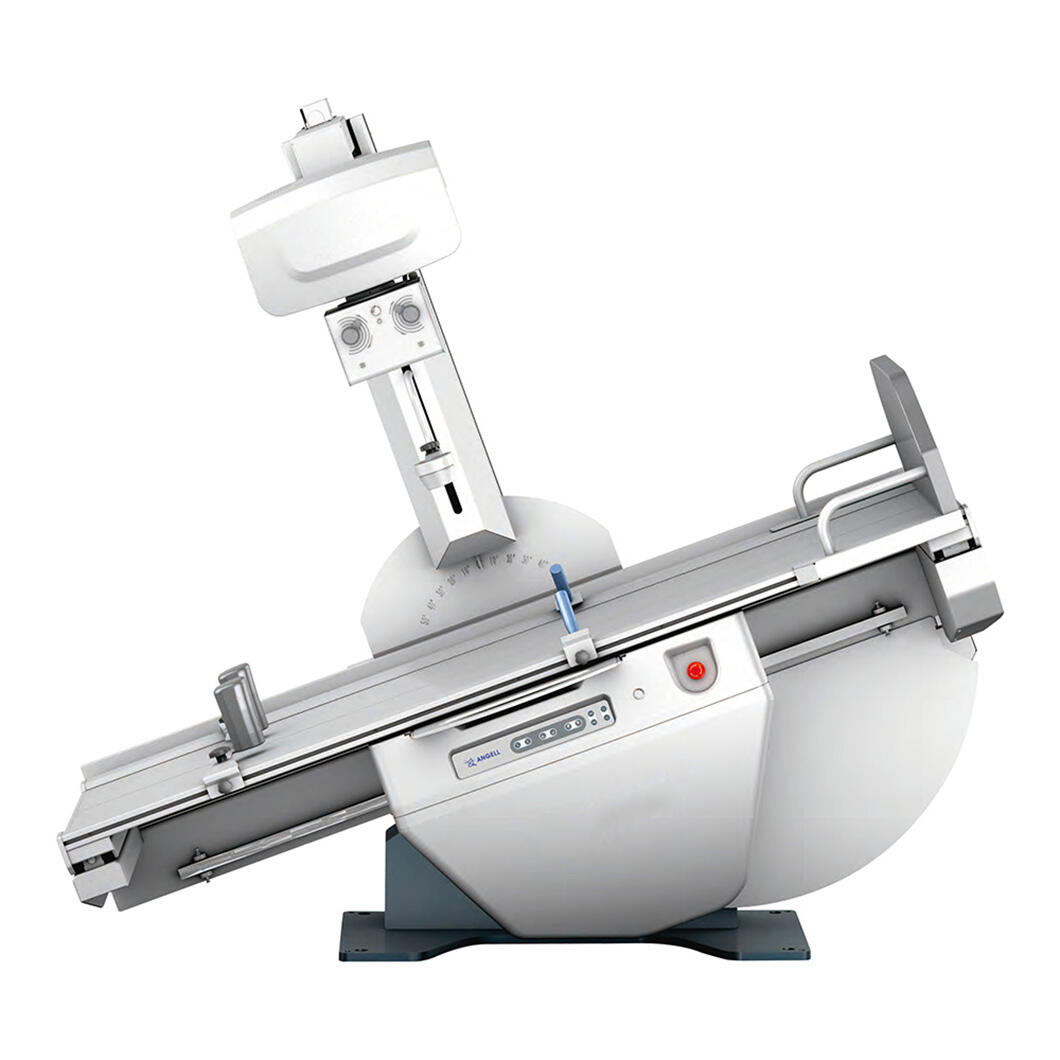

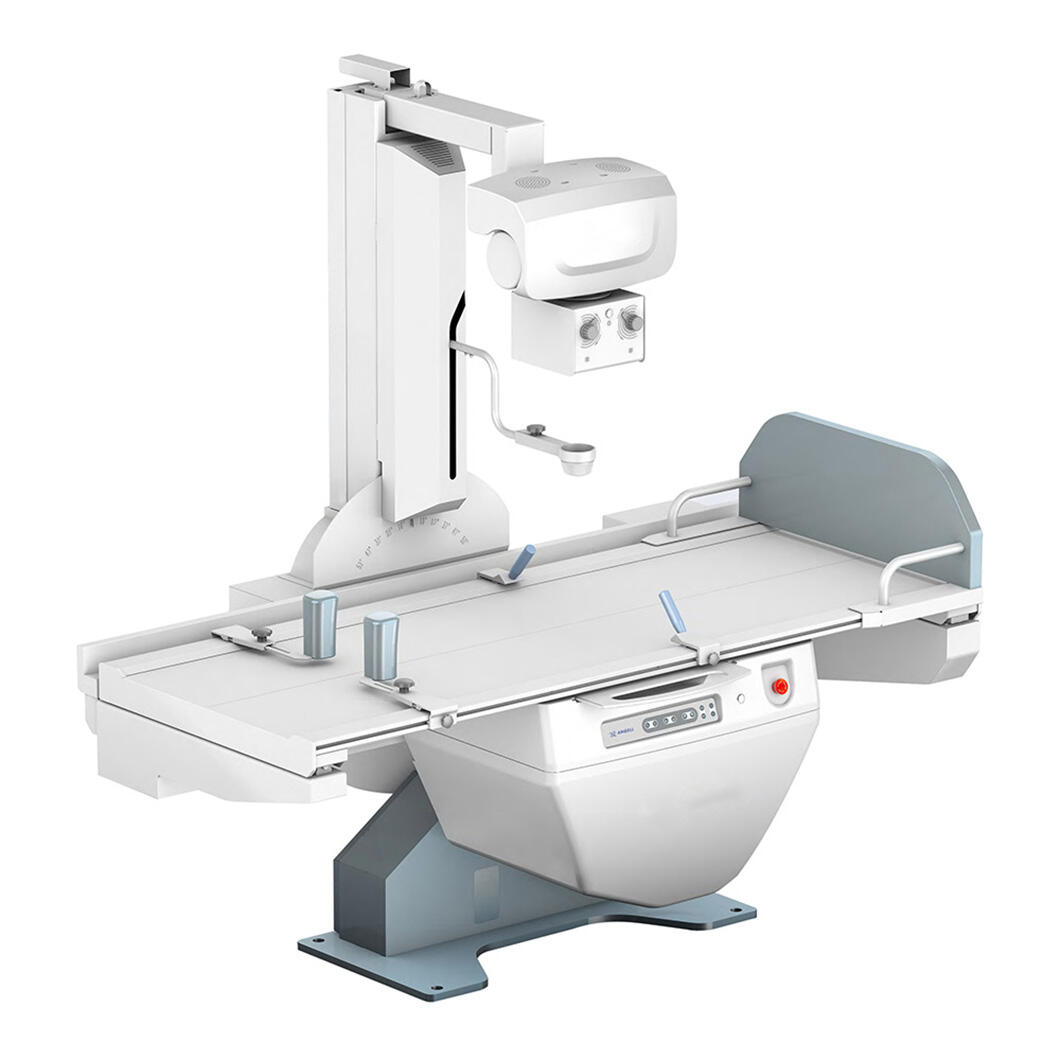

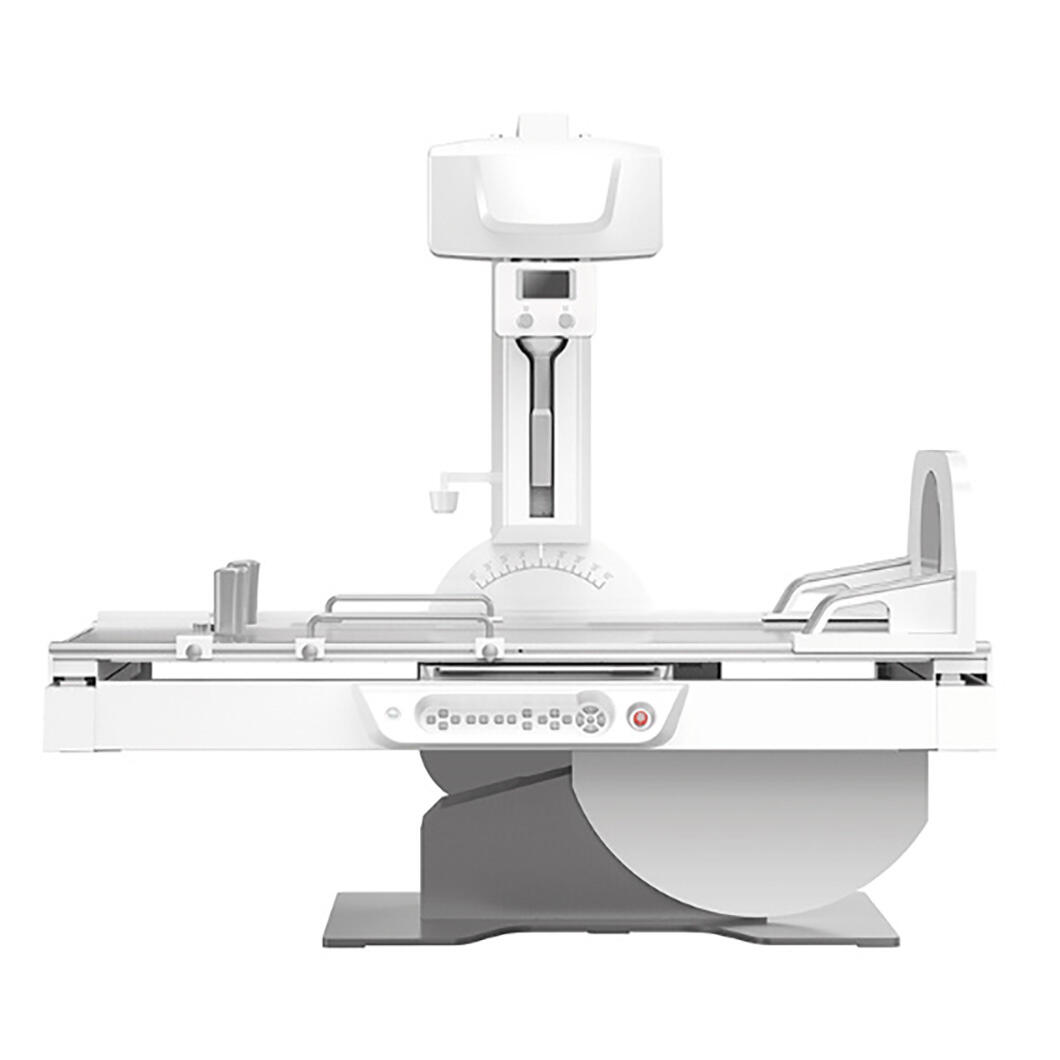

DYNAMIC DR:With Remote Control Table
Dynamic DR DT570 series with remote control table is a unique dynamic digital X-ray system. It is multifunction of digital radiography, digital fluoroscopy and digital contrast. It represents a new trend in the development of digital X-ray imaging technology.
Large View Area
Dynamic DR DT570 series with remote control table is a unique dynamic digital X-ray system. It is multifunction of digital radiography, digital fluoroscopy and digital contrast. It represents a new trend in the development of digital X-ray imaging technology.
Large View Area
Large view field 43cm x 43cm
A full sized view area with HD image can enable doctors to be more focused on lesion observation, and reduce radiation time for patients. Angell DT570 with full size dynamic detector makes X-ray image reading much easier and more convenient. It is not affected by geometric distortion which is typical of image intensifiers.
Avoid misdiagnosis and missed diagnosis
Avoid misdiagnosis and missed diagnosis
Static DR sometimes have problem of misdiagnosis which resulted from overlaid images or improper positions. Angell DT570 can provide multiple view angles with dynamic preview images, which helps to find out hidden lesions or correct the improper position in the low dose preview mode, together with spot film function to make a more precise diagnosis. The real-time replay and video recording function can also act as a powerful tool for lesion proof-check.
Multi-Functional DigitalImaging Solution
Digital radiography
Wide range of examination angles, as well as erect, lying, and oblique positions.Static imaging for radiographic examinations, Skull, Thorax, Abdomen, VertebralColumn, Pelvis, Upper and Lower Extremities and so on.
Digital fluoroscopy
Dynamic checking for fluoroscopy, esophagography, upper gastrointestinal(suchas barium enemas, barium meals, and barium swallows), intravenous urography(IVP), HSG, T-tube cholangiography and so on.
Smart Image stitching
With large field of view and advanced image processing workstation, AngellDynamic DR System can provide high definition full-body x-ray image by smartimage stitching function, especially helpful for orthopedics.
Easy operation

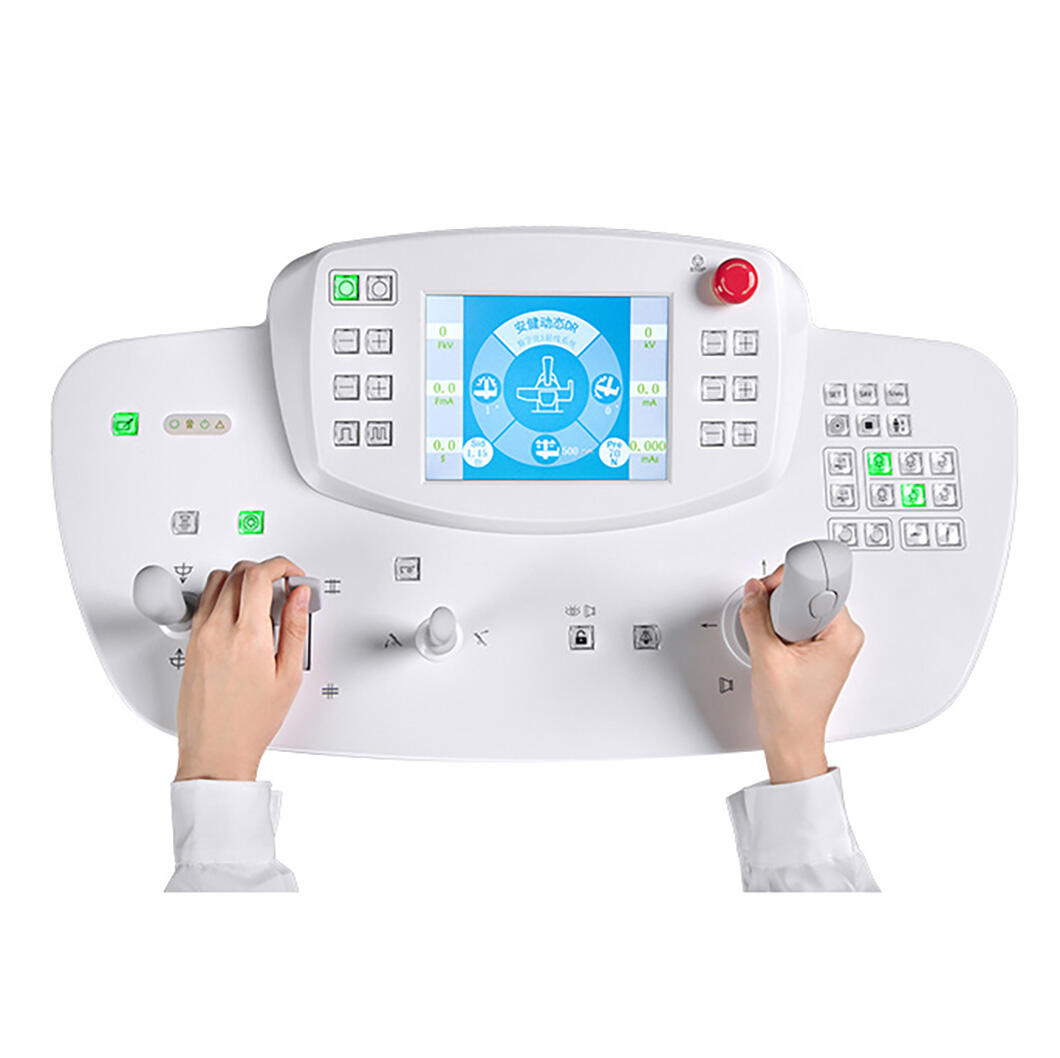

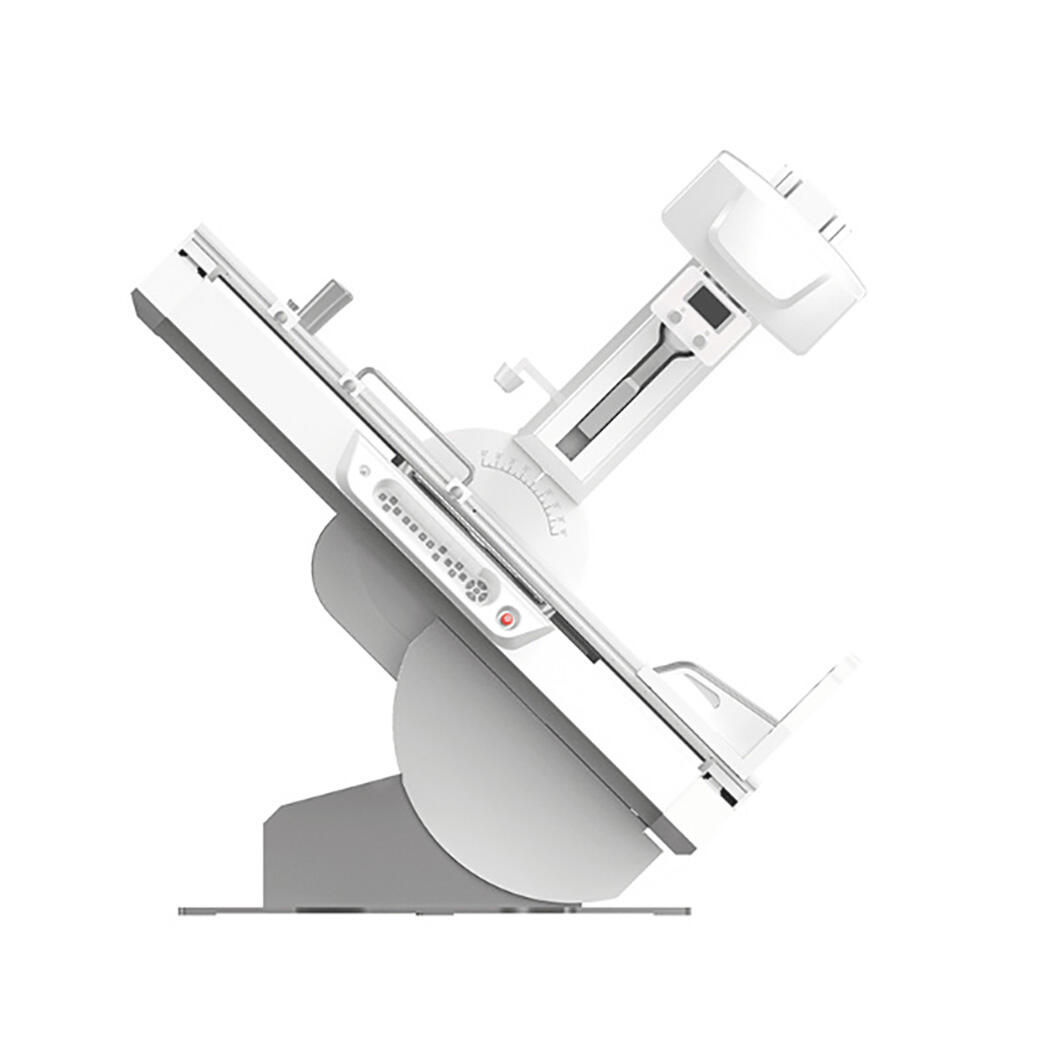

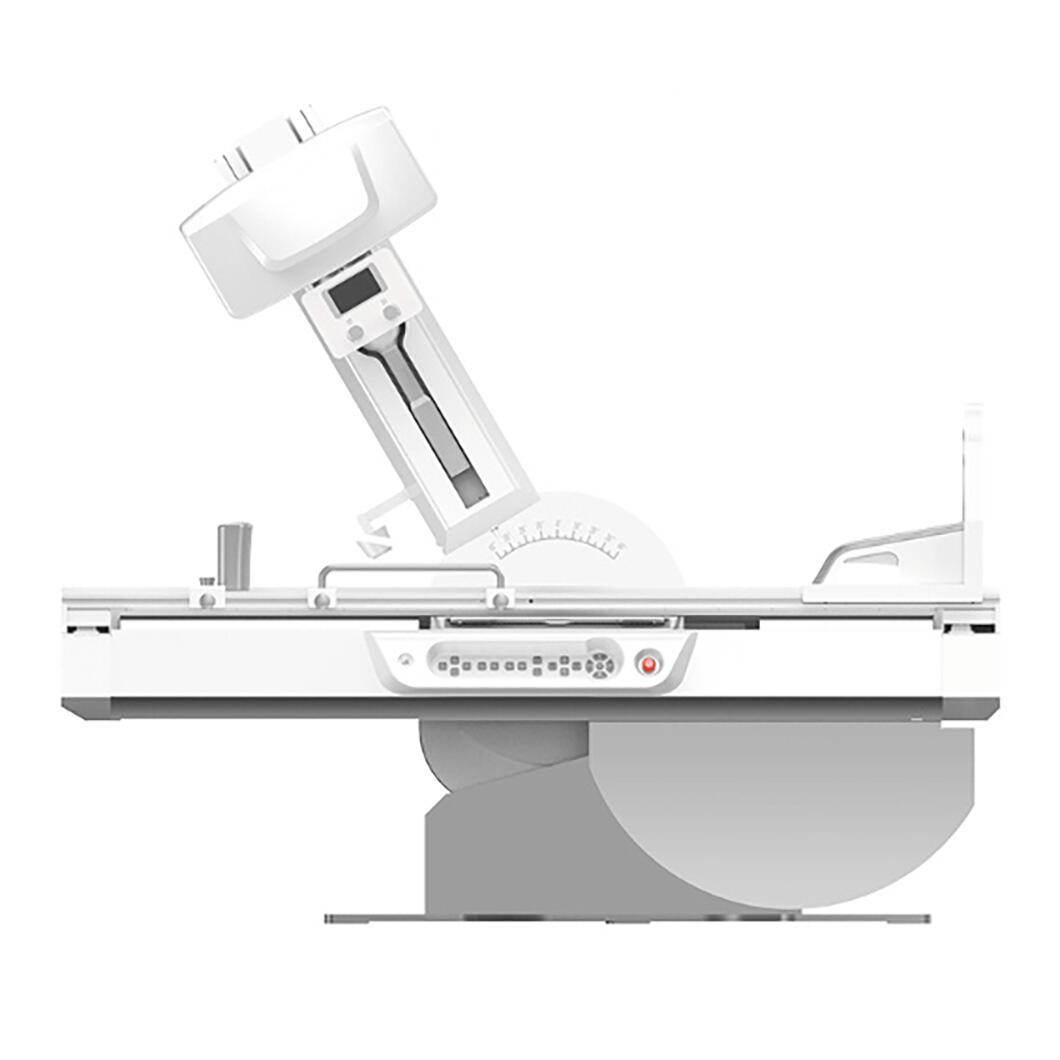

DT570 can do both remote control and patient side control, with electronictable tilting from horizontal to vertical dimension, and vice versa. Inhorizontal dimension, the electronic table can also be adjusted left andright for better observation. The x-ray tube can move up and down for SIDadjusting from 1 meter to 1.8 meters for different examinations, and x-raytube column can also tiling by 45° both left and right for special angles. Thecompressor for contrast can move when the doctor is observing thecontrast process. All those operation can be operated by remote controlwith precise preset parameters calibration.
Core Technology
Superior digital image processing technology
Angell’s two-channel parallel processing GPU module, ROI (region of interest) automatic identification module, and efficient EAE automatic image enhancing software enable the image processing to be fast and efficient. The processed images will be exquisite and sharp, showing clearer image layers, and can have a very high imaging contrast ratio for details identification.
Cutting-edge dynamic detector technology
Angell dynamic detector loaded with a 3072×3072 pixels matrix and a 14 bit dynamic gray scale, which can generate a high definition digital x-ray images with 9 million pixels. Comparing with static DR system, images from Angell Dynamic DR System contains more information, higher imaging contrast ratio, and wider dynamic ranges. Comparing with conventional fluoroscopy system, Angell Dynamic DR System can do high definition real-time spot film, converting between dynamic imaging and static imaging at millisecond rate, greatly reducing details missing and helping make a more precise diagnosis.

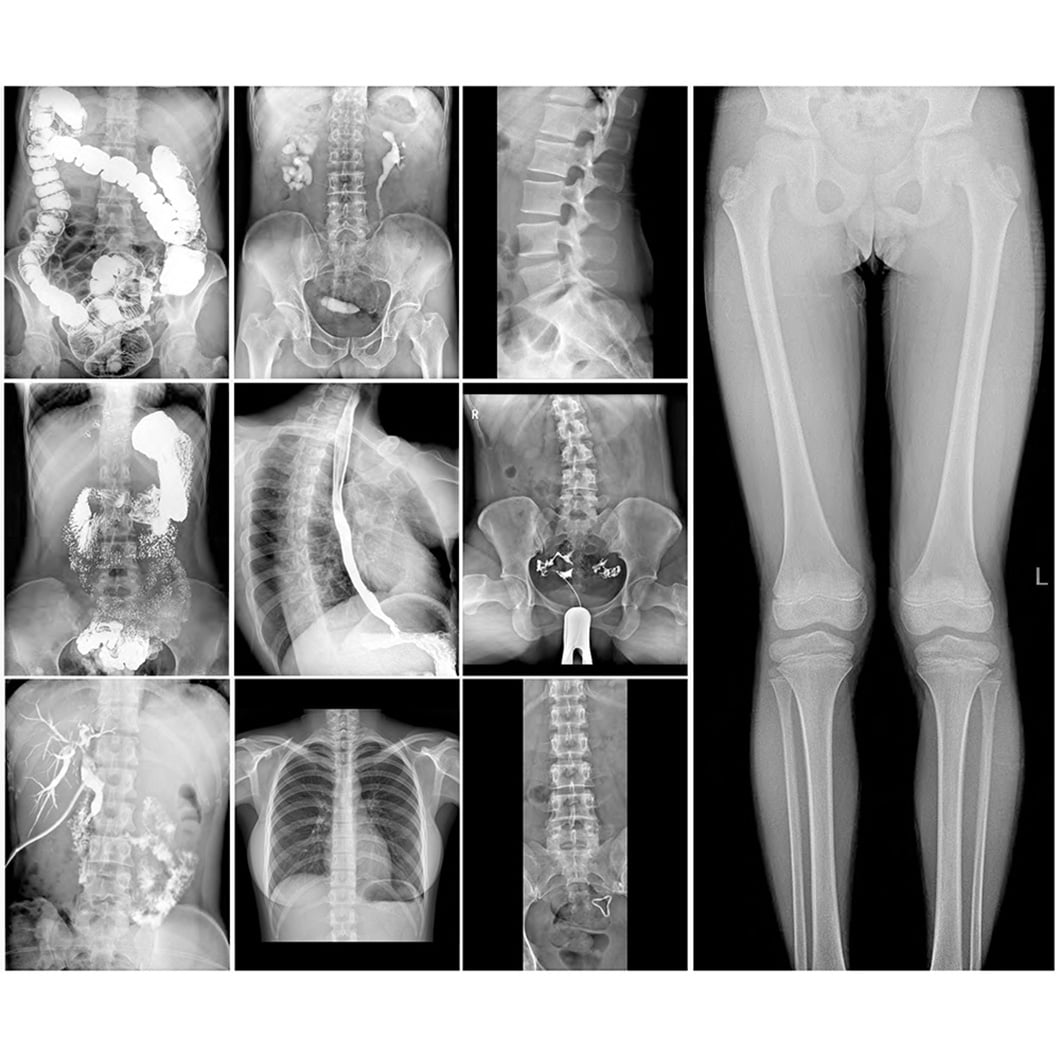

Accurate Diagnosis inDifferent Departments
Esophagus Barium Meal Contrast
Fistulography Contrast
Ob-Gyn Department
Uterus Contrast
Pediatrics Department
Foreign matter Orientation
(Bronchus Parotid Contrast)
Hepatobiliary Department
T-tube Cholangiography
Cholecystography
Urology Department
Pyelography
Urethral Contrast
Orthopedic Department
Long Bone Stitching
Multi-Functional DigitalImaging Solution
Digital radiography
Wide range of examination angles, as well as erect, lying, and oblique positions.Static imaging for radiographic examinations, Skull, Thorax, Abdomen, VertebralColumn, Pelvis, Upper and Lower Extremities and so on.
Digital fluoroscopy
Dynamic checking for fluoroscopy, esophagography, upper gastrointestinal(suchas barium enemas, barium meals, and barium swallows), intravenous urography(IVP), HSG, T-tube cholangiography and so on.
Smart Image stitching
With large field of view and advanced image processing workstation, AngellDynamic DR System can provide high definition full-body x-ray image by smartimage stitching function, especially helpful for orthopedics.
Easy operation
DT570 can do both remote control and patient side control, with electronictable tilting from horizontal to vertical dimension, and vice versa. Inhorizontal dimension, the electronic table can also be adjusted left andright for better observation. The x-ray tube can move up and down for SIDadjusting from 1 meter to 1.8 meters for different examinations, and x-raytube column can also tiling by 45° both left and right for special angles. Thecompressor for contrast can move when the doctor is observing thecontrast process. All those operation can be operated by remote controlwith precise preset parameters calibration.
Core Technology
Superior digital image processing technology
Angell’s two-channel parallel processing GPU module, ROI (region of interest) automatic identification module, and efficient EAE automatic image enhancing software enable the image processing to be fast and efficient. The processed images will be exquisite and sharp, showing clearer image layers, and can have a very high imaging contrast ratio for details identification.
Cutting-edge dynamic detector technology
Angell dynamic detector loaded with a 3072×3072 pixels matrix and a 14 bit dynamic gray scale, which can generate a high definition digital x-ray images with 9 million pixels. Comparing with static DR system, images from Angell Dynamic DR System contains more information, higher imaging contrast ratio, and wider dynamic ranges. Comparing with conventional fluoroscopy system, Angell Dynamic DR System can do high definition real-time spot film, converting between dynamic imaging and static imaging at millisecond rate, greatly reducing details missing and helping make a more precise diagnosis.
Accurate Diagnosis inDifferent Departments
Digestive Department
Upper/lower Gastrointestinal ContrastEsophagus Barium Meal Contrast
Fistulography Contrast
Ob-Gyn Department
Uterus Contrast
Pediatrics Department
Foreign matter Orientation
(Bronchus Parotid Contrast)
Hepatobiliary Department
T-tube Cholangiography
Cholecystography
Urology Department
Pyelography
Urethral Contrast
Orthopedic Department
Long Bone Stitching
Customer Feedbacks
Company Profile
FAQ
1. What about the price level? We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts. 2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same? As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper. 3. What is time of delivery? Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible. 4. What about quality assurance? We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. 5. What is payment terms? T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
