Products Description

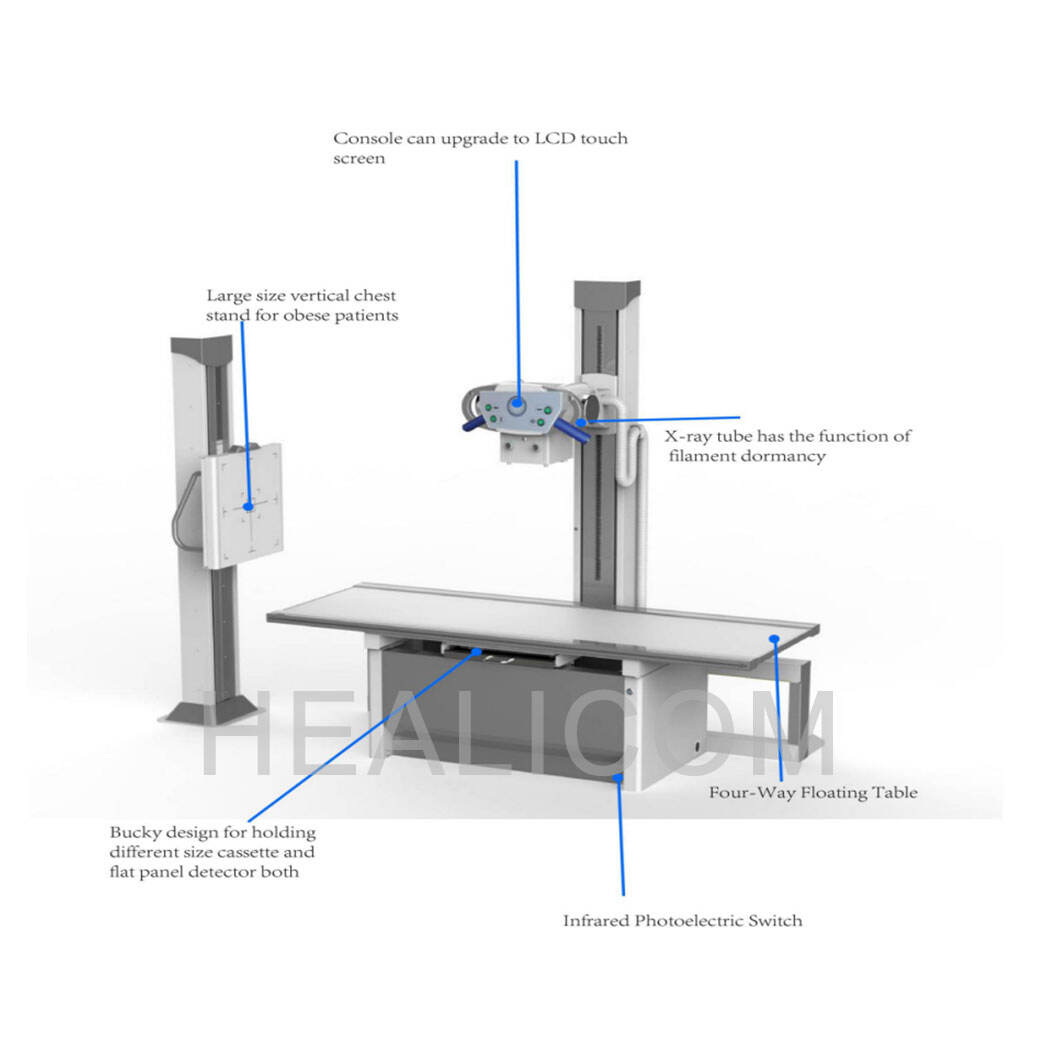

HDR32 High frequency X-ray Machine
●X-ray generator
Rich DR upgrade reserve interface
Fault self-diagnosis and protection
Automatic calibration of tube current
X-ray tube has the function of filament dormancy
AEC function, different ionization chamber as optional
Analog - digital double - loop control, simple operation, high intelligence
High kV, high current, high power,strong penetration,able to handle obese patients
●Applicable to orthopedics, emergency room, operating room, etc.,
As human head, limbs, chest, spine, lumbar spine for medical diagnosis
Parameter
Rich DR upgrade reserve interface
Fault self-diagnosis and protection
Automatic calibration of tube current
X-ray tube has the function of filament dormancy
AEC function, different ionization chamber as optional
Analog - digital double - loop control, simple operation, high intelligence
High kV, high current, high power,strong penetration,able to handle obese patients
●Applicable to orthopedics, emergency room, operating room, etc.,
As human head, limbs, chest, spine, lumbar spine for medical diagnosis
Parameter
Main Component Technical Spe. | ||
|

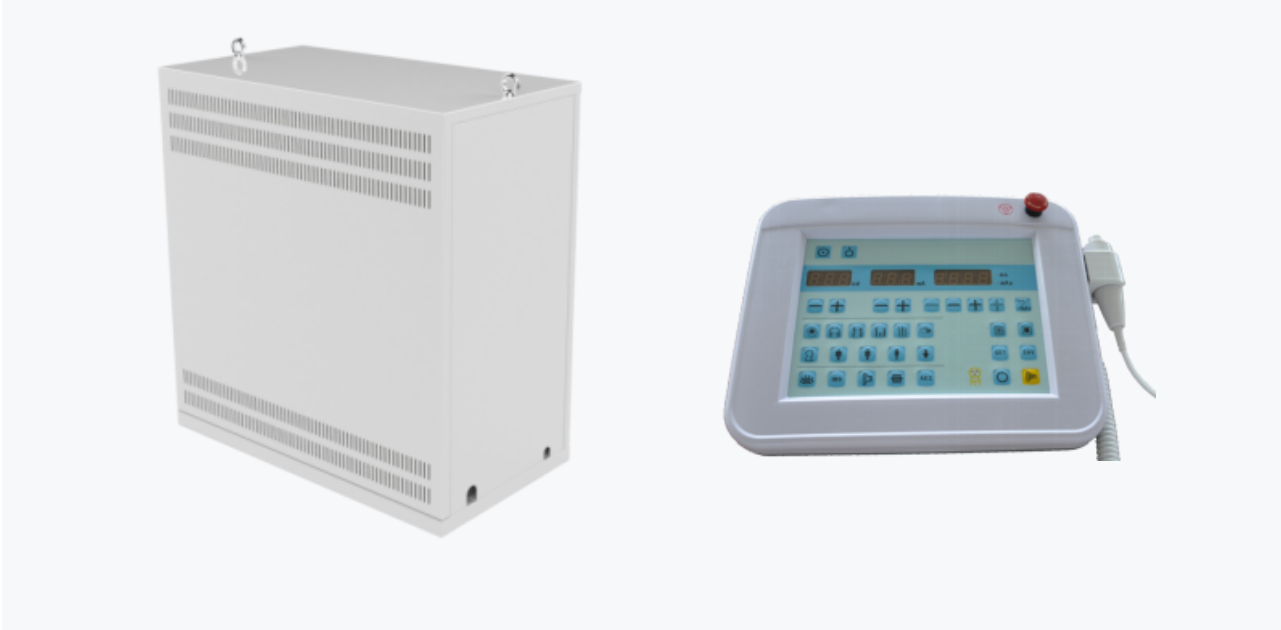

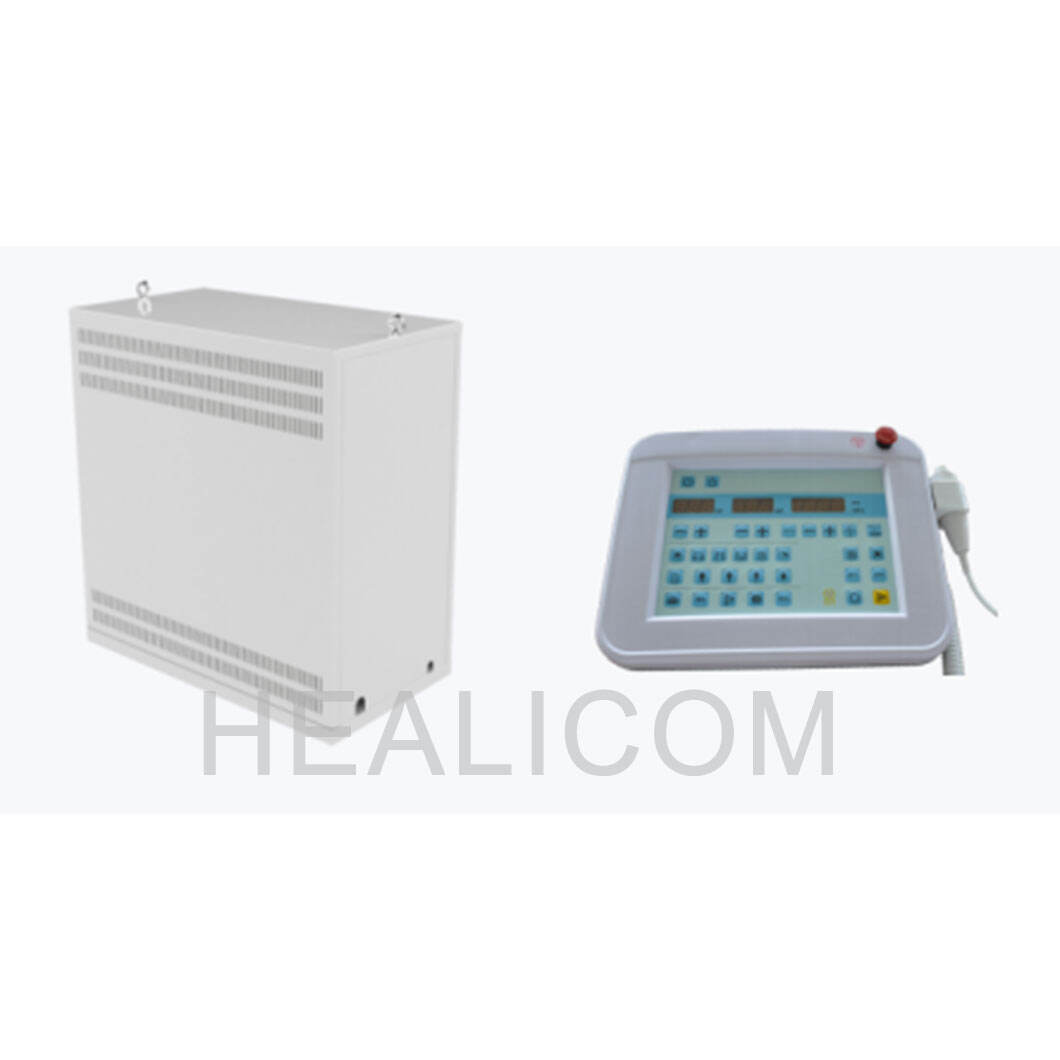

X-ray generator (include console) |
Output Power |
32KW |
Power Voltage |
380V/220V |
|
kV range |
40~125kV |
|
mA range |
32~400mA |
|
mAs range |
0.32 ~400mAs |
|
Exposure time |
0.002~6.3S |
|
|
|
|
|

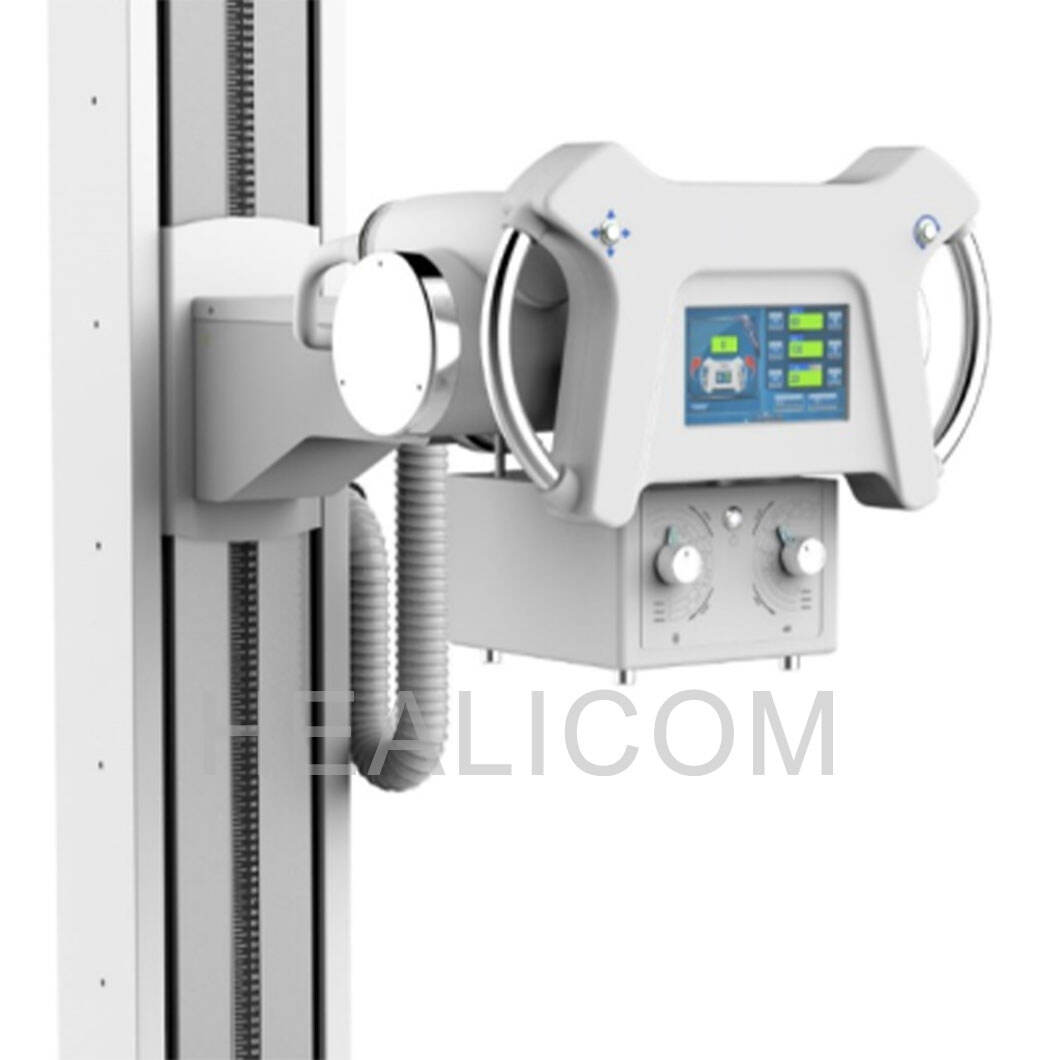

X-ray tube |
Anode Heat Storage Capacity |
240kHU |
Small focus |
0.6 |
|
Large focus |
1.2 |
|
Anode speed |
3000r/min |
|
|
|
|
|
Collimator |
Inherent filtration |
1.0mm Al /75kV |
Light Source |
LED |
|
|
|
|
|
Radiographic Table
|
Top Table Size |
2100X800X650mm |
Bucky Size |
18X18inch |
|
Table longitudinal movement |
≥900mm |
|
Cassette Movement Distance |
≥500mm |
|
|
|
|
|
Vertical Chest stand |
Vertical moving range |
≥1200mm |
Bucky Size |
18X18inch |
|
|
|
|
|
Double Grid |
Size |
18X18inch |
Ratio |
10:1 |
|
F.D. |
100cm |
|
Density |
40 L/cm |
|
Workshop
Related Products
Customer Feedbacks
Company Profile
FAQ
1. What about the price level? We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts. 2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same? As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper. 3. What is time of delivery? Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible. 4. What about quality assurance? We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. 5. What is payment terms? T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
