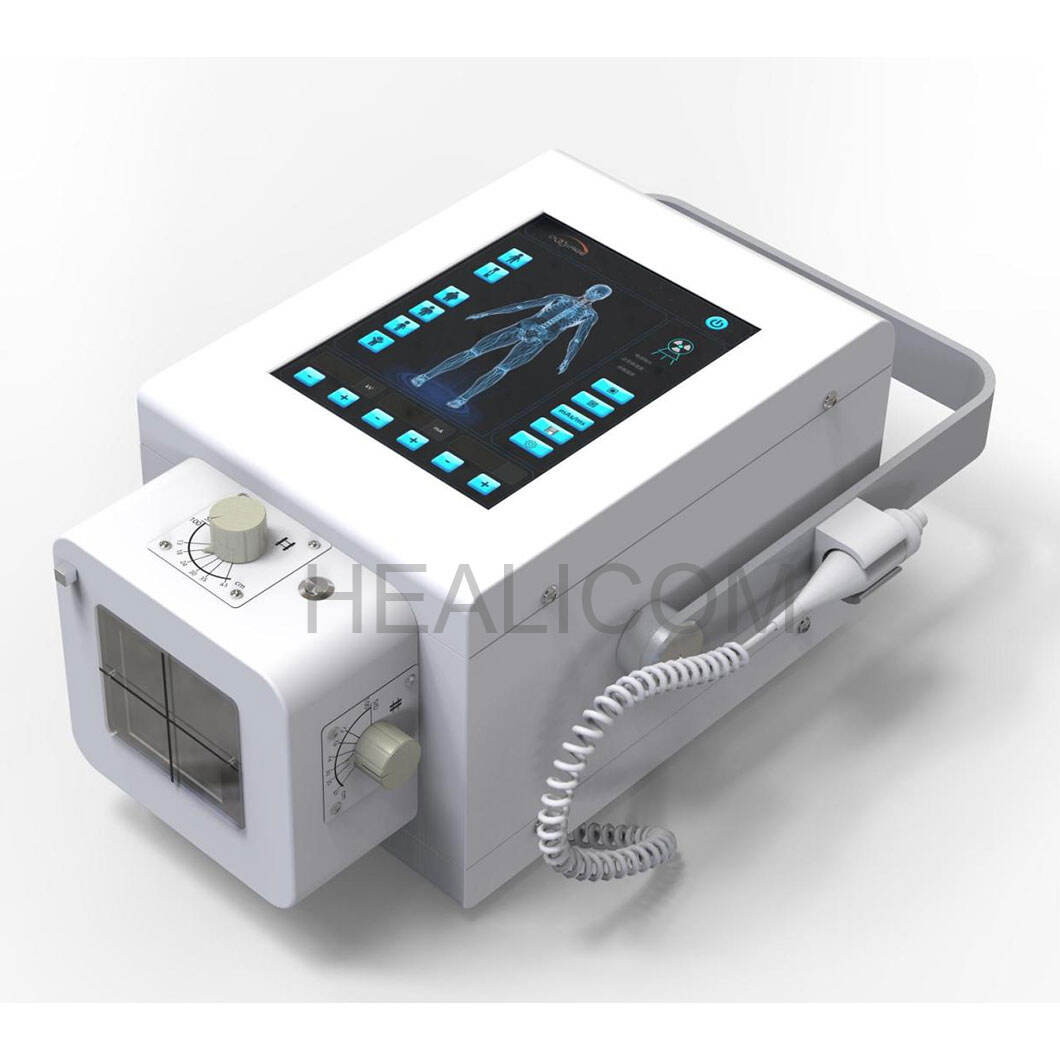

Products Description

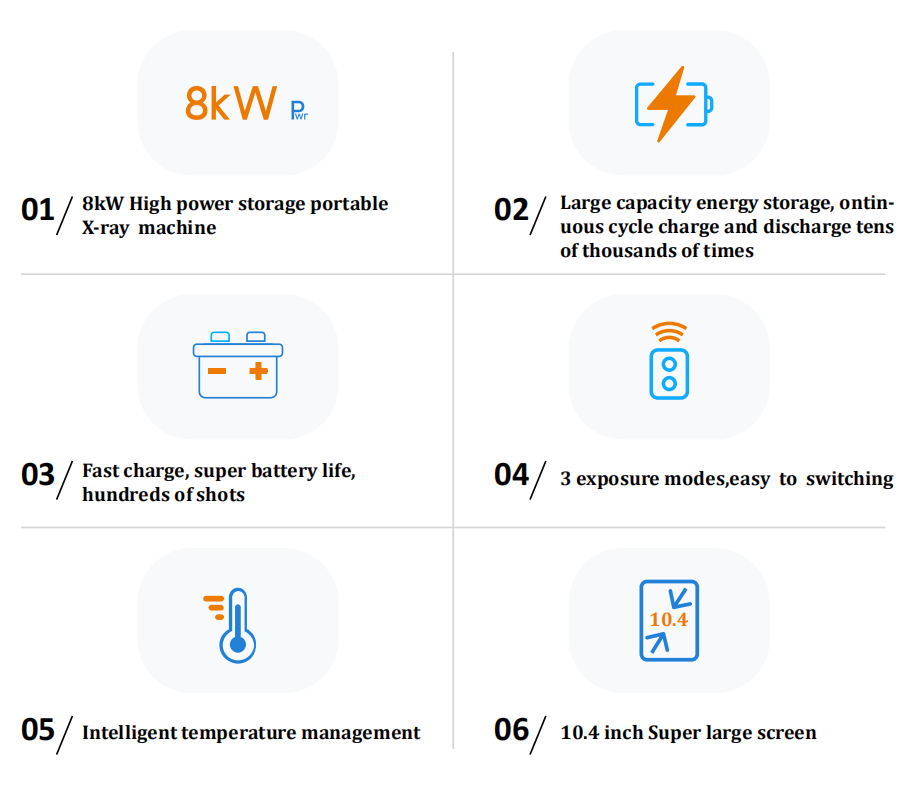

Features

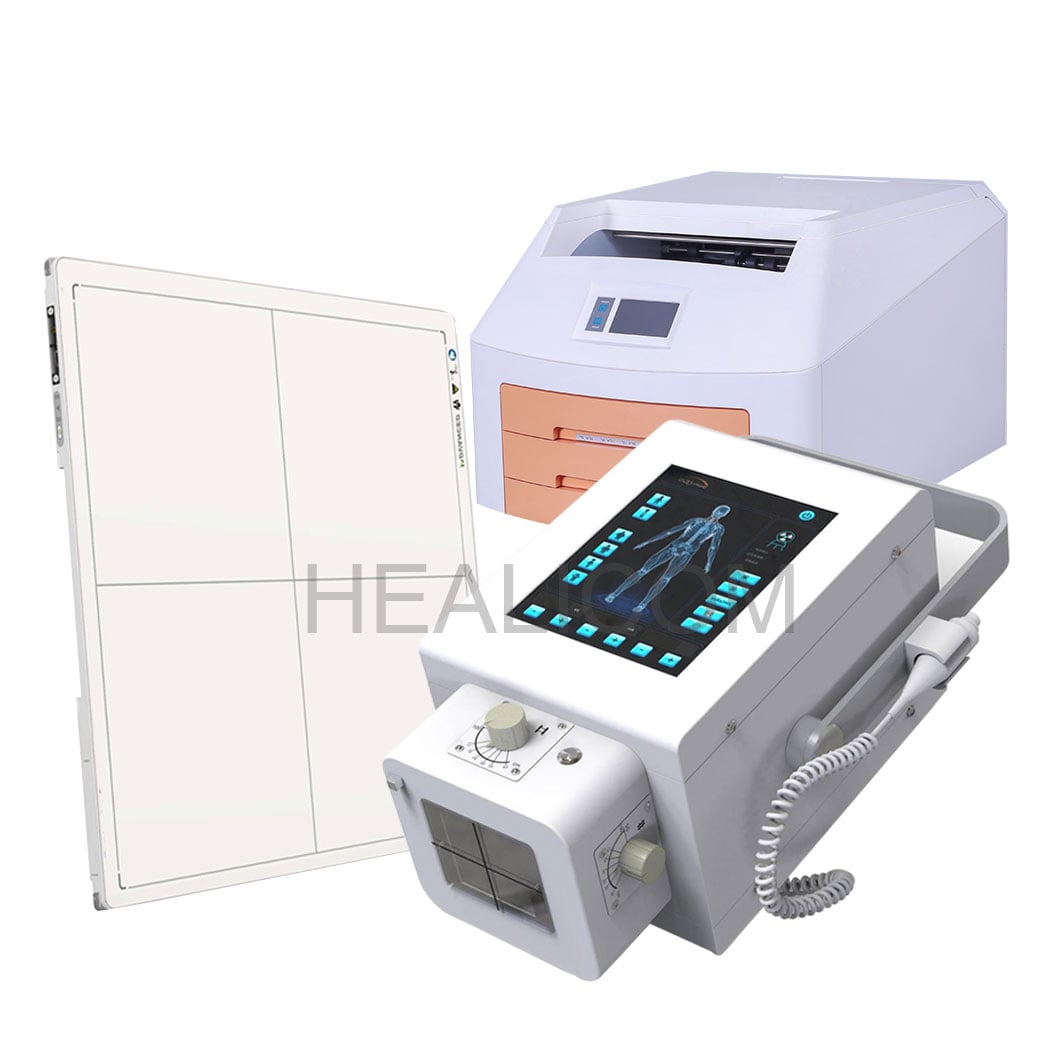

1. 8kW High power storage portable X-ray machine
2. Large capacity energy storage, ontinuous cycle charge and discharge tens of thousands of times
3. Fast charge, super battery life,hundreds of shots
4. 3 exposure modes,easy to switching
5. Intelligent temperature management
6. 10.4 inch Super large screen
Product features
Clinical pictures
Ultra-portable, intuitive operation, exceptional imaging

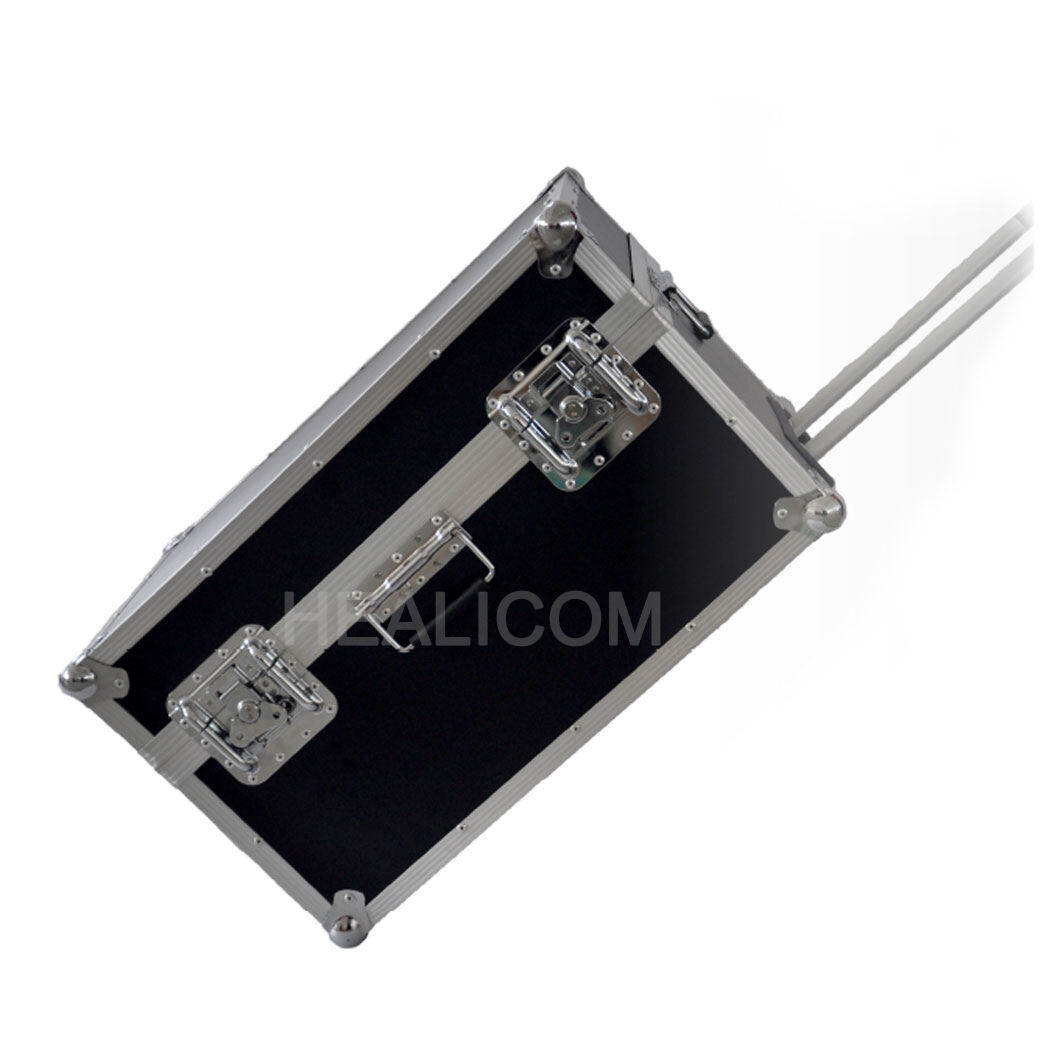

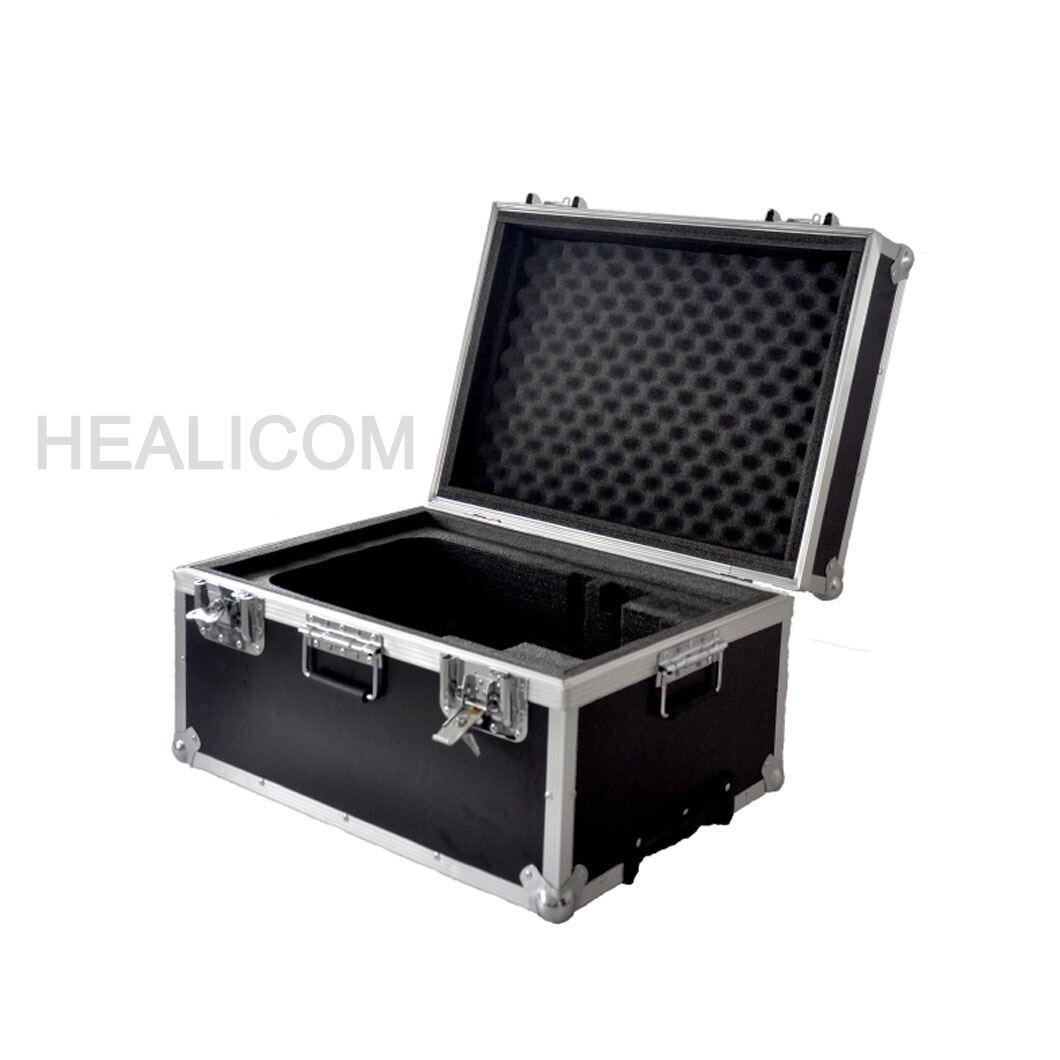

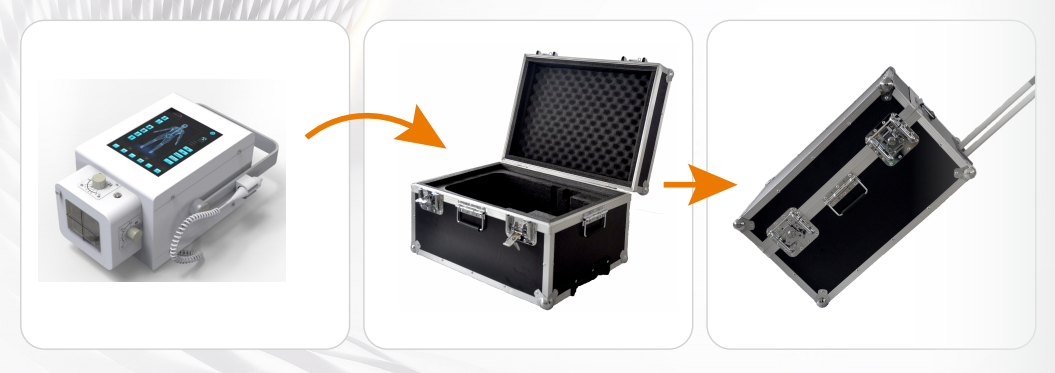

Package
Fast and convenient packaging,Simple transportation.

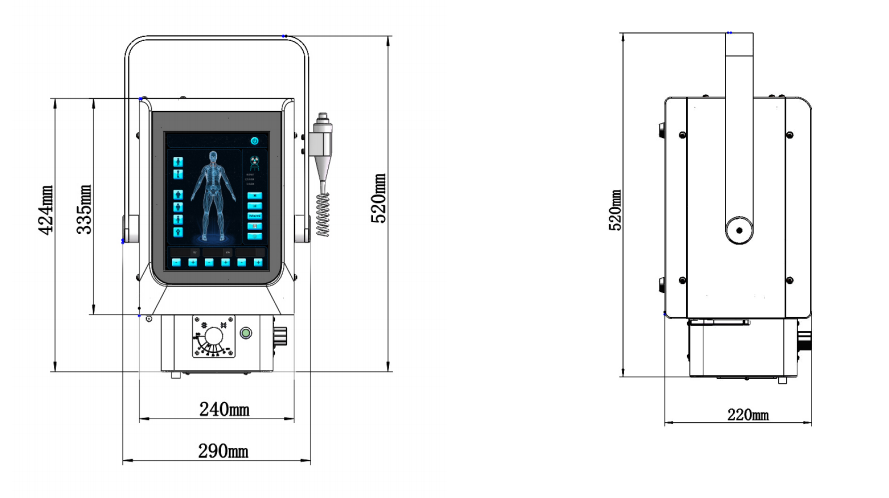

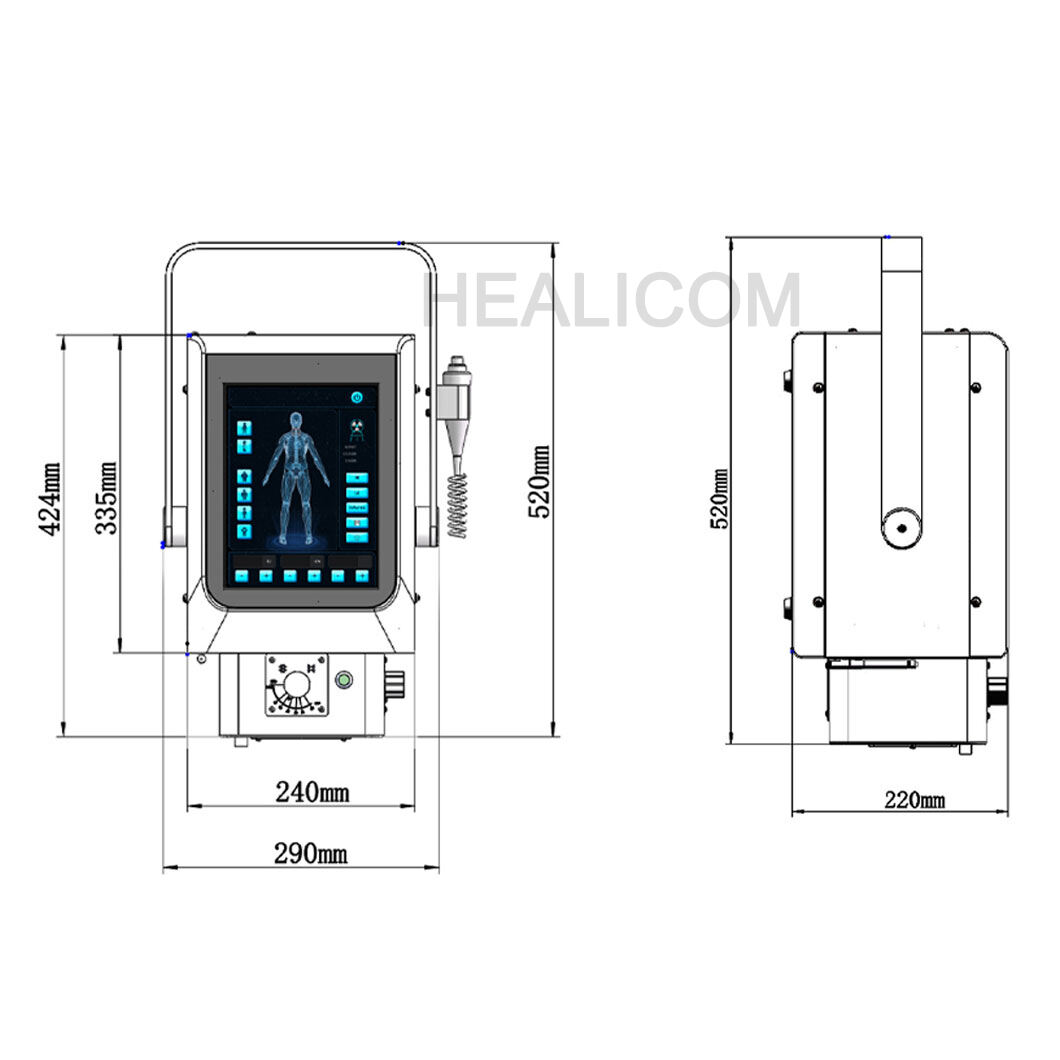

Dimension
1. 8kW High power storage portable X-ray machine
2. Large capacity energy storage, ontinuous cycle charge and discharge tens of thousands of times
3. Fast charge, super battery life,hundreds of shots
4. 3 exposure modes,easy to switching
5. Intelligent temperature management
6. 10.4 inch Super large screen
System Requirements | |
Charging voltag |
AC 110~220V |
Power |
8KW |
Generator | |
kV range |
40~125 kV |
mAs range |
0.1~200mAs |
mA range |
10~160mA |
Communication mod |
RS232 |
Exposure mod |
Wired/Wireless |
X-ray Tube | |
Focal spot |
0.6/1.8mm |
Anode Angl |
15° |
Collimator | |
Power suppl |
AC/DC 24V+10% |
Light typ |
Led 5W |
Light delay tim |
30±2S |
Illuminatio |
≥160Lux |
Intrinsic filterin |
1.2mmAl@75KV |
Mechanics parameters | |
Size |
425 x240x220mm |
Weight |
18kg |
Product features
Clinical pictures
Ultra-portable, intuitive operation, exceptional imaging
Package
Fast and convenient packaging,Simple transportation.
Dimension
Workshop
Customer Feedbacks
Related Products
Company Profile
FAQ
1. What about the price level? We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts. 2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same? As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper. 3. What is time of delivery? Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible. 4. What about quality assurance? We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. 5. What is payment terms? T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
