Products Description

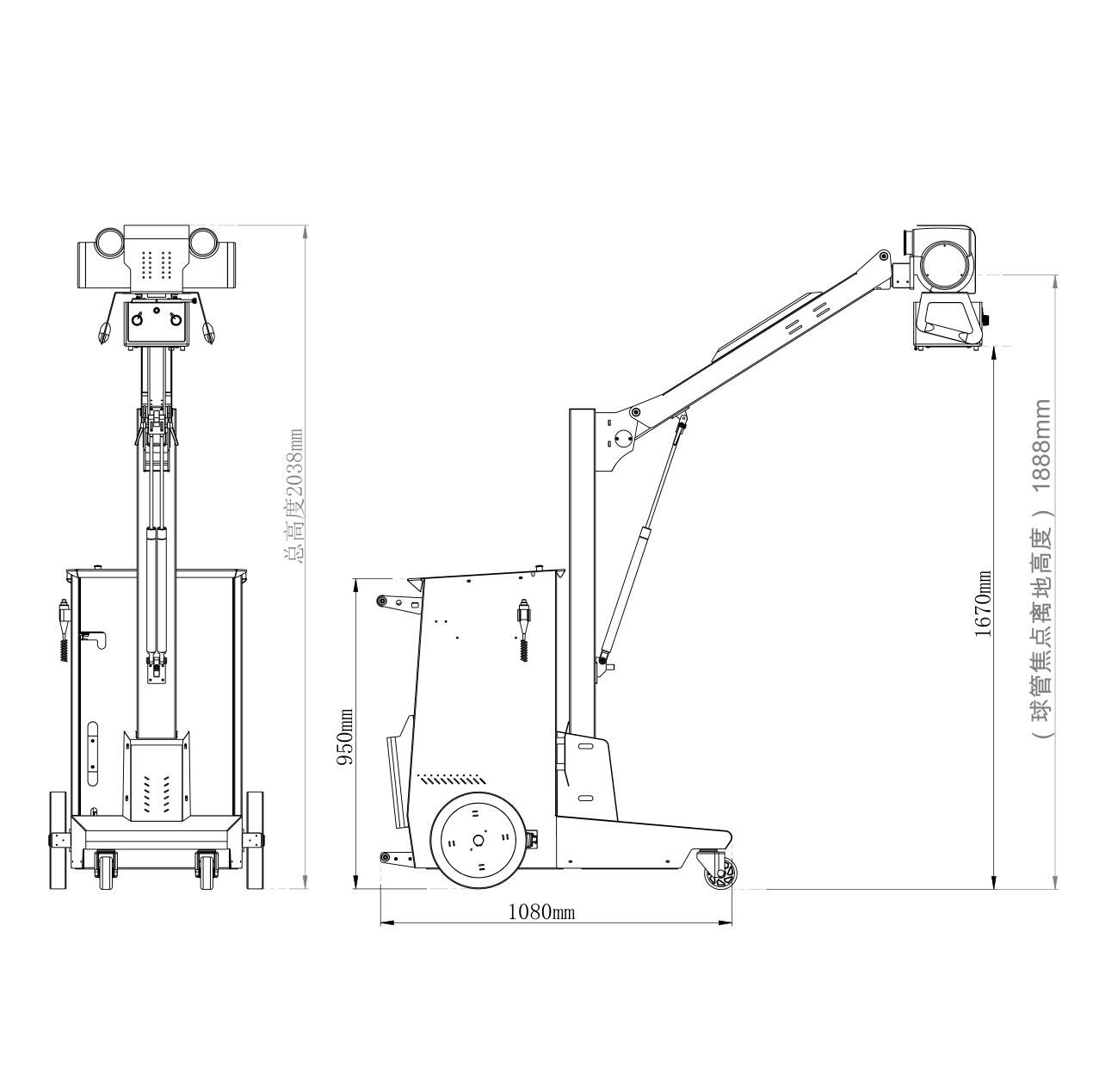

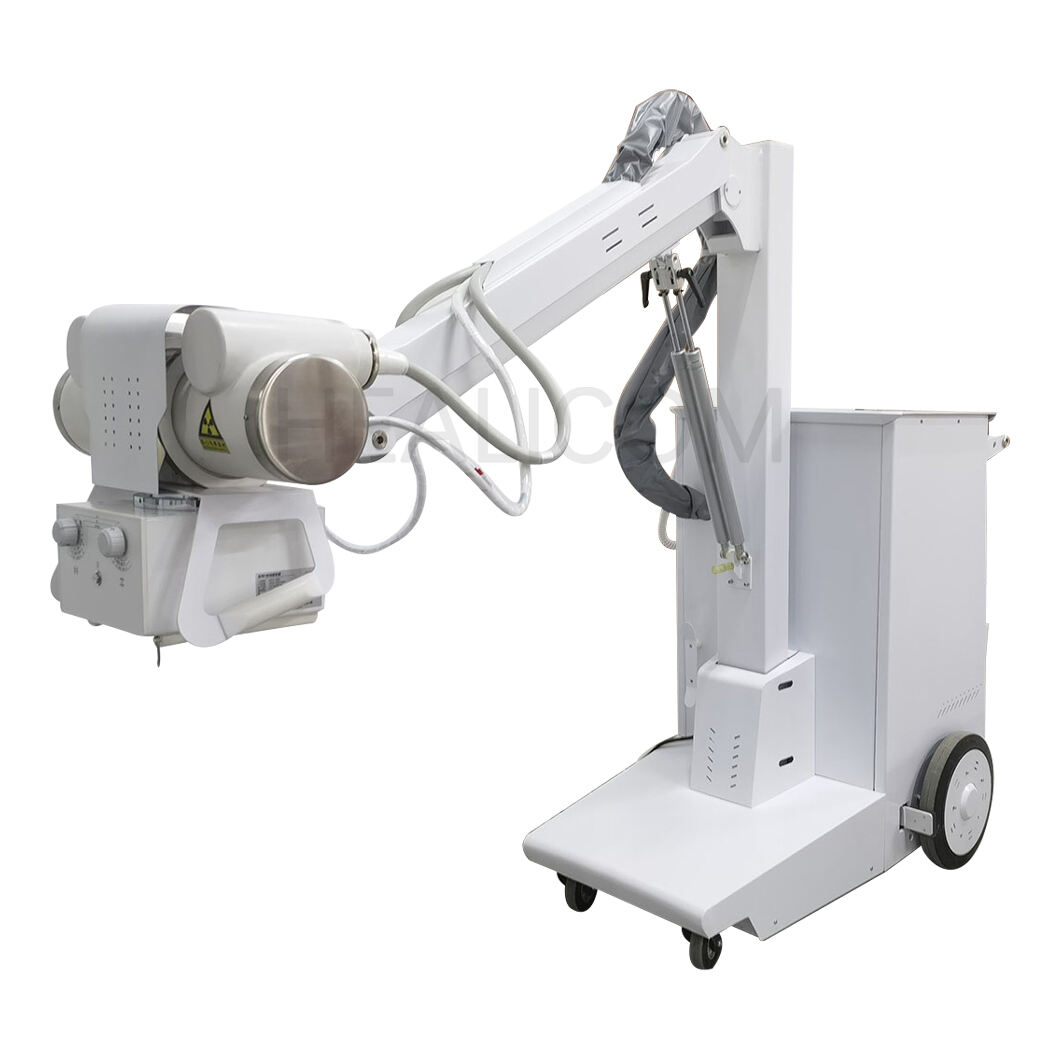

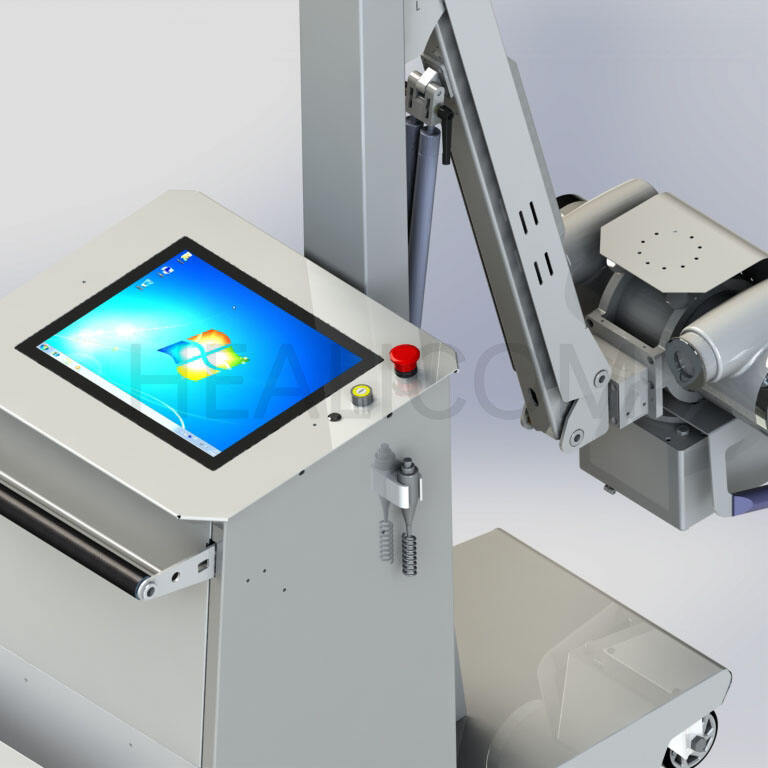

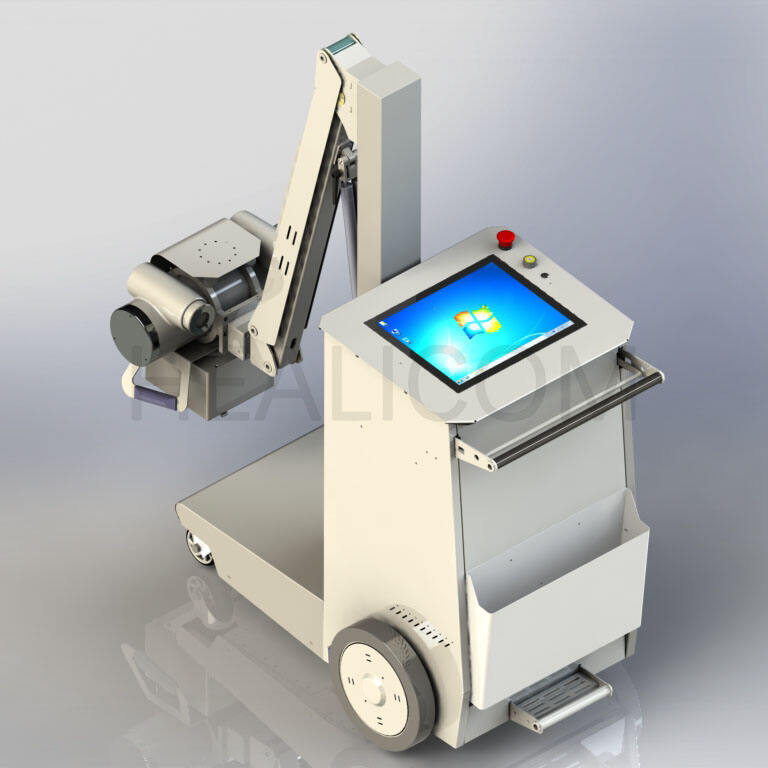

HFX-20D The mobile DR is small in size & light in weight, can reach any needed place, and is suitable for intensive bedside filming in isolation wards (especially ICU, Emergency, Isolation areas) to avoid patient movement.
Power: 20KW
Voltage: AC220V/110V ± 10%
kV Range: 40～125kV
mA Range: 10～320mA
mAs Range: 0.5-320mAs
Working Frequency: ≥100kHz
Exposure time: 0.002S～6.3S
Focus: 0.6 mm / 1.2 mm

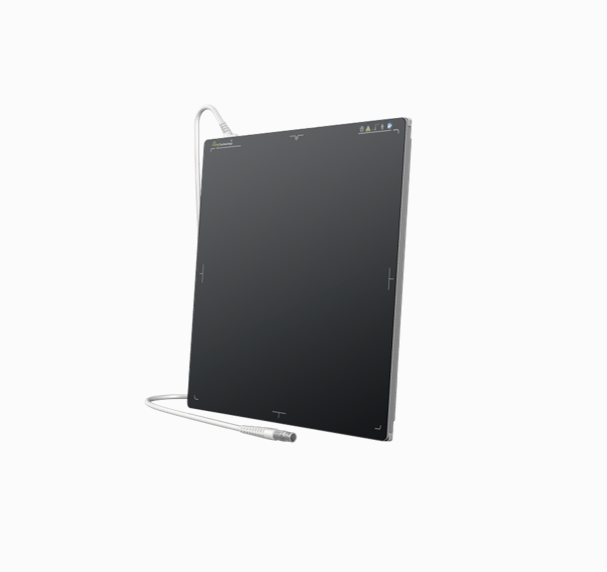

Model: Venu1717X
Dimension: 460mm×460mm×15mm
X-ray Energy: 40-150kV
Scintillator: CsI:TI
Pixel Size: 139um
Fill Factor: 70%
Effective Array: 3072×3072
Effective Area (H × V): 427mm×427mm
Spatial Resolution: Min. 3.4 lp/mm
Image Transfer: Gigabit Ethernet
Company Profile
FAQ
1. What about the price level? We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts. 2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same? As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper. 3. What is time of delivery? Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible. 4. What about quality assurance? We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. 5. What is payment terms? T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
