HICT 338 Enterprise CT Scanner: 64-Row, Low-Dose, CE-Certified

ALL PRODUCTS

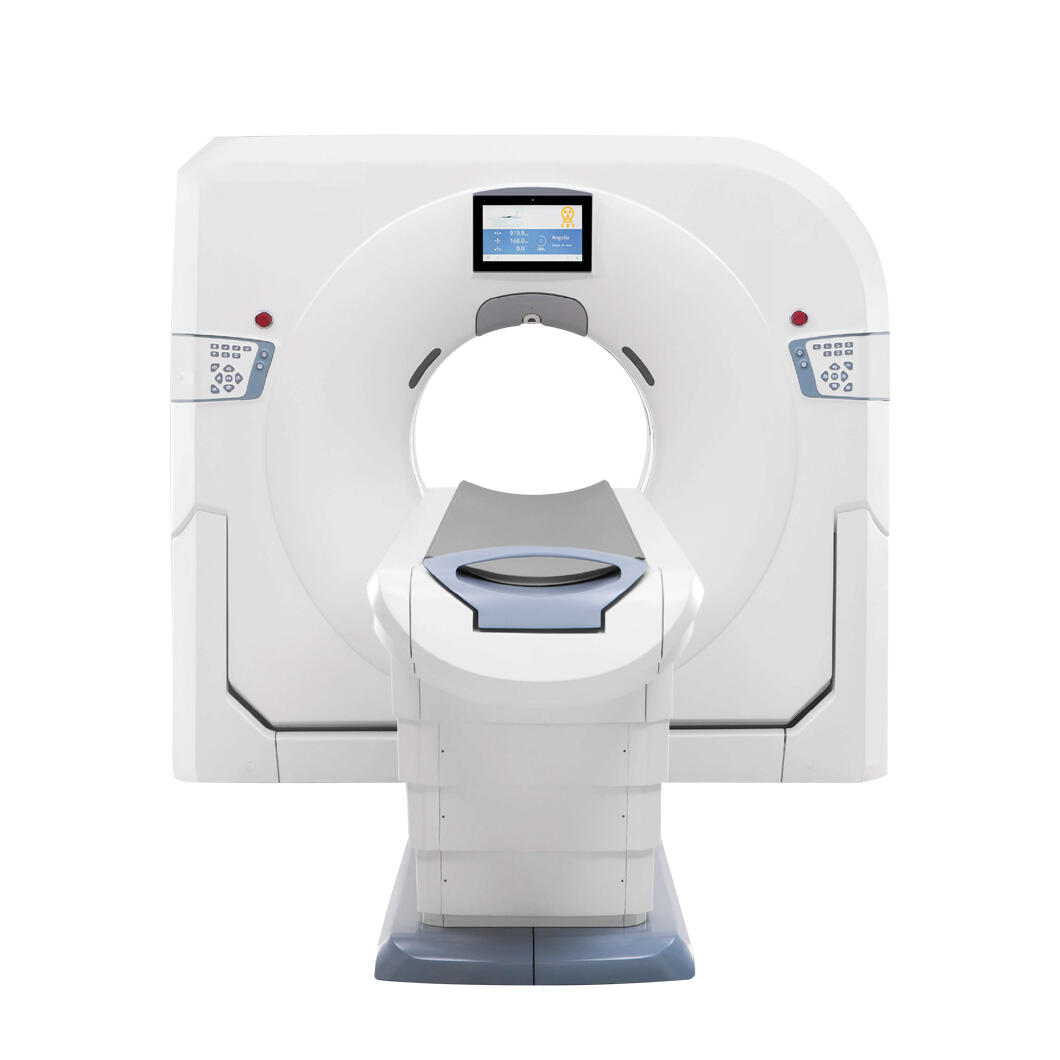

HICT 338

Overview
Recommended Products

Products Description

Perfect size of 0.6mm slice thickness detector
Advance iterative reconstruction based on the noise model.
3.5M metal high capacity X-ray tube
350mA tube current selection
32 slice fast and precision scan
70kV advanced low dose scan
Efficiency from positioning to post-processing.

High definition imaging(20 Lp/cm)with minimum dose.
Easy to use with large 76 cm scan bore and 250kg patient couch.
32-row submillimeter detector with 20mm coverage realize fast scan and high quality images
5.3MHU/8.0MHU tube with 50kW/80kW generator provide long life and high profit for hospitals.

More Clarity with Less Dose
76cm large scan space provides greater openness for easier patient position.

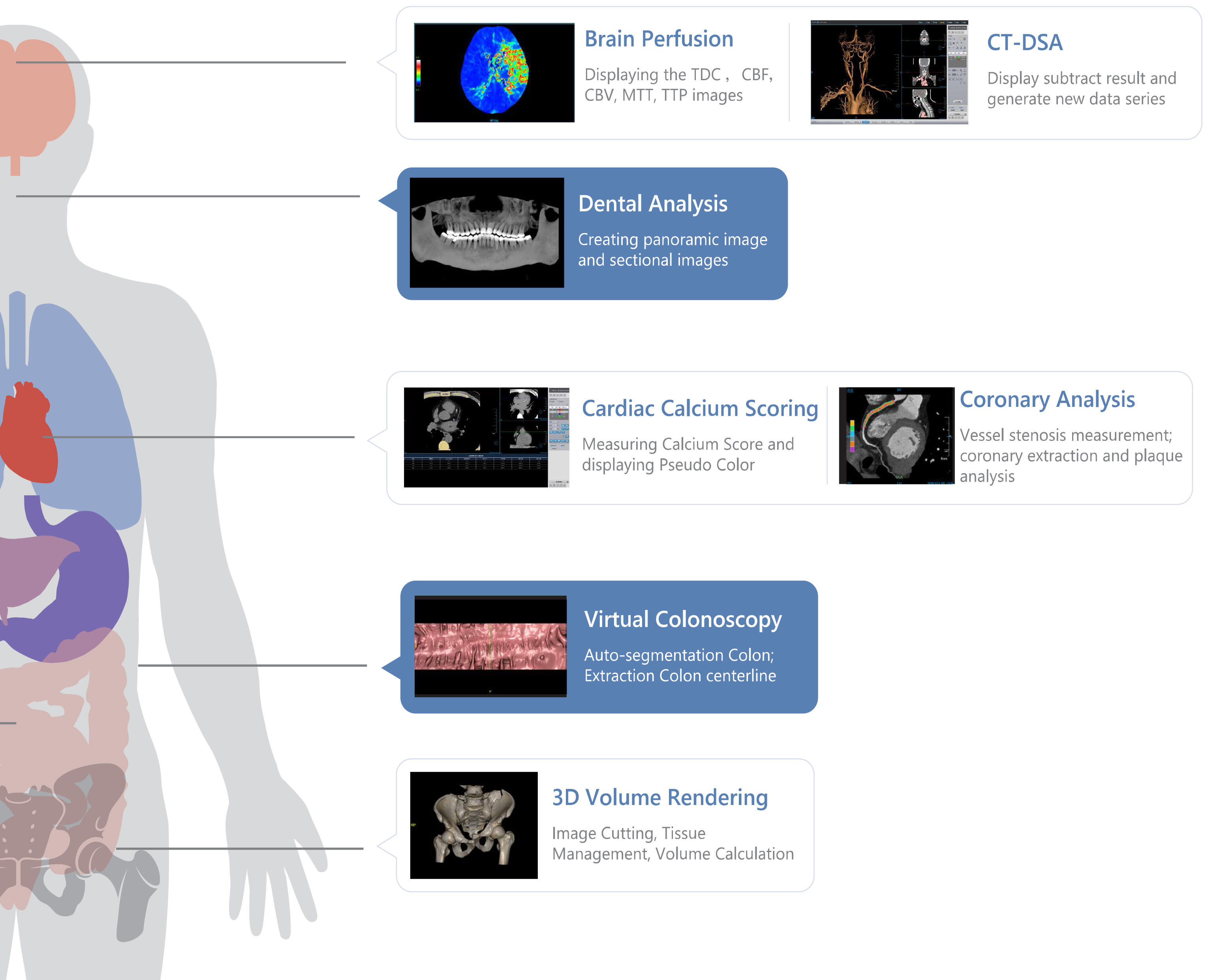

64 Rows/128 slice imaging platform generates full applications
Fast workflow and excellent visualization solution
Significant dose reduction and excellent clinical performance
Cardiac application package

System	Width	Length	Height	Weight
System	Mm	Mm	Mm	Kg
Gantry	1970	940	1850	1200
Table	580	2400	950	350
Console	400	630	630	50
Distributor	810	435	665	200

Working Environment & Siting Requirement
Temperature
Scan room:20 ～ 26 ℃ Operation room:18 ～ 28 ℃
Humidity of Scanning room :
Scan room 30% -70%,Control room 20%- 80%
Atmospheric Pressure : 70 kPa ～ 106 kPa
Power Supply Requirements:
Power Capacity ：50 kVA
Input Voltage :Equipped with transformer,
Power supply option: 380-480VAC
Voltage Variation : Tolerance < ±5%
Frequency ：50Hz/60Hz±1Hz
