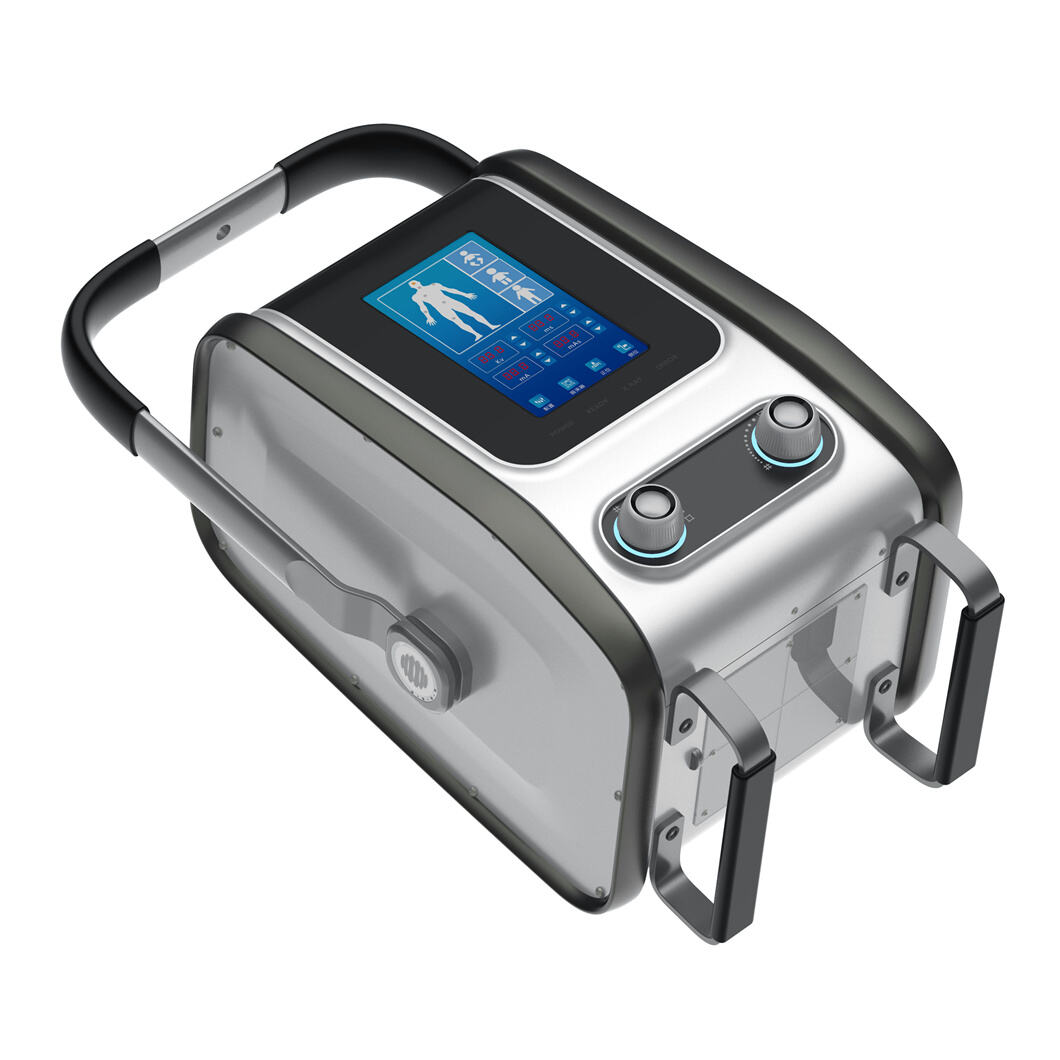

Products Description
Product Features
Highlight
5KW / 8.0KW extra power.
Support battery-powered and 220VAC.
Multipurpose, lightweight.
Ideal for home medical care or emergencies.
Application scene
Emergency
Indoor shooting
Oversea voyage

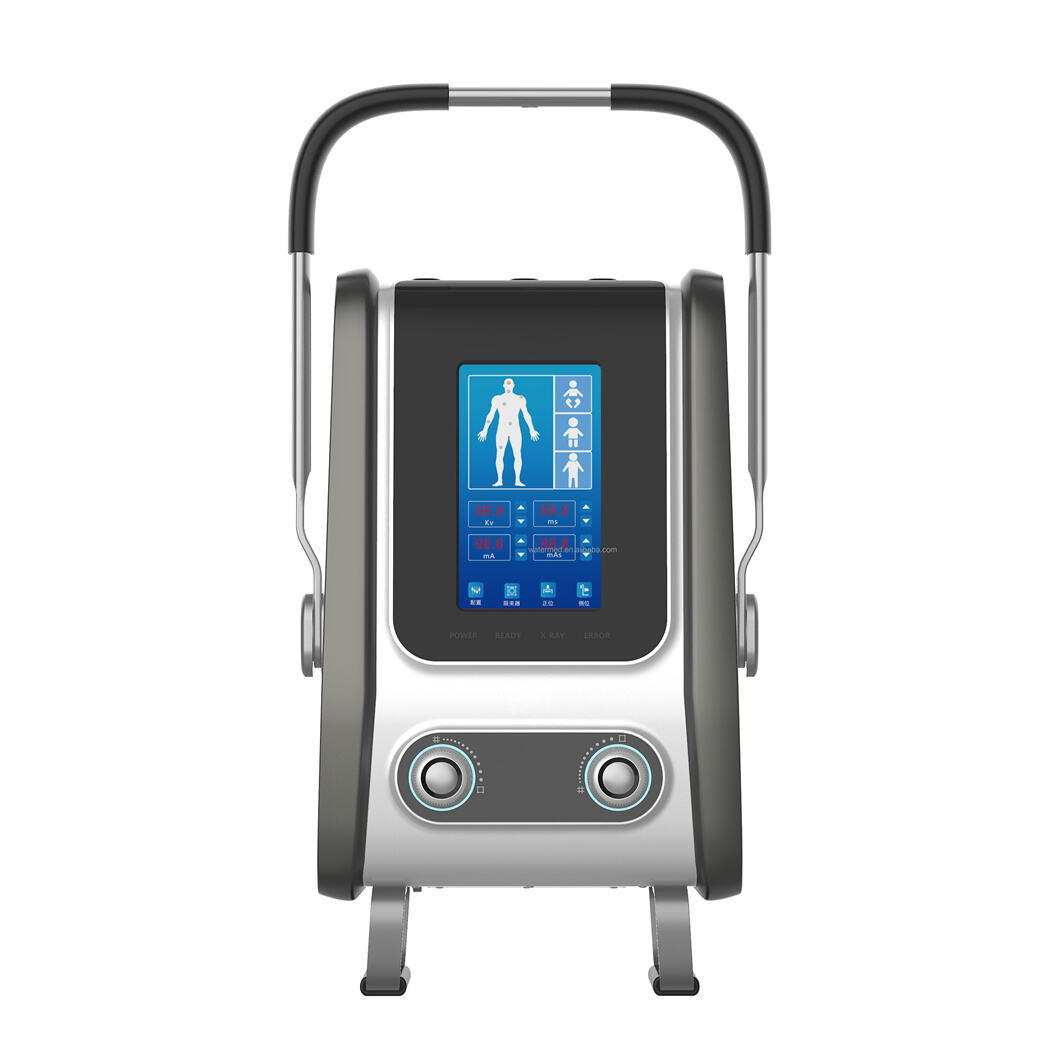

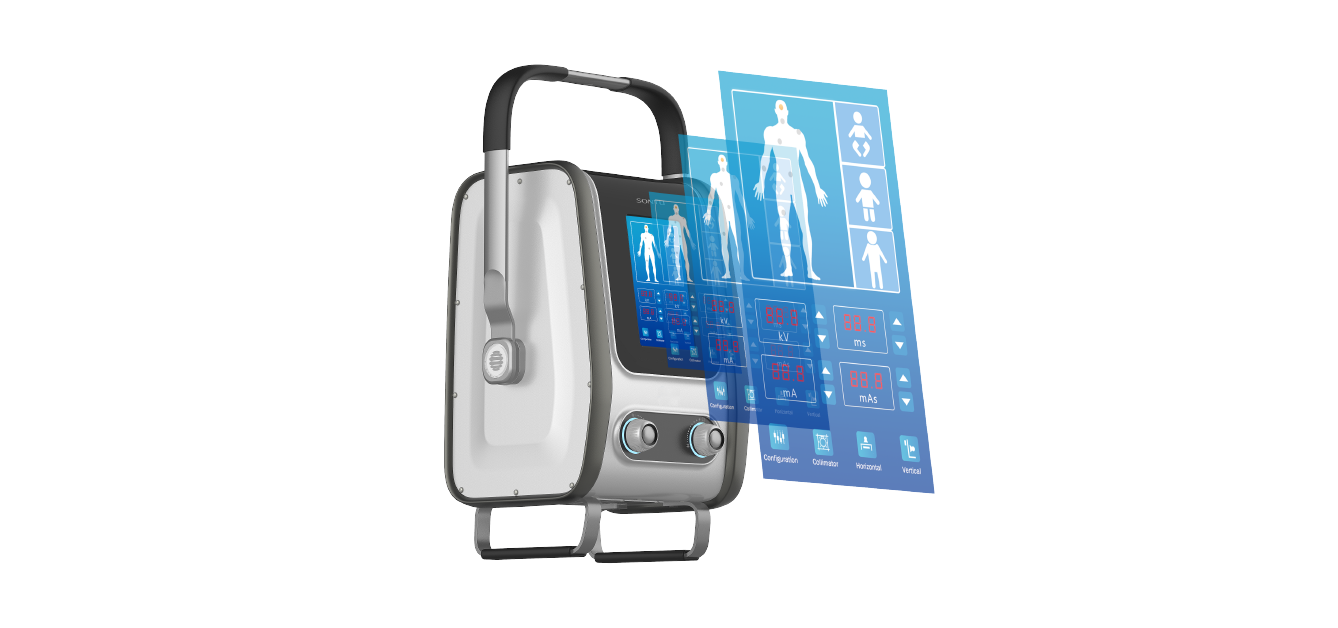

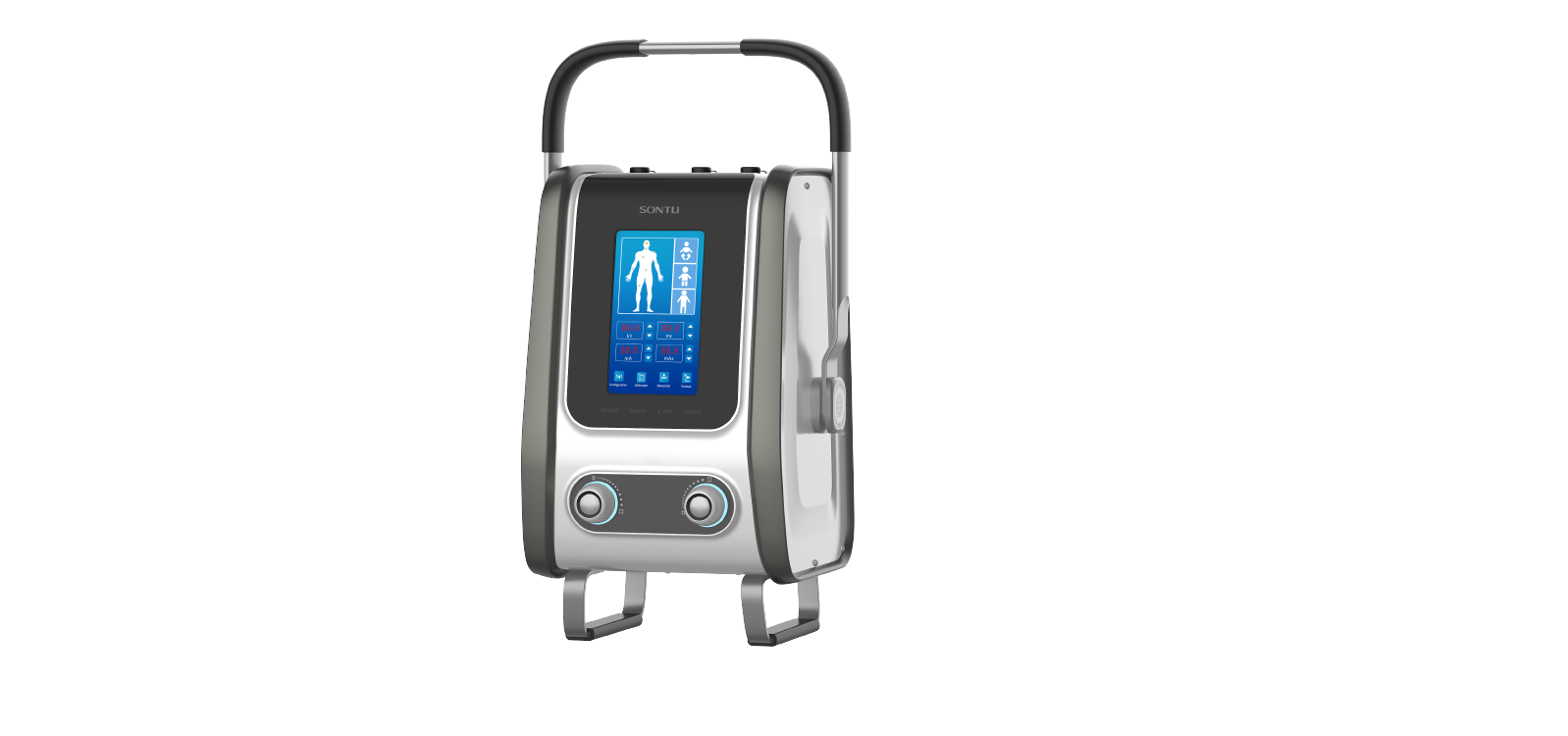

Touch screen
Integrated 7 Inches capacitive display.
Touch screen APR design, more convenient application.
Support MultiTouch.
Wearproof, long service life and low maintenance costs.

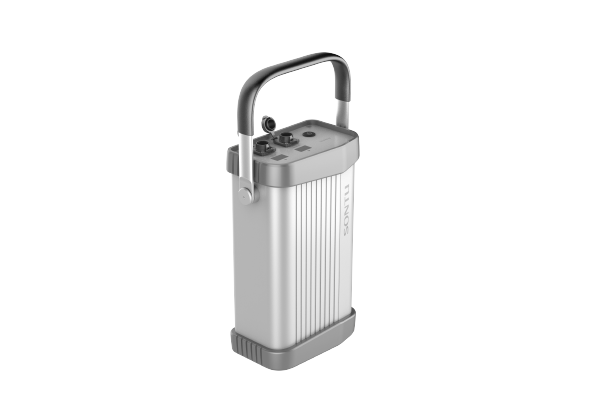

Portable Battery (Optional)
SONTU25-Bat10------10AH
Integrated design, small dimension, light weight and large capacity.
The fully charged battery can take 200 images.
Support 110V, 220V charging, convenient and fast charging.
Dimension: 111mm188mm486mm.
Parameters
| Parameter | SONTU100-POR（5KW/8KW） |
|---|---|
| kVp Voltage | 40-125kV（Increasing rate 1kV） |
| mAp Current Gears | 5/0.6/3/8/10/12.5/16/20/25/32/40/50/63/80/100/125/160 |
| Exposure Time | 3.2ms-10s |
| mAs | 0.1-250mAs |
| Working Frequency | 100kHz |
| X Ray Tube | 0.6-1.5mm(40KHU 5.0kW)/0.6mm-2.8mm(76KHU 8.0kW) |
| APR | 20 Programs |
| Power source | 110VAC/220VAC-240VAC/ Battery (Optional） |
| Weight | 18.6Kg |

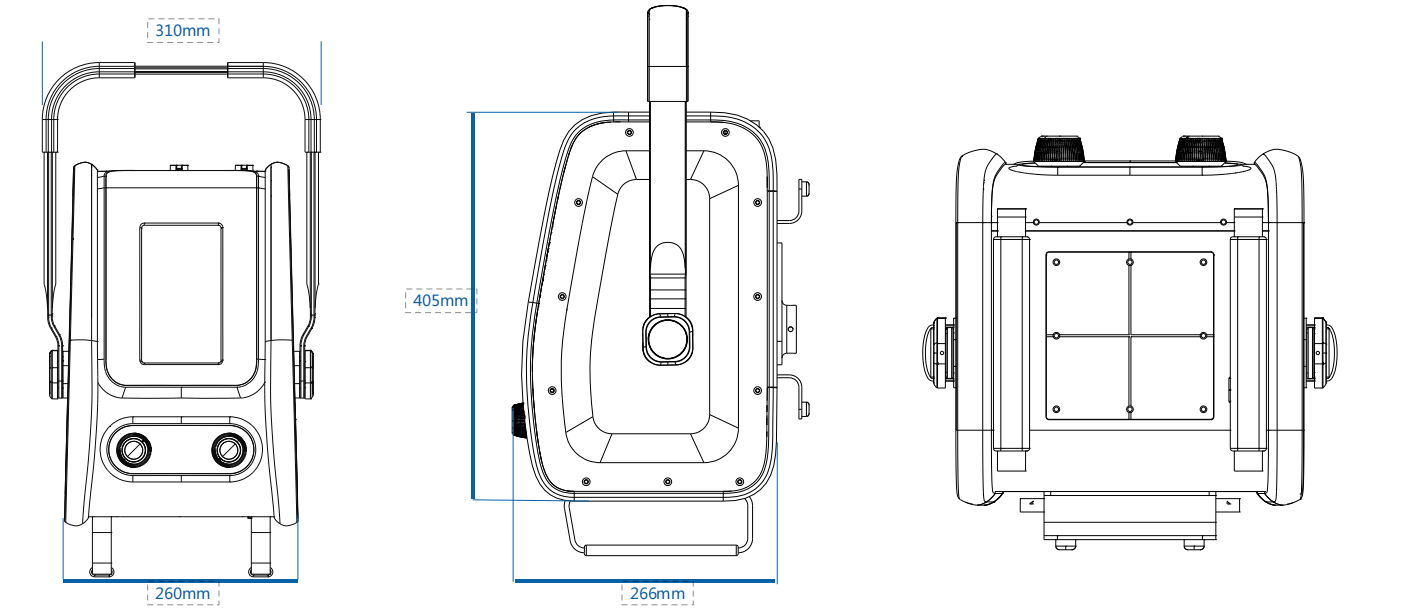

| Dimension | 310mm ×266mm×465mm |
| Note | External battery (Optional) |
Workshop
Customer Feedbacks
Related Products
Company Profile
FAQ
1. What about the price level? We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts. 2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same? As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper. 3. What is time of delivery? Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible. 4. What about quality assurance? We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. 5. What is payment terms? T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
