Best Selling Ophthalmic Surgery Microscope Eye Operation Microscope Mobile Surgical Microscope for Ophthalmology
- Overview
- Recommended Products
Products Description

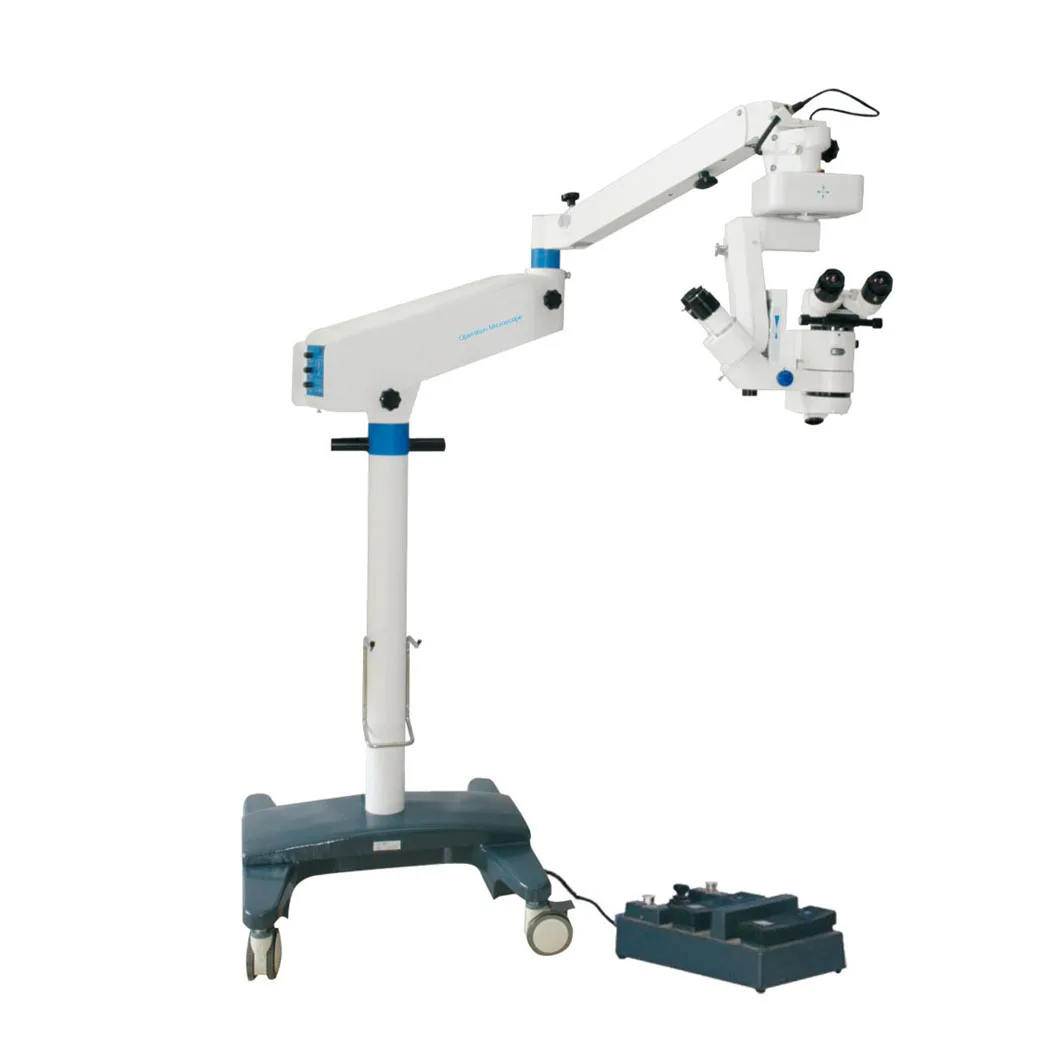

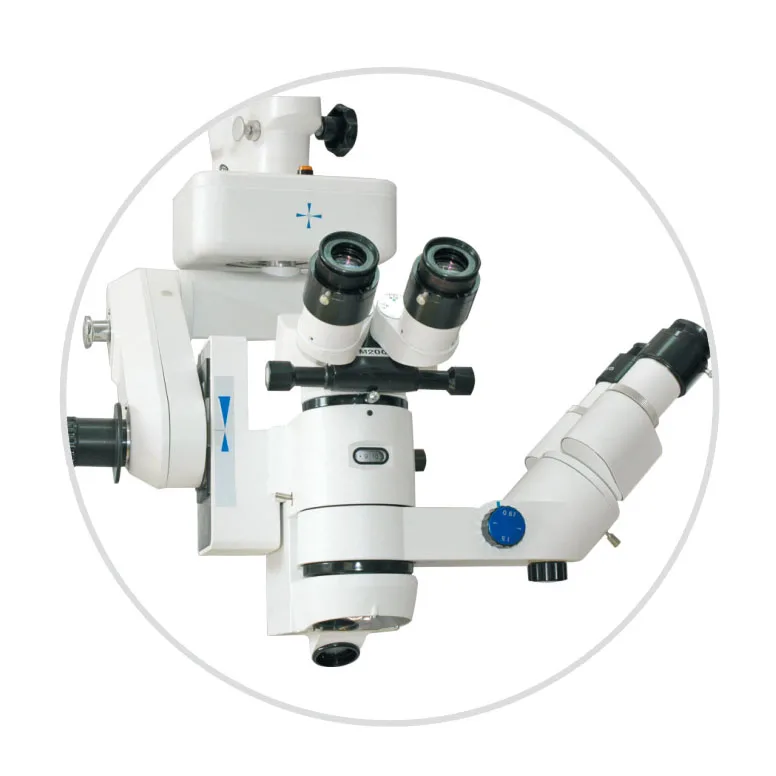

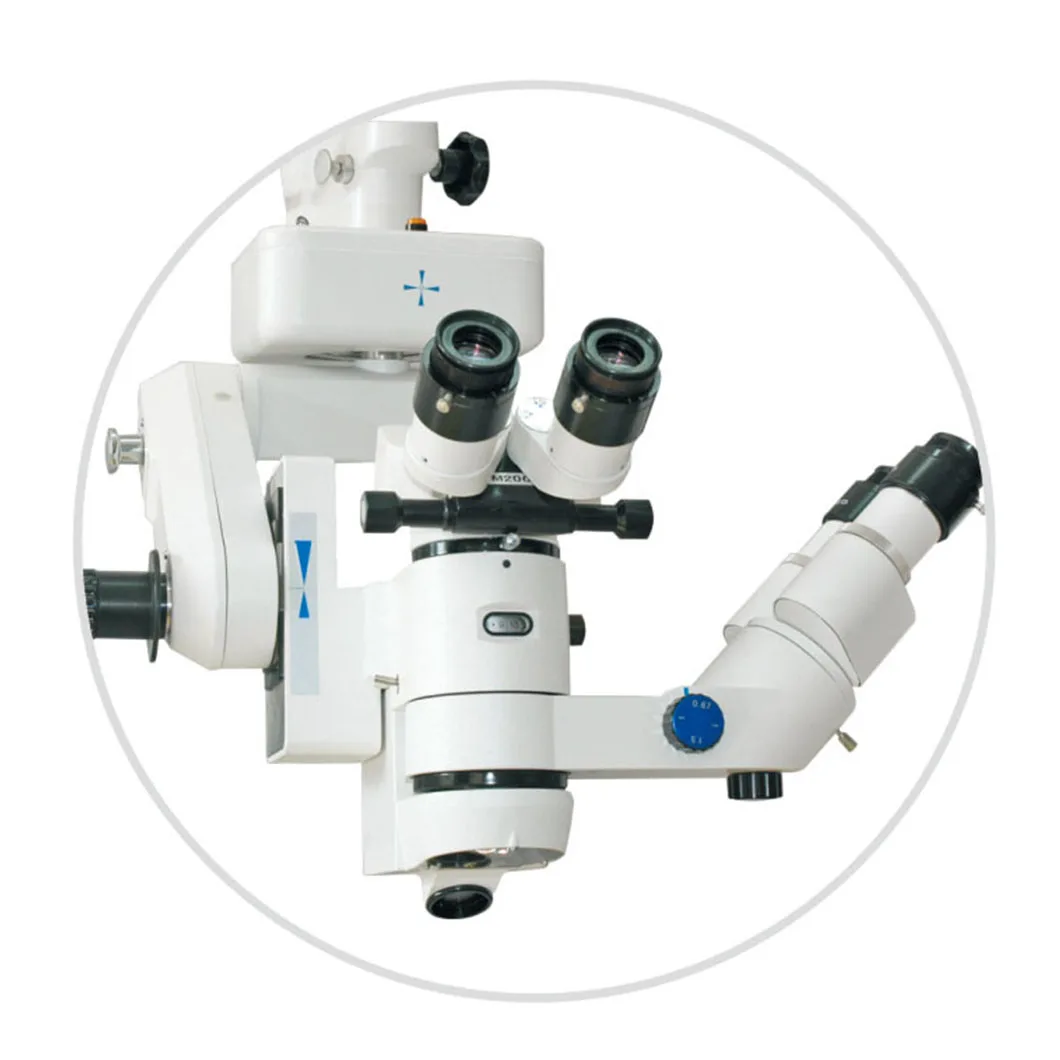

HSOM2000D Surgical Microscope
Features:
• Germany Schott optics ensures the surgeon bright, balanced, and fine observation.
• Apochromatic technology used in the optical design, ensures coaxial light focus and provides clearer field of view.
• Lock device under the microscope arm ensures the safe distance and prevents accidents from happening.
• Independent electrical control box with the function of automatic diagnosis, which is very convenient for installation and repair if necessary.
Technical Specifications |
||
Eyepiece Magnifications |
12. 5X |
|
Objective Lens |
F=200mm |
|
Working Distance |
170mm |
|
Magnification for Main Microscope |
4.6X ~ 27X motorized and manual control continuous magnification |
|
Magnification for Assistant Microscope |
6X. 10X. 16X |
|
Diameter of Field |
Φ.46mm~Φ85mmt |
|
Adjustable Diopter |
±5D |
|
Adjustable Range for Pupil Distance |
55mm ~ 75mm (main microscope is 45mm ~ 80mm) |
|
Focus for Assistant Microscope |
≥ 30mm |
|
Illumination Source |
12V/100W, cold reflection halogen lamp for medical use |
|
Illumination Type |
6°+0° coaxial illumination of cold light source, 26° oblique illumination |
|
Coaxial llumination |
≥ 60000lx, 1~ 9 level,panel operated |
|
Oblique llumination |
≥ 60000lx, 1~ 9 level, panel operated |
|
Reaching Radius of Arm |
1230mm |
|
Adjustable Vertical Range |
880mm ~ 1420mm |
|
Fine Focusin Seed and Rane |
≤ 2mm/s, 50mm |
|
Speed for XY and Range |
≤2mm/s, 50mm X 50mm |
|
Input Voltage |
AC100V-240V (50/60Hz) |
|
Power |
170VA |
|
Packing Volume |
0.756m³, 5cartons |
|
Total Gross Weight |
215kg |
|
Customer Feedbacks
Related Products
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
