Medical Radiology Diagnostic Equipment Portable 5 kW High Frequency Digital Digital X Ray Machine
- Overview
- Recommended Products
Products Description
Portable High Frequency 100mA 5KW X-ray Machine
Application
The 5 kW digital portable high frequency x ray machine for medical diagnosis, use for human limbs checking, diagnosing, especially used in the wild flow places, battlefield, playground, pet clinic, rescue diagnosis etc.
Features
1. Deft and concise
2. LCD Touch Screen
3. 48 kinds of presupposed anatomy memory pattern choices
4. Accuracy control method of simulation and double digital loops
5. High precision control of tube voltage, tube current
6. Failure self-protection, self-diagnosis

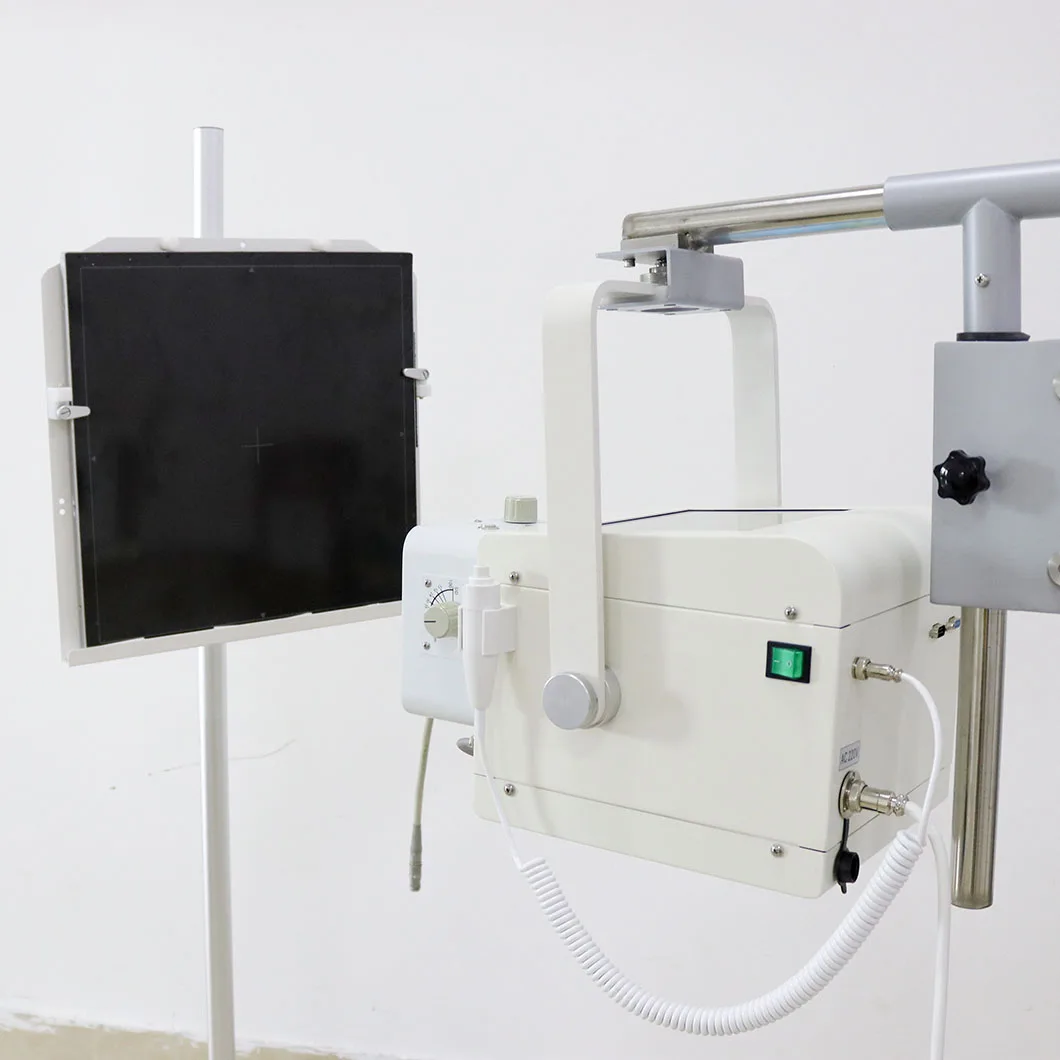

Add Flat Panel Detector & Film Printer, updated to Digital X-ray System
Mars1717V Wireless 17*17 Inch X Ray Detector
X-ray Film Printer
Venu1717X Wired 17*17 Inch X Ray Detector
Mars1417V Wireless 14*17 Inch X Ray Detector
Technical specifications |
||
Model |
HFX-05 |
|
Input power |
Voltage: AC220V±22V Frequency: 50/60Hz±1Hz Power capacity: ≥5kVA; Inner resistance≤0.5Ω |
|
Maximum output power |
P = 110kV×50mA = 5kW |
|
Nominal power |
50kV, 100mA, 0.1s, 5kW |
|
kV adjusting range |
40kV~110kV, step adjustment 1 kV |
|
mA adjusting range |
20mA~100mA |
|
mAs adjusting range |
0.2mAs-200mAs, shifted adjustment |
|
Exposure time |
0.01S~4S |
|
X-ray tube |
Focus:0.6/1.8mm; Anode heating capacity:40KJ |
|
X-ray machine size |
290×260×230mm |
|
Weight |
18.8kg |
|
Clinical Images
Workshop
Customer Feedbacks
Related Products
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
