Products Description

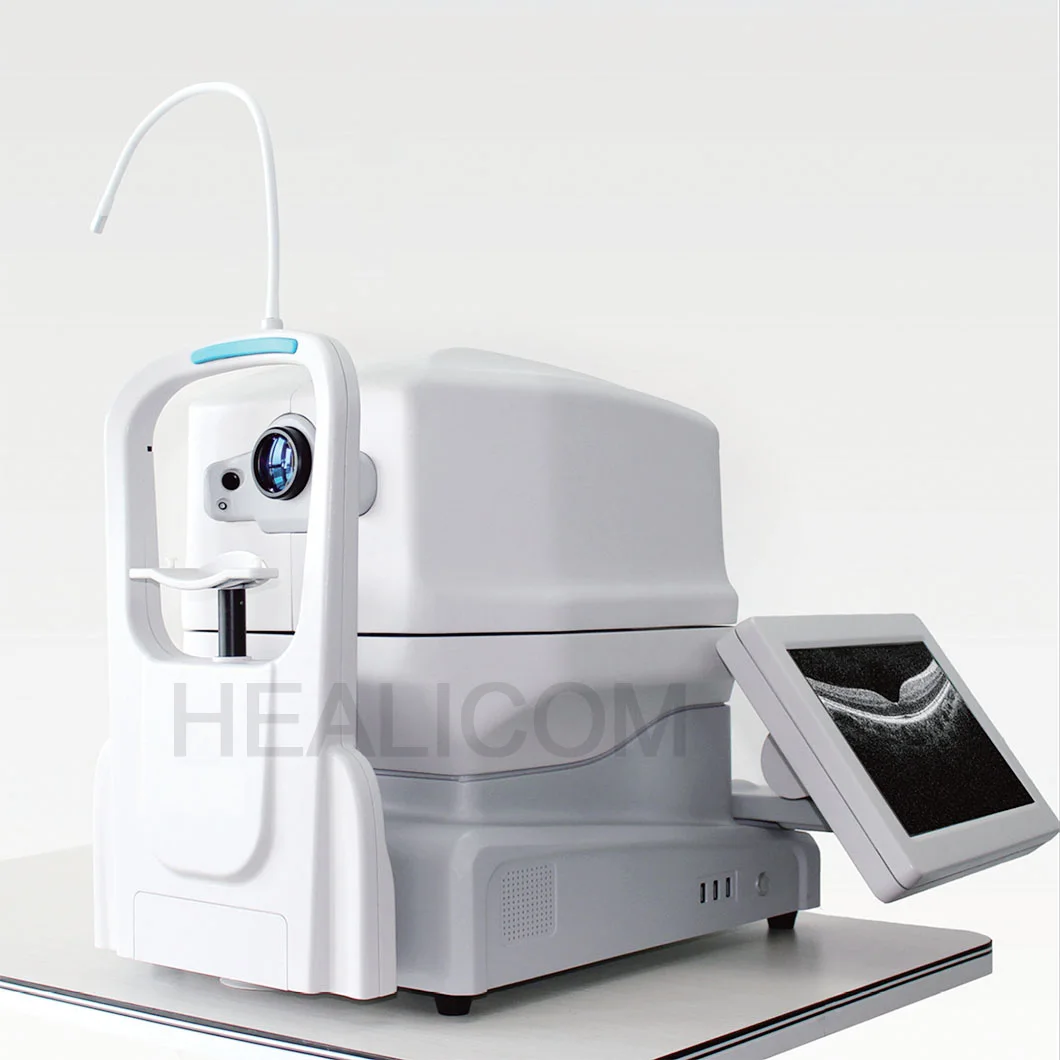

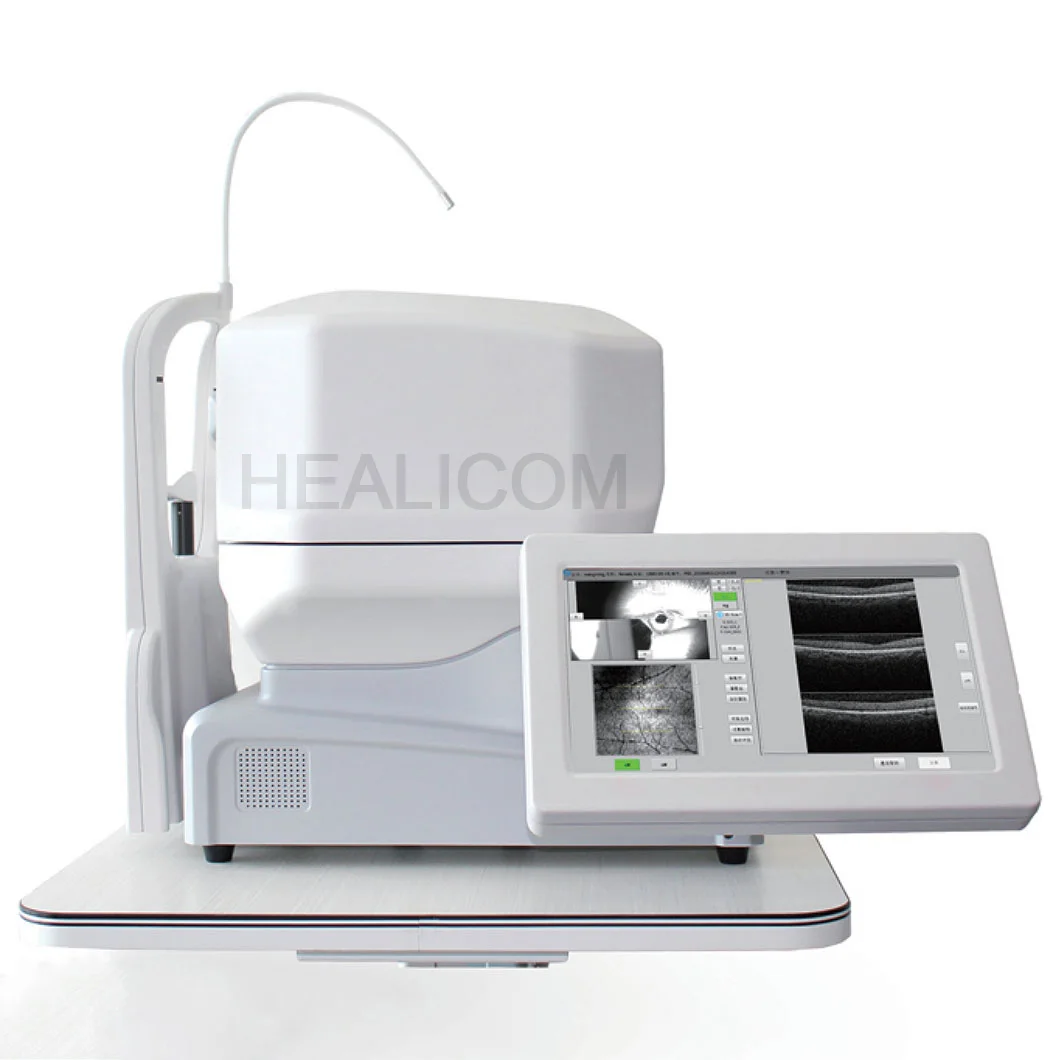

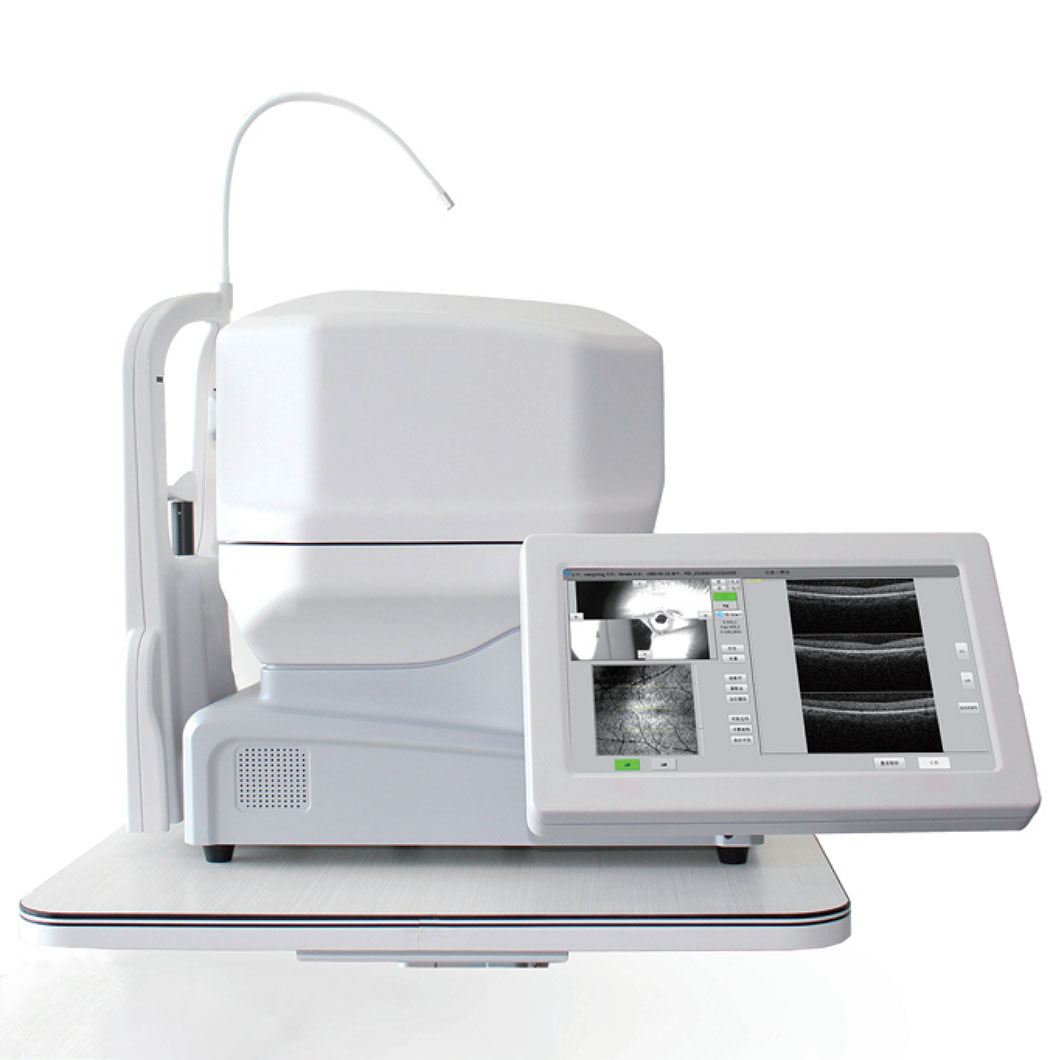

Optical Coherence Tomography Ophthalmic OCT Machine

Compact Design
Everything is inside this compact body. No external computer is needed. Plug in the power cable, then you are ready to go.
PC Inside
Data acquisition and processing are accomplished by the internal computer. The data can betransported via ethernet or external harddrive. Peripheral devices, such as keyboard or printer, can be connected to the computer ports.
Easy Installation
No complex connection or setup. Compact body can fit in even small space.

Technical Specifications |
||
Methodology |
Spectral domain OCT |
|
Axial resolution |
≤ 6 um (in tissue) |
|
Transverse resolution |
≤ 20 pm (in tissue) |
|
Scan depth |
≥ 2.5 mm (in air) |
|
Scan range |
≥ 6mm |
|
Scan speed |
≥ 24,000 A-scans/sec, up to 36,000 A-scans/sec |
|
Scan modes |
3D, Raster, Circle |
|
Fundus image |
OCT en face |
|
Focus adjustment |
-15D to +15D |
|
Pupil diameter |
≥ 3mm |
|
OCT light source |
840nm SLD |
|
Optical power |
750 uW (at cornea) |
|
Operation |
13.3" touch screen, optional external mouse or keyboard |
|

Customer Feedbacks

Related Products
Company Profile




FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
