Products Description

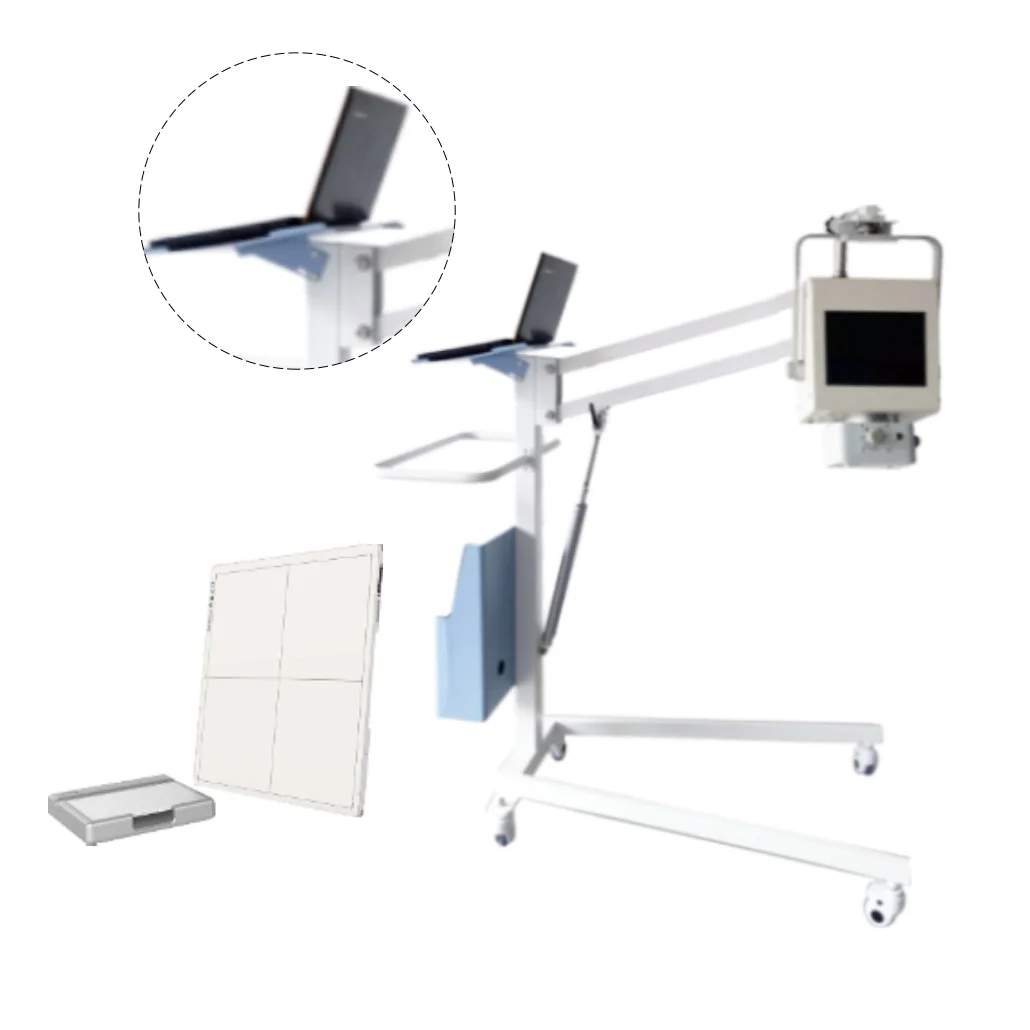

HFX-05E Digital Portable X-ray System Machine
Application
The 5 kW digital portable high frequency x ray machine for medical diagnosis, use for human limbs checking, diagnosing, especially used in the wild flow places, battlefield, playground, pet clinic, rescue diagnosis etc.
Features
1. Deft and concise
2. 6 periods of digital LED display
3. 48 kinds of presupposed anatomy memory pattern choices
4. Accuracy control method of simulation and double digital loops
5. High precision control of tube voltage, tube current
6.Failure self-protection, self-diagnosis
Complete software performance and Connection
Model |
HFX-05E |
Input power |
Voltage: AC220V ± 22V, frequency: 50/60 Hz±1Hz;
Power capacity: ≥5kVA; Inner resistance≤0.5Ω
|
Maximum output power |
P =100kV×50mA=5kW |
Nominal power |
50kV，100mA，0.1s，5kW |
Frequency |
≥40kHz |
KV adjusting range |
40kV～110kV, step adjustment is 1 kV |
mA adjusting range |
20mA～100mA |
mAs adjusting range |
0.2mAs-200mAs,shifted adjustment |
Exposure time range |
Focus:1.8mm；
Anode heating capacity:40KJ
|
X -ray tube |
Focus:1.8mm；
Anode heating capacity:40KJ
|
Size |
290×260×230 mm |
Weight |
18.8kg |
Accessories |
1.Remote control 2.Aluminum box |
Clinical Images
Related Products
Customer Feedbacks
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
