Respiratory Rate & ETCO2 Measurement Surgical Clinical Capnograph CO2 Monitor for OR & Critical Care
- Overview
- Recommended Products
Products Description

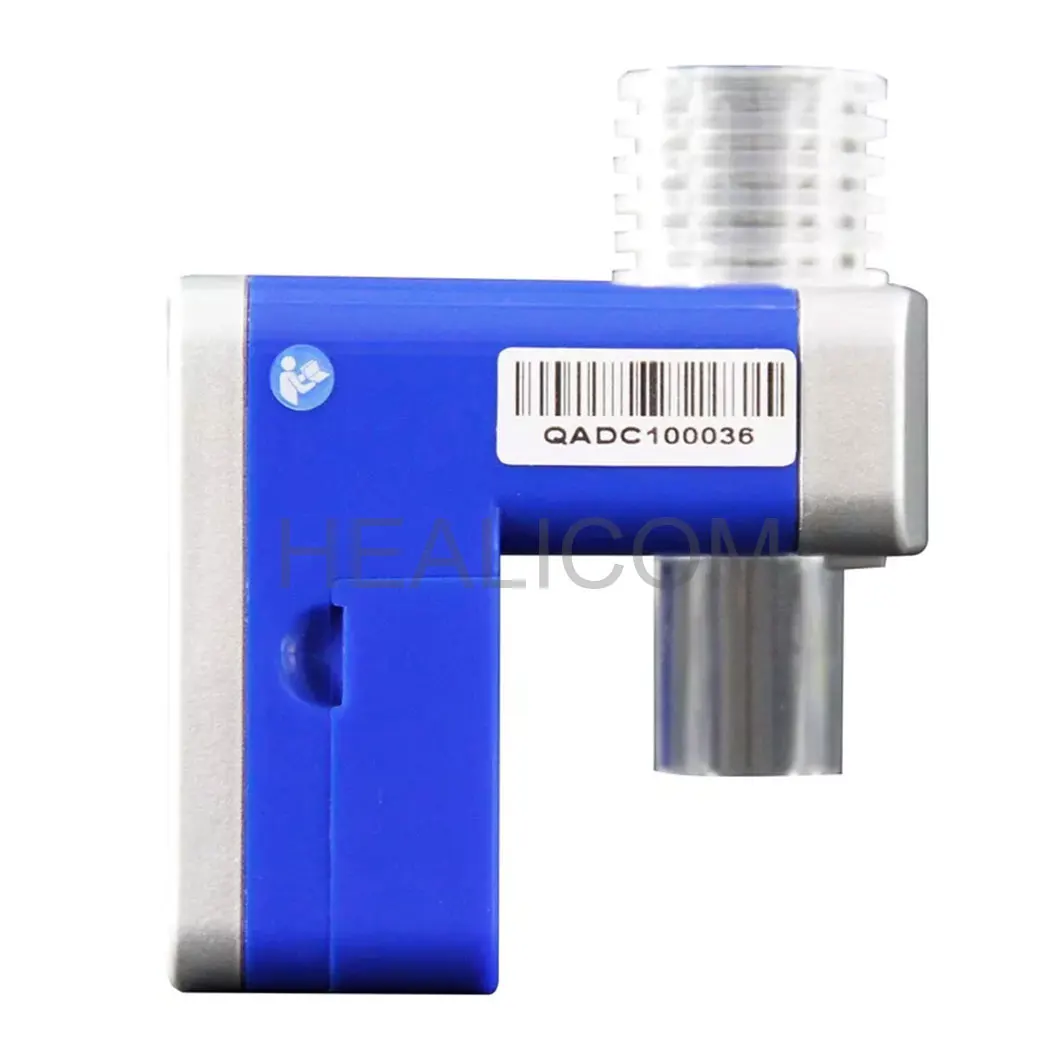

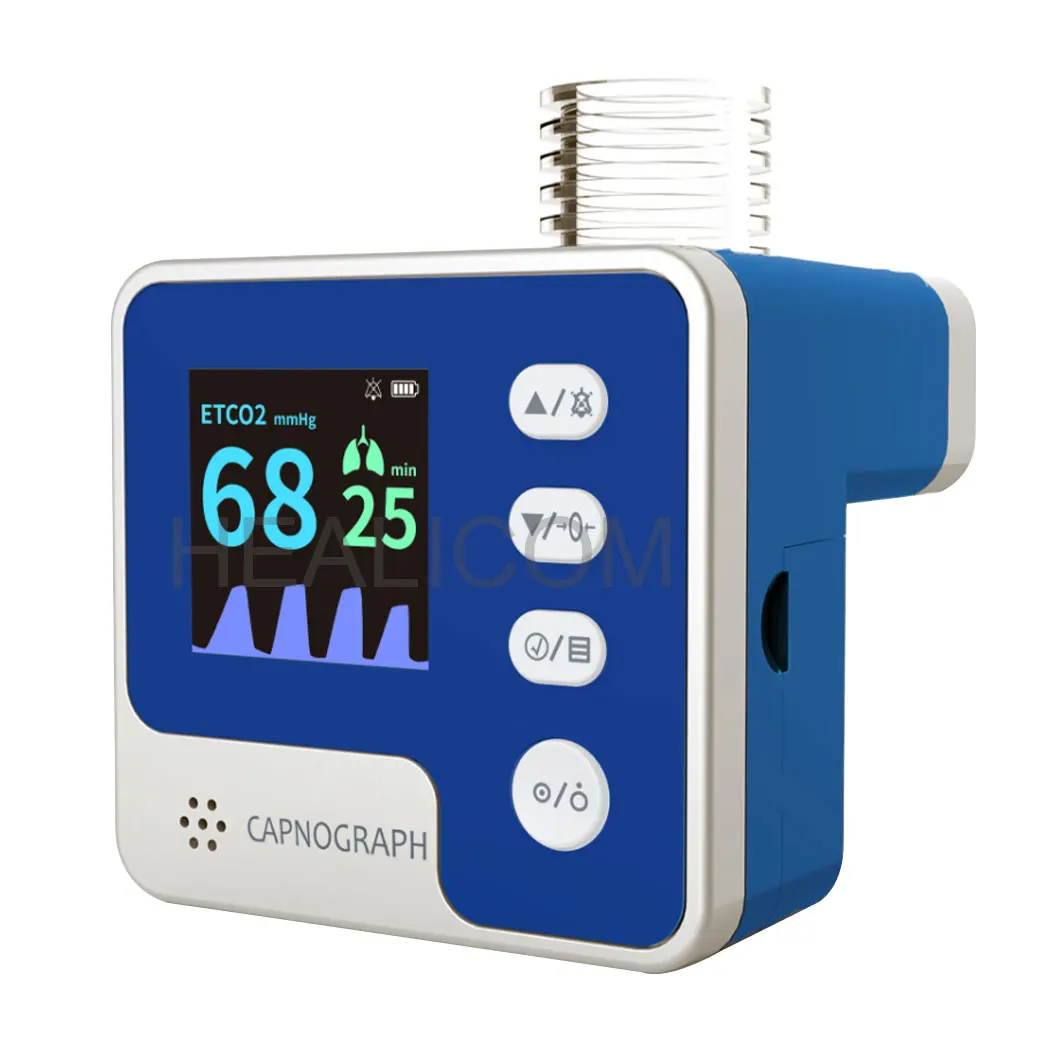

New Product 1.3 Inch Color LCD Screen Portable Respiration Rate Measurement Function Neonate Patient Monitor
Capnograph adopts mainstream method to measure the end-tidal carbon dioxide, airway respiration rate and other parameters. it candetect pulmonary ventilation function and reflect the circulation and pulmonary blood flow condition, as well as indirectly refect the alveolar ventilation, which is applicable for use in pre-hospital emereency transfer, emergency department, ICU, operating room, neonatology, respiratory department and other occasions. The application population is adult, pediatric and neonate patients.
Features
· End-tidal CO2 measurement function
· Respiration rate measurement function
· Over-limit alarm function for End-tidal CO2 and respiration rate
· Low battery alarm function

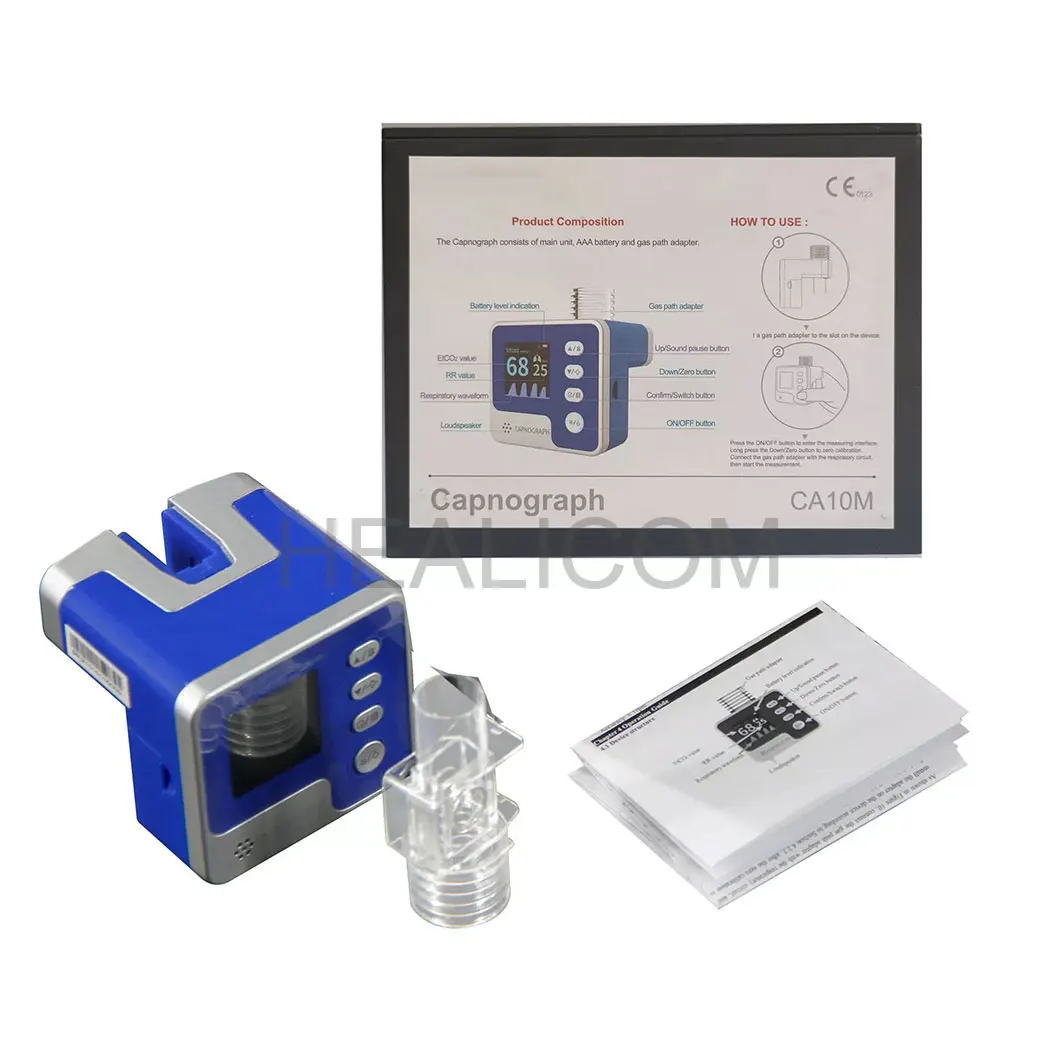

Accessories
· User Manual
· Adult gas path adapter
· Neonate gas path adapter(optional)
Selling points analysis

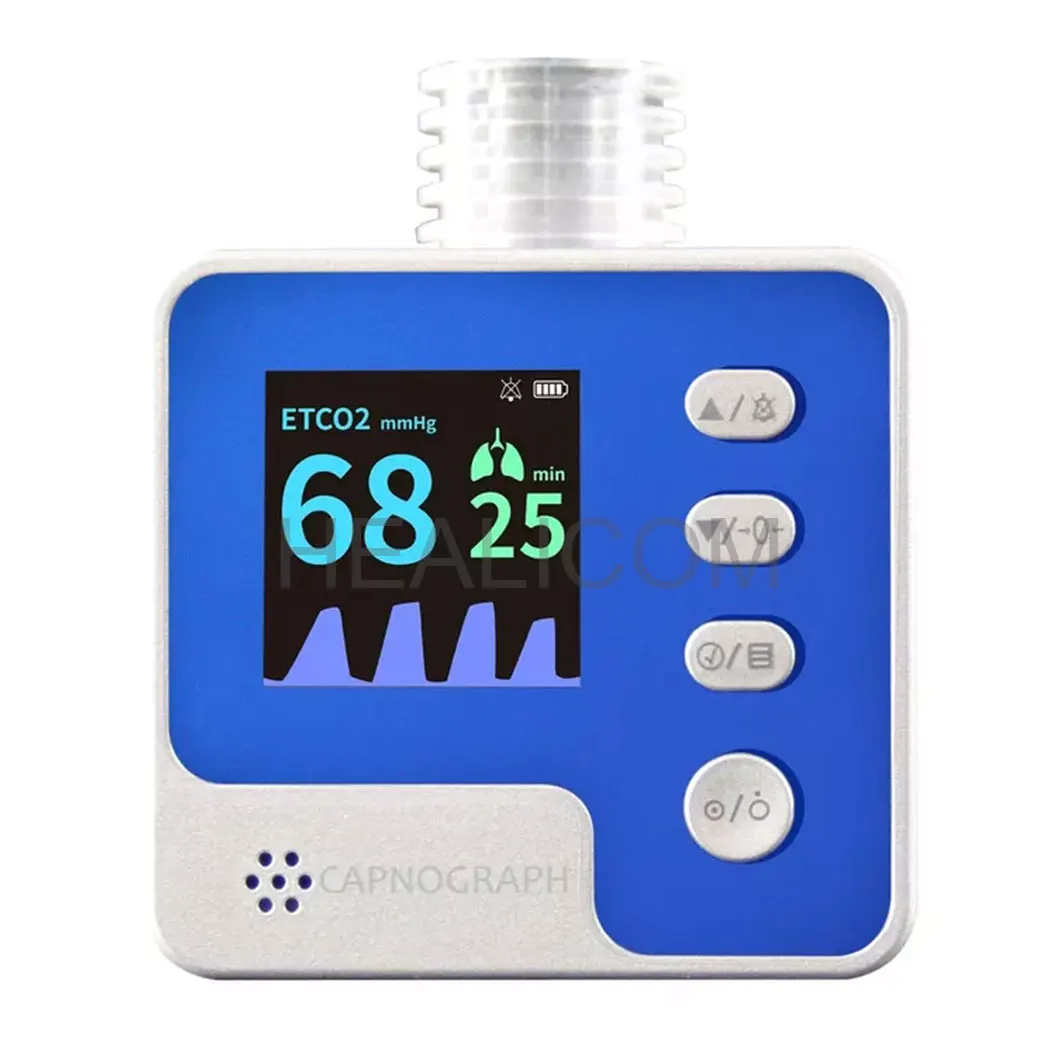

· 1.3" color LCD screen, user-friendly interface, easy to operate
· Compact and portable design
· Visual and audible alarm system
· Alarm limits and unit can be set
· With automatic compensation of atmospheric pressure
· Suitable for use in medical transfer, emergency, surgery, monitoring and other situations
Performance |
||||
End-tidal CO2 measurement |
||||
Measurement range |
0 ~150mmHg |
|||
Resolution |
1mmHg |
|||
Accuracy |
0~40 mmHg |
±2mmHg |
||
41~70 mmHg |
±5% ofreadings |
|||
71~100 mmHg: |
±8% ofreadings |
|||
101~150 mmHg: |
±10% of readings |
|||
Respiration rate measurement |
||||
Measurement range |
2rpm~150rbpm |
|||
Resolution |
1rpm |
|||
Accuracy |
±1rpm |
|||
Safety characteristic |
||||
Device type |
internally powered equipment |
|||
Degree of protection against electric shock |
type BF applied part |
|||
Degree of protection against ingress of liquid |
lPX2 |
|||
Physical characteristic |
||||
Dimension |
55x52x59mm |
|||
Weight |
97g(with batteries) Working environment |
|||
Temperature |
5°C~40°C |
|||
Relative humidity |
30%~75%, no condensation |
|||
Atmospheric pressure |
700hPa~1060hPa |
|||
Power supply |
DC 3V (2 AAA dry batteries) |
|||
Input power |
＜1VA |
|||
