- Overview
- Recommended Products
| Detector | Dynamic Flat Panel Detector | 1 | / |
| DXRay Diagnostic Workstation | 1 | / | |
| X-Ray System | High Frequency Generator | 1 | / |
| Control Console | 1 | / | |
| X-Ray Tube | 1 | / | |
| High Voltage Cables | 2 | / | |
| Collimator | 1 | / | |
| Motion Control System | UC-Arm Stand | 1 | / |
| Mobile Photography bed | 1 | / | |
| Platform | 1 | / | |
| Accessories | Grid | 1 | / |
| Report Laser Printer | 1 | / | |
| Microphone/Speaker | 1 | / |
HDR-580 SPECIFICATIONS
| Dynamic Flat Panel Detector | Dynamic Flat Panel Detector Type | a-Si Flat Panel Detector |
| Scintillator Screen Type | CsI (Cesium Iodide) | |
| Effective View Field | 17 × 17 in. (43 × 43 cm) | |
| Static Pixel Matrix | 3072 × 3072 | |
| Dynamic Pixel Matrix | 1536x 1536 | |
| Spot-Film Pixel Matrix | 3072x 3072 | |
| Pixel size | 140μm | |
| Spot-Film Preparation Time | ≤0.8s | |
| Output Grayscale | 16bit | |
| Acquisition Time | ≤5s | |
| Preview Image Time | ≤3s | |
| Maximum Spatial Resolution | 3.5lp/mm | |
| Detector Movement Range | 0 - 1000mm | |
| X-ray Tube | Tube Focus | 0.6mm/1.0mm |
| Max Output Voltage | 150kV | |
| Heat Capacity | 330kHU | |
| Speed of Rotating Anode | 9000r/min | |
| Output Power | 30kW/50kW | |
| Generator | Power Requirement | 380V with 3 Phases |
| Maximum Output Power | 50kW | |
| Output Voltage for Radiography | 40kV-150kV | |
| Output Voltage for Fluoroscopy | 40kV-120kV | |
| Output Current for Radiography | 10-650mA | |
| Output Current for Fluoroscopy | 0.5-6mA | |
| Range of mAs | 0.4mAs-630mAs | |
| UC Arm | Auto Brightness Selection Function(ABS) | - |
| One Key Positioning for Chest-Exam/Table-Exam by Electric Control. | - | |
| FID | 465~1700mm | |
| SID | 1000~1800mm | |

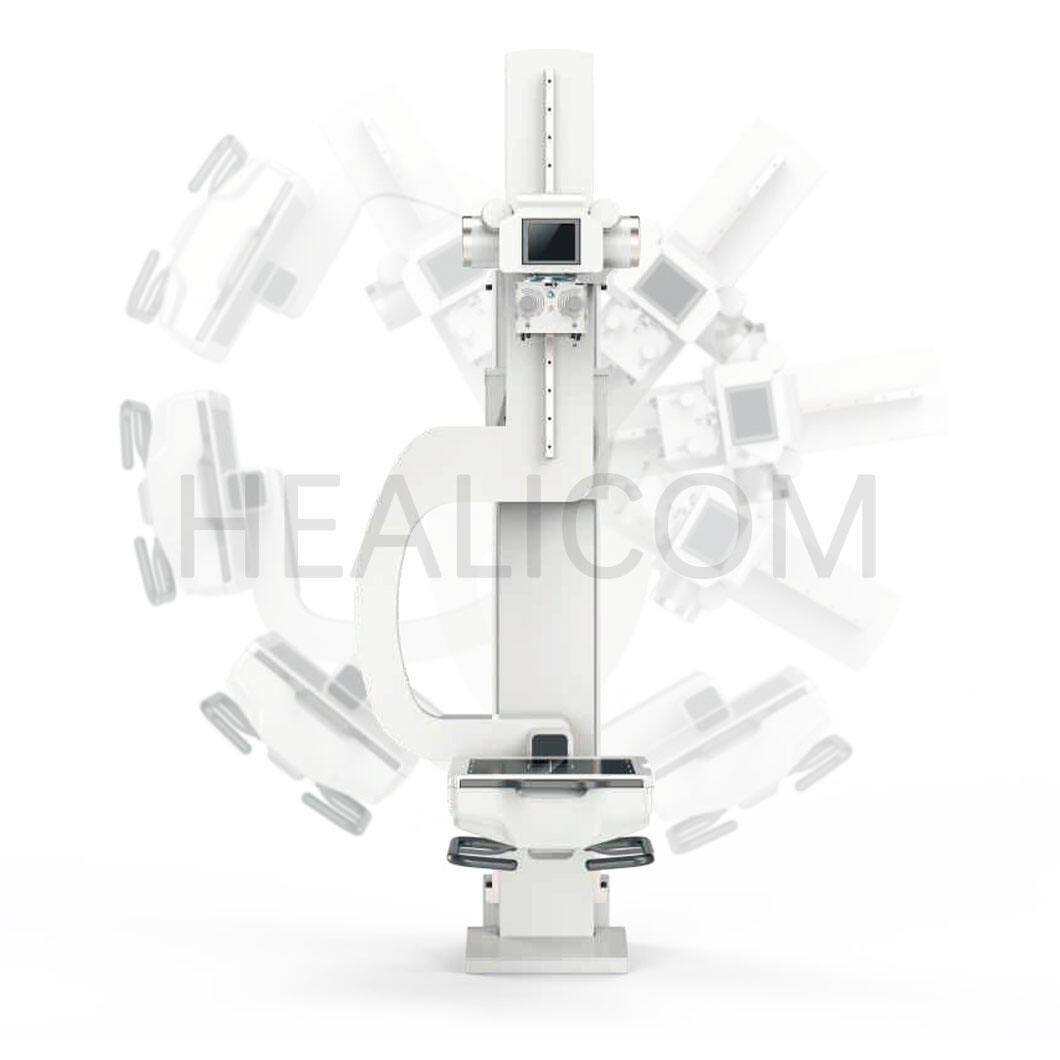

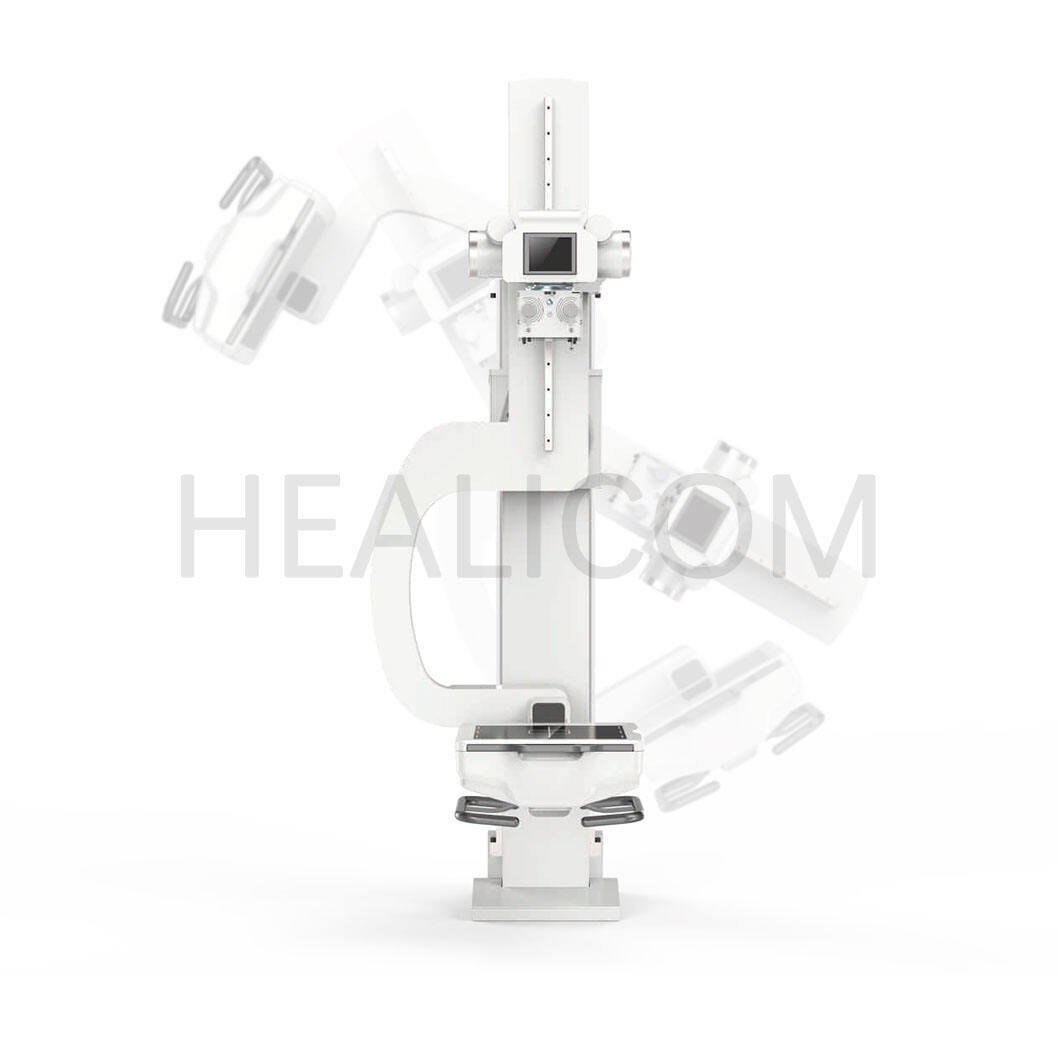

| Rotation Range of UC arm | -30°~+120° | |
| Rotation Range of Detector | -30°~+30° | |
| Length of High Voltage Cables | 8m | |
| Radiographic Table Size(optional) | 2000 mm × 820 mm × 750mm (Four floating) | |
| Radiographic Table Size(SC-1) | 2000 mm × 650 mm × 760mm | |
| Grid | Grid Density | 40lp/cm |
| Grid Ratio | 10:01 | |
| Focus | 100cm | |
| Collimator | Max Work Dose | 150kVp |
| Power | 150W(24VAC) | |
| Auto-close time | 30s | |
| Brightness | ≥160lux(100cm) | |
| Workstation (can be customized) | CPU | I5 |
| RAM | 4GB | |
| Communication Network Card | 1000m | |
| Hard Disk | 500G | |
| Display | 1280*1024 | |
| CD/DVD recording/burning | - | |
| Software | - | Imaging Part Indicator, Tissue Equalization, Filter Correction, Grayscale Transform, Window/Level Adjustment, Gamma Correction, ROI Equalization |
| - | Black/White Reversion, Image Segmentation, Mark, Enhancement, Smoothing | |
| - | Sharpening, Compression, Magnification, Graphic Text Report, Printing | |
| - | Film Printing, Supports Standard DICOM 3.0, Laser Film Printer | |
| - | DICOM 3.0 Format, Compatible to Transfer to PACS |

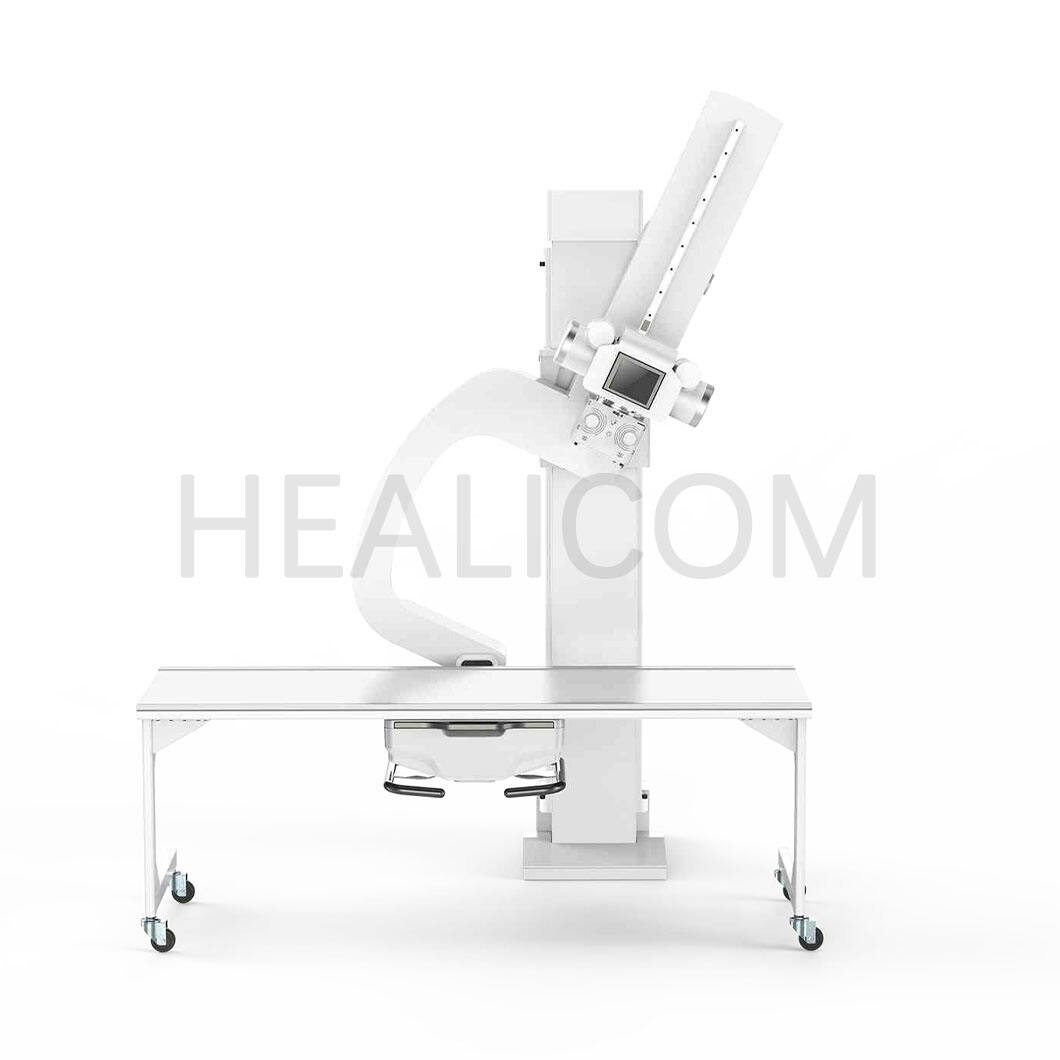

HDR-580 is world first UC-ARM dynamic DR with the state-of-the-art flat panel detector. Its multiple functions, ingeniously contrived mechanical structure and easy operation make it the most complete DR system and the best solution of physical examination section which can conduct most of x-ray check such as cervical vertebra, lumbar vertebra, esophageal angiography as well as you benefit from our R&D innovations as well. Let you benefit installed our base of more than 3000 units dynamic DR.
Rapid one-stop examination workflow
It can be used for one-stop health checkup of chest, cervical vertebrae, lumbar vertebrae and fluoroscopy without extra equipment. Most of the x-ray examinations can be performed by the device, which can be operated easily and conveniently.
Reduce examination time, and improve efficiency
Patients can quickly take most of the x-ray check conveniently without running around various examination departments. It can greatly reduce medical inspection time and the patient waiting time, and improve the efficiency of physical examination section which performs the health checkup for hundreds of patients every day.
Substantial cost savings with fewer staff in fewer room
The all-in-one solution covers many different x-ray check ranging from fluoroscopy studies to high-definition radiographic imaging, which brought with it significant space savings through the reduction of rooms, and increased flexibility in physical examination section through reduction of staff needed to operate. The hospital saves the substantial labor and room cost.
High-performance System
Satisfy User Experience
Real-time entire contrast observation, one image shows all the details.
Digital radiography
Wide range of examination angles, as well as erect, lying, and oblique positions. Skull, Thorax, Abdomen, Vertebral column, Pelvis, Upper and lower extremities and so on.
Digital fluoroscopy
Dynamic imaging for fluoroscopy, lesion observation and locating, and high resolution spot film, esophagography, intravenous urography (IVP), HSG, T-tube cholangiography and so on.

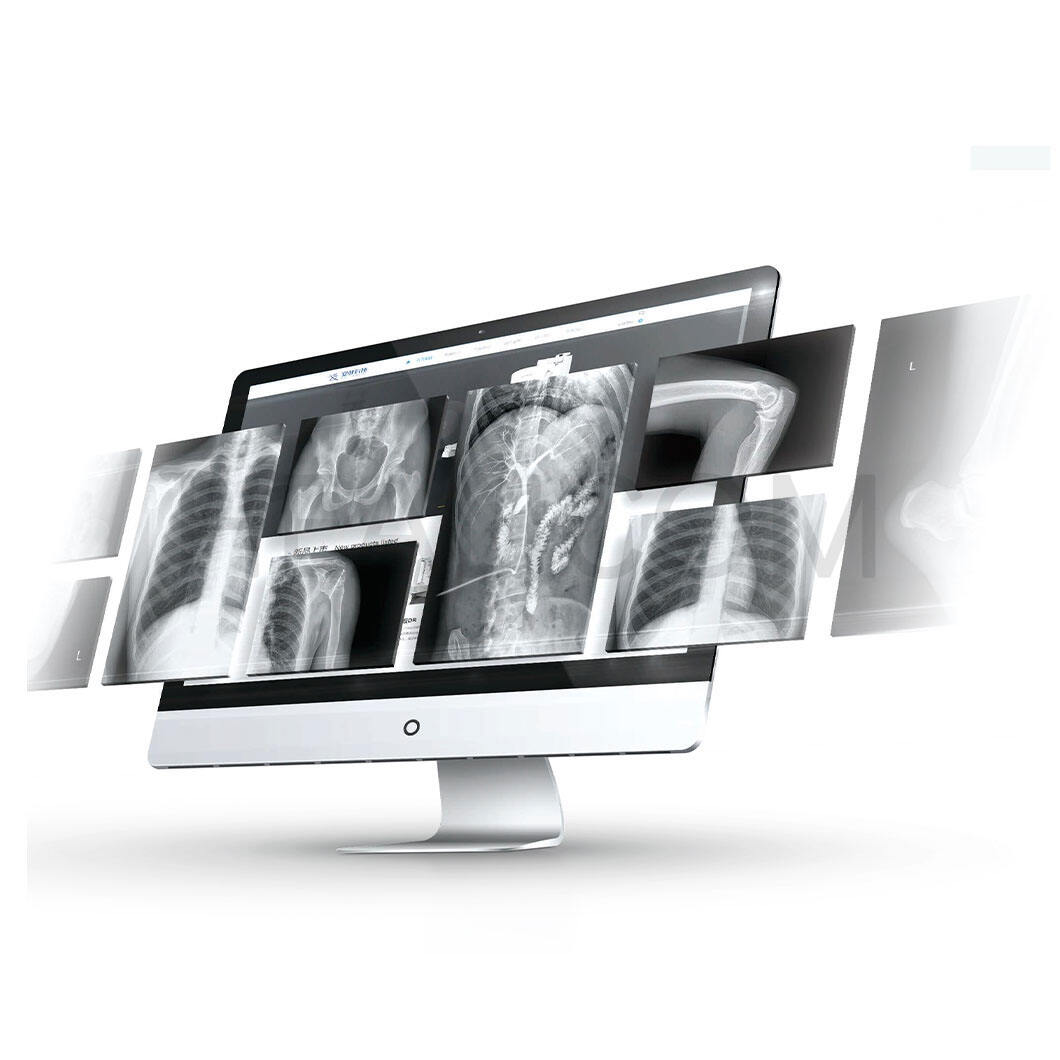

Smart image stitching
With advanced image processing workstation, Angell dynamic DR System can provide high definition full-body image with the range from head to toe, especially helpful for orthopedics.

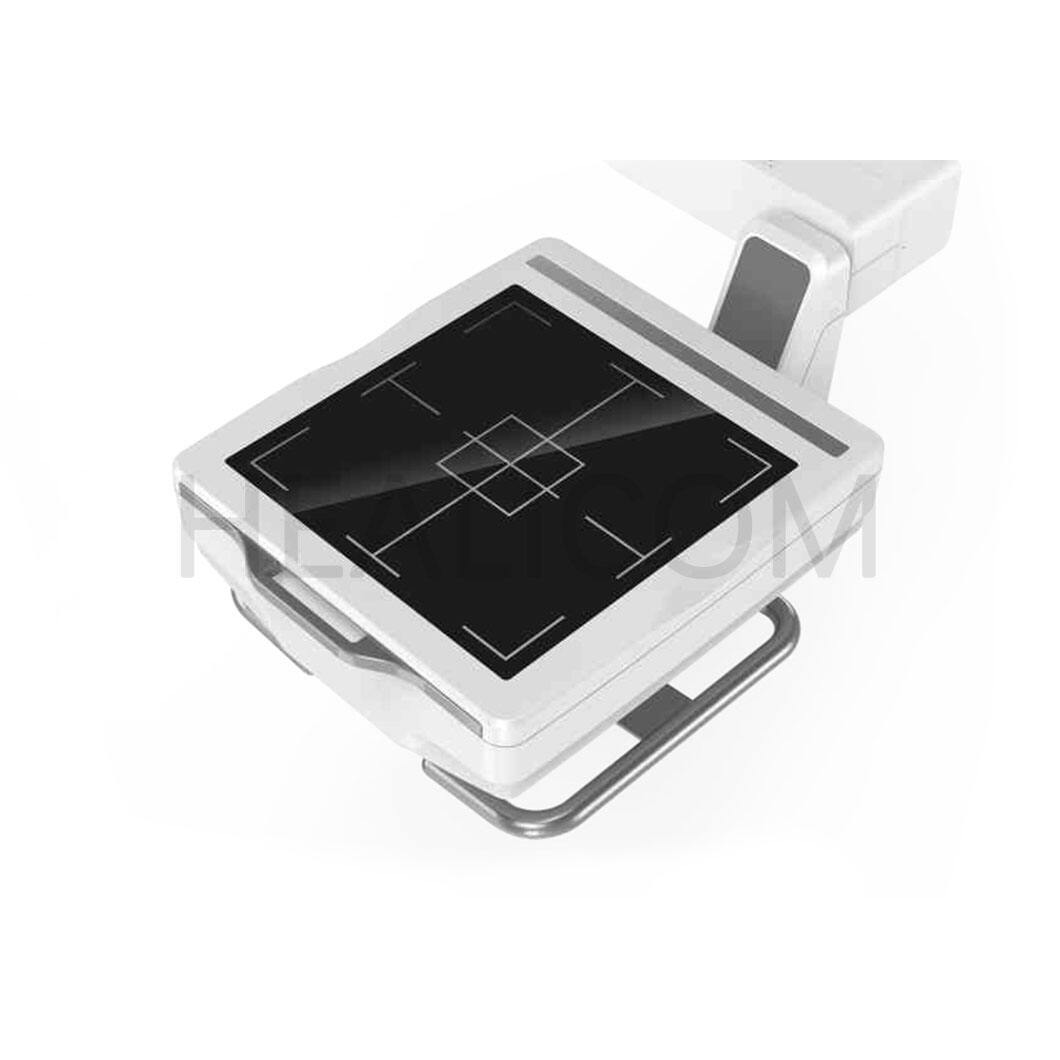

State-of-the-art dynamic FPD Technology for R&F
Angell dynamic flat panel detector which has 430mm × 430mm large imaging area is intended to be used in general radiography and fluoroscopy(R&F). It offers outstanding X-ray absorption, reducing exposure to the patient while ensuring exceptional image quality.
The detector has our in-depth expertise in medical technologies. It combines high detection quantum efficiency (DQE) with a large number of pixels and high dynamic range (16 bits), revealing even the slightest detail for a high-precision diagnosis. Let you benefit from our R&D innovations.
equipped with advanced image processing software to enhance your image quality. Innovative image enhancement features help you see more detail to give you greater confidence with your diagnosis.
Intelligent Efficient Automatically Enhancement
iEAE has greatly improved the consistency, softness, spatial gradation and texture fineness of image.
iDG
Intelligent DeGrid
iDG intelligently recognizes the artifacts of the grid to keep the outstanding image effect.
iMR
Intelligent Metal Recognition
iMR can intelligently analyze and recognize metal areas in the image, and deal with them in special image processing, so as to avoid artifact around the metal and misdiagnosis.
iGCR
Intelligent Grayscale Compensation of ROI
iGCR can recognize the effective exposure area and compensate the gray of the region. To enhance the RAW image processing under different exposure parameter and keep the image quality at higher level.
