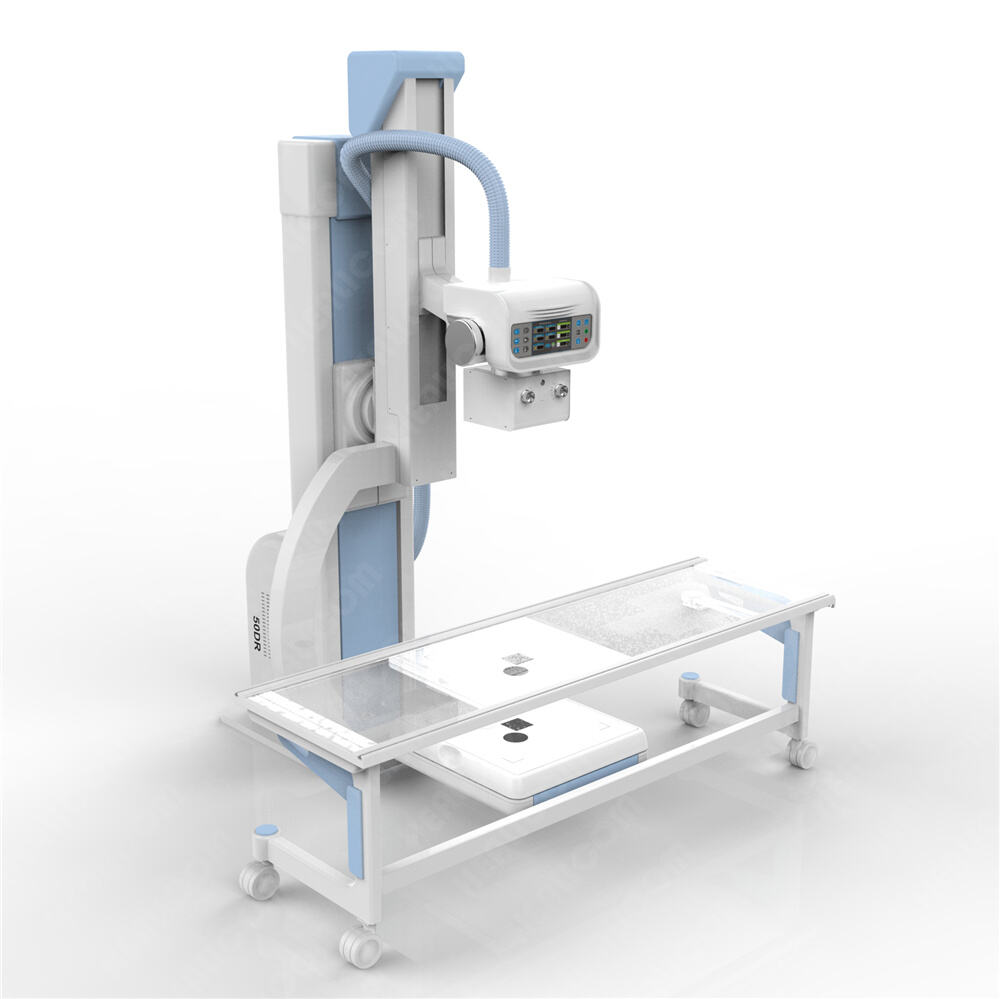

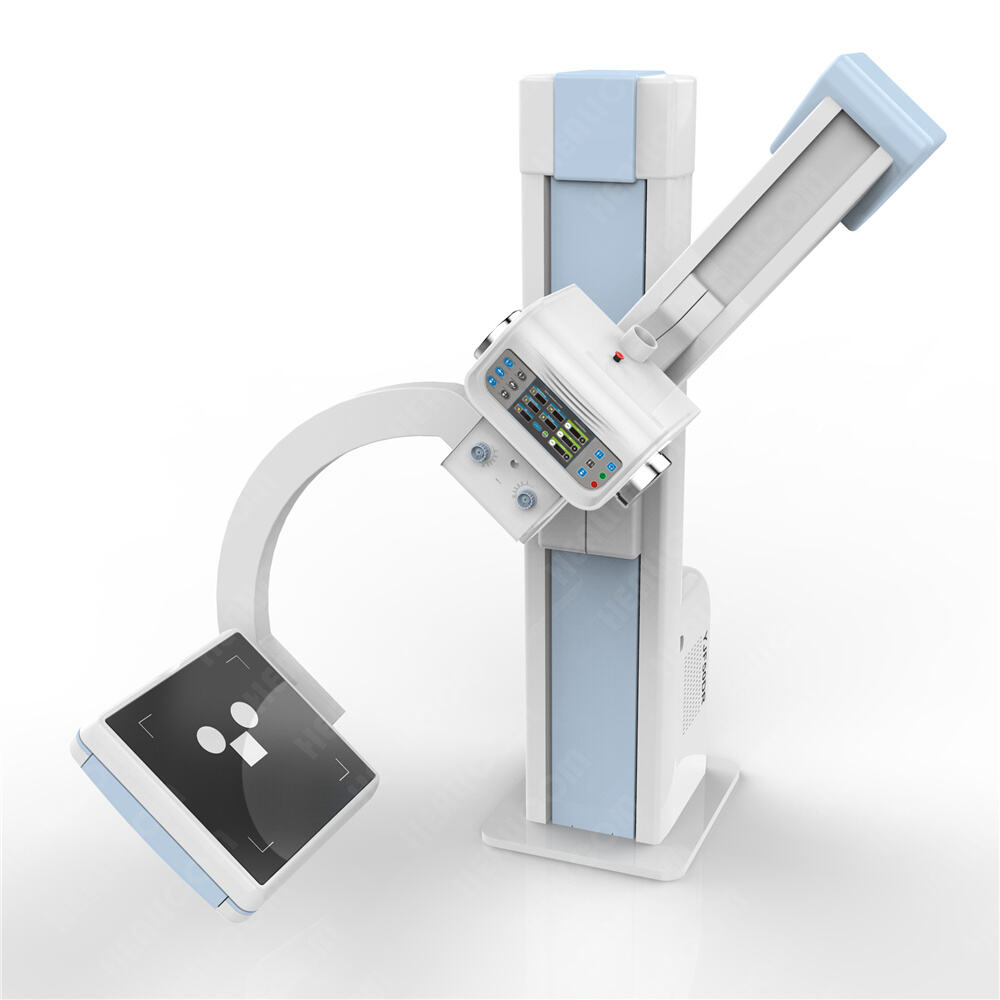

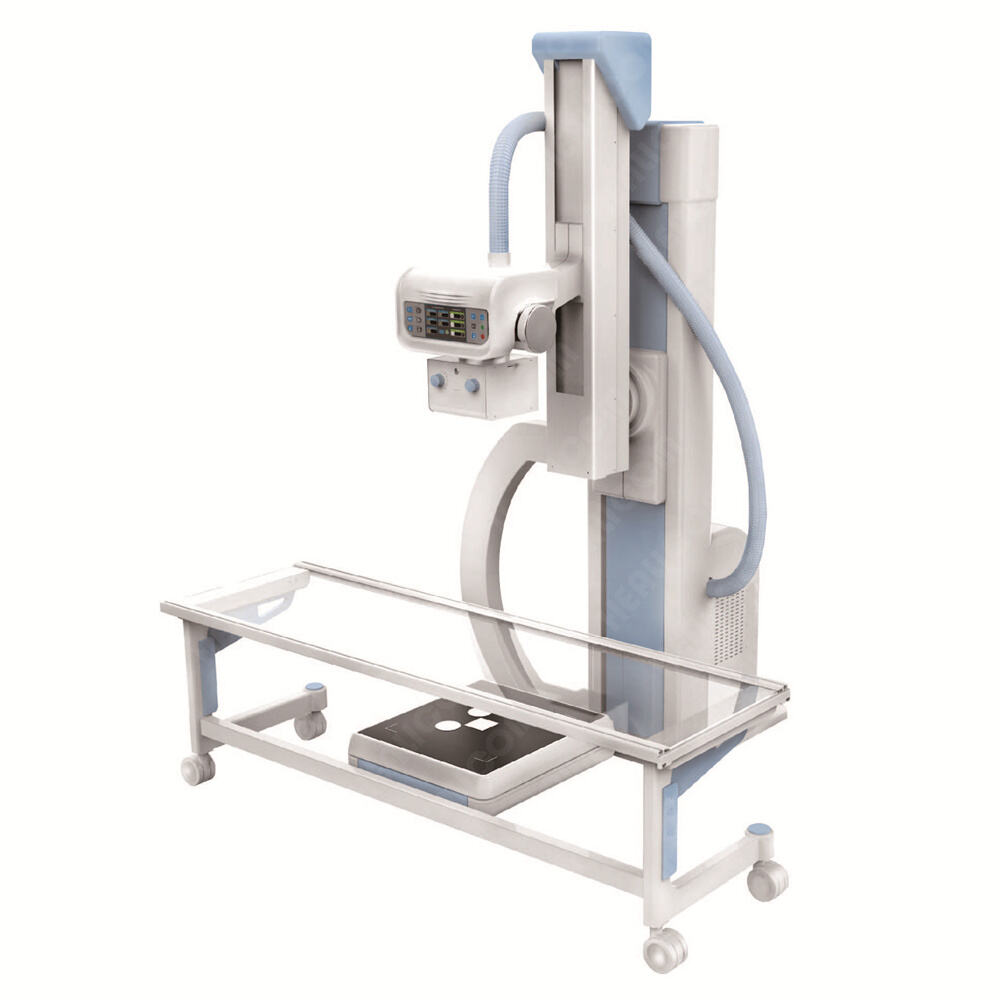

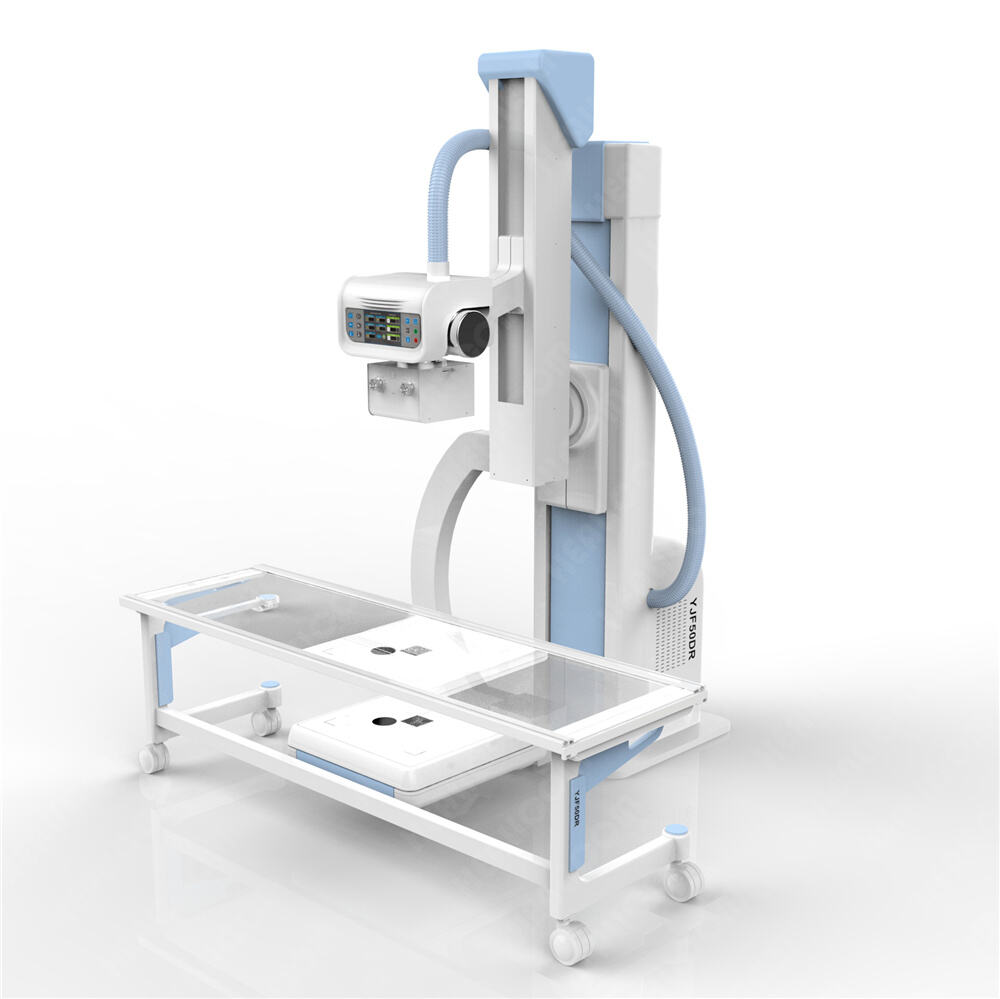

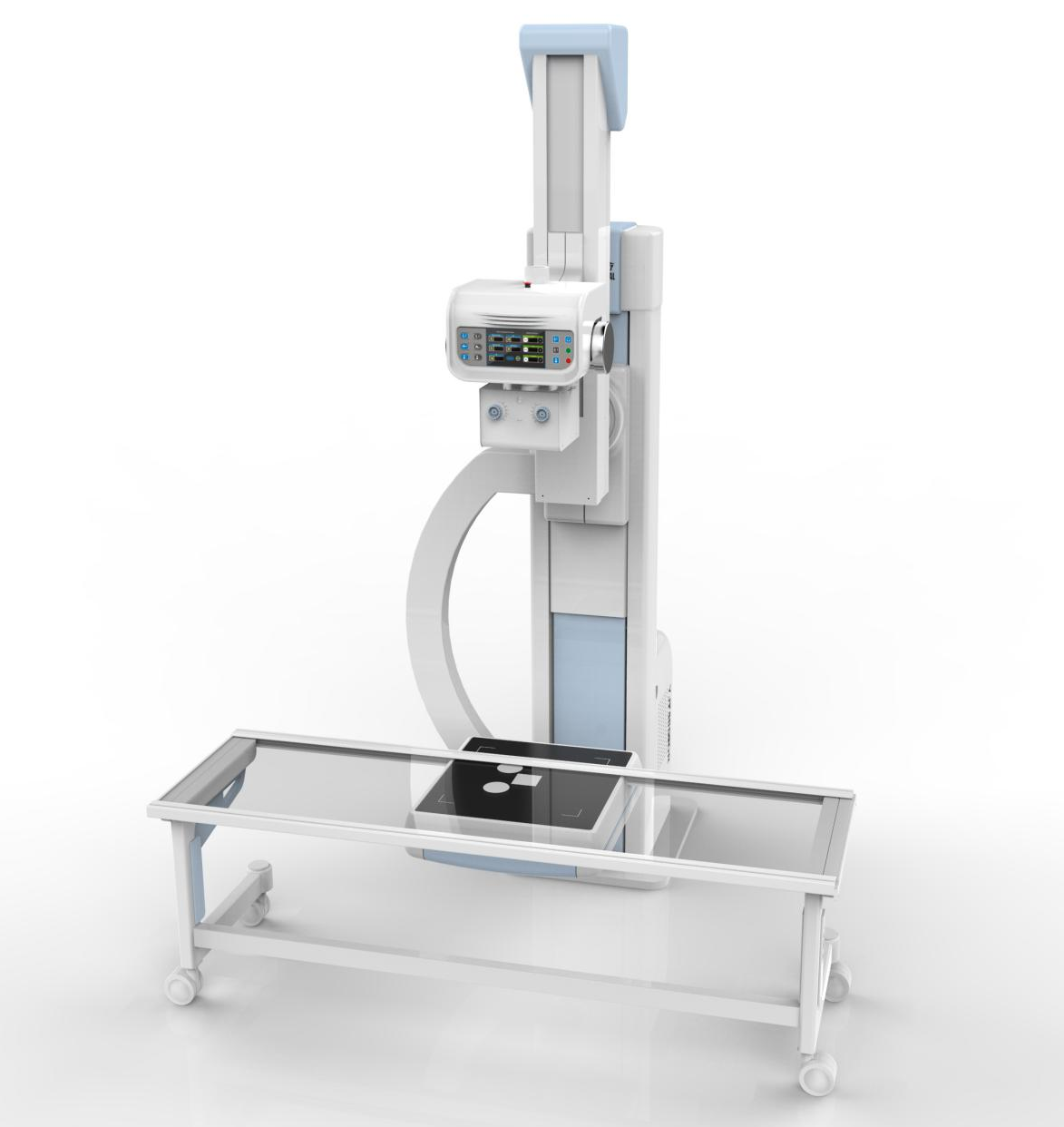

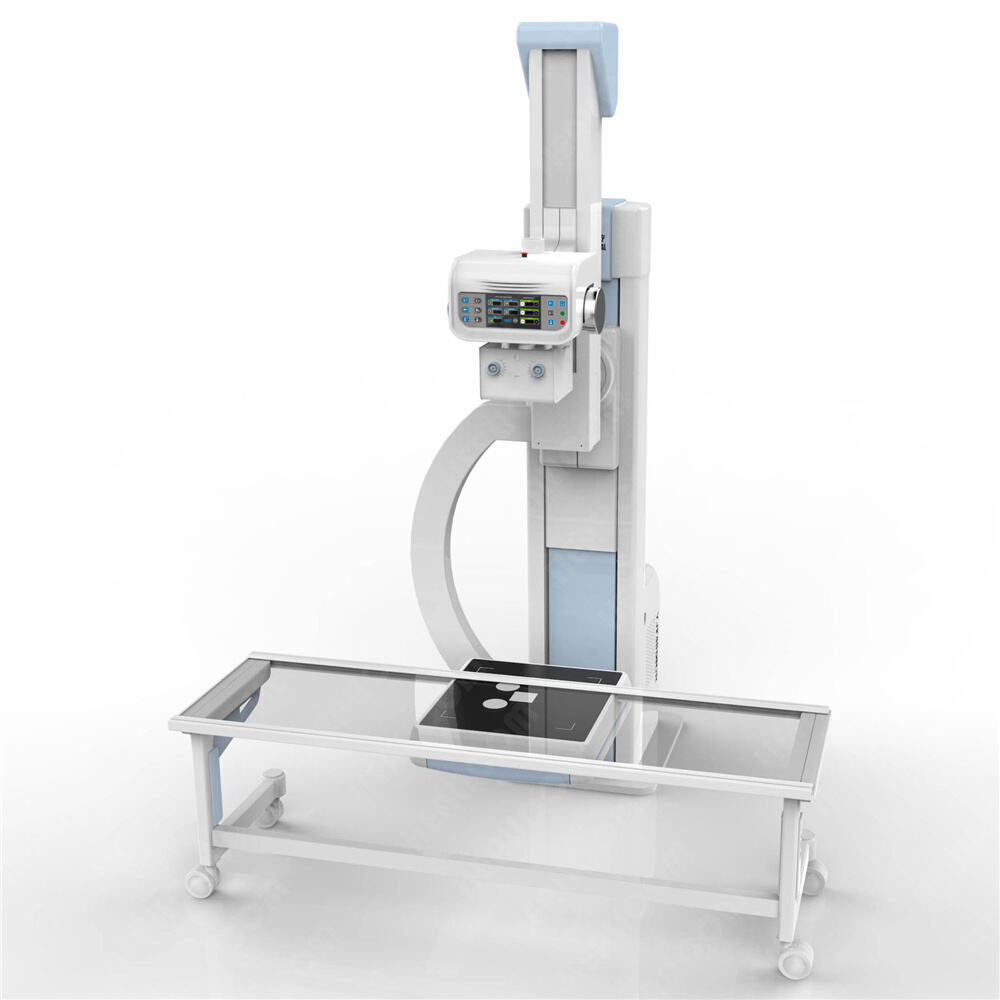

HDR65-U UC-Arm Digital Radiography System

Features
LCD handle bar control mA,kV
Meet whole Body position imaging

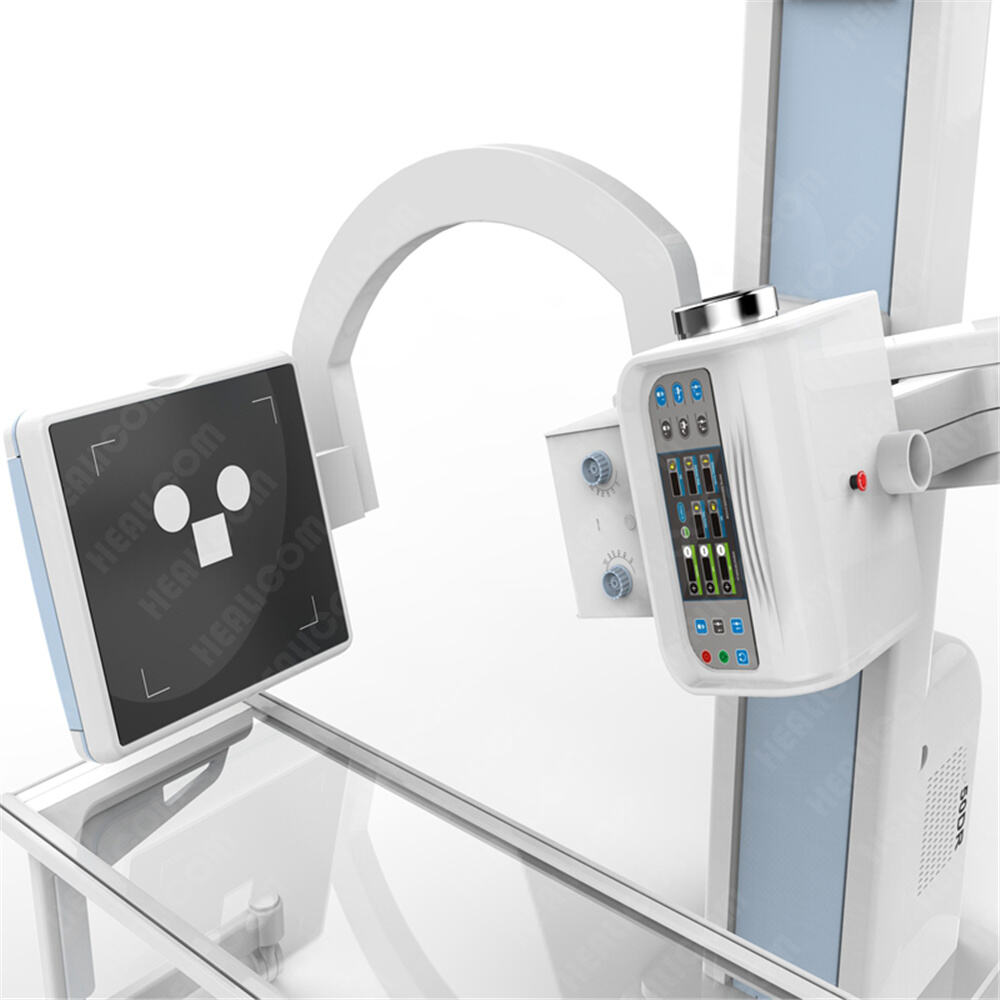

X-ray tube and detector tracks synchronously
Easy installation, easy using, easy maintenance
Accurate remote control outside shielding room

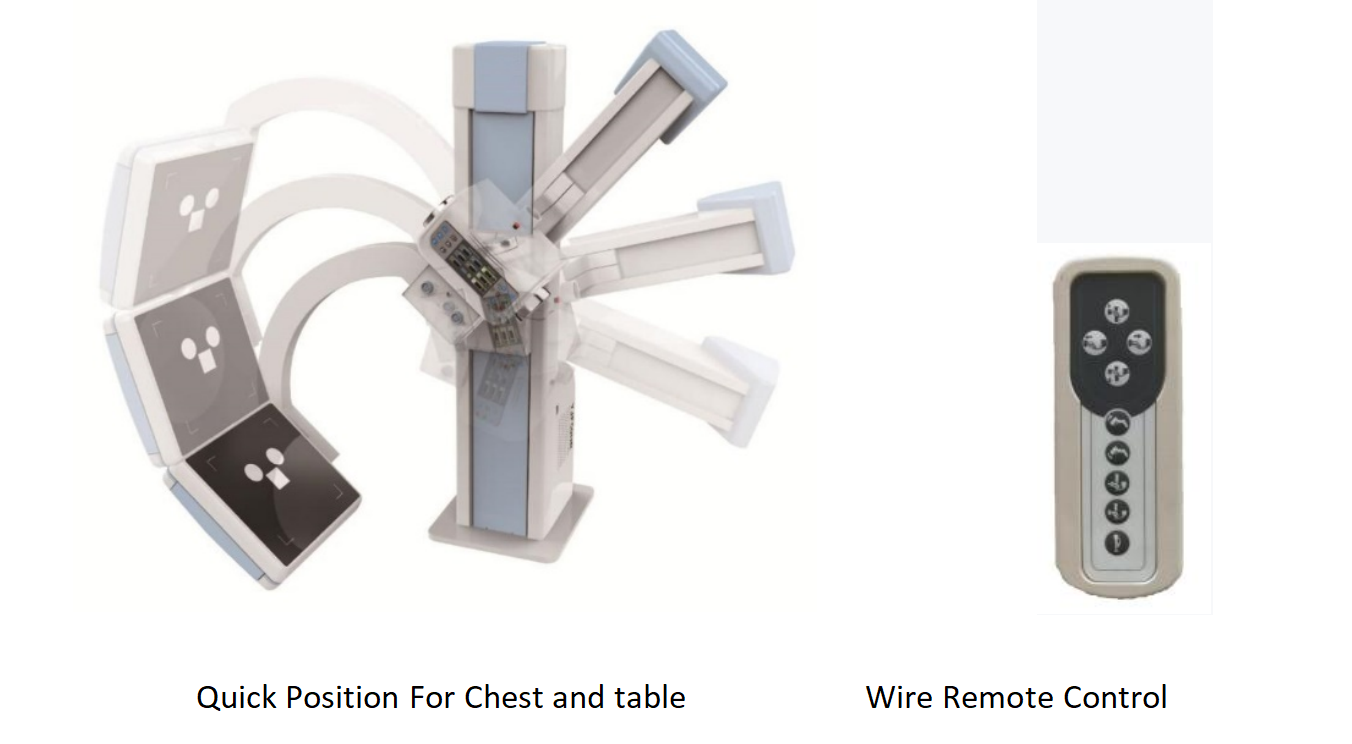

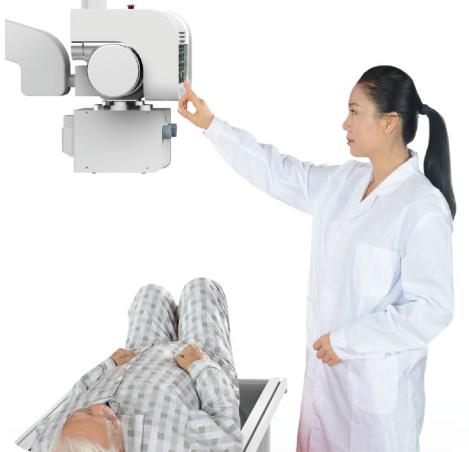

One-button positioning, automatic tracking function

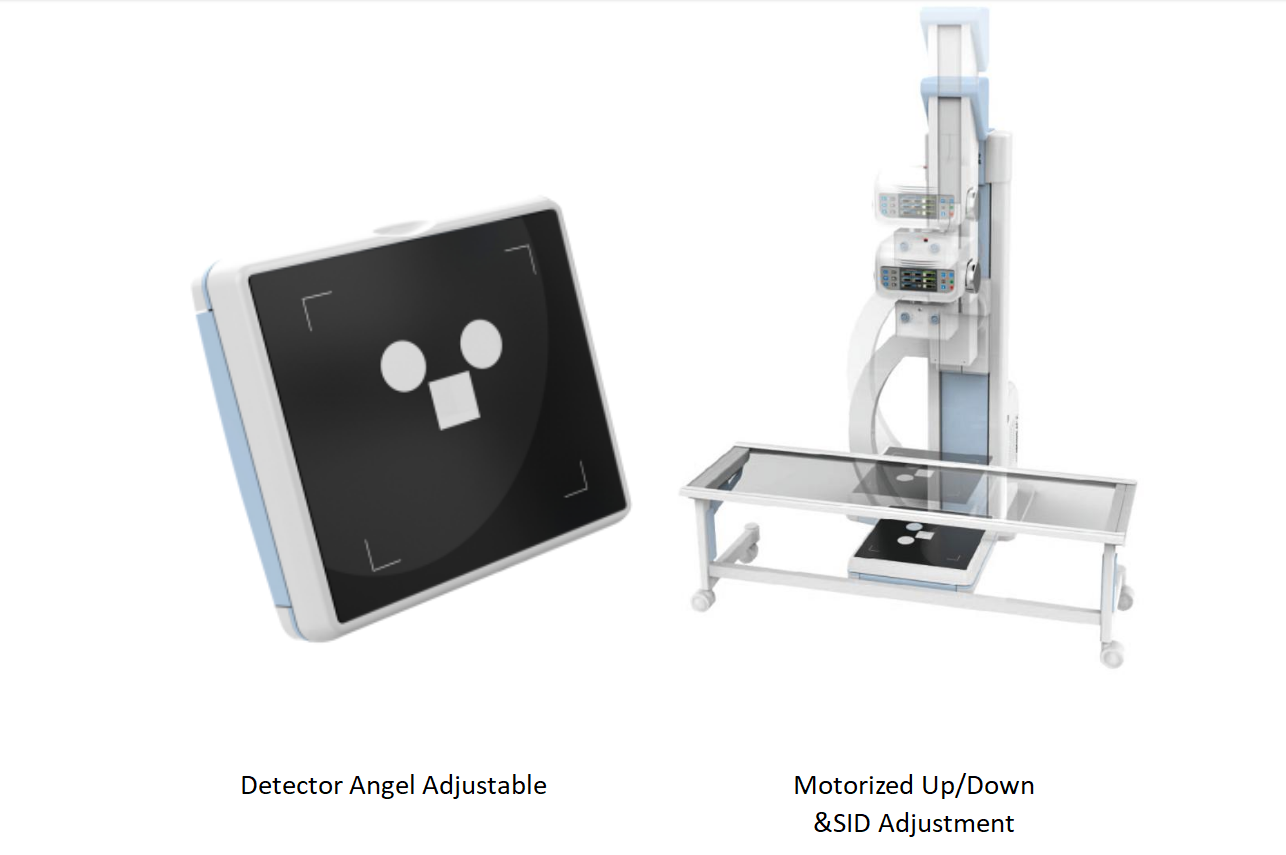

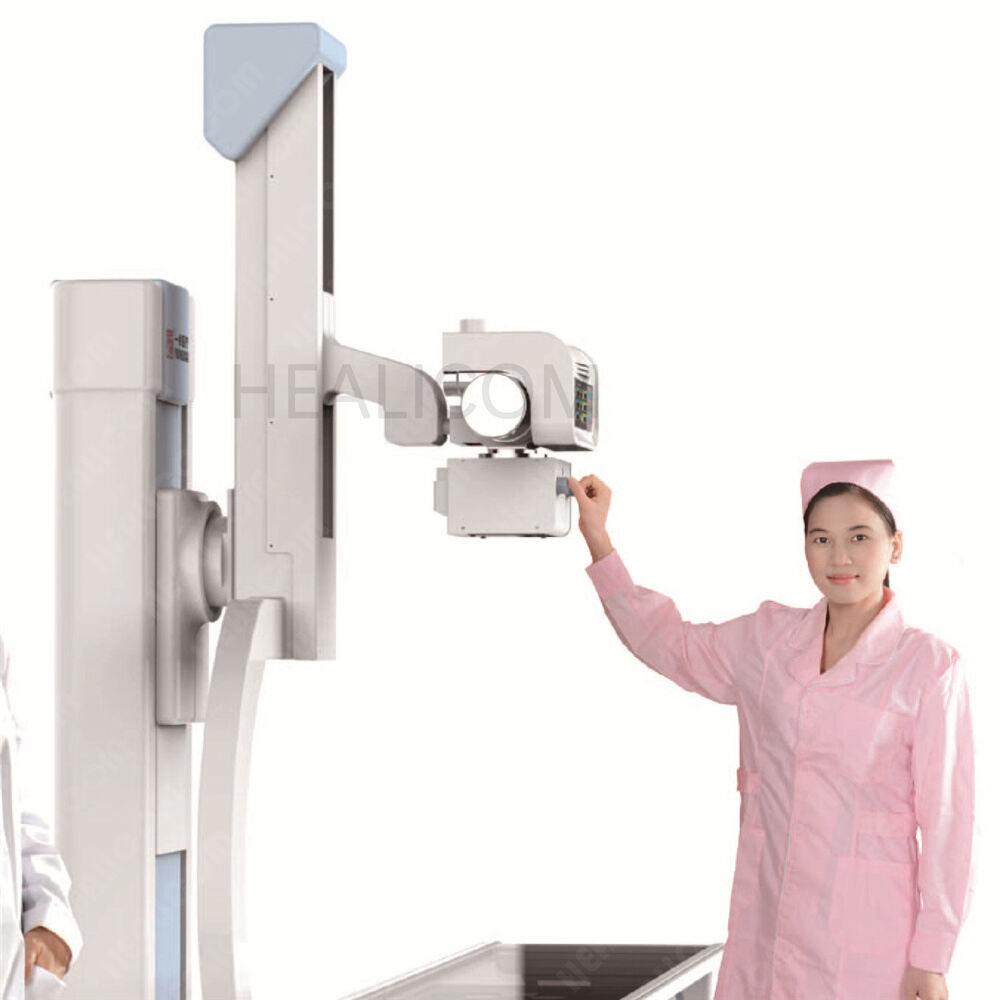

Electrodynamic DR bracket multi-angle full electric control

HDR65-U supplier

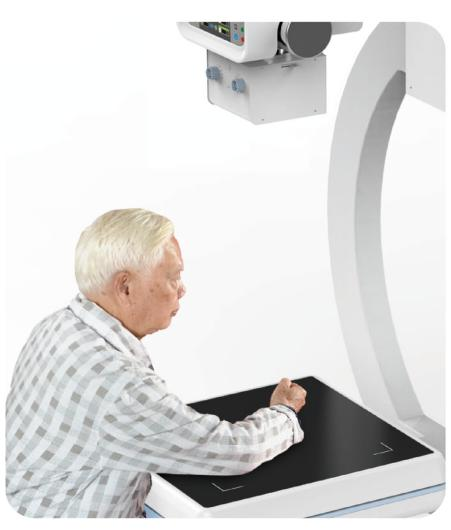

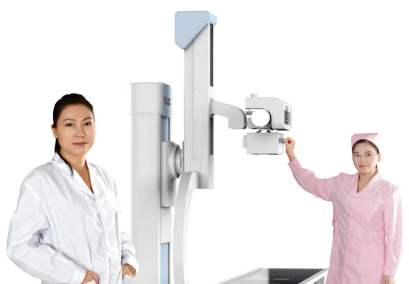

Meet multi-angle diagnosis

HDR65-U manufacture HDR65-U supplier

HDR65-U manufacture

HDR65-U manufacture HDR65-U factory

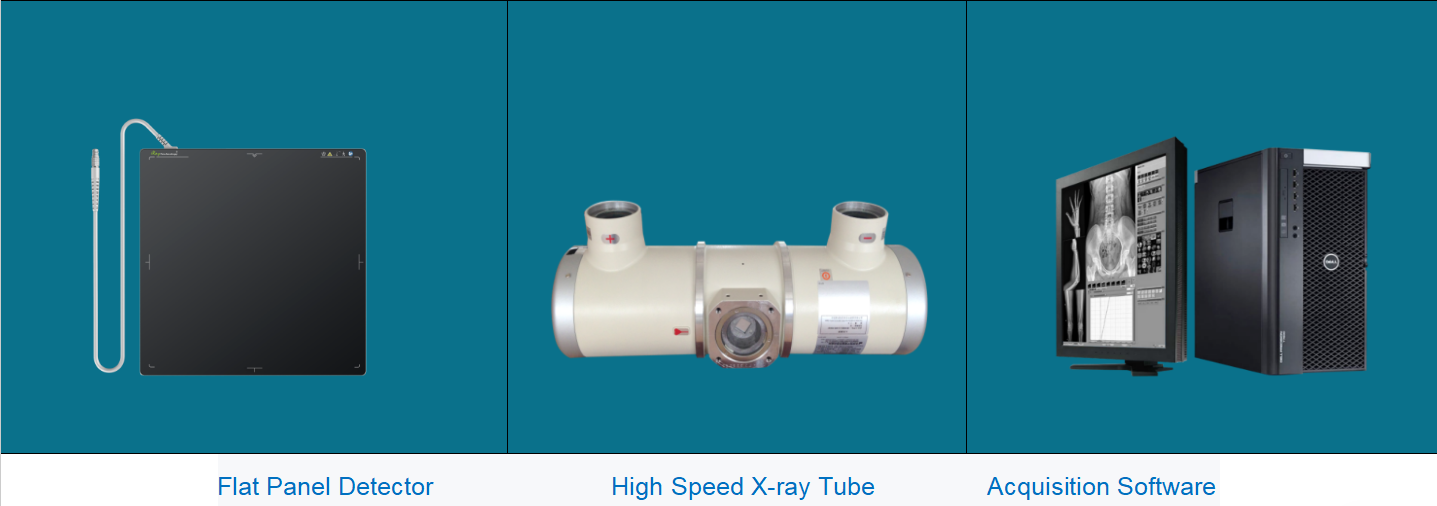

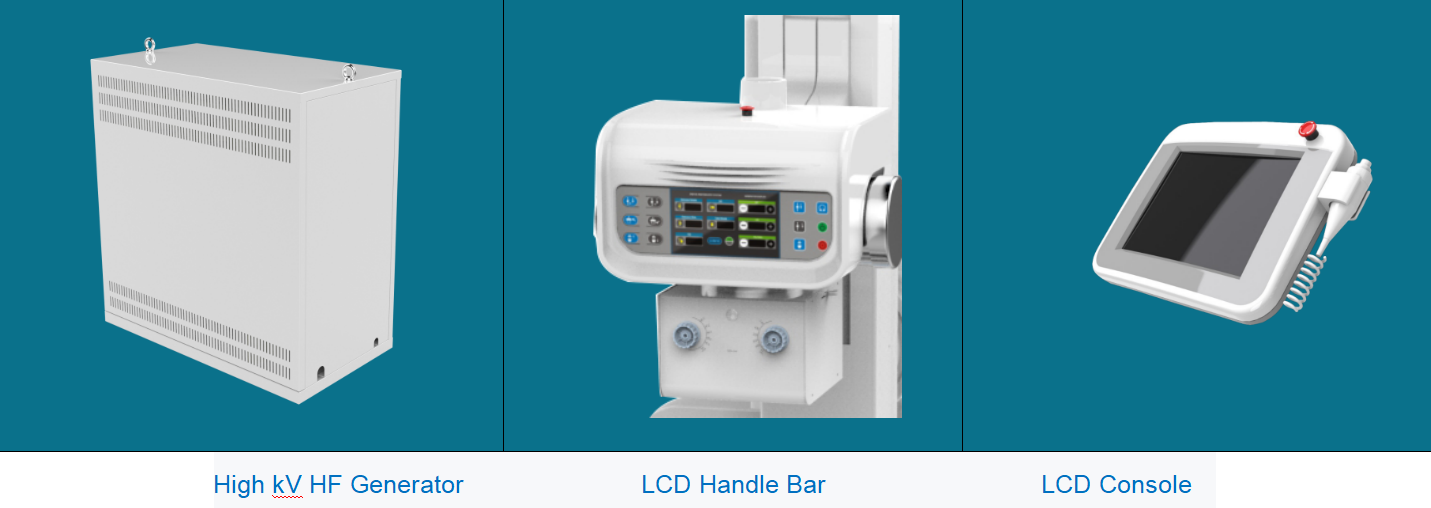

X-ray generator
Rich DR upgrade reserve interface
Fault self-diagnosis and protection
Automatic calibration of tube current
X-ray tube has the function of filament dormancy
AEC function, different ionization chamber as optional
Analog - digital double - loop control, simple operation, high intelligence
High kV, high current, high power,strong penetration,able to handle obese patients

HDR65-U manufacture
HDR65-U details

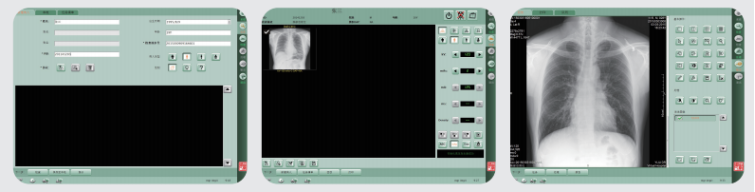

Profession Acquisition Software
Support Multi-languages
Support professional tools
Support different brand of X-ray generators
Support RIS/PACS/DICOM Printer Connection

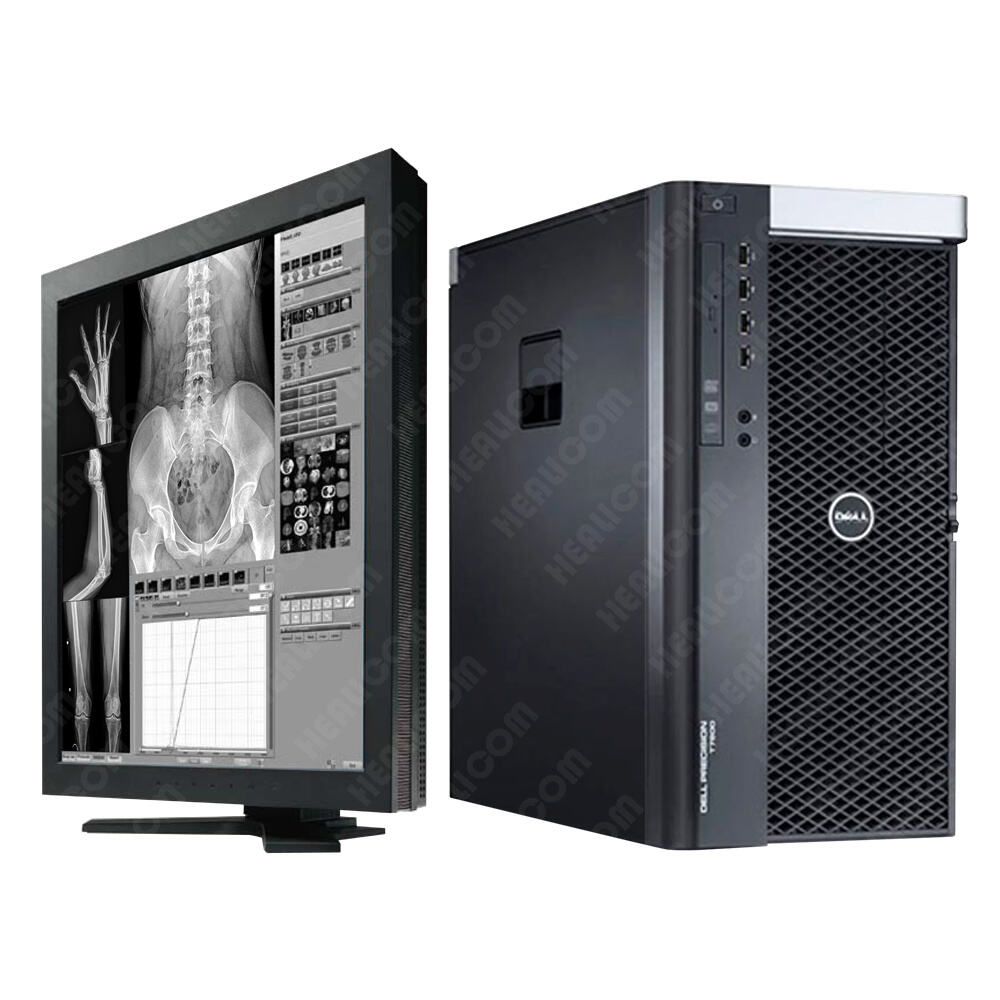

Professional DR workstation
Image capture
Print and storage
Image post-processing
Patient management

HDR65-U supplier

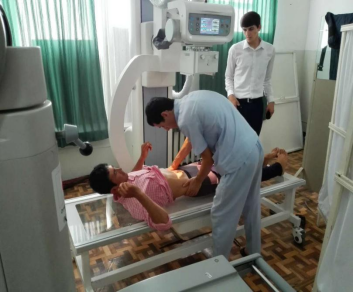

Applicable to orthopedics, emergency room, operating room, etc., As human head, limbs, chest, spine, lumbar spine for medical diagnosis

HDR65-U supplier

Specification:

Main Component Technical Spe.
X-ray Generator (include console)	Output Power	65KW
	Power Voltage	380V±38V
	kV range	40~150kV
	mA range	10~800mA
	mAs range	0.1 ~630mAs
	Loading time	2~10000mS

X-ray Tube	Small focus	0.6
	Large focus	1.2
	Anode speed	9700r/min

Collimator	Inherent filtration	1.0mm Al /75kV
Collimator	Light Source	LED

Radiographic Table	Top Table Size	2020mmX690mmX680mm
	Load-bearing	Less than 200kg
	Movement	Wheels

DR Machine Frame	Up&Down Moving Range	700mm ~ 1700mm
	Rotating Range	0°~ 105°
	SID	1000mm ~ 1800mm

Wire Flat Panel Detector	Size	17X17inch
	Scintillator	CSI
	Pixels	3328*3328
	Resolution	3.9
	AD Conversion	16

Computer& LCD	CPU	≥2.8GHz
	Memory	≥8GB
	Disk Capacity	≥1T
	Medical LCD	23inch
