Products Description

Use: General Photograph, Ray-filter Photograph

Main Features:

●Single bed with single bulb
●Rotary anode X-ray tube assembly and tangential type tube sleeve
●Single-phase full wave rectification high-voltage generator

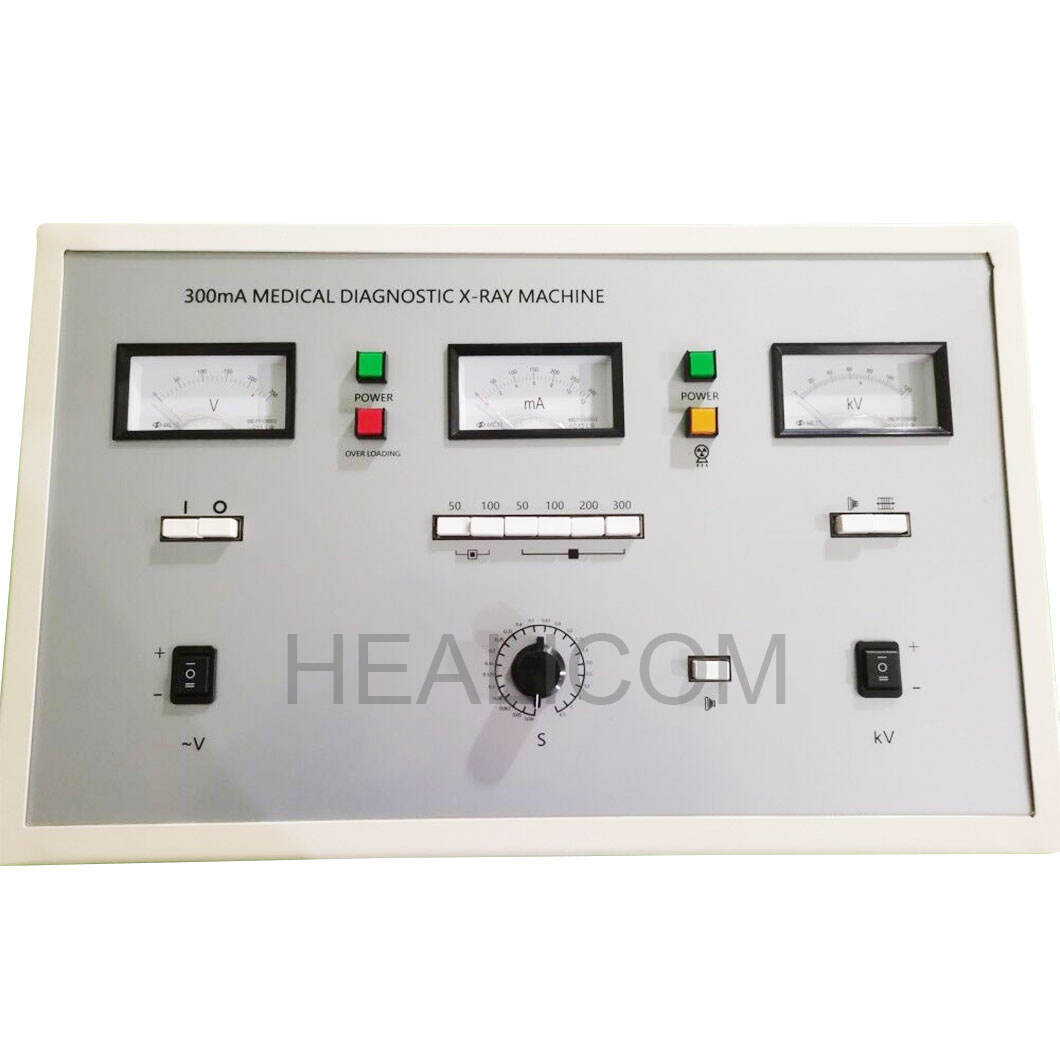

●Power voltage (V), radiography kilovolt (KV), infinitely variable control
●Filament manostat for x-ray tube and space charge compensator
●Radiography capacity KV, MA and S interlocking protect
●Adopt digital circuit timer, grading as to R10 priority coefficient, exact time control
●Premier high voltage with high power SCR zero control circuit

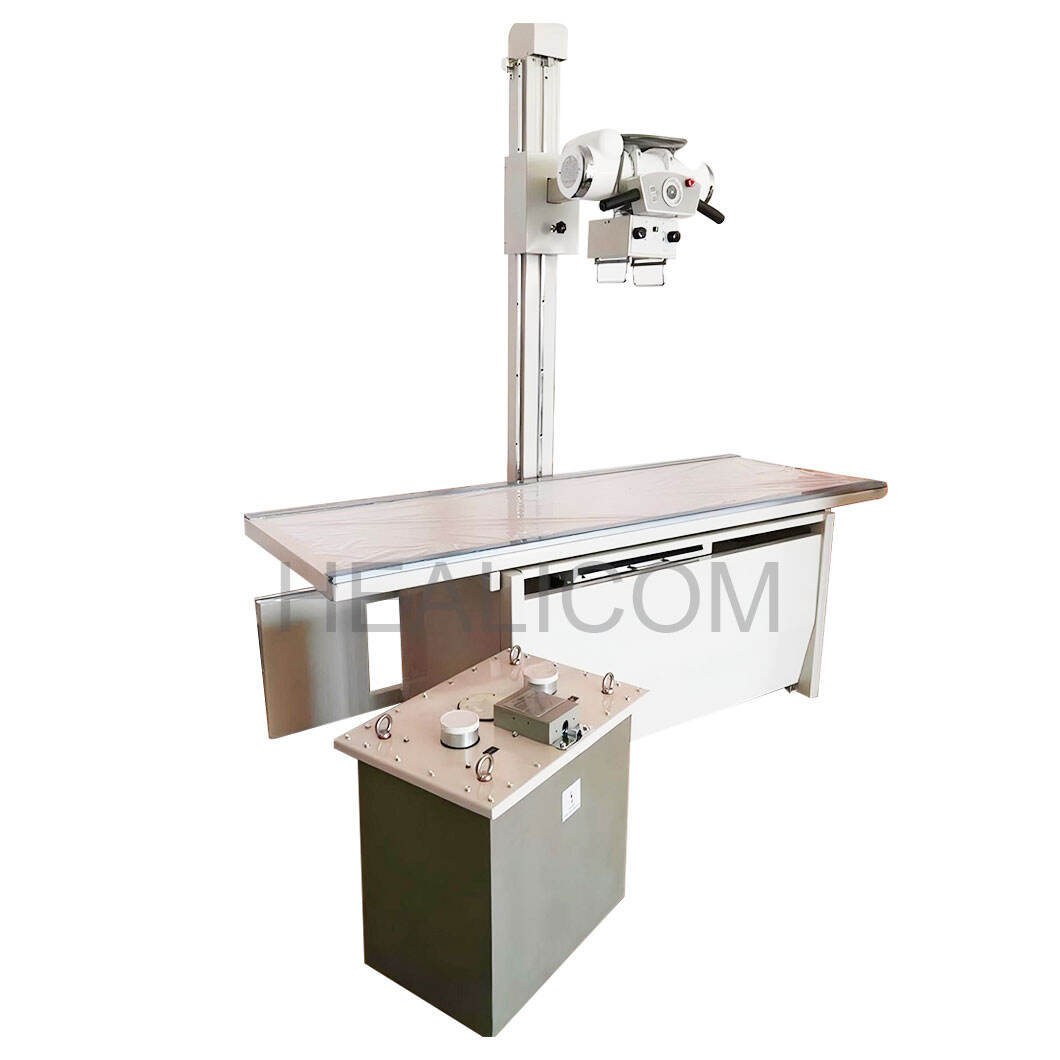

●Photograph bed, column, vibration filter limiter integrated equipment without necessary of up-and-down tunnel

Main Technical Indexes

ITEM	CONTENT	INDEX
Demand of power supply	Voltage, frequency	380V/220V±10% 50Hz±0.5Hz
Demand of power supply	Internal resistance	380V:0.75Ω, 220V:0.25Ω
Power supply	Adjustment range	380V±10% at 380V; 220V±10% at 220V continuously adjustable
Radiography	Voltage	50-120KV continuously adjustable
	Current	Small focus : 50mA, 100mA Big focus: 50mA,100mA, 200mA, 300mA
	Time	0.04-6.3s, 23 grades
High Voltage Generator	Capacity	30kVA ( instantaneous )
	Max DC output voltage	120KV
	Max DC output current	300mA
X-ray tube	Model	XD51.20-40/125
X-ray tube	Focus	Small focus: 1×1mm; Big focus: 2×2mm
Radiographic table	Lengthwidthheight	2000mm ×710mm × 710mm
	Moving range of bed surface	Longitudinal: 620mm Transverse: 200mm
	Ray-filter of bed	Travel in length: ≥500mm
		Grid density：N28
		Grid ratio: r8
		Convergence distance: 1000mm
X-ray tube assembly	Moving longitudinally along radiography table	1600mm or 1800mm
	Distance to ground as moving up and down (along the column)	630- 1750mm
	Rotary around the center of cross arm	± 180°
	Rotary around the shaft line of x-ray annular tube	-10º~60º~+120º
Max size of cassette for radiography		356mm * 432mm (14’*’17’) ’
