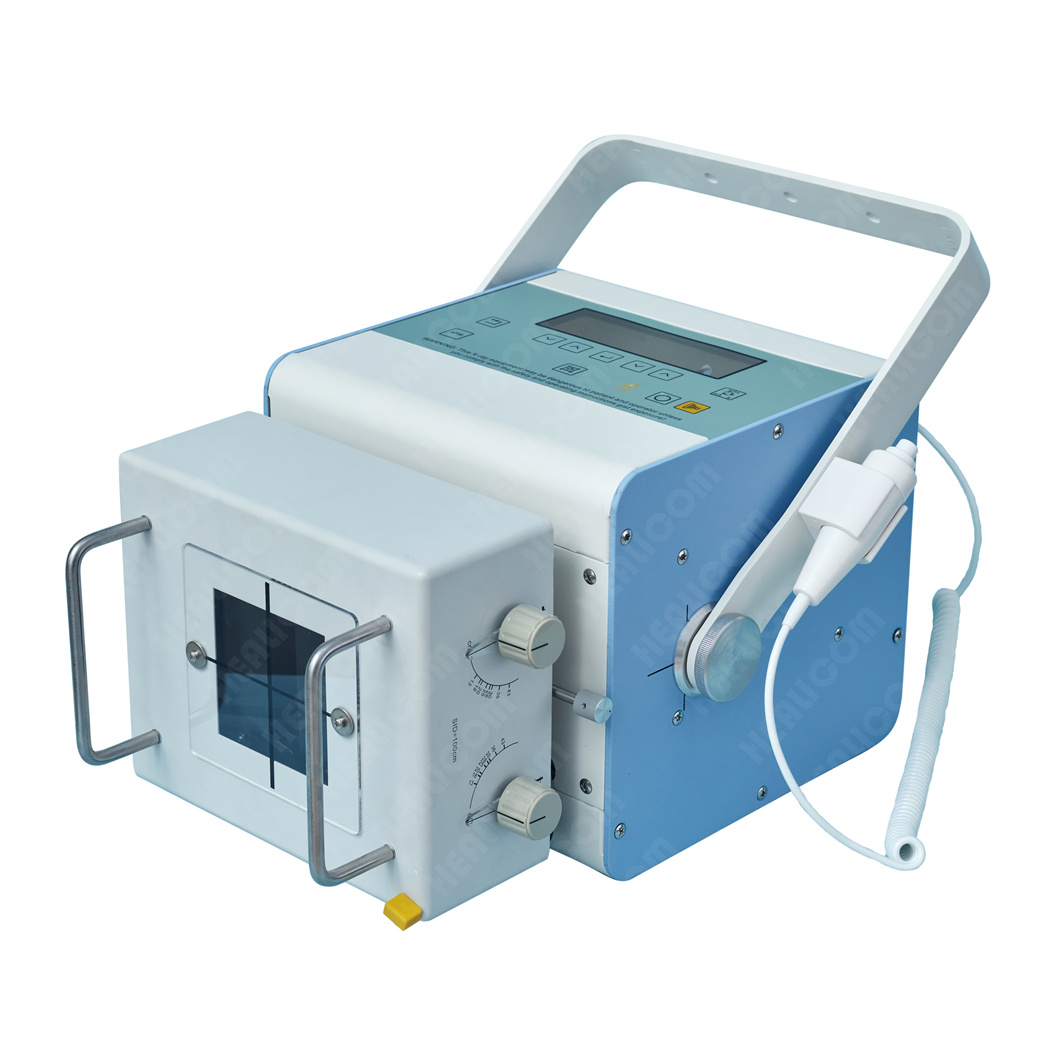

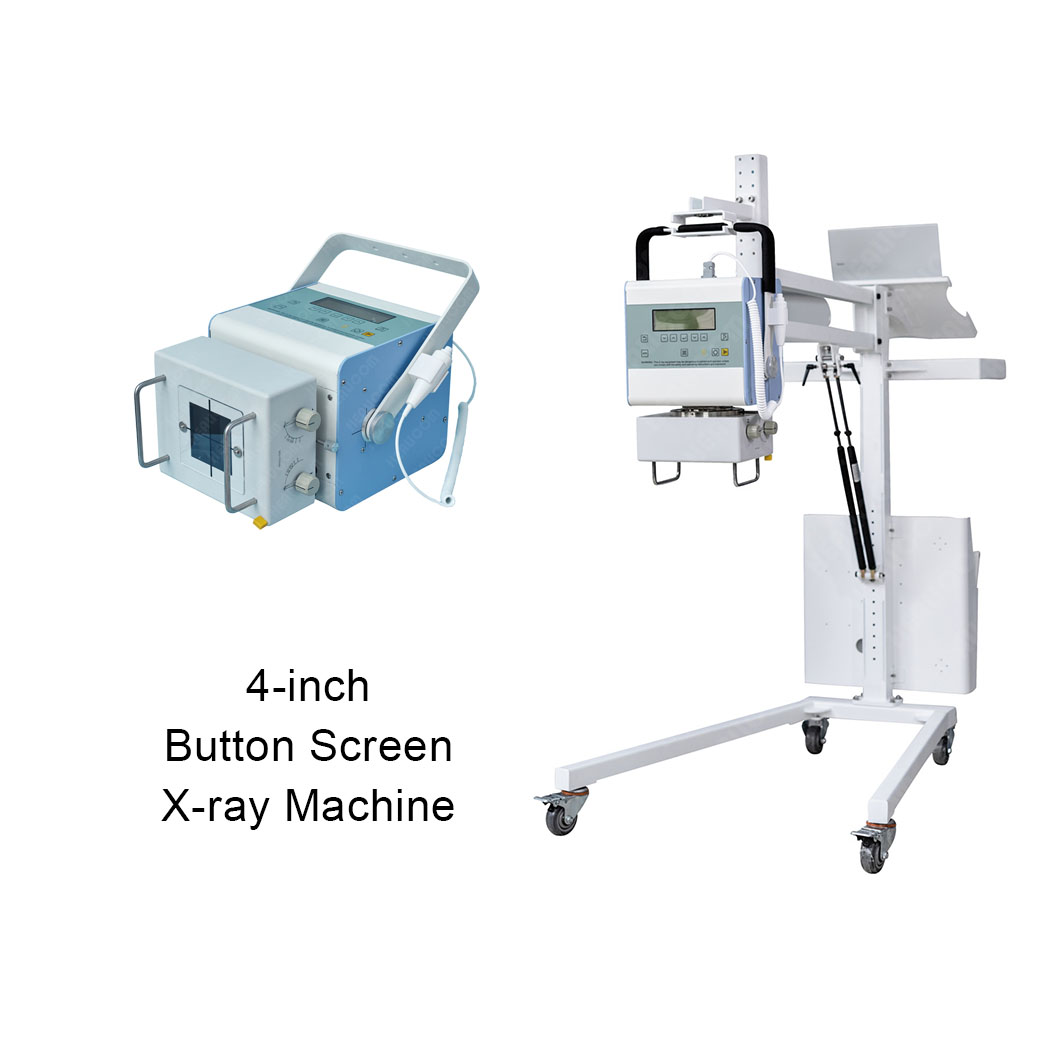

Portable high frequency x-ray machine
Typical Application:
Widely used in bedside DR, vehicle DR, orthopedic surgery, fever clinic, first aid, private clinic, community hospital and township health center.
Feature:
1.Using high frequency inverter technology, the high voltage output is stable and good image quality can be obtained.
2.The compact design makes it easy to carry in different areas and locations.
3.With three exposure control methods: Wireless/Hand brake/Operation panel
4.Fault self-diagnosis, self-protection
5.With flexible digital interface and SDK protocol, users can go deep into the core programming control and adapt to different DR detectors.
Parameter Sheet:
Model |
XR80RP |
XR50RP |
XR35RP |
Max Output Power |
8.0kW |
5.0kW |
3.5kW |
Power Capacity |
100kV@80mA |
100kV@50mA |
70kV @ 50mA |
Radiographic kV Range |
40-125kV |
40-110kV |
40-100kV |
Radiographic mA Range |
32-125mA |
32-100mA |
32-50mA |
mAs Range |
0.32-400mAs |
0.32-315mAs |
0.32-200mAs |
Exposure Time Range |
0.01-6.3s |
0.01-6.3s |
0.01-4s |
Operating Frequency |
≥ 30kHz |
||
Input Power Type |
220V ±10%, 50Hz/60Hz Or 110V ±10%, 50Hz/60Hz |
||
Dimensions |
370mm ×300mm×240mm(including collimator) |
||
Weight |
21KG |
||
Inverter Method |
PWM(pulse width modulation) |
||
