HFX-05H

ALL PRODUCTS

Overview
Recommended Products

Products Description

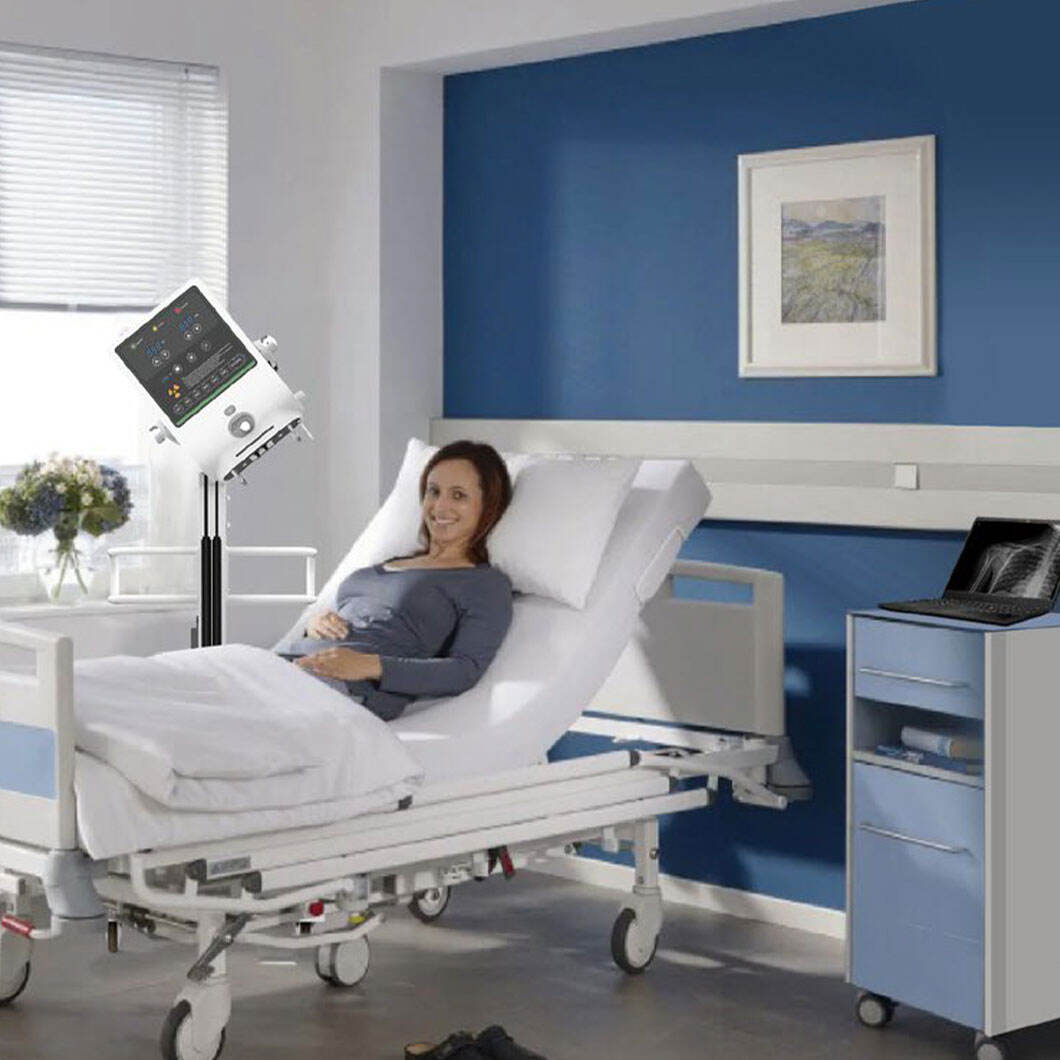

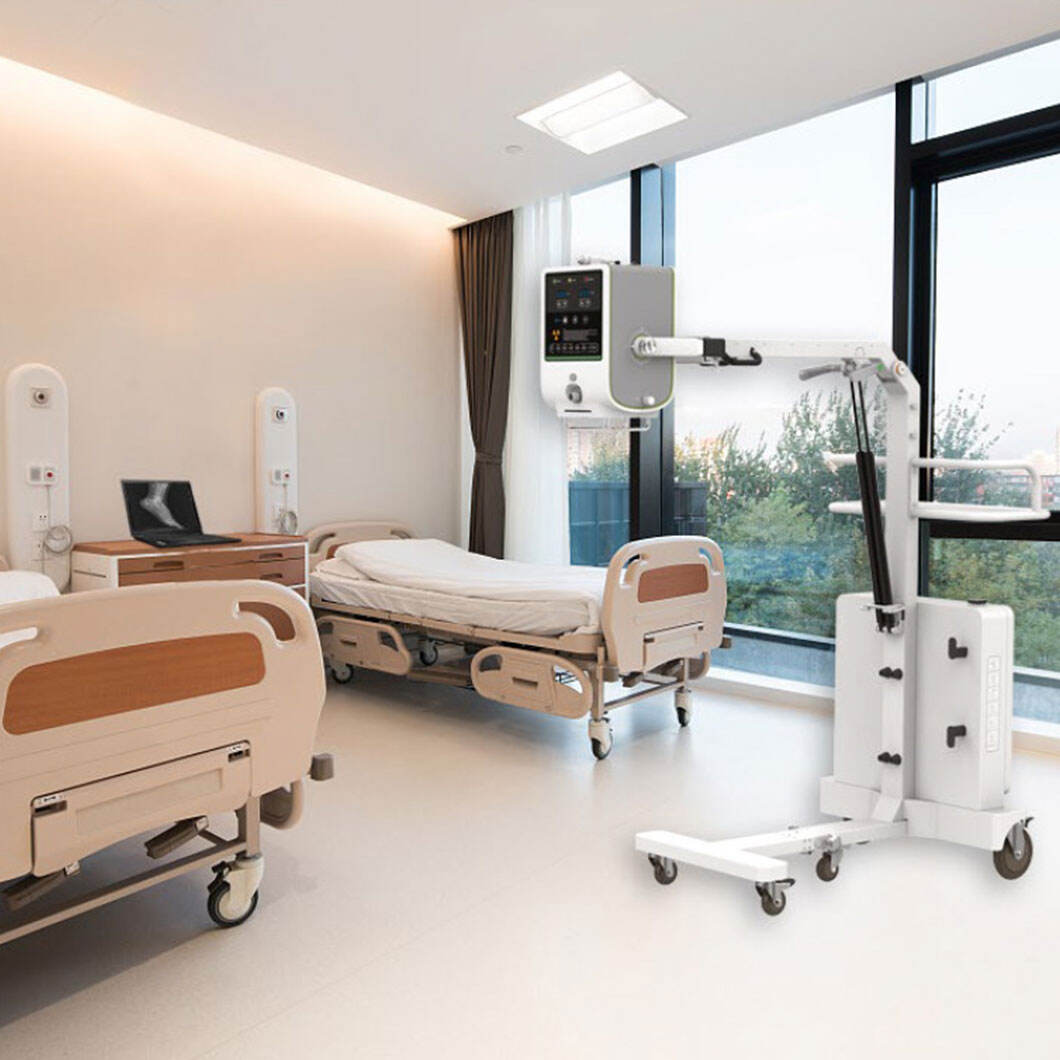

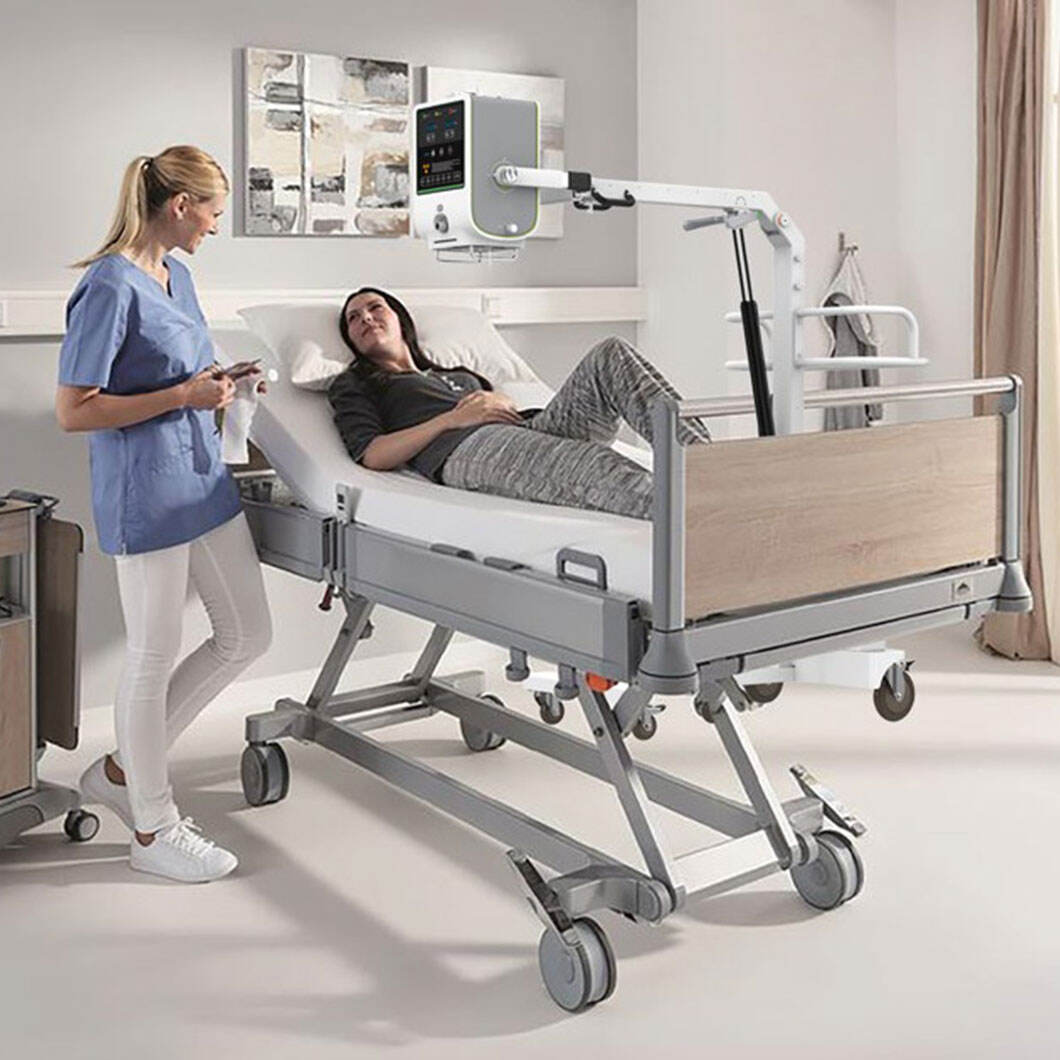

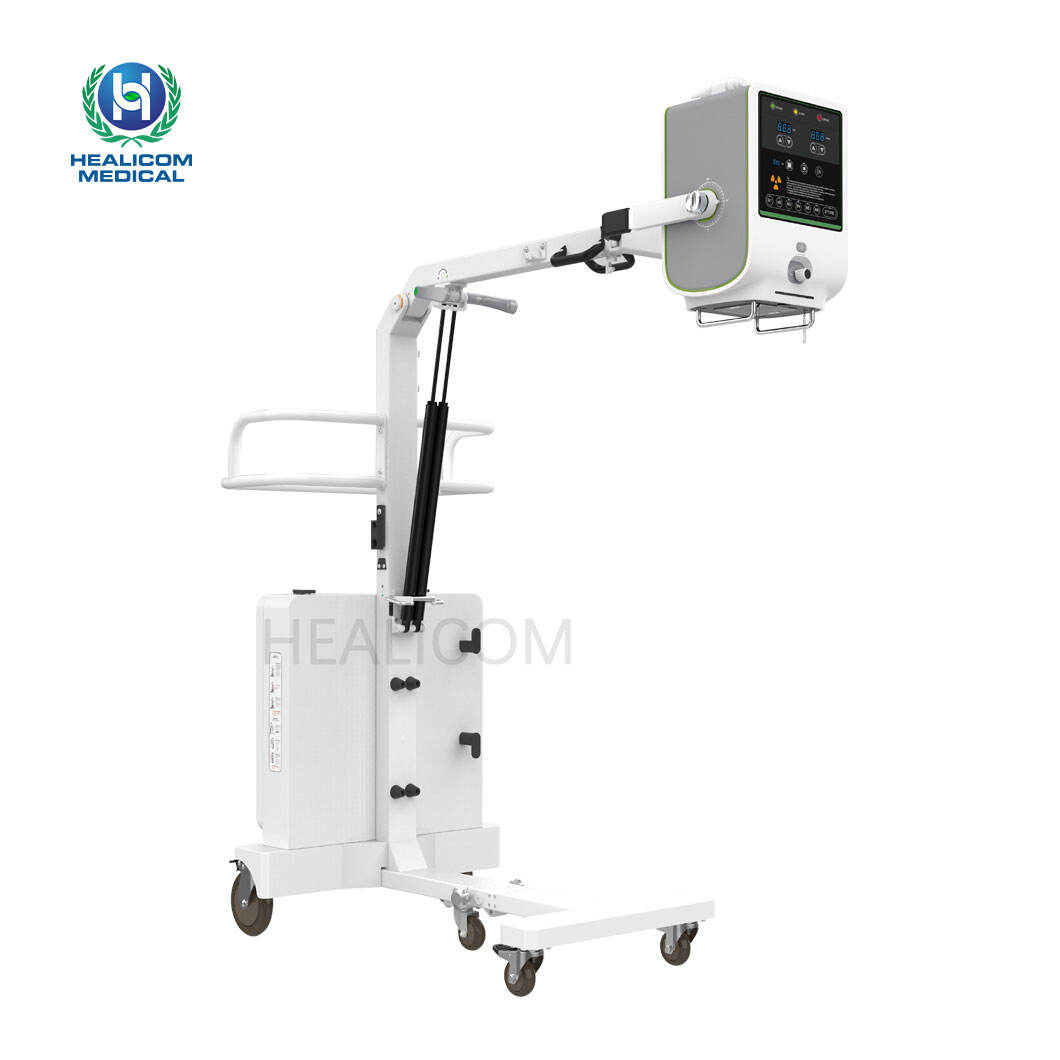

HFX-05H is a compact and versatile digital X-ray photography system that saves you space and improves productivity.Used in general ward | ICU | medical examination vehicle/emergency vehicle/door-to-door consultation disaster relief and war zone hospitals

Features：
Flexible and efficient suitable for a variety of needs
Compact structure stronger applicability
Low input cost and low maintenance cost

Technical Parameters
Model	HFX-05H
System Requirements
Electric source(V)	AC 110-120 AC 220V-240 50 / 60 Hz
Power (kw)	5
Flat Panel Detector
Type	Mars1717v-VSI
Spatial Resolution (lp/mm)	3.6
Pixel Pitch(μm)	139
Active area (inch)	17x17
Data Interface	Wireless
Generator
kV range (kVp)	40 -125
mAs range (mAs)	1-100
mA range(mA)	10 -100

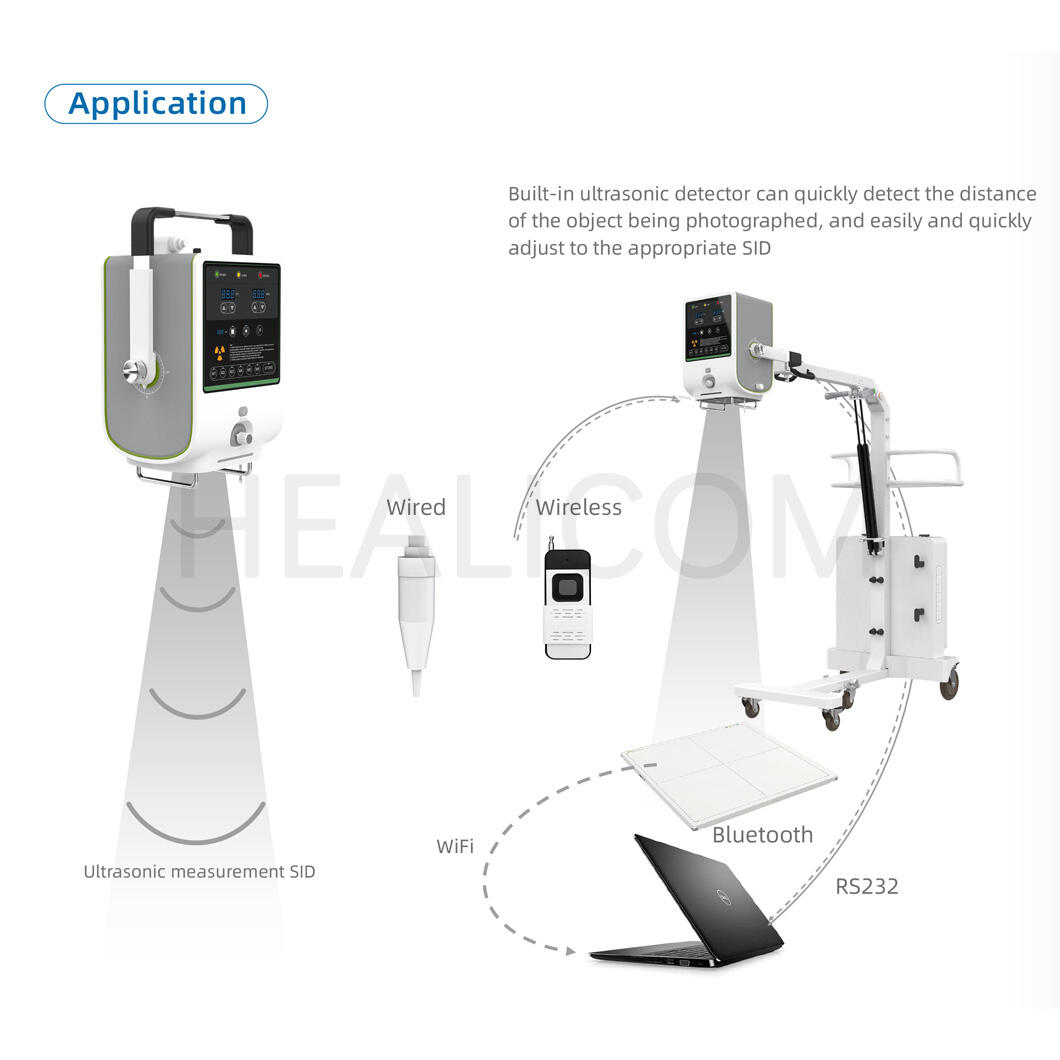

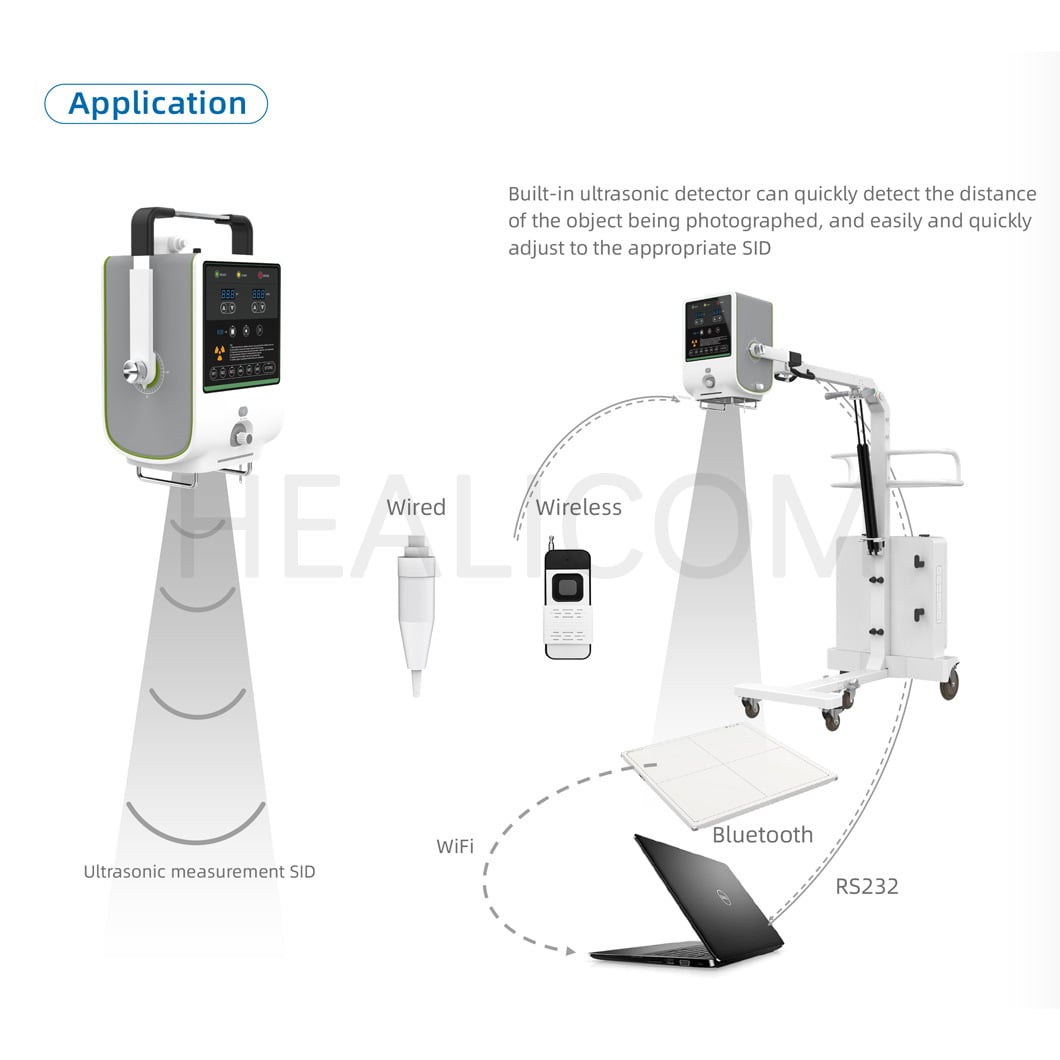

Ultrasonic ranging(mm)	500-1800
Light source on time(s)	30
Communication mode	RS-232/Bluetooth
Exposure mode	Wired/wireless
X-ray Tube
Focal spots(mm)	0.6/1.8
Anode Angle(°)	15
Small focus power (kw)	1.27
High focus power (kw)	5
Frame

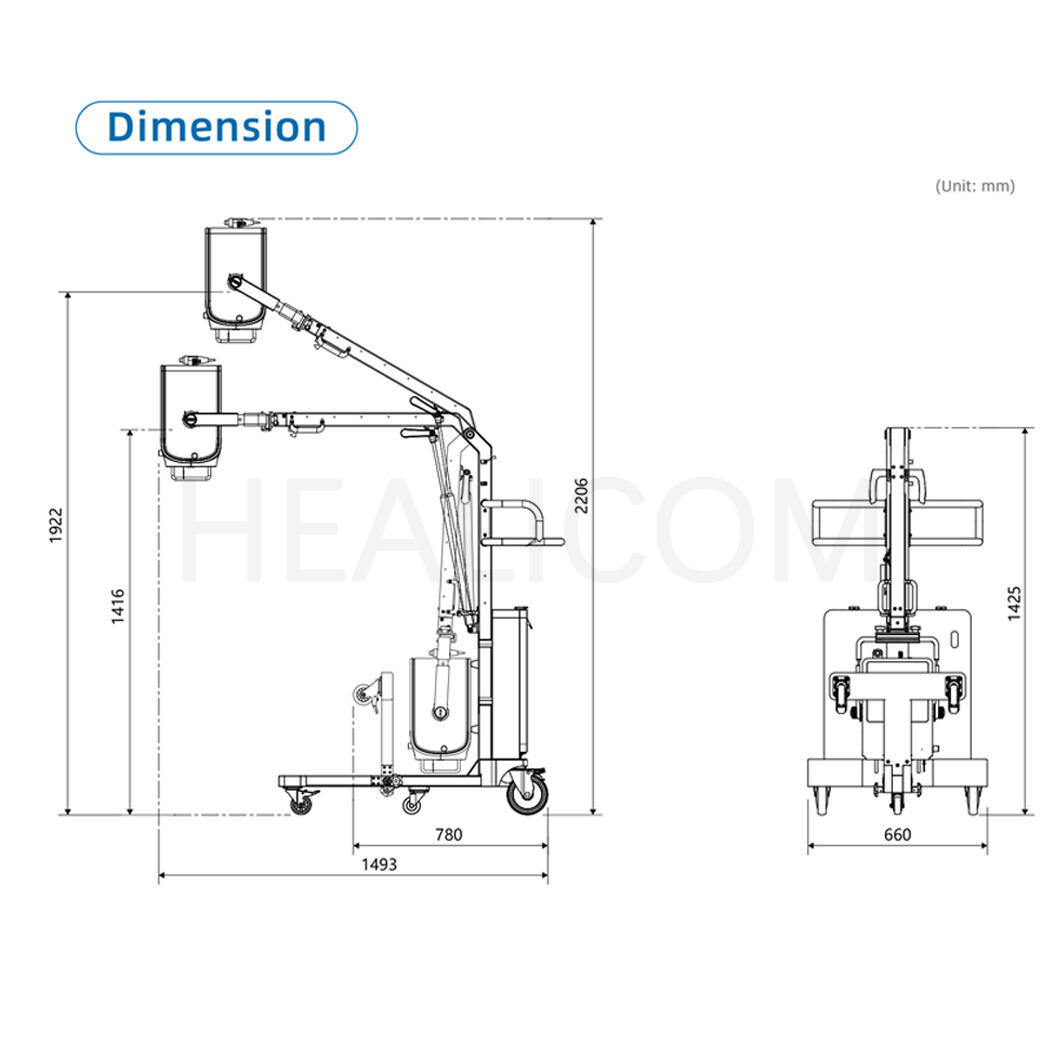

Size(mm ³)	1425x660x780

High Quality Portable 100mA 5KW Xray Machine Mobile Digital X-Ray Imaging Diagnostic System supplier

Workshop

High Quality Portable 100mA 5KW Xray Machine Mobile Digital X-Ray Imaging Diagnostic System manufacture

High Quality Portable 100mA 5KW Xray Machine Mobile Digital X-Ray Imaging Diagnostic System details

Customer Feedbacks

High Quality Portable 100mA 5KW Xray Machine Mobile Digital X-Ray Imaging Diagnostic System factory

Related Products

Company Profile

FAQ

1. What about the price level? We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts. 2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same? As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper. 3. What is time of delivery? Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible. 4. What about quality assurance? We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. 5. What is payment terms? T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
