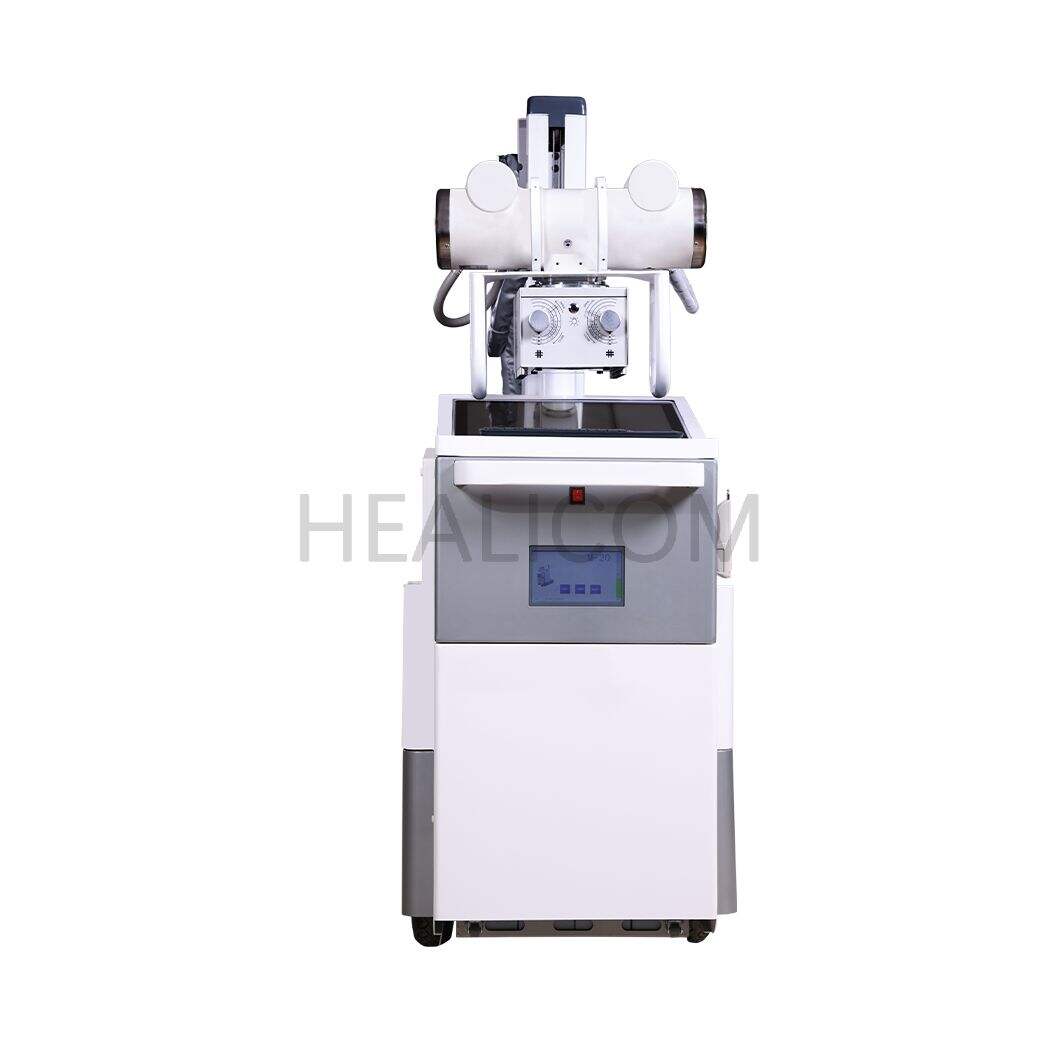

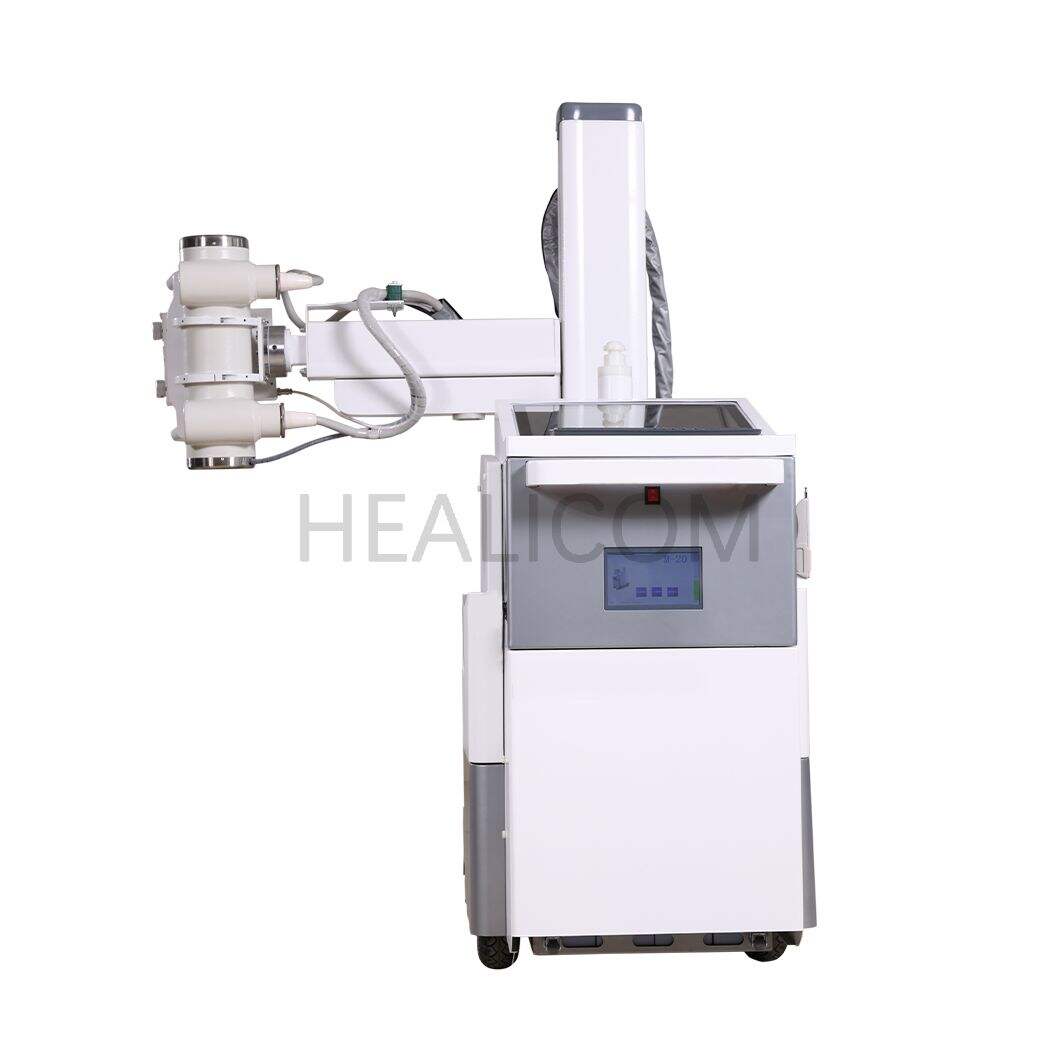

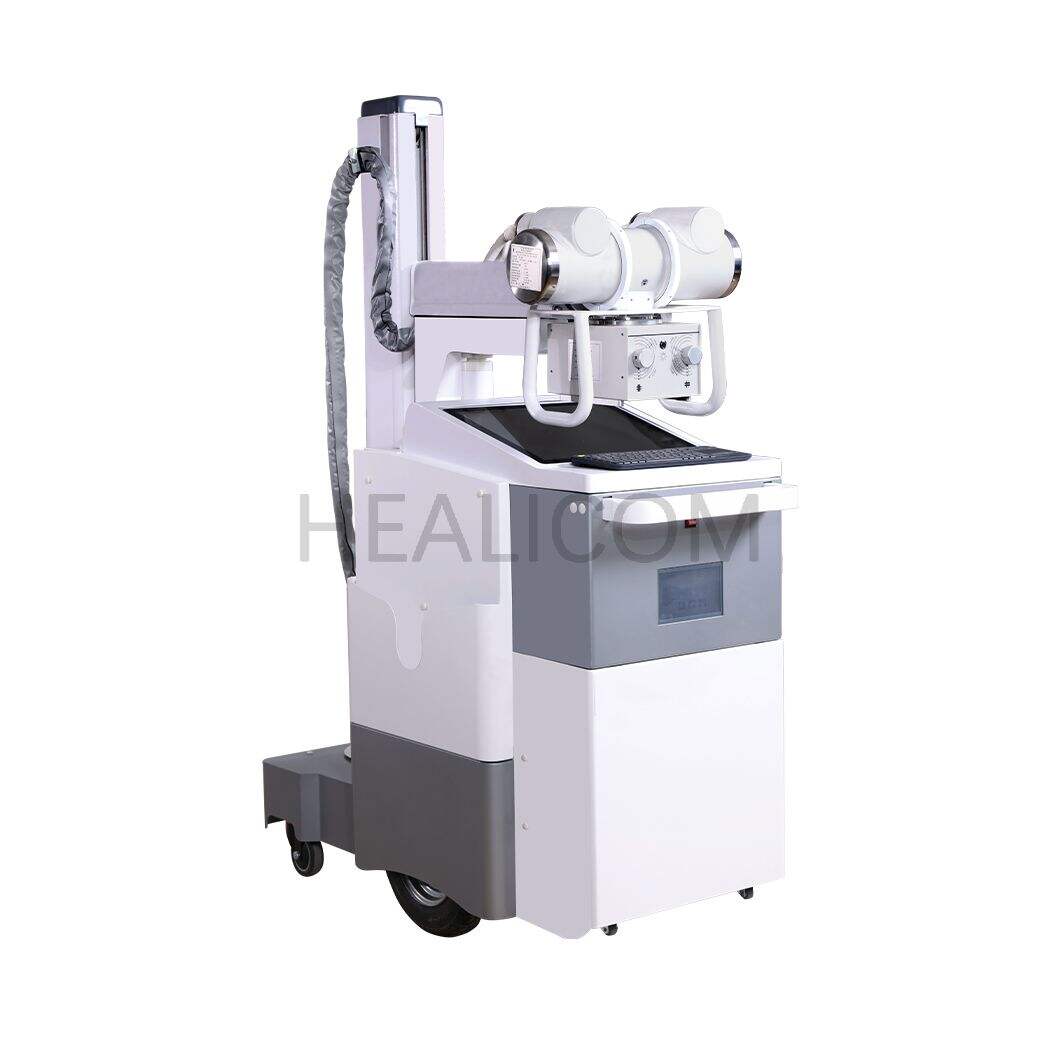

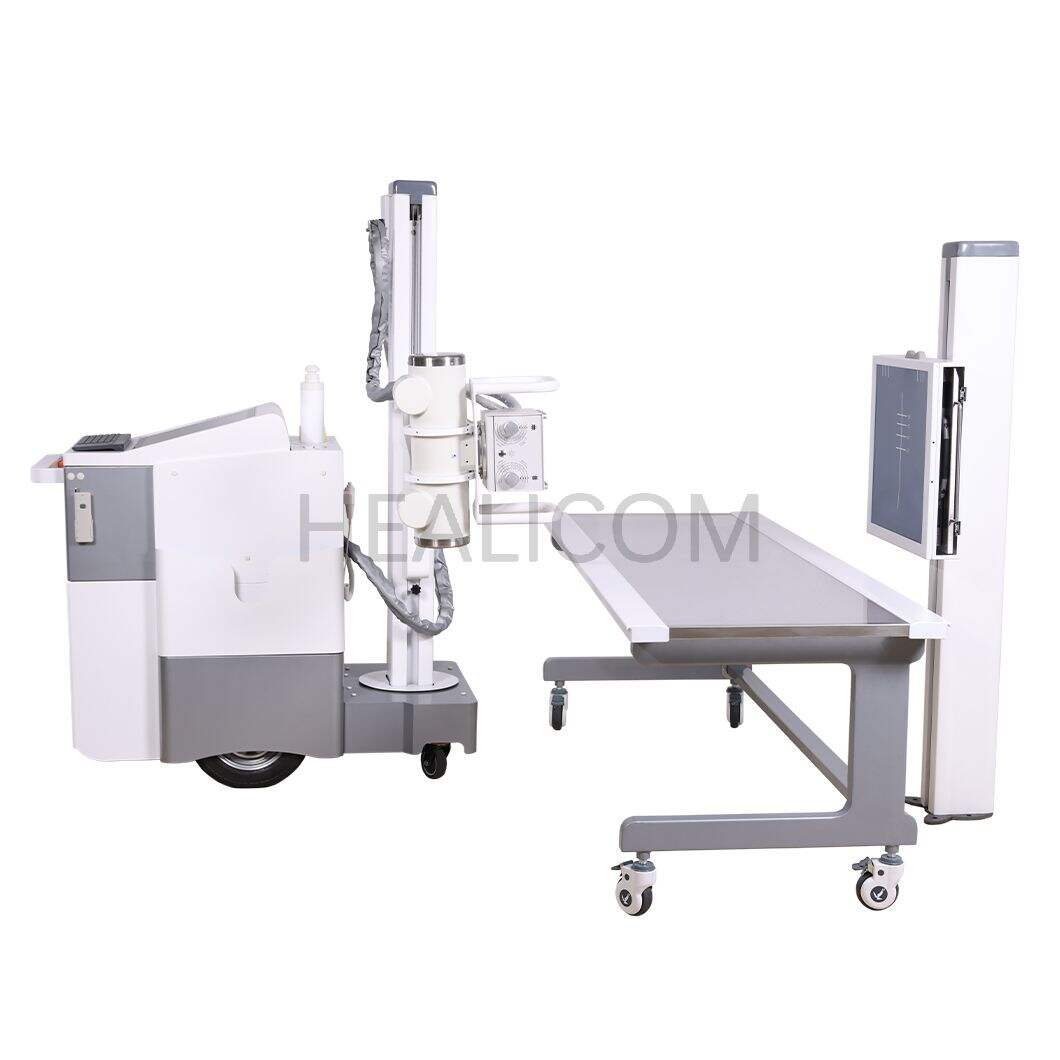

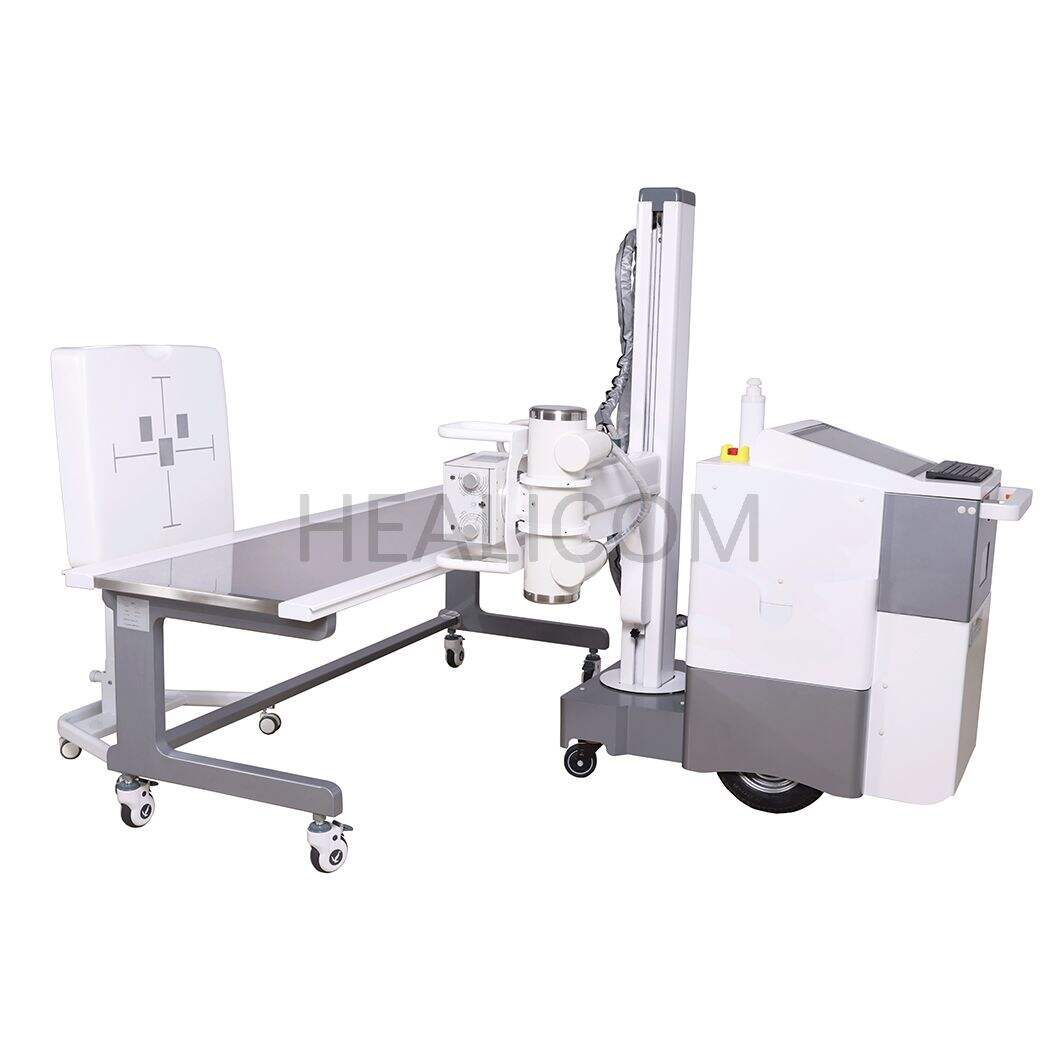

HFX-32H

ALL PRODUCTS

Overview
Recommended Products

Products Description

Technical parameters and requirements
Power requirements
Voltage	220V±10% single phase;
Frequency	50Hz±1Hz
Power supply resistance	≤0.5Ω
Host technical parameters
Main inverter frequency	≥60kH
Filament frequency	≥20kHz
Focus	0.6-1.2mm
The maximum output electric power is	32kW
Photography tube voltage adjustment range	40～125kV
Camera tube current adjustment range	10～400mA
Shooting time adjustment range	1-6300ms
Tube heat capacity	200kHU
The main parameters of the mechanical part
X-ray tube assembly rotates vertically around the cross arm	±90°
X-ray tube assembly horizontal rotation left and right	±90°
Projection size	≥430mmX430mm
Working power battery energy storage
Forward movement mode electric
Backward movement method electric
Main functions of the machine

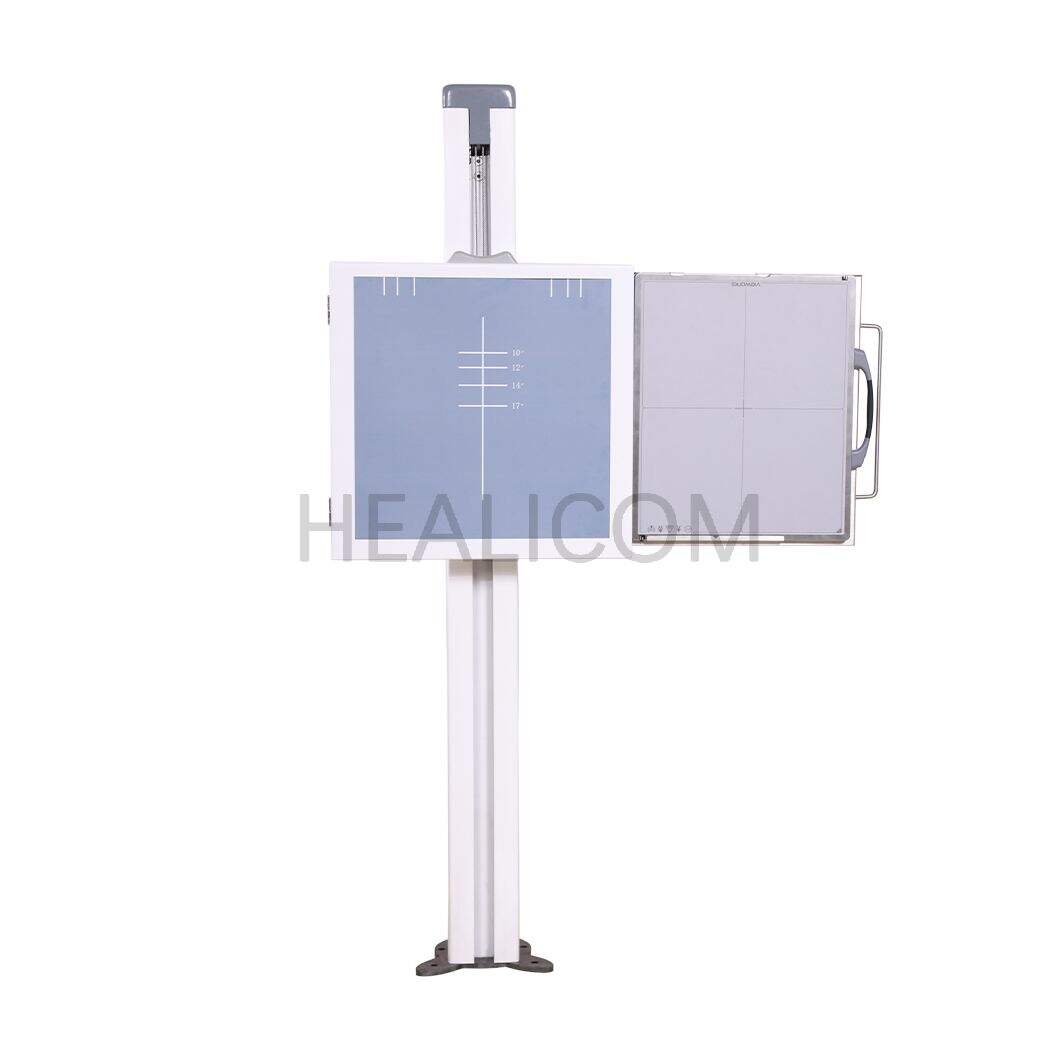

Main parameters of the tablet
Material Amorphous silicon and cesium iodide
Pixel area 42.7 (H) × 35.6 (V)
Pixel matrix 3052 (H) × 2540 (V)
Dot pitch 139 microns
Resolution 3.6 line pairs/mm
A/D conversion 16bt
Main computer performance
CPU Intel Core i5
RAM 8GB
Hard disk 500G
Display Touch screen supports multi-touch
Screen resolution 1920×1080
configuration list
Mobile rack set
High voltage generator set
X-ray tube assembly 1
Beam limiter 1 set
Tablet PC 1
Wireless panel controller 14*17

High Quality Portable 100mA 5KW Xray Machine Mobile Digital X-Ray Imaging Diagnostic System supplier

Workshop

High Quality Portable 100mA 5KW Xray Machine Mobile Digital X-Ray Imaging Diagnostic System manufacture

High Quality Portable 100mA 5KW Xray Machine Mobile Digital X-Ray Imaging Diagnostic System details

Customer Feedbacks

High Quality Portable 100mA 5KW Xray Machine Mobile Digital X-Ray Imaging Diagnostic System factory

Related Products

Company Profile

FAQ

1. What about the price level? We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts. 2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same? As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper. 3. What is time of delivery? Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible. 4. What about quality assurance? We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. 5. What is payment terms? T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
