HFX-6000D

ALL PRODUCTS

Overview
Recommended Products

Products Description

Component

Description

High Voltage X-ray Generator

Power：30kW

Voltage range：40～125kV

Input voltage：AC220

Frequency： 50Hz

Inverter frequency：≥100KHz

Support remote exposure

X-ray tube（Canon）

Nominal tube voltage：125KV

Focus：1.0/2.0

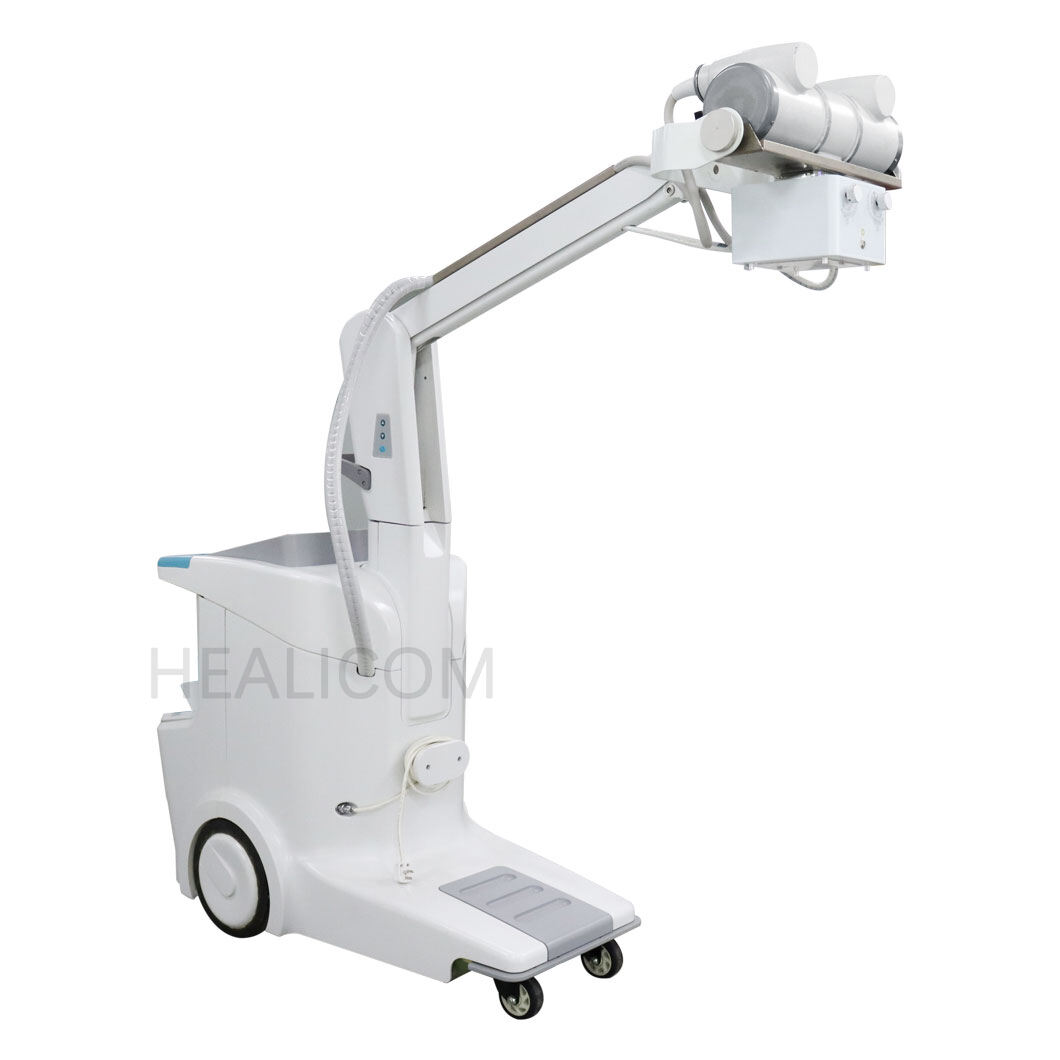

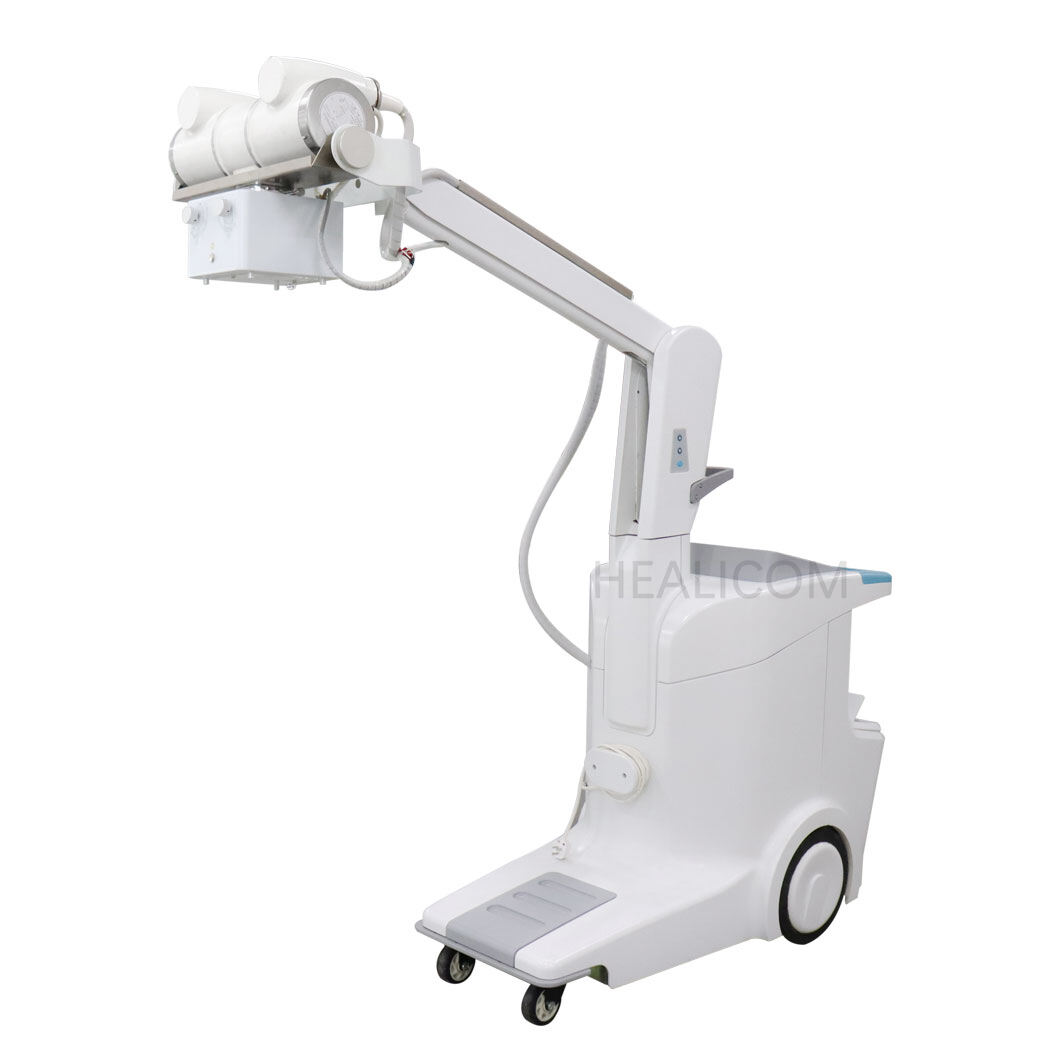

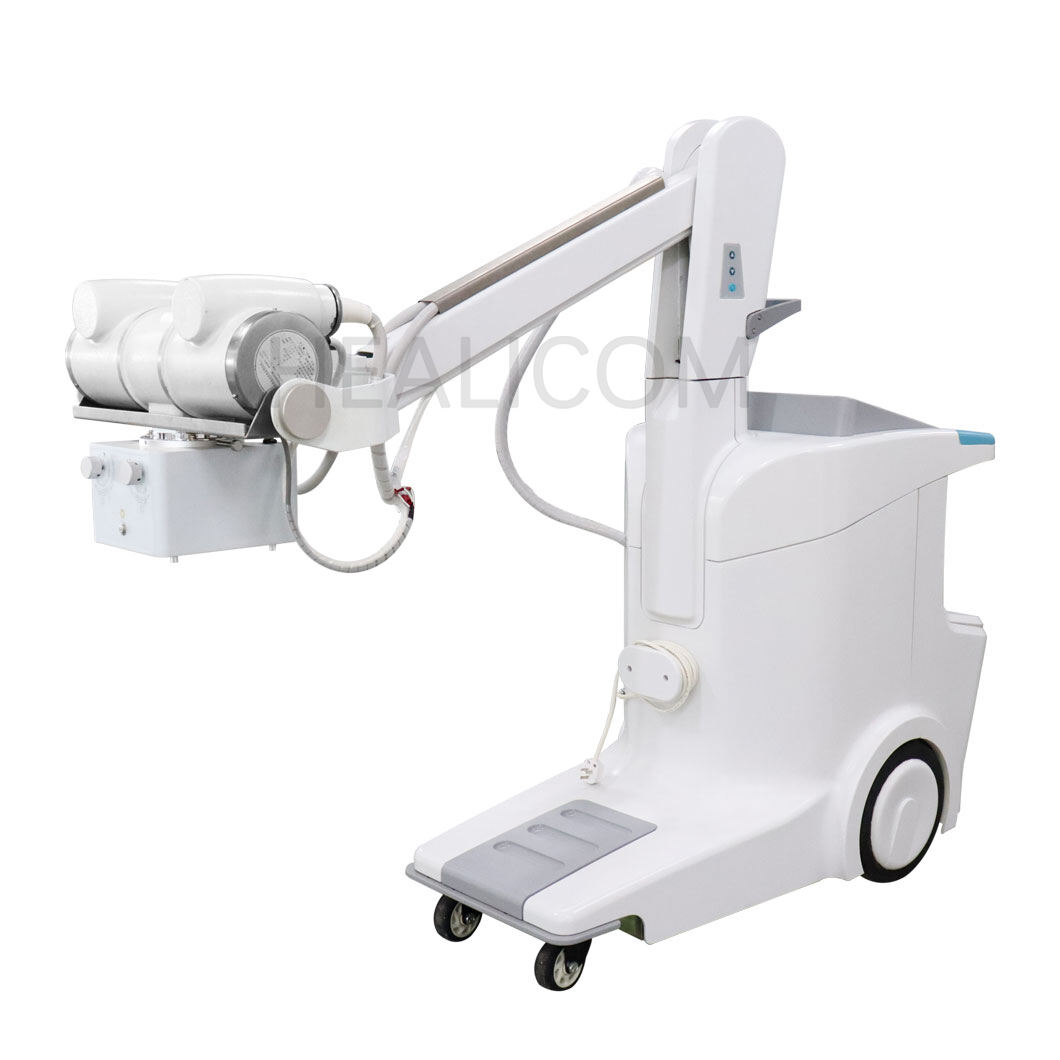

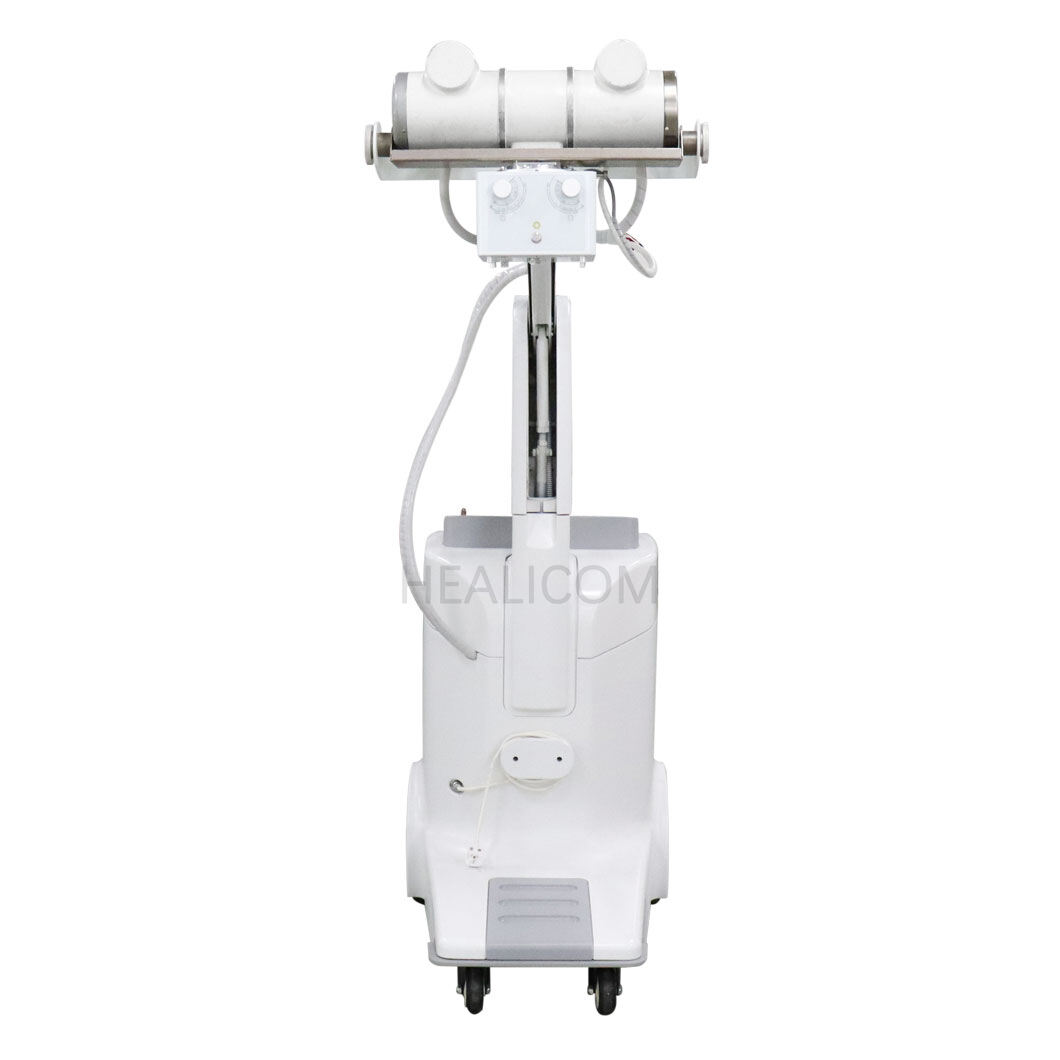

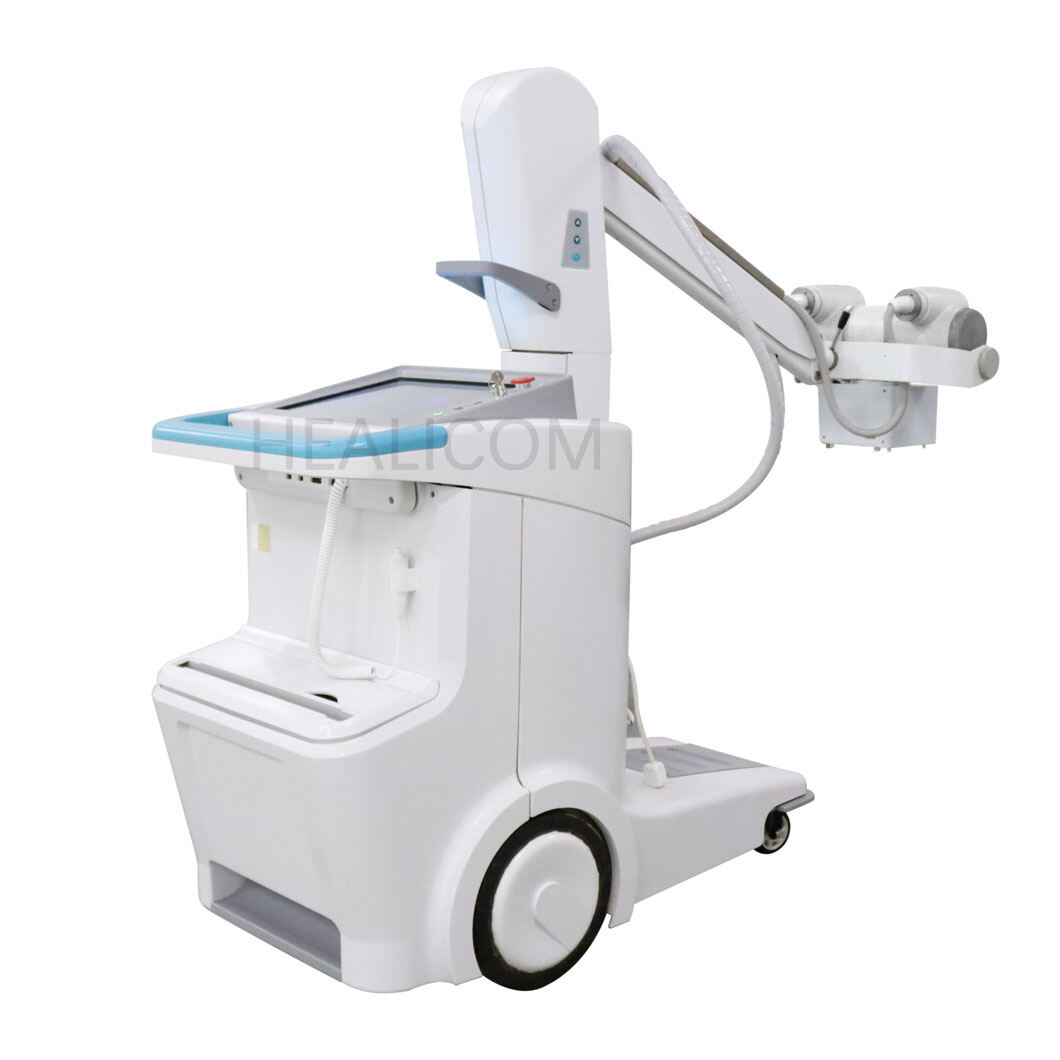

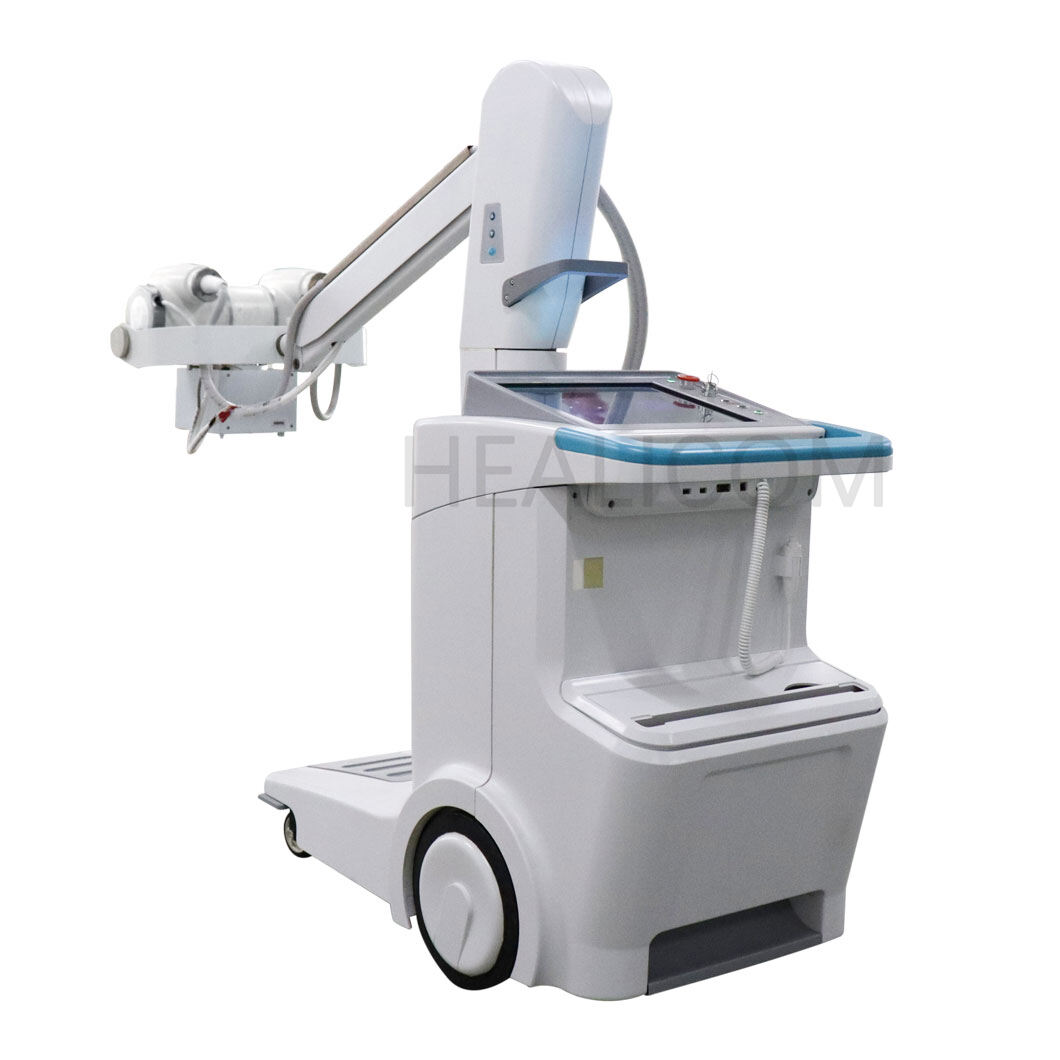

Mobile

X-ray device

The whole machine electric power, the transverse arm as electric lifting.

Easy to operate, flexible rotating arm.

Wide imaging area, the X-ray tube can be around the column for a wide range of rotation.

Arm horizontal rotation function, the tube ball can be rotated ±90° in the same plane.

Collimator

Control mode: manual

Light source limit time: 30s

Flat panel detector（Korea Rayence）

Scintillator:CSI

Pixel pitch：127μm

Image area：423mm×423mm

Pixel matrix：3328×3328px（100 million）

Limiting resolution≥3.9lp/mm

Image time≤7s

Image Display≤5s

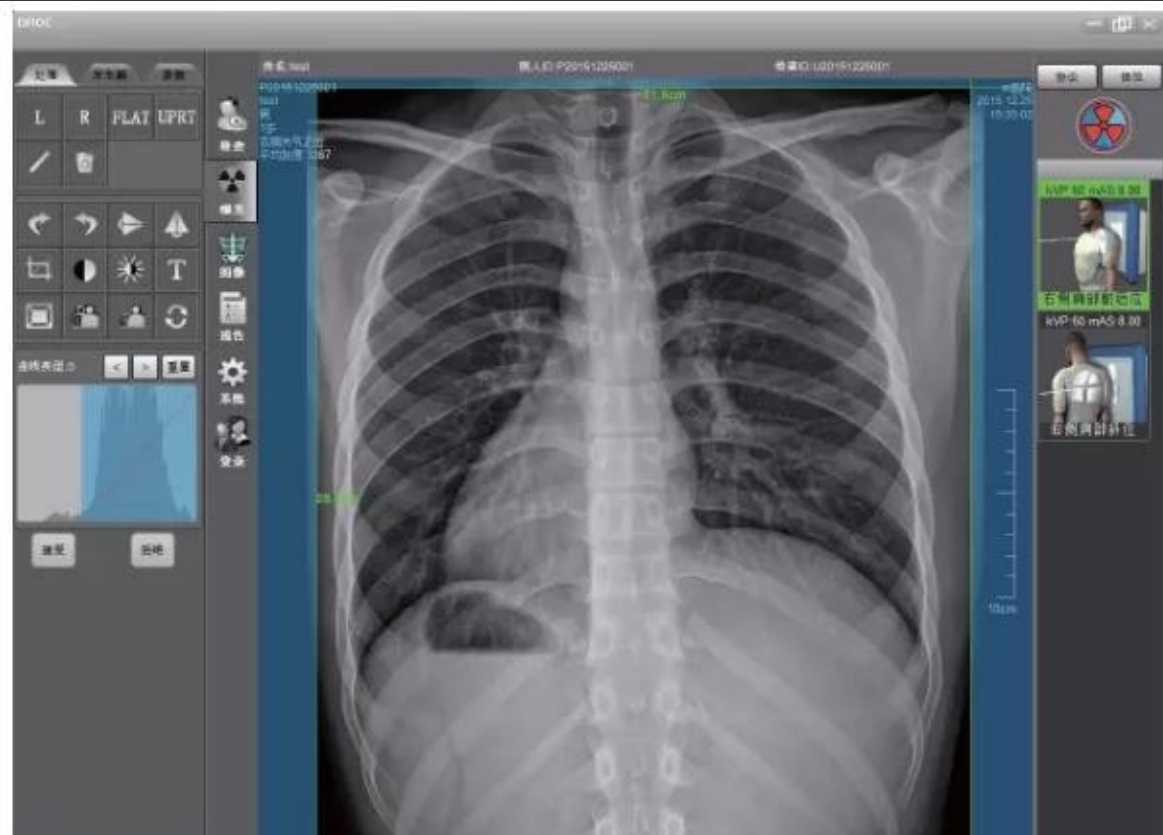

Digital image system

Image acquisition: patient information and examination information should be input, and Dicom3.0 image acquisition

Preview, accept or reject images, and automatically or manually send images.Image Mosaic function

Image display:The collected image should be automatically loaded into the processing interface after exposure.

Image processing: with image pre-processing and post-processing functions.Real-time image storage, image zooming in and out, image brightness adjustment, image contrast adjustment, image rotation, image flipping, image clipping, image
