Products Description
Wireless cassette detector per ISO 4090, fits in bucky
150 μm pixel pitch, with 16 bit ADC for more image details
Stable iSync+Automatic Exposure Detection (AED)

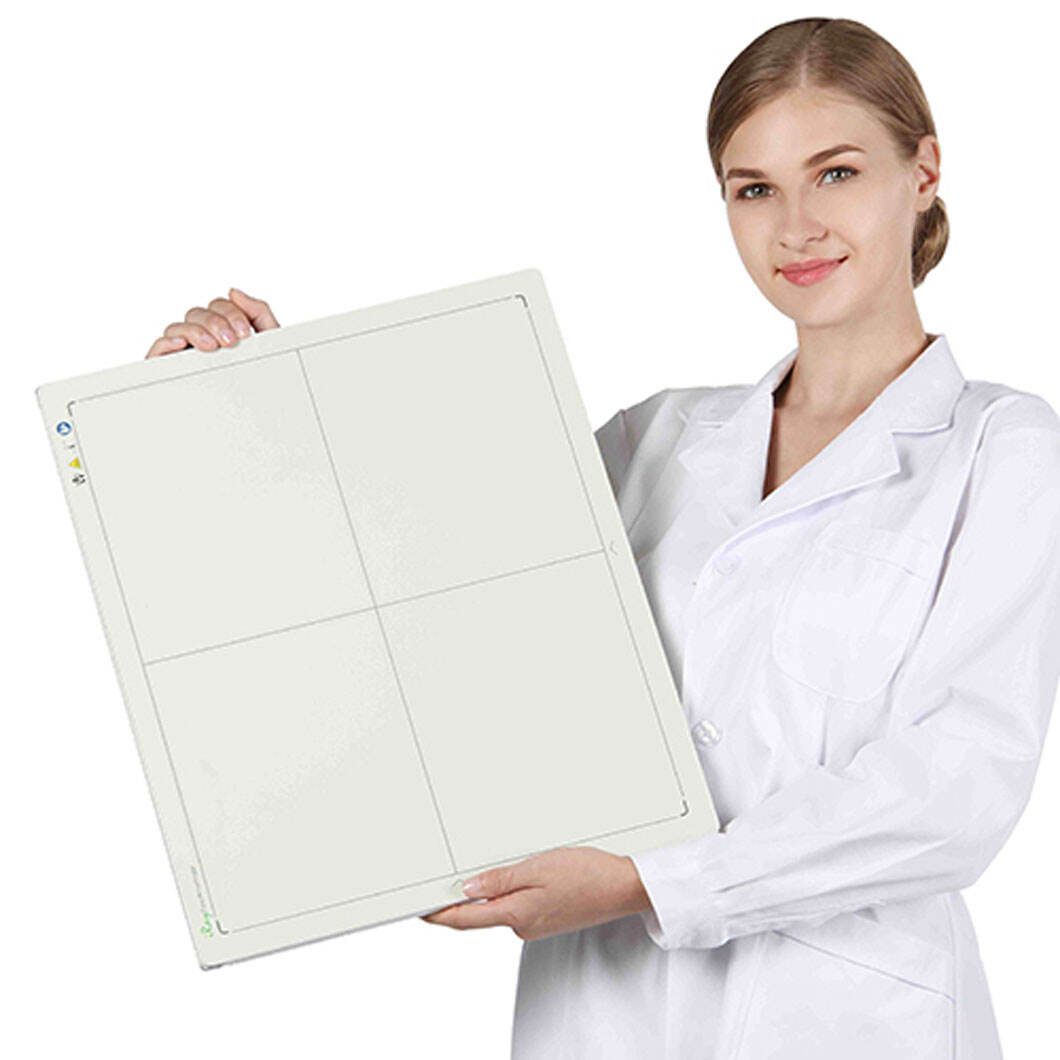

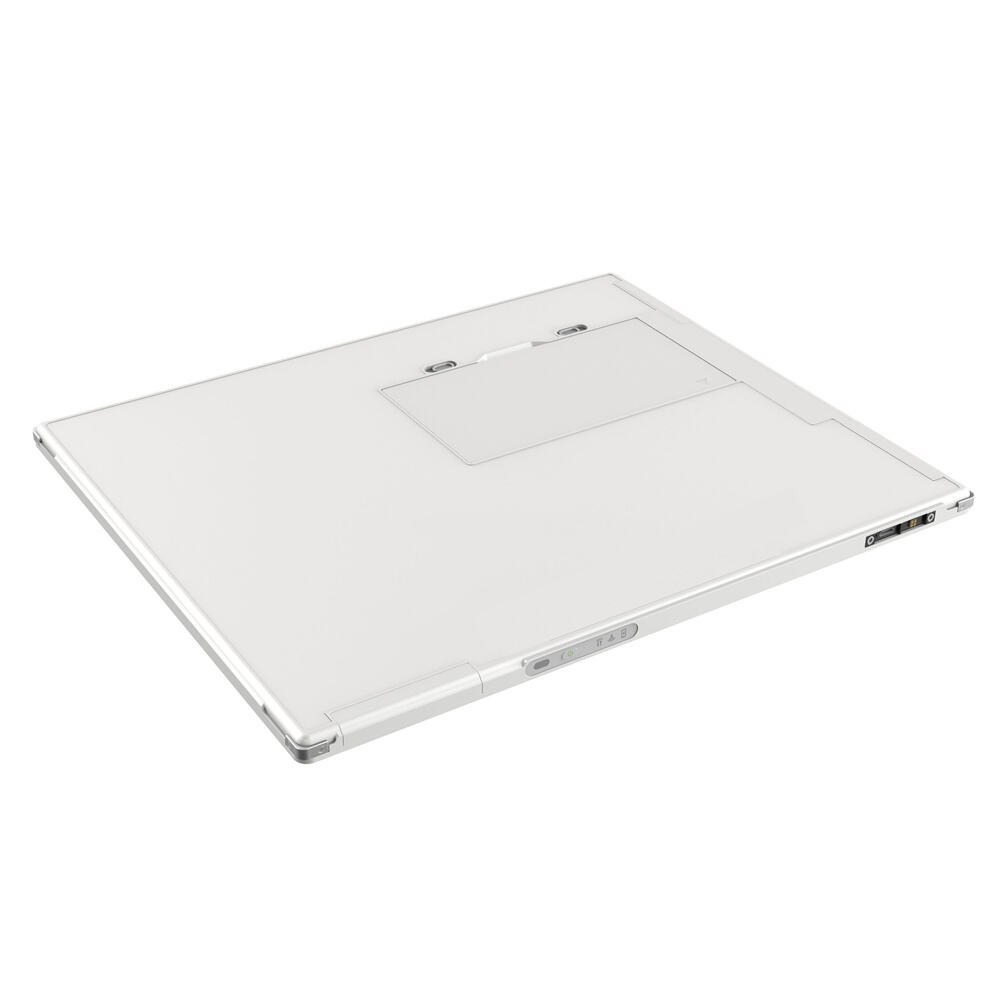

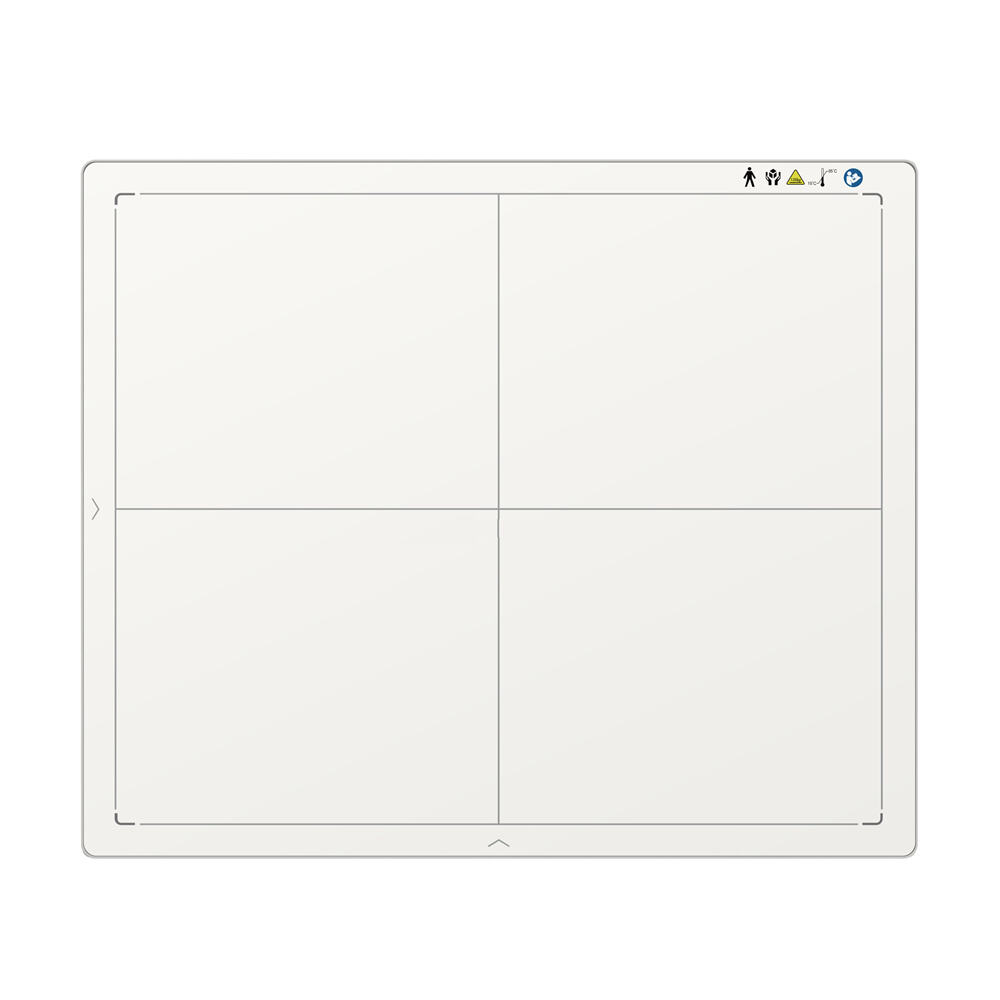

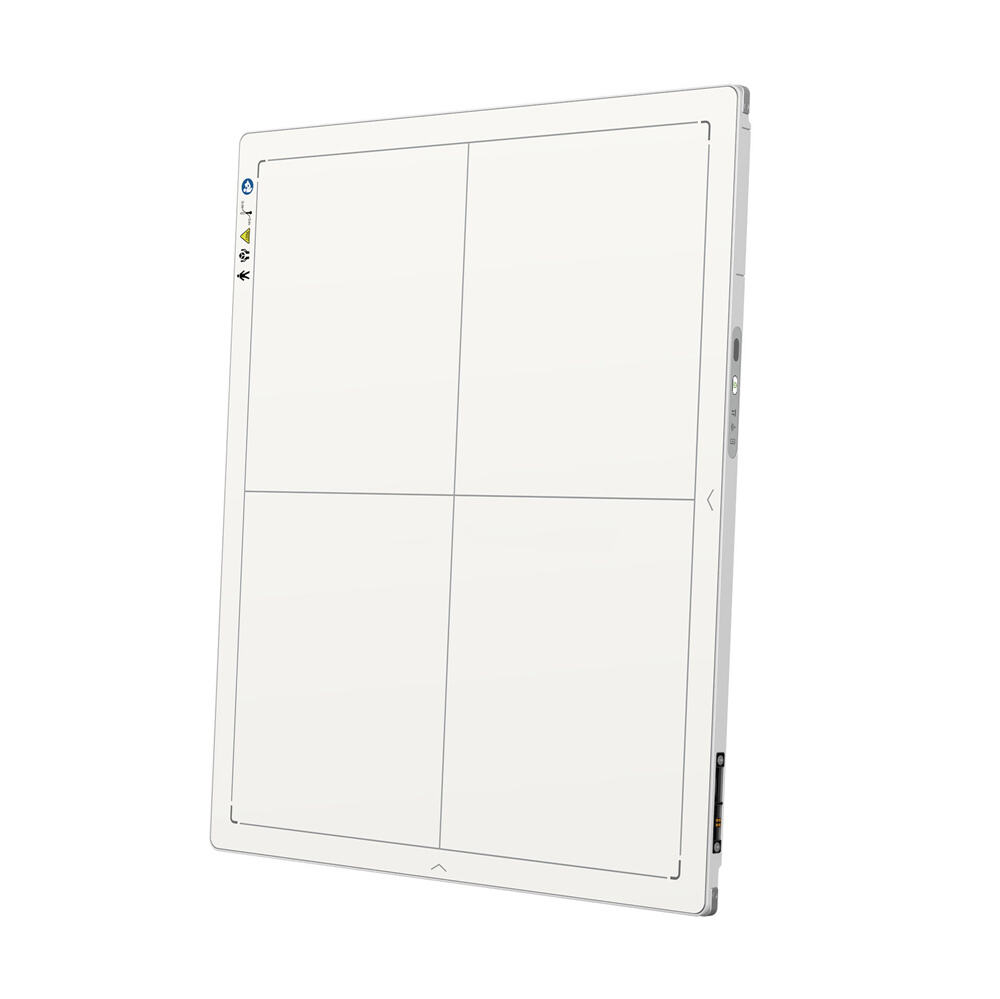

Mars 1417V is a smart 14×17-inch wireless, cassette-sized FPD for radiographic imaging. It features reliable AED, dependable wireless performance, and a long battery life. The Mars 1417V supports a fast work flow, and is the optimal choice for both retrofit and new DR system solutions.
Technical Specifications
Dimensions
Optimized low dose and Image quality
i-sync function, retrofit with any generator
High capacity images storage
Easy installation, easy multi-modality sharing
Double confidence with multi-function backup cable
Technical Specifications
150 μm pixel pitch, with 16 bit ADC for more image details
Stable iSync+Automatic Exposure Detection (AED)
Mars 1417V is a smart 14×17-inch wireless, cassette-sized FPD for radiographic imaging. It features reliable AED, dependable wireless performance, and a long battery life. The Mars 1417V supports a fast work flow, and is the optimal choice for both retrofit and new DR system solutions.
Technical Specifications
| Detector Technology | Amorphous Silicon |
| Scintillator | CsI |
| Active Area (mm²) | 346 × 420 |
| Pixel Matrix | 2304 × 2800 |
| Pixel Pitch (μm) | 150 |
| Spatial Resolution (lp/mm) | 3.4 |
| AD Conversion (bit) | 16 |
| Battery Autonomy (h) | 5 |
| WIFI | 2.4G and 5G, IEEE802.11 a/b/g/n/ac |
| Trigger Mode | AED (Optional) / Software |
| Full Image Time (s) | Typ.5 |
| Dimensions (mm) | 384 × 460 × 15 |
| Weight (kg) | 3.6 |
| Static Loading | 150kg Uniformly |
| Ingress Protection | IPX1 |
| Operating Temperature (℃) | 5 ~ 35 |
| Storage & Transport Temperature with Package (℃) | -20 ~ 55 |
| Operating Humidity (% RH) | 10 ~ 90 (Non-Condensing) |
| Storage & Transport Humidity with Package (% RH) | 5 ~ 95 (Non-Condensing) |

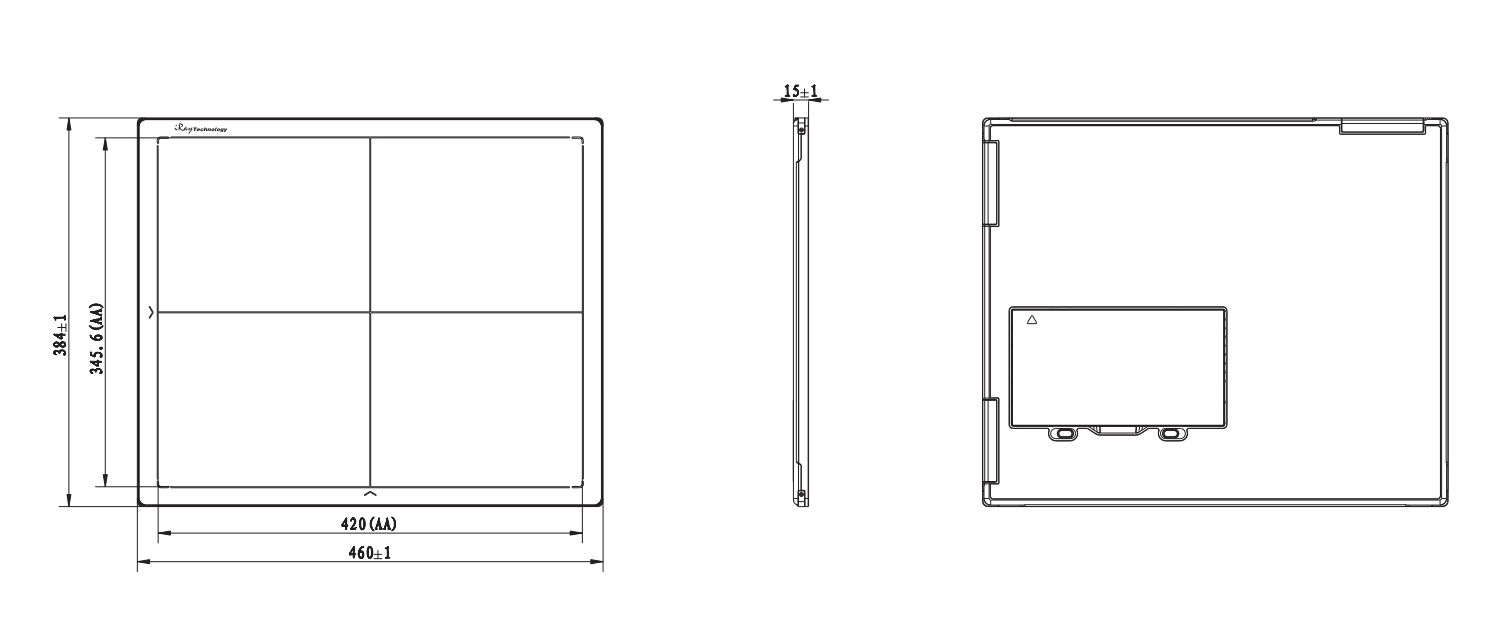

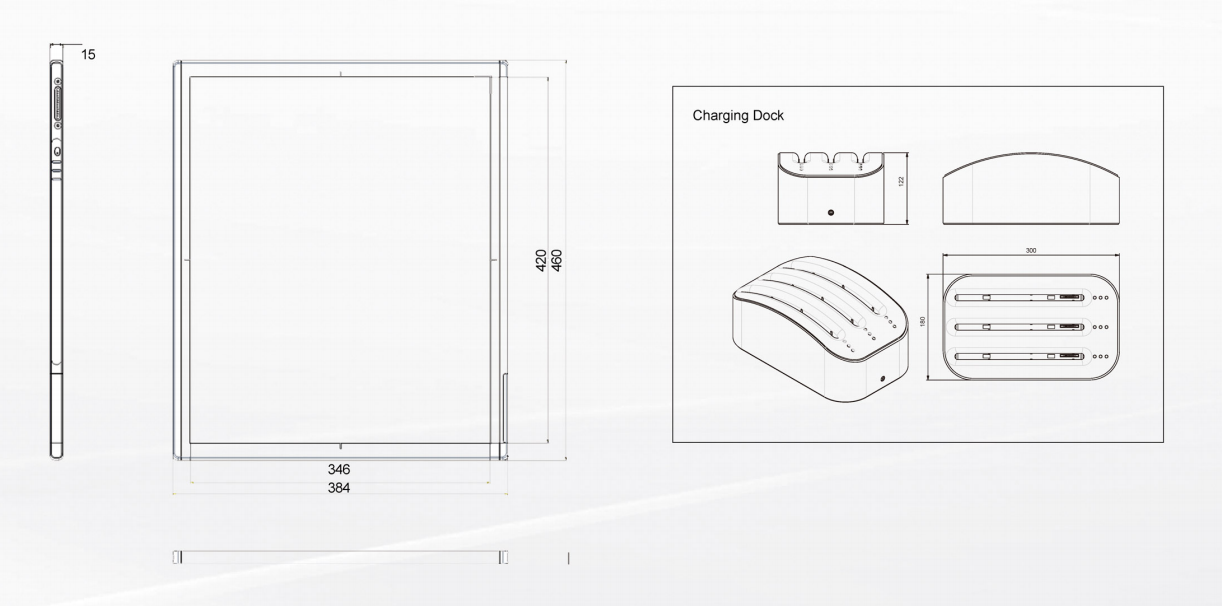

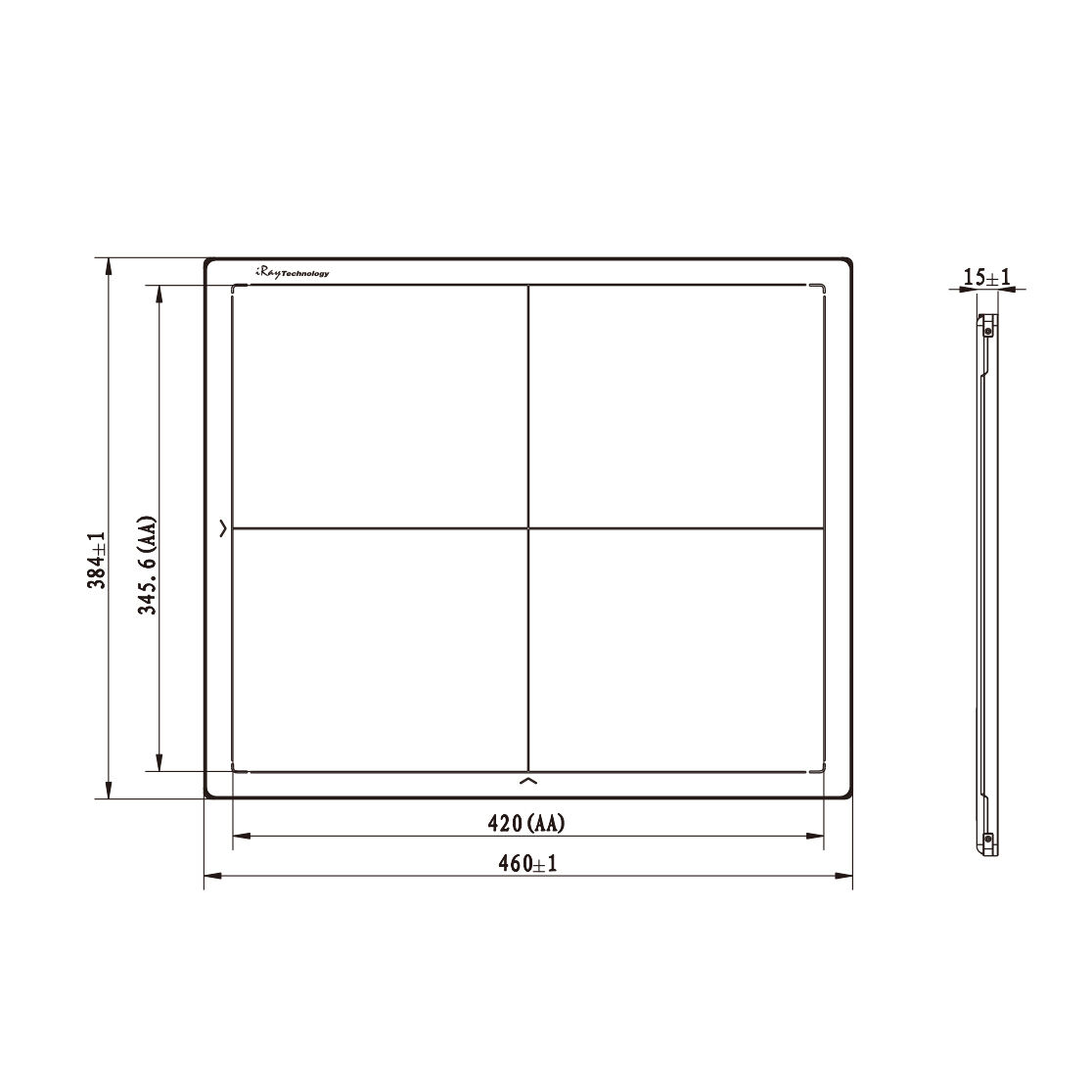

Dimensions
Optimized low dose and Image quality
i-sync function, retrofit with any generator
High capacity images storage
Easy installation, easy multi-modality sharing
Double confidence with multi-function backup cable
Technical Specifications
| Detector Technology | Amorphous Silicon |
| Scintillator | GOS |
| Active Area | 14"x17" |
| Accessories | Charging Dock, Cables 2 Extra Batteries |
| Pixel Pitch | 150μm |
| Number of Pixels | 2304x2800 |
| AD Conversion | 14bits |
| Full Image Acquisition Time | 5s preview 10s full image (post-offset) |
| Data Interface | WiFi/Ethernet |
| Detector Control | WiFi/Ethernet |
| Trigger Mode | Sync-shot/Software |
| Battery | ≥3h(Battery changeable) |
| Shock Tolerance | High |
| Option | Grid Frames |
| Limiting Resolution | 3.3 lp/mm |
| Operating Temperature | 0-30°C |
| Storage Temperature | -20-60°C |
| Operating Humidity | 10-70% |
| Storage Humidity | 10-70% |
| Dimension | 384x460x15.4mm |
| Housing Material | Carbon Fiber and Aluminum |
| Weight | 3.6kg |
| Power Supply | 24V |
| Adapter | AC input: 100-240V, 50-60Hz |
| Internal Image Storage | 200 full size images |
Dimensions
