Products Description

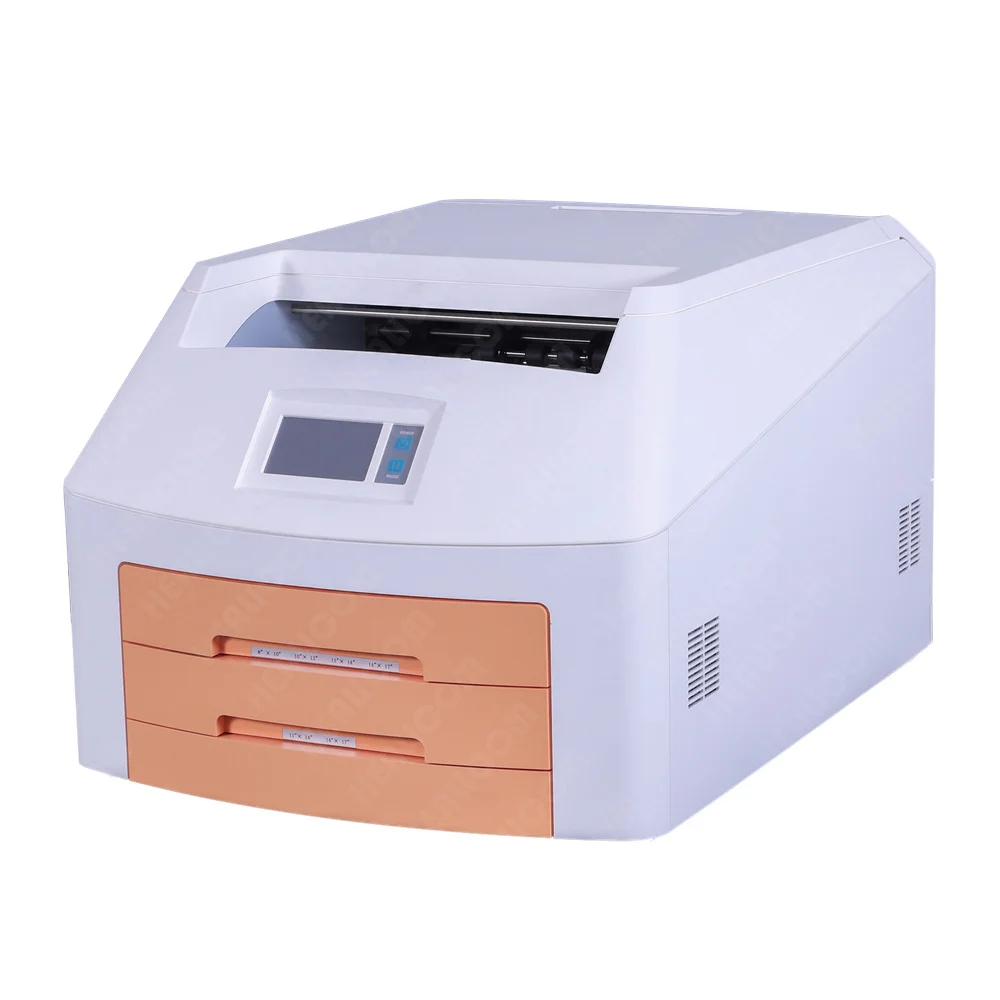

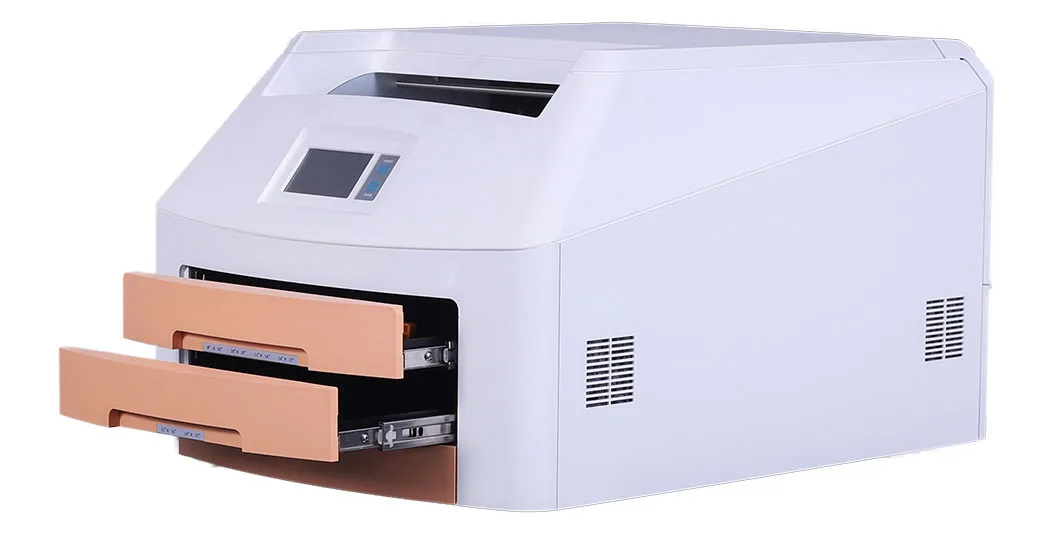

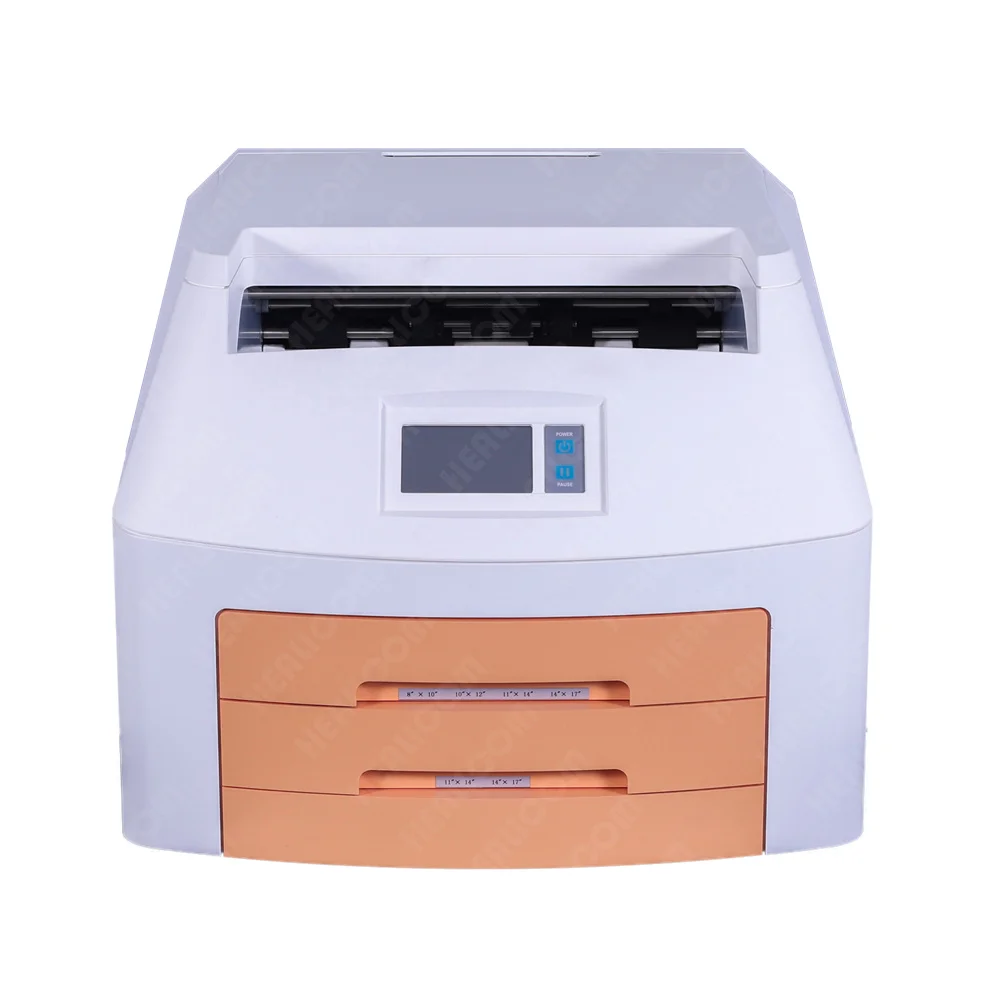

Dry Thermal Imager Medical X Ray Film Printer
The Dry Imager is a thermo-graphic film processor designed for digital radiography imaging. It is the one and only domestically engineered medical dry thermal imager.
The HQ-DY series Dry Imager uses the latest direct dry thermal imaging technology which accommodates for a full range of applications, including CT, MR, DSA and US, as well as CR/DR applications for GenRad, Mammography, Orthopaedics, Dental Imaging and more.
The HQ-Series Dry Imager dedicates to precision in diagnosis with its outstanding image quality, and offers affordable imaging catering to your needs.
Technical Specifications |
||||||
Model |
HQ-430DY |
HQ-460DY |
HQ-760DY |
|||
Print Technology |
Direct thermal (dry, daylight-load film) |
|||||
Spatial Resolution |
320dpi (12.6 pixels/mm) |
508dpi(20 pixels/mm) |
||||
Throughput |
14’’×17’’ ≥70 sheets/h ; 8’’×10’’ ≥90 sheets/h |
14’’×17’’≥60 sheets/h; 8’’×10’’ ≥80 sheets/h |
||||
Grayscale Contrast Resolution |
14 bits |
|||||

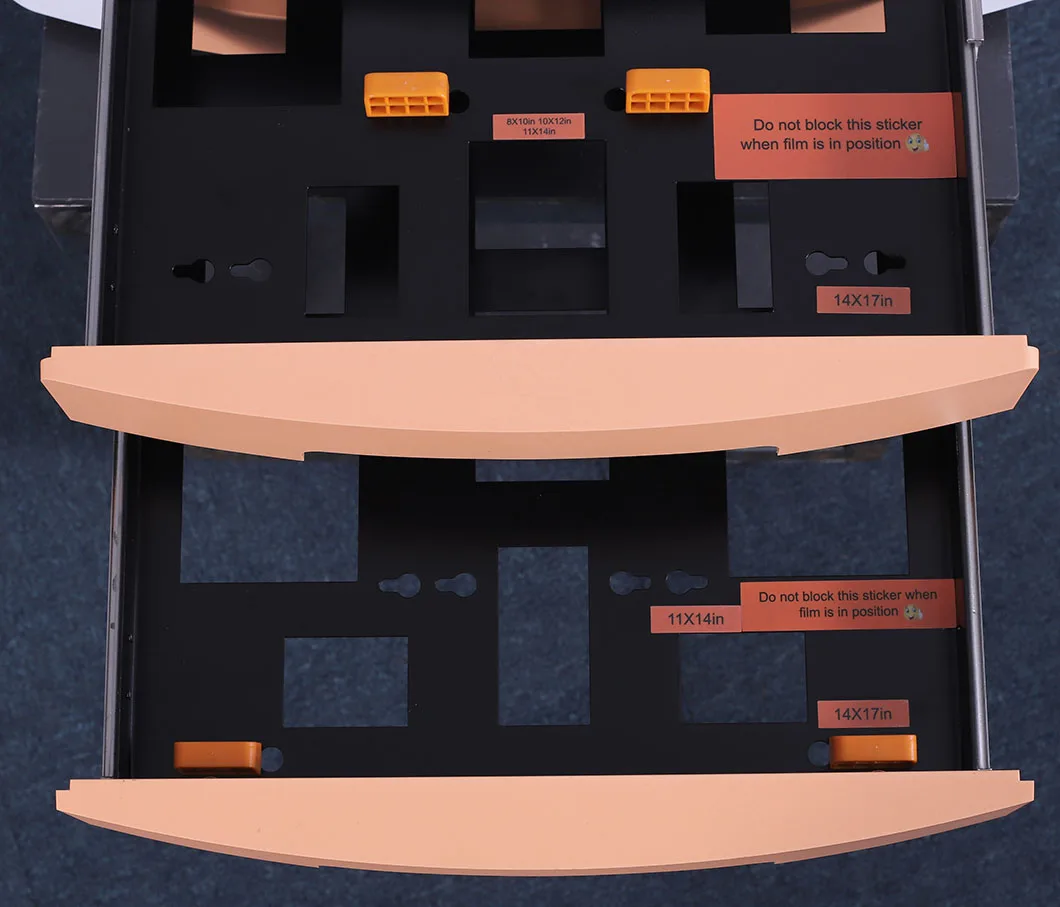

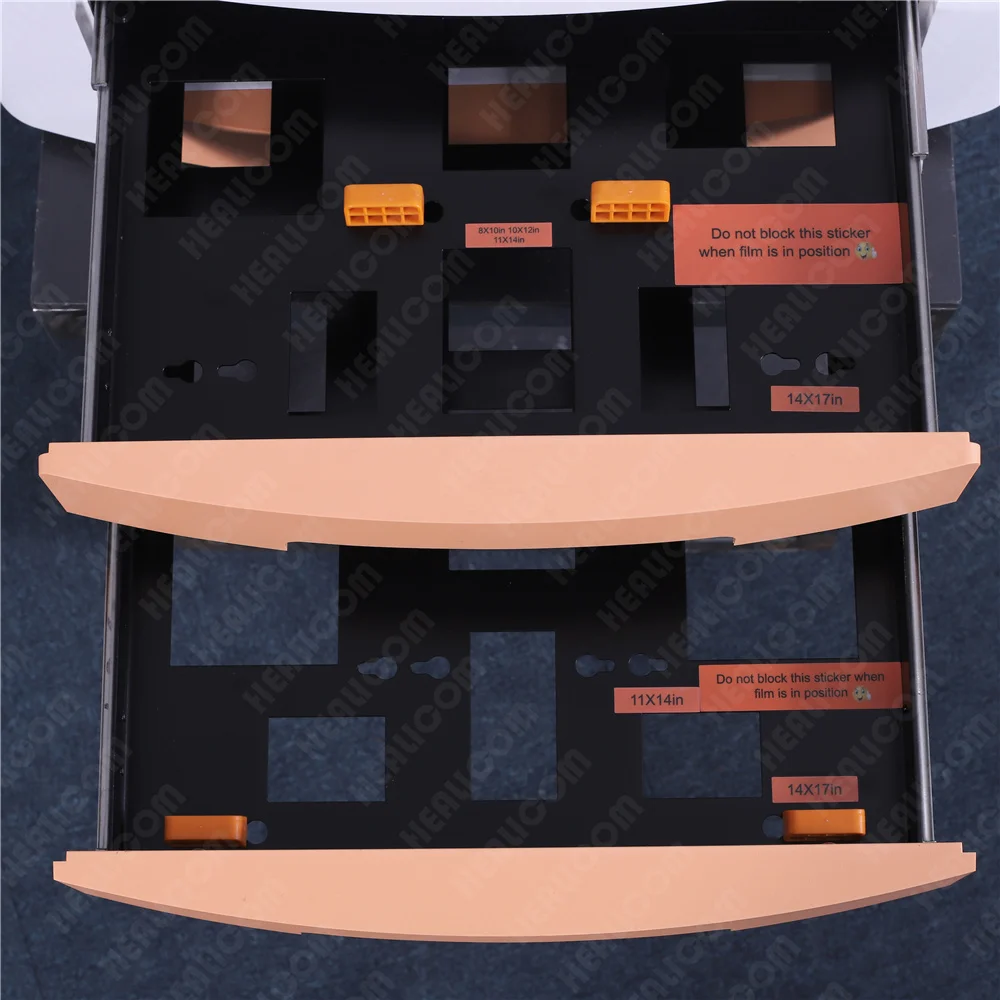

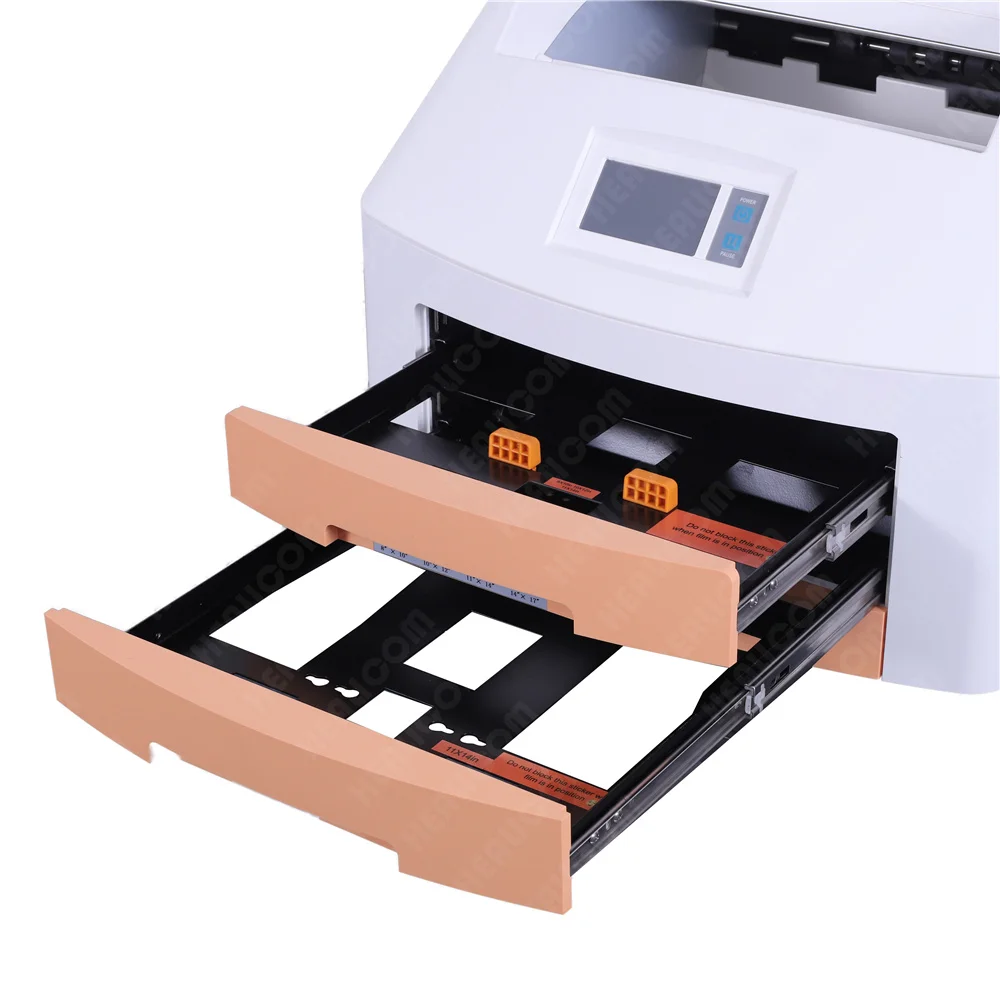

Film Tray |
One supply tray, 100-sheet capacity total |
Two supply trays, 200-sheet capacity total |
||||
Film Sizes |
8’’×10’’, 10’’×12’’, 11’’×14’’, 14’’×17’’ |
|||||
Applicable Film |
Medical Dry Thermal Film(blue or clear base) |
|||||
Interface |
10/100/1000 Base-T Ethernet (RJ-45) |
|||||
Network Protocols |
Standard DICOM 3.0 connection |
|||||
Image Quality |
Automatic calibration using built-in densitometer |
|||||
Control Panel |
Touch Screen, Online Display, Alert, Fault and Active |
|||||
Power Supply |
100-240VAC 50/60Hz 600W |
|||||
Weight |
50Kg |
|||||
Operating Temperature |
5℃-35℃ |
|||||
Operating Humidity |
35%-85% |
|||||
Storage Humidity |
30%-95% |
|||||
Storage Temperature |
-22℃-50℃ |
|||||
Base Holding |
Optional |
|||||
Detail Images

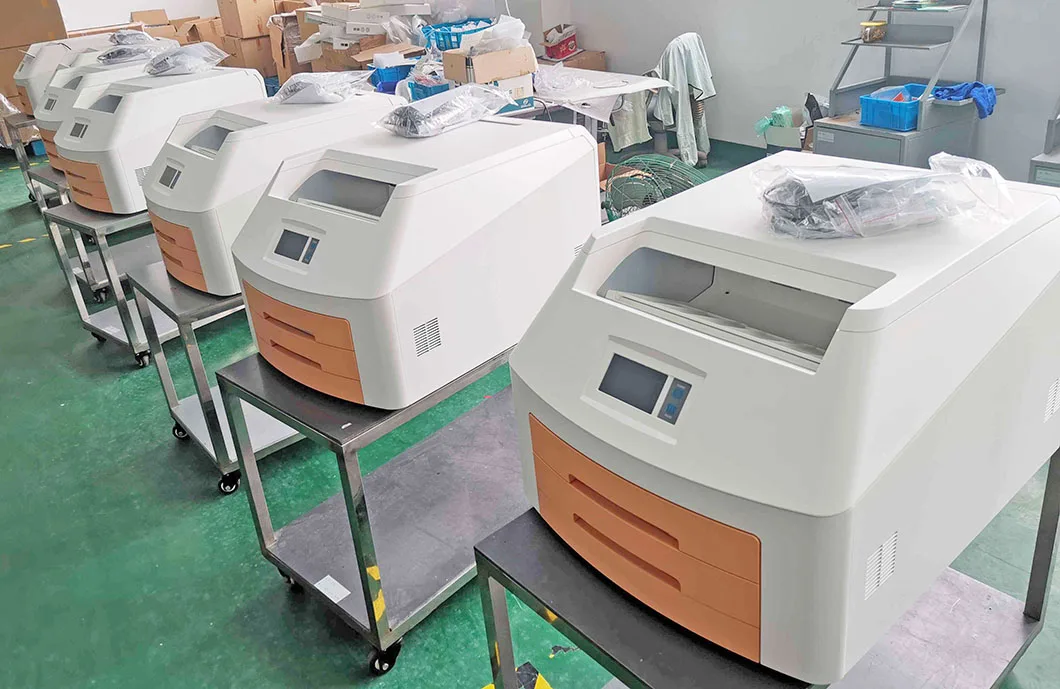

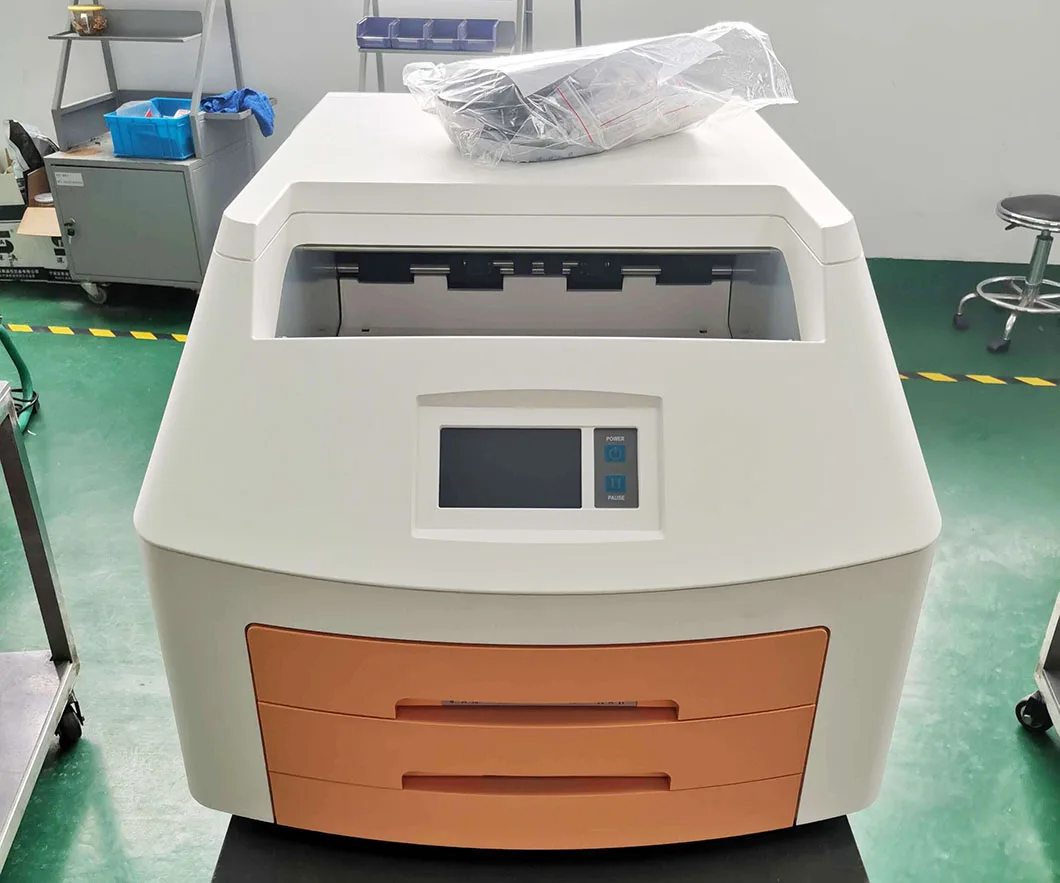

Workshop
Customer Feedbacks
Related Products
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
