Products Description

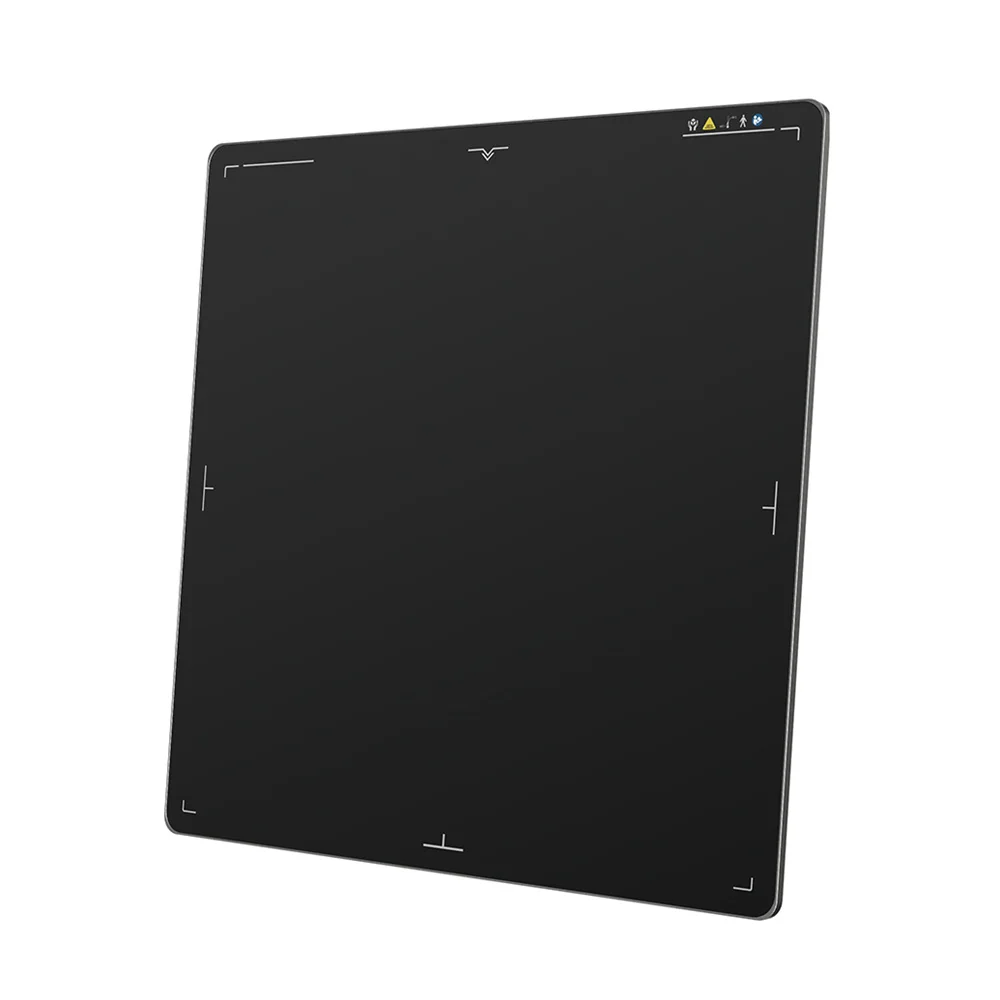

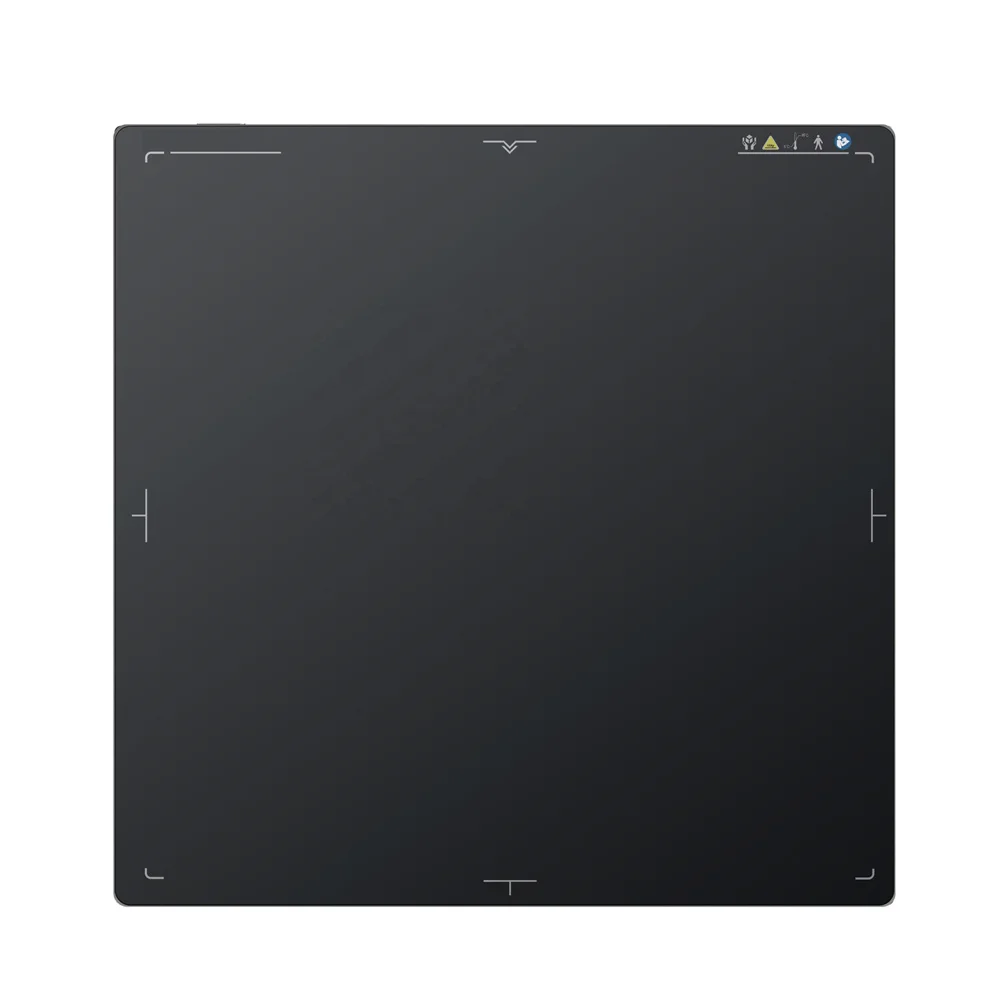

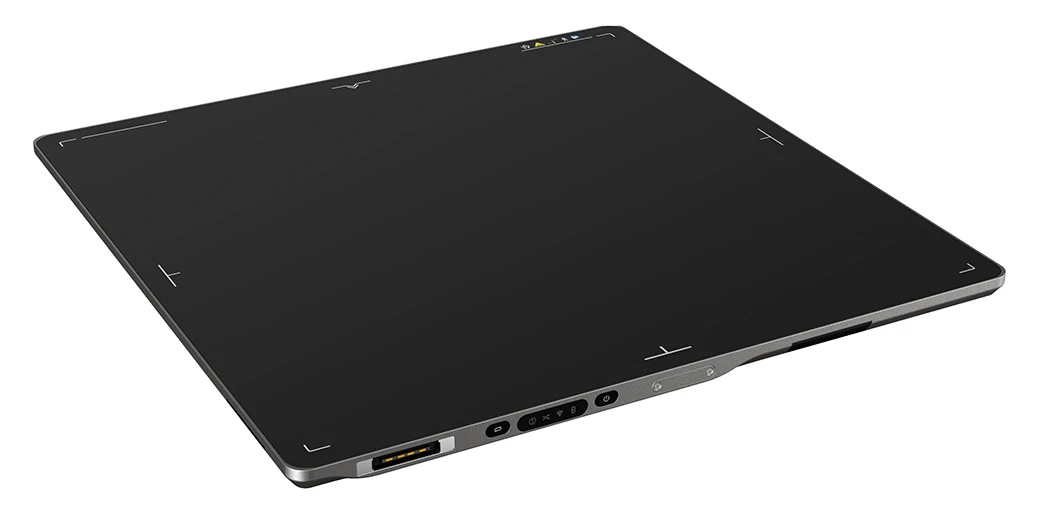

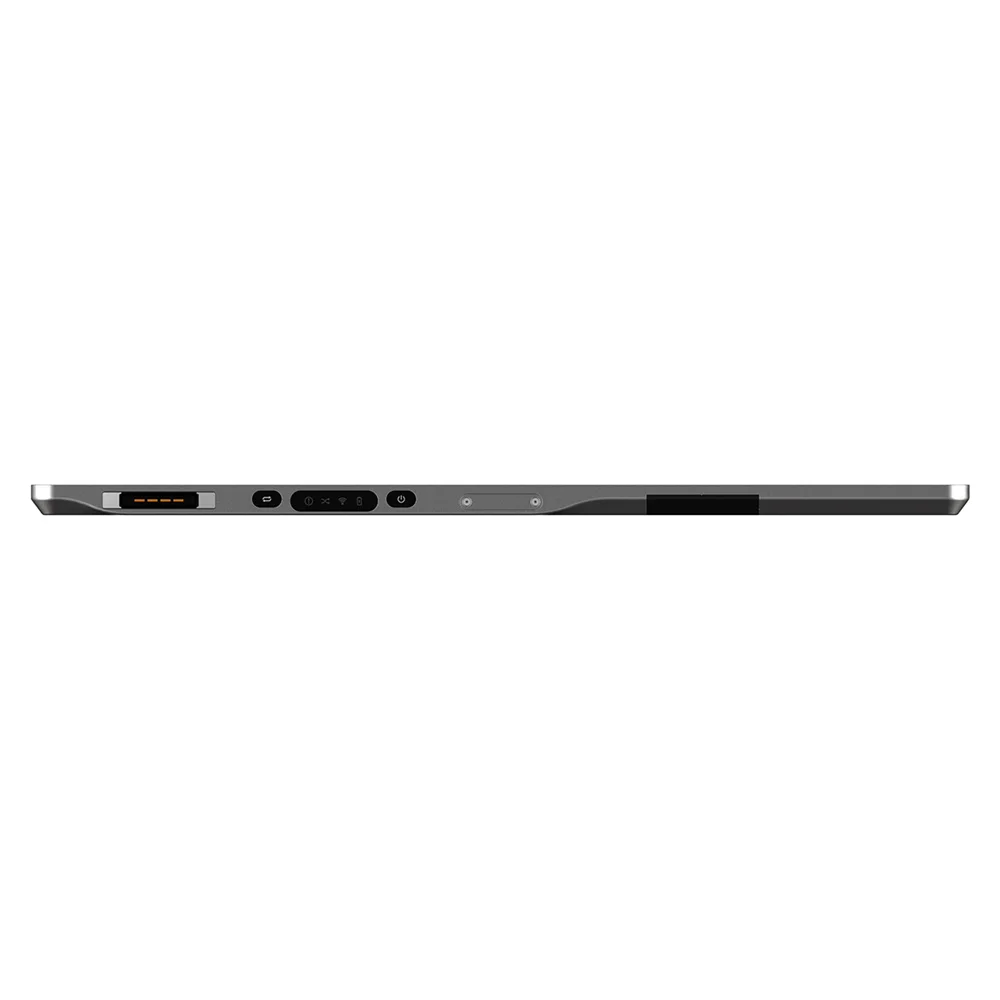

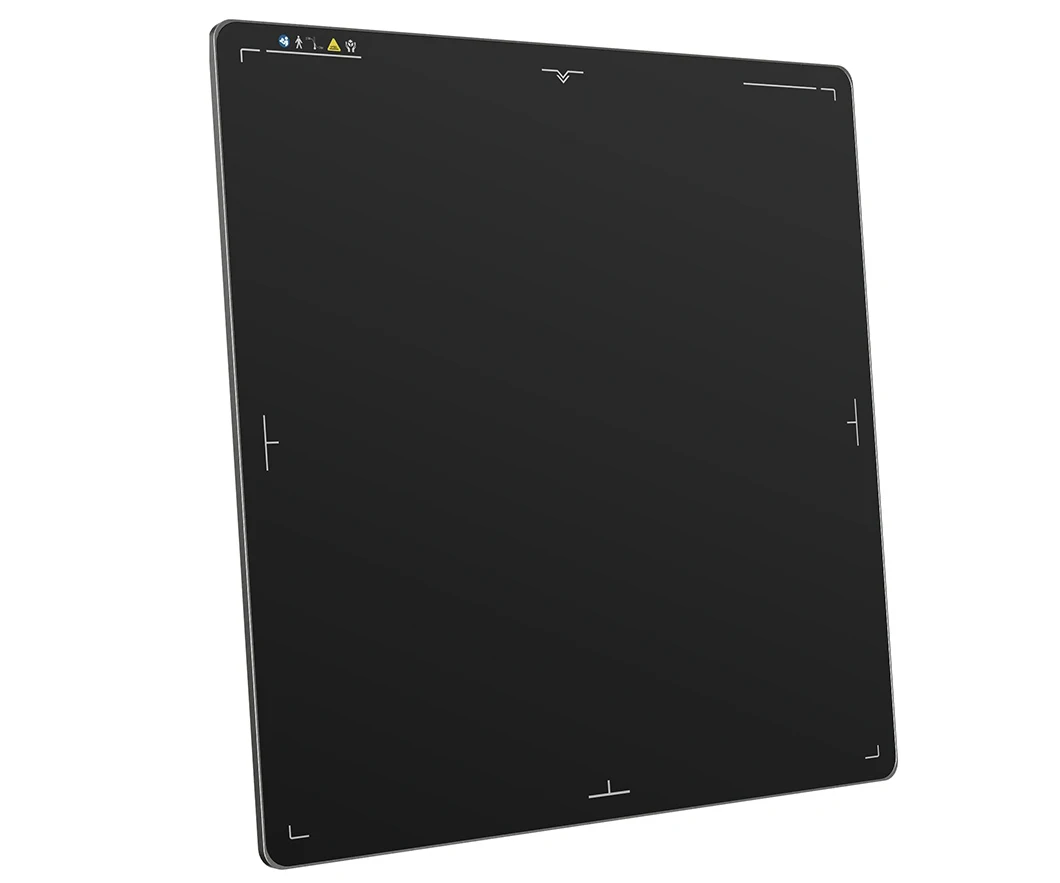

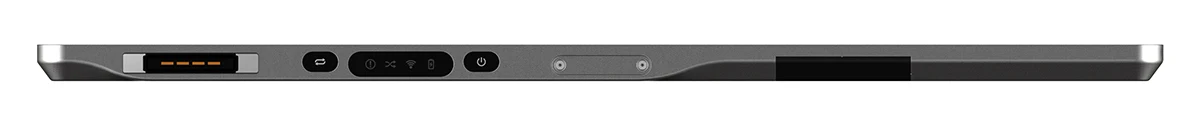

Mars 1717X 17*17 Inch High Resolution Wireless X-Ray Flat Panel Detector for Digital Radiography
Mars 1717X is a best in class 17×17-inch wireless, cassette-sized flat panel detector for radiographic imaging. It features a 100 μm pixel pitch with direct deposition CsI. Cutting-edge technologies include a novel light-weight housing design with IP56 ingress protection, in-tray battery charging, and reliable low power automatic exposure detection (AED). With its exceptional image quality the Mars 1717X is an excellent choice for high-end DR systems.
Features
1. Wireless cassette detector per ISO 4090, fits in bucky
2. Full AED control, exposure at any time
3. Best-in-class 100 μm pixel pitch with 16-bit ADC for more image details
4. Large capacity battery design, with 8 hours battery life
5. Lightweight design with IP56 ingress protection
6. Supports a fast workflow for a better user experience
7. Direct deposition Csl, with excellent DQE at all frequencies
Technical Specifications |
||
Detector Technology |
Amorphous Silicon |
|
Scintillator |
Csl |
|
Active Area (inch) |
17 × 17 |
|
Pixel Matrix |
4267 × 4267 |
|
Pixel Pitch (um) |
100 |
|
Spatial Resolution (lp/mm) |
5 |
|
AD Conversion (bit) |
16 |
|
Battery Autonomy (h) |
8 |
|
WIFI |
2.4G and 5G, IEEE802.11 a/b/g/n/ac |
|
Trigger Mode |
AED (Optional) / Software |
|
Full Image Time (s) |
4.5 |
|

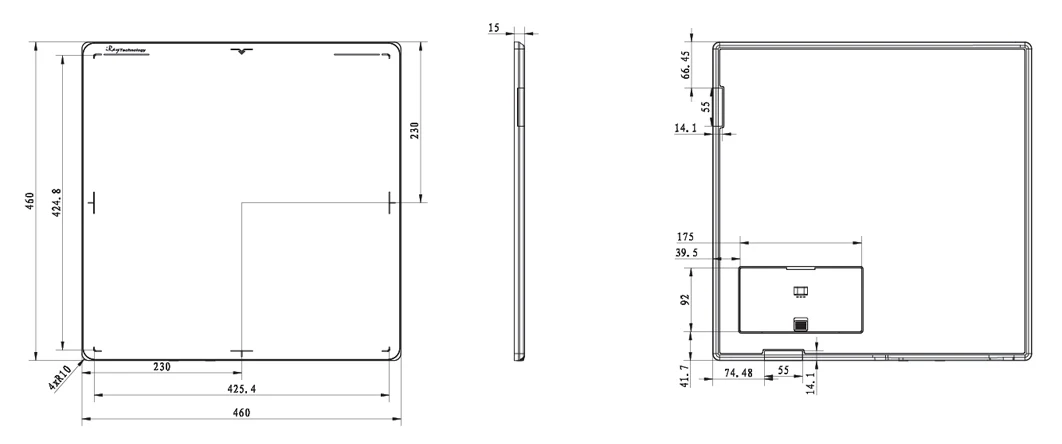

Dimensions (mm) |
460 × 460 × 15 |
|
Weight (kg) |
3.4 |
|
Static Loading |
300kg Uniformly |
|
Ingress Protection |
IP56 |
|
Operating Temperature (°C) |
10~35 |
|
Storage & Transport Temperature with Package (ºC) |
-20 ~ 60 |
|
Operating Humidity (% RH) |
5 ~ 90 (Non-Condensing) |
|
Storage & Transport Humidity with Package (% RH) |
5 ~ 95 (Non-Condensing) |
|

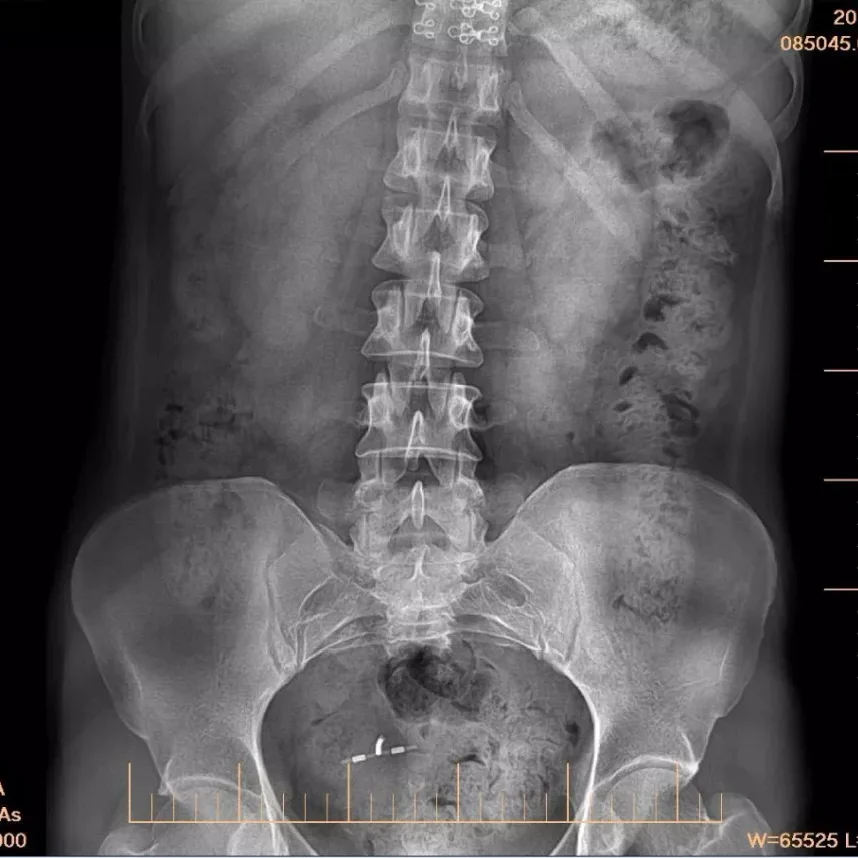

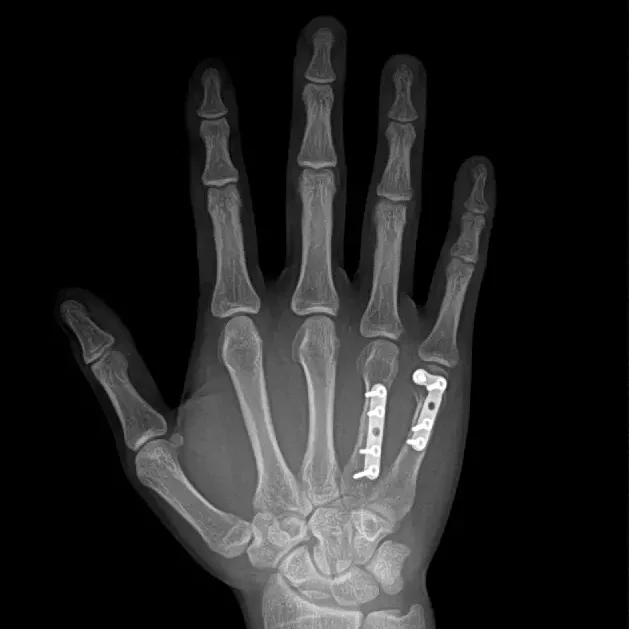

Images
Workshop
Customer Feedbacks
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
