Products Description

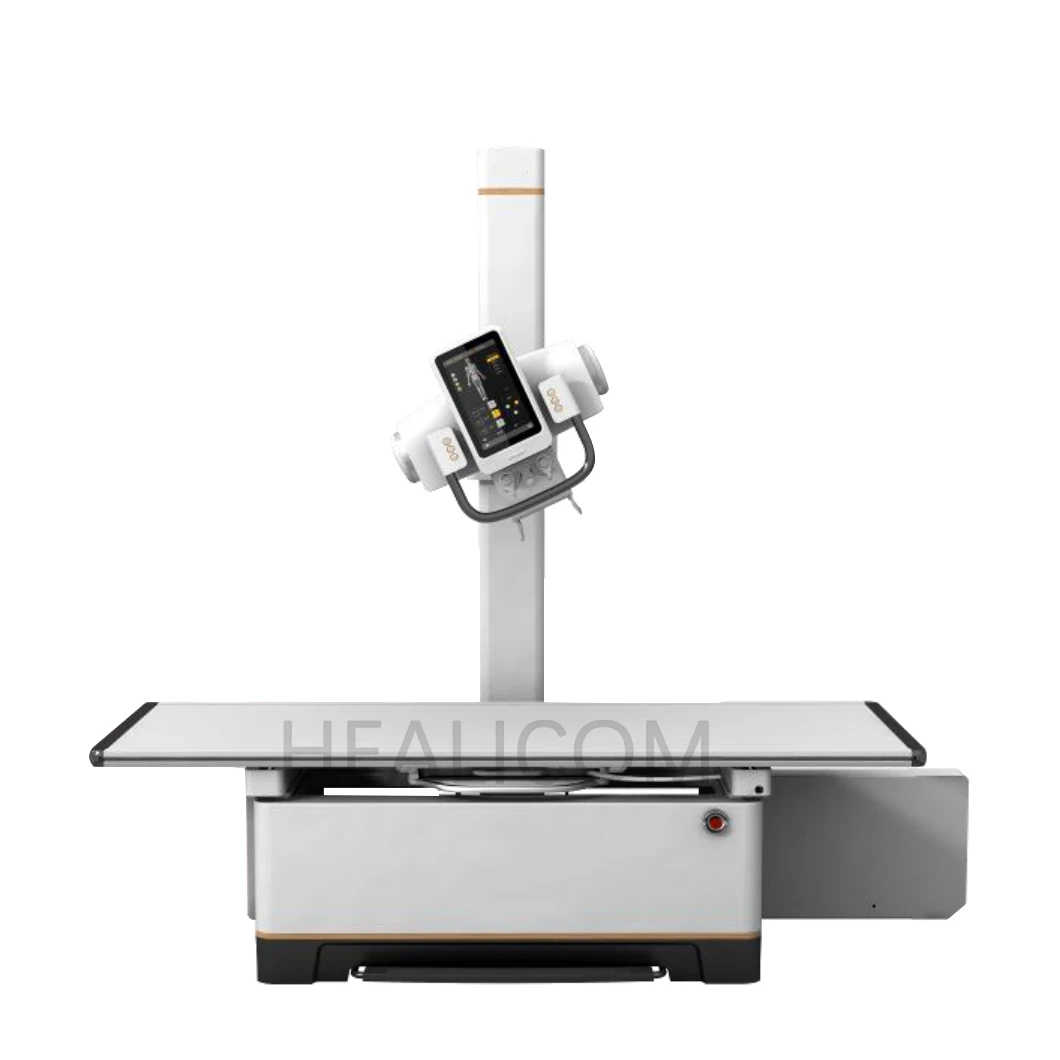

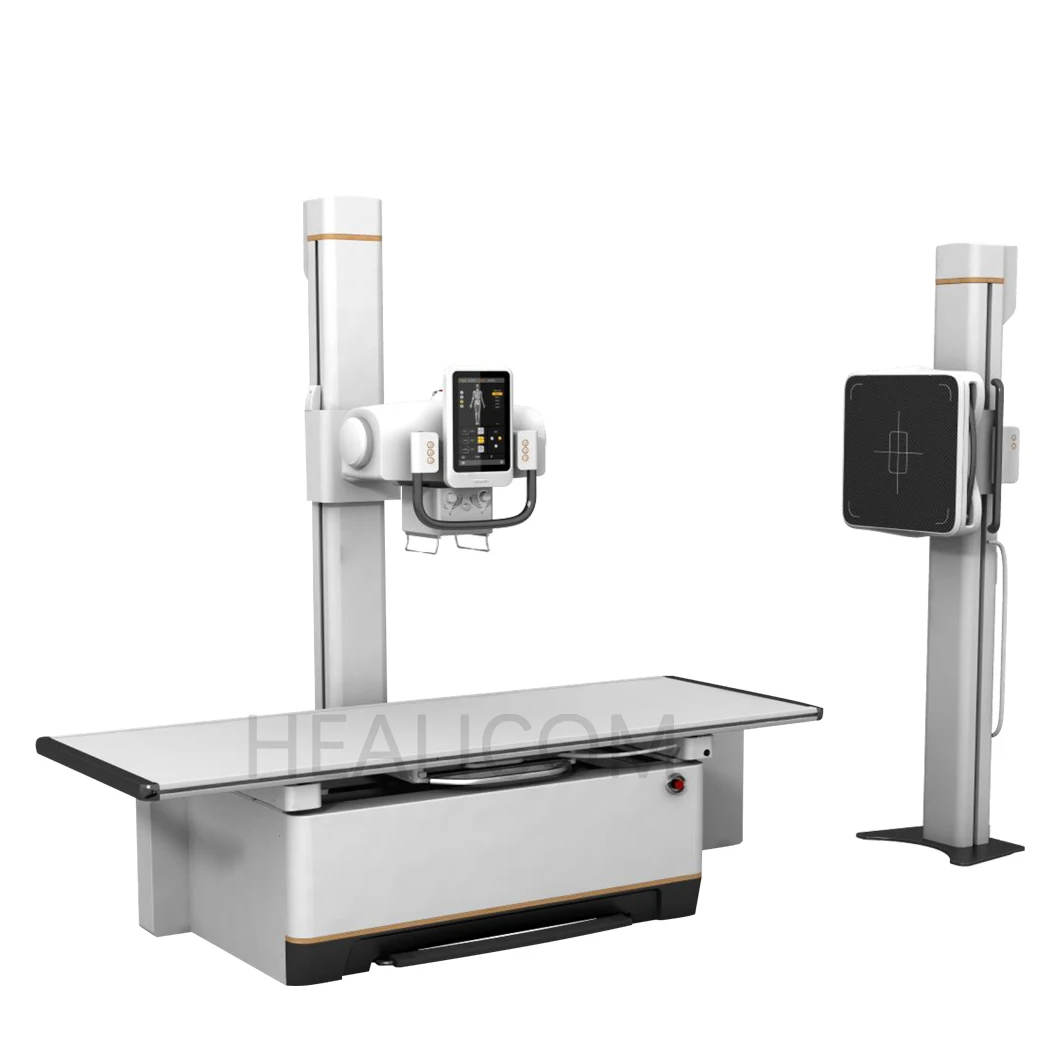

High Frequency 50KW Radiography X Ray Machine
Advanced InvaRay Digital Acquisition and processing system
Based on our InvaRay Digital Imaging Platform, HDR-1100 has integrated several WDM-patented new technologies. Not only is the image quality further improved, a series of innovative clinical imaging functions are also offered to our clients.
Multi-Spectrum Processing Technique
MPT function can divide the image signals into several channels according to their distinctive features. Then signals in each channel are calibrated and adjusted as per their respective features and different focus of each picture. Thus, all details of the image can be best displayed.
Auto Shutter
The residual image of collimator is eliminated; thus, the visual effect of the image is optimized, ensuring that the ROI is most prominent. Meanwhile, the comprehensive post-processing tools provide radiologists with abundant space for image calibration and processing.
Auto APR
The up-to-date Auto APR function can automatically set up parameters for examinations of different parts of the body and different positions. It can also automatically choose appropriate post processing methods to optimize and characterize the image quality. The whole work can be completed as the press of the hand switch with optimal image output.
Digital- Correlative
The novel digital correlative algorithm enables accurate image stitching, thus full spine and full leg imaging applications can be easily achieved.
Convenient one-button acquisition function
Based on the InvaRay software platform, HDR-1100 is DICOM Work list compatible. Once the necessary patient information is retrieved from HIS/RIS system before an operation, the system will complete the parameter setup automatically. Meanwhile, personalized parameter recommendations are provided to produce images that are better adapted to the observation habit of individual surgeons, freeing them from complex pro-surgery machine setups and enabling them to focus on the surgeries.
Dedicated Acquire Protocol
Dedicated Acquire Protocol embeds filtering for specific body part and grey balance processing in auto image optimization and display function and image acquisition process, hundreds of acquisition curves are embedded to clearly demonstrate the picture of even a small focus.
Technical Specifications |
||
Power |
50kW |
|
Radiography kV |
40~ 150kV; mA Range: 10~ 630mA |
|
Exposure Time |
1ms~ 10s, mAs: 0.1mAs~ 1000mAs |
|
Effective size |
430mm×430mm (17”×17”) |
|
Pixel Matrix |
3k × 3k, Pixel size: 139um |
|
X-ray Tube Assembly |
Focal Spot: 0.6mm／1.2mm |
|
Anode Heat Capacity |
230kHU |
|
Integrated Radiographic Table |
||
Related Products
Customer Feedbacks
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
