Image Quality
| A/D Conversion | 16 bits |
| Data Interface | Gigabit Ethernet/802.11ac (only 5G) |
| Acquire Time | wired: 1s; wireless: 3s |
| Exposure Control | Software/Sync/AED |
| Memory | 4 GB DDR4, 8 GB SD card |
Mechanical

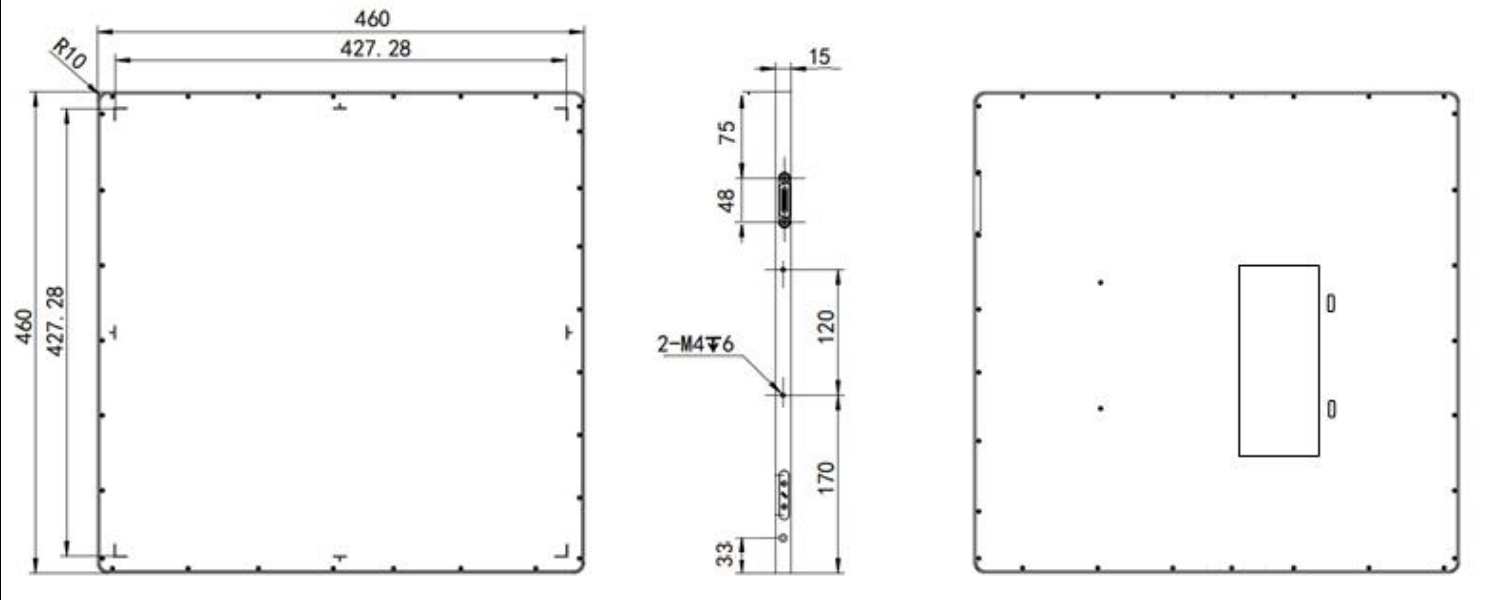

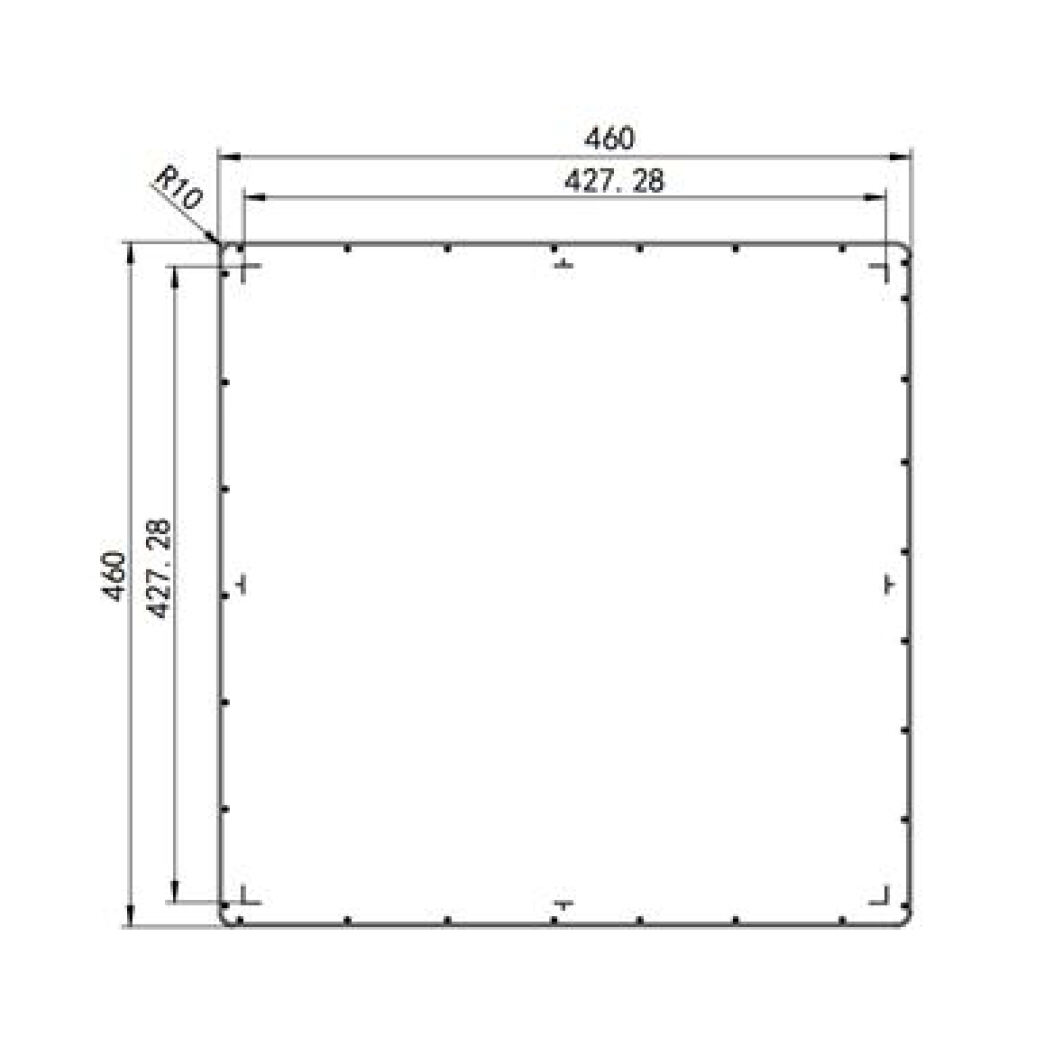

| Dimension | 460 × 460 × 15 mm |
| Weight | 3.8kg (without battery) |
| Material | Aluminum and magnesium alloys |
| Front Panel | Carbon fiber |
Enviromental
| Temperature | 10-35℃ (operating); -10~50℃ (storage) |
| Humidity | 30-70% RH (non-condensing) |
| Ingress Protection | IP51 |

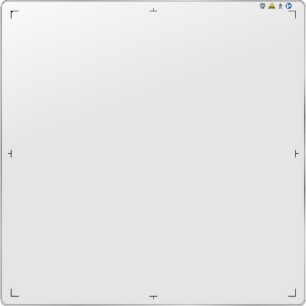

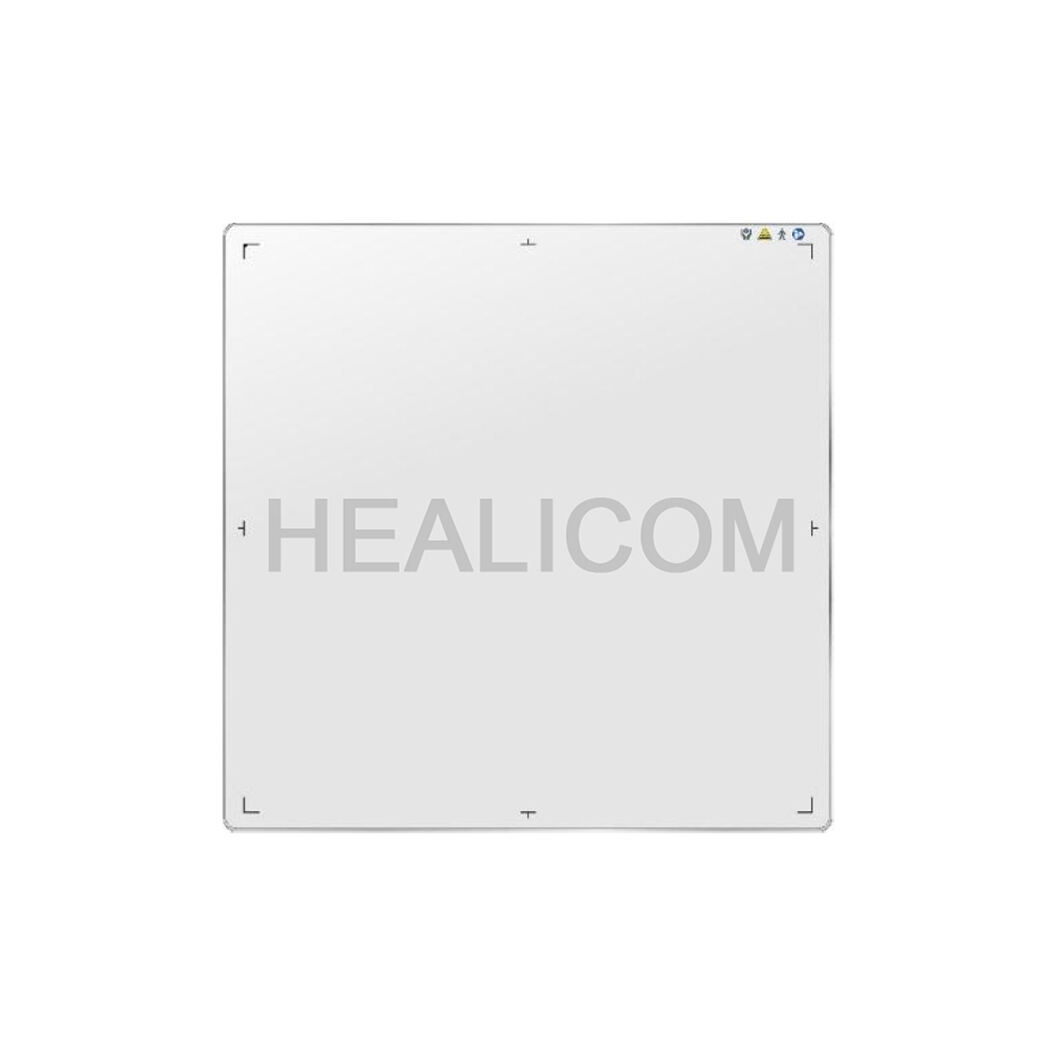

HXD-1717W is a lightweight wireless detector based on amorphous silicon (a-Si), which is suitable for various fields such as DR and Non-destructive testing.
Sensor
| Receptor Type | a-Si |
| Scintillator | Gos / CsI:Tl |
| Active Area | 430 x 430 mm |
| Resolution | 3072 x 3072 |
| Pixel Pitch | 139 μm |
Power Supply & Battery
| Adapter In | AC 100-240V,50-60Hz |
| Adapter Out | DC 24V,2.7A |
| Power Dissipation | <20 W |
| Standby Time | 6 h |
| Recharge Time | 3.5 h |
Image Quality
| Limiting Resolution | 3.5 LP/mm |
| Energy Range | 40-160 KV |
| Dynamic Range | ≥84 dB |
| Sensitivity | ≥0.54 LSB/nGy |
| Ghos | <1% 1st frame |
| DQE | 42% @(1 LP/mm) 28% @(2 LP/mm) |
| MTF | 68% @(1 LP/mm) 38% @(2 LP/mm) 20% @(3 LP/mm) |
