Products Description

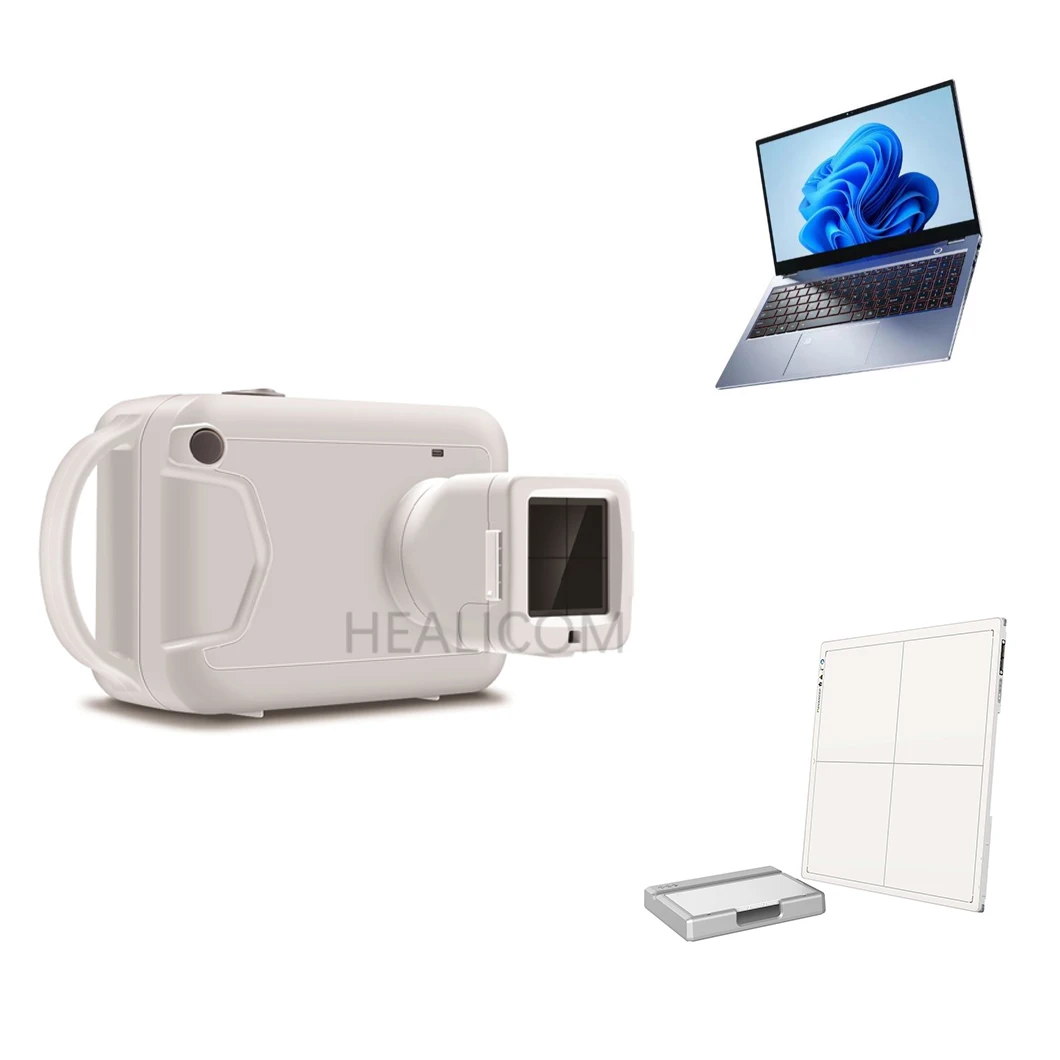

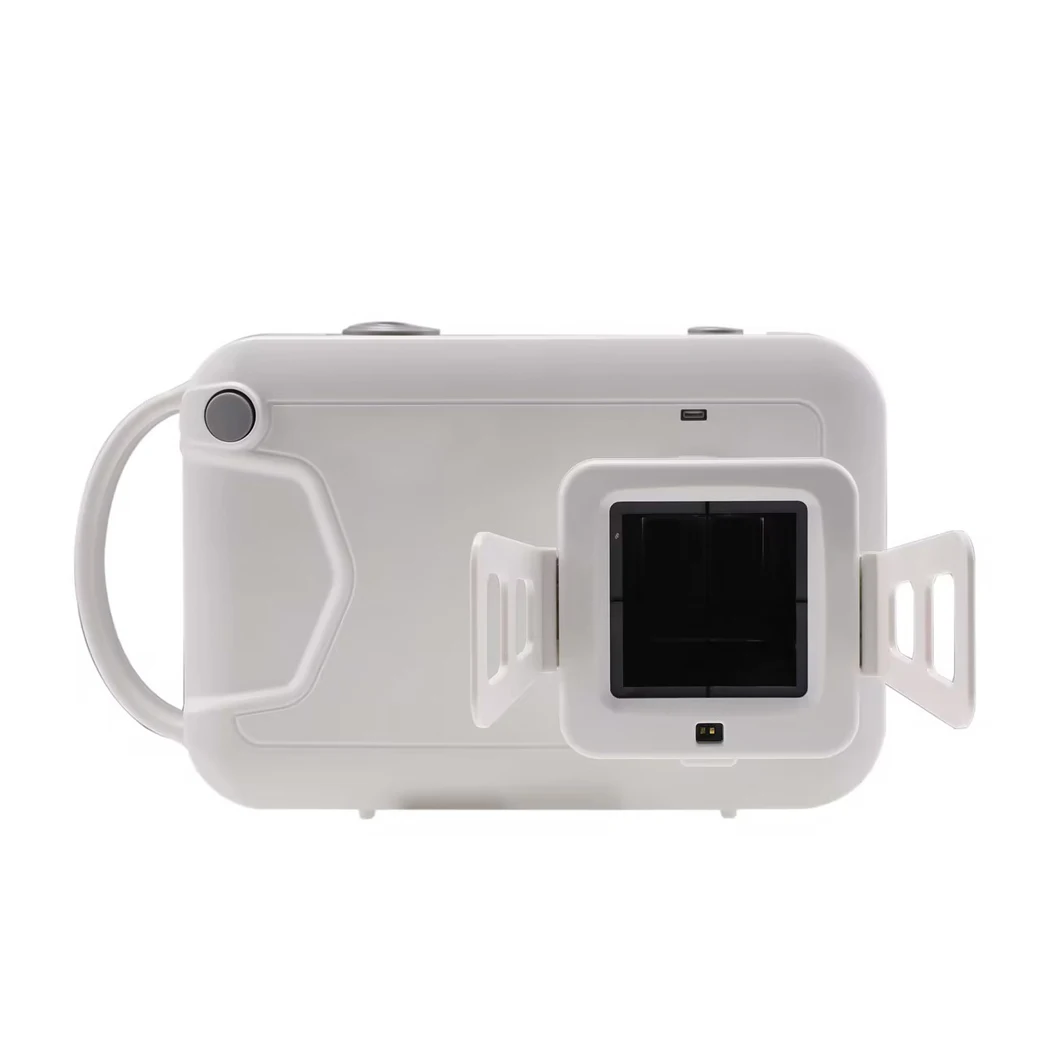

7 Inch Touch Screen Display Digital Portable X-ray Machine With Iray Digital Detector And Laptop Computer
With a compact design, the HW-705 wireless and battery-operated system allows operators to take X-ray images without the dedicated physical space required for a conventional radio-graphic system.

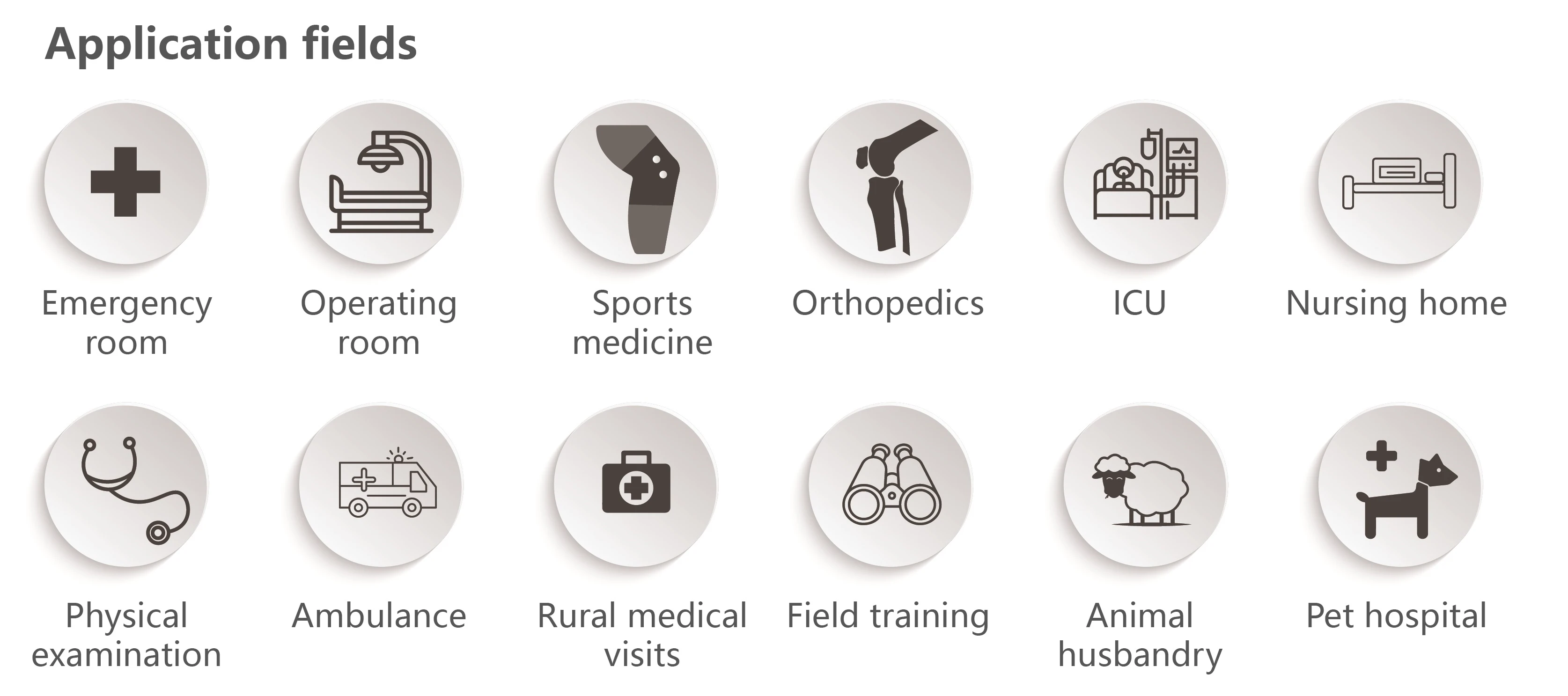

It applies to limbs, cervical spine, head, chest, etc.
Function features

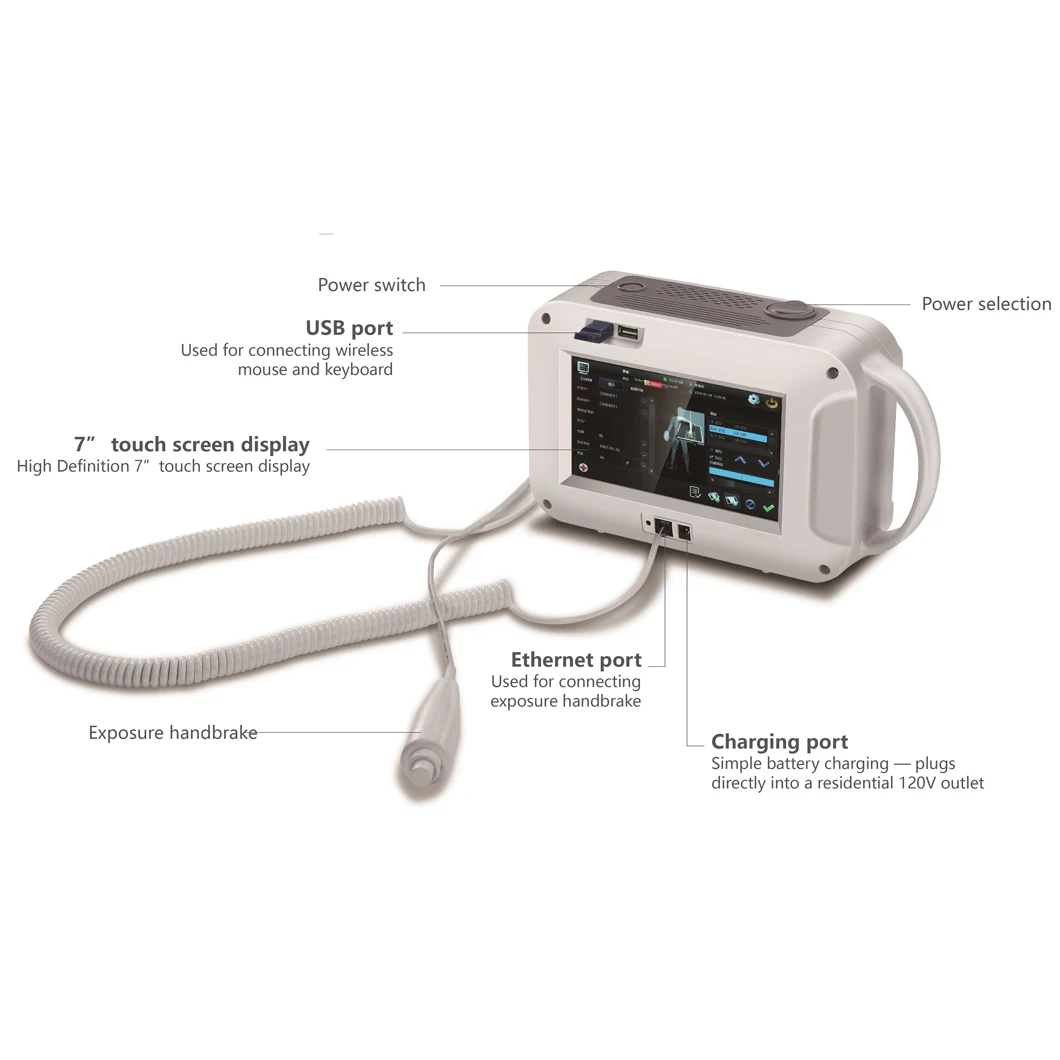

1.Compact design：Requires minimal space and accommodations and can be moved as needed.
2.Integrated software solution:And built-in workstation don't require installation and additional equipment.
3.Taking images from multiple angles：Doesn't need to move patients.

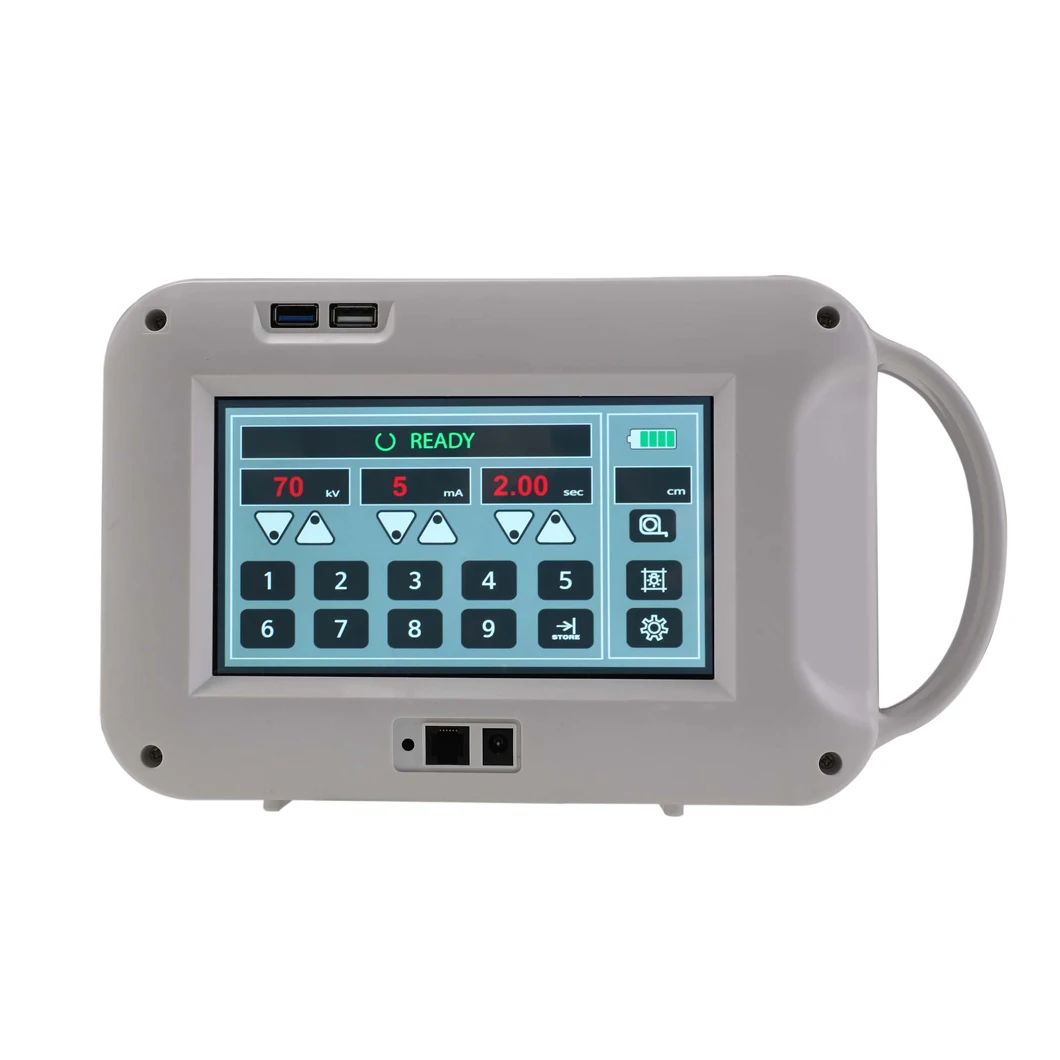

4.High Definition 7” touch screen design：Brings easy operation and clear images.
5.A fully charged battery: Can expose more than 120 images at full power.
6.Minimize radiation:To patient and operator with the lowest possible dose.

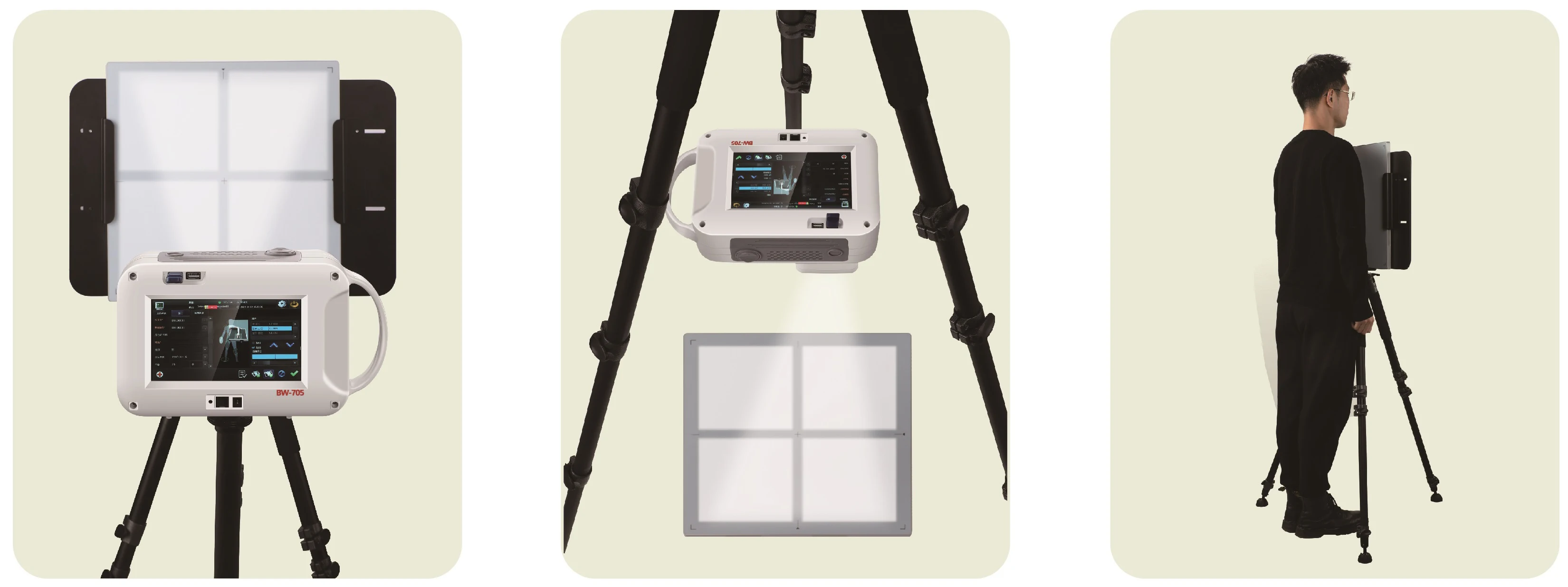

Universal, portable, stable tripodic bracket

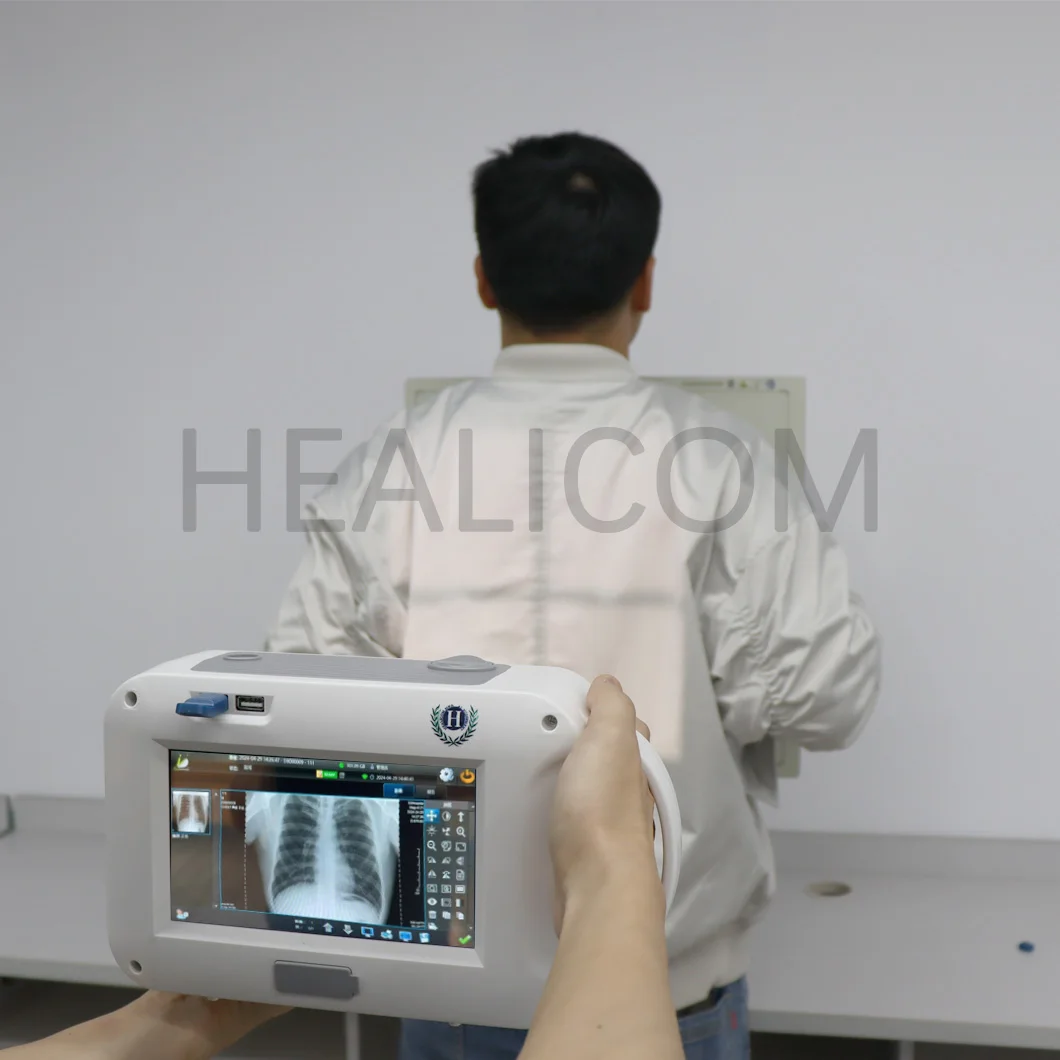

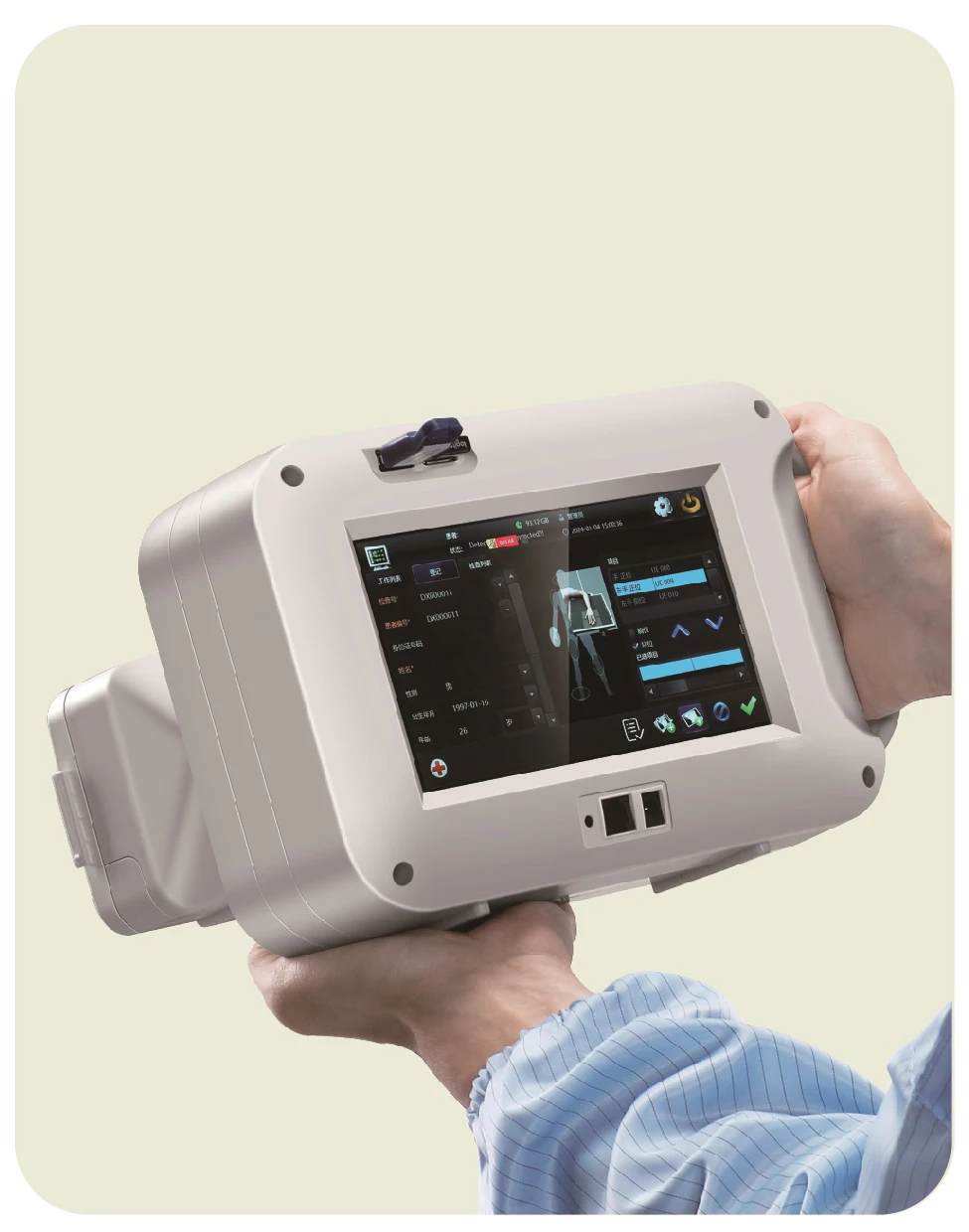

Handheld mode

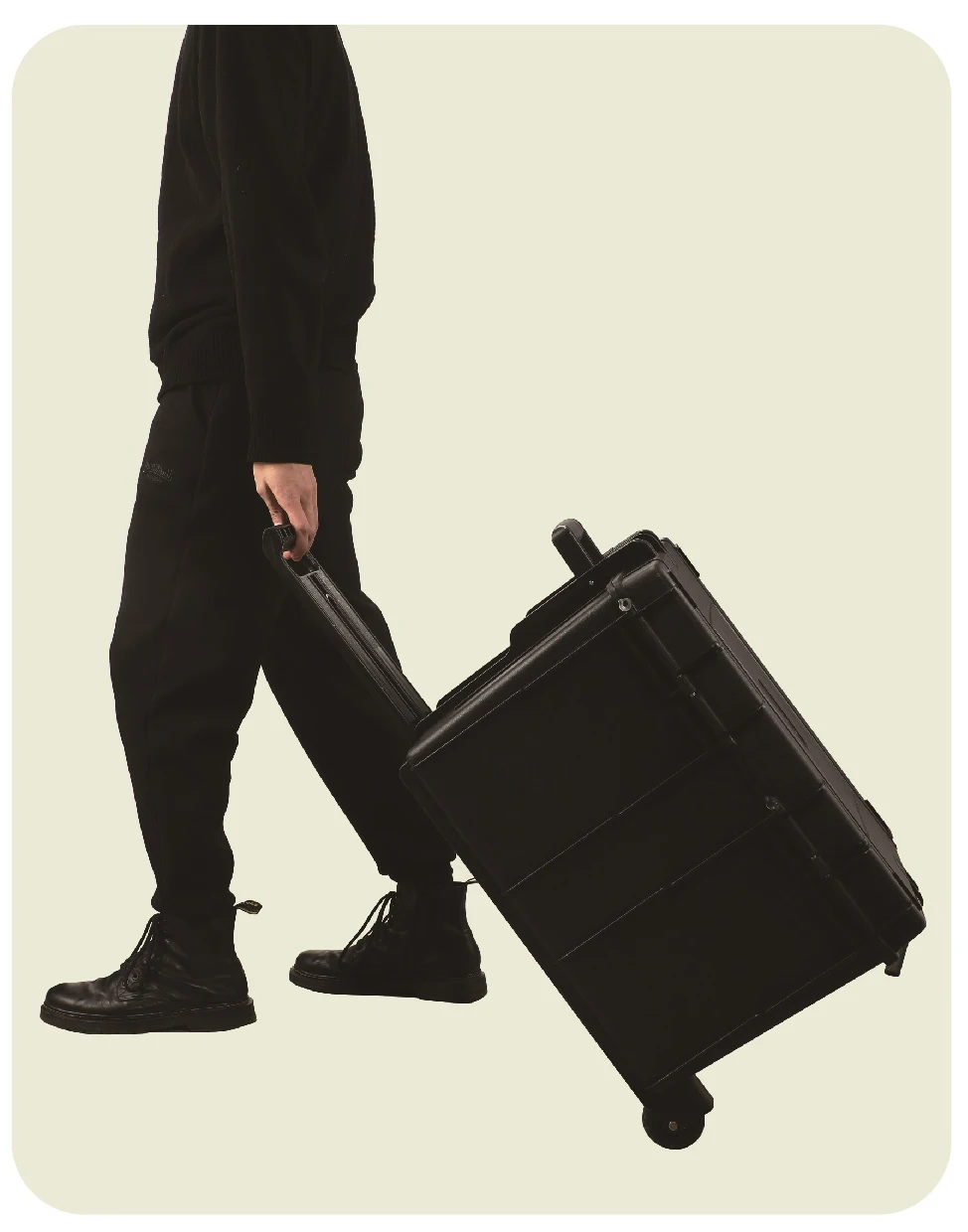

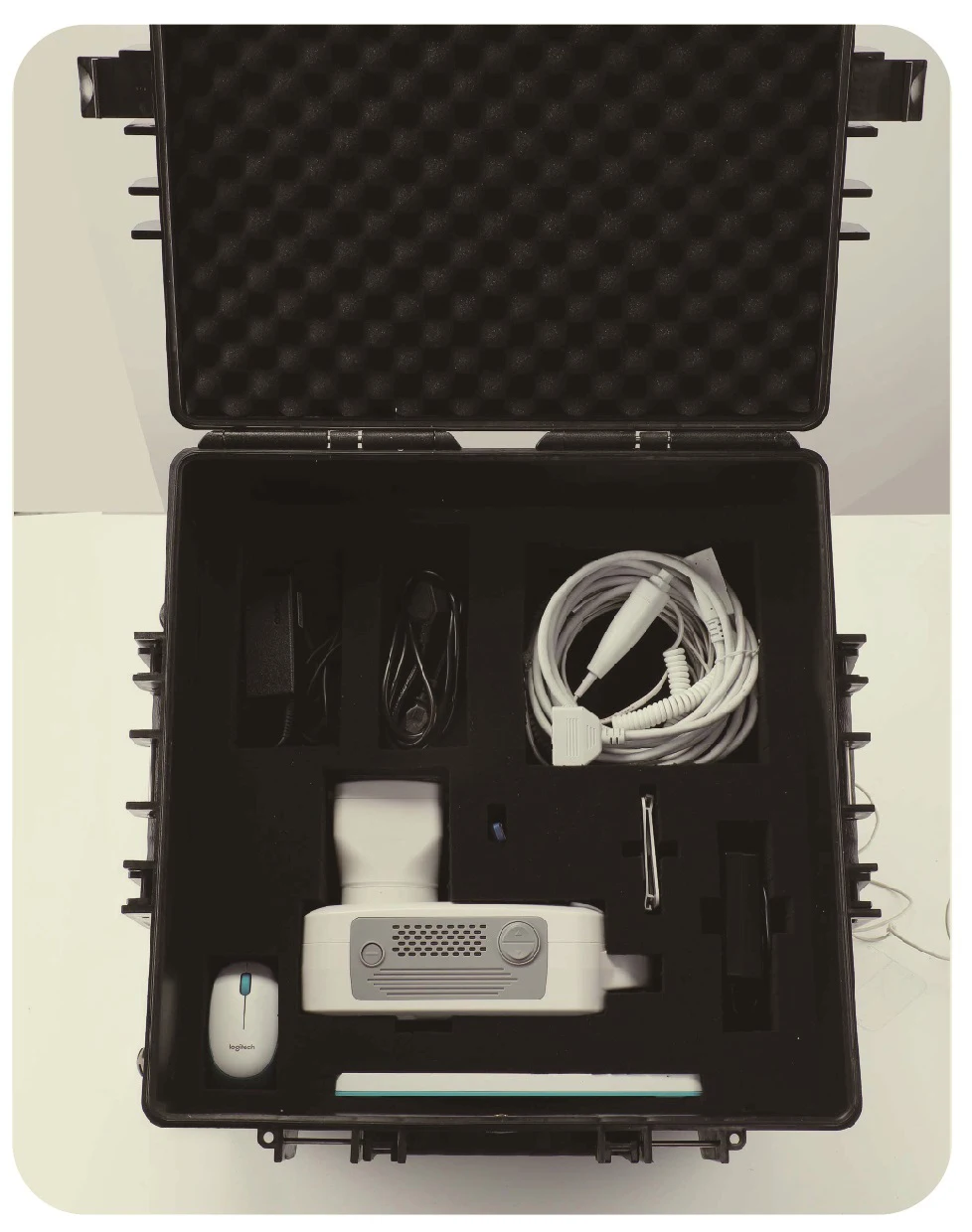

Trolley case ,exposure handbrake, battery charger, detector
Mobile imaging services
Device parameter |
||||
Project |
Specification |
|||
Charger |
Input |
Mono-phase，AC power 220V±10% |
||
frequency |
50Hz±1Hz |
|||
Output |
25.2 VDC ，1.5A |
|||
Battery |
22.2V（polymer lithium ion），2200mAh |
|||
kV (Adjustable) |
50 -70 kV (step:1 kV ) |
|||
mA (Adjustable) |
2- 5mA (step:1 mA ) |
|||
X-ray release time range [second] |
0.03-0.20secs（step: 10millisecond） 0.20-2.00secs（step: 50millisecond） |
|||
Screen |
7 inches (resolution：1024x600) |
|||
X-ray tube |
Model |
C.E.I OX/70-3 |
||
Inherent filter |
0.5mm AL |
|||
Focus point |
0.3 * 0.3mm |
|||
Dimension |
285mm x 265mm x 168mm （length×width×height） |
|||
Weight |
3.2kg±5% |
|||
Workshop
Customer Feedbacks
Related Products
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
