Products Description
Automatic tracking, one key in place
Standard AEC automatic exposure control makes exposure easier
A flat-panel detector with double-plate design is good for customers.
Modular platform design makes maintenance convenient.
Self-test after power on. If there is any fault, the fault code will be displayed in time.
The control console with touch PAD can design exposure parameters during operation.
Auto-adaptive exposure system, no need to manually select the exposure track, makes the operation simple.

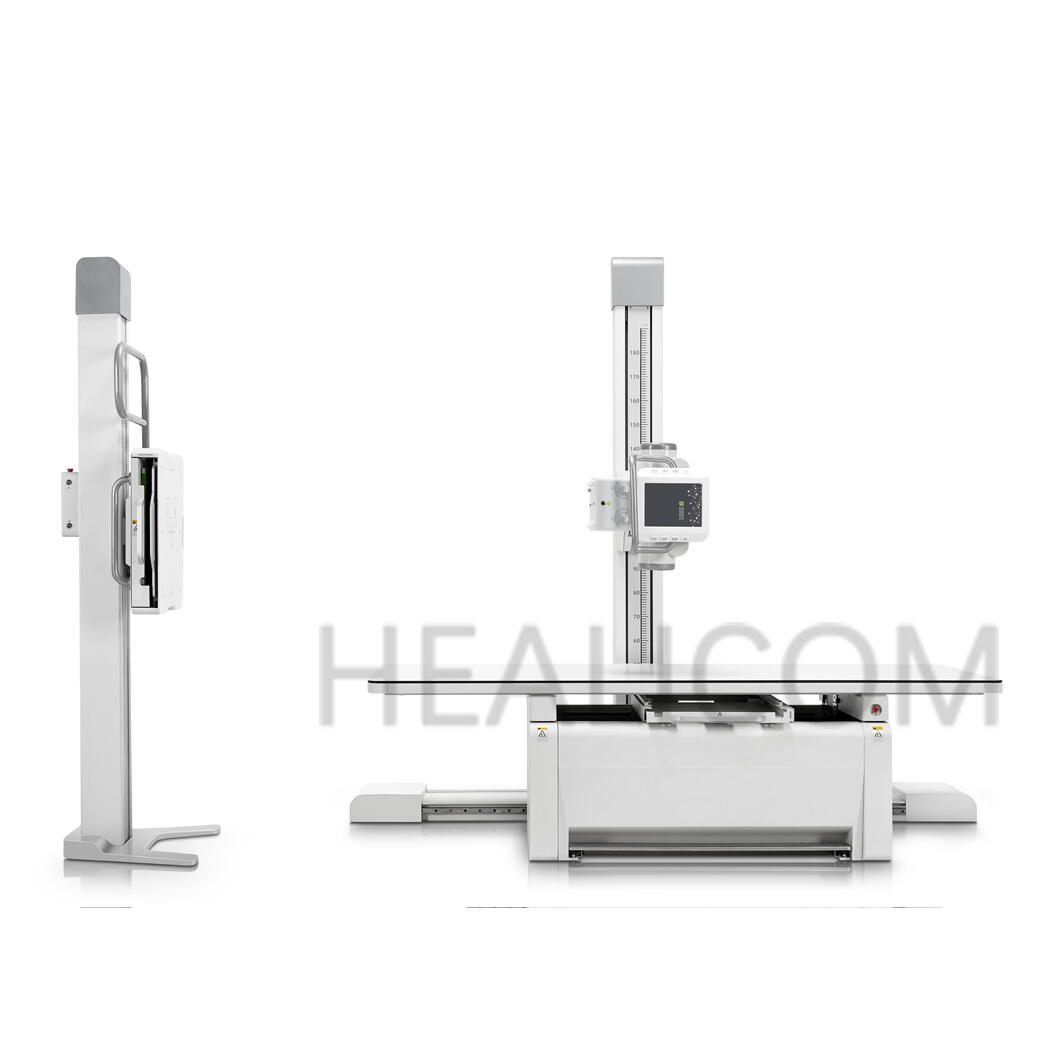

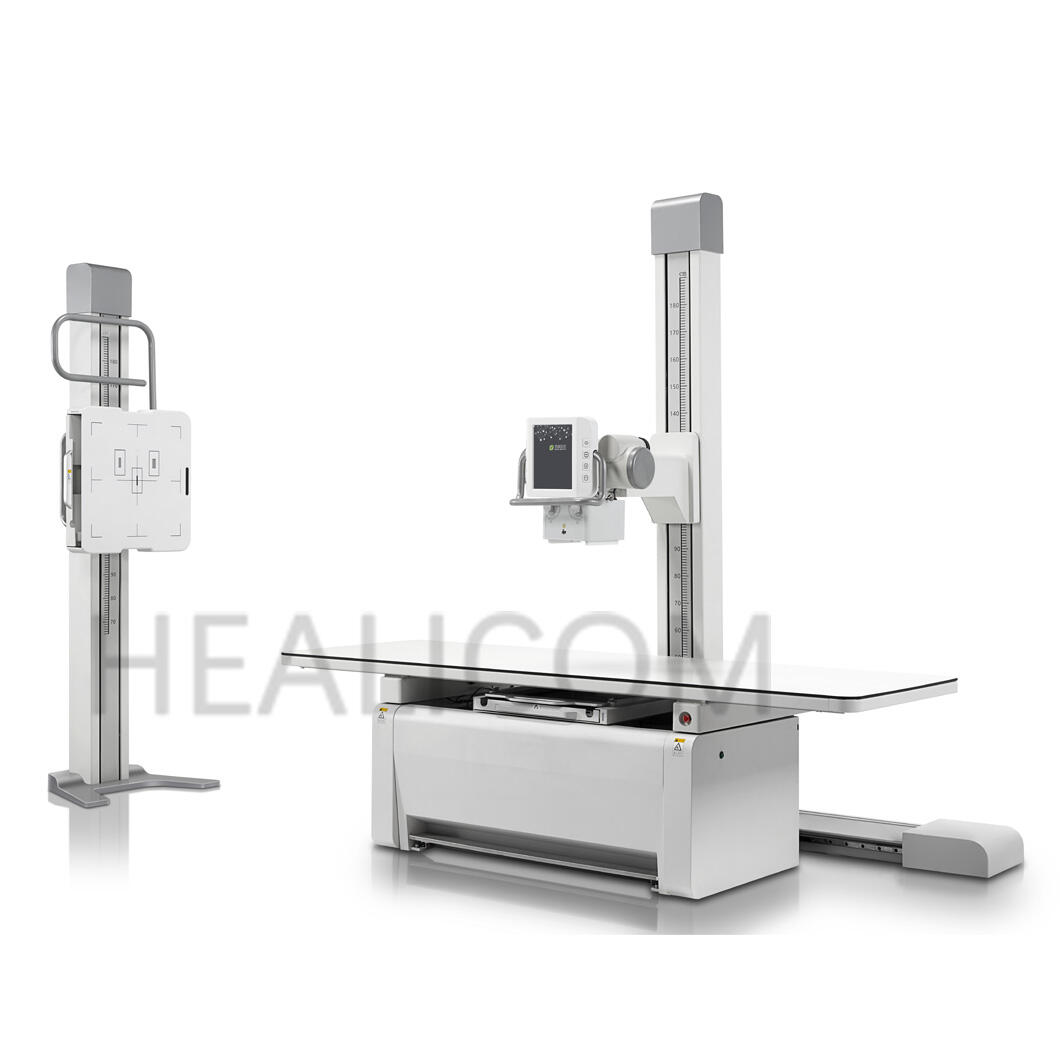

STAND

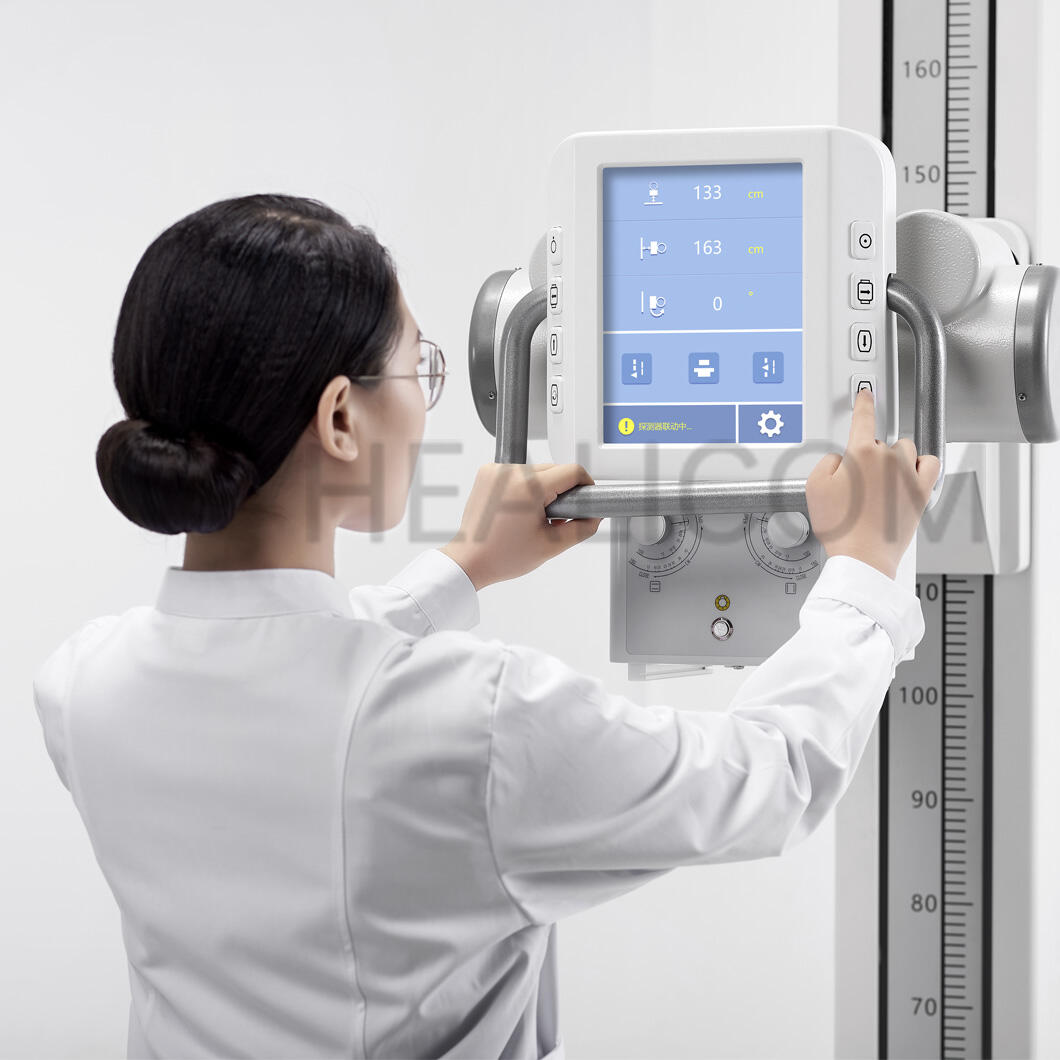

- High-quality and efficient large-screen with human-computer interaction design makes operation easy.
- In case of emergency, press the stop switches on the brackets to stop the motor immediately.

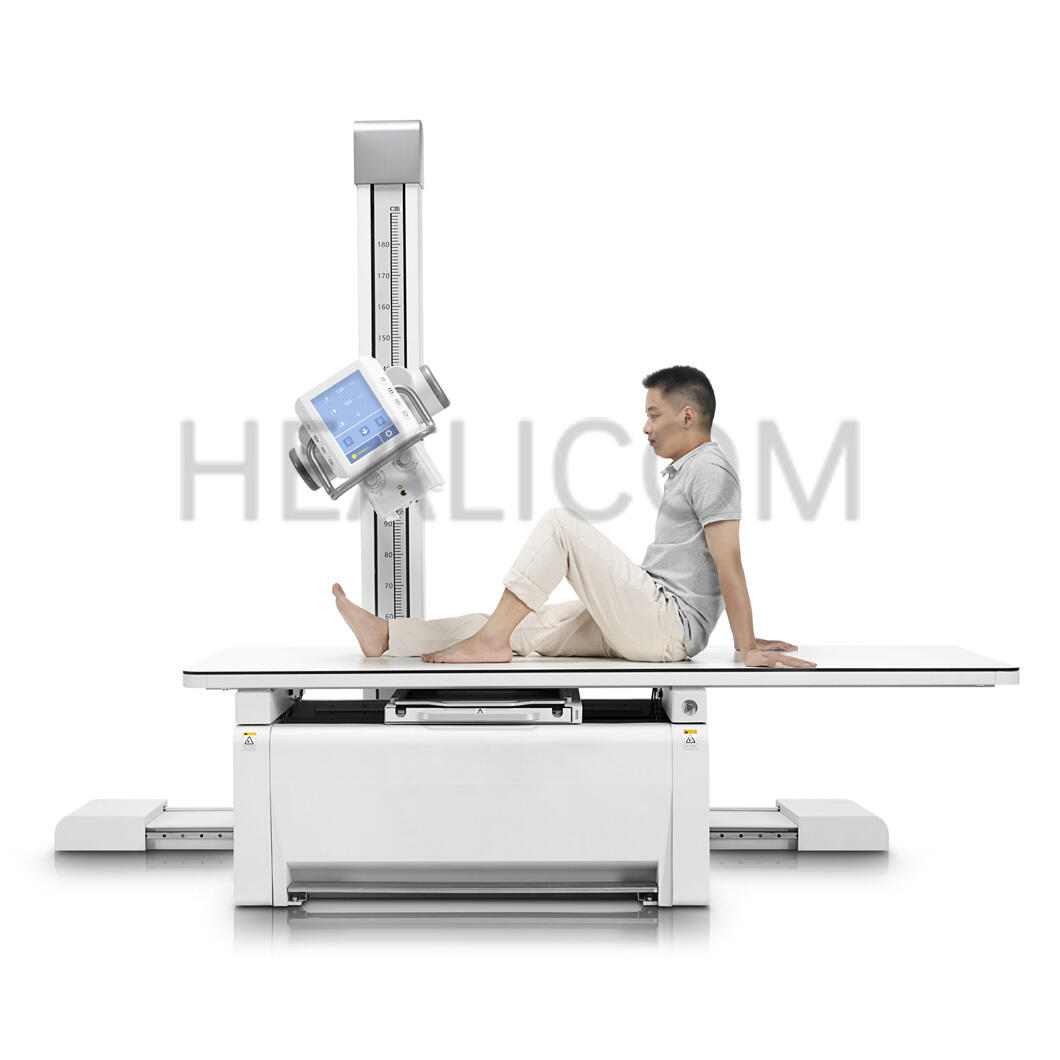

- You need to step on the brake to move or stop the table floating in 4-way, and the patient feels more secure when lying down.
- The advanced technology of shock absorption and noise reduction and the imported motors minimize the noise.
- Power-operated design, automatic tracking, one key in place, intelligent motion
- The radiography table is made of carbon fiber material which has uniform texture. The attenuation is relatively small.
Technical parameters | |
Power Output |
50KW |
Voltage |
220VAC |
Supply frequency |
50Hz/60Hz |
Source resistance |
≤0.5Ω |
Input instantaneous power |
≥100kVA |
| The height of the photographic frame column | 2200mm±5% | |
| Range of motion of the camera flat panel detector | ||
| 1400mm ±5% | ||
| Longitudinal movement range of the bed surface | 930mm±5% | |
| Transverse movement range of the bed surface | 240mm ±5% | |

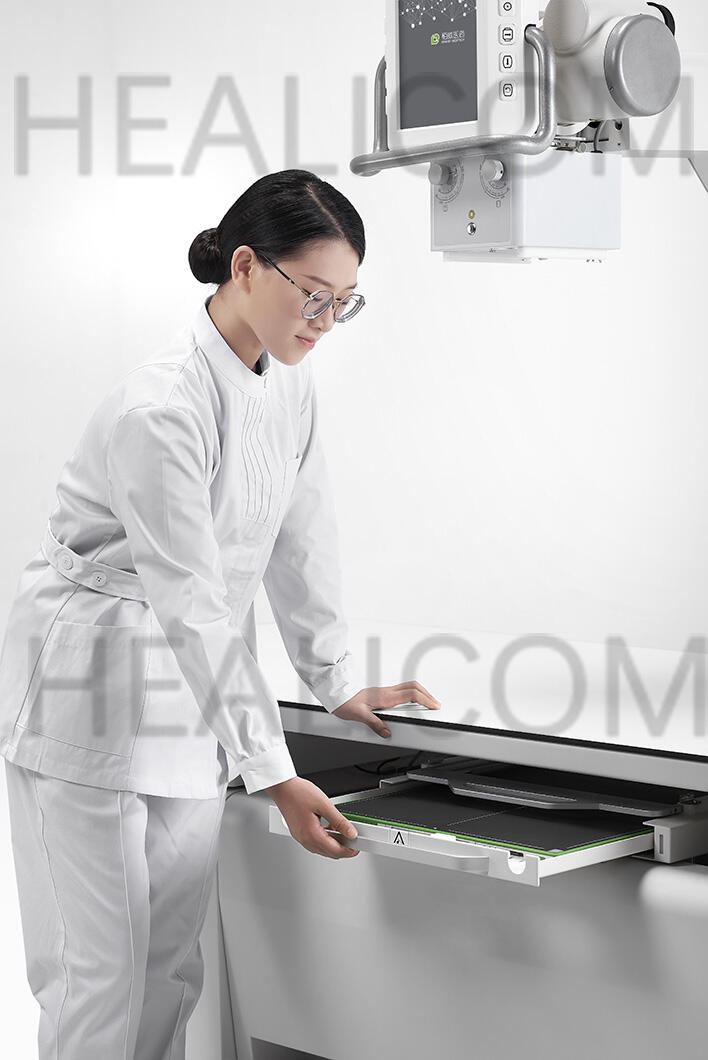

| Flat panel detector bucky movement range | 510mm±5% | |
| Photography bed load bearing | 200Kg | |
| Bed size (length, X, width, X, height) | 2300mmX 800mm X 650mm | |
| Electromagnetic lock, power lock, power release | ||
| Bed lock way | ||
| Mechanical | Bed control | Down-to-foot unlock control |
| Vertical lifting distance of pipe assembly column | 1400mm ±5% | |
| parameters | The the the frame to the head | 1500mm ±5% |
| Rotation angle range of the tube assembly | 0° ±2° 〜±180° ±2° | |
| Roof-rotation range of pipe assembly column | 180° ±2° | |
| Input power voltage | 220VAC，50Hz/60Hz | |
| Maximum output nominal electrical power | 50 kW (500mA, 100kV, 0. 1s) | |
| Overcurrent release characteristics | 60A | |
| Inverse frequency | 400kHz | |
| High | 40kV-150kV, digital button adjustment, the small step size is lkV. | |
| Voltage /kV | ||
| pressure generator | 10mA -630mA is satisfied as specified in GB9706.3 | |
| The value of RT0 number system, digital key file adjustment. | ||
| Current /mA | ||
| The 0. 001s~10s are satisfied in GB9706.3 | ||
| The value of R' 10 number system, the digital key file adjustment; | ||
| irradiation time |
| Focal point | 0. 6/1. 2mm | |
| Heat capacity | 400kHU | |
| Heat capacity of pipe sleeve | 950kJ | |
| Target angle | 12.0° | |
| Inherent filtration | 1. 0mm Al | |
| Added filtration | 1. 5mm Al (3X0. 5 mm AL) | |
| Weight | About 17kg | |
| The components are aluminum shell, | ||
| tangential, oil-immersed cooled, rotating anode X-ray tube assembly. | ||
| Structure | ||
| Leakage radiation loading factor | 150kV 3.4 mA | |
| Insulation impedance | >2MQ | |
| Focus position and its tolerance to the | ± 1.4mm | |
| The X-ray radiation field | At SID, 354 * 354mm at Im | |
| The X-ray tube assembly | Single-phase, three-phase full-wave rectification or DC power supply | |
| Power supply (neutral ground) | ||
| filament current | 5.3 A | |
| Big focus: 13.5+IV, small focus: 8.5 + 1V | ||
| filament voltage | ||
| Nominal anode input power (0. 1s), (50Hz) | Large focus: 50KW, small focus: 20KW | |
| Anode speed | 2800 rpm | |
| 1) Start voltage: 120- -220V; 2) | ||
| Maintenance voltage: 4060V; 3) | ||
| Subphase capacitance: 40 UF / 630V; 4) Start time: 1 ~ 1.2s | ||
| Stator parameter (50Hz) | ||
| Cooling-down method | Natural cooling or forced air cooling | |
| Temperature range of the components in normal use | 16 〜70°C | |
| Maximum continuous thermal dissipation of the components | No less: 200W (16 kHU / min); yes | |
| Fan: 380W (32 kHU / min) | ||
| Inherent filtration | 1. 5 mm Al (equivalent) | |
| Optional additional filtering | 0. 5/1. 0/1. 5mmAl | |
| Maximum tube assembly is of high pressure | ||
| 150 kV | ||
| Average irradiation brightness | 3160 Lux, when the SIDlOOcm | |
| irradiation time | 30s ±5% | |
| Light field indicator light | 24V / 5W LED lamp | |
| Input electricity | 24VAC, 0.2A | |
| Minimum irradiation field | <20mmX20mm； at SID 100cm | |
| Light beam device | Maximum irradiation field | 43 X 43cm； at SID 100cm |
| Weight | 6. 8kg±0. 5kg | |
| Image size | 43X43cm(17" X 17") | |
| Dimensions | 46.0 X 46.0 X1.5cm | |
| Pixel size | 139μm | |
| X-ray Voltage Range | 40-150KV | |
| Wired flat-panel detector | Weight | 3.2kg |
| Image size | 43X43cm (17"X 17") | |
| Wireless flat-panel detector | Dimensions | 46.0X46.0X1.5cm |
| Nominal anode input power (0. 1s), (50Hz) | Large focus: 50KW, small focus: 20KW | |
| Anode speed | 2800 rpm | |
| 1) Start voltage: 120- -220V; 2) | ||
| Maintenance voltage: 4060V; 3) | ||
| Subphase capacitance: 40 UF / 630V; 4) Start time: 1 ~ 1.2s | ||
| Stator parameter (50Hz) | ||
| Cooling-down method | Natural cooling or forced air cooling | |
| Temperature range of the components in normal use | 16 〜70°C | |
| Maximum continuous thermal dissipation of the components | No less: 200W (16 kHU / min); yes | |
| Fan: 380W (32 kHU / min) | ||
| Inherent filtration | 1. 5 mm Al (equivalent) | |
| Optional additional filtering | 0. 5/1. 0/1. 5mmAl | |
| Maximum tube assembly is of high pressure | ||
| 150 kV | ||
| Average irradiation brightness | 3160 Lux, when the SIDlOOcm | |
| irradiation time | 30s ±5% | |
| Light field indicator light | 24V / 5W LED lamp | |
| Input electricity | 24VAC, 0.2A | |
| Minimum irradiation field | <20mmX20mm； at SID 100cm | |
| Light beam device | Maximum irradiation field | 43 X 43cm； at SID 100cm |
| Weight | 6. 8kg±0. 5kg | |
| Image size | 43X43cm(17" X 17") | |
| Dimensions | 46.0 X 46.0 X1.5cm | |
| Pixel size | 139μm | |
| X-ray Voltage Range | 40-150KV | |
| Wired flat-panel detector | Weight | 3.2kg |
| Image size | 43X43cm (17"X 17") | |
| Wireless flat-panel detector | Dimensions | 46.0X46.0X1.5cm |
| Pixel size | 139μm | |
| X-ray Voltage Range | 40-150KV | |
| Weight | 3.7kg | |
| Grid ratio | 0.417361111 | |
| Density | 80L/cm | |
| Antiscatter grid | Focal distance | 100cm/130cm |
| CPU | Intel Core i3 And above | |
| Hard disk capacity | N500GB | |
| Image collection workstation | Maximum screen resolution | >1920*1080 |
| Greatest brilliancy | N250 (cd/m2) | |
| Maximum output electric | 50kW(500mA, 100kV) | |
| Nominal output power | 50kW(500mA, 100kV 0. 1s) | |
| Maximum loading | 50kW(500mA, l00kV.0. Is) (630mA, 79kV, 0. Is) | |
| parameter combination | (320mA, 150kV, 0. Is) | |
| Total X-ray filtration | 4. 0mm Al (equivalent) | |
| Relative humidity | 30% 〜75% | |
| Work environment requirements | Atmospheric pressure | 700hPa—1060hPa |
| Ambient temperature | 5°C 〜40°C | |
| Relative humidity | 10% 〜95% | |
| Transportation and storage conditions | Atmospheric pressure | 700hPa—1060hPa |
| Ambient temperature | -10°C 〜50°C |
Company Profile
FAQ
1. What about the price level? We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts. 2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same? As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper. 3. What is time of delivery? Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible. 4. What about quality assurance? We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. 5. What is payment terms? T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
