Factory Price UP-X898MD Medical Digital Black and White B/W Video Graphic Ultrasound Printer for Sale
- Overview
- Recommended Products
Products Description

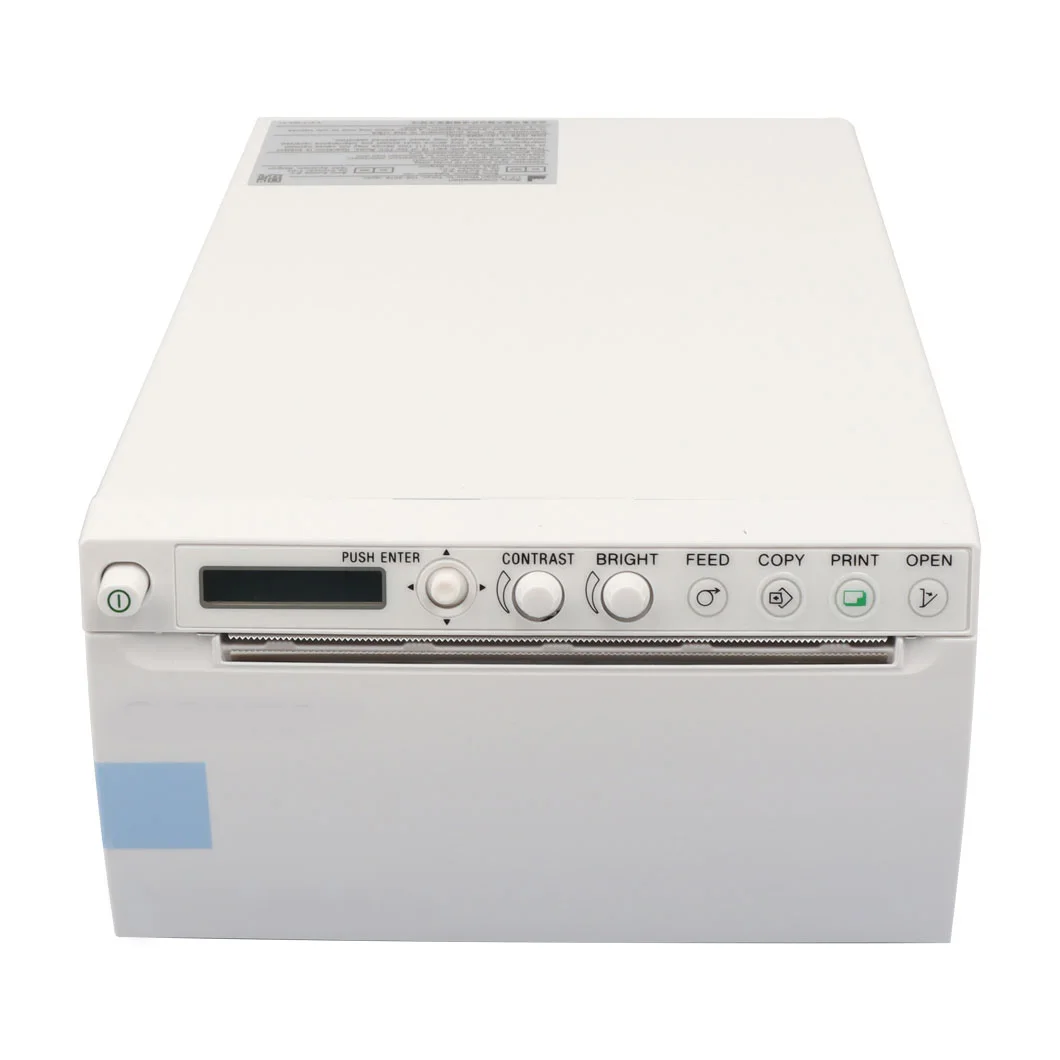

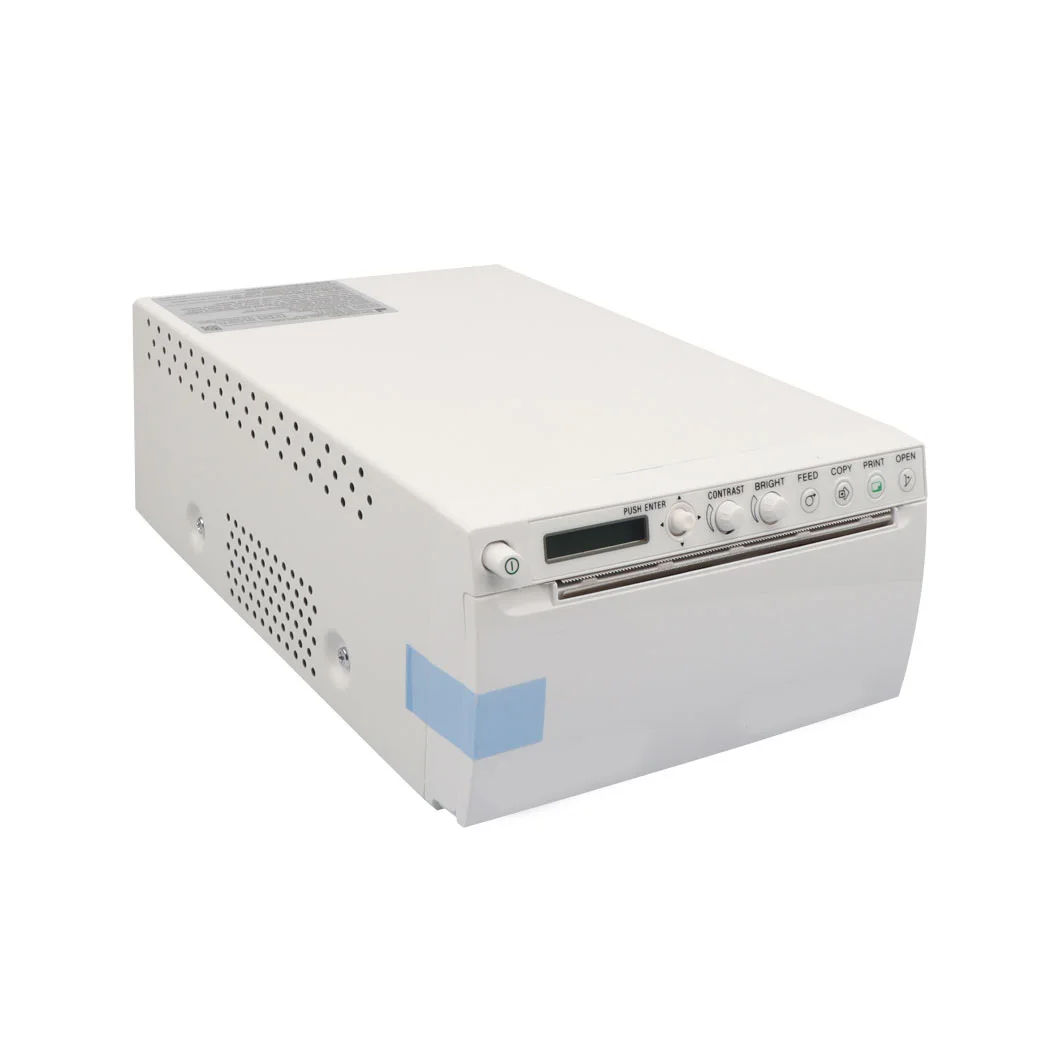

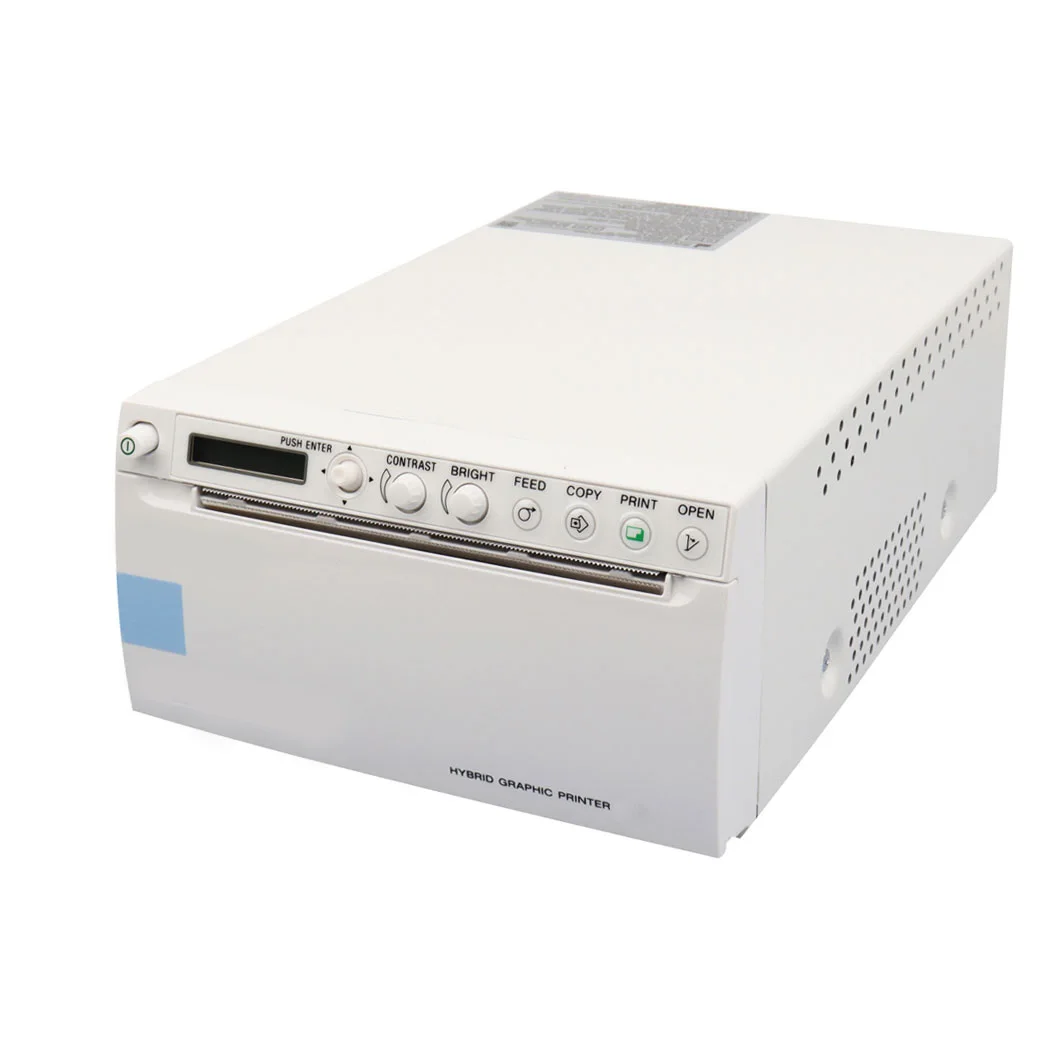

UP-X898MD Medical Digital Black And White B/W Video Graphic Ultrasound Printer
The UP-X898MD black and white video graphic printer is designed specifically for use with medical diagnostic equipment, such as ultrasound systems. The UP-X898MD printer includes a USB interface that allows the user to capture images that are printed and store them on a small, portable USB storage device. High quality, photo-like prints are output in just approximately 1.9 seconds. The UP-X898MD is extremely small and light weight. For additional convenience, the UP-X898MD adds a jog dial to the front panel for easy operation.
Features
• Ideal for today’s advance ultrasound systems

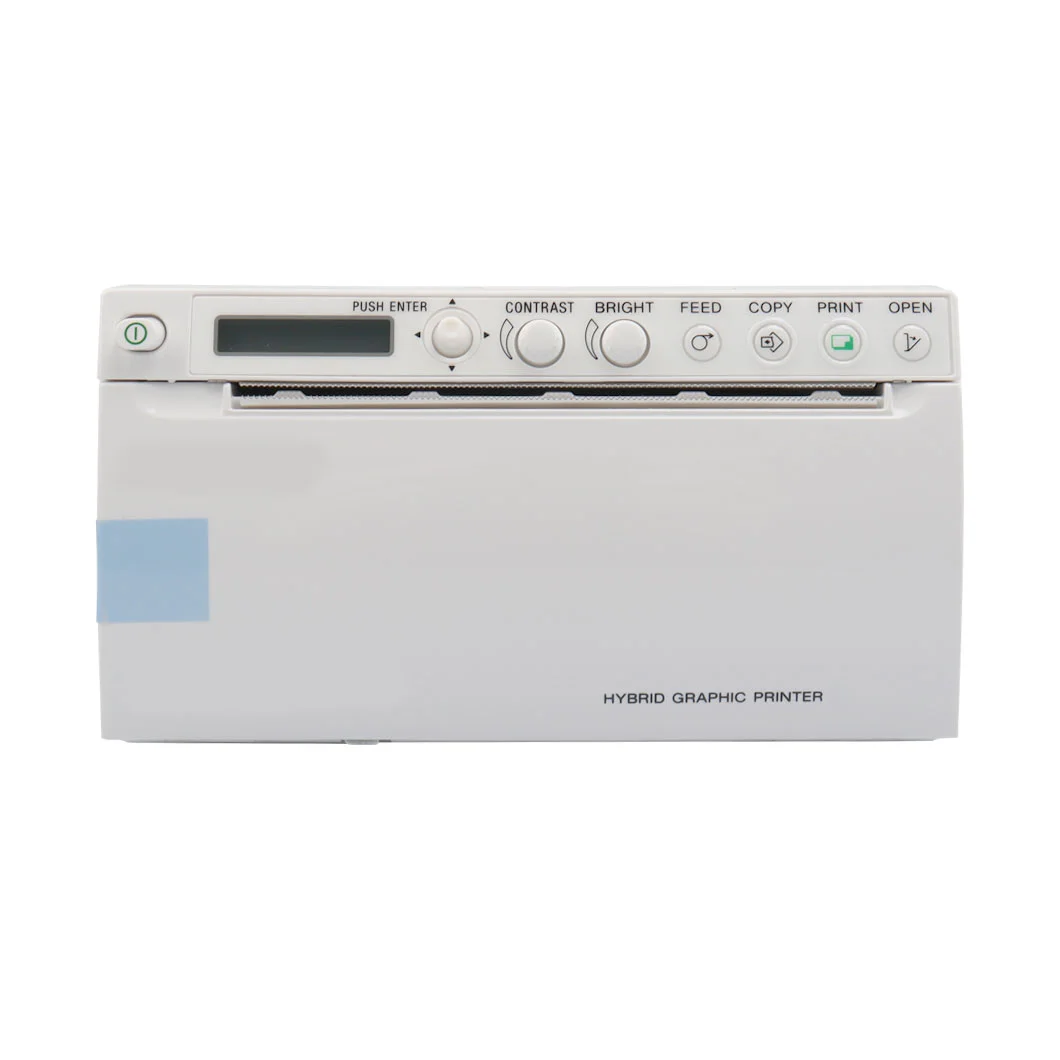

• User-friendly controls on front panel with addition of jog dial

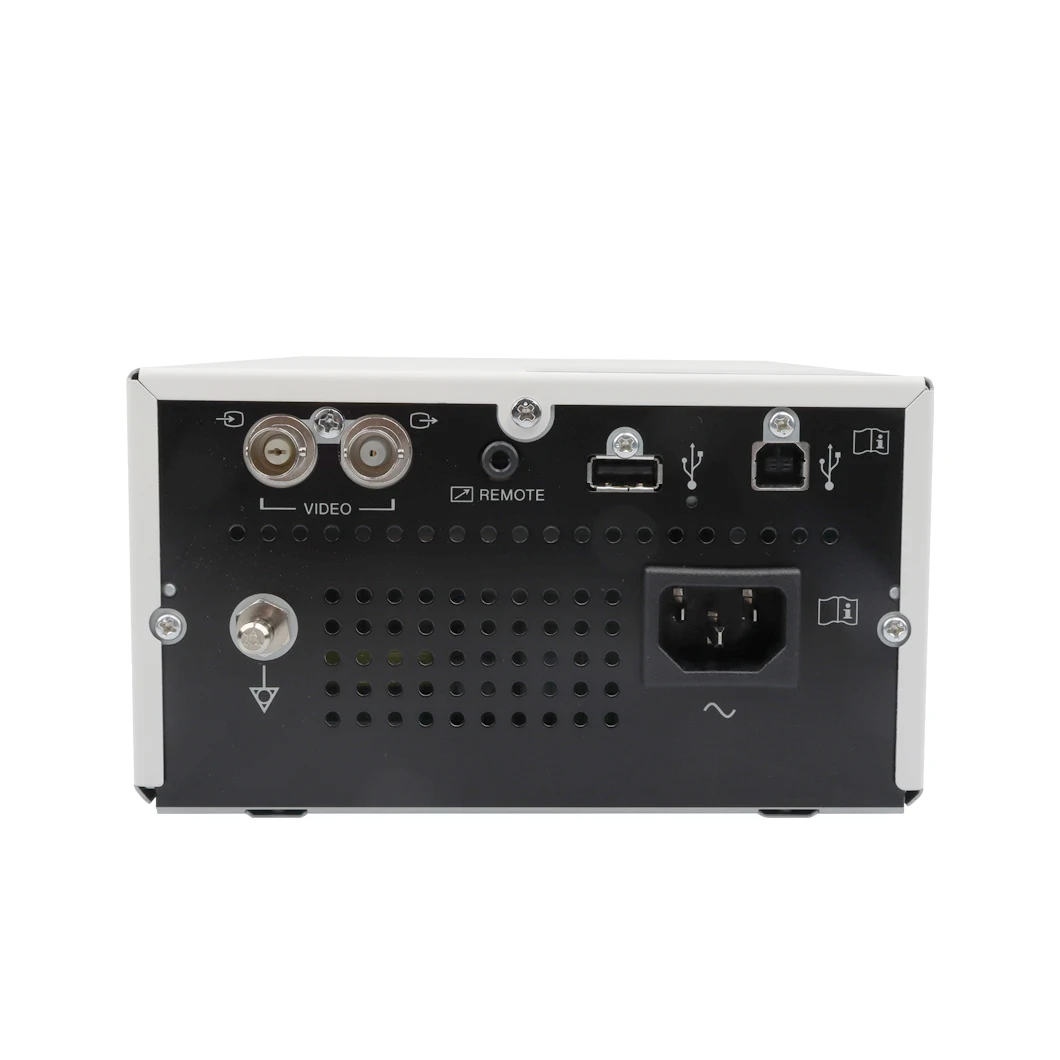

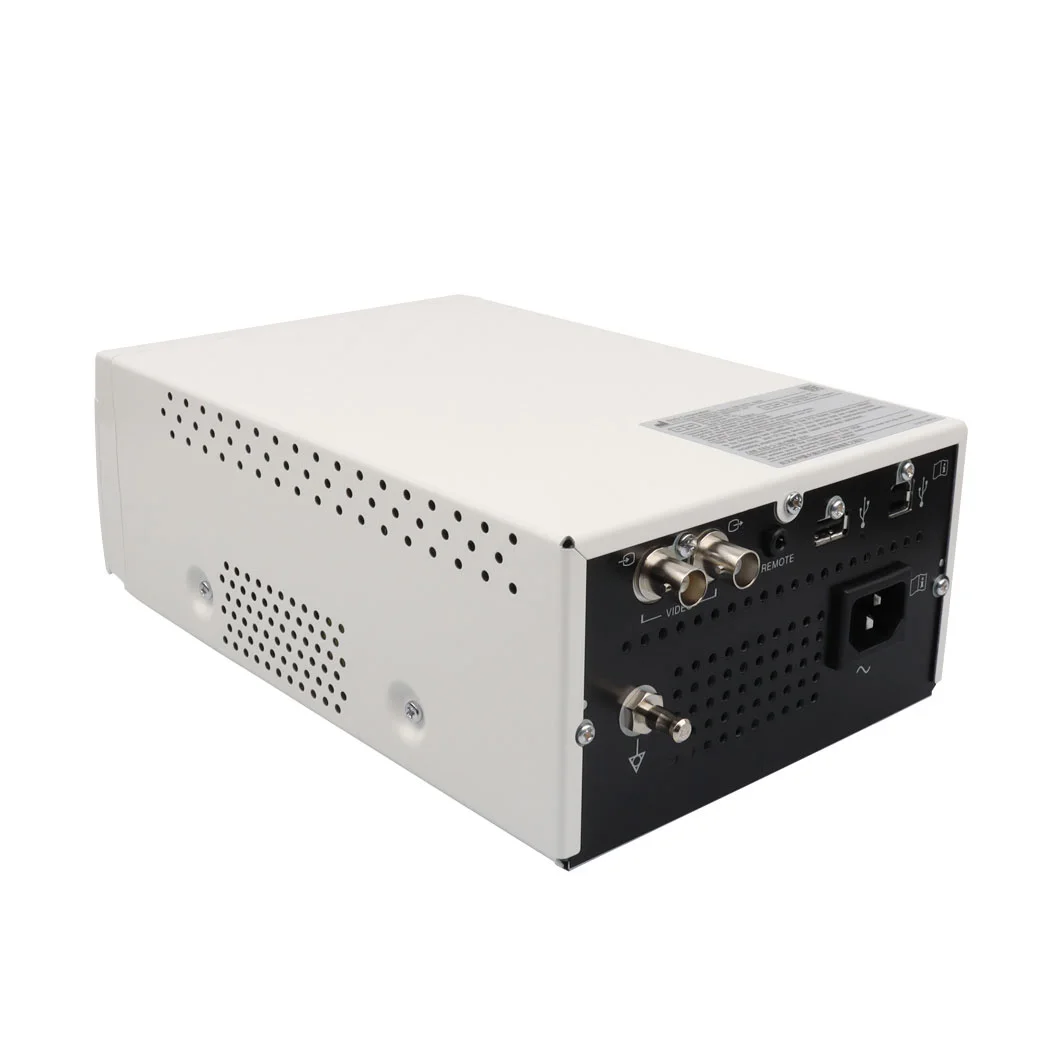

• Hybrid - accepts both analog and digital signal input
• Unique built-in digital capture enables you to store images on a connected USB drive
• High resolution of 325 DPI
• Compact, space-saving design
• High speed printing of approximately 1.9 seconds
• Utilizes existing 110 Series media by Sony: UPP-110S/5, UPP-110HD, UPP-110HG
Technical Specifications |
||
Dimensions (W x H x D) |
6 1/8in x 3 1/2in x 9 1/2in (154mm x 88mm x 240mm) |
|
Weight |
5lb 8oz (2.6kg) |
|
Print information |
Digital Connection |
Analog Connection |
||
Print technology |
Direct Thermal Printing |
|||
Resolution |
325 DPI |
|||
Gradations |
8 bits (256 levels) |
|||
Picture size |
4096 x 1280 dots |
720 x 504 (NTSC), 720 x 604 (PAL) |
||
Picture area |
12 5/8 x 3 7/8in (Max) 320 x 100mm |
SCAN mode: WIDE1 STD: 94 x 73mm (NTSC), 94 x 71mm (PAL) SIDE: 124 x 96mm (NTSC),127 x 96mm (PAL) |
||
Print time |
1.9 seconds approximately* |
1.9 seconds approximately* |
||
Memory |
4096 x 1280 x 8 bit |
10 frames (850 k x 8 bits for one frame) |
||
Printer driver |
Windows XP 32/64 bit Vista 32/64 bit Windows 7 32/64 bit Windows 8 32/64 bit |
N/A |
||
*A7 print size when using 110HG/110S Media |
||||

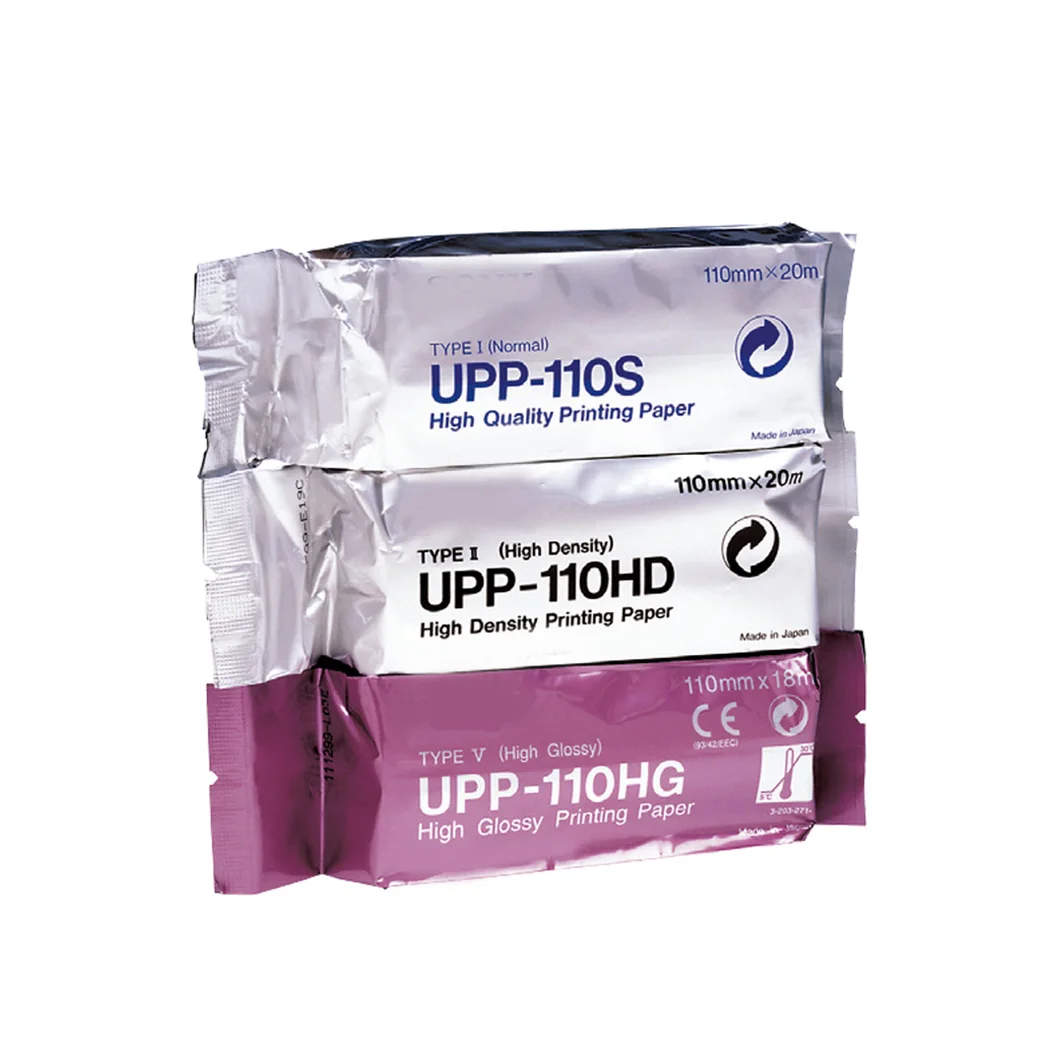

UPP-110S/5
Standard Media
UPP-110HD
High Density Media
UPP-110HG
Premium High Gloss Media
Customer Feedbacks
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
