Products Description

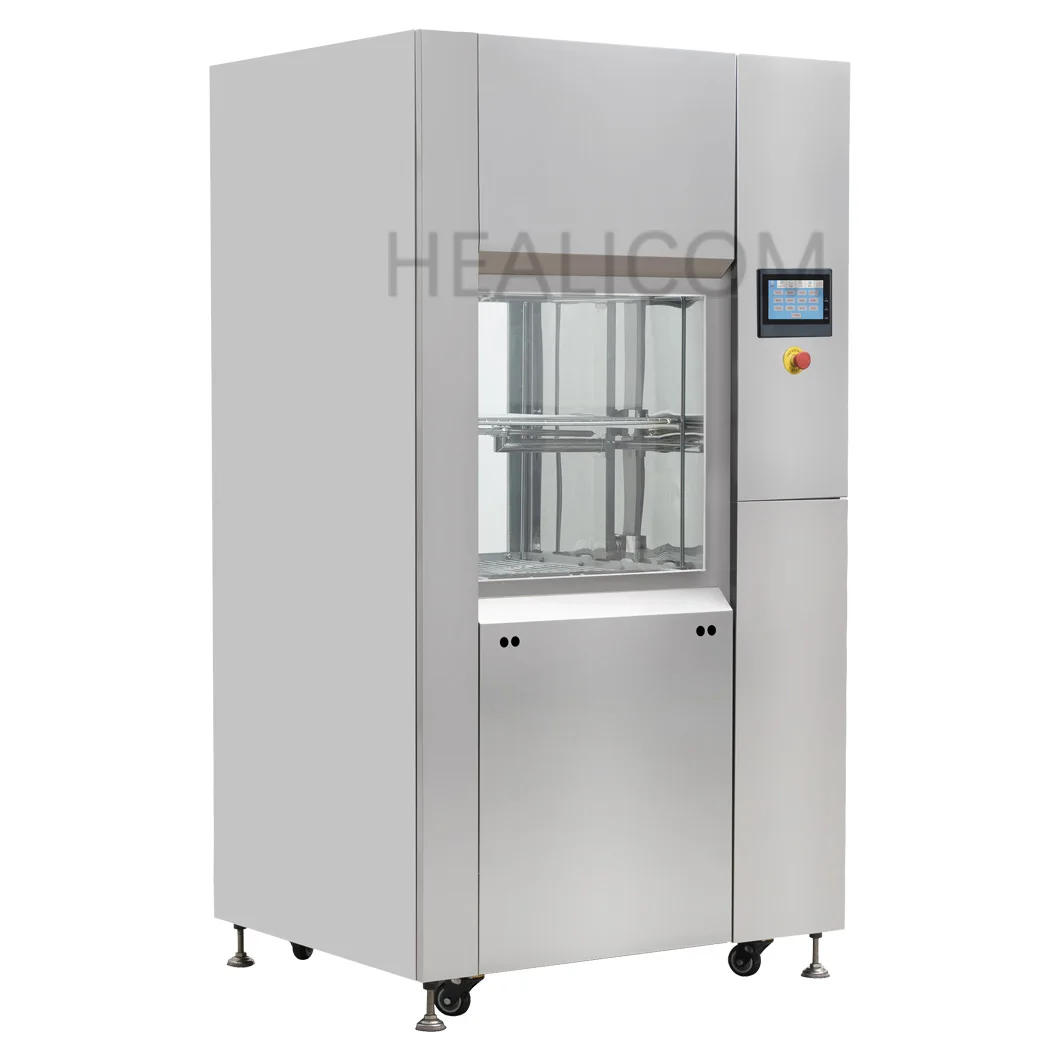

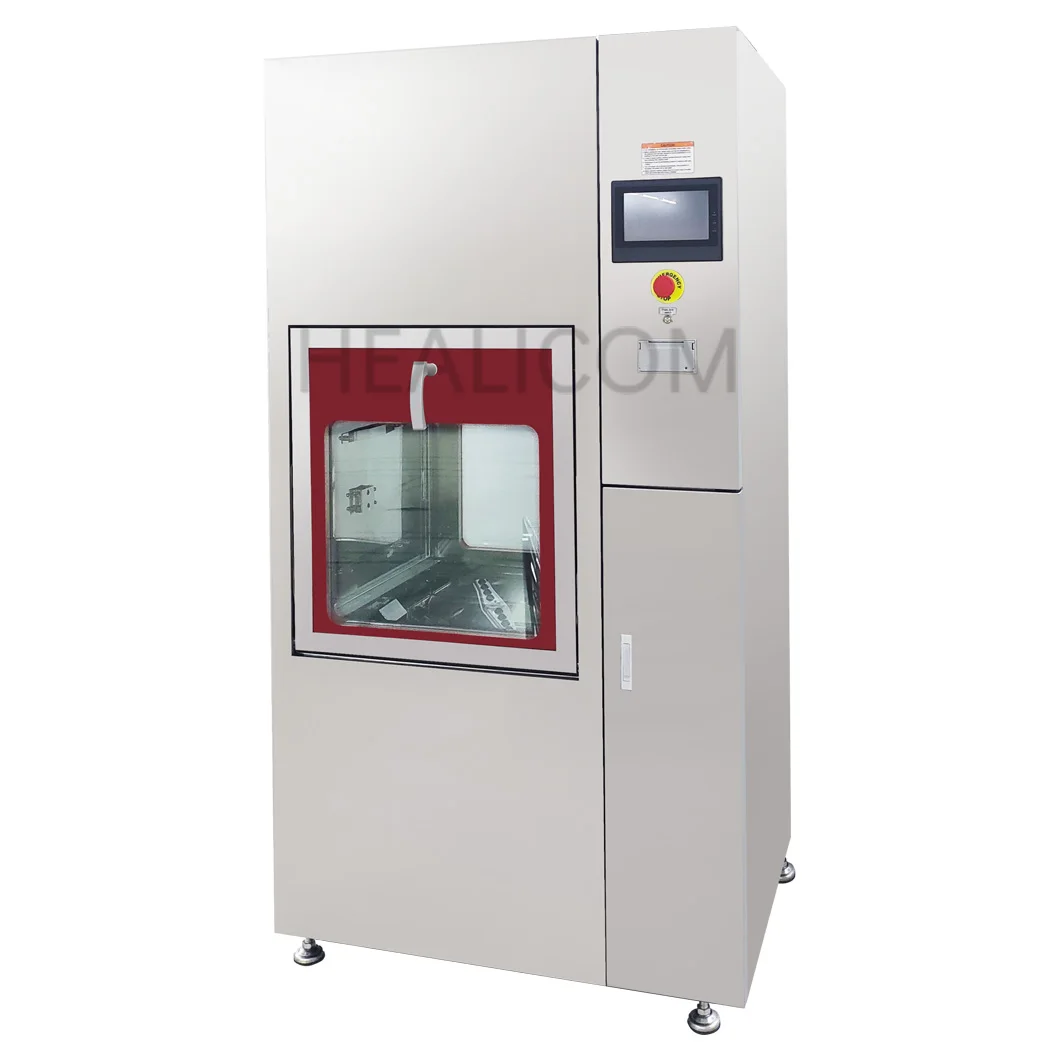

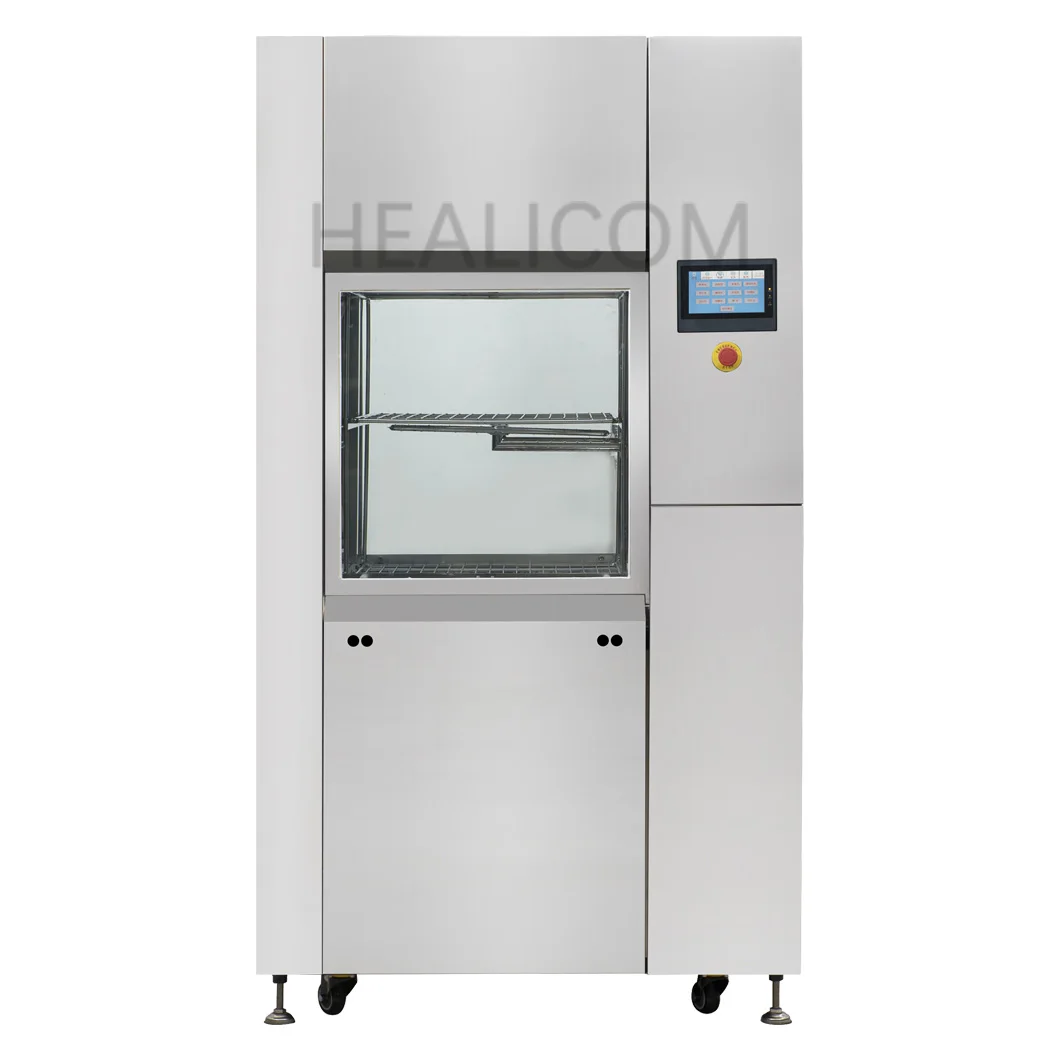

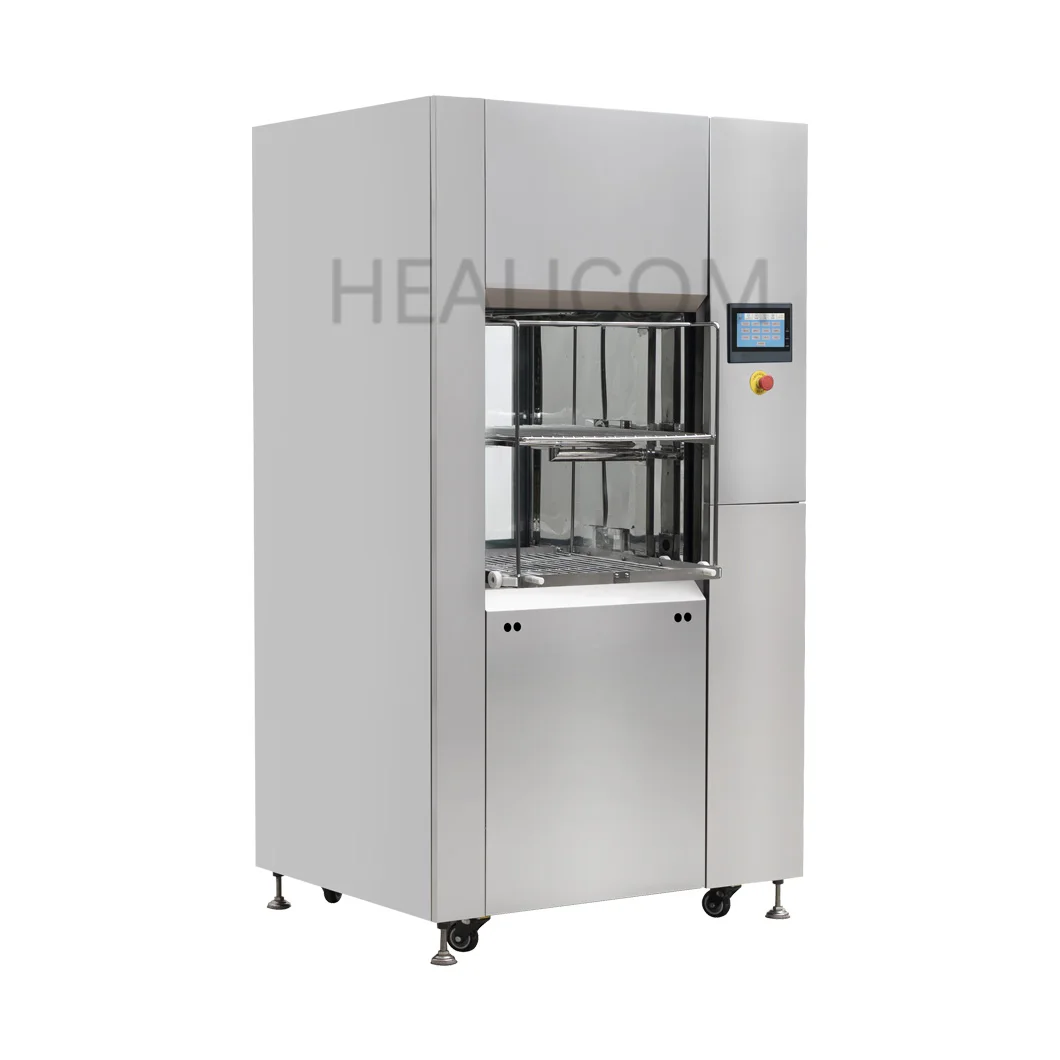

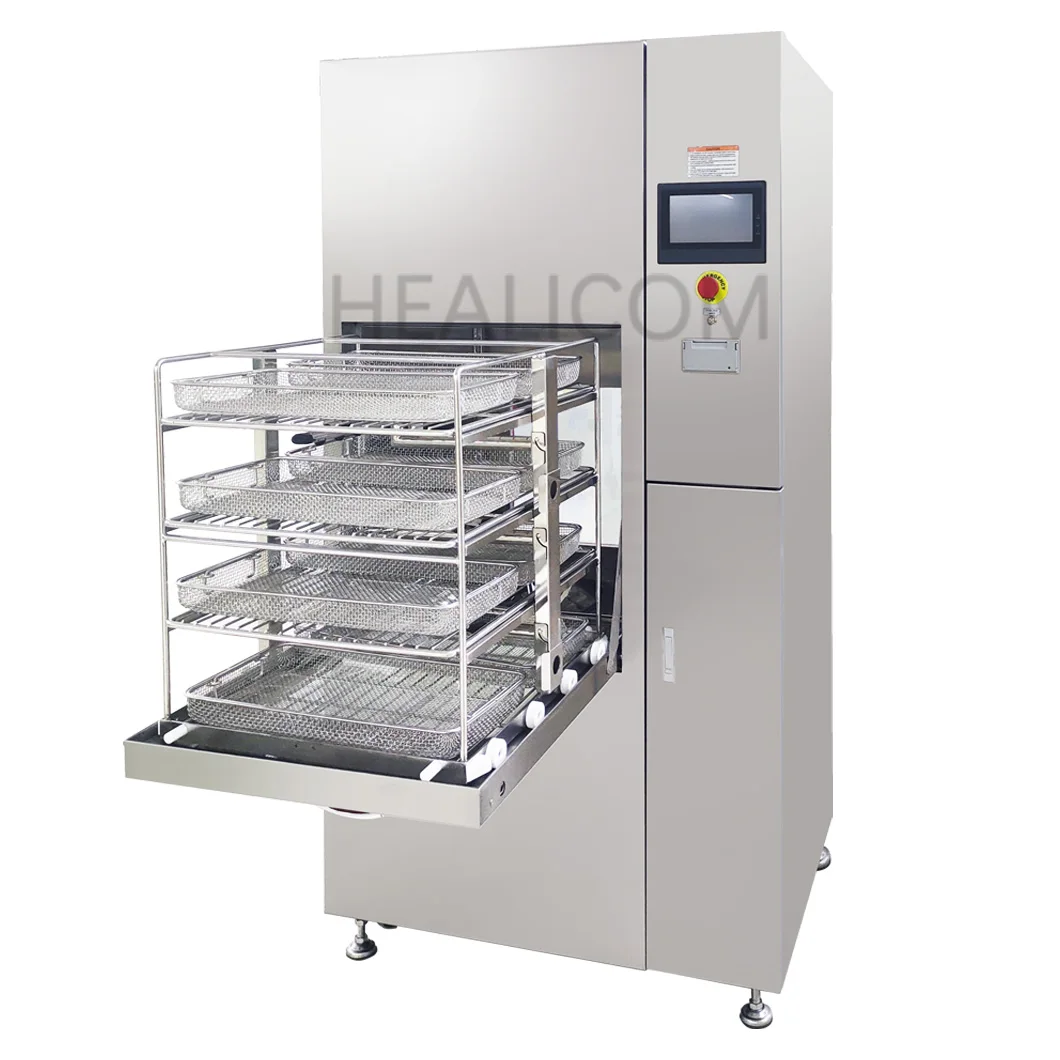

Professional Hospital Use Fully Automatic Electric Door Lock Medical Washer Disinfector
Introduction:
The medical cleaning machine is a high-efficiency automatic cleaning device newly developed by our company.It is mainly suitable for cleaning, disinfecting, and drying various reusable surgical instruments, containers, trays bowls, and anesthesia equipment in hospital central supply rooms or operating rooms.
- The microcomputer PLC programmable operating system is stable and reliable, with magnetic resistance and breakdown resistance; the independently designed control system meets various operating and management needs.

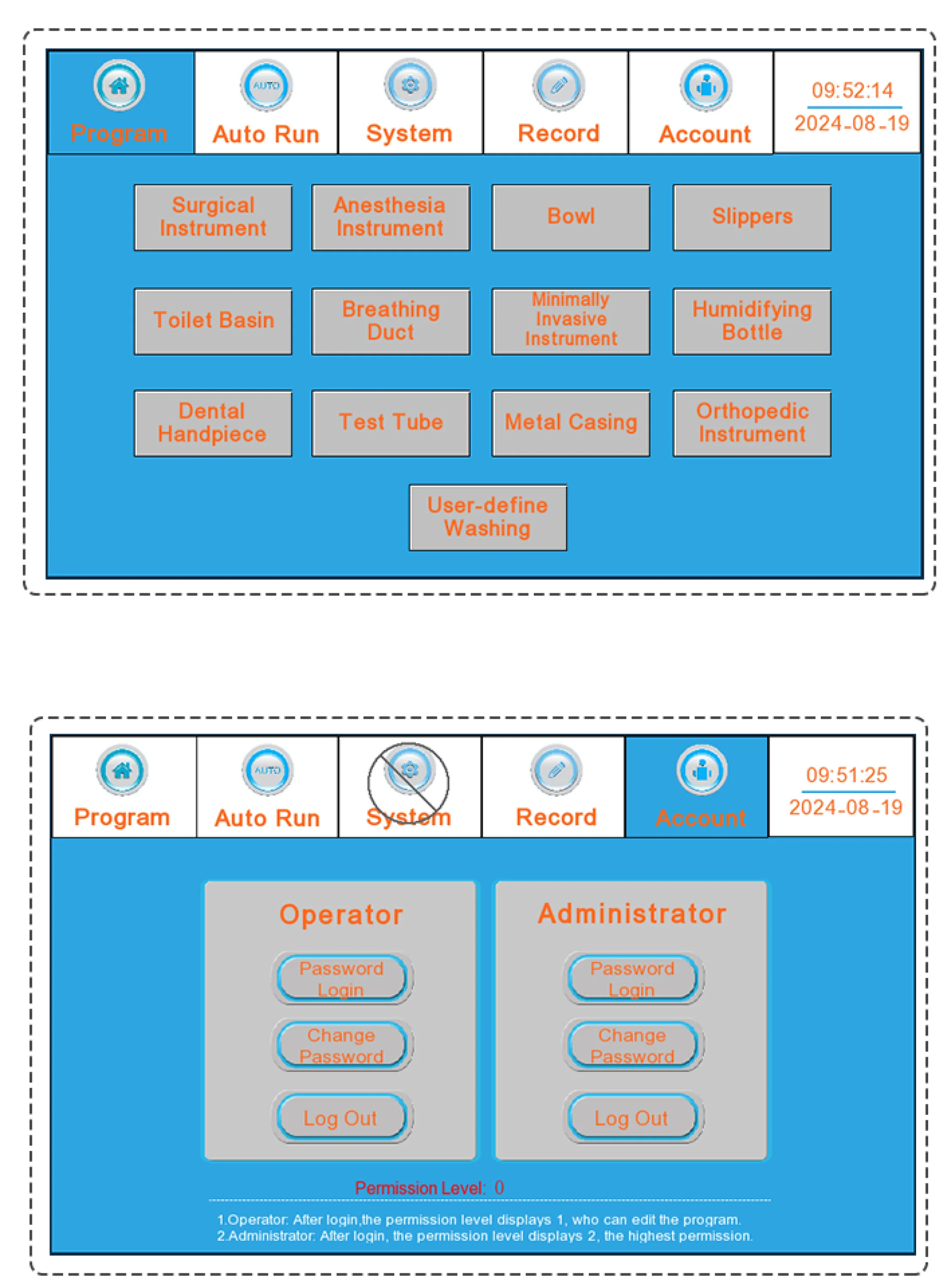

- Pre-set programs: 12 groups, which can be independently set and combined for cleaning steps, covering common contaminants.
- Custom programs: 100 groups, allowing for various naming modes such as Chinese, English, and numerical, with customizable cleaning steps.
- Parameters such as cleaning temperature, time, detergent addition, water source type, water intake, and cleaning time can be set independently.

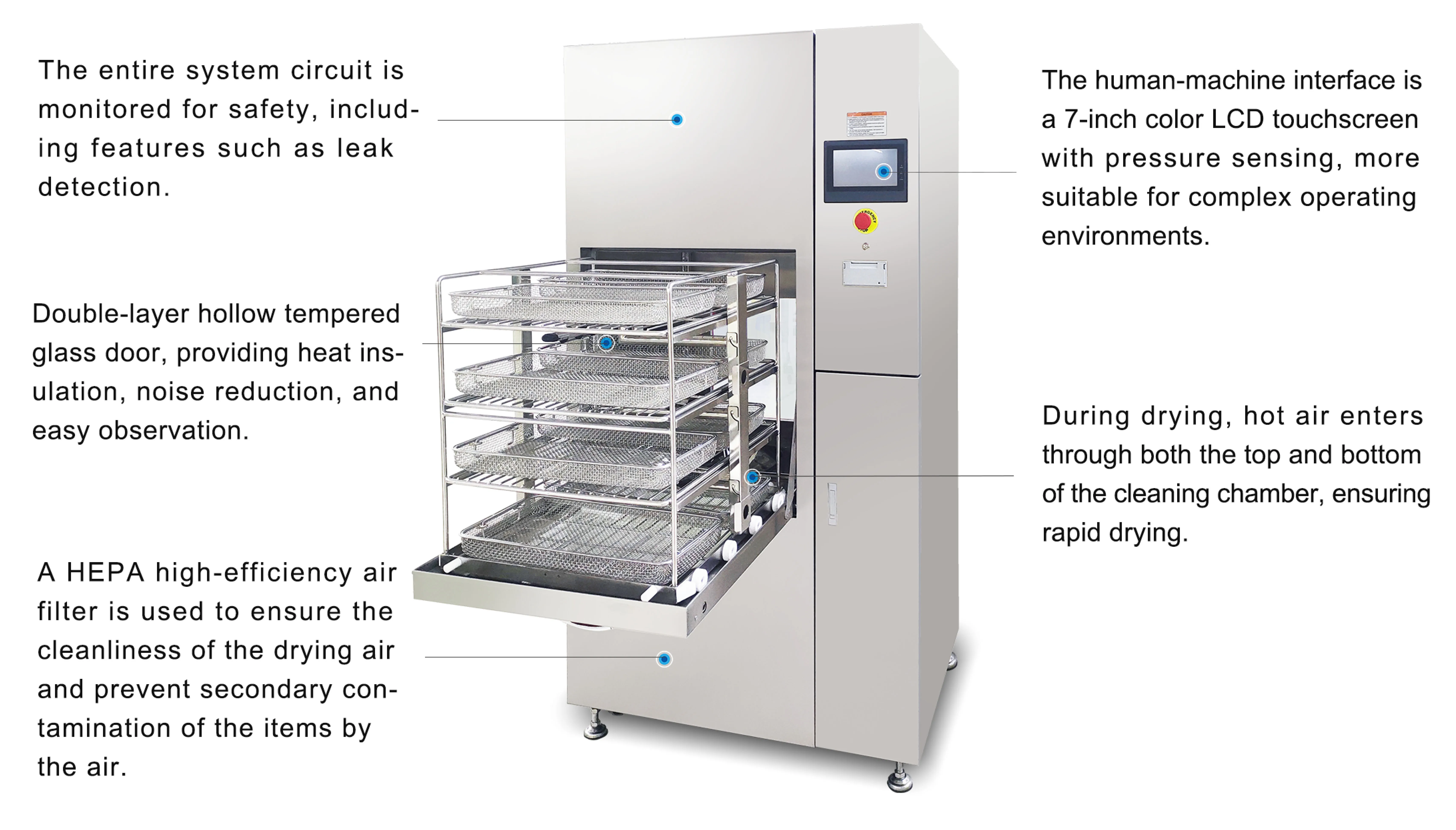

1.The LCD screen displays the current operation steps and working parameters in real time. 2.An independent air heater combined
with a high-pressure fan improves the drying efficiency of the items. 3.The housing is made of 304 stainless steel, while the
cleaning chamber is constructed from 316L stainless steel, offering corrosion resistance, durability, and ease of cleaning. 4.The
cleaning chamber features a mirror-finish stainless steel plate to reduce residue, and a sloped bottom structure to enhance
recirculation efficiency. 5.Alarms include: circulation pump overheating, abnormal water heating, abnormal air heating, door not
closed, water intake anomalies, and overflow alerts
Model |
HWD-220 |
HWD-320 |
HWD-420 |
||
Overall dimensions (W x D x H) mm |
960 x 805 x 1865 |
960 x 805 x 2025 |
1110 x 950 x 2085 |
||
Internal dimensions (W x D x H) mm |
600 x 629 x 830 |
600 x 629 x 990 |
688 x 700 x 703 |
||
Effective volume (L) |
220 |
320 |
420 |
||
Circulation pump flow rate (L/min) |
800 |
1000 |
|||
Circulation pump power (kW) |
0.75 |
1.5 |
|||
Water heating power (kw) |
15 |
||||
Fan power (kW) |
0.75 |
||||
Drying power (kw) |
3 |
||||
Voltage/Frequency (V/Hz) |
380/50-60 |
||||
Maximum operating power (kW) |
16 |
17 |
|||
Standard cleaning racks (layers) |
4 |
5 |
|||
Open the door method |
Electric door lock |
Click the screen button to run automatically |
|||
Soft water source pressure (MPa) |
0.3~0.8 |
||||
Pure water source pressure (MPa) |
0-0.8 |
||||
Soft water interface |
G3/4 |
||||
Pure water interface |
G3/4 |
||||
Drain interface |
Φ25 |
||||
Related Products
Customer Feedbacks
Workshop
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
