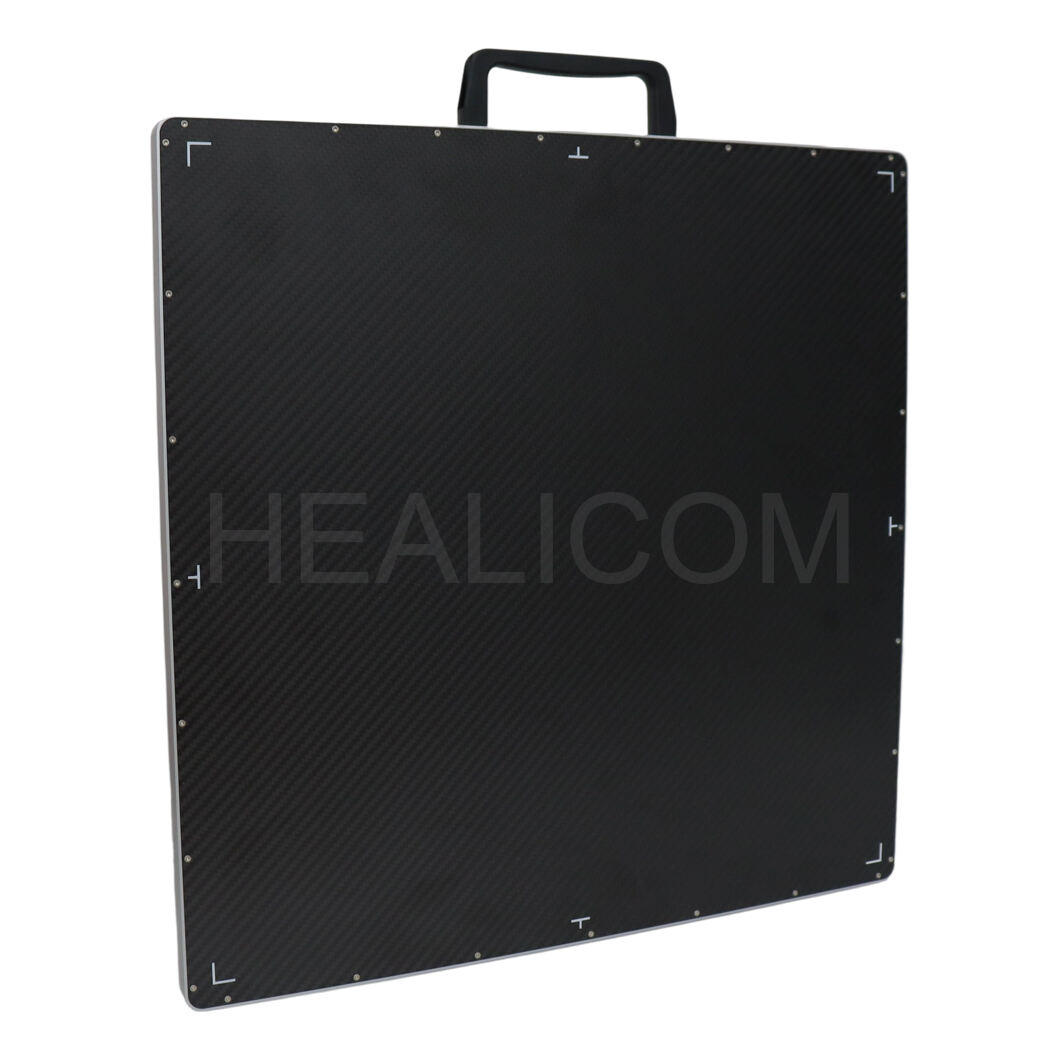

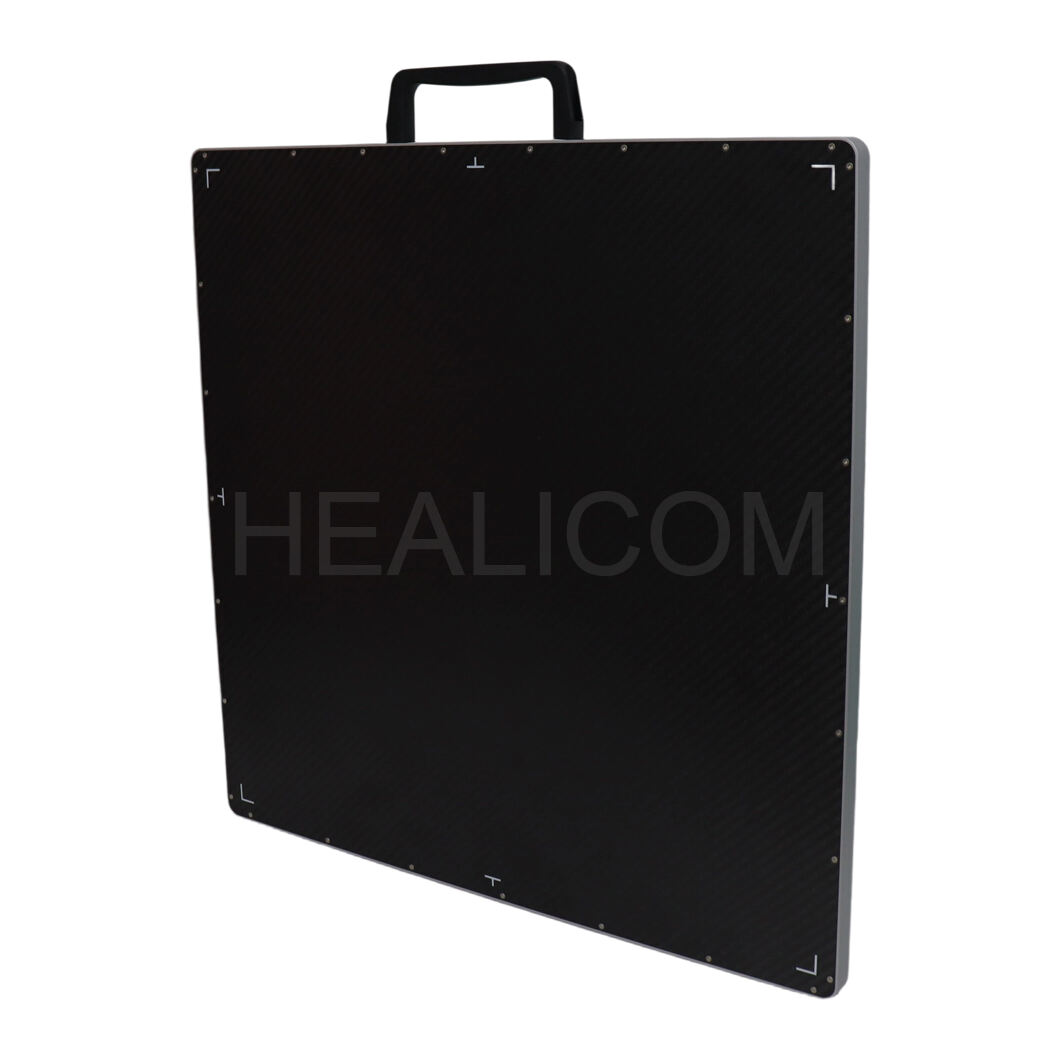

HXD-1717Y is a light weight detector based on amorphous silicon(a-Si), which is suitable for various fields such as DR and Non-destructive testing.

Electricals and interface
A/D Conversion	16 bits

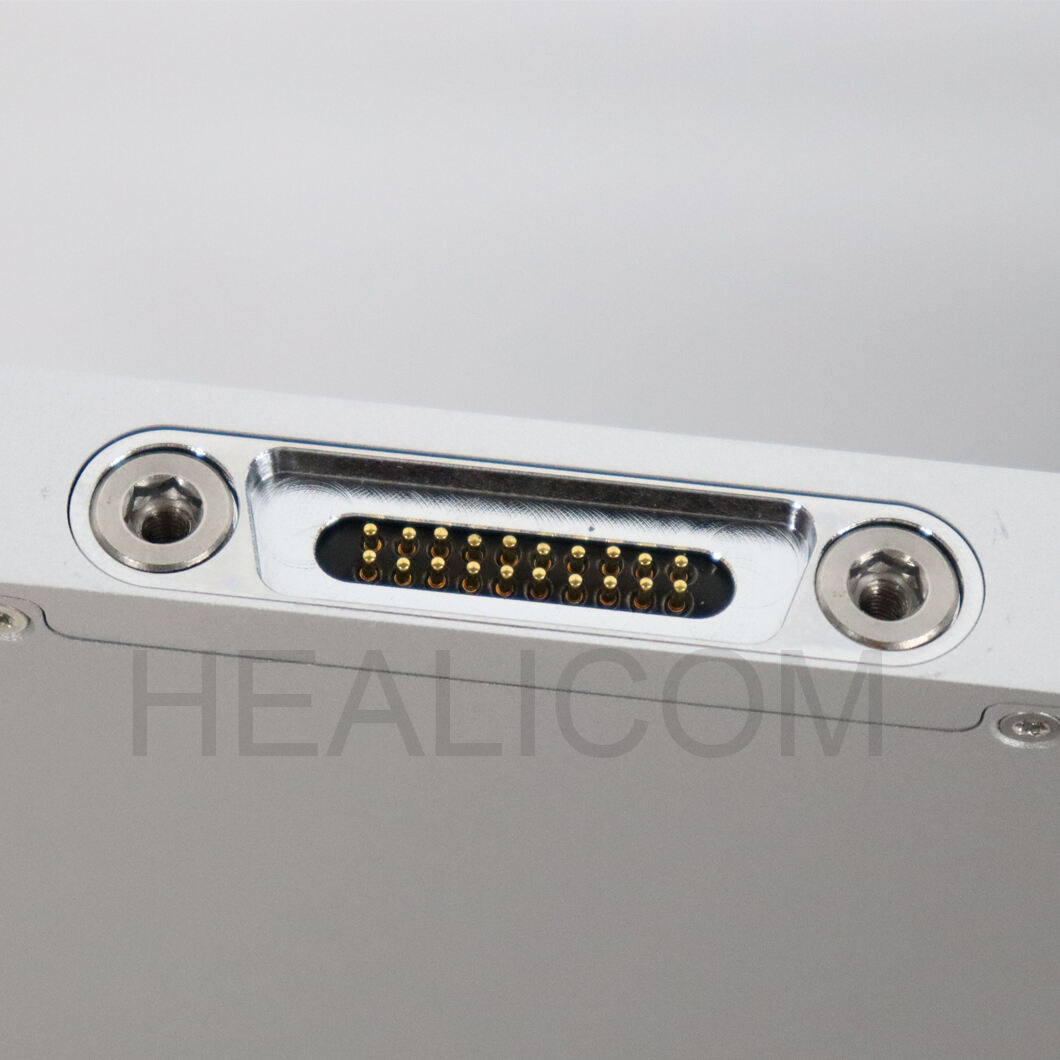

Data Interface	Gigabit Ethernet
Acquire Time	wired: 1s
Exposure Control	Software/Sync/AED
Mechanical
Dimension	460x 460 x14.8 mm
Weight	3.8kg
Material	Aluminum and magnesium alloys
Front Panel	Carbon fiber
Enviromental
Temperature	10-35°C(operating); -10~50°c(storage)
Humidity	30-70% RH (non-condensing)
Ingress Protection	IP51
Sensor
Receptor Type	a-Si
Scintillator	Gos/Csl:TI
Active Area	430x 430 mm
Resolution	3072x 3072
Pixel Pitch	139 μm
Power Supply & Battery
Adapter In	AC 100-240V,50-60Hz
Adapter Out	DC 24V,2.7A
Power Dissipation	<20 W
Image Quality
Limiting Resolution	3.5 LP/mm
Energy Range	40-160 KV
Dynamic Range	>84 dB
Sensitivity	>0.54 LSB/nGy
Ghos	<1% 1st frame
DQE	42% @(1 LP/mm)
DQE	28% @(2 LP/mm)
MTF	68% @(1 LP/mm)
	38% @(2 LP/mm)
	20% @(3 LP/mm)
