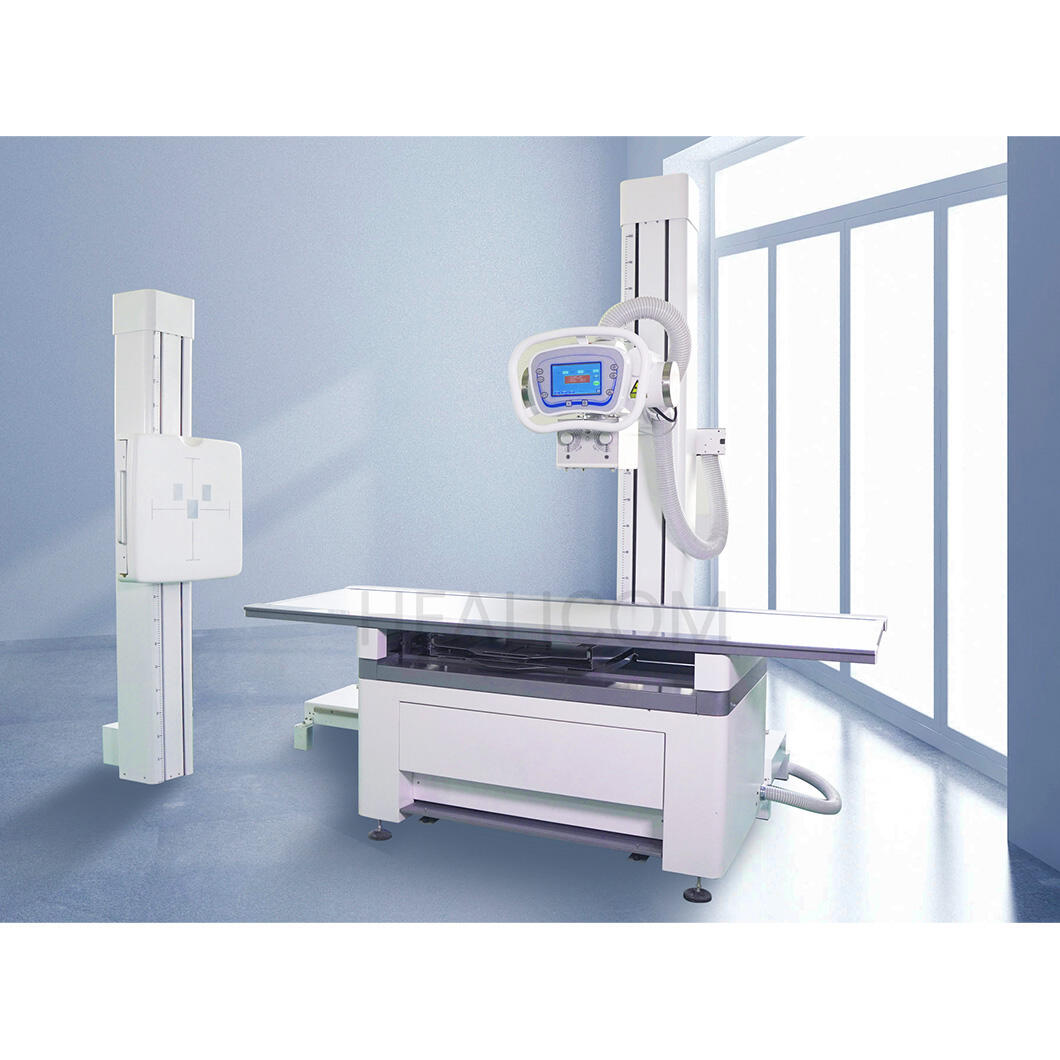

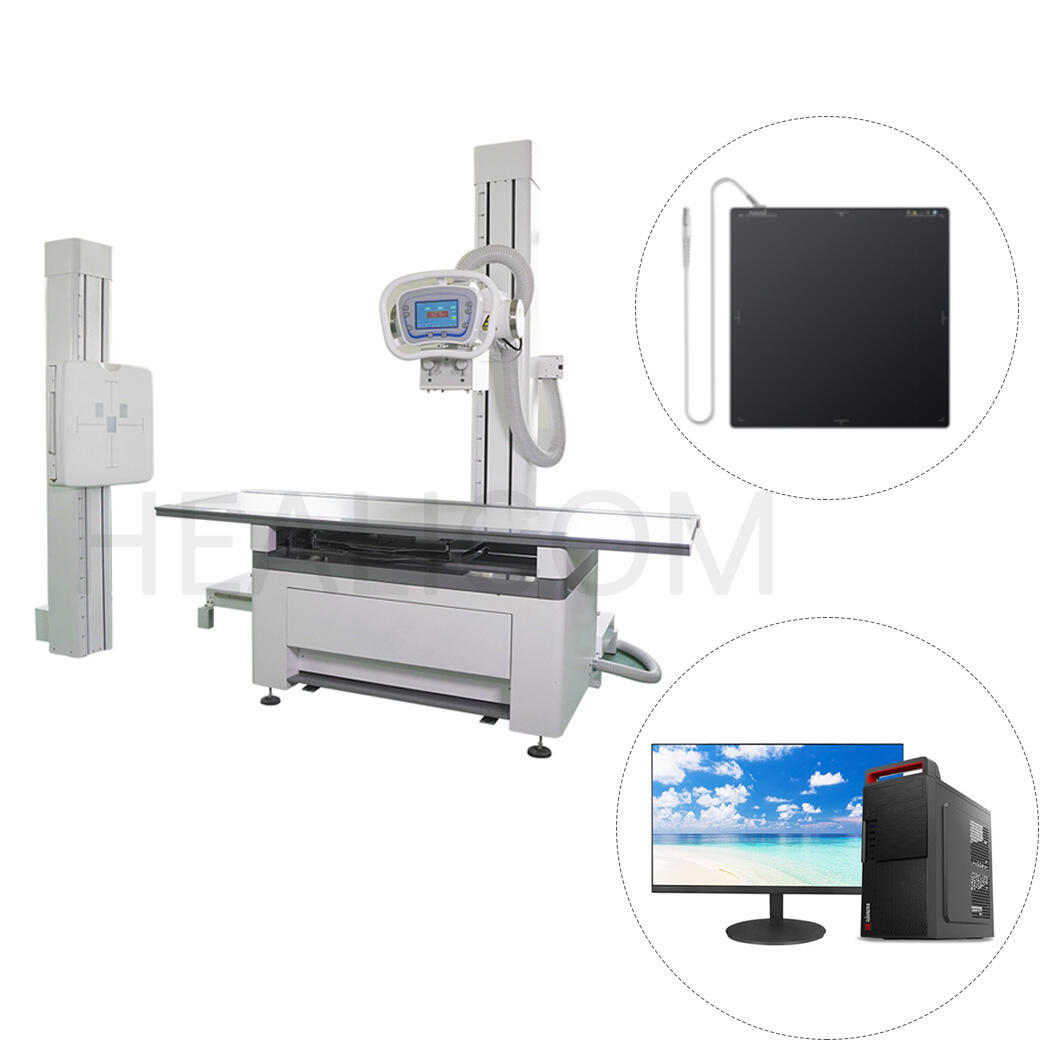

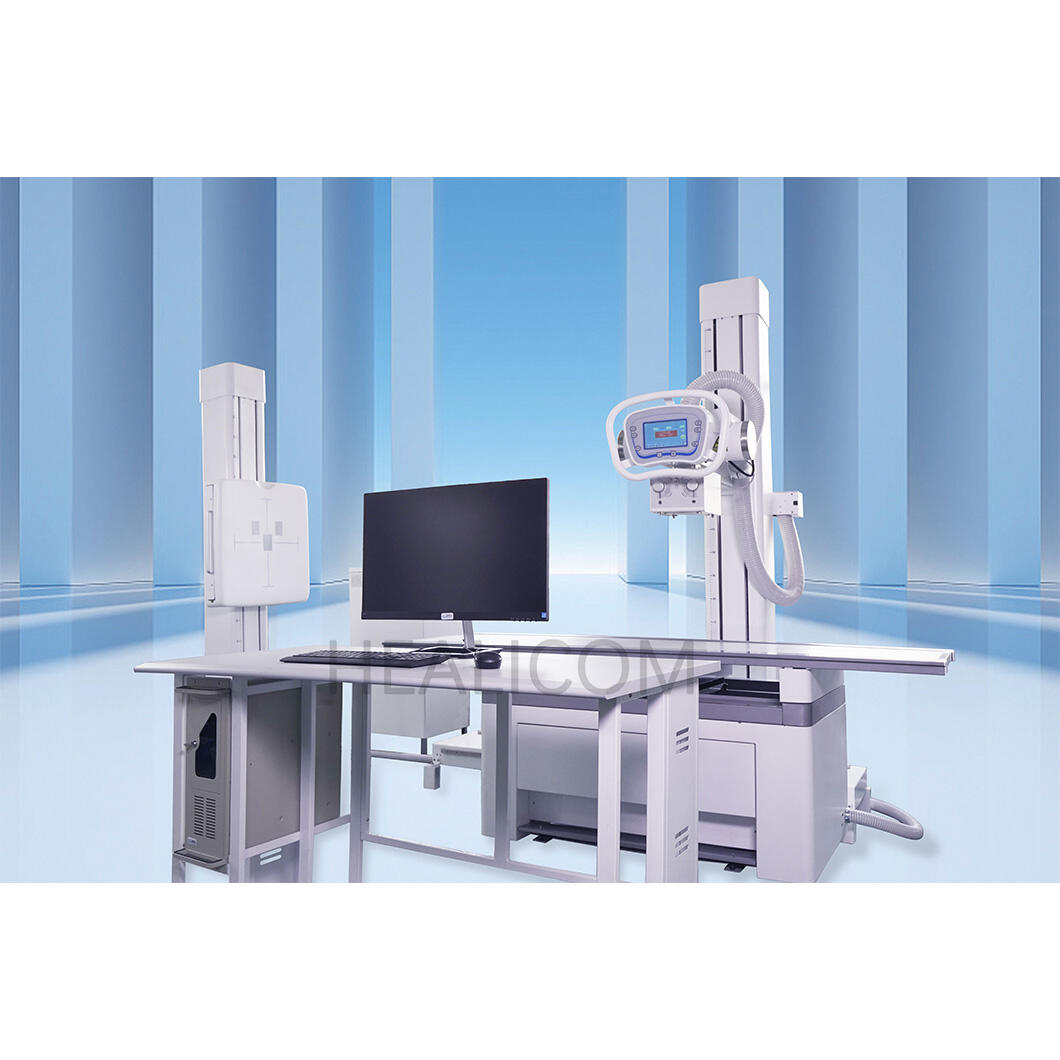

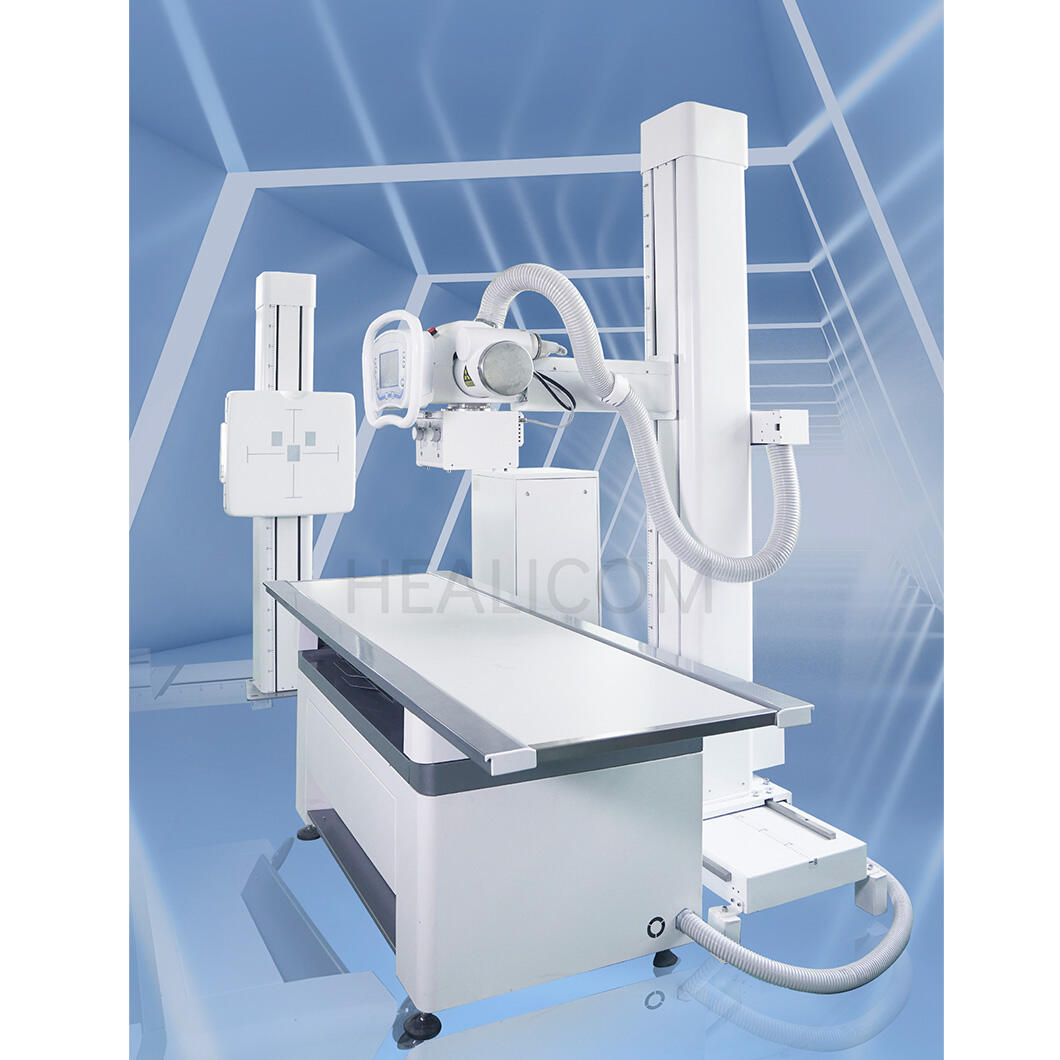

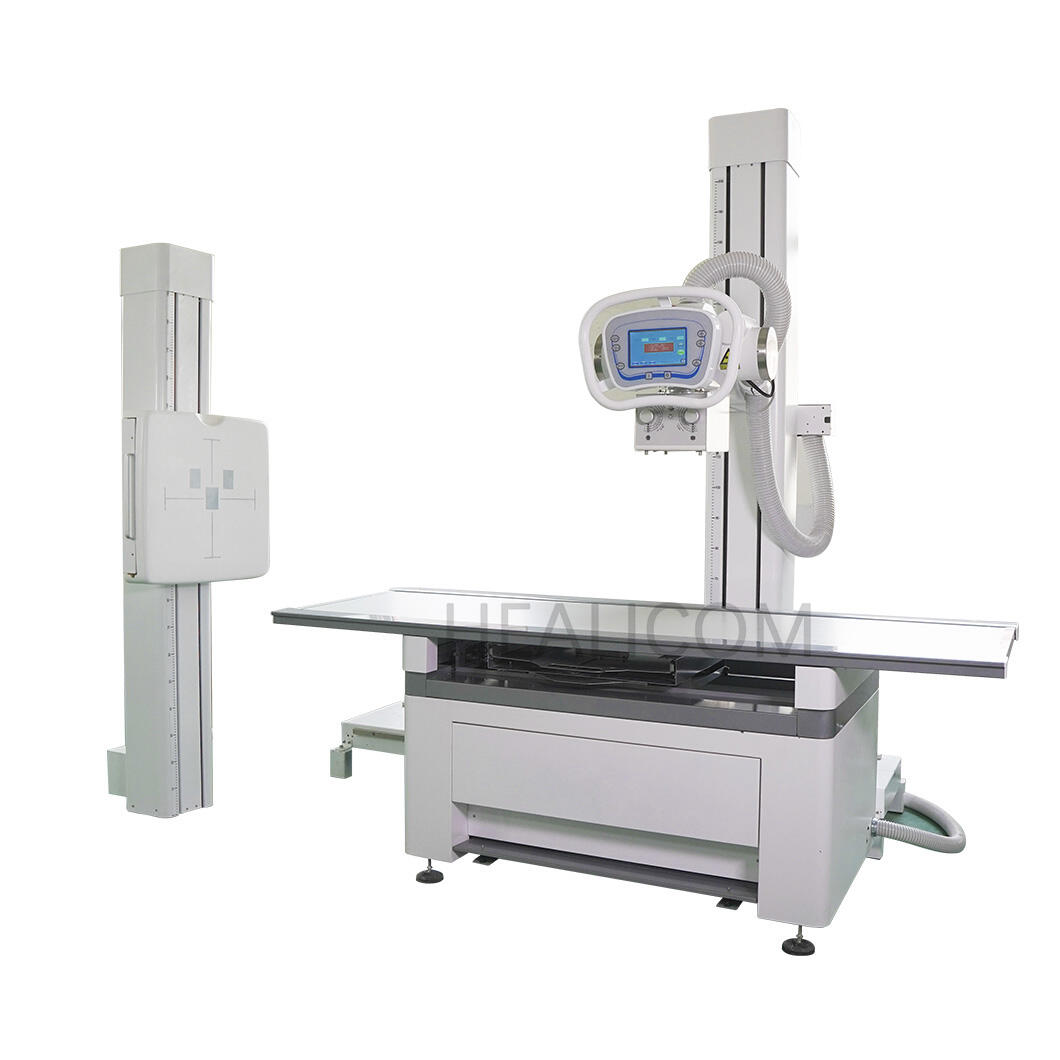

HDR50Z

ALL PRODUCTS

Overview
Recommended Products

Products Description

Beam limiter
- Dimensions: 250mm×224mm×250mm
- Radiation field: maximum when SID=56cm: 43cm×43cm minimum: 0cm×0cm
- Manipulation mode: manual

frame
- Column height 2230mm
- Column left and right movement stroke 1500mm
- Move up and down 1400mm
- Ball tube rotation range —90°～0°～+90°
- Chest frame height 2100mm
- Lifting stroke: 1400mm

X-ray tube assembly
- Focus design: 0.6mm / 1.2mm
- Focus power: 30/50kW
- Anode heat capacity: 190kHU

High frequency and high voltage generating device
- Power: 50kW
- High voltage inverter frequency: 50kHz
- Photography kV: 40~150kV
- mA range: 10~500mA
- Exposure time: 1ms~10s
- mAs: 0.1mAs~630mAs
- Power condition: three-phase 380VAC

Mobile photography bed
- Bed size: length 2000mm, width 730mm, height 680mm
- The bed board moves forward and backward 200mm, about 720mm
