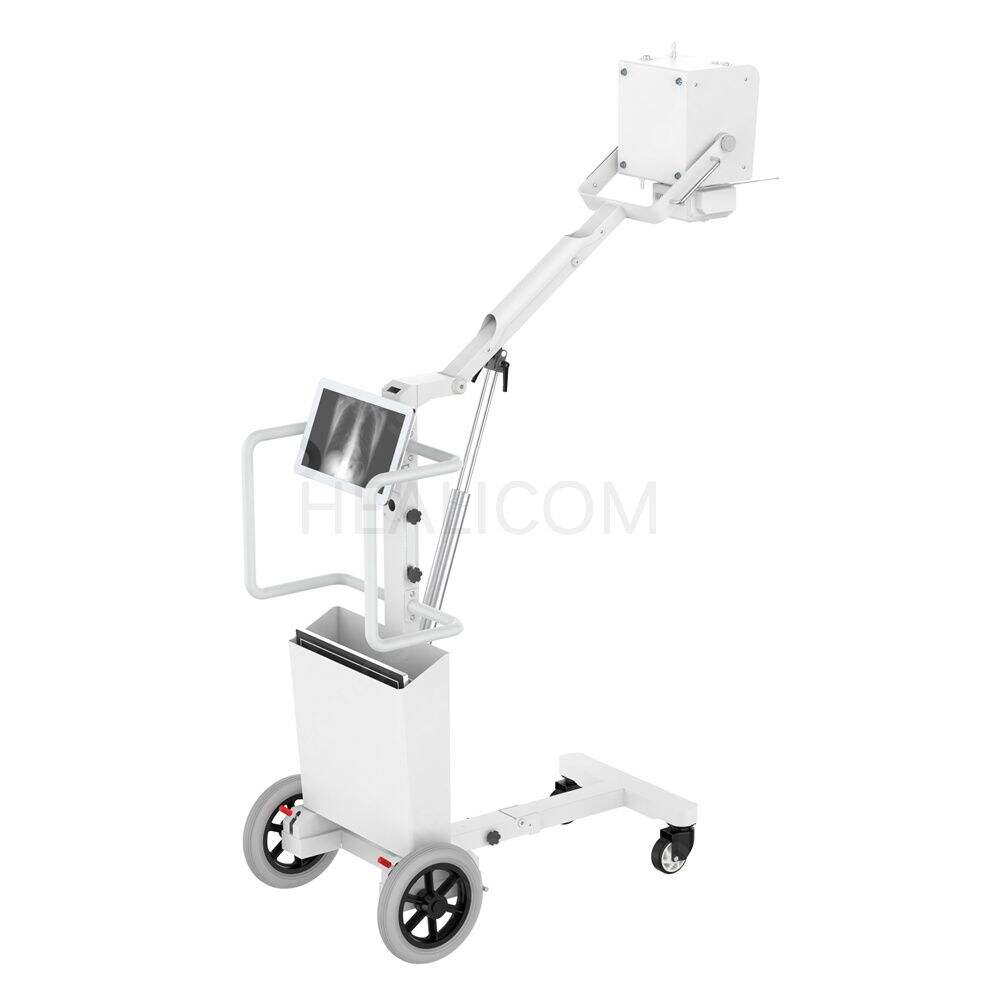

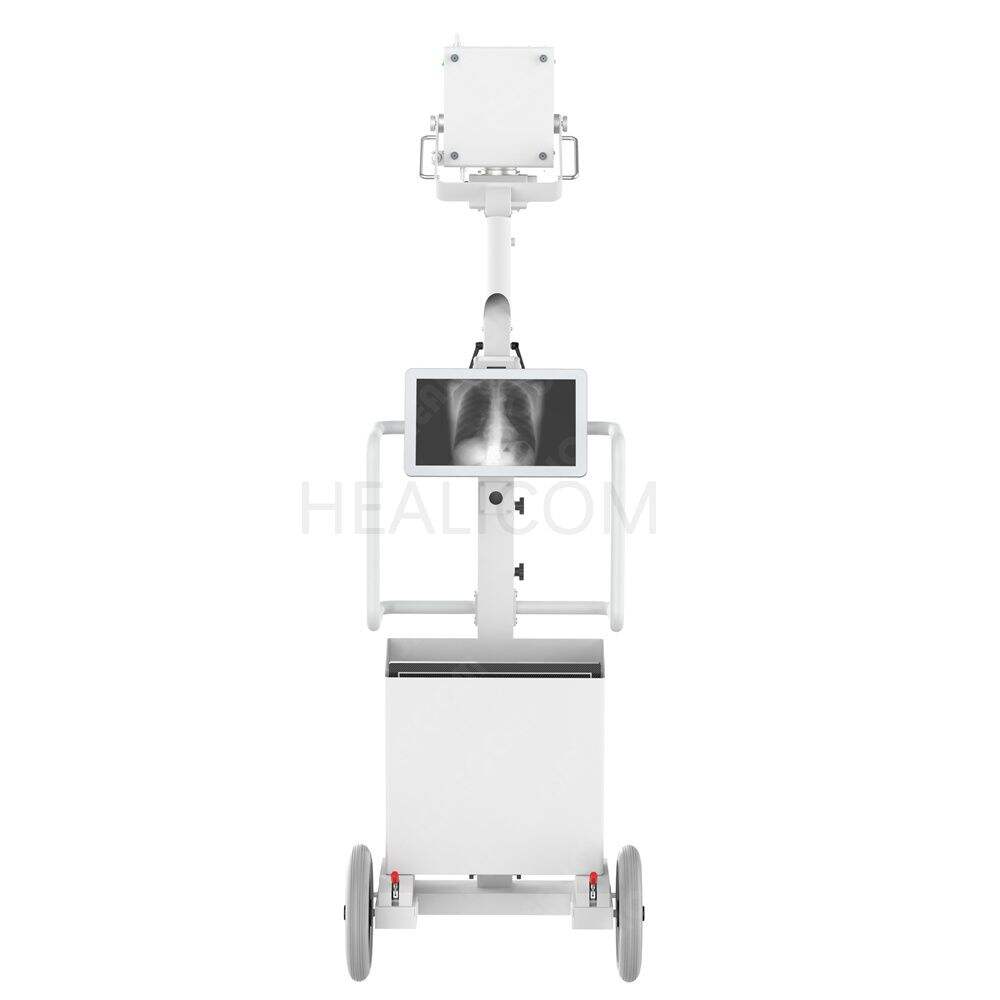

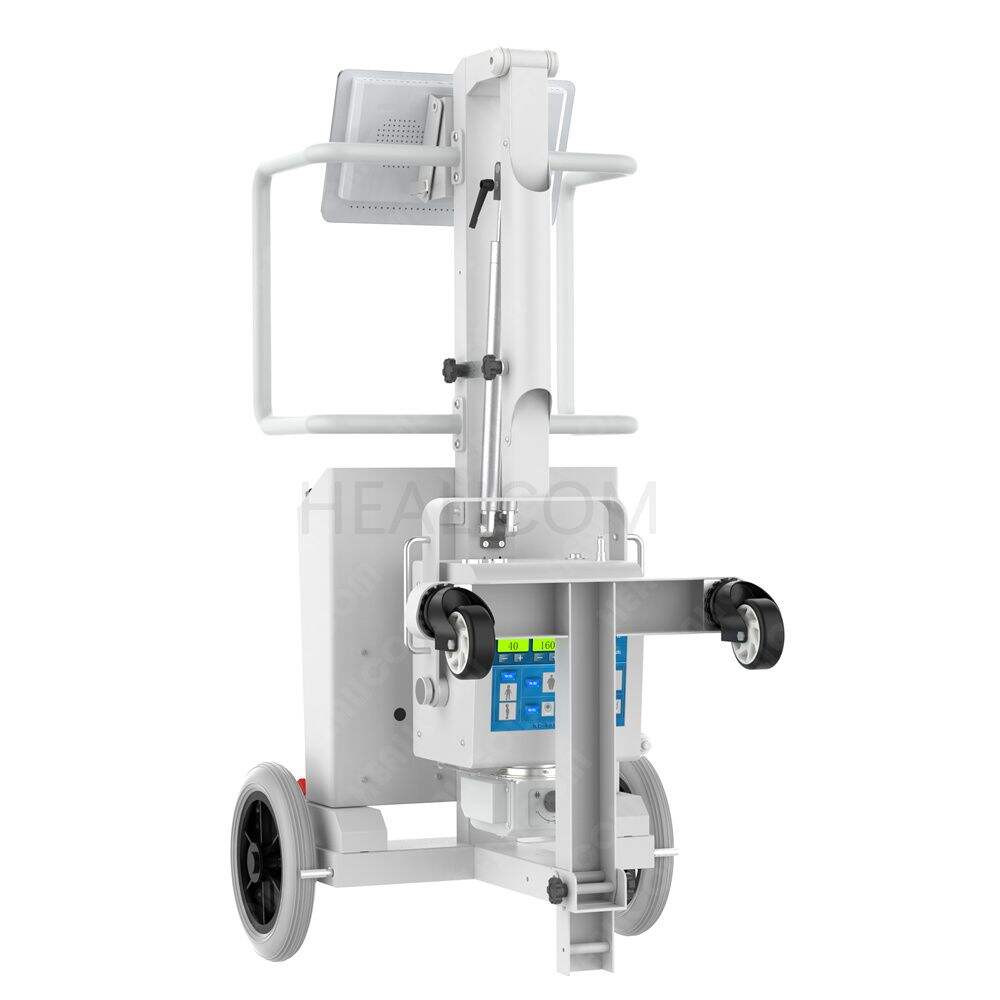

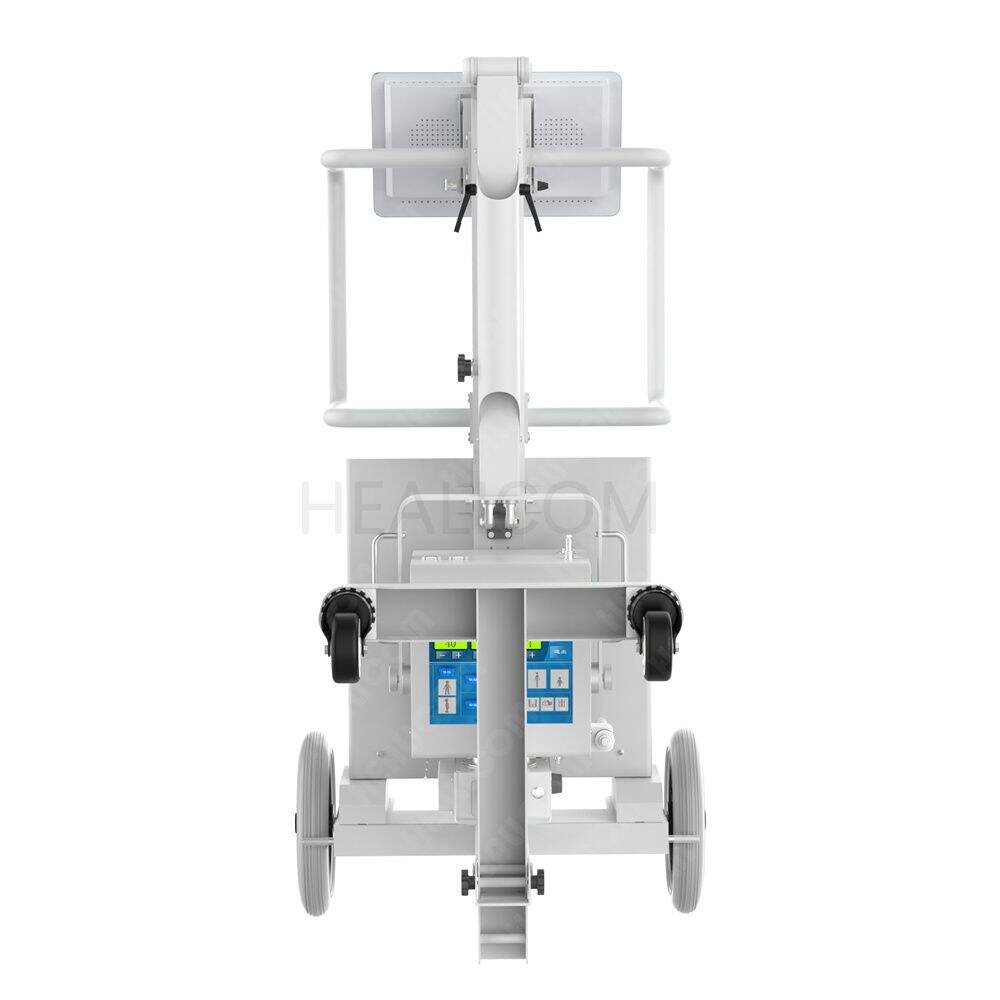

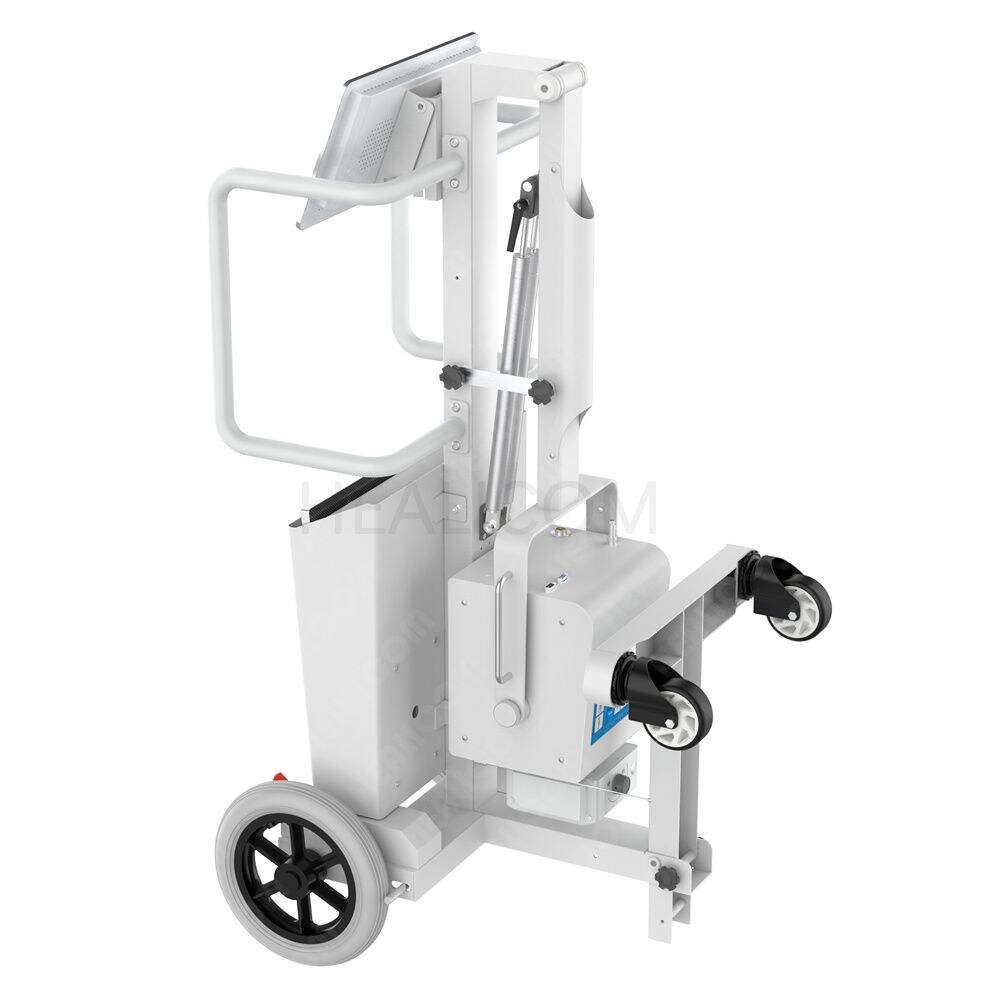

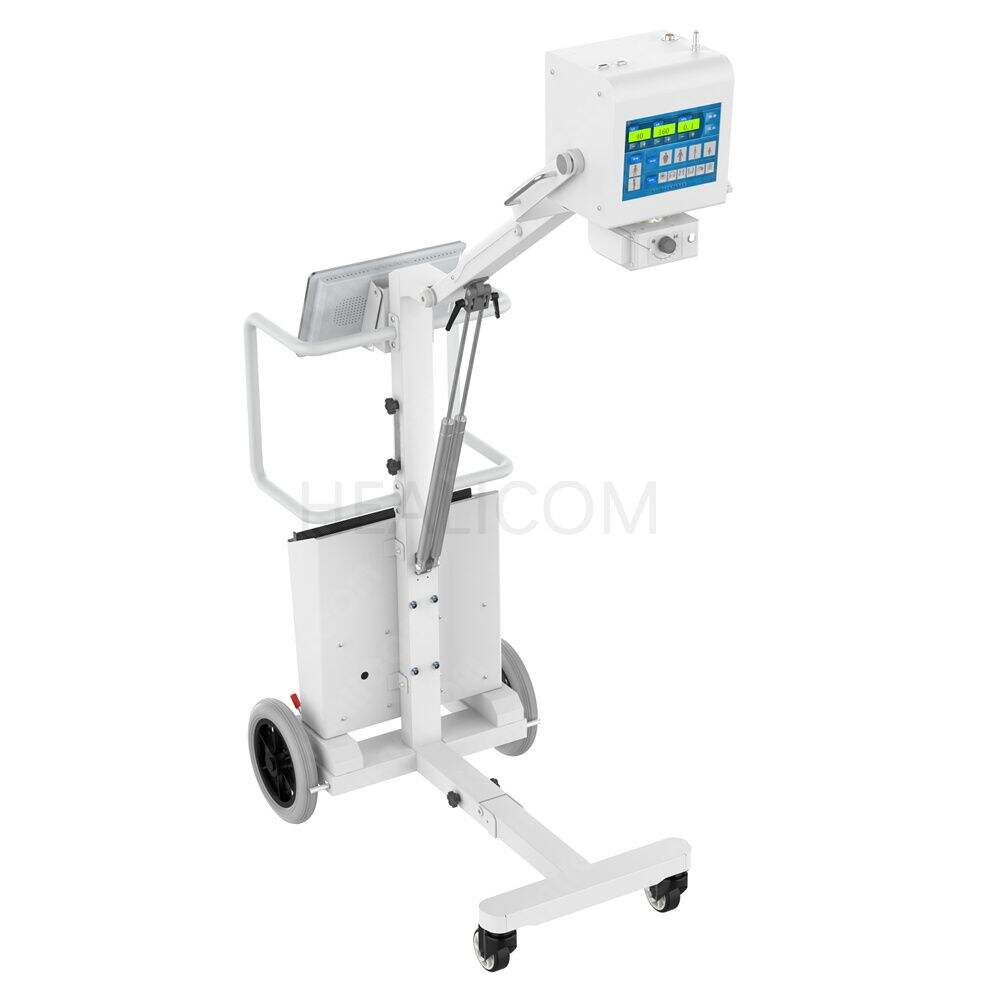

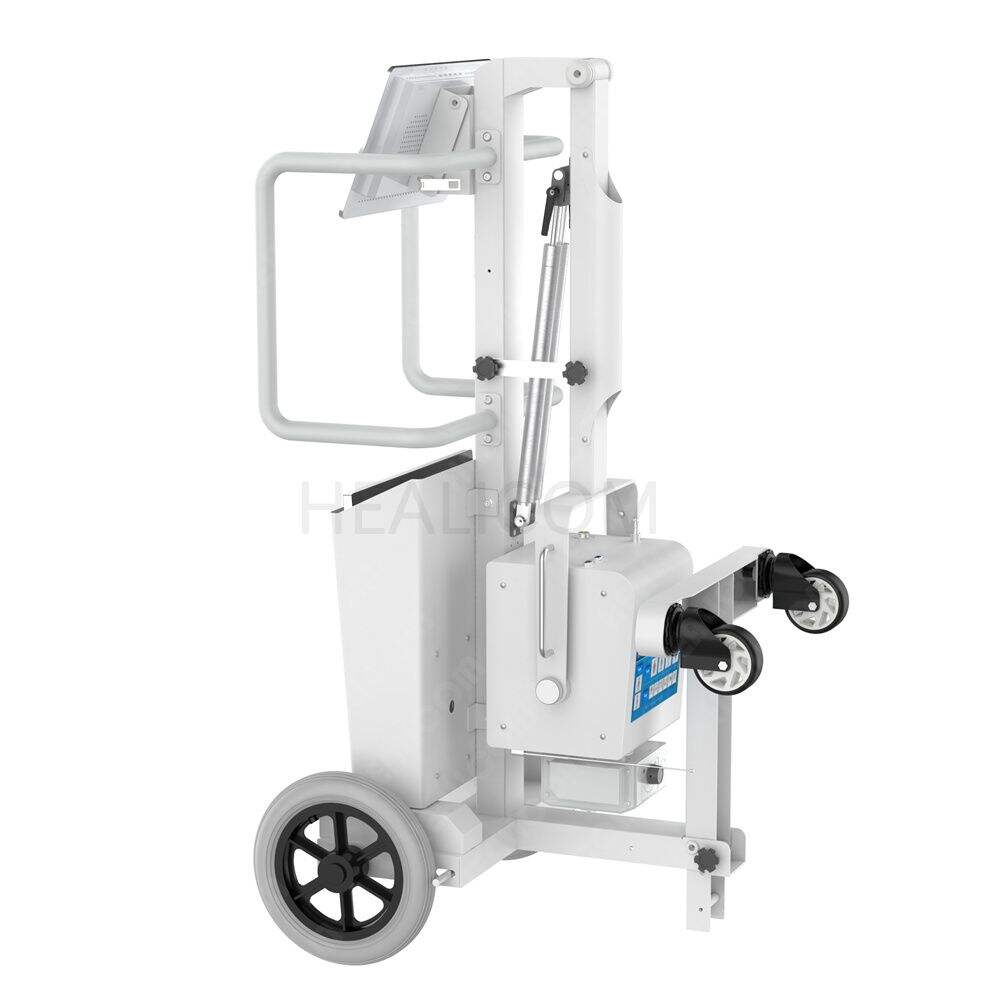

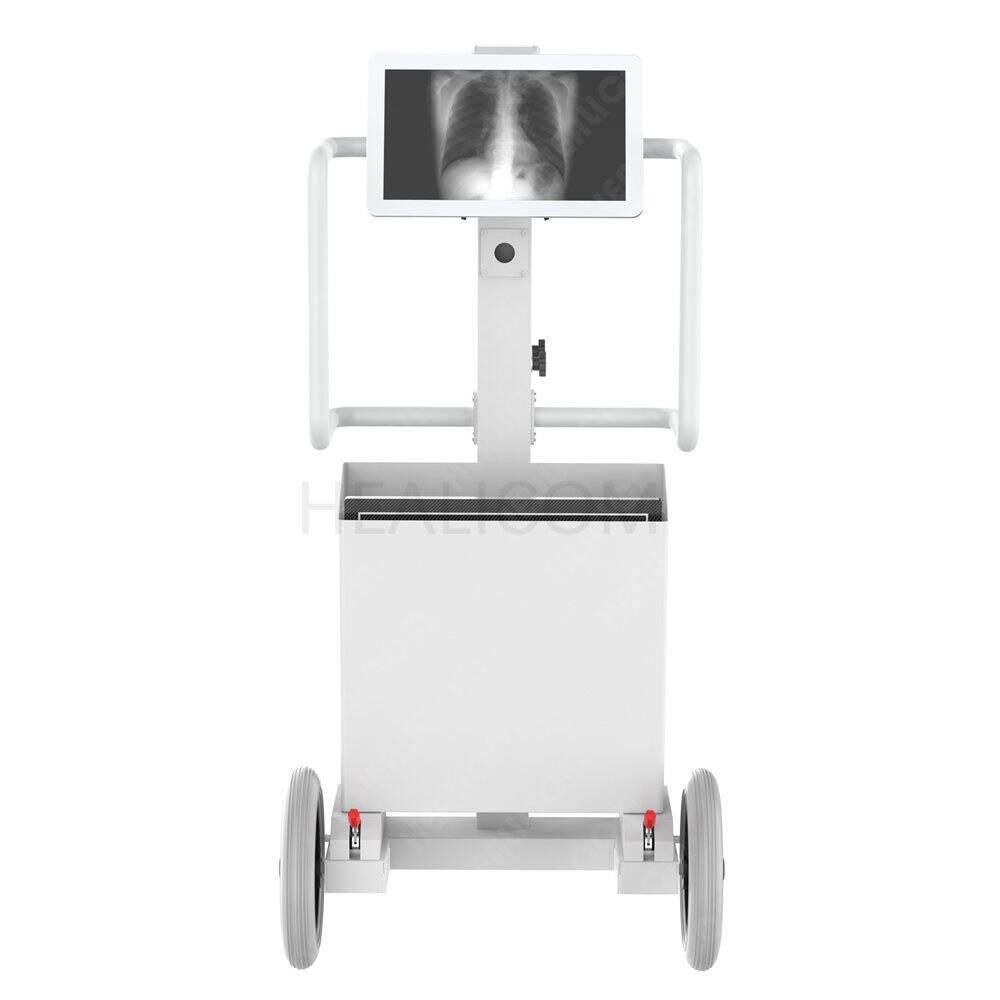

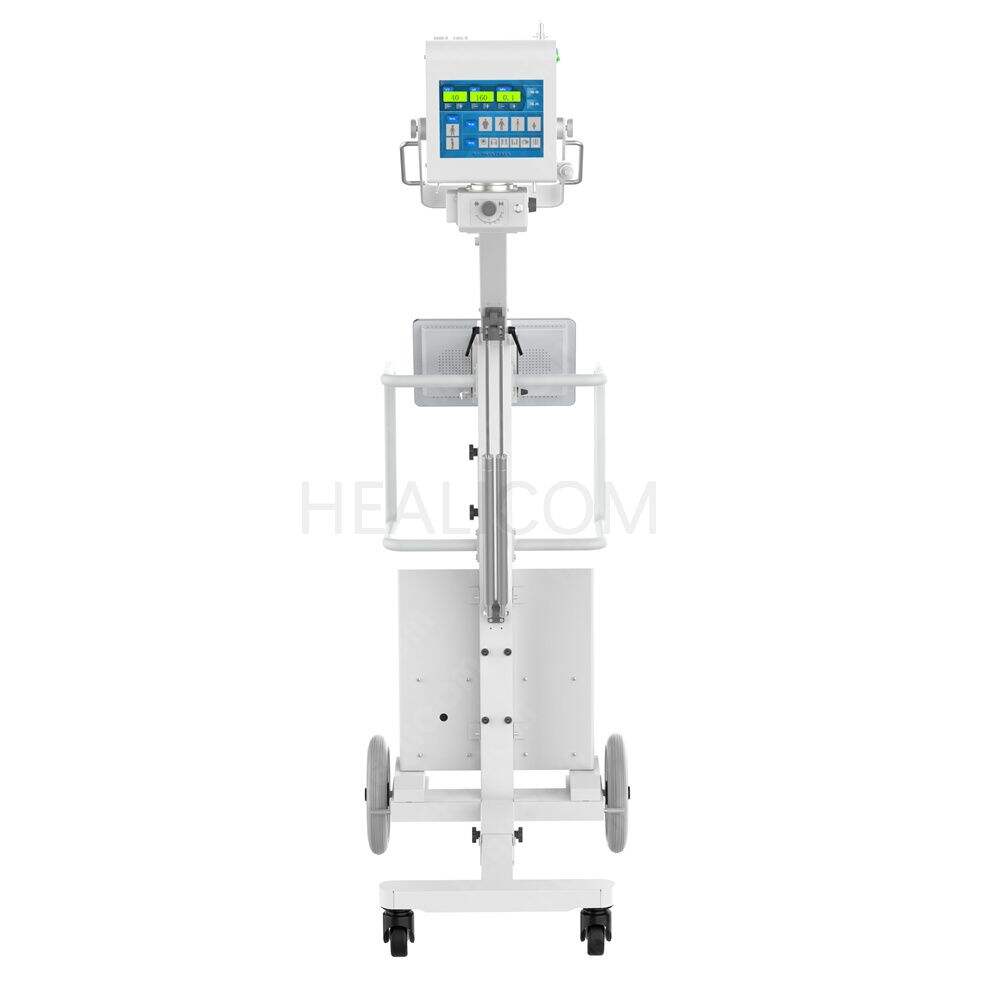

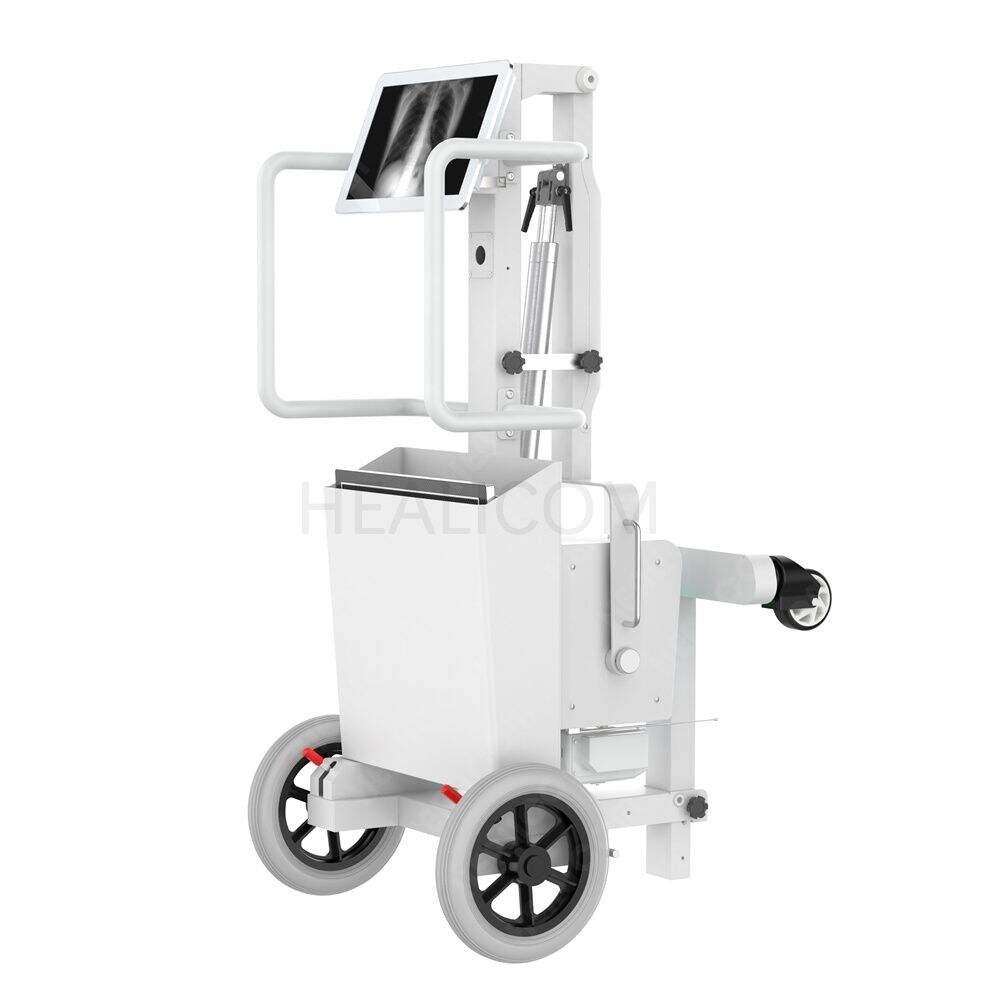

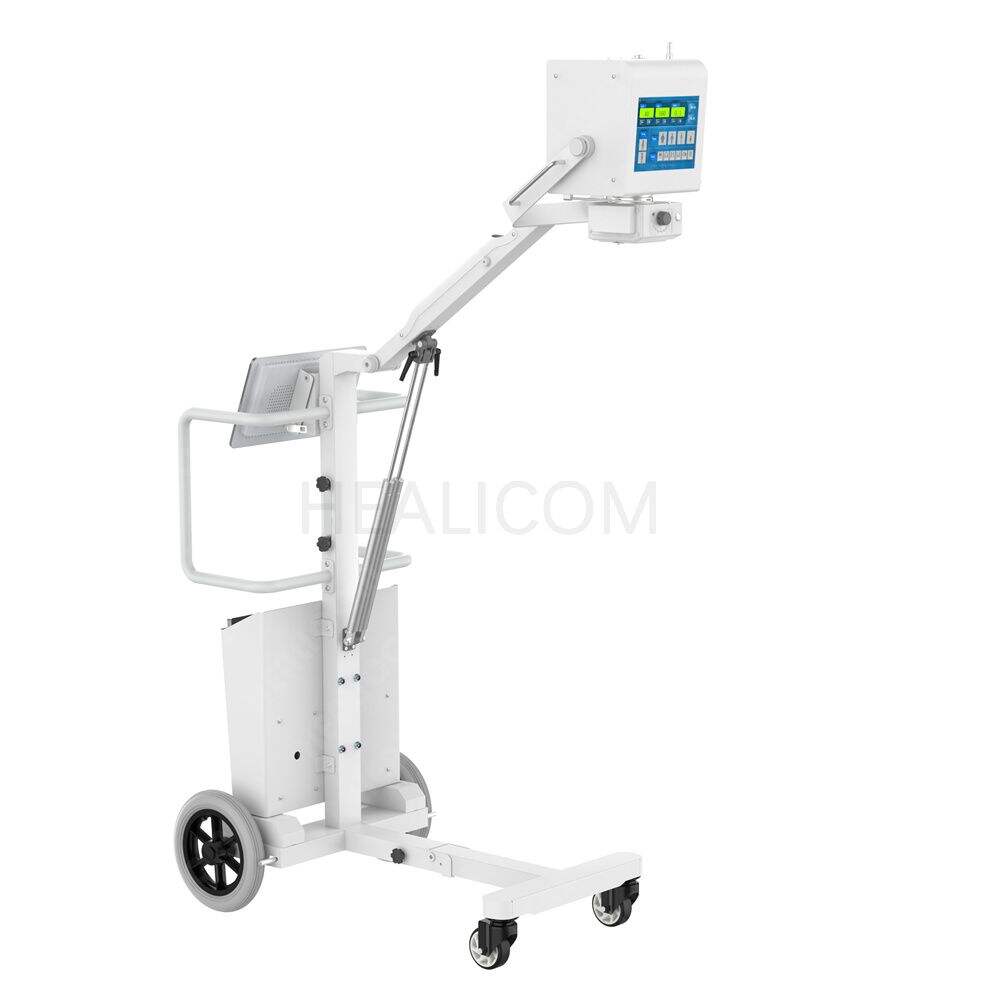

HFX-05D Digital Portable X-ray System
USD22900.00/PC,EXW

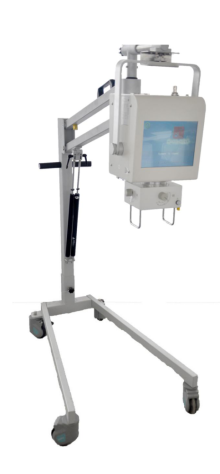

HFX-05D supplier HFX-05D manufacture

Main Component Tech Spe.
	Voltage	AC220V ± 22V
Generator	Power	5kW
	kV Range	40～110kV
	mA Range	20～100mA
	mAs Range	0.2-200mAs
	Working Frequency	≥40kHz
	Exposure time	0.01S～4S
X-ray tube	Anode heat storage	56KHU
X-ray tube	Focus	1.8mm
Collimator	Inherent filtration	1mm Al/75Kv
Collimator	Light source	LED

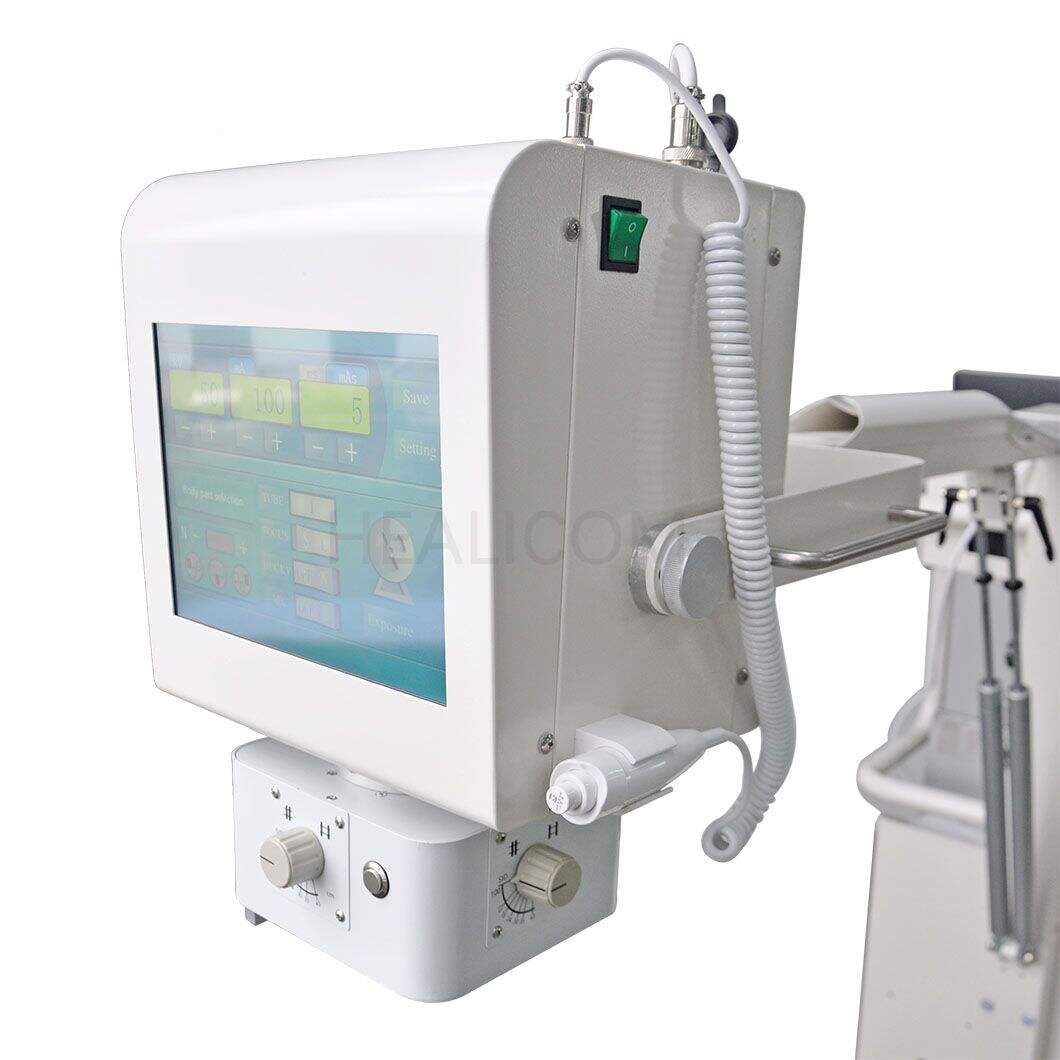

Touch Screen	Dimension	10.4inch
Wire Flat Panel Detector 17*17inch	Scintillator	CsI
	Pixel Pitch	139
	Limit resolution	3.6
	Pixels	3072*3072
Laptop	CPU	Intel Core i5
	Memory capacity	4GB
Physical Spe.
Main Unit	Weight	19 kg
Main Unit	Dimension	290×265×230 mm

Profession Acquisition Software

Support different brand of X-ray generators

Support Multi- languages

Support RIS/PACS/DICOM Printer Connection

Support professional tools

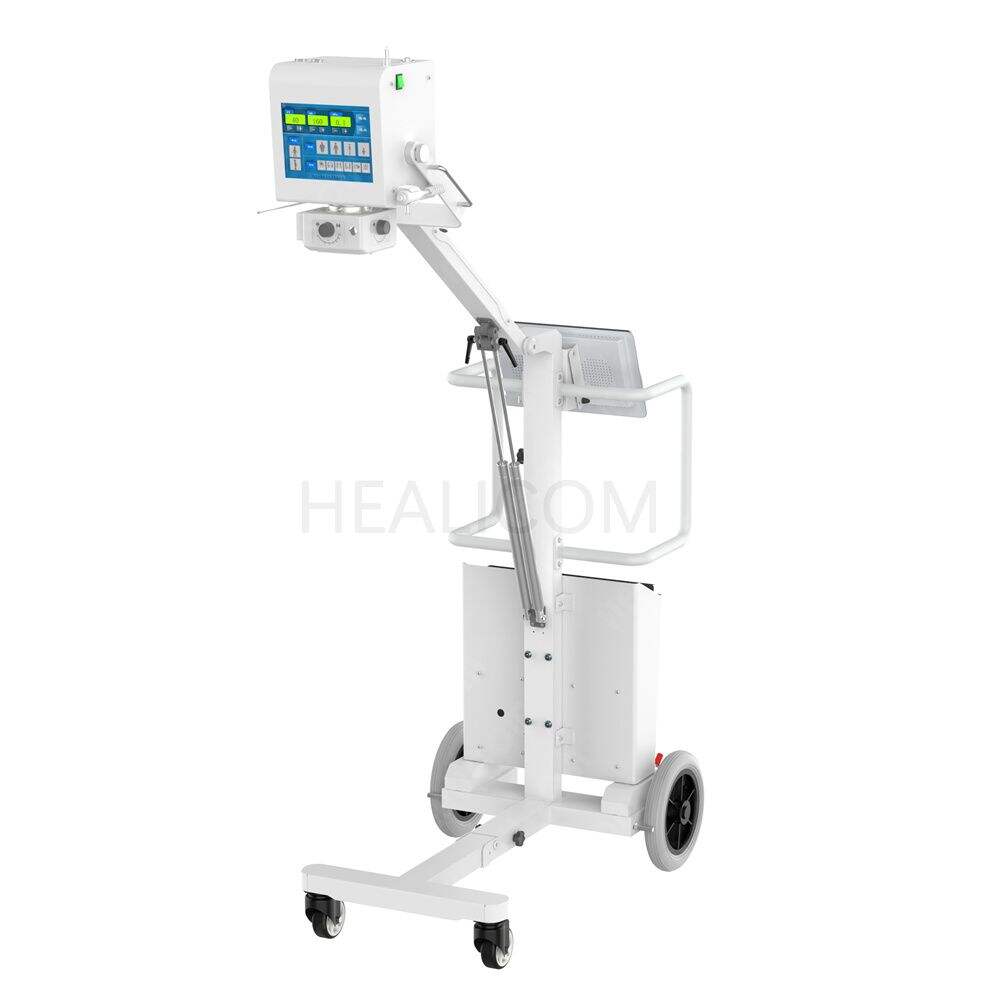

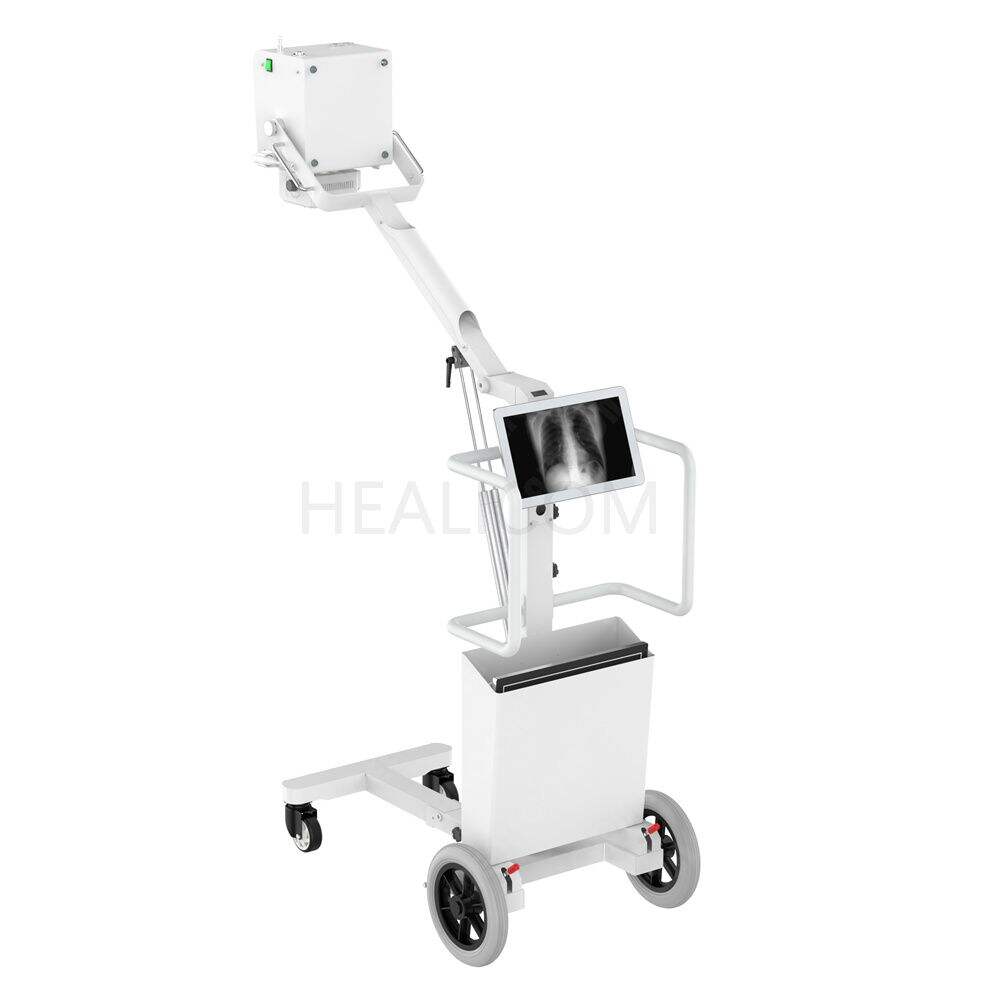

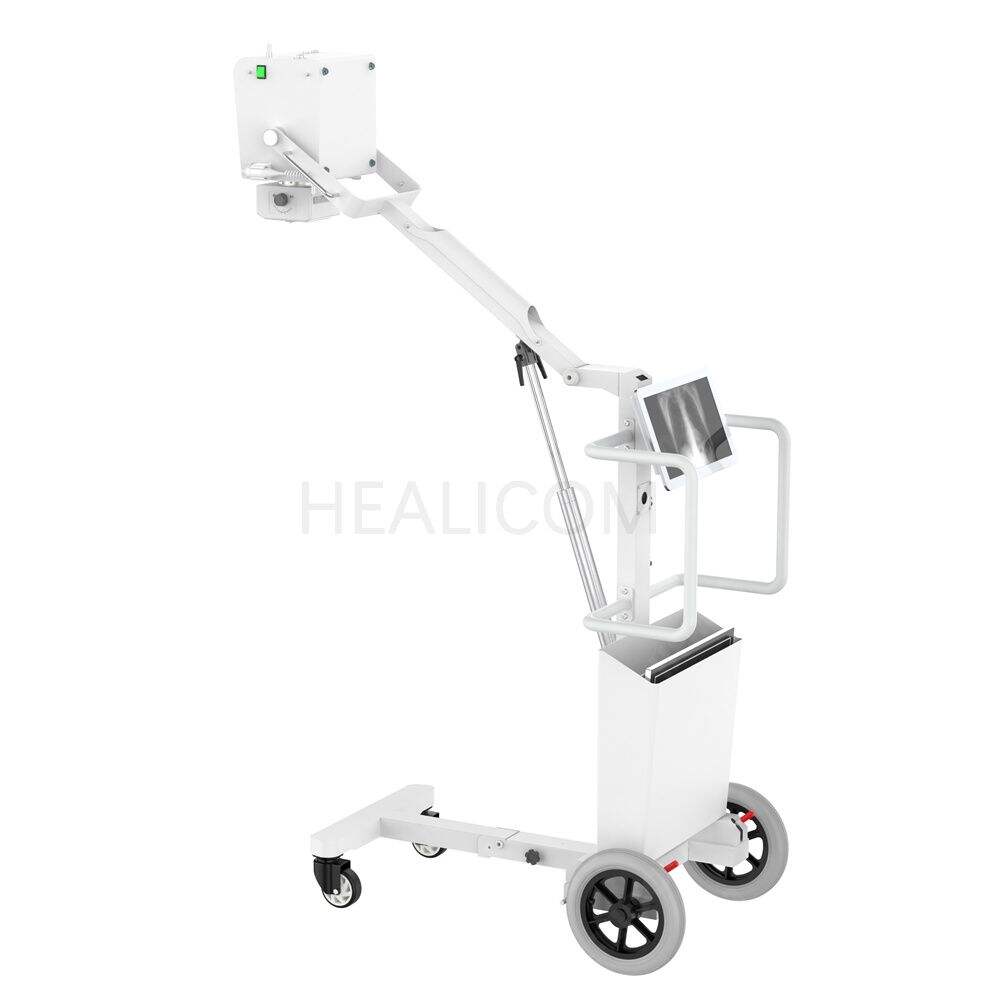

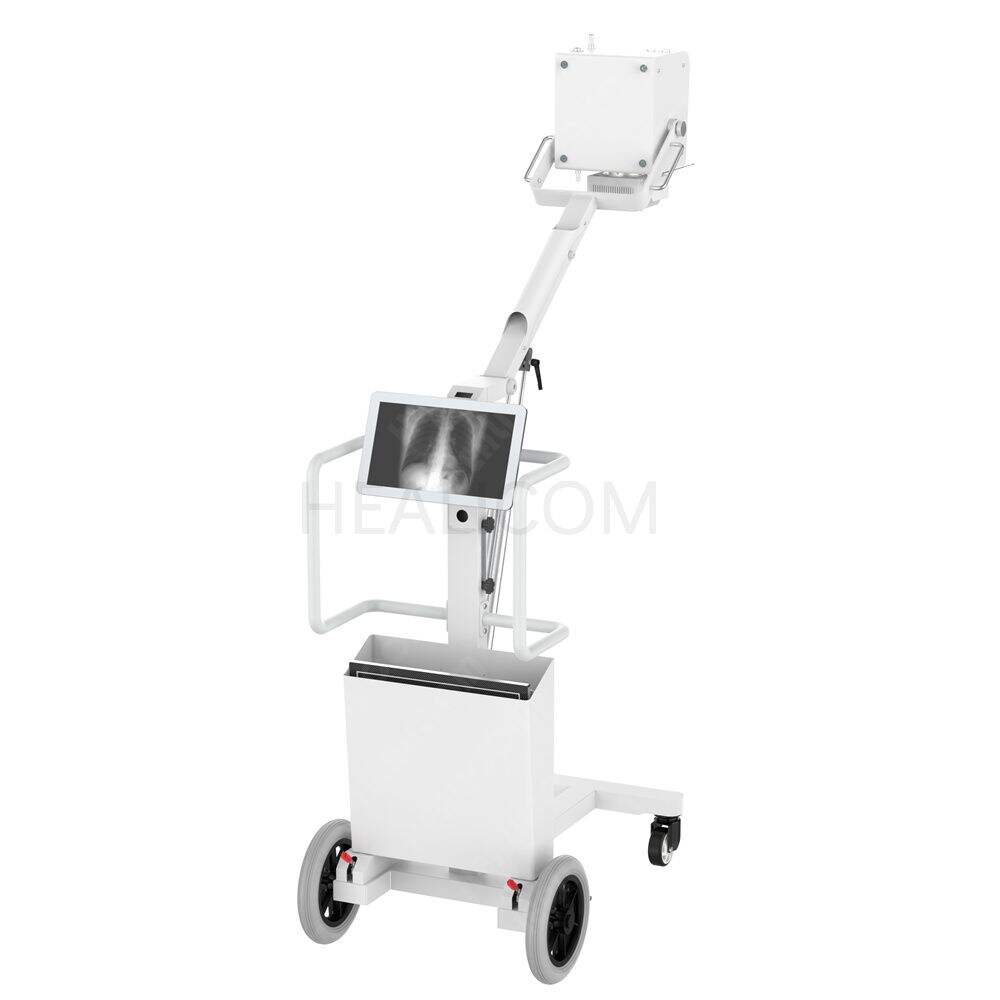

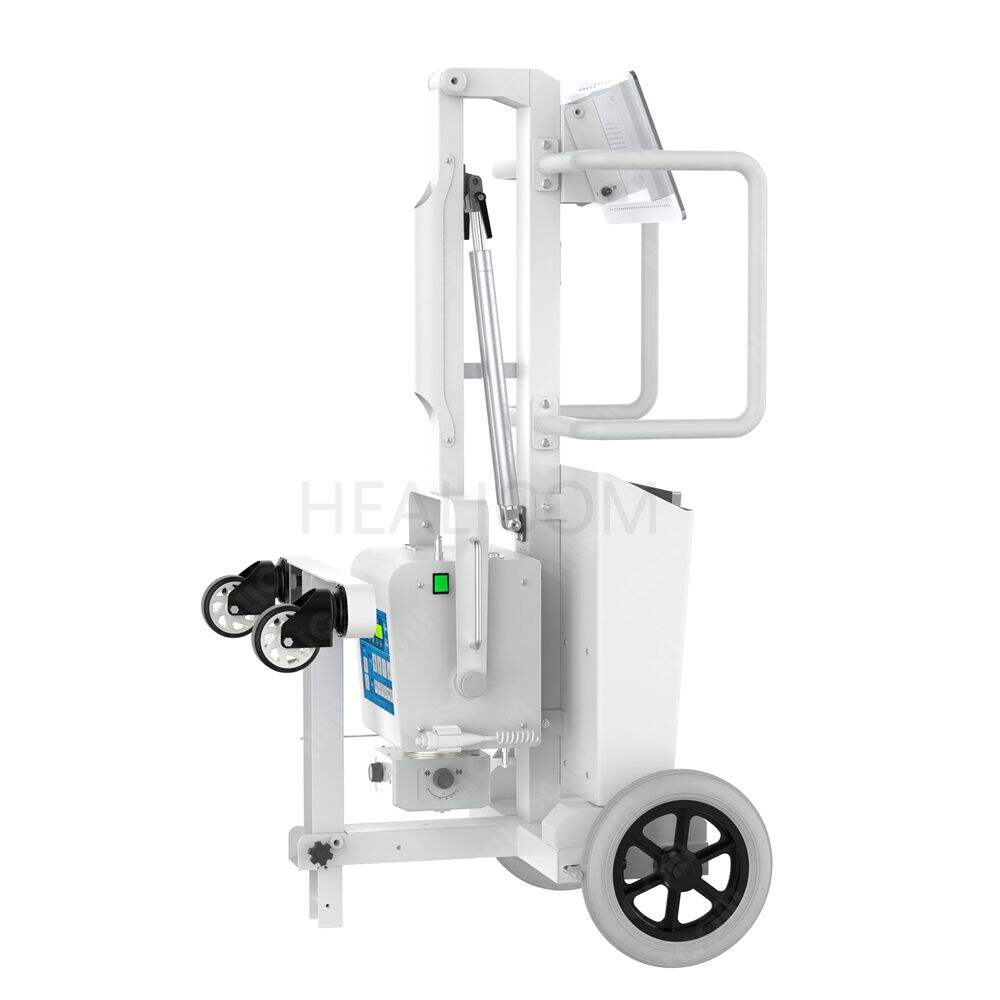

HFX-05D details

HFX-05D manufacture

Professional and efficient DR workstation

Patient management

Image capture

Image post-processing

Print and storage

High Quality Portable 100mA 5KW Xray Machine Mobile Digital X-Ray Imaging Diagnostic System supplier

Workshop

High Quality Portable 100mA 5KW Xray Machine Mobile Digital X-Ray Imaging Diagnostic System manufacture

High Quality Portable 100mA 5KW Xray Machine Mobile Digital X-Ray Imaging Diagnostic System details

Customer Feedbacks

High Quality Portable 100mA 5KW Xray Machine Mobile Digital X-Ray Imaging Diagnostic System factory

High Quality Portable 100mA 5KW Xray Machine Mobile Digital X-Ray Imaging Diagnostic System supplier

Related Products

Company Profile

FAQ

1. What about the price level? We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts. 2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same? As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper. 3. What is time of delivery? Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible. 4. What about quality assurance? We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. 5. What is payment terms? T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
