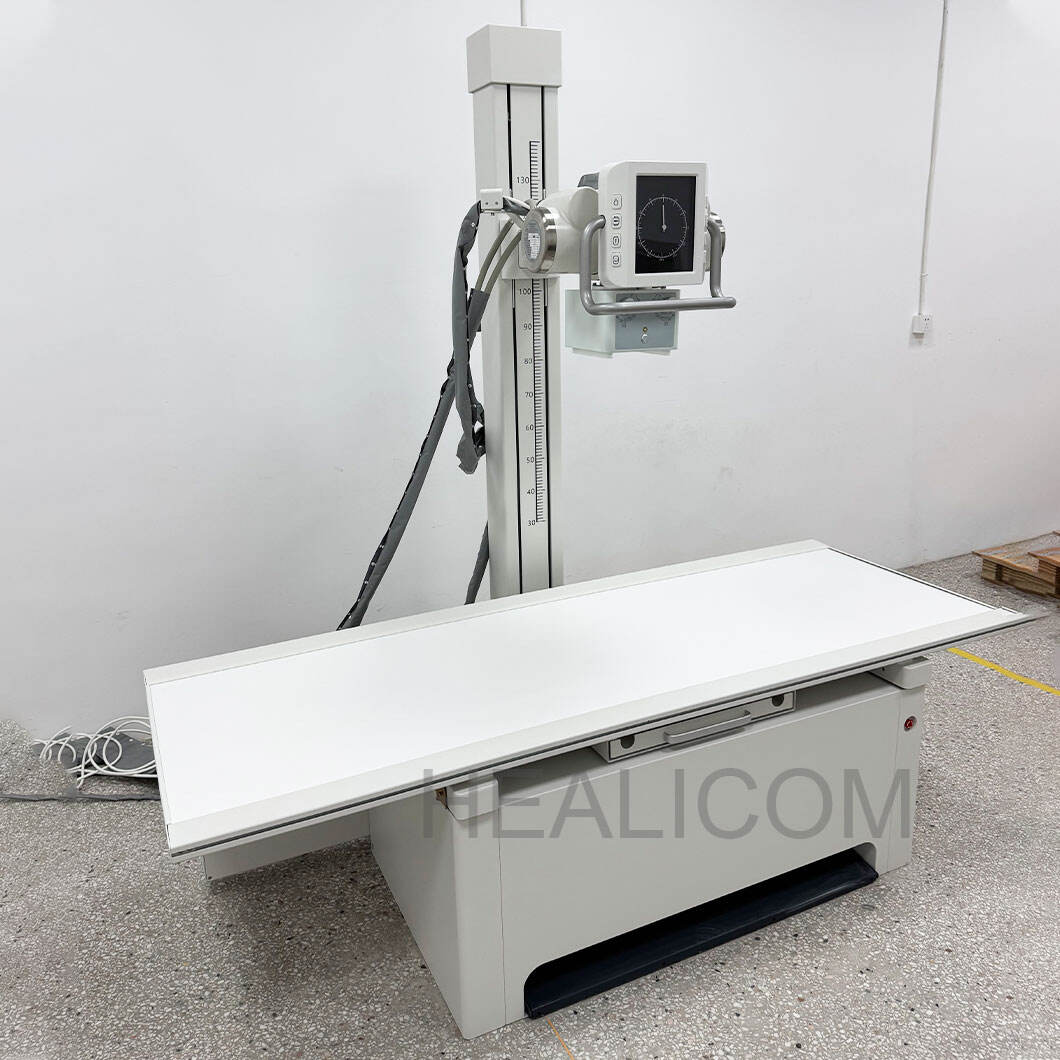

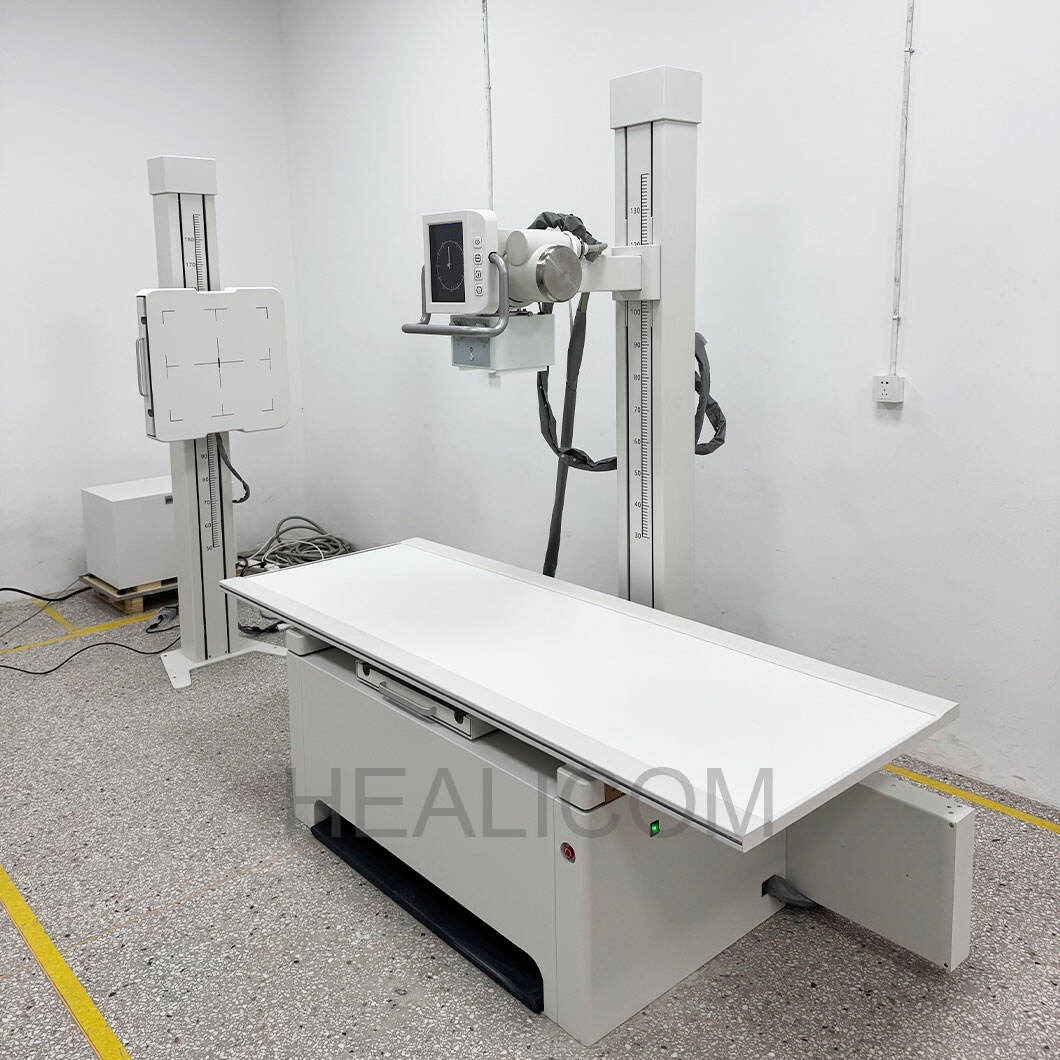

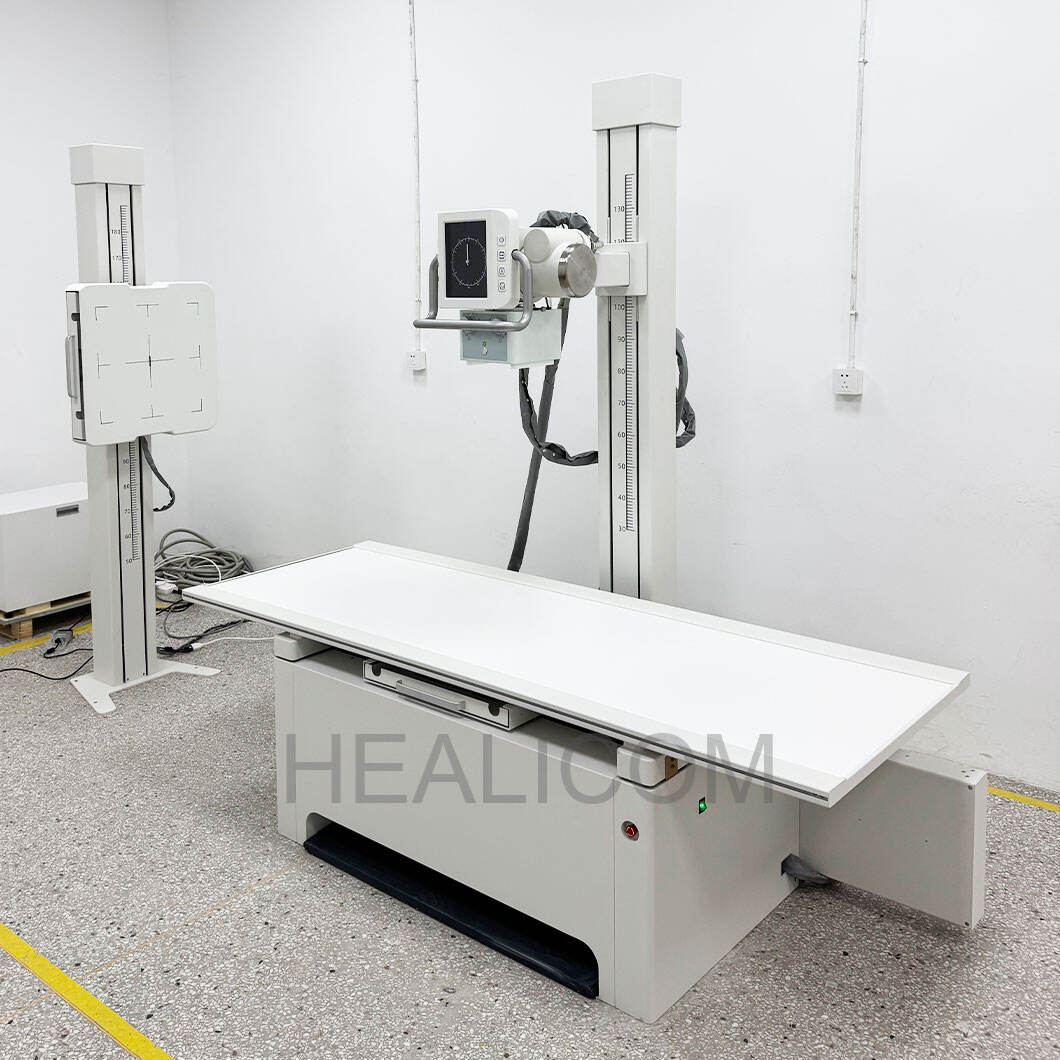

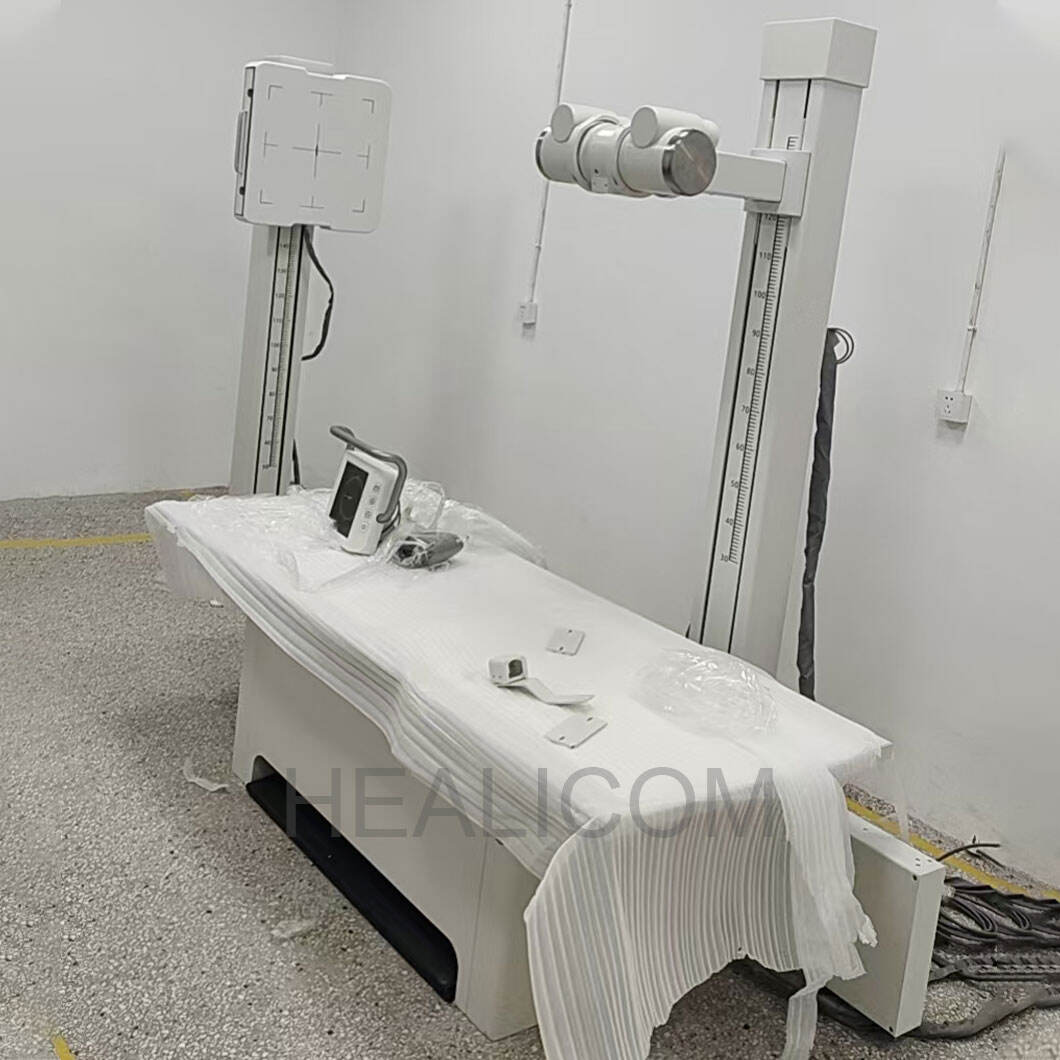

HX32R-S HX50R-S

ALL PRODUCTS

Overview
Recommended Products

Products Description

Main features
-High-precision aluminum profile columns provide smooth movement and long product life
-Unique appearance design
-Extra large range of motion

Output power	32KW	50KW
Rating voltage	380VAC,+10%,50Hz/60Hz 3phaxe
Kv Range	40kV-150kV
mA Range	10-400mA	10-630mA
mAs Range	0.1-1000mAs
X-ray Tube	Focal point 0. 6/1.2mm
Heat capacity	200KHU	300KHU

ltem	parameter
Frame
Overall appearance	White
Photography bed
Photography bed	Fixed height 650mm+10mm
Bed board motion control	Manual,4-way float (vertical 900mm+10mm, Horizontal 250mm+10mm).Foot control electromagnetic brake
Bed locking method	Electromagnetic lock, power-off lock
Bed board size	Length x width:(2130mm+10mm)x(800mm+10mm)
Bed board material	Density board
Bed board load-bearing	≥200kg
BUCKY	Manual control,distance 500mm+10mm
Flat panel detector	Dimensions (length x width x height):460mmx460mmx15mm
Safety	Emergency stop switch
Chest rack
Motion control	Manual lifting; electromagnetic braking, power-off braking
Initiation power	≤50N
Braking power	≥]00N
Total height	2130mm+10mm
BUCKY distance	1400mm+10mm(minimum 360,maximum 1760)
Front panel material	ABS
Flat panel detector	Dimensions (length x width x height):460mmx460mmx15.1mm
Photography stand
Motion control	Manual lifting; electromagnetic braking, power-off braking
Initiation power	≤50N
Braking power	≥100N
Distance of the column along the track	≥1700mm
Total height	2210mm+10mm
Tube vertical distance	1240mm+10mm(minimum 540mm,maximum 1780mm)
Beam limiter	Manual beam limiter
Tube support arm	Fixed length, axial rotation (tube rotation) +180°, axial rotation around the column not less than +90.
