Digital High Frequency X-ray Radiography System for Medical
-Model: HDR50

System configuration

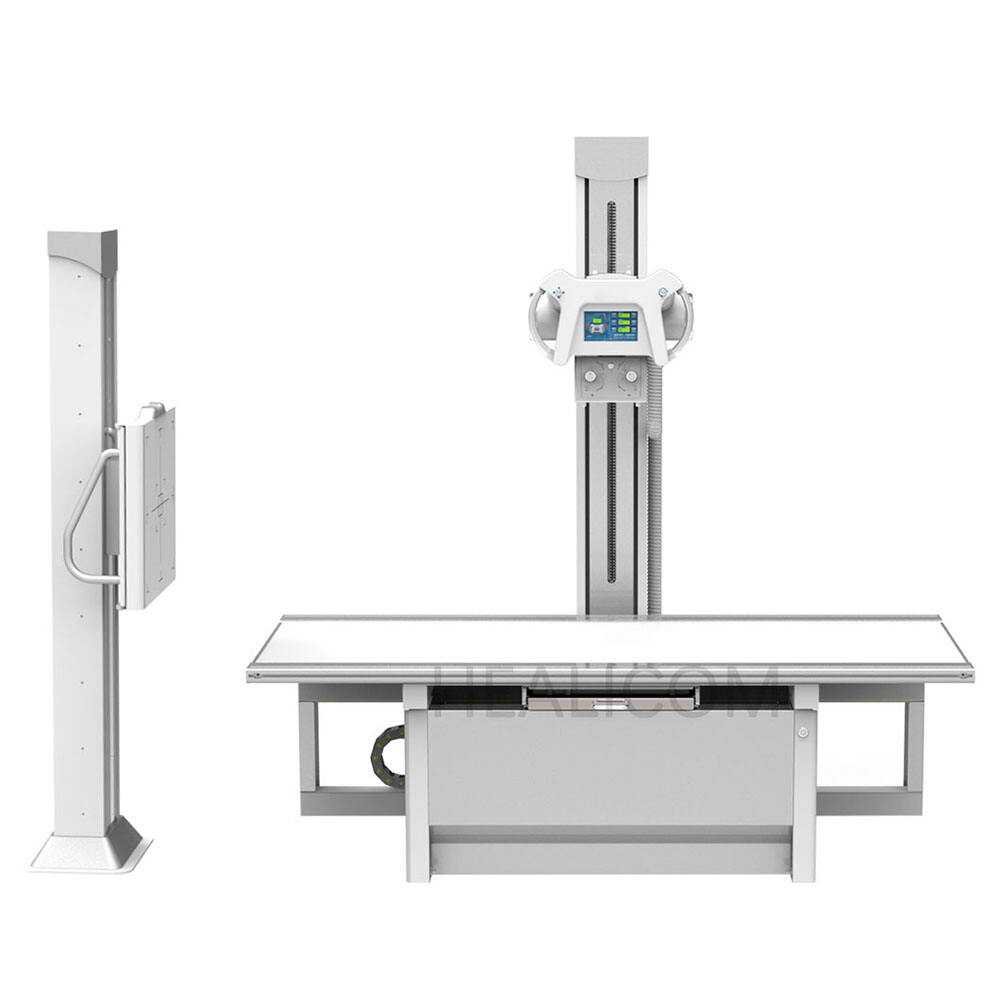

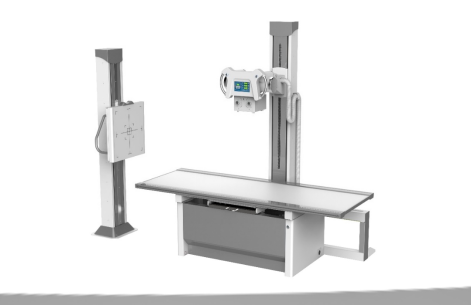

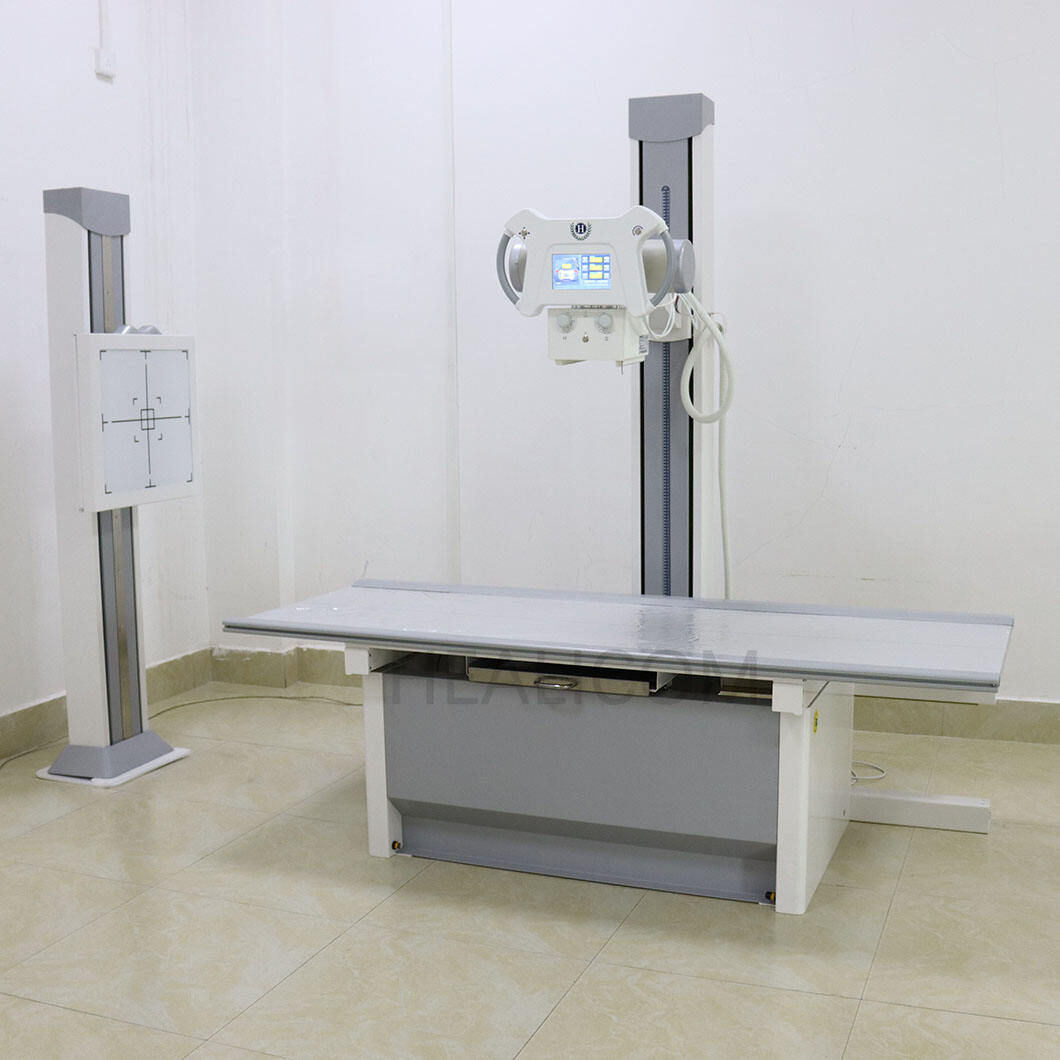

HDR50 Digital High Frequency Radiography System
High Frequency High Voltage X-ray Generator	YJO-IV
X-ray Tube Assembly	Made-in-China
Collimator	YJA-VM

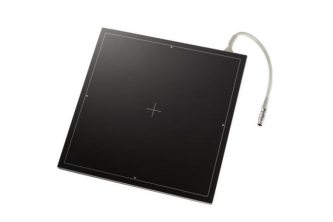

Digital Detector	Chinese Iray brand
DR Machine Frame	YJS-V

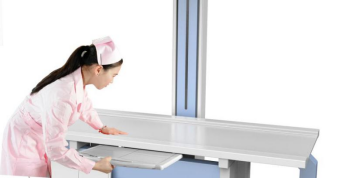

Radiography Table	YJS-V
Computer and LCD	DCSM1F/ML2002
High Voltage Cable	75kV (length: 8m)
Grid (Brand:JPI)	100cm and 180cm Made-in-Korea

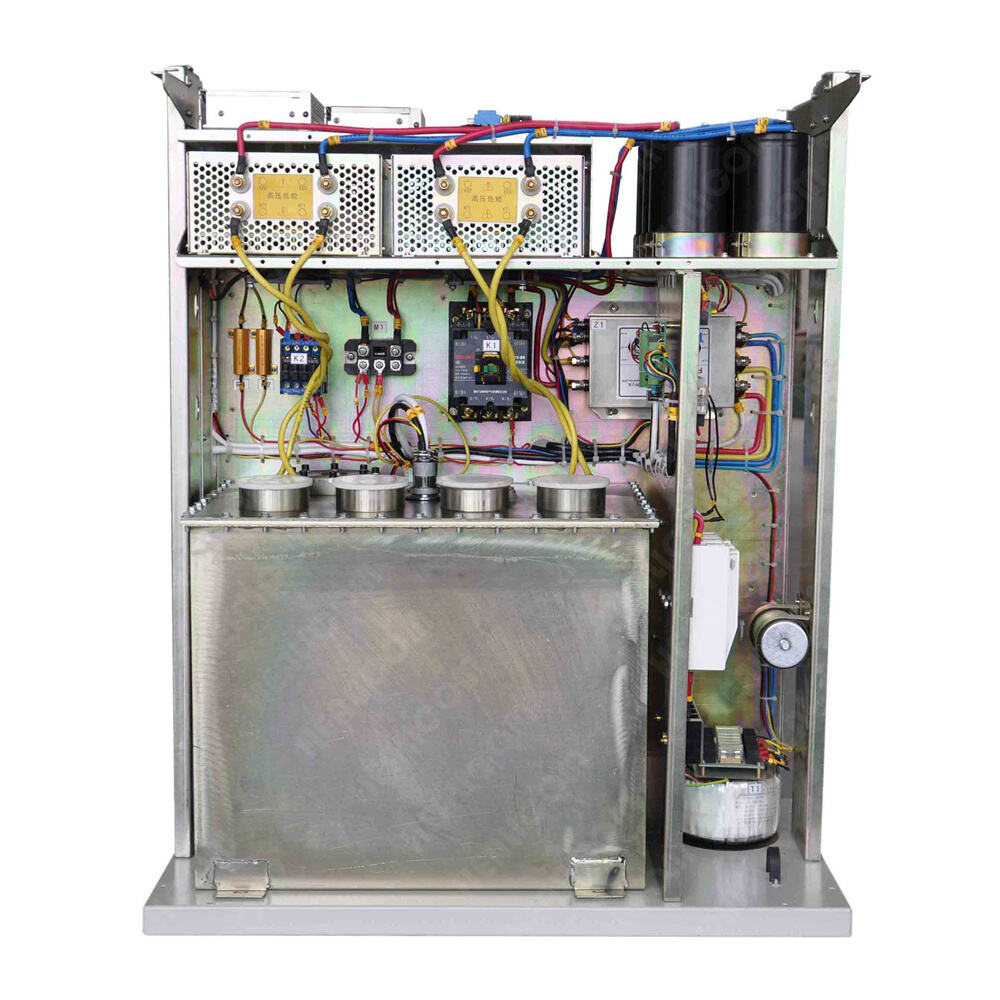

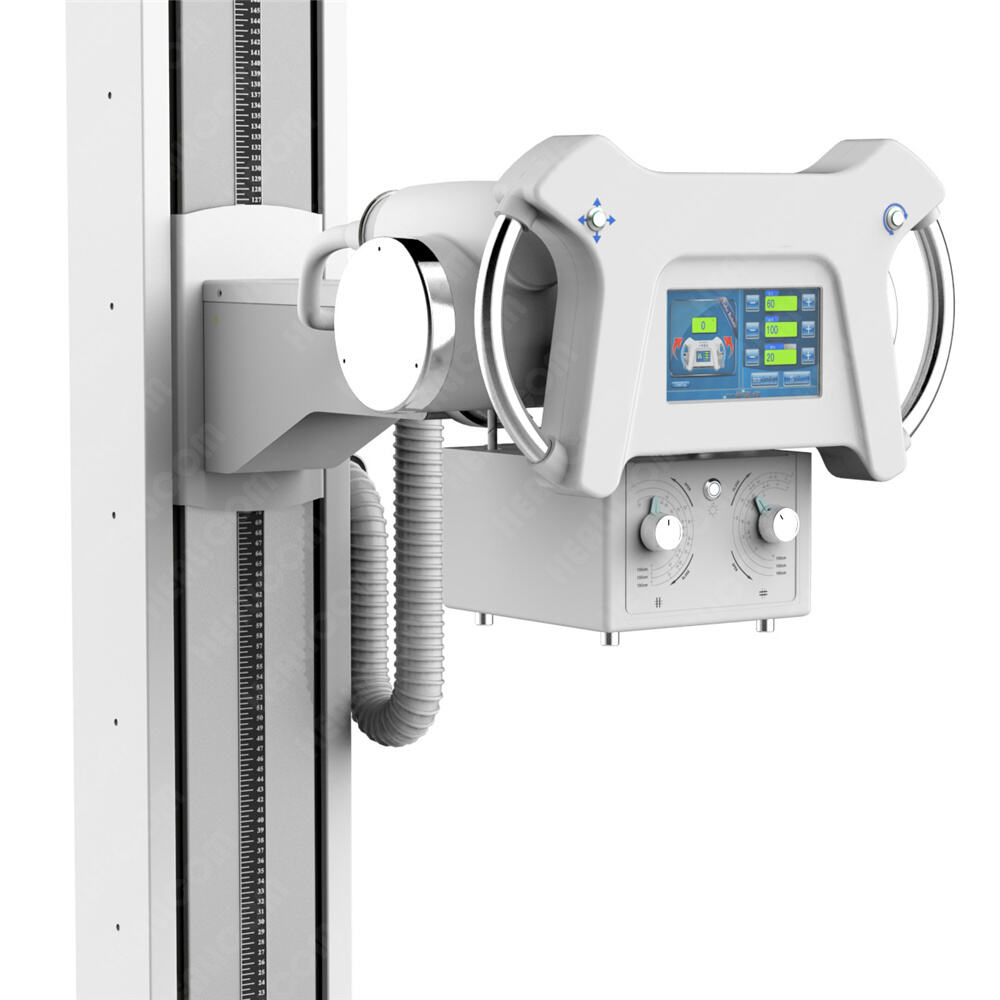

High Frequency High Voltage X-ray Generator

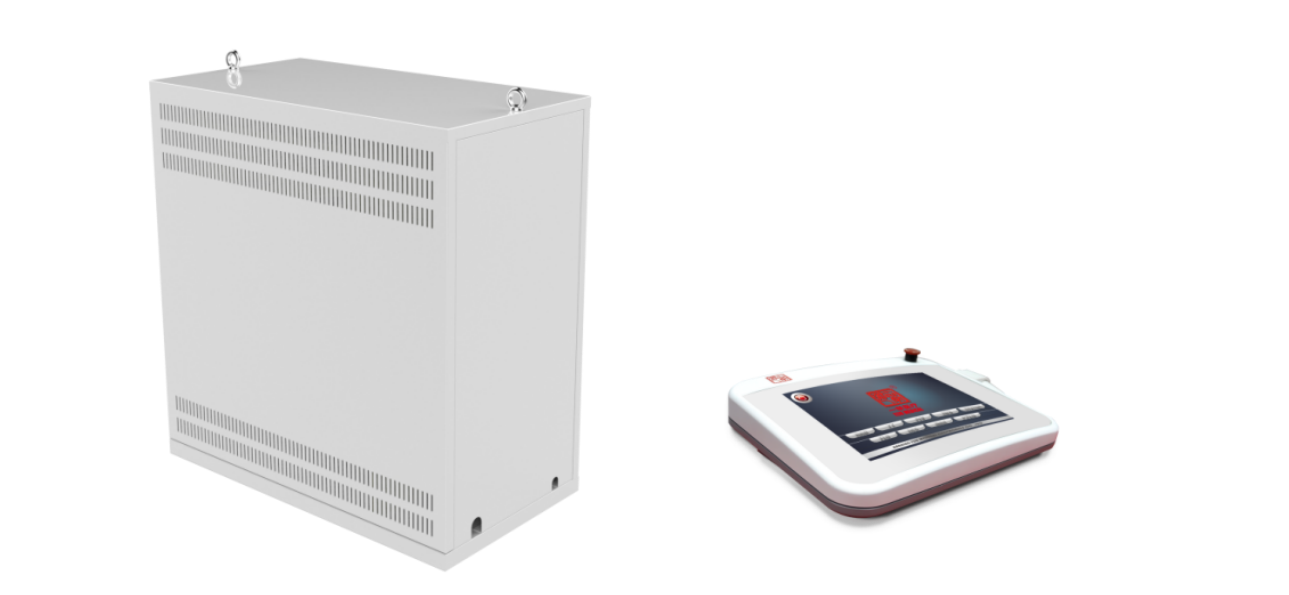

YJO-Ⅳ with operating console
Power	AC380V ± 38V
Radiography Tube Voltage	40kV ~ 150kV
Radiography Tube Current	10mA ~ 630mA
Time	2ms ~ 6300ms
Allowed Internal Resistance	380V: 0.5Ω
Allowed Frequency Variation	50Hz/60Hz ± 1Hz
Working Frequency	≥300kHz

Focus	0.6mm/1.2mm
Rotating Speed	2800rpm
Peek Tube Voltage	150kV
Small Focus	20kW
Large Focus	50kW

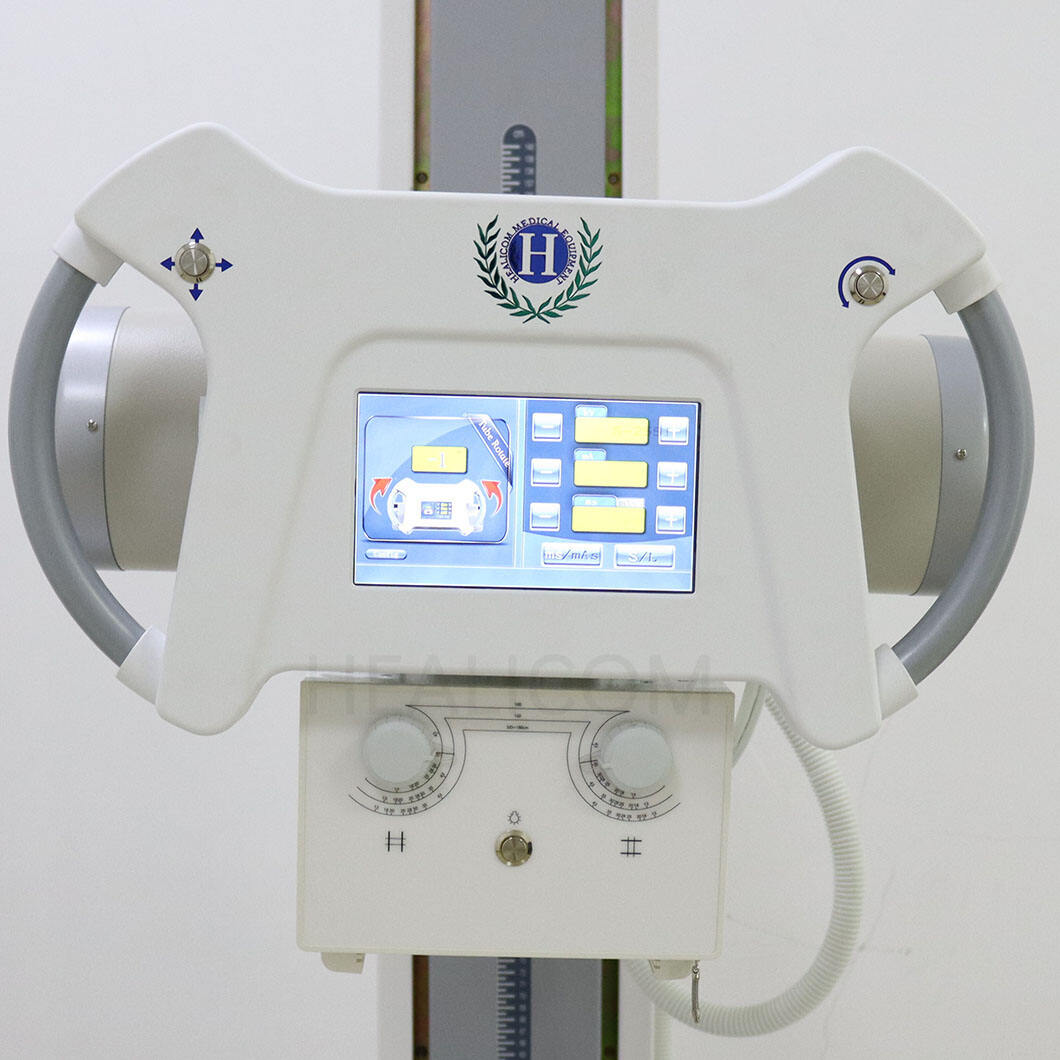

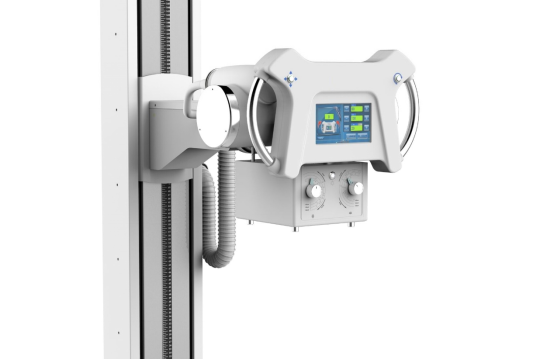

Collimator M-38

Mode of adjustment	Manual
Power	24VAC
Inherent Filtration	1.2mmAL

Digital Detector Rayence

Scanning Area	17 × 17 inches
Spatial Resolution	not less than 3.9lp/mm
Total Pixel Matrix	3,328(h) × 3,328(v)
Pexel Pitch	127
Image Preview Time	not more than 2s

DR Machine Frame YJS-V

Range of horizontal movement of bed	≥250mm
Rang of Vertical movement of bed	≥825mm
Tabletop Size (Length × Width × Height)	2100 × 825× 655mm
Mode of Operation	Manual or electronic
Load-bearing	Less than 250kg

Computer and LCD DCSM1F/ML2002

CPU	≥2.8GHz
Memory	≥4GB
Disk Capacity	≥500GB
Medical LCD	23 inch

Main Features:
1 High Frequency Generator
1.1 Functions: Digital x-ray radigography, x-ray filter radiography,
Bucky stand Radiography, ARP and AEC.
1.2 Nominal electric power: 50 kW
1.3 Tube volate: 40kV~150kV
1.4 Tube current: 10mA~630mA
1.5 Time: 2ms~10s
1.6 mAs: 0.1mAs~630mAs
1.7 Working frequency: ≥400kHz
1.8 Control panel: LCD touch screen

2 X-ray Tube
2.1 Max. Tube voltage: 150kV
2.2 Focus:Small focus:0.6mm; Big focus:1.2mm
2.3 Anode input power: small focus 19kW, big focus 50kW
2.4 Target angle: 12°
2.5 Anode RPM:2800rpm
2.6 Heat capacity: 150kHU

3 Flat Panel Detector
3.1 GOS & Csl
3.2 Size: 35×43cm(14×17 inch)
3.3 Pixel: 140μm
3.4 Pixel matrix: 2560×3072
3.5 A/D conversion: 16Bit

4 Radiography Table
4.1 Size: 2100mm×825mm×655mm (LxWxH)
4.2 Horizontal moving range: ≥250mm;
4.3 Lengthways moving range: ≥825mm;
4.4 Table top lock: Electromagnetic lock, braking force≥100N, with pedal switch, flexible and convenient.
4.5 With electric or manual control of mechanical movement, and there is automatic tracking alignment function with the x-ray tube and the detector.
4.6 Grid size: ≥15"×18";Grid focus distance: f0=100cm; Grid ratio: r=10 :1;Grid density: N=103Lines/Inch
4.7 Tube Column
4.7.1 Secure and solid structure
4.7.2 Column rotation: ≥±180°
4.7.3 Moving range along the table: ≥1575mm, can be locked at any point
4.7.4 Tube moving up & down: 930mm±10mm, an be locked at any point
4.7.5 Tube rotation: ≥±180°
4.7.6 Max. Distance from tube focus to film: ≥1200mm.

5 Bucky Stand
5.1 Up & Down moving range: ≥1200mm;
5.2 At max. Height, the distance between the floor and the box center is ≥1500 mm;
5.3 Grid size: 18×18";Grid focus: f0=180cm;Grid ratio: r=10 :1;Grid density: N=103Lines/Inch

6 Collimator: Flexible and convenient to operate, and any rectangle radiography field size is available.

Packing List

NO.	Part Names	Qty		Remarks
1	High Frequency Generator	1 pc
2	Control Panel	1 pc
3	X-ray Tube	1 set
4	Collimator	1 pc
5	Flat Panel Detector with Software	1 set	14*17
6	Bucky Stand	1 pc
7	Radiography Table	1 pc
8	Workstation (Computer)	1 set	--
9	Grid	2 pc	18"×18"	JPI
10	High Voltage Cable	1 pair	75kV
