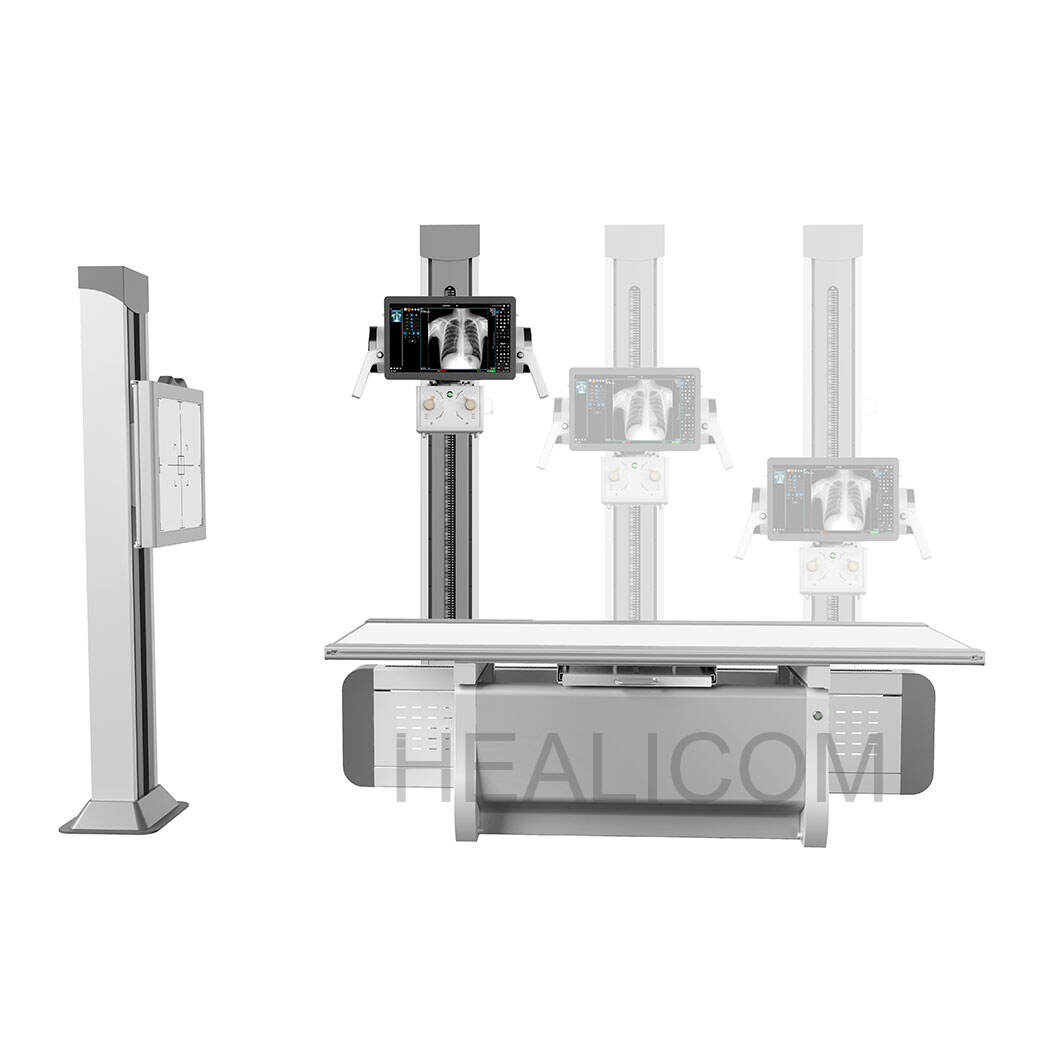

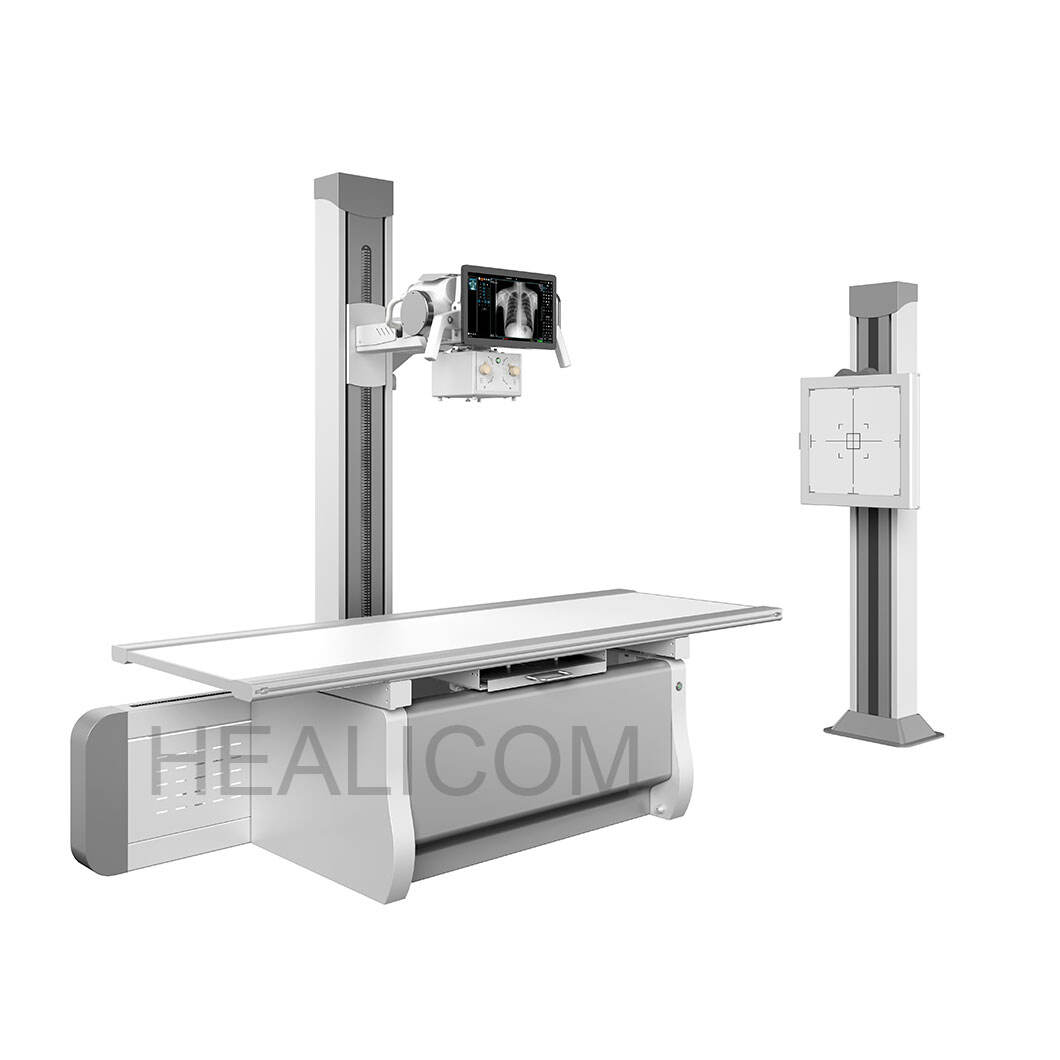

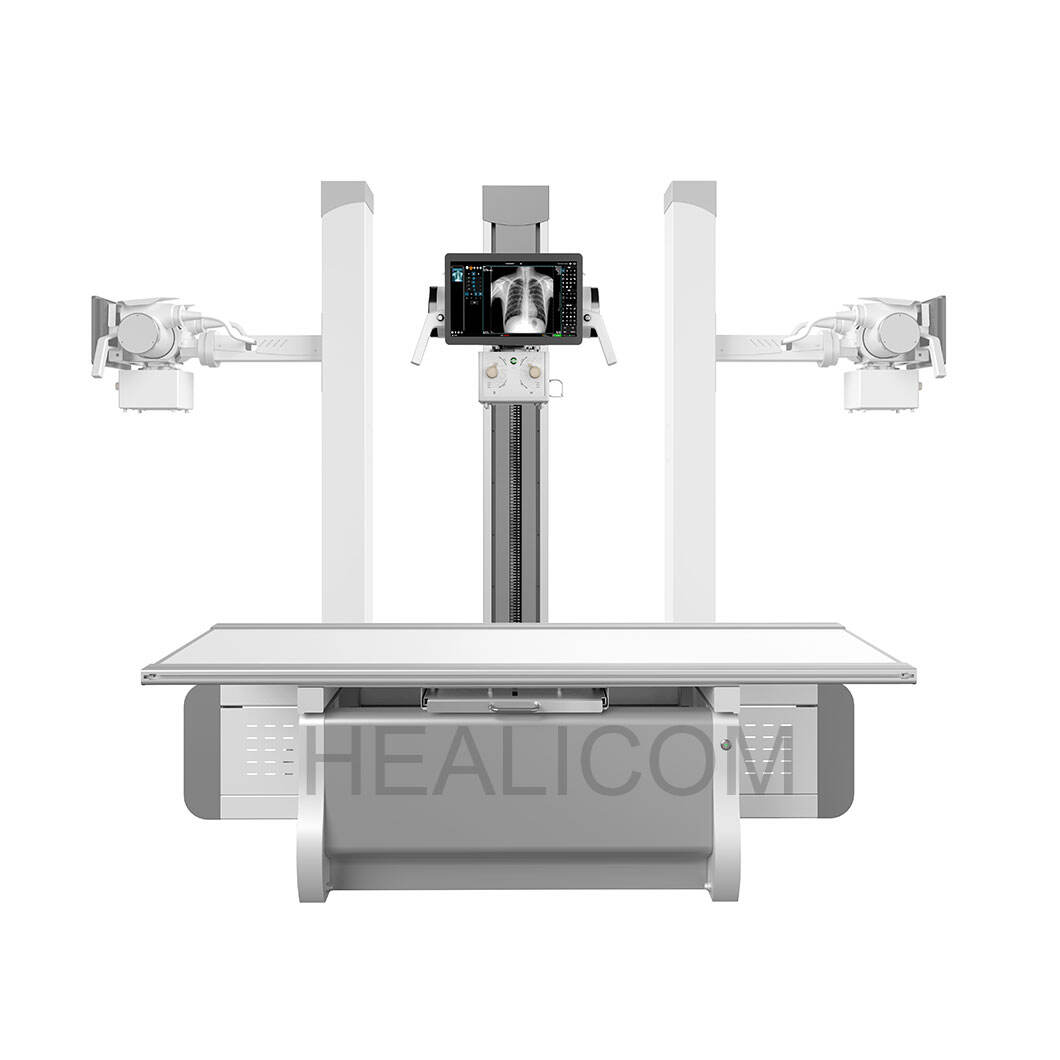

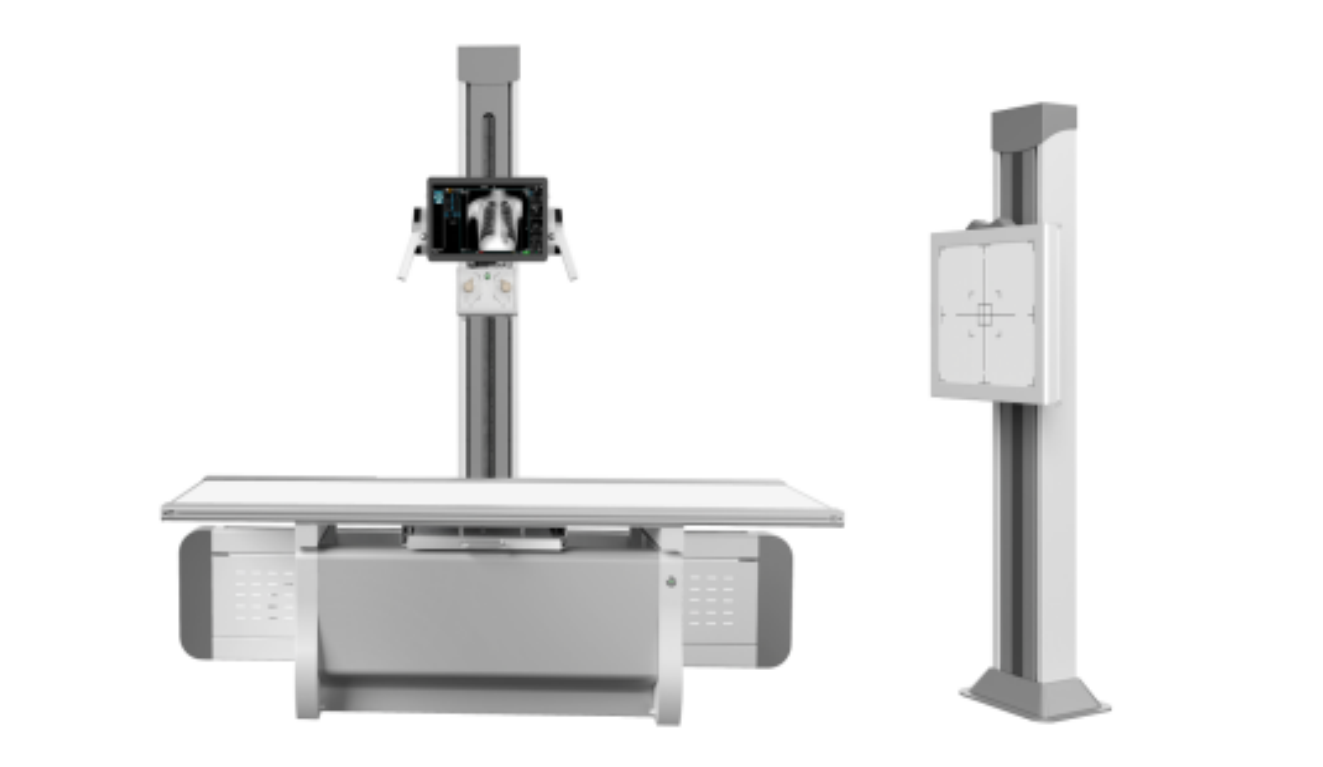

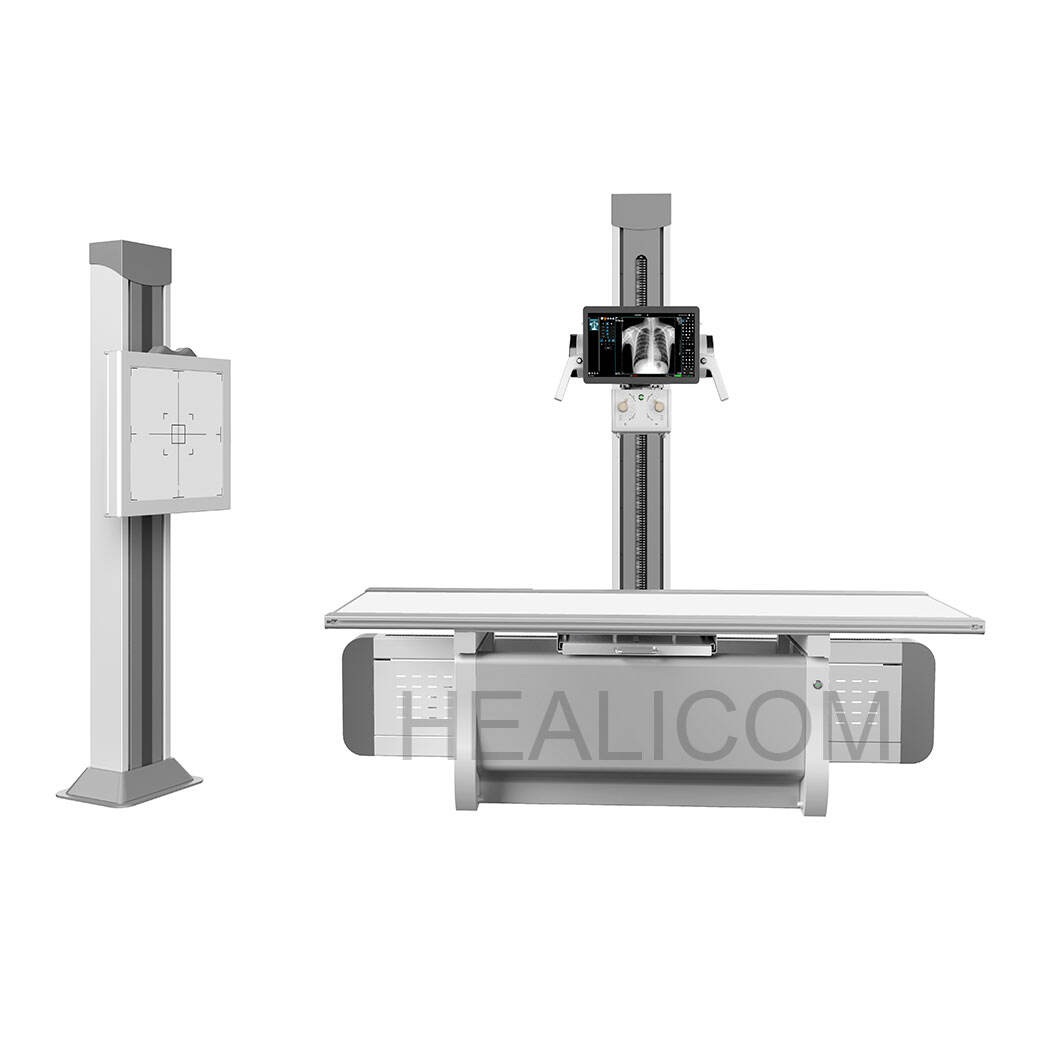

Model: HDR50A
System configuration
| HDR50A Digital High Frequency Radiography System | |
| High Frequency High Voltage X-ray Generator | V |
| X-ray Tube Assembly | Made-in-China |
| Collimator | A-VM |
| Digital Detector | Chinese Iray brand |
| DR Machine Frame | S-V |
| Radiography Table | S-V |
| Computer and LCD | DCSM1F/ML2002 |
| High Voltage Cable | 75kV (length: 8m) |
| Grid (Brand:JPI) | 100cm and 180cm Made-in-Korea |
| O-IV with operating console | |
| Power | AC380V ± 38V |
| Radiography Tube Voltage | 40kV ~ 150kV |
| Radiography Tube Current | 10mA ~ 630mA |
| Time | 2ms ~ 6300ms |
| Allowed Internal Resistance | 380V: 0.5Ω |
| Allowed Frequency Variation | 50Hz/60Hz ± 1Hz |
| Working Frequency | ≥300kHz |
X-ray Tube Assembly
| Focus | 0.6mm/1.2mm |
| Rotating Speed | 2800rpm |
| Peek Tube Voltage | 150kV |
| Small Focus | 20kW |
| Large Focus | 50kW |
Collimator M-38
| Mode of adjustment | Manual |
| Power | 24VAC |
| Inherent Filtration | 1.2mmAL |
Diqital Detector Rayence
| Scanning Area | 17 × 17 inches |
| Spatial Resolution | not less than 3.6lp/mm |
| Total Pixel Matrix | 3,072(h) × 3,072(v) |
| Pexel Pitch | 139 |
| Image Preview Time | 3s |
DR Machine Frame YS-V
| Range of horizontal movement of bed | ≥250mm |
| Rang of Vertical movement of bed | ≥825mm |
| Tabletop Size (Length × Width × Height) | 2100 × 825× 655mm |
| Mode of Operation | Manual or electronic |
| Load-bearing | Less than 250kg |
| CPU | ≥2.8GHz |
| Memory | ≥4GB |
| Disk Capacity | ≥500GB |
| Medical LCD | 23 inch |
Main Features:

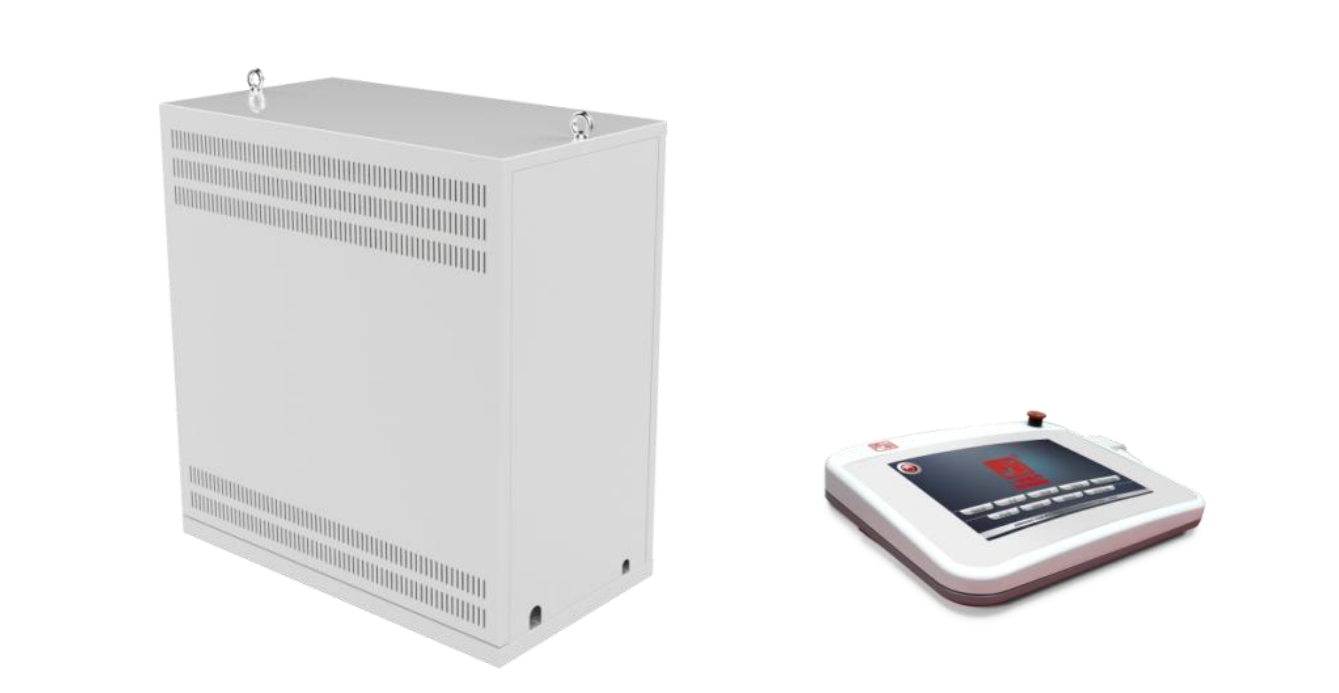

1.High Frequency Generator
1.1 Functions: Digital x-ray radiography, x-ray filter radiography, Bucky stand Radiography, ARP and AEC.
1.2 Nominal electric power: 50 kW
1.3 Tube volate: 40kV~150kV
1.4 Tube current: 10mA~630mA
1.5 Time: 2ms~10s
1.6 mAs: 0.1mA·s~630mA·s
1.7 Working frequency: ≥400kHz
1.8 Control panel: LCD touch screen
2.X-ray Tube
2.1 Max. Tube voltage: 150kV
2.2 Focus: Small focus 0.6mm; Big focus: 1.2mm
2.3 Target input power: small focus 19kW, big focus 50kW
2.4 Anode angle: 12°
2.5 Anode RPM: 2800rpm
2.6 Heat capacity: 150kHU

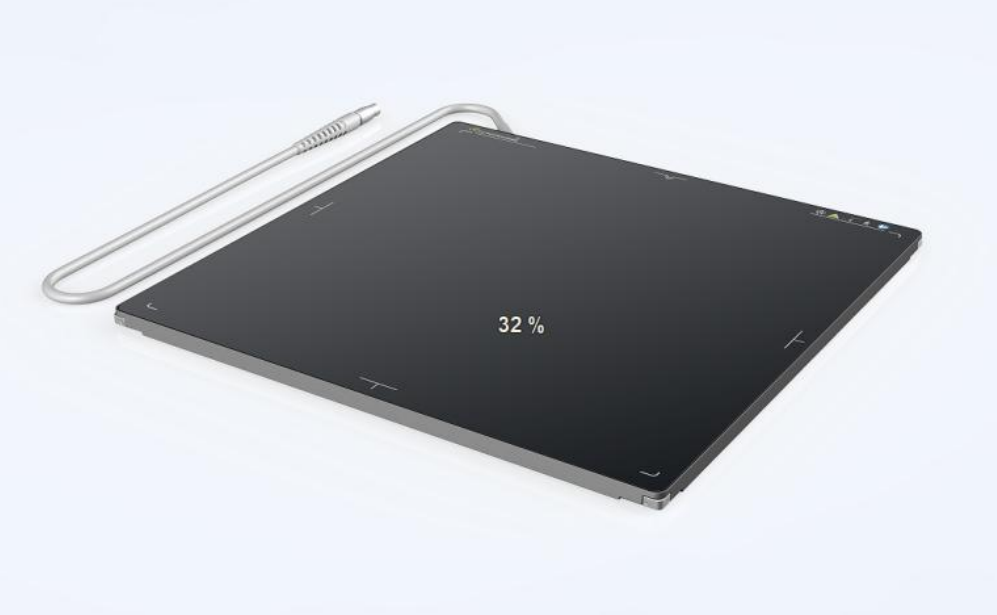

3.Flat Panel Detector
3.1 CsI
3.2 Size: 17×17inch
3.3 Pixel: 139μm
3.4 Pixel matrix: 3072×3072
3.5 A/D conversion: 16Bit

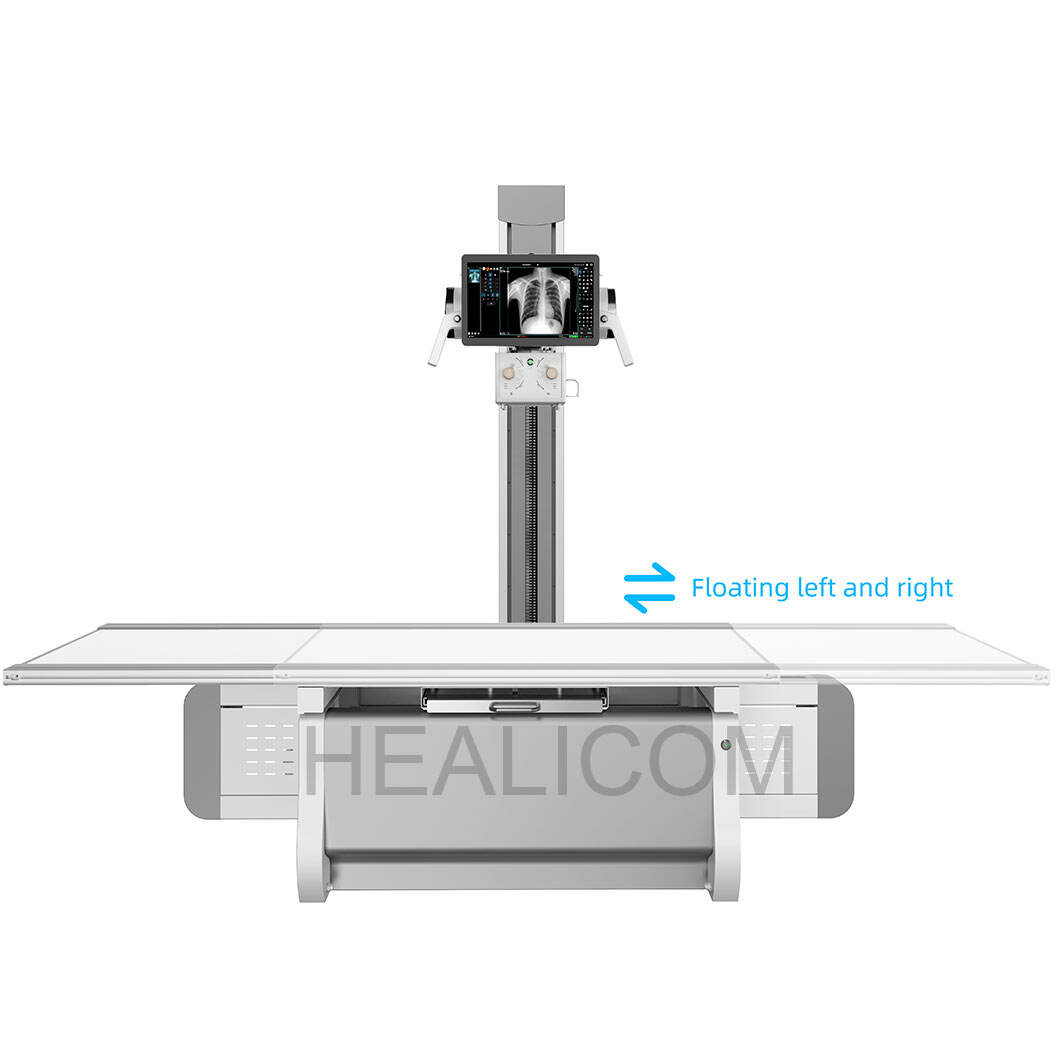

4.Radiography Table
4.1 Size: 2100mm×825mm×655mm (L×W×H)
4.2 Horizontal moving range: ≥250mm;
4.3 Tabletop moving range: ≥250mm;
4.4 Lengthways lock: Electromagnetic lock, braking force≥100N, with pedal switch, flexible and convenient.
4.5 With electric or manual control of mechanical movement, and there is automatic tracking alignment function with the x-ray tube and the detector.
4.6 Grid size: ≥15"×18"; Grid focus distance: f0=100cm; Grid ratio: r=10:1; Grid density: N=103Lines/Inch4.7 Tube Column
4.7.1 Secure and solid structure
4.7.2 Column rotation: ±180°
4.7.3 Moving range along the table: ≥1575mm, can be locked at any point

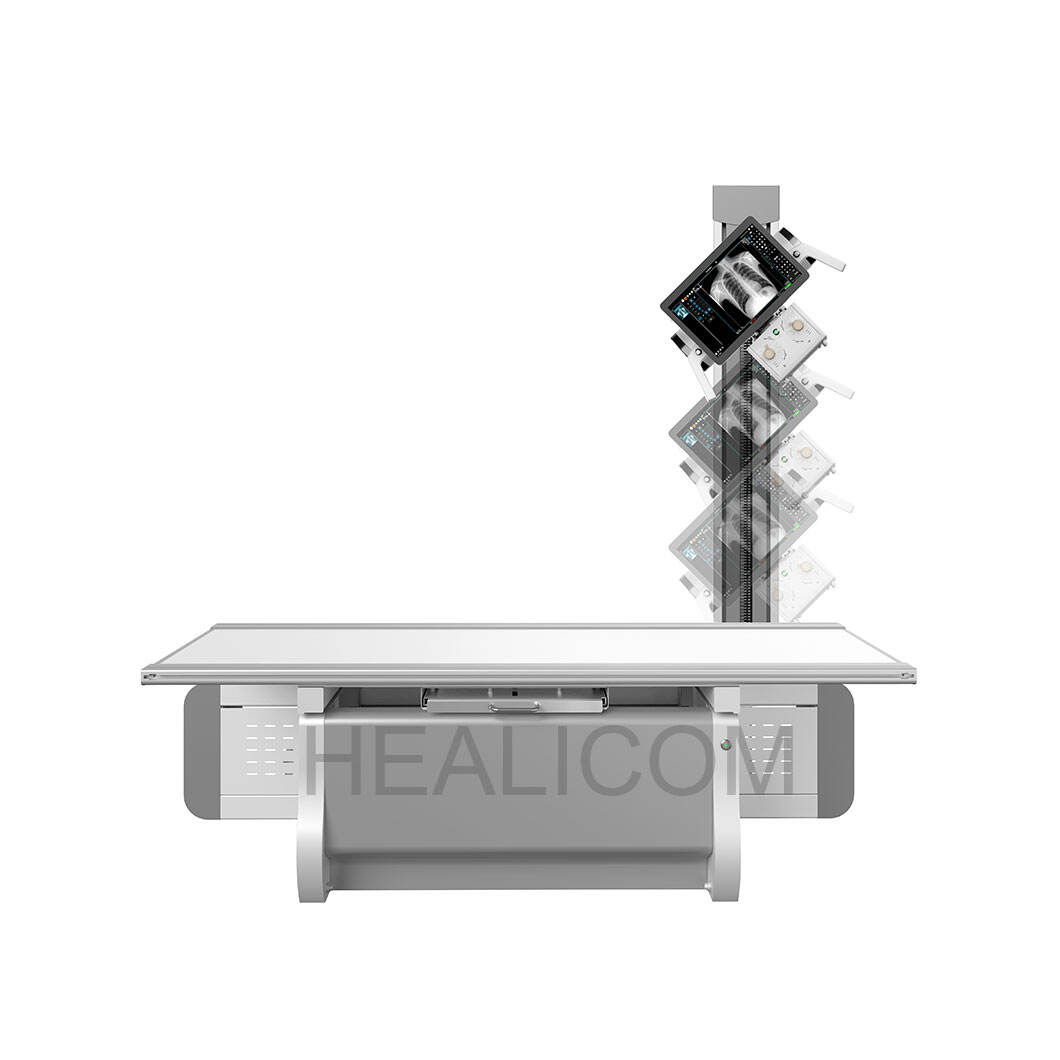

4.7.4 Tube moving up & down: 930mm±10mm, an be locked at any point

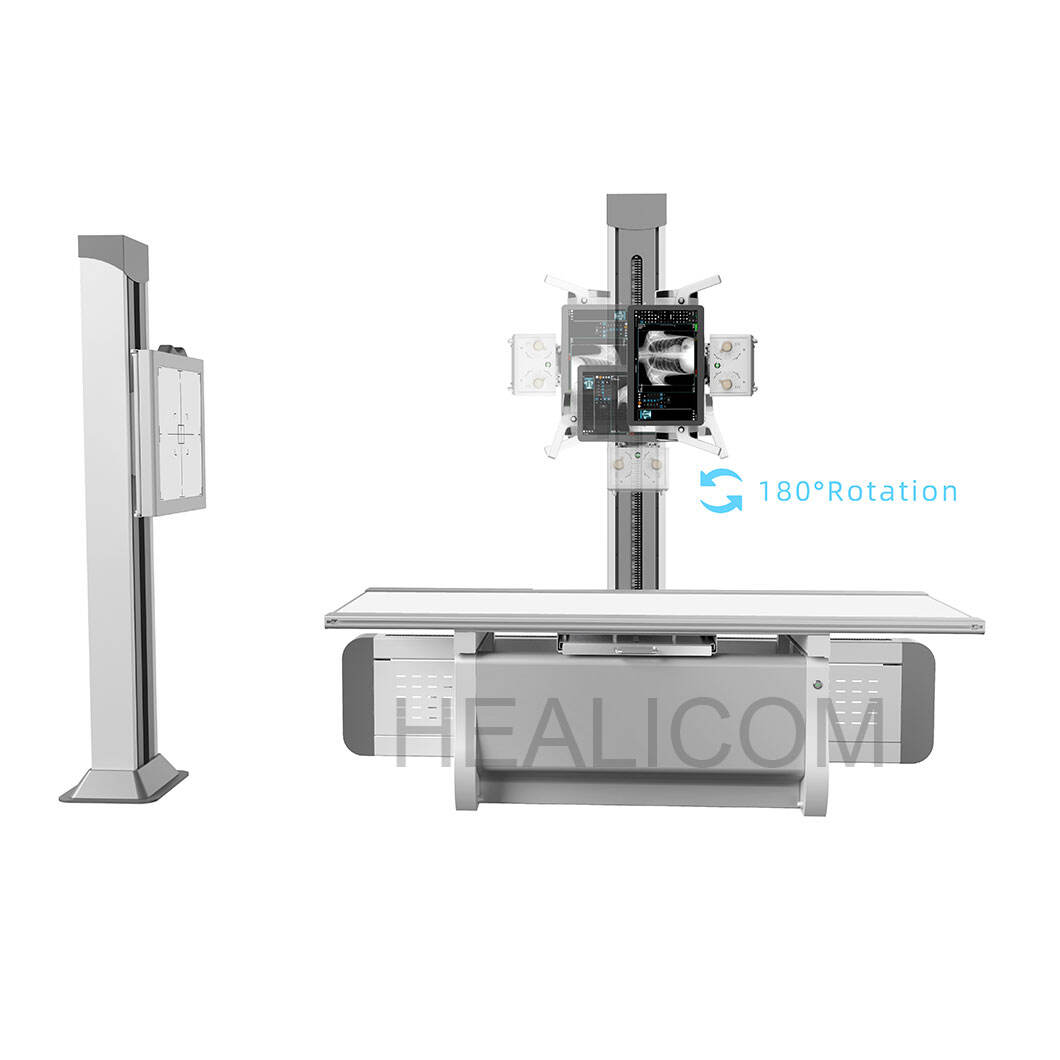

4.7.5 Tube rotation: ±180°
4.7.6 Max. Distance from tube focus to film: ≥1200mm.

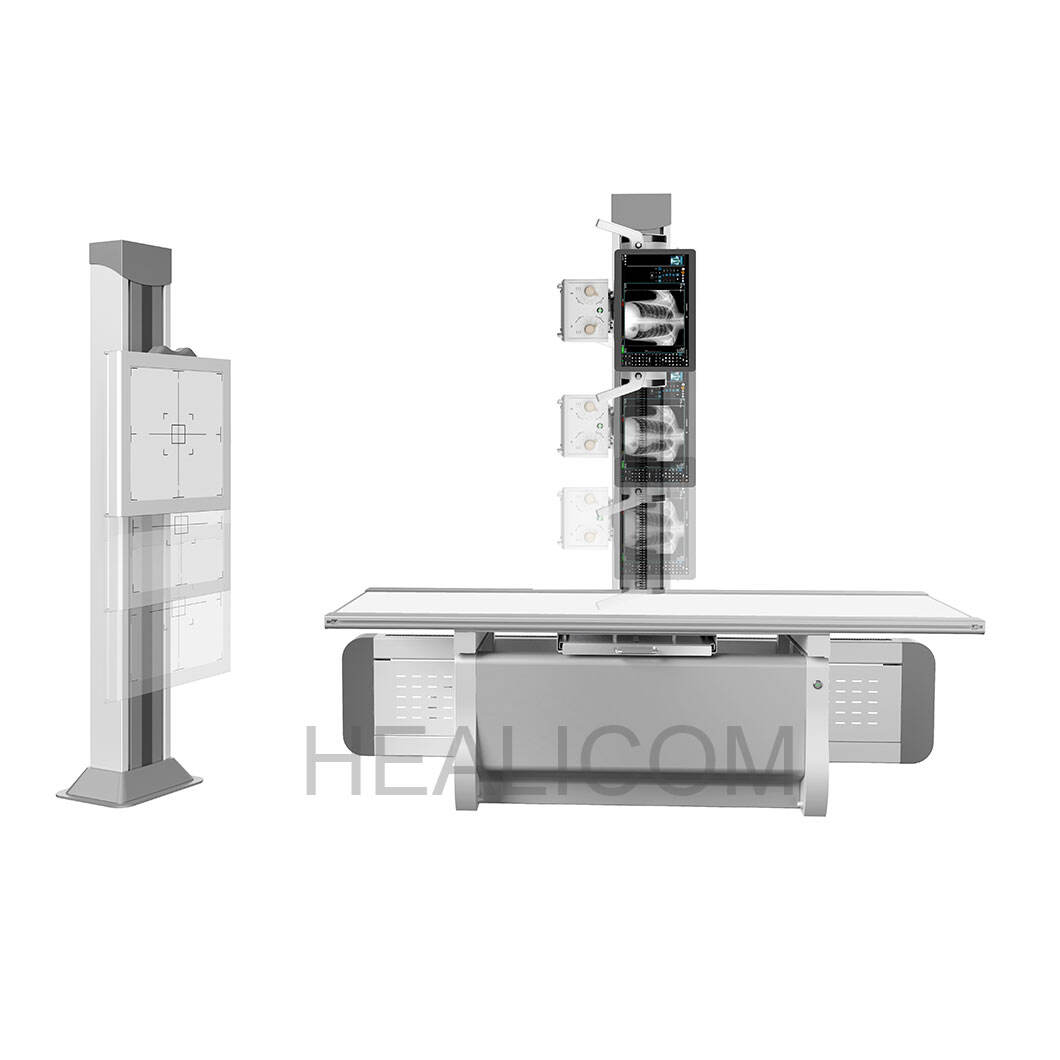

5. Bucky Stand

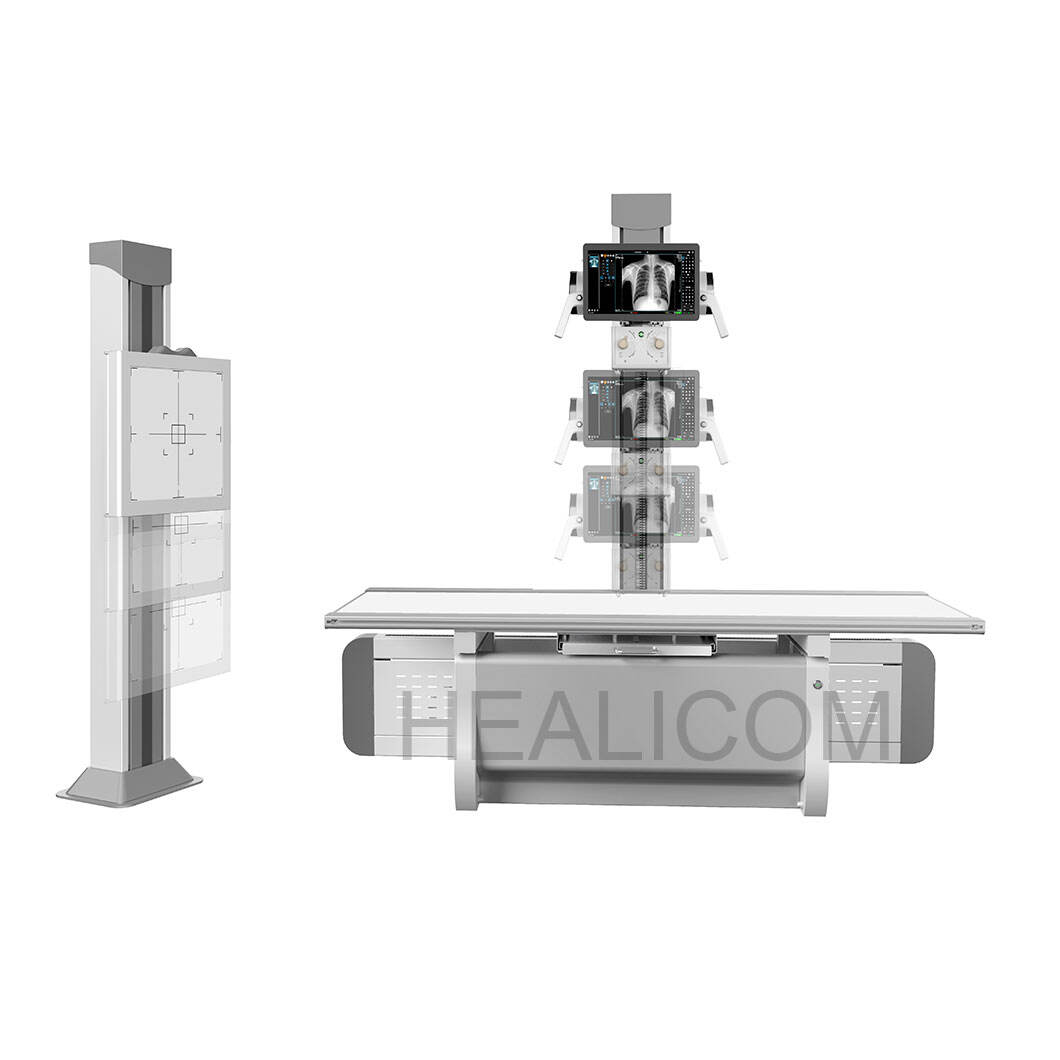

5.1 Up & Down moving range: ≥1200mm;
5.2 At max. Height, the distance between the floor and the box center is ≥1500mm;
5.3 Grid size: 18×18", Grid focus: f0=180cm; Grid ratio: r=10:1; Grid density: N=103Lines/Inch
6. Collimator: Flexible and convenient to operate, and any rectangle radiography field size is available.
| NO. | Part Names | Qty | Remarks | |
|---|---|---|---|---|
| 1 | High Frequency Generator | 1 pc | ||
| 2 | Control Panel | 1 pc | ||
| 3 | X-ray Tube | 1 set | ||
| 4 | Collimator | 1 pc | ||
| 5 | Flat Panel Detector with Software | 1 set | 17"*17 | |
| 6 | Bucky Stand | 1 pc | ||
| 7 | Radiography Table | 1 pc | ||
| 8 | Workstation (Computer) | 1 set | -- | |
| 9 | Grid (optional) | 2 pc | 18"×18" | JPI |
| 10 | High Voltage Cable | 1 pair | 75kV |
