HDR50-US

ALL PRODUCTS

Overview
Recommended Products

Products Description

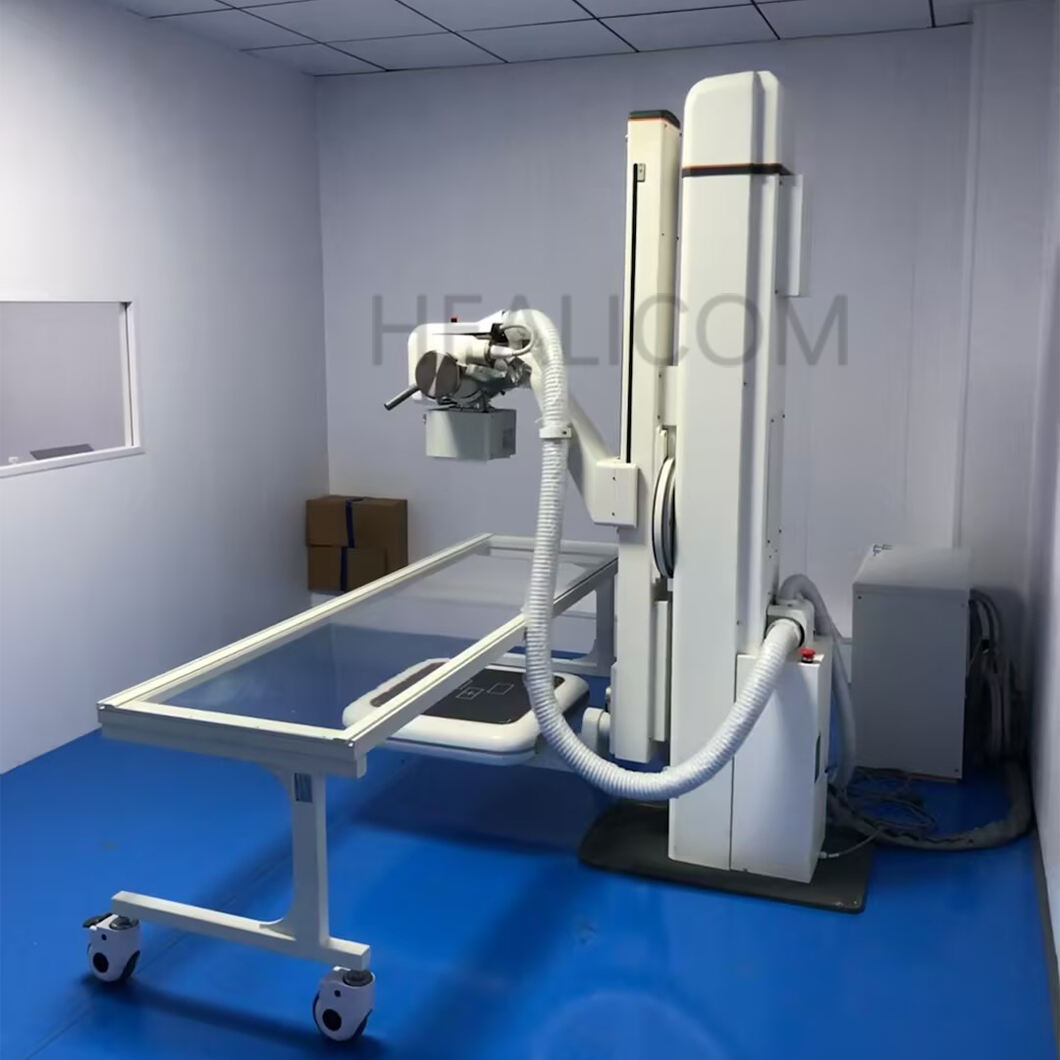

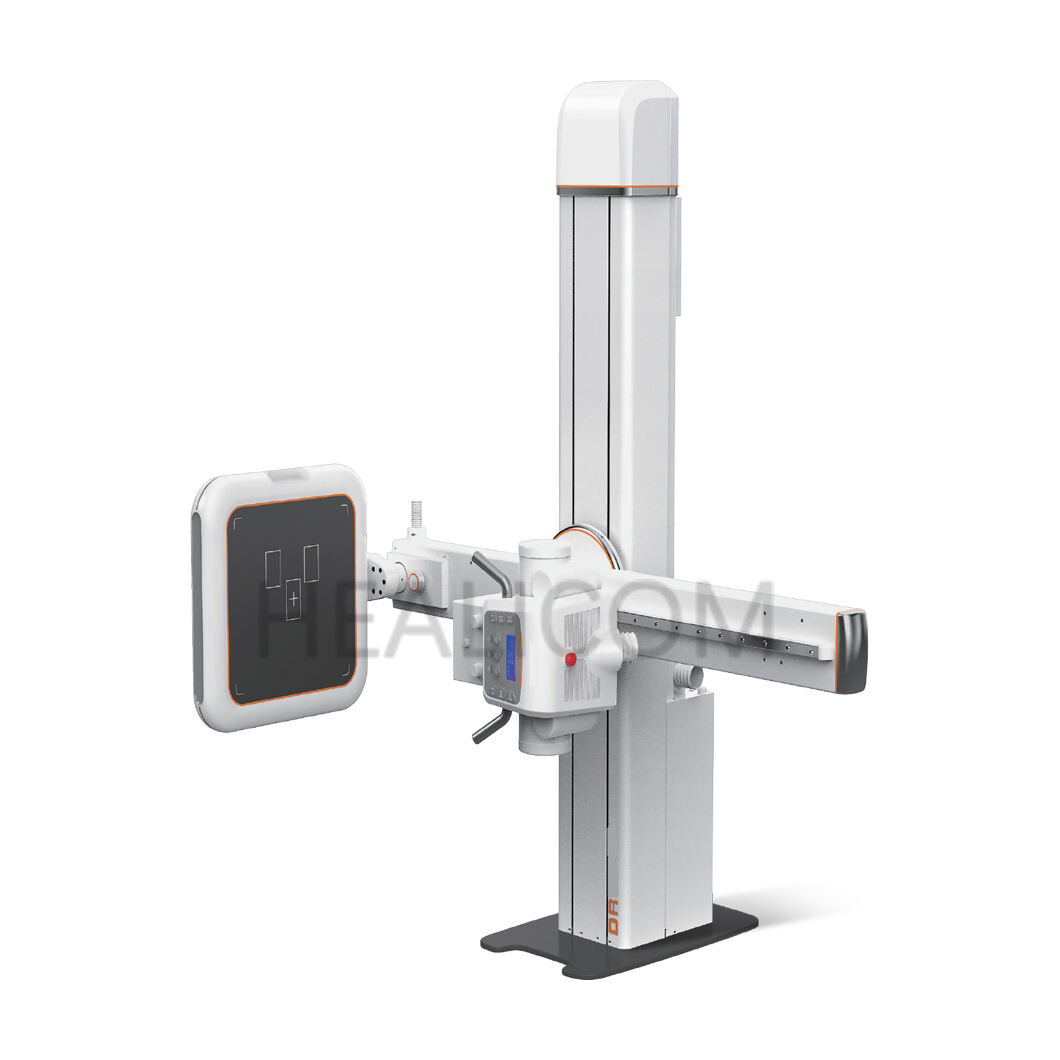

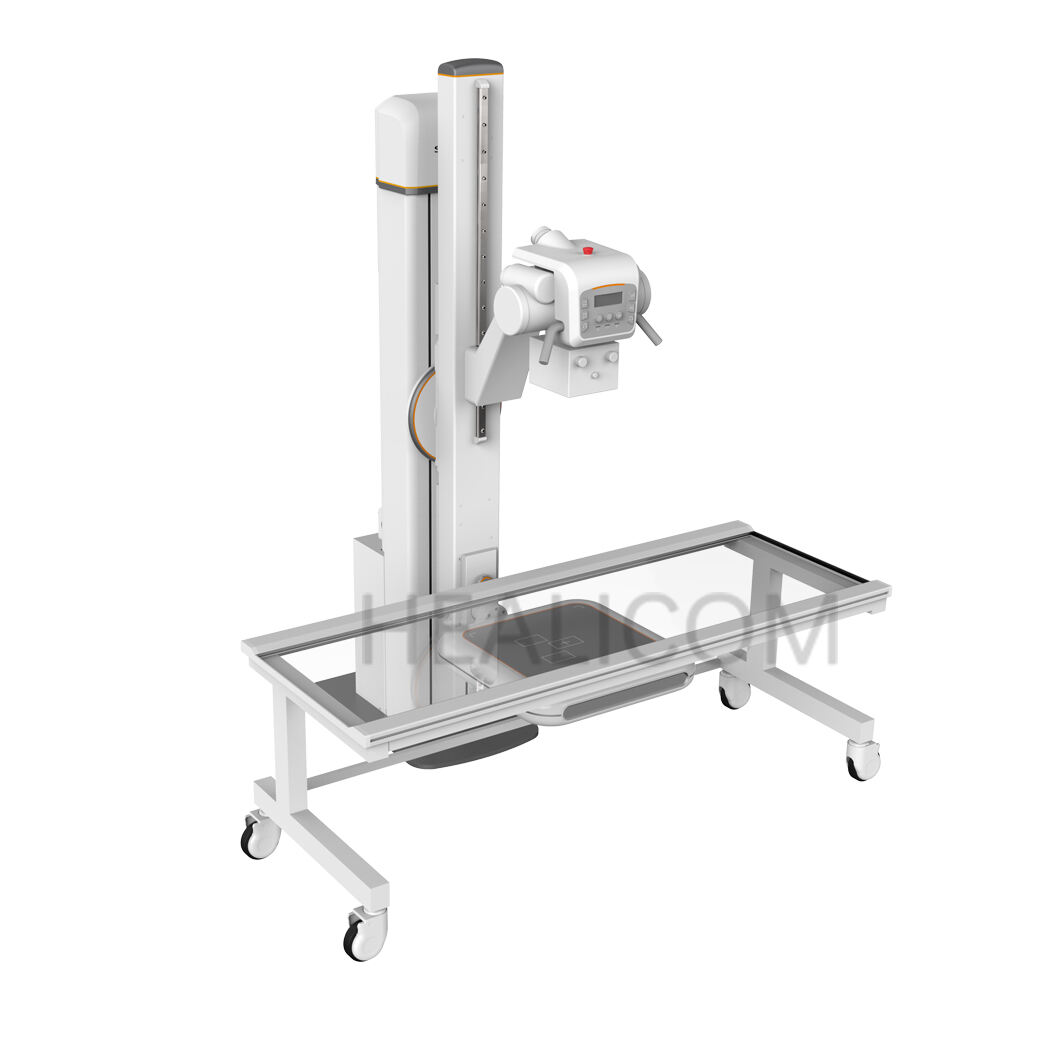

HDR50-US DR consists of an X-ray tube, generator, column stand and digital detector. Our HDR50-US is ideal for general radiography that can perform variety examinations：chest and orthopedic, standing and weight-bearing, free examinations such as on a mobile trolley, in a wheelchair, or table-top examinations (e.g. recumbent), with enhanced image quality for all examinations with software Smart -DR™FP

Feature:
1.Beautiful Appearance: New Simplicity appearance, the latest technique
2.Detector: Using the biggest size of detector
3.More Flexible: Rotatable detector, easier operation
4.Hommization Design: Satisfy low position photography
5.More Intimate: Adjusting SID 1.0m to 1.8m by one button
6.Integrated Console: Three in One Console
7.Intelligent Height Recognition:Reduce the doctor＇s workload

New appearance, the latest technique

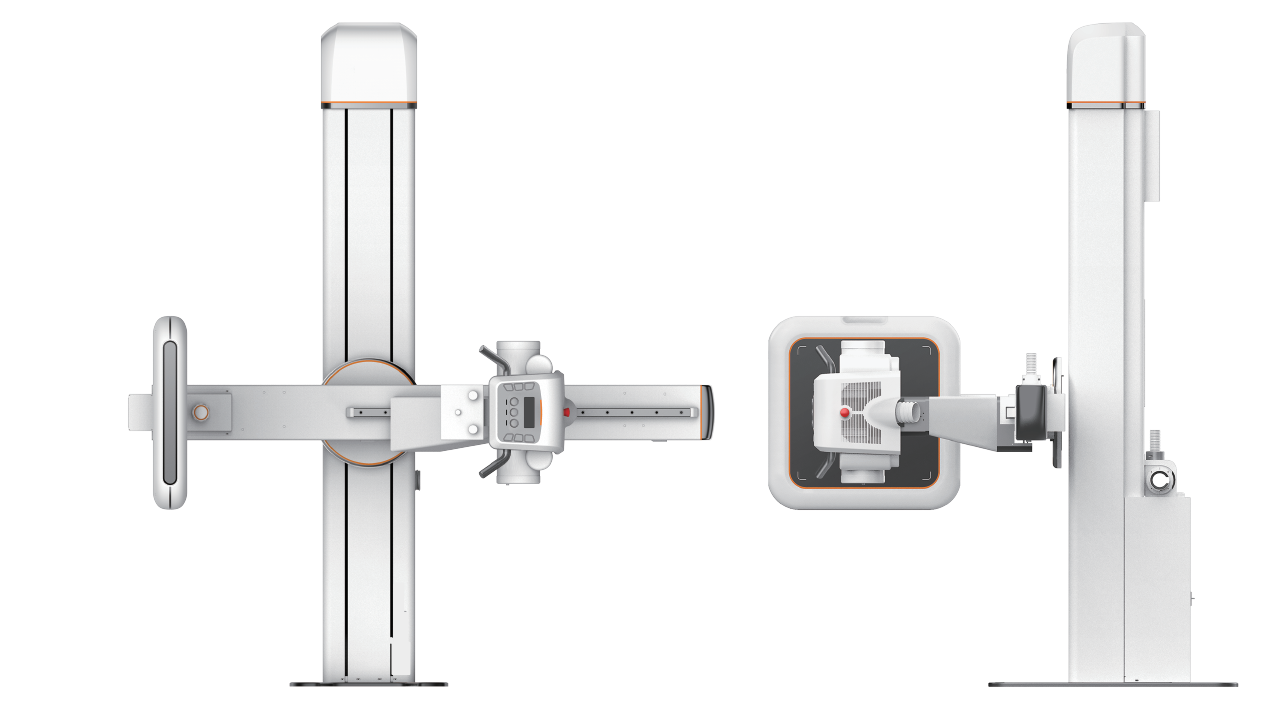

HDR50-US designs with special appearance, on the visual effects, it looks lightness, Simplicity.

HDR50-US details

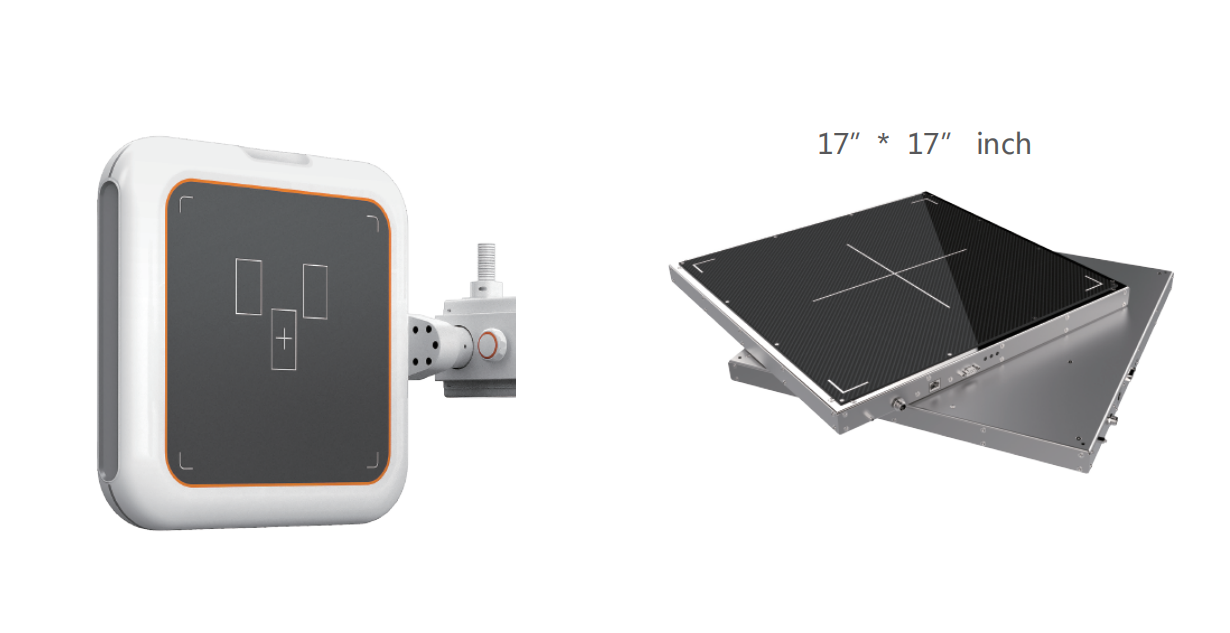

Flat Panel Detector
The detector sets a new standard for detector performance. The new generation detector now delivers greater speed, easier handling, and improved reliability. detector’s receptor type is Amorphous Silicon with CsI conversion screen. The detector size of 17*17 inch provides optimum coverage for both generalized and specialized radiographic exams

HDR50-US manufacture

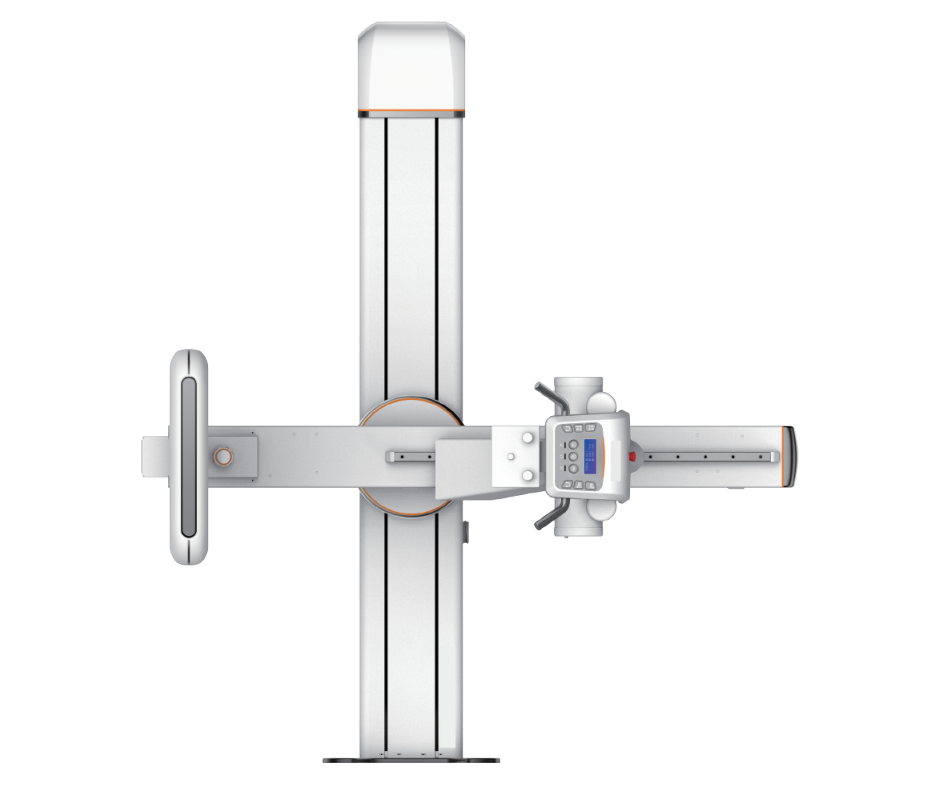

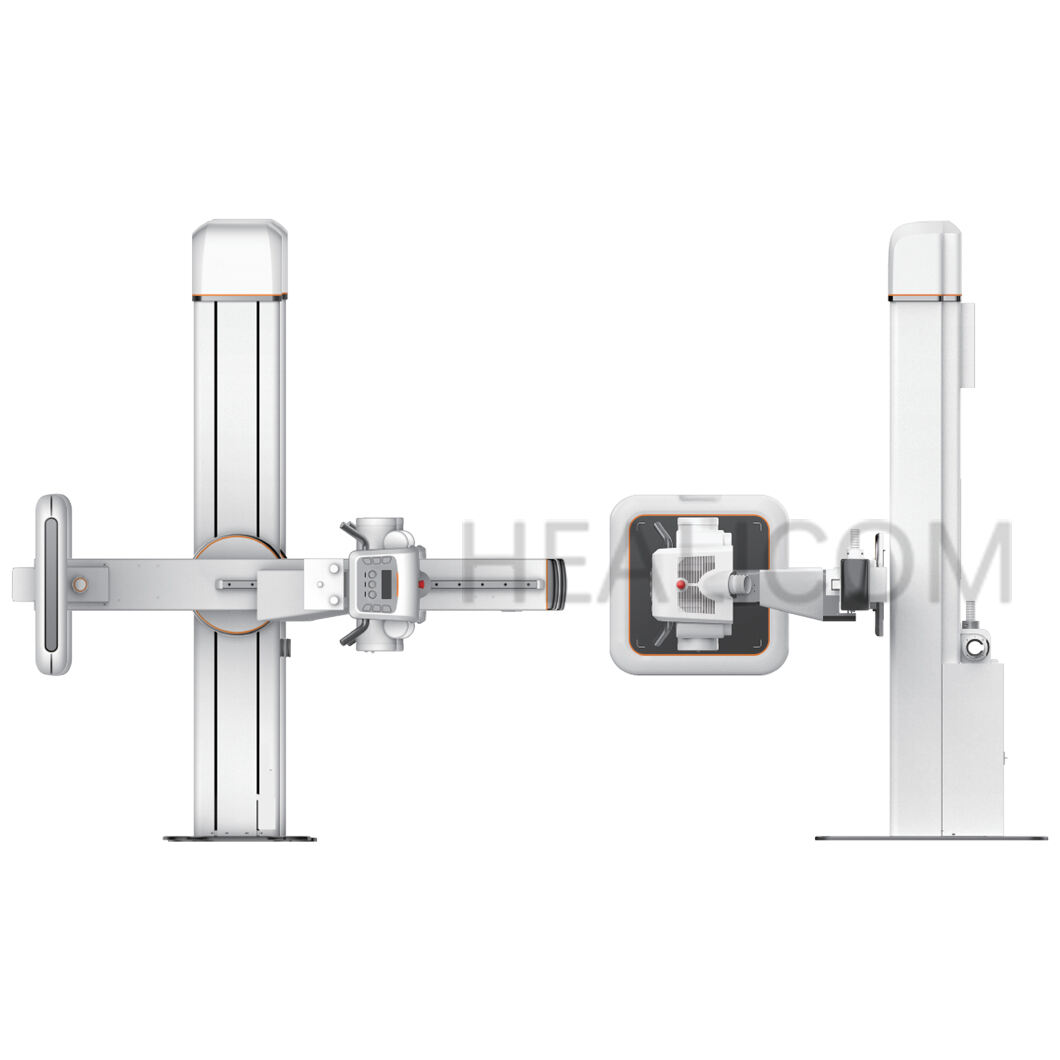

Rotatable detector, easier operation
HDR5-US DR makes the high-level clinical flexibiling affordable.

HDR50-US manufacture

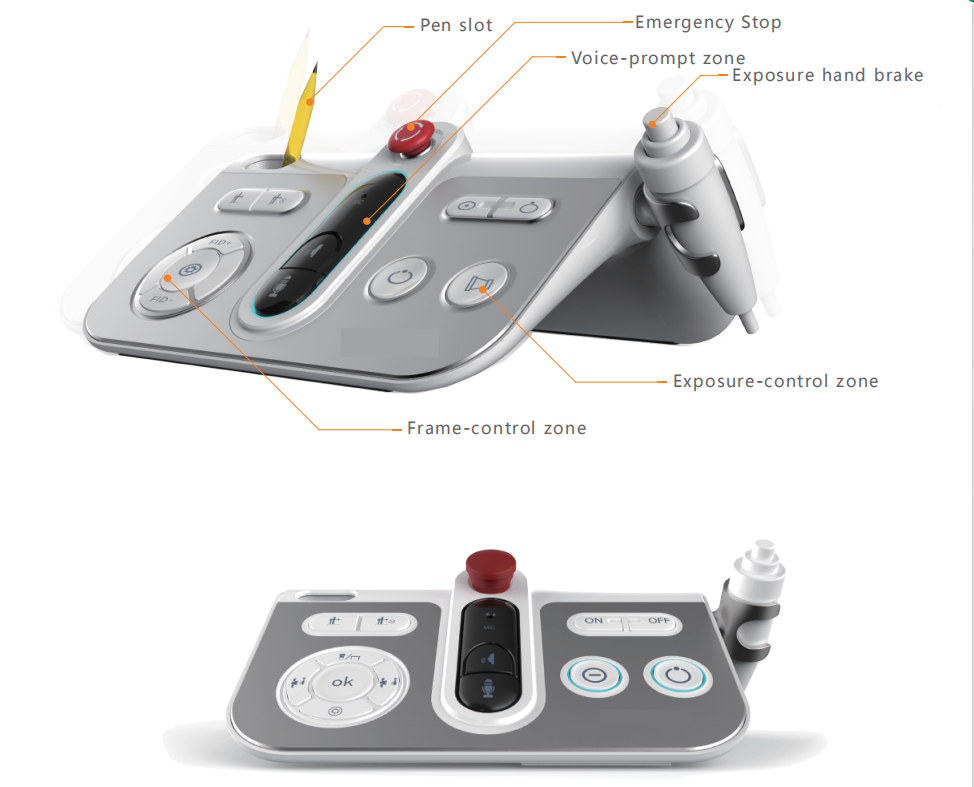

Integrated console
exclusive integrated console realized the rack-control, high-voltage-exposure,and
voice-prompt in one console.

HDR50-US details

by its own efforts, created the image acquisition and processing system which named Smart-DR™FP had passed all the IHE tests conducted by the China Association of Medical
Equipment and obtained this computer software copyright issued by State Copyright Administration.

Smart-DR™FP features a user-friendly interface, an advanced tool set, a streamlined workflow, and a refined image quality. Get the high-quality images you need with a perfect system.

Technical Specifications
X-ray Tube	Brand：Toshiba
X-ray Tube	Anode heat storage capacity: 230,000 HU
Flat Panel Detector	Dimensions: 43 cm x 43cm (17" x 17")
	Pixel size: 135 µm
	Spatial resolution: 3.7 lp/mm
Generator	Generator frequency: 250 kHz
	Output: 50 kW
	Exposure voltage: 40kV to 150kV
	mAs range: 1mAs to 630mAs
Structure	Max. patient weight: 135 kg
	Rotation of tube around vertical axis: ±180°
	Vertical movement range: 110 cm
Min. Space Requirement	3m（L）3m（W）2.6m（H）
