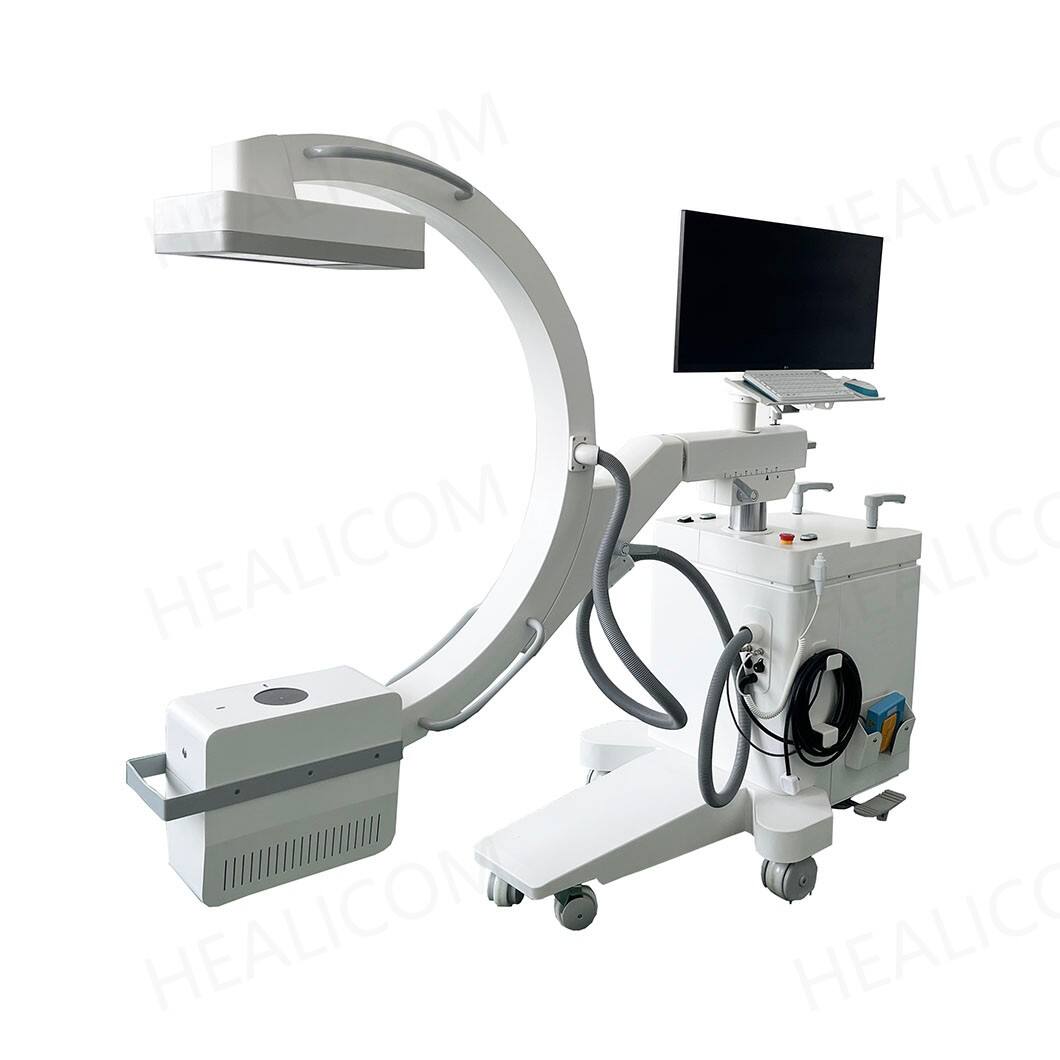

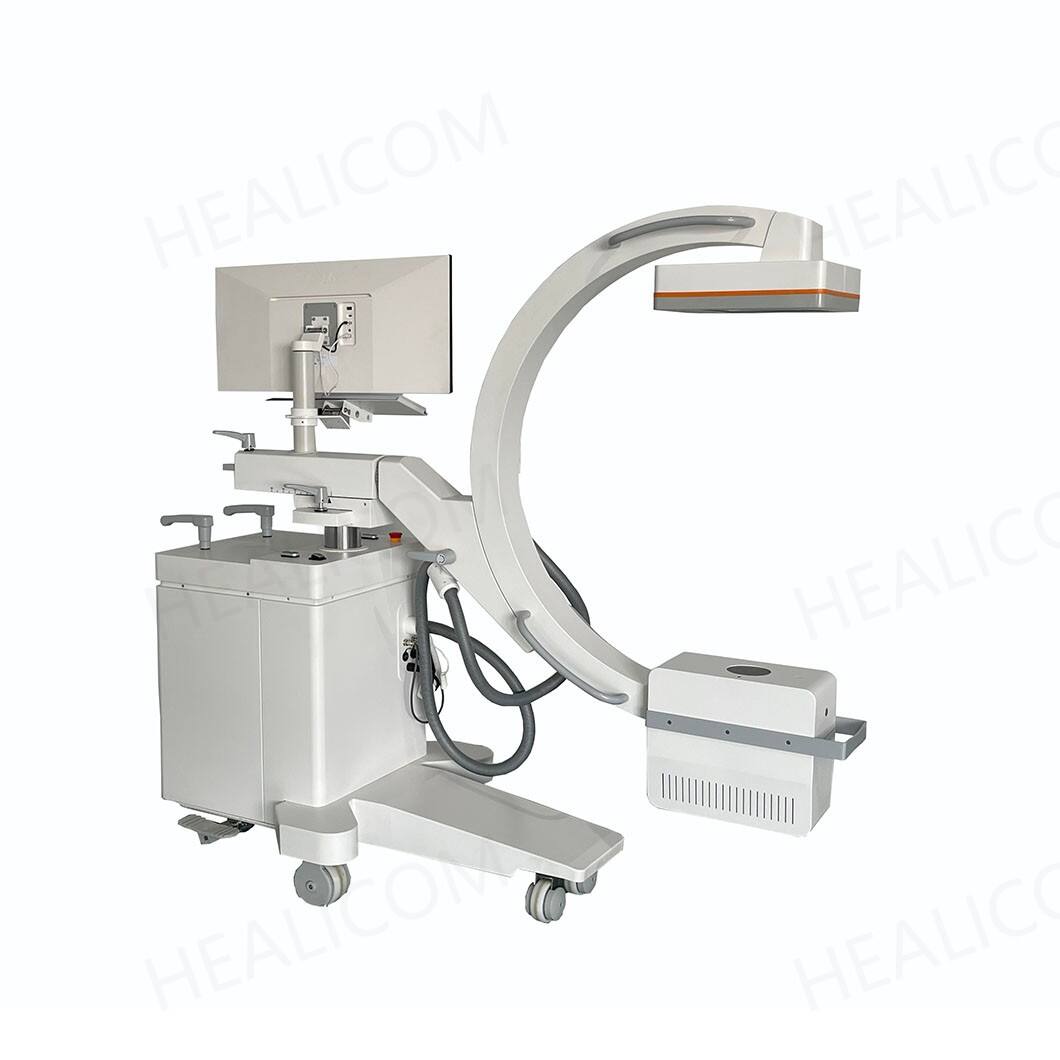

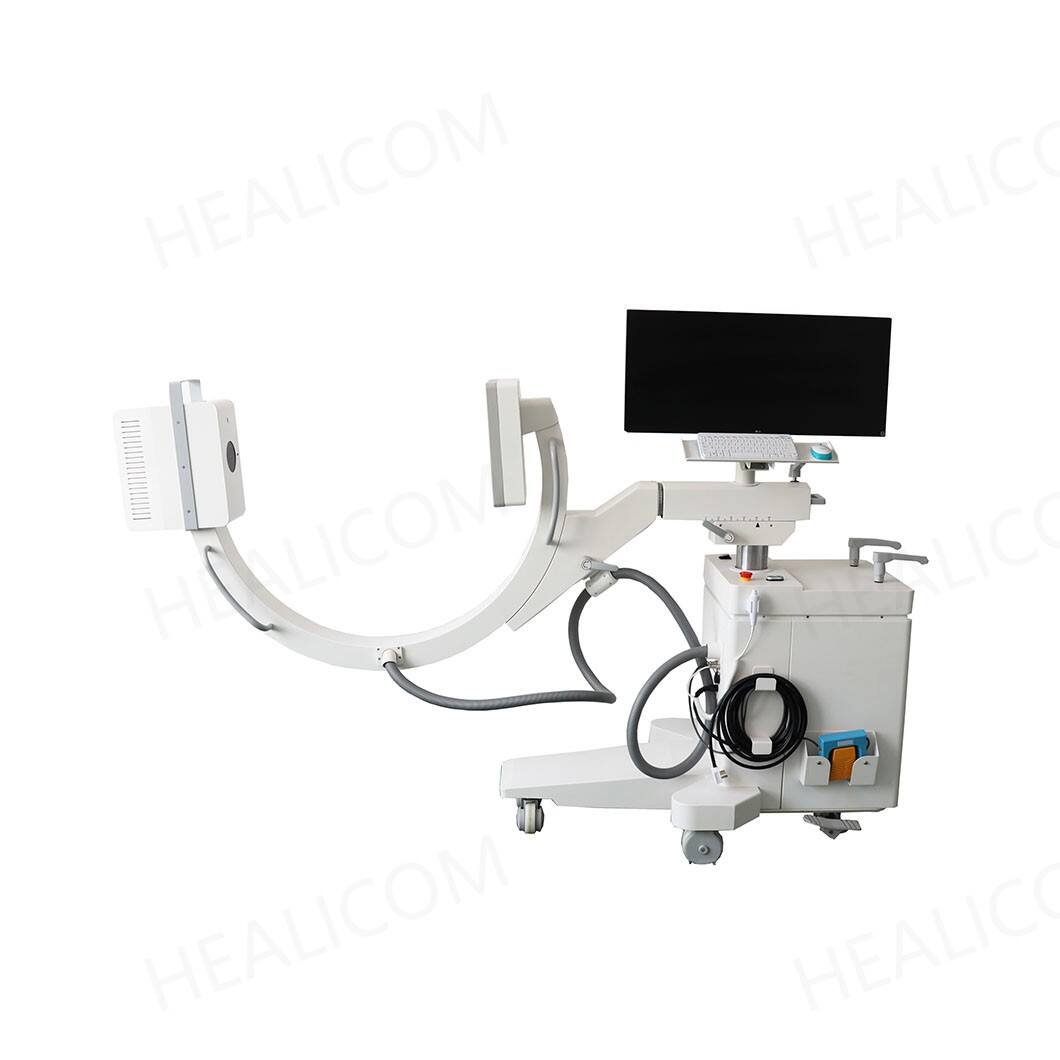

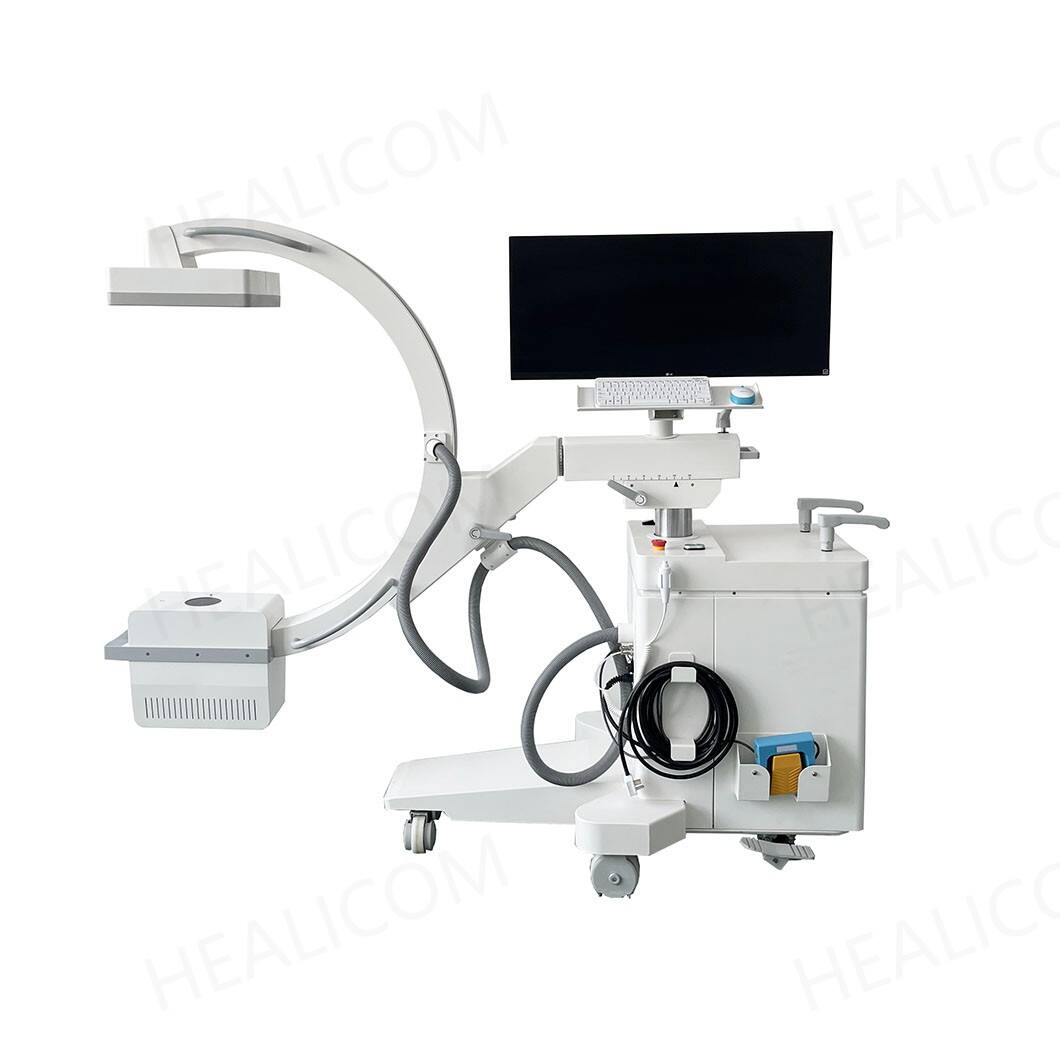

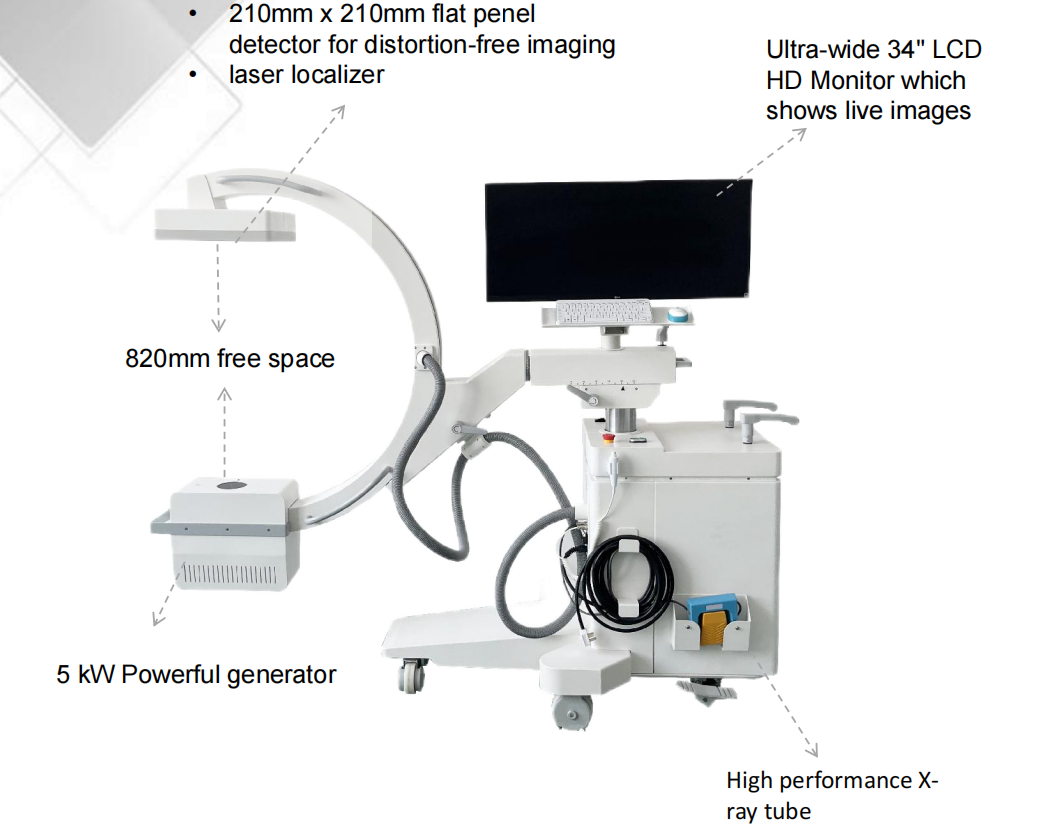

Powerful mobile C-arm machine designed for a wide range of applications in orthopedics, neurosurgery, pain management, and emergency room. With high frequency generator, it offers fine definition image with low dose. It brings to our users with unparalleled experience for operation when using the C-arm for orthopedic surgery and intervention operation.
C-arm series Digital Fluoroscopy System
Technical Parameters
| Model | HCX-5A |
|---|---|
| Power Output | 5kW |
| Radiography Current | 0.1-100mA |
| Radiography Voltage | 40kV-125kV |
| mAs | 0.2-100mAs |
| Continuous mA | 0.3-6.3mA |
| Focus Size | 0.3/0.6 |
| Detector Type | Flat Panel Detector |
| Vision Size | 9*9" |
| A/D Conversion | 16 bits |
| Spatial Resolution | 2.5 lp/mm |
| Pixel Size | 1024X1024 |
| Maximum fps | 30 |
High performance with excellent image quality thanks to a-Si detector. The 210mm×210mm image sensor has direct deposition CsI, which provides excellent low-dose imaging at frame rates up to 30fps. When integrated into mobile C-arm fluoroscopic X-ray system, it is ideal for vascular or surgical applications.

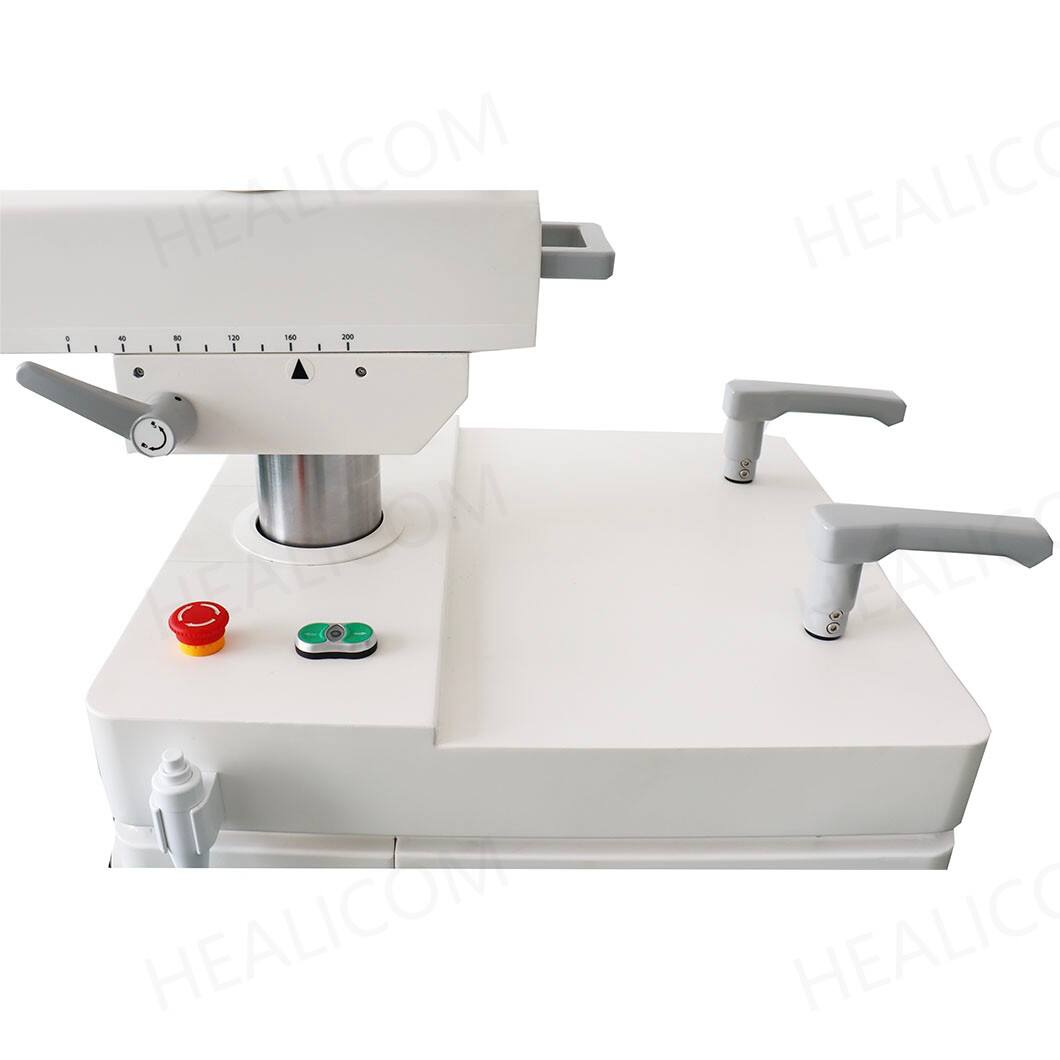

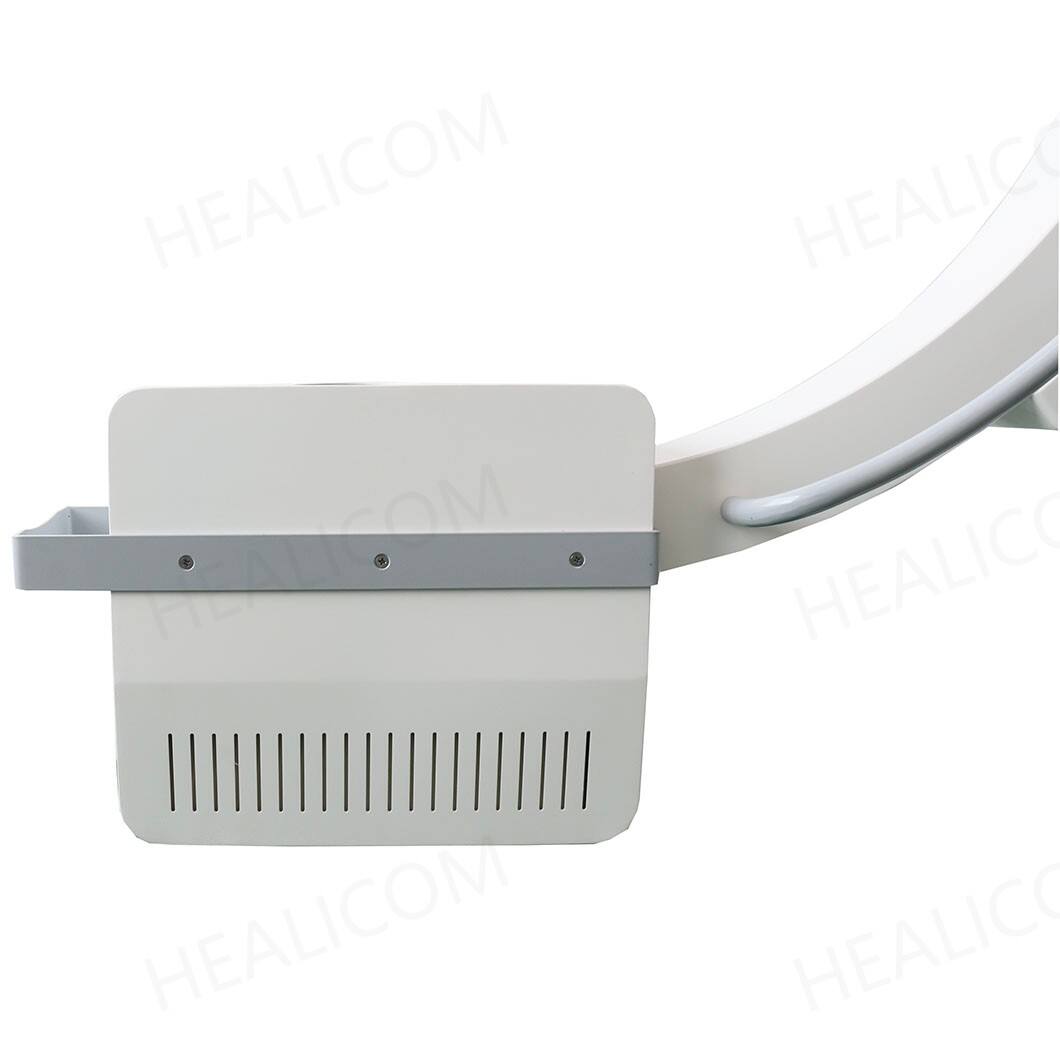

With a compact appearance, and easy to operate. High -frequency generator emits high-quality and hard x-rays with strong penetrability. 21cm*21cm flat panel detector, which has bigger image size than image intensifier.Amorphous silicon flat panel makes the surgery more accurate for the clinical operation due to high density resolution and spatial resolution. High stability oil-cooled heat-resistant combined tube, support long-time image acquisition in surgery, satisfy the requirement of long-time operation. 34”monitor project real-time video and reference images simultaneously for quicker diagnosis and inference.Microcomputer control system with self-diagnostic function and automatic protection. Modular design offers error codes and reset button. Double CPU control improves the stability and safety of the equipment. Large opening design provides larger free diagnosis spaces, and maximizes the efficiency of surgery environment. Hand switch, foot switch and remote control make sure that you could do exposure inside and outside the operating theatre. PACS connectivity with DICOM 3.0 is convenient to send, receive and print images..
