HDR50E

ALL PRODUCTS

Overview
Recommended Products

Products Description

Manual double columns with bed

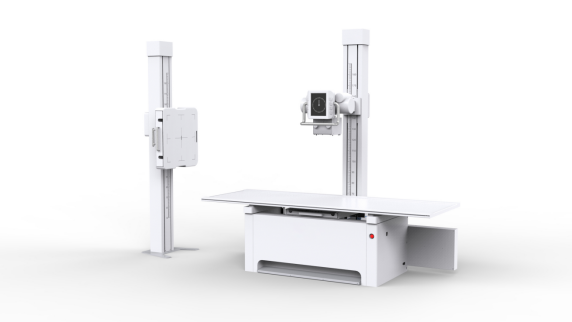

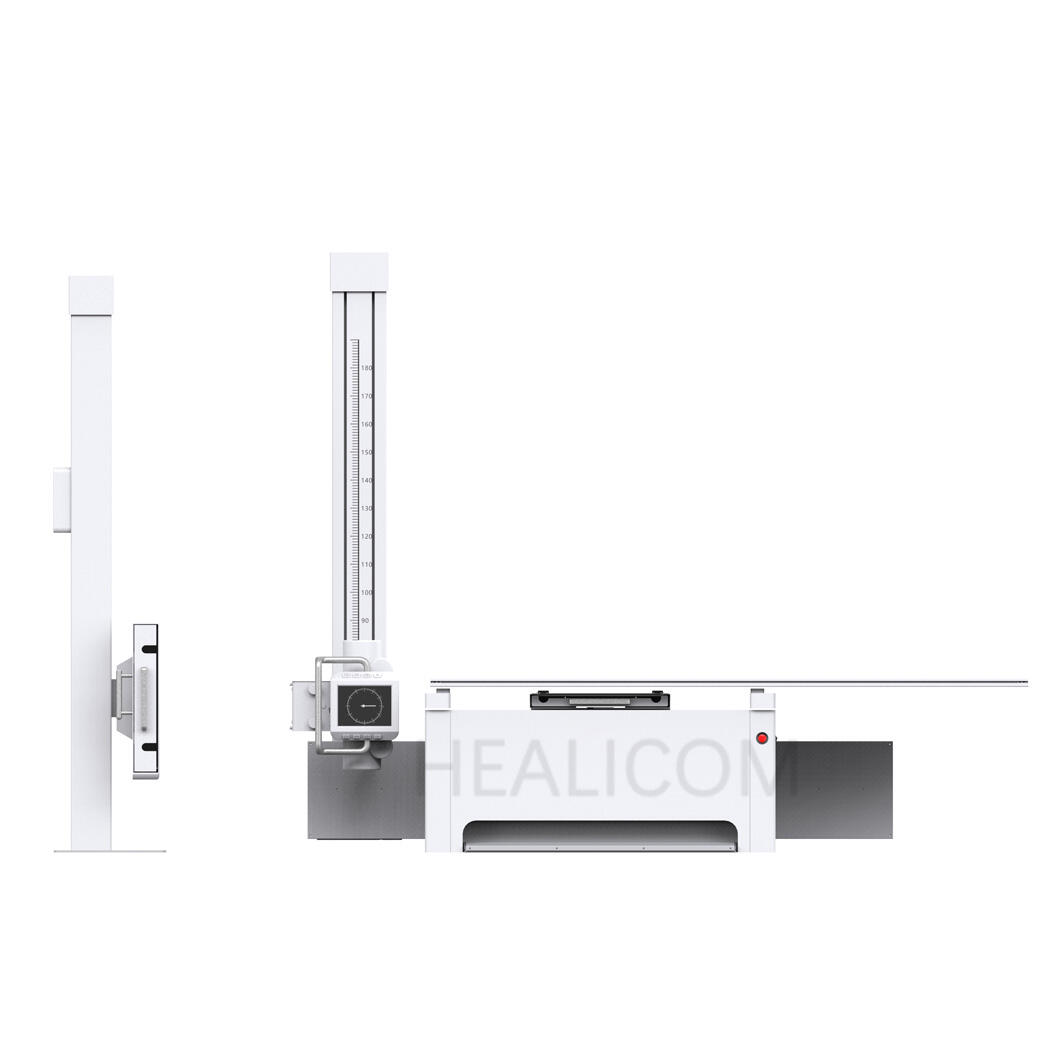

1.Main features
-High-precision aluminum profile columns provide smooth movement and long product life.
-Unique appearance design
-Extra large range of motion

2.Parameters

Item:	parameter	remarks
Frame
Overall appearance	White
Photography bed
Photography bed	Fixed height 650mm±10mm
Bed board motion control	Manual, 4- way float (vertical 900mm±10mm，Horizontal 250mm±10mm). Foot control electromagnetic brake
Bed locking method	Electromagnetic lock, power-off lock
Bed board size	Length×width：（2130mm±10mm）×（800mm±10mm）
Bed board material	Density board
Bed board load-bearing	≥200kg
BUCKY	Manual control, distance 500mm±10mm
Flat panel detector	Dimensions (length × width × height)：460mm×460mm×15mm
Safety	Emergency stop switch
Chest rack
Motion control	Manual lifting; electromagnetic braking, power-off braking;
Initiation power	≤50N
Braking power	≥100N
Total height	2130mm±10mm
BUCKY distance	1400mm±10mm （minimum 360, maximum 1760)
Front panel material	ABS
Flat panel detector	Dimensions (length × width × height)：460mm×460mm×15.1mm
Photography stand
Motion control	Manual lifting; electromagnetic braking, power-off braking
Initiation power	≤50N
Braking power	≥100N
Distance of the column along the track	≥1700mm
Total height	2210mm±10mm
Tube vertical distance	1240mm±10mm (minimum 540mm, maximum 1780mm)
Beam limiter	Manual beam limiter
Tube support arm	Fixed length, axial rotation (tube rotation) ±180°, axial rotation around the column not less than ±90.

High pressure generator	Output power	50kW
	Rating voltage	380VAC，±10%，50Hz/60Hz 3phaxe
	Inverter frequency	25kHz,±10%
	kV accuracy	≤±（5%）（mA＞25mA,ms>5); ≤±(10%+1mA)(mA≤25mA); ≤±20%(ms≤5）
	Kv Range	40kV-150kV,1kv step
	mA Range	10-630mA
	ms Range	1-6300ms
	ms accuracy	≤±（5%+0.2ms)
	mAs Range	0.1-630mAs
	mAs accuracy	≤±（5%+0.2mAs)

The X-ray tube assembly	Large focus for the maximum power	Large focus: 50 kW
	Focal point	0. 6/1. 2mm
	Heat capacity	400kHU
	Heat capacity of pipe sleeve	950kJ
	Target angle	12.0°
	Inherent filtration	1. 0mm Al
	Added filtration	1. 5mm Al (3X0. 5 mm AL)
	Weight	About 17kg
	Structure	The components are aluminum shell, tangential, oil-immersed cooled, rotating anode X-ray tube assembly.
	Leakage radiation loading factor	150kV 3.4 mA
	Insulation impedance	>2MQ
	Focus position and its tolerance to the	± 1.4mm
	The X-ray radiation field	At SID, 354 * 354mm at Im
	Power supply (neutral ground)	Single-phase, three-phase full-wave rectification or DC power supply
	filament current	5.3 A
	filament voltage	Big focus: 13.5+IV, small focus: 8.5 + 1V

	Nominal anode input power (0. 1s), (50Hz)	Large focus: 50KW, small focus: 20KW
	Anode speed	2800 rpm
	Stator parameter (50Hz)	1) Start voltage: 120- -220V; 2) Maintenance voltage: 4060V; 3) Subphase capacitance: 40 UF / 630V; 4) Start time: 1 ~ 1.2s
	Cooling-down method	Natural cooling or forced air cooling
	Temperature range of the components in normal use	16 〜70°C
	Maximum continuous thermal dissipation of the components	No less: 200W (16 kHU / min); yes Fan: 380W (32 kHU / min)
Light beam device	Inherent filtration	1. 5 mm Al (equivalent)
	Optional additional filtering	0. 5/1. 0/1. 5mmAl
	Maximum tube assembly is of high pressure	150 kV
	Average irradiation brightness	3160 Lux, when the SIDlOOcm
	irradiation time	30s ±5%
	Light field indicator light	24V / 5W LED lamp
	Input electricity	24VAC, 0.2A
	Minimum irradiation field	<20mmX20mm； at SID 100cm
	Maximum irradiation field	43 X 43cm； at SID 100cm
	Weight	6. 8kg±0. 5kg
Wired flat-panel detector	Image size	43X43cm(17" X 17")
	Dimensions	46.0 X 46.0 X1.5cm
	Pixel size	139μm
	X-ray Voltage Range	40-150KV
	Weight	3.2kg
Wireless flat-panel detector	Image size	43X43cm (17"X 17")
Wireless flat-panel detector	Dimensions	46.0X46.0X1.5cm

	Pixel size	139μm
	X-ray Voltage Range	40-150KV
	Weight	3.7kg
Work environment requirements	Relative humidity	30% 〜75%
	Atmospheric pressure	700hPa—1060hPa
	Ambient temperature	5°C 〜40°C
Transportation and storage conditions	Relative humidity	10% 〜95%
	Atmospheric pressure	700hPa—1060hPa
	Ambient temperature	-10°C 〜50°C
