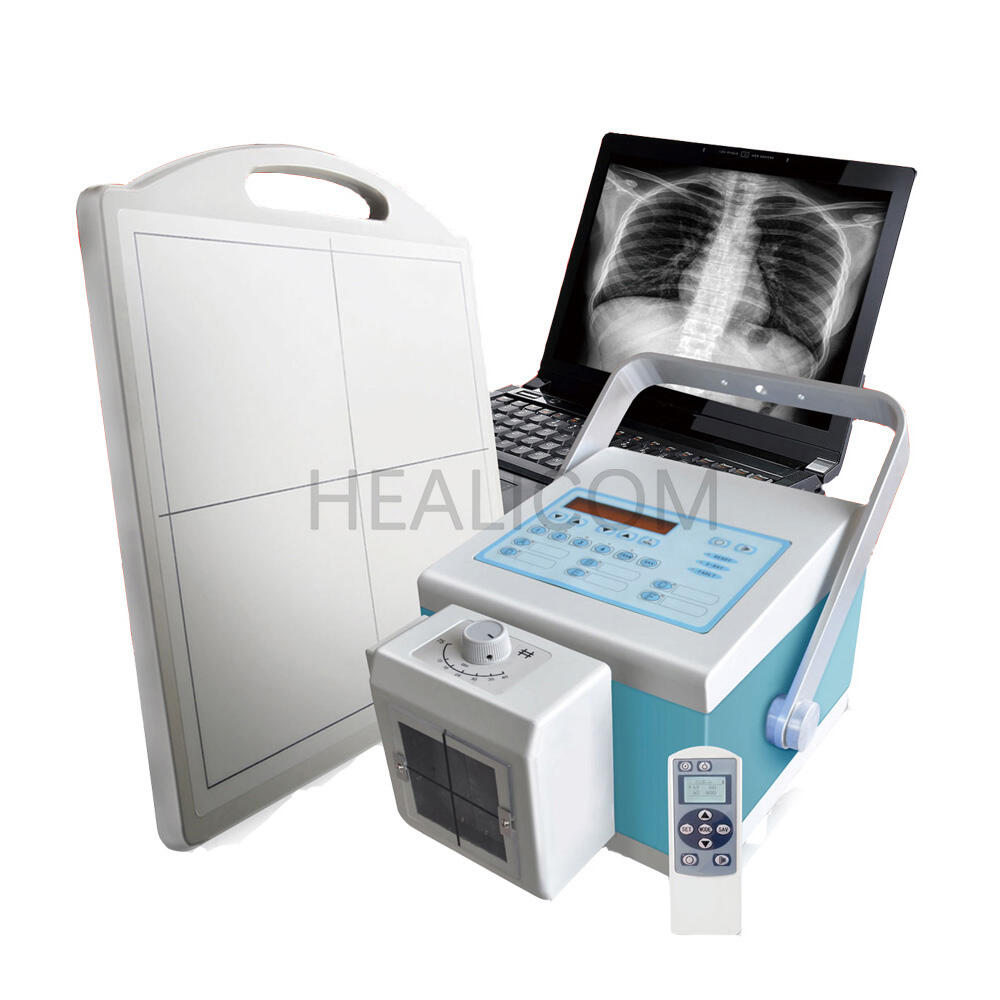

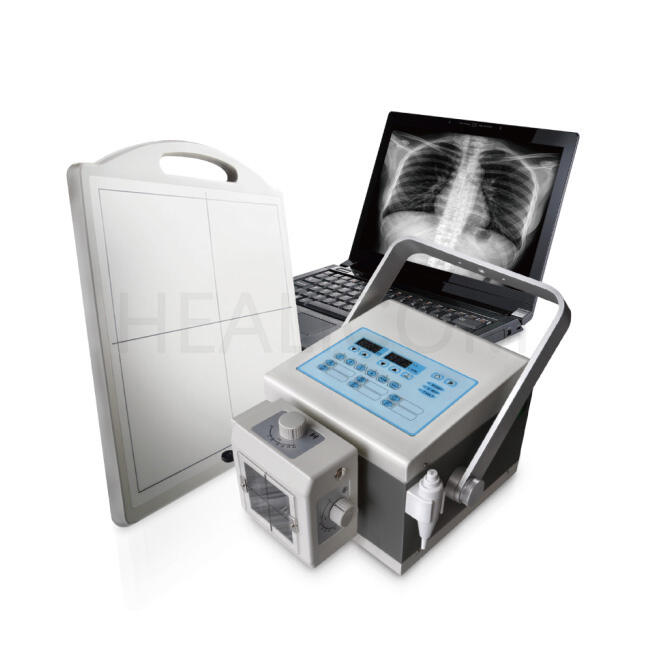

HFX-04D Digital Portable X-ray System
USD22300.00/PC,EXW

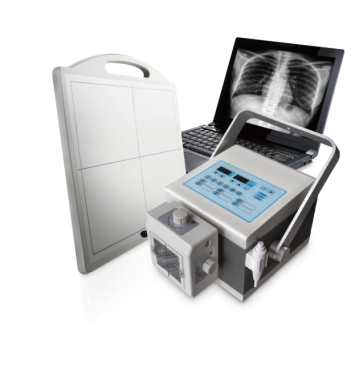

HFX-04D supplier
1.Application
The 4KW portable digital high frequency X-ray system is mainly
suitable for extremities check, especially for rescues or diagnosis in
Field operation sites, battlefields, stadiums, etc.

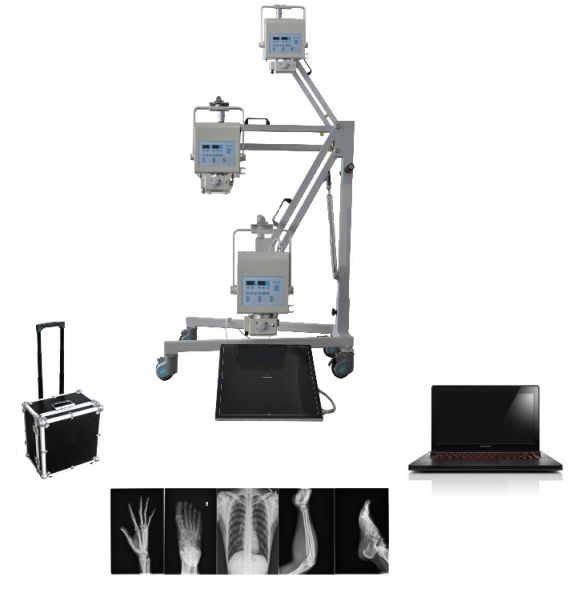

HFX-04D factory

Complete new upgrade type

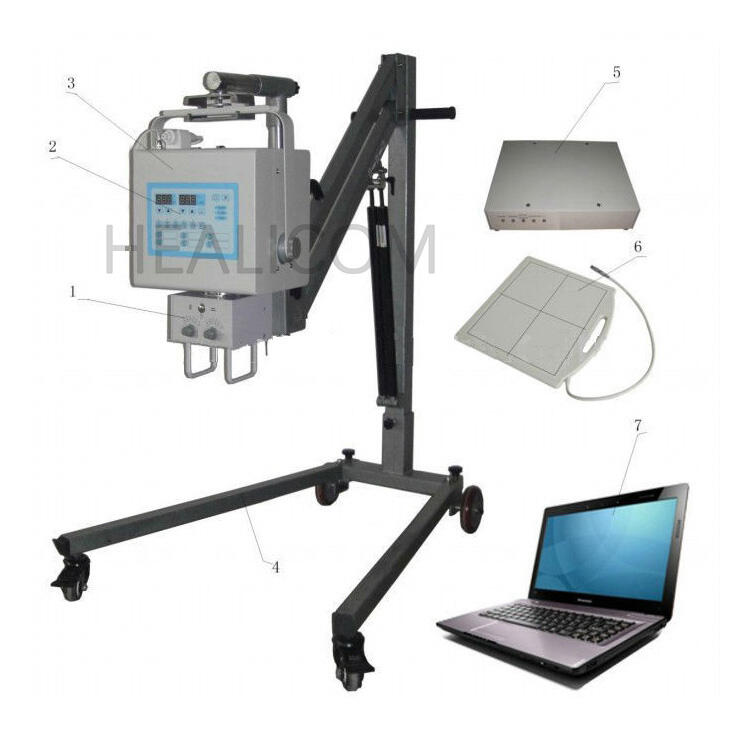

2.Composition

Main components	Name of components	Model/specification	Quantity	Remark
DR system	Portable x-ray machine	HFX-04	1 set
	Digital detector	Iray 1717SCC(17X17inch)	1 set	Brand: Iray
	Laptop	Lenovo Y40-80	1 set
	DR image processing software	Iray	1 set	Brand: Iray
Accessory equipment	Machine frame		1 set

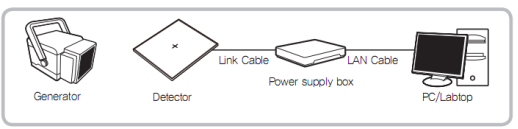

3.Complete software performance and Connection

4.Features

1)Deft and concise
2)6 periods of digital LED display
3)48 kinds of presupposed anatomy memory model choices
4)Accuracy control method of simulation and digital double loop
5)High precision control of tube voltage, tube current
6)Failure self-protection, self-diagnosis

5.Specification

Model	HFX-04
Input power	Voltage: AC220V±22V Frequency: 50/60Hz±1Hz
Maximum output power	P =110kV×36mA=4kW
Nominal power	100kV，40mA，0.1s，4kW
kV adjusting range	40kV～110kV,Continuous adjustment step 1 kV
mA adjusting range	36mA～60mA
mAs adjusting range	1mAs-200mAs, Shifted adjustment
s adjusting range	0.04s～3.2s
X-ray tube	Brand:Toshiba Focus :0.6/1.5mm； Anode heat capacity：76kHU
Iray digital detector 17X17inch	Scintilatolr: CsI Direct Deposit Pixel Matrix: 3,072X3, 072 (11 million pixels) Pixel: 139μm A/D Conversion:16bit Image Preview Time: Not more than 3s
Laptop	Model：Lenovo Y40-80 CPU：Intel Core i5 Memory capacity：4GB Screen size: 14 inch
Anatomy program	48 kinds of memory choices
X-ray machine size	290×260×230mm
Weight	18.8kg
Accessory	Standard:hand switch,remote control, suitcase,machine frame
