Big Brightness LCD Display Visually Numeric Keypad Multi Language Syringe Pump for Intravenous Injection
- Overview
- Recommended Products
Products Description

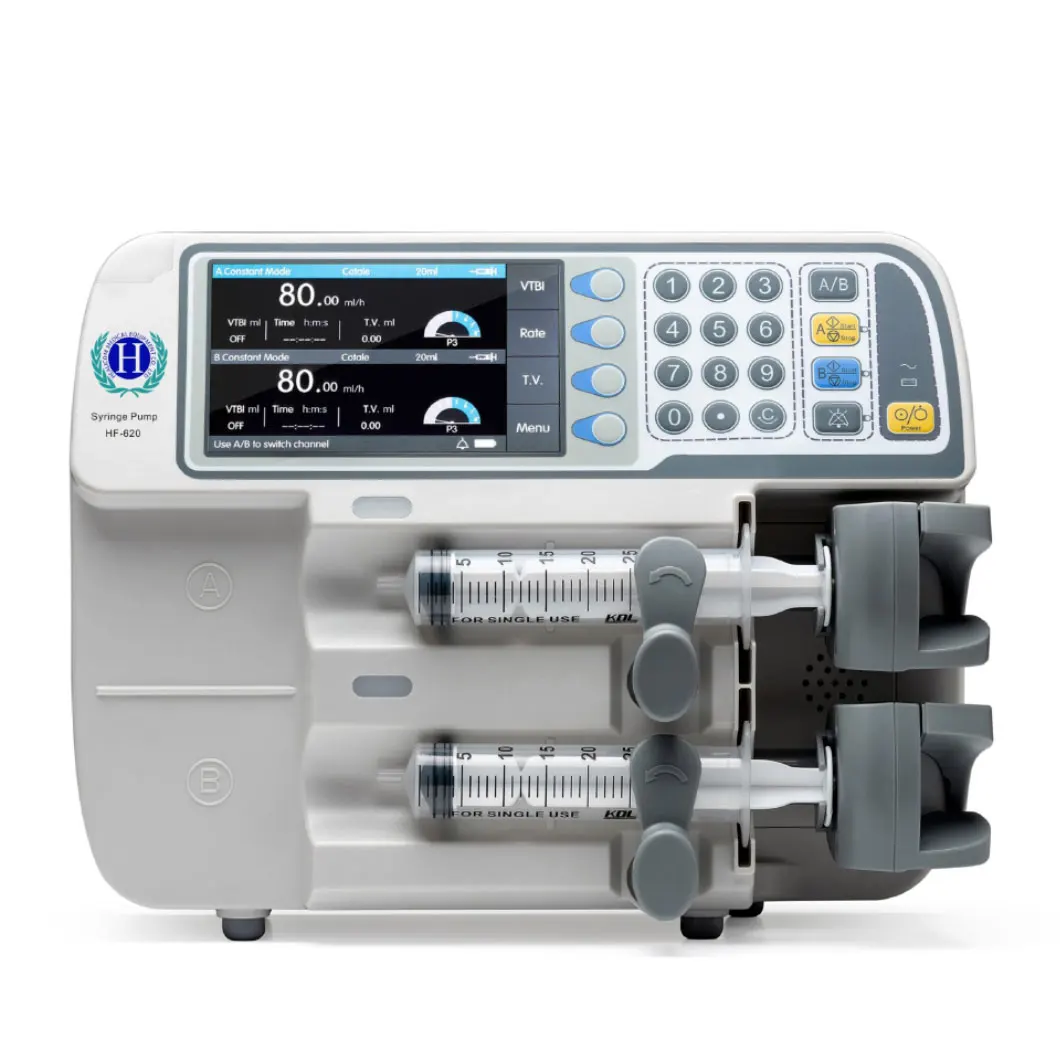

Medical Equipment HF-620 Double Channel Portable Syringe Pump
Classic peristaltic finger pump design, accept different brand and material international standard syringe set, the deviation is within ±2% after calibration. Adjust level design to meet injection needs in ICU, NICU, Pediatrics, Geriatrics, Oncology dept, etc. Double CPU to make infusion much safer and more effective.
Different adjustable level setting
Occlusion pressure sensors, dynamic pressure value display, up-occlusion sensor to avoid underflow, 8 adjustable level for occlusion, air bubble and alarm volume to meet different needs in different department.
Long life battery backup
3000mAh Lithium battery, backup time more than 10hours under battery supply to ensure no interruption when no AC power supply or in moving condition.

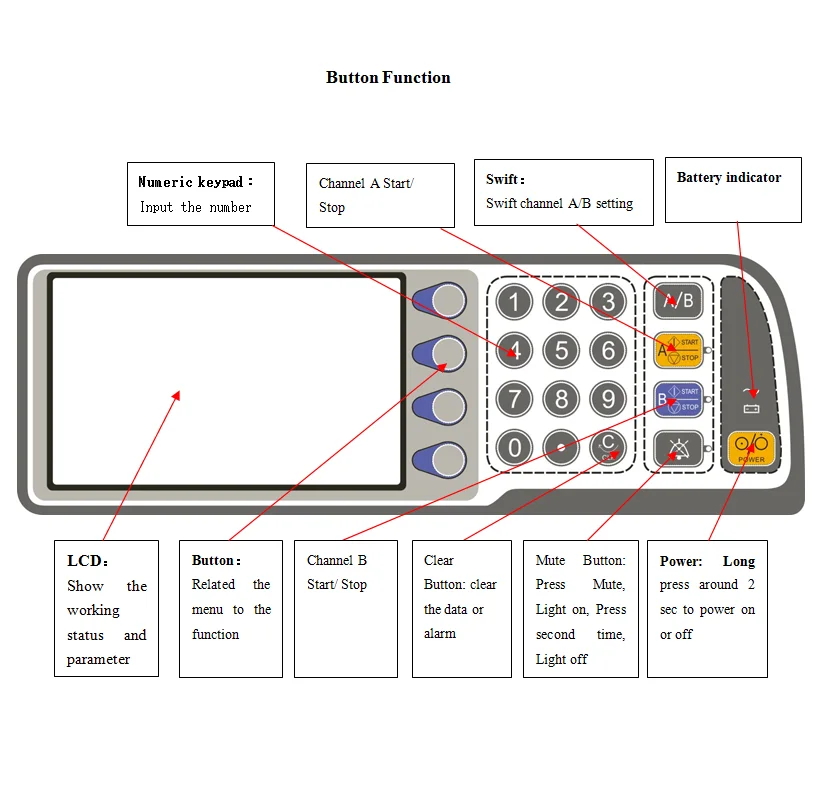

Easy Operation

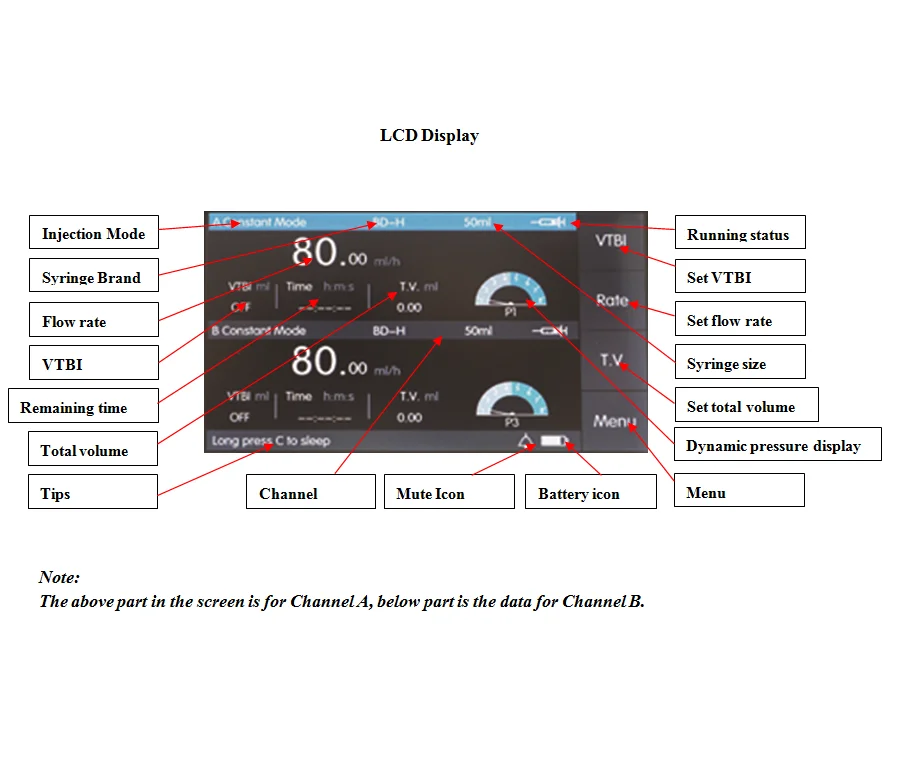

TFT color LCD, number Keypad
Double CPU Design
Independent CPU design, reliable data transmission, safer infusion.
Various mode
Constant Rate, Time/Volume, Drug Weight, Micro, Sequential, Drug Library Mode
Real-time self-testing
Real-time self-testing during startup and infusing process, ensure the safety of each component and each function, safer infusion.
Technical Specifications |
||
Injection Mode |
Constant Rate, Time mode, Drug Weight, Micro, Sequential, Drug Library Mode |
|
Syringe Size |
5ml, 10ml, 20ml, 30ml, 50/60ml, auto recognition |
|
Flow Rate Range |
5ml: 0.10ml/h-60.00ml/h 10ml: 0.10ml/h-300.00ml/h 20ml: 0.10ml/h-400.00ml/h 30ml: 0.10ml/h-600.00ml/h 50/60ml: 0.10ml/h-1200.00ml/h |
|
Flow Rate Increment |
0.01ml/h |
|
Preset Time |
1s-99hr59min59s |
|
Parameter Changed During Injection |
Support change of VTBI, flow rate during injection |
|
Accuracy |
≤±2%(±1% mechanical accuracy included) |
|
Preset Volume(VTBI) |
0.1~9999.99ml or empty |
|
Accumulated Volume |
0.00~999.99ml |
|
Purge Rate |
5ml: 30-60ml 10ml: 150-300ml 20ml: 200-400ml 30ml: 300-600ml 50/60ml: 600-1200ml |
|
Bolus Rate |
5ml: 0.10ml/h-60.00ml/h 10ml: 0.10ml/h-300.00ml/h 20ml: 0.10ml/h-400.00ml/h 30ml: 0.10ml/h-600.00ml/h 50/60ml: 0.10ml/h-1200.00ml/h |
|
KVO |
0.10-5.0ml/h adjustable |
|
Occlusion Pressure |
8 level adjustable, 20Kpa-150Kpa, dynamically pressure value display. |
|
Alarm |
Finished, near finished, near empty, empty, occlusion, syringe disconnected, no operation, parameter error, syringe size error,low battery, battery lost, battery ran out, AC power lost, abnormal injection, communication error. |
|
Syringe Management |
Preset 20 syringe brands, can add or edit the brand, accept all brands after calibration. |
|
Display |
3.5'' / 5.0'' TFT color LCD, 10 level brightness adjustable. |
|
Communication Port |
USB, RJ45 for future use, Ethernet Port |
|
Battery |
Rechargeable Lithium battery, DC11.1V, 3000mAh, operating time: ≥9h@5ml/h |
|
Alarm Voice |
Standard Medical Alarm Voice with Mute function, 8 levels adjustable. |
|
Event log |
1000 event log, can be transmitted to PC with USB |
|
Software Upgrade |
Upgrade the software with USB |
|
Classification |
Class II, Type CF, IPX4 |
|
Other Function |
Double CPU, Password function, Multi Language, Pressure Release function, 90° rotatable IV pole, 4 soft function key, key lock function, numeric keypad, Pause function etc. |
|
