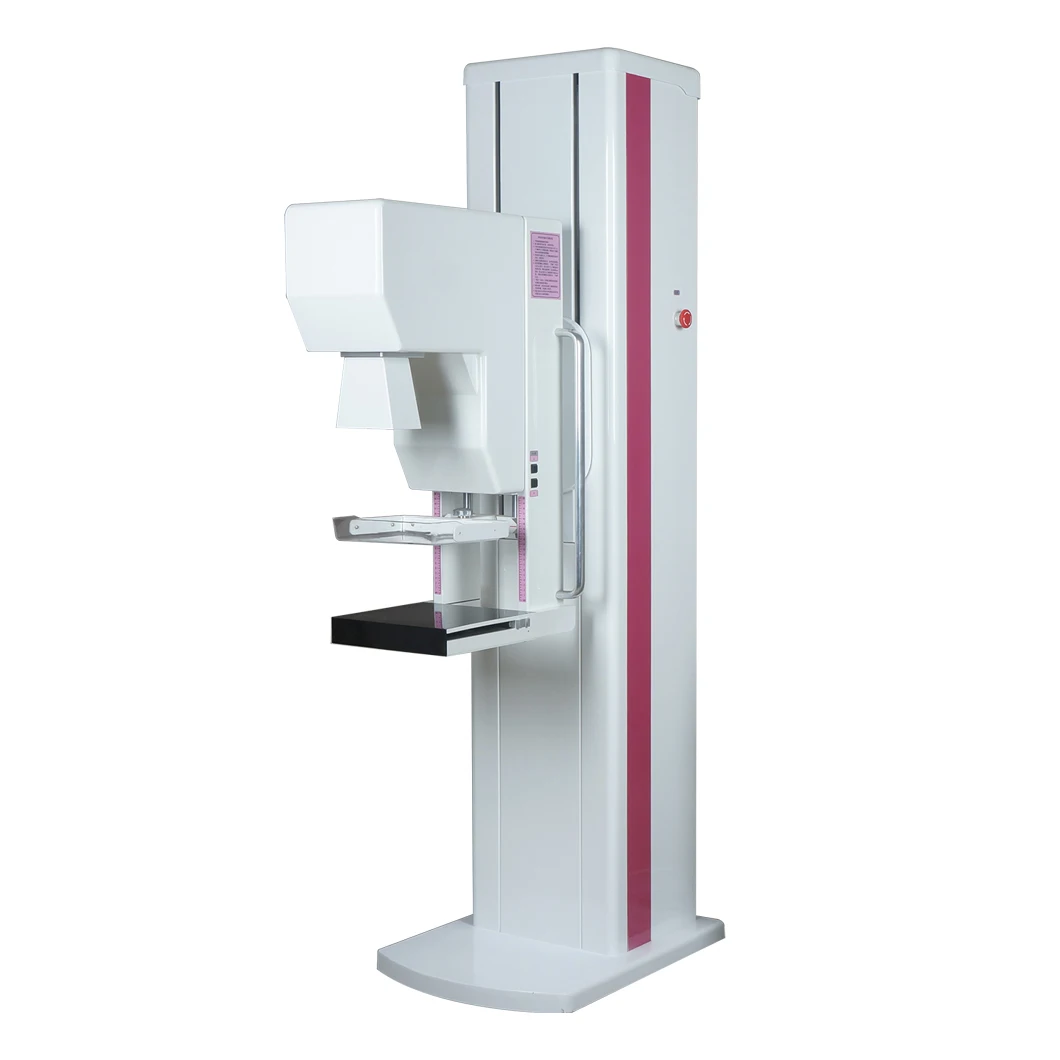

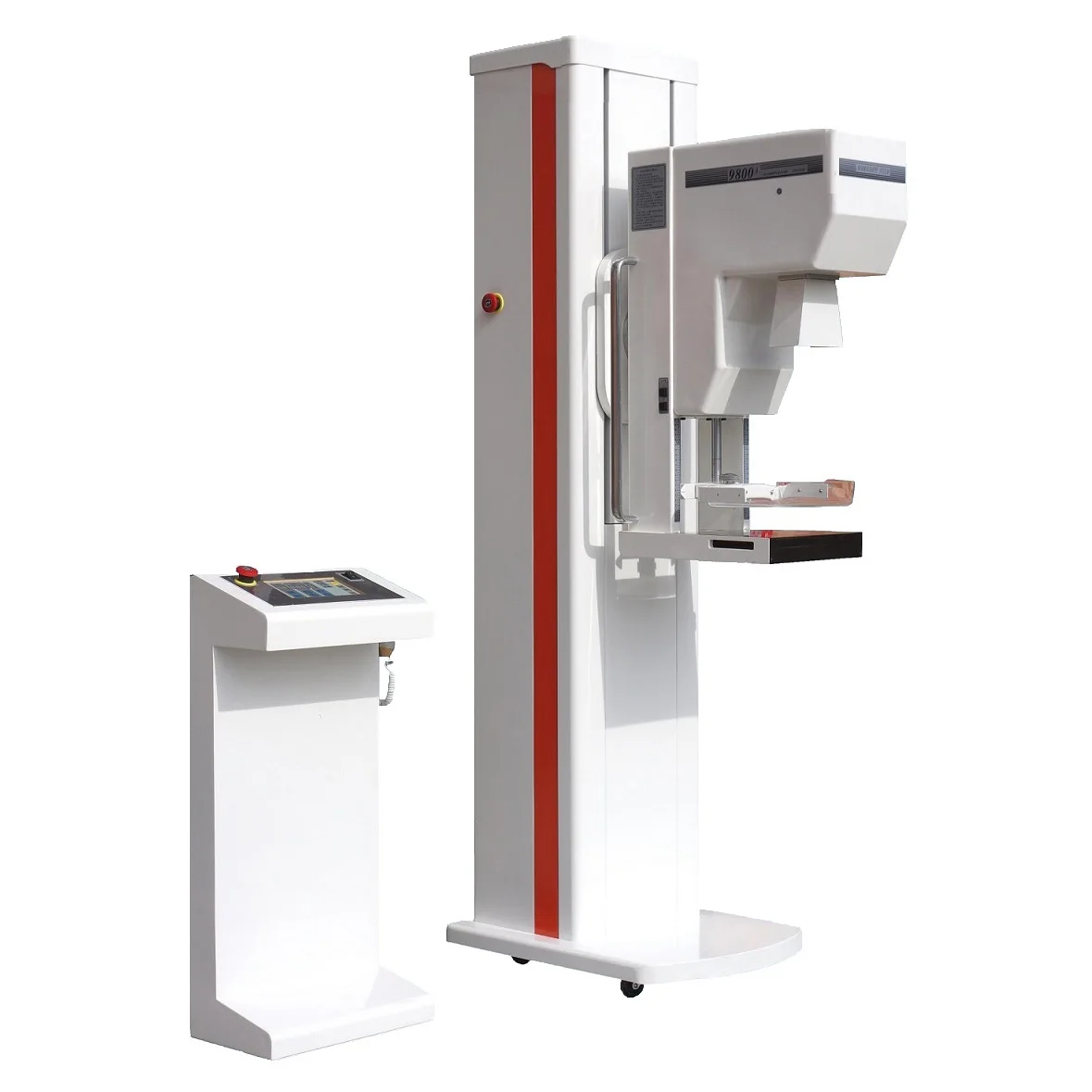

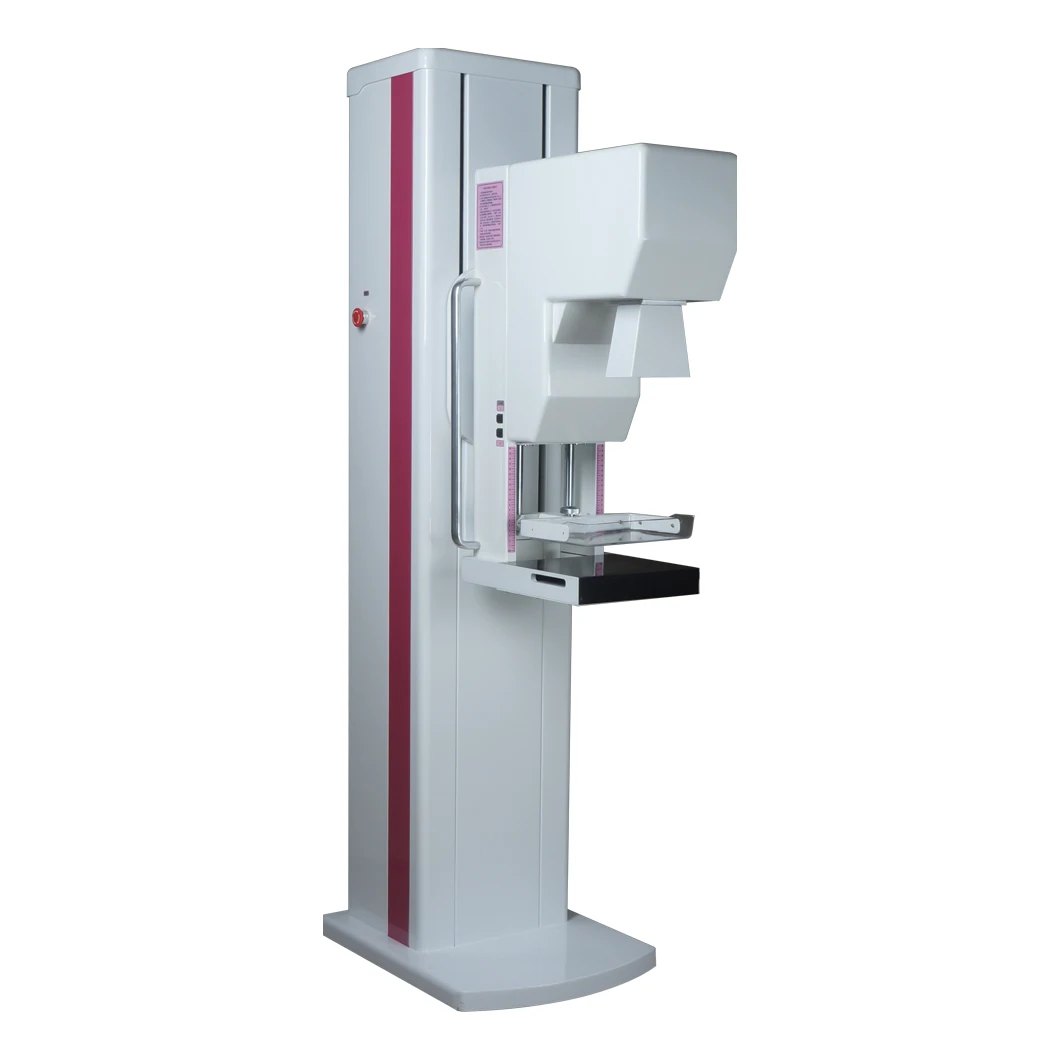

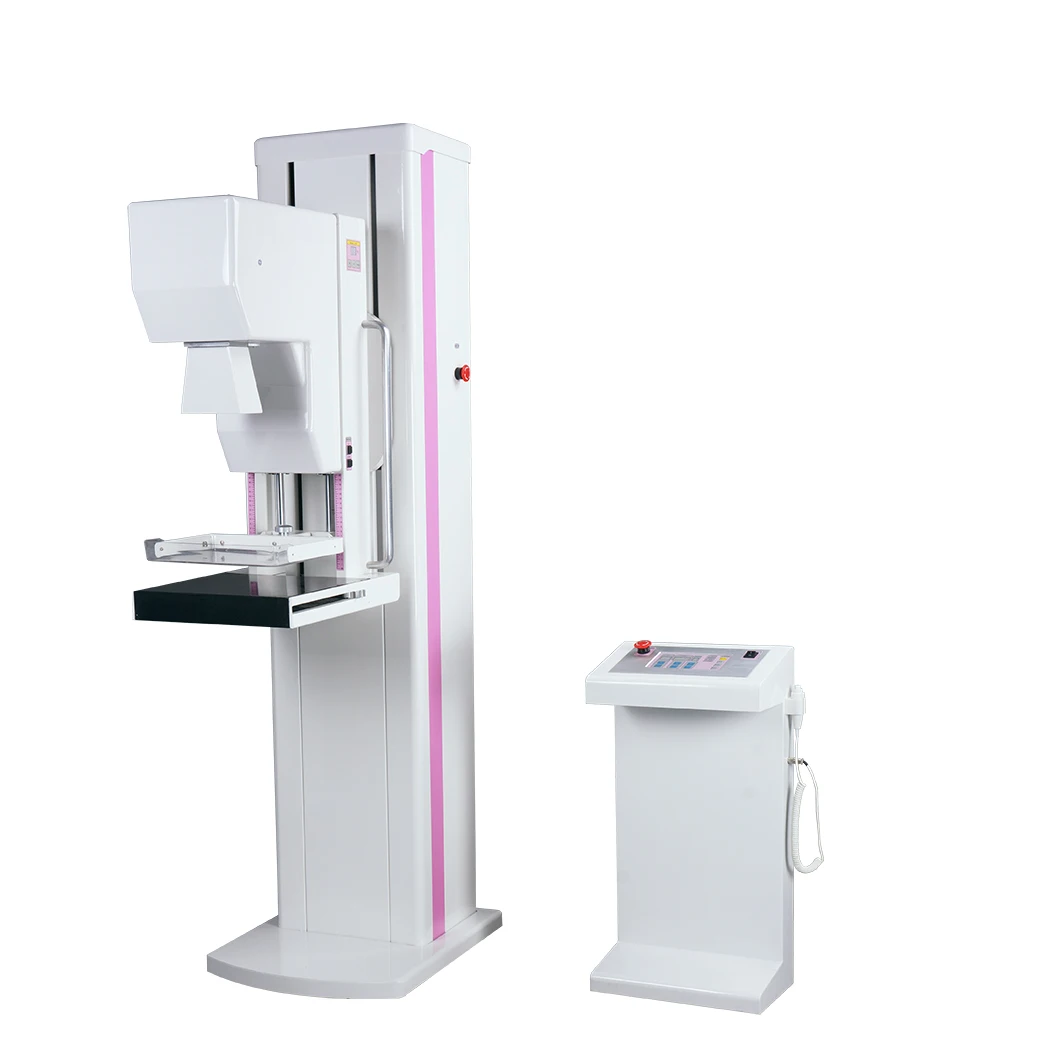

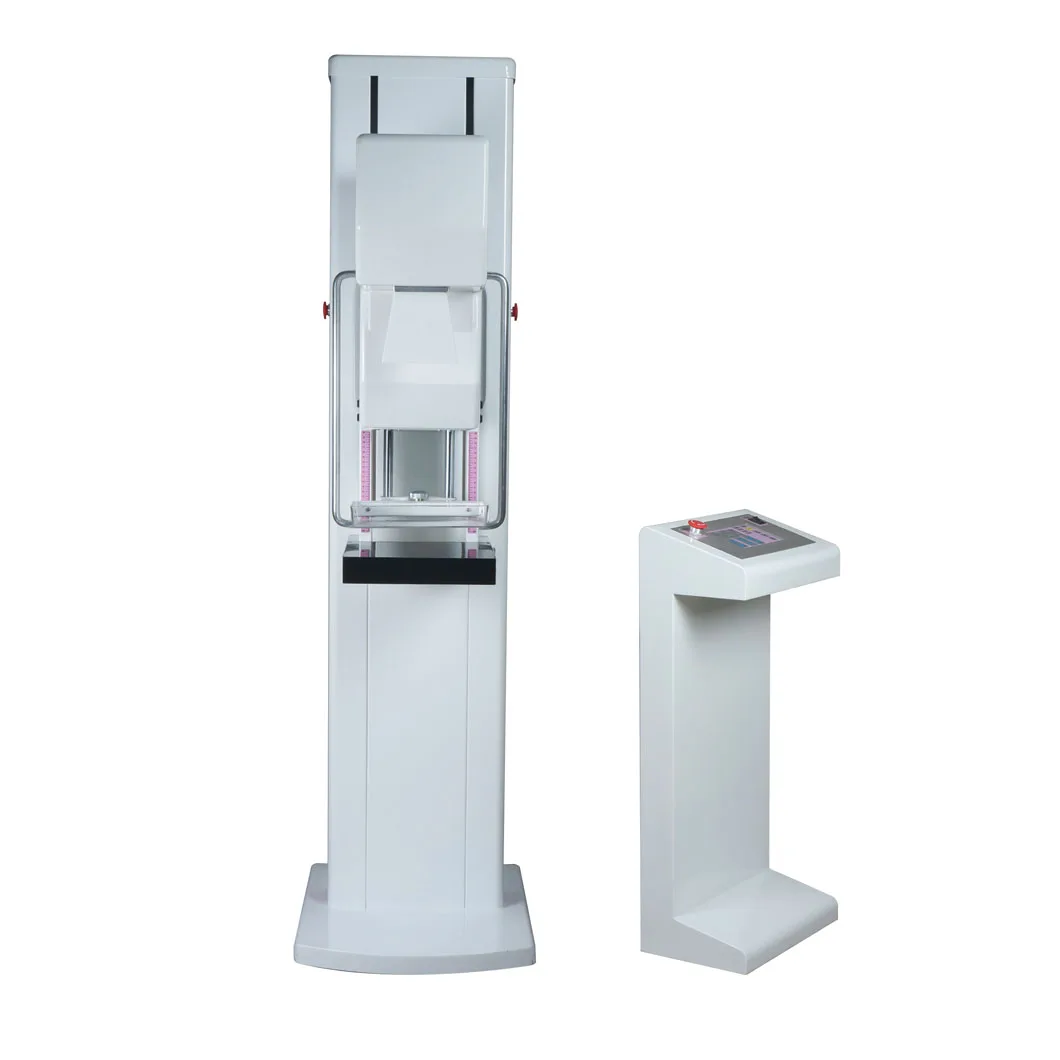

HM-9800B High Frequency 6kW Portable Medical Mamografo Equipment 3D Tomosynthesis Mammographie
- Overview
- Recommended Products
Products Description
HM-9000B High Frequency Mammography X-ray Machine
Two different X-ray tubes to choose:
• Hangzhou LR01 tube from China
• IAE C339V tube from Italy
Main Parameters
1. X-ray Generator
Complete solid-state high-frequency high-voltage generator.
Generator Type: High Frequency Inverter 80kHz
Input Power: Single phase 220VAC, 50/60Hz
Radiographic Ratings: Large Focal Point 20-35kV/10-510mAs
Small Focal Point 20-35kV/10-100mAs
Power Rating: 6kW
2. X-ray Tube
• Hangzhou LR01 tube from China
Focal Spot Size: Dual Focus 0.2 / 0.4mm
Target Material: Molybdenum (Mo)
Port Material: Beryllium (Be)
Anode Heat Storage: 100KJ
Anode Cooling: Air cooling
Filtration: Mo（0.03mm）, Al（0.5mm）
• IAE C339V tube from Italy
Focal Spot Size: Dual Focus 0.1/0.3mm
Target Material: Molybdenum (Mo)
Port Material: Beryllium (Be)
Anode Heat Storage: 210kJ (300kHU)
Anode Cooling: Air cooling
Filtration: Mo(0.03mm), Al(0.5mm)
3. Radiographic Stand
C-ARM: Vertical Movement: 580mm

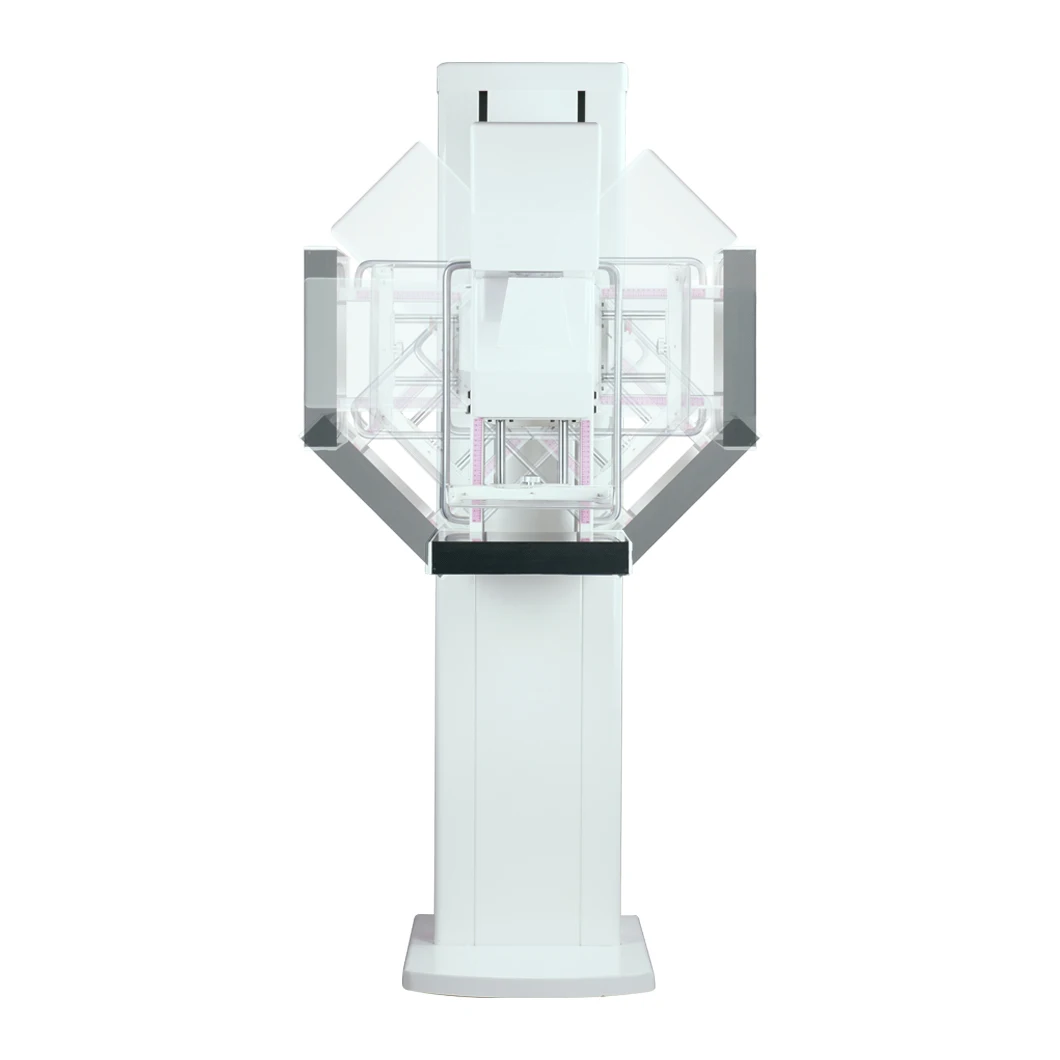

Rotations Deg: +175°~-180°
SID: 650mm
4. Cassette Image Receptor
Bucky Device: 18*24cm Bucky drive mechanism
Grid Ratio: 5:1, 30 Line/cm
5. Radiographic Stand
C-ARM Vertical Movement: 580mm
C-ARM Rotation: +175°～-180°
SID: 650mm
6. Line Voltage
220Vac@25A, Single phase
Product Name |
Digital Mammography |
Model |
HM-9800B |
