Introduction

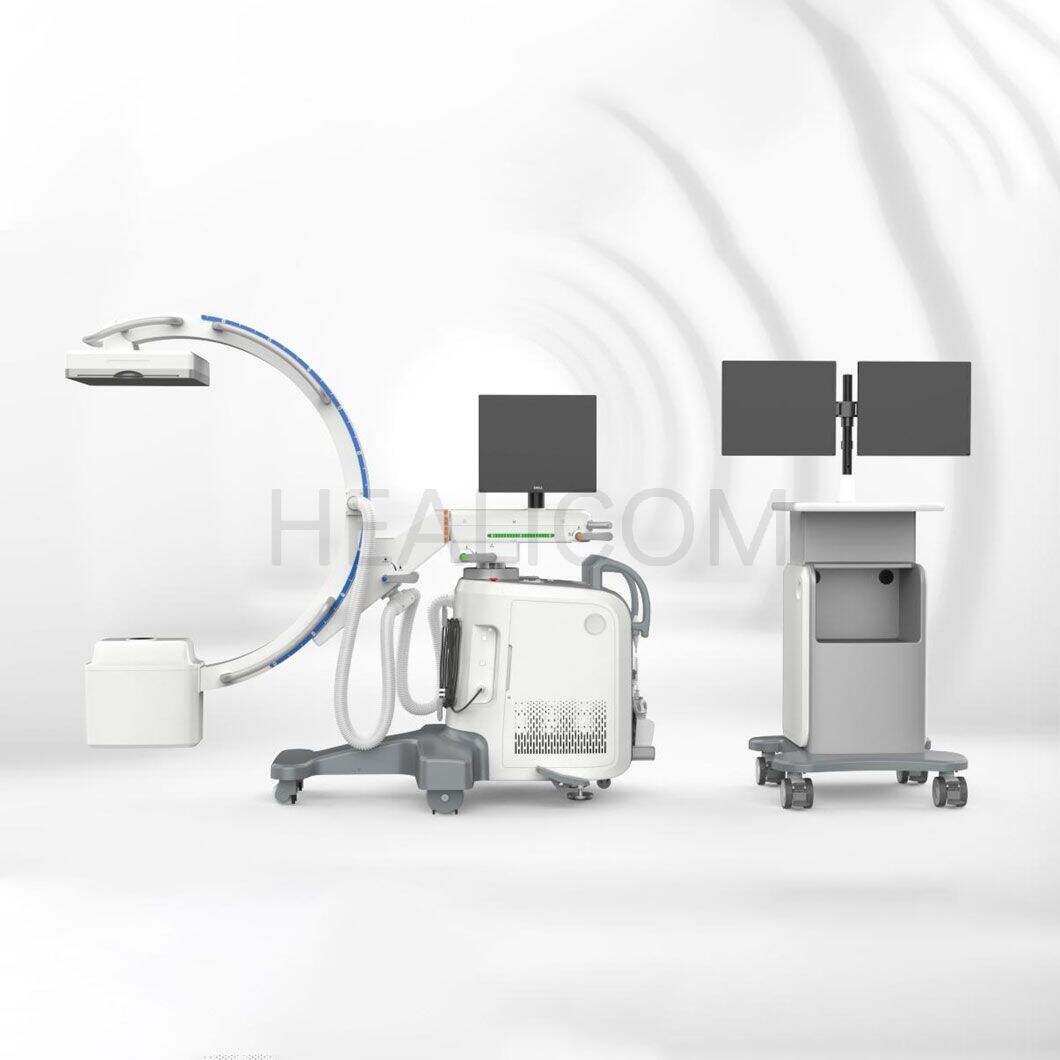

Multifunctional digital surgery system
HCX-50Aseries is a multi-functional high-definition digital imaging system that supports single/dual screen display. It can be widely used in spine surgery, trauma surgery, joint surgery and interventional surgery. Its smart design is suitable for different Spaces, large openings to meet the needs of patients with different body types, and digital high definition Detector can provide high-precision image information to help surgeons effectively predict patients' lesions, making surgery more safe, accurate and efficient.
Features

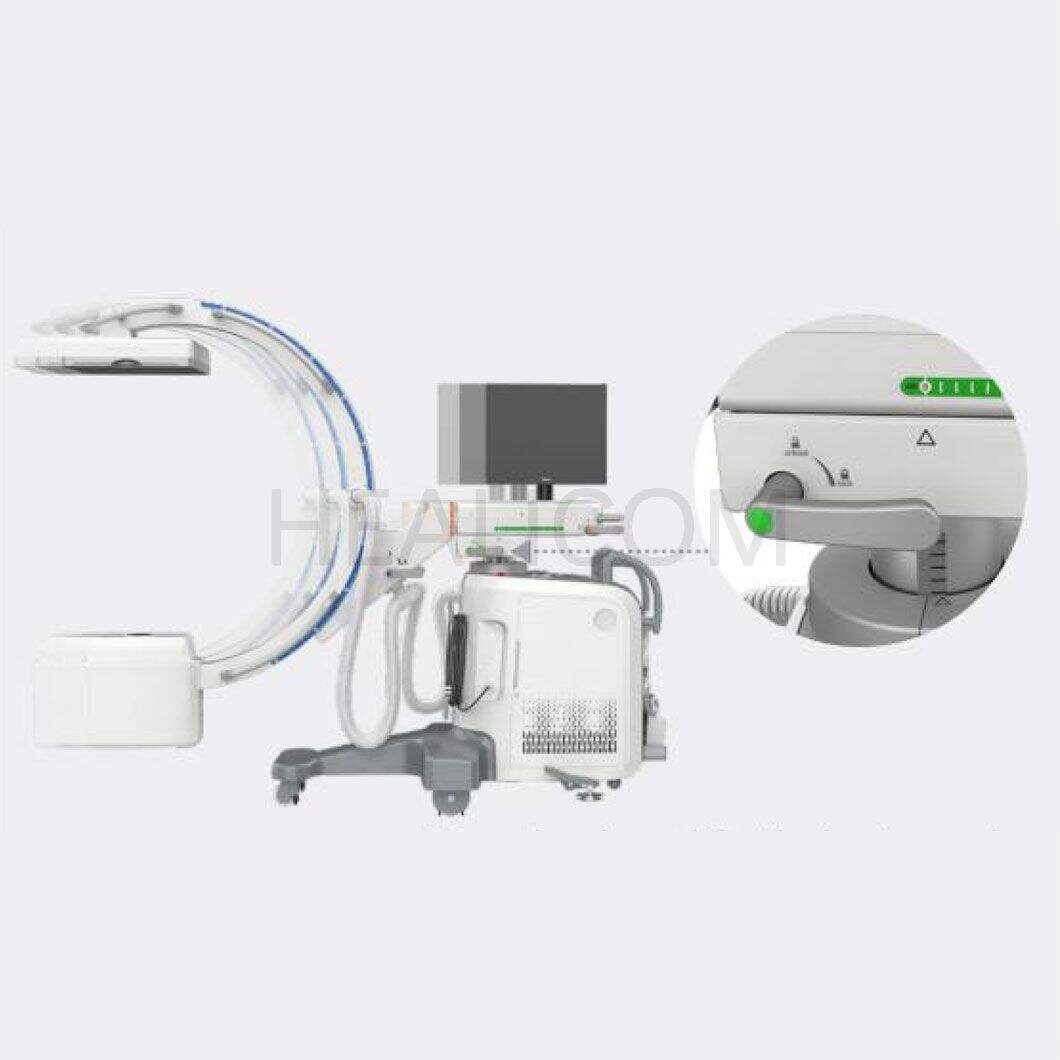

· C-arm free slip designrequires no repositioning
· 360° large rotating

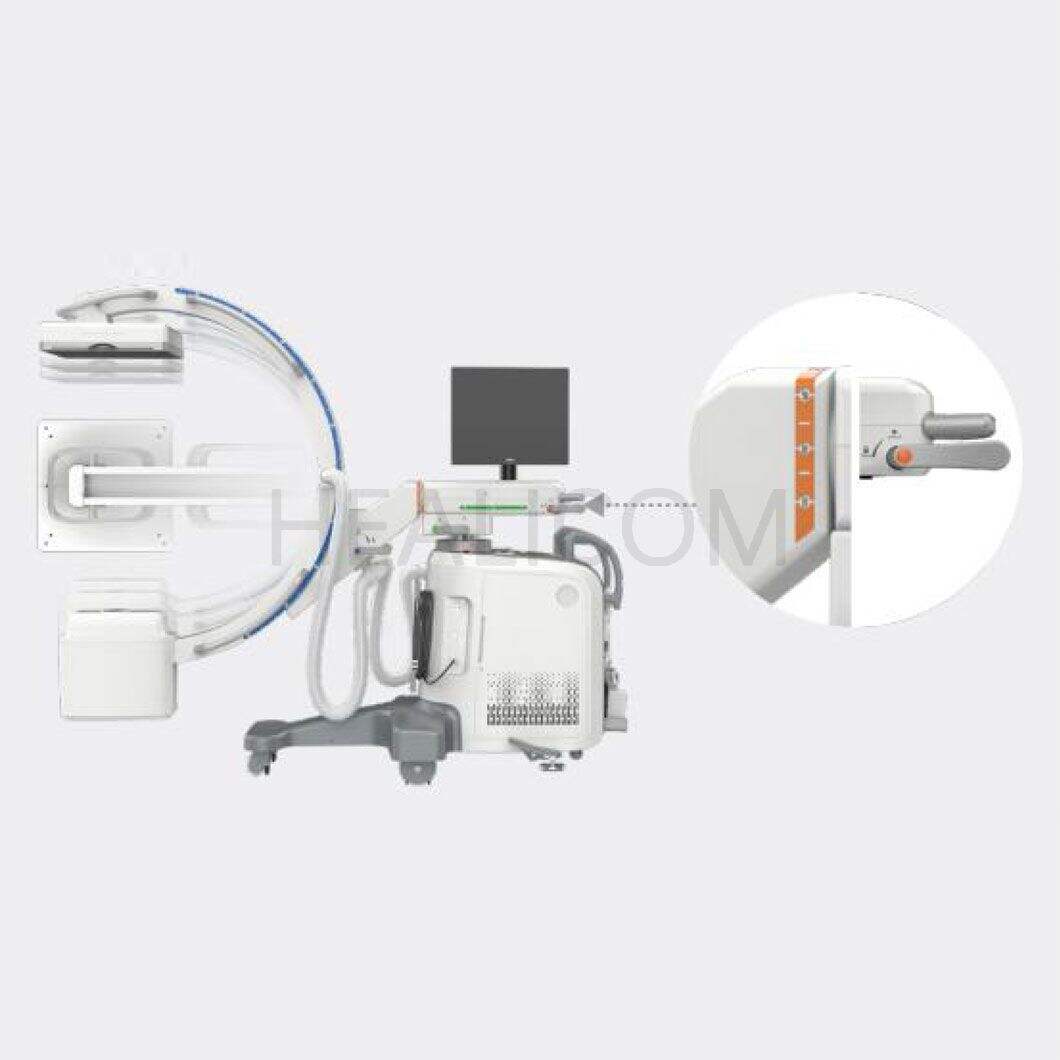

· Move back and forth dexterouslyGet to the desired location quickly

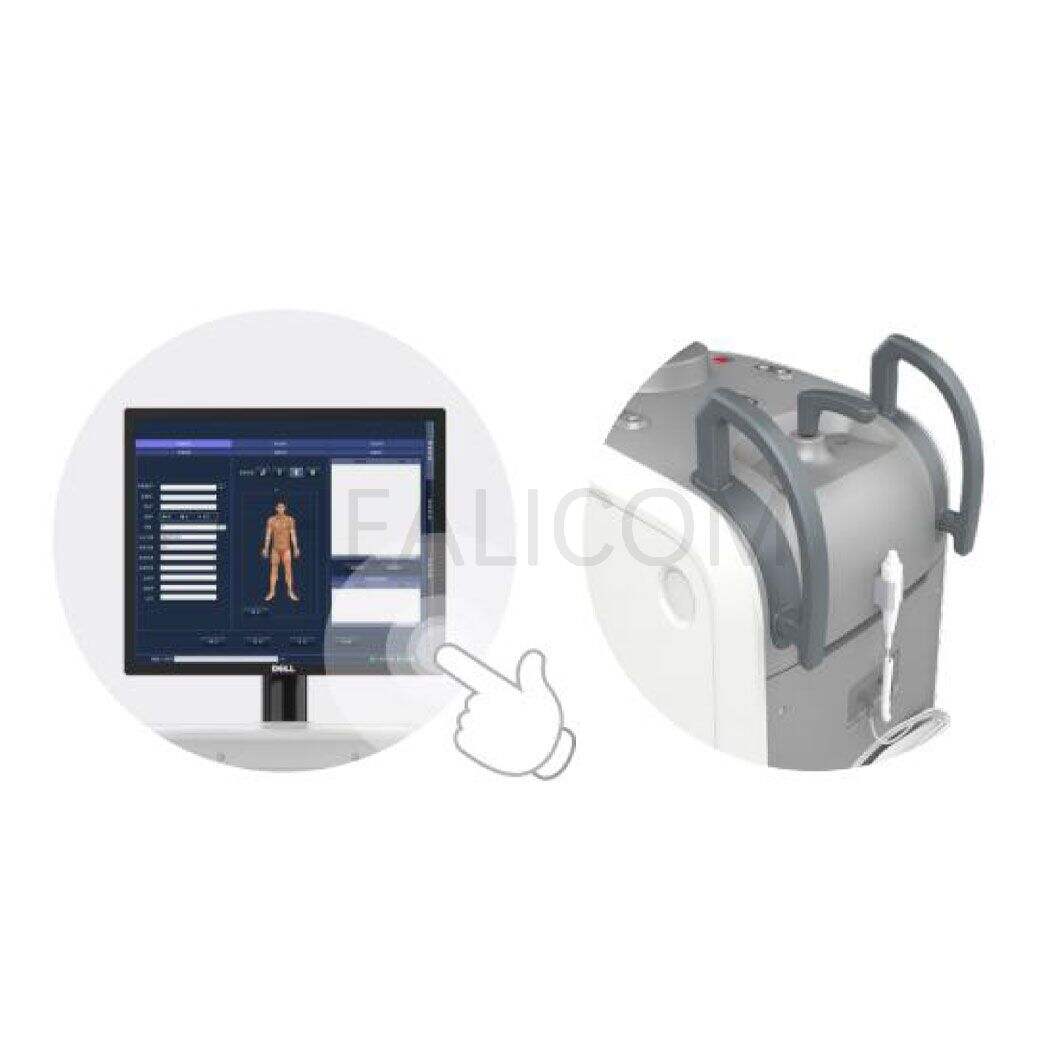

· Touch monitorfull touch operation

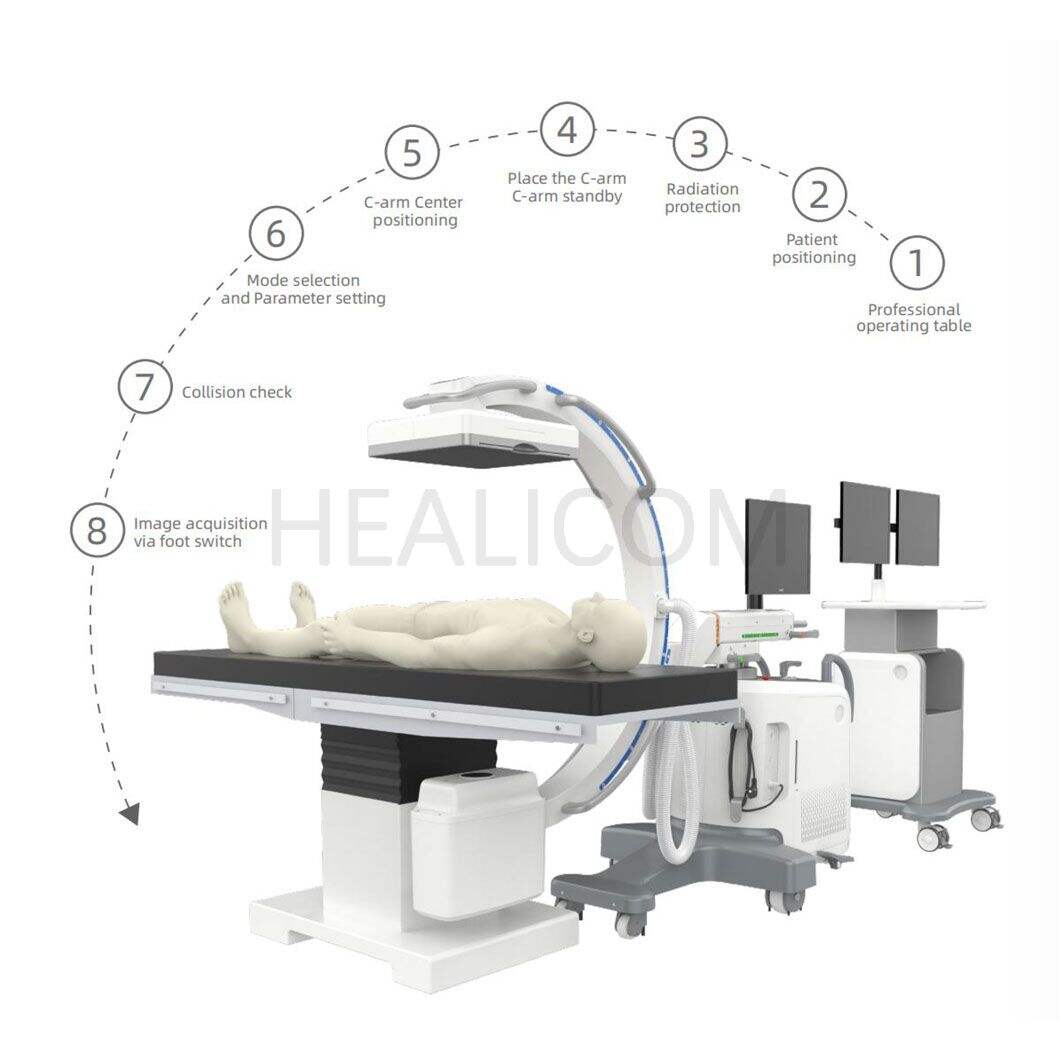

Smart movement

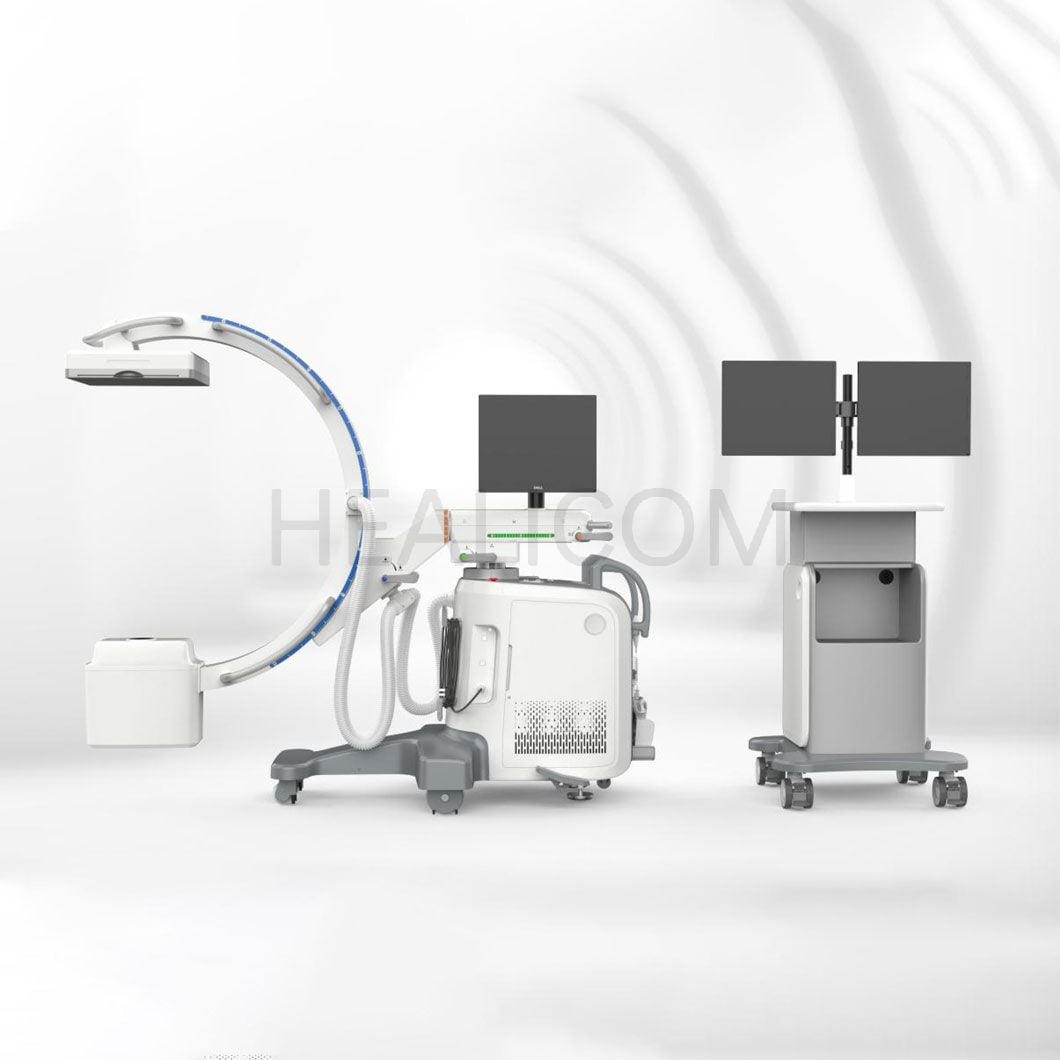

Multifunctional digital surgery system
HCX-50Aseries is a multi-functional high-definition digital imaging system that supports single/dual screen display. It can be widely used in spine surgery, trauma surgery, joint surgery and interventional surgery. Its smart design is suitable for different Spaces, large openings to meet the needs of patients with different body types, and digital high definition Detector can provide high-precision image information to help surgeons effectively predict patients' lesions, making surgery more safe, accurate and efficient.
Features
· C-arm free slip designrequires no repositioning
· 360° large rotating
· Move back and forth dexterouslyGet to the desired location quickly
· Touch monitorfull touch operation
Smart movement
Technical Parameters | |
Model |
HCX-50A |
System Requirements | |
Electric source (V) |
AC 220 |
Power (kW) |
15 |
Flat Panel Detector | |
Type |
Mercu1212X |
Spatial Resolution(lp/mm ) |
3.3 |
Pixel Matrix ( pixels ) |
2048 x2048 |
Pixel Pitch(ym) |
150 |
Removable grid |
yes |
Active area(mm ) |
307.2 x 307.2 |
Data Interface |
10G Ethernet |
Generator | |
KV range ( kV) |
40~125 / step length : 1 |
<5% rise time within 1ms | |
mA range(mA) |
0.2 ~150 |
+(5%+1)mA | |
Digital spot:100 | |
ms range ( ms ) |
2~60000 |
Mas range (mAs) |
0.2-100 |
X-ray Tube | |
Tyрe |
Rotating |
Focal spots(mm ) |
0.3/0.6 |
C-arm | |
SID(mm) |
1080 |
Free space in arc ( mm ) |
884 |
Depth in arc ( mm) |
708 |
Orbital rotation (°) |
150(117/-33) |
Lateral rotation (°) |
450(±225) |
Wig/wag(°) |
±15 |
Horizontal travel(mm) |
200 |
Vertical travel( mm) |
400 |
