Products Description

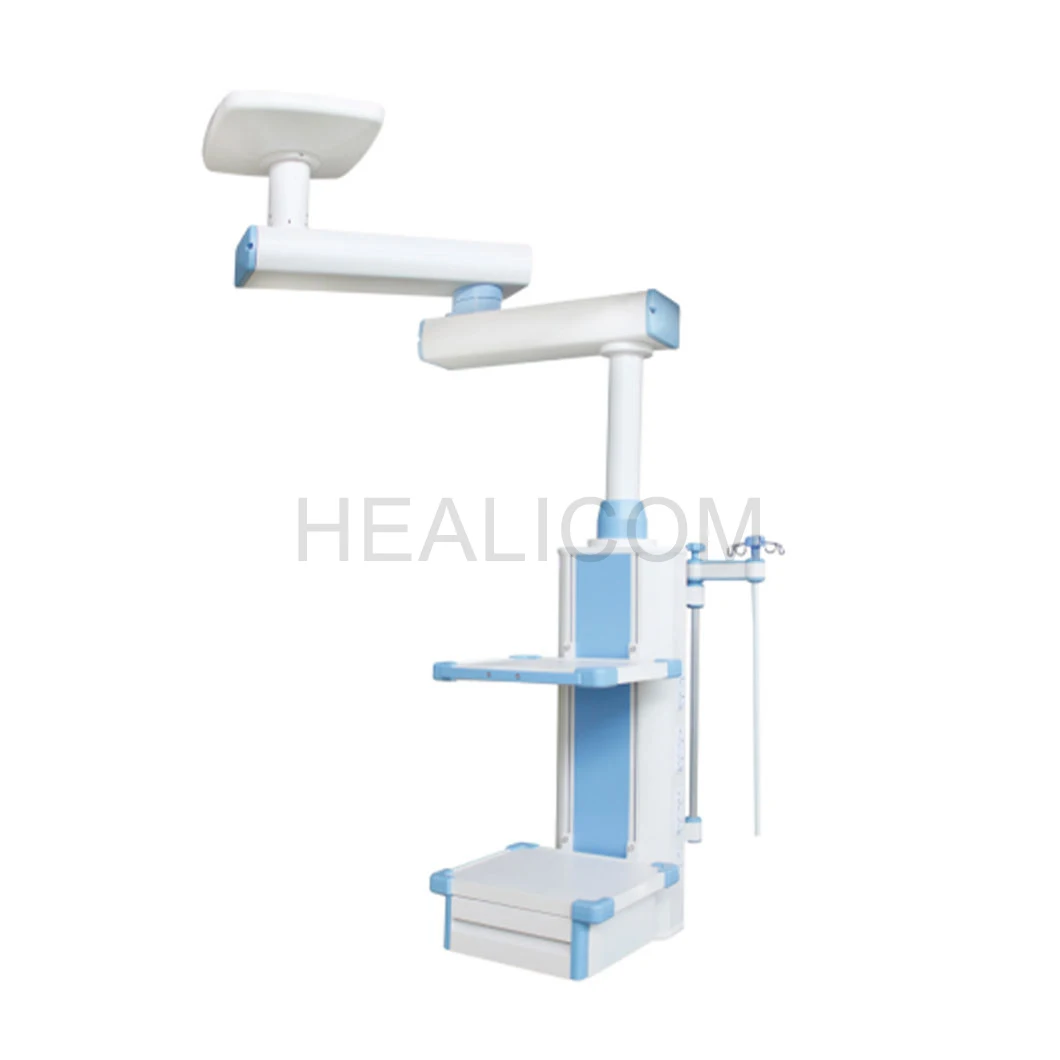

Best Price Multi Layer Instrument Platform Surgical Pendant Drawer and Streamlined Handle Design Double-arm Pendant
1. Working power supply: AC220V, 50HZ;
2. The length of the horizontal arm is 700mm+800mm, and the maximum rotation radius can reach more than 1500mm;
3. The equipment connection and rotation parts are equipped with damping brake devices, and there is no drift during the use of the equipment;
4. The joints of the equipment can rotate 340°;
5. The maximum load-bearing weight is ≥80kg;
6. The main body of the equipment is made of high-strength aluminum alloy profiles, fully enclosed design, and molded production; there is no relative movement between the power lines and gas source pipelines of the equipment carried on the tower and the tower body, and all power lines and gas source pipelines are not exposed. The tower will not fall off due to changes in position during movement. The surface of the tower body is clean, there are no exposed screws, and the surface treatment is electrostatic spraying, which is anti-aging and anti-corrosion, and convenient for cleaning and surface disinfection.
7. Tower length 1000mm;
8. Instrument platform: 2-layer instrument platform, the upper instrument platform is equipped with a streamlined handle to facilitate the position adjustment of the equipment; the lower layer is equipped with a drawer; the platform corners should be rounded and anti-collision;
9. 4 national standards for gas terminals: 2 oxygen, 1 negative pressure suction, and 1 compressed air;
a. The interface color and shape are different, with anti-wrong connection function;
b. The number of plugging and unplugging times is more than 20,000 times;
10. Electrical sockets: 9, 220V, 10A (compatible with national, American, British, and German standards), the power sockets are installed in separate electrical isolation cabins on both sides of the tower to achieve electrical and gas separation;
11. 1 set of aluminum alloy adjustable infusion pump stand (4 stainless steel hooks).
12. Equipotential grounding terminal: 1.
13. Network interface: 1 RJ45.
14. Internal gas pipeline: medical gas pressure-resistant conduit, blue (air), transparent (oxygen), orange (negative pressure), outer diameter 8mm, inner diameter 5mm.
Internal circuit wire: 2.5² multi-strand copper core wire, red, blue, yellow (ground).
Product Name |
Medical Pendant |
Model |
HNDT-04 |
Related Products
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
