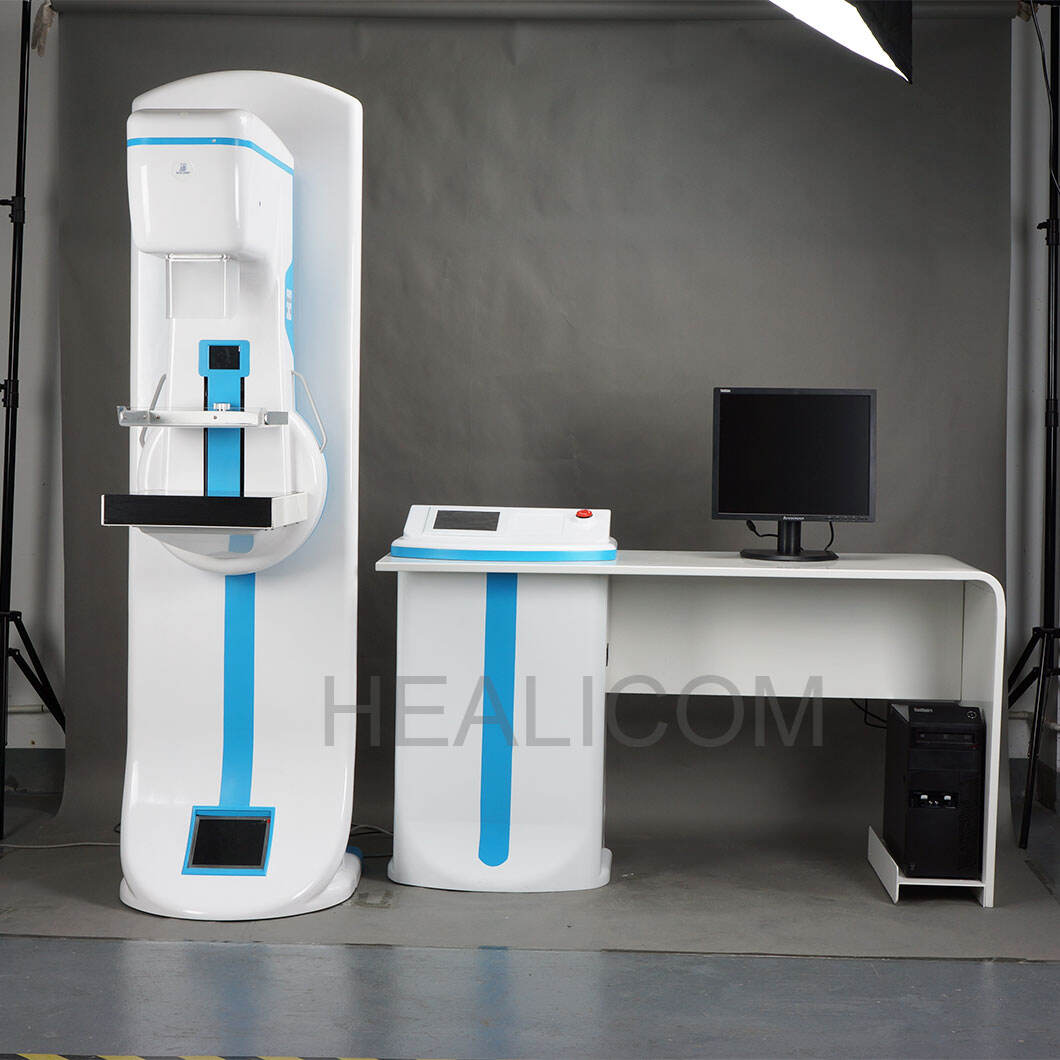

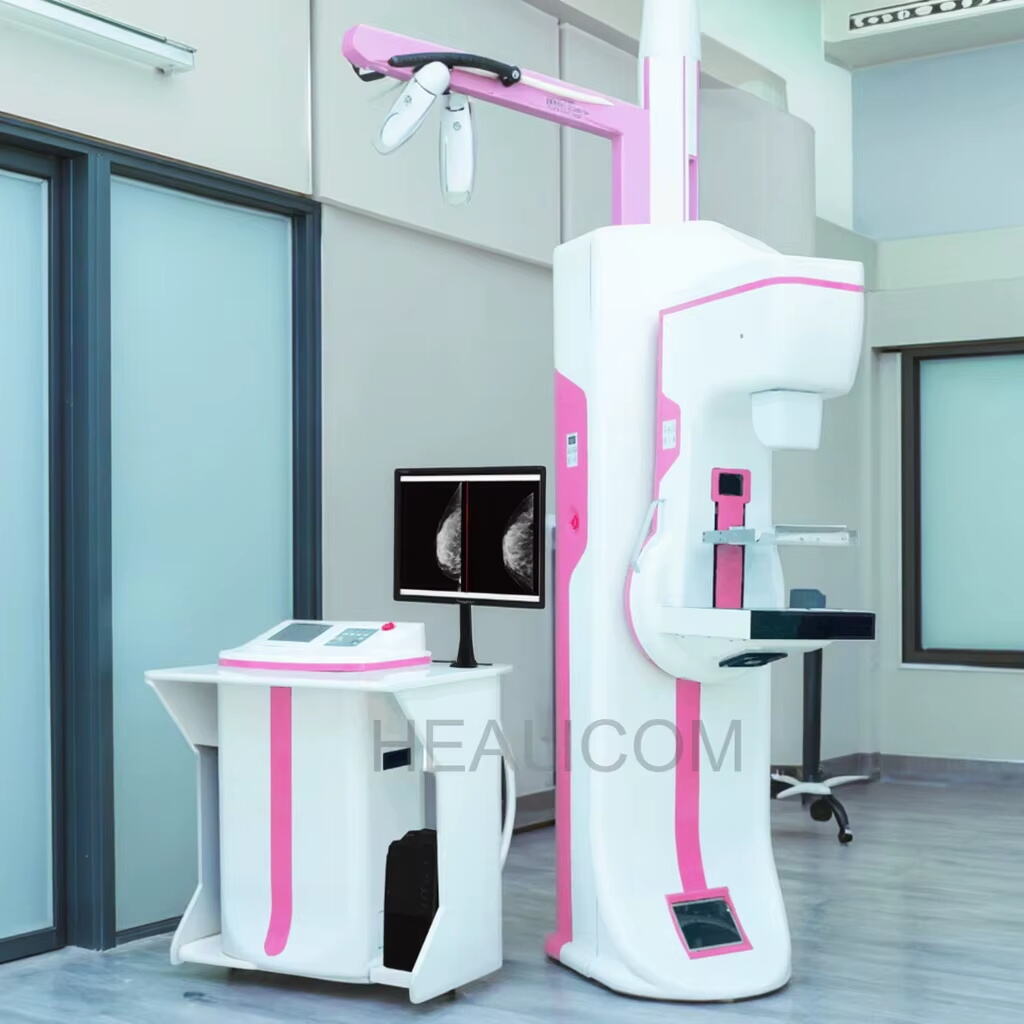

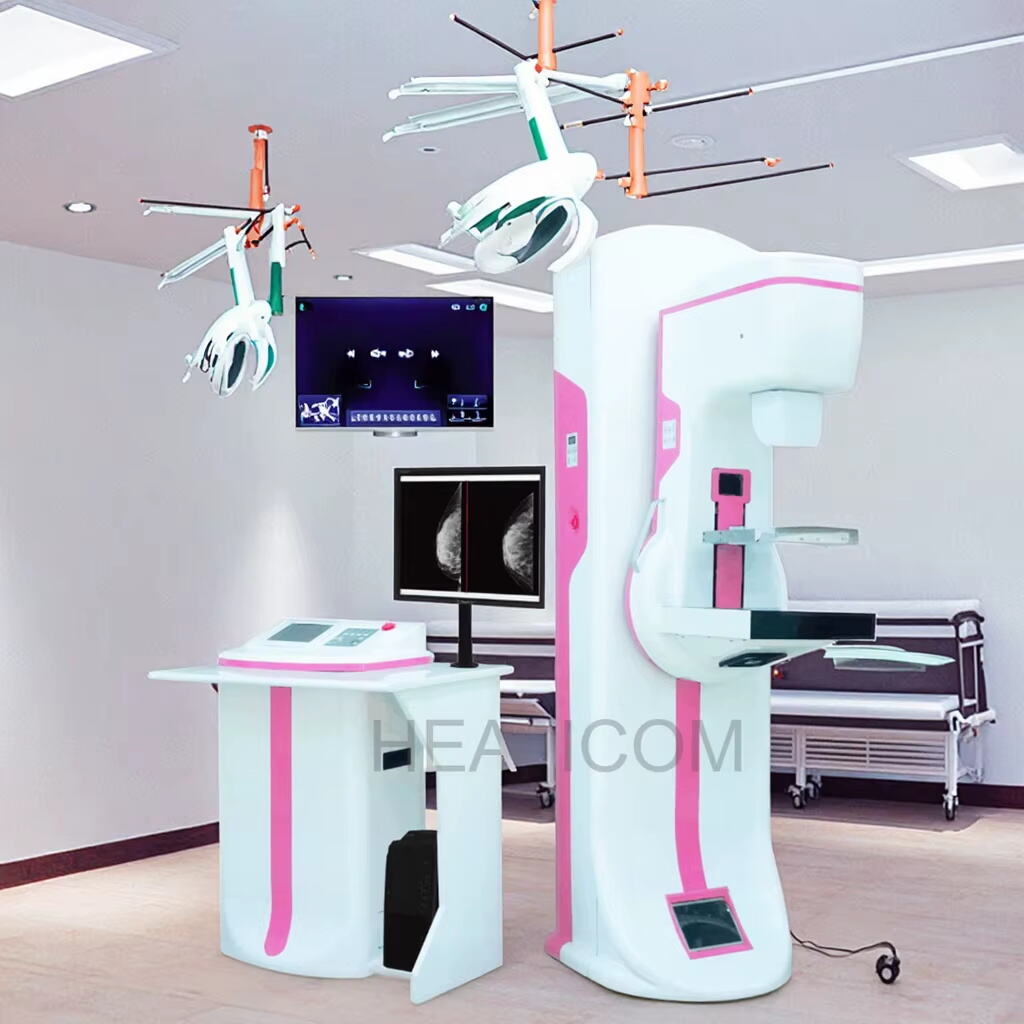

Products Description
Technical Specification
| No. | Item | Specification |
| 1 | X-ray Generator | |
| 1.1 | Definition | Complete Solid-state High-frequency High-voltage Generator. |
| 1.2 | Generator Type | High Frequency Inverter 80kHz |
| 1.3 | Input Power | Single Phase 220VAC, 50/60Hz |
| Large Focal Point 20-35kV/10-510mAs | ||
| 1.4 | Radiographic Ratings | Small Focal Point 20-35kV/10-100mAs |
| 1.5 | Power Rating | 6.2kW |
| 2 | X-ray Tube | |
| 2.1 | Model | IAE C339V |
| 2.2 | Focal Spot Size | Dual Focus 0.1/ 0.3mm |
| 2.3 | Target Material | Molybdenum (Mo) |
| 2.4 | Port Material | Beryllium (Be) |
| 2.5 | High-speed Anode Drive | 3000 /10000 rpm |
| 2.6 | Target Angle | 10°/15° |
| 2.7 | Anode Heat Storage | 225KJ (300KHU) |
| 2.8 | Anode Cooling | Air Cooling |
| 2.9 | Filtration | Mo（0.03mm） |
| 3 | Radiographic Stand | |
| 3.1 | U-arm Vertical Movement | 560mm |
| 3.2 | U-arm Rotation | Automatic return function by one key |
| 3.3 | Rotations Deg | +90°~-90° |
| 3.4 | Compressor | The compressor is automatically released after the exposure is completed |
| 3.5 | Compressor Max. Pressure | 200N |
| 3.6 | Compressor Max. Travel | 156mm |
| 3.7 | SID | 650mm |
| 4 | Detector | |
| 4.1 | Detector Material | Amorphous Silicon |
| 4.2 | Effective Coverage Of Detector | 24cm×30cm |
| 4.3 | Pixel Matrix | 2816×3528 |
| 4.4 | Limit Of Spatial Resolution | 6.0Lp/mm |
| 4.5 | DQE Value | @4 Lp/mm:≥35% |
| 4.6 | Dynamic Range | 14bit Digital Output |
| 4.7 | Pixel Size | 85μm |
| 4.8 | Output | Ethernet |
| 4.9 | Working Condition | 10℃-40℃ |
| 4.1 | Storage Environment | -10℃-50℃ |
| 5 | Image Acquisition Workstation Hardware | |
| 5.1 | CPU | Intel Core Duo 3.0GHz |
| 5.2 | Hardware | ≥1T high Speed Hardware |
| 5.3 | Memory | ≥8G |
| 5.4 | Display Card | ≥2G |
| 5.5 | High Brightness High-contrast LCD | 1920*1080Pixel Resolution |
| 5.6 | Network interface Worklist | DICOM3.0 Transmission |
| 100/1000 Gigabit Ethernet | ||
| 5.7 | Software | Imaging Software Package DMOC V1.0 |
| 6 | Line Voltage | 220VAC@15A,Single Phase |
| 7 | Packing Weight | 469kg |
Customer Feedbacks
Company Profile
FAQ
1. What about the price level? We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts. 2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same? As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper. 3. What is time of delivery? Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible. 4. What about quality assurance? We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. 5. What is payment terms? T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
