Professional Hospital Use Molybdenum Target Mammography X-ray Machine for Breast Diagnostic Examination
- Overview
- Recommended Products
Products Description

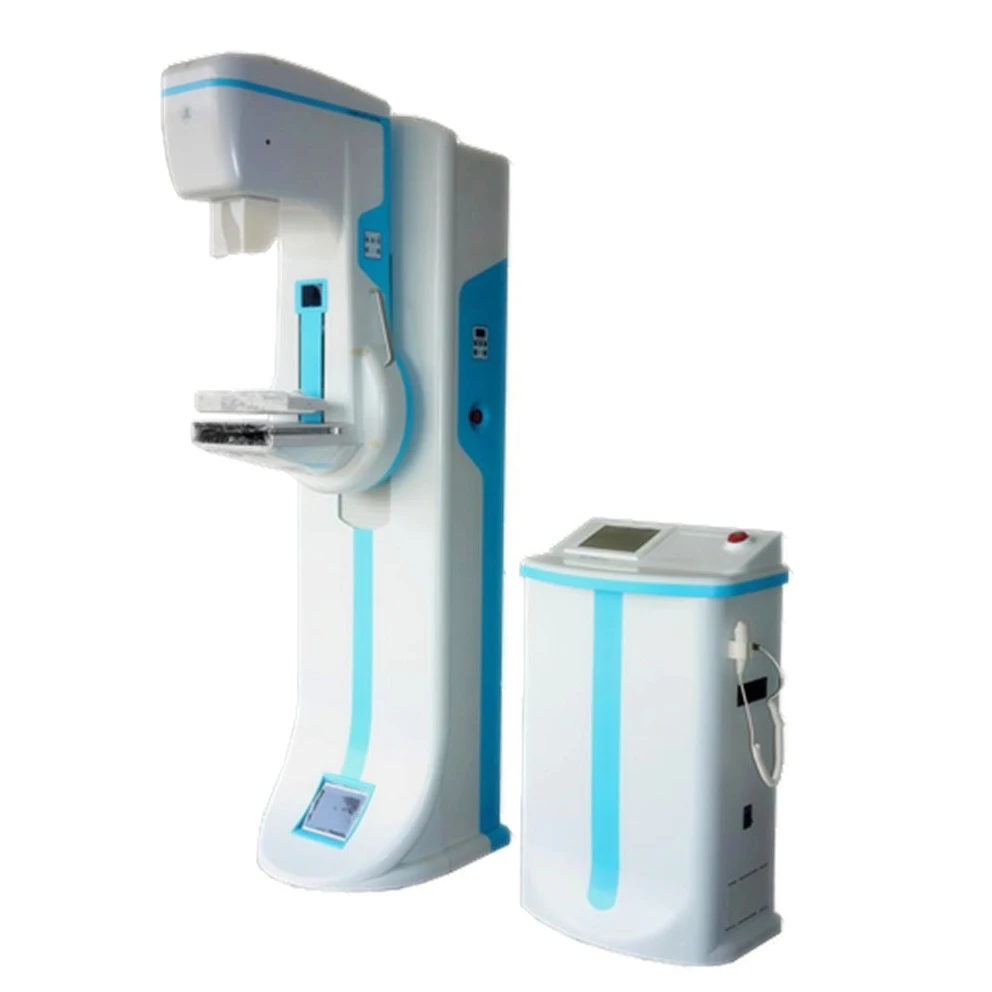

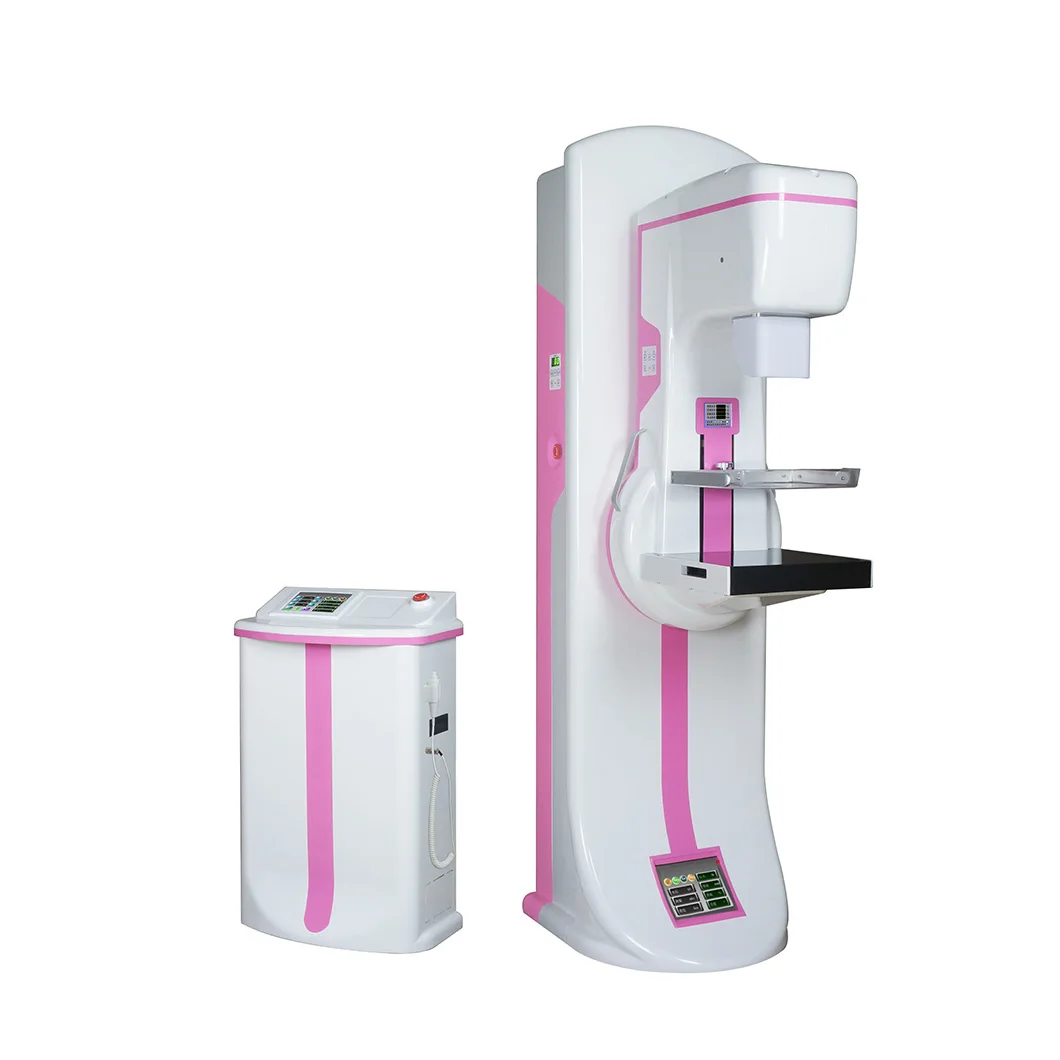

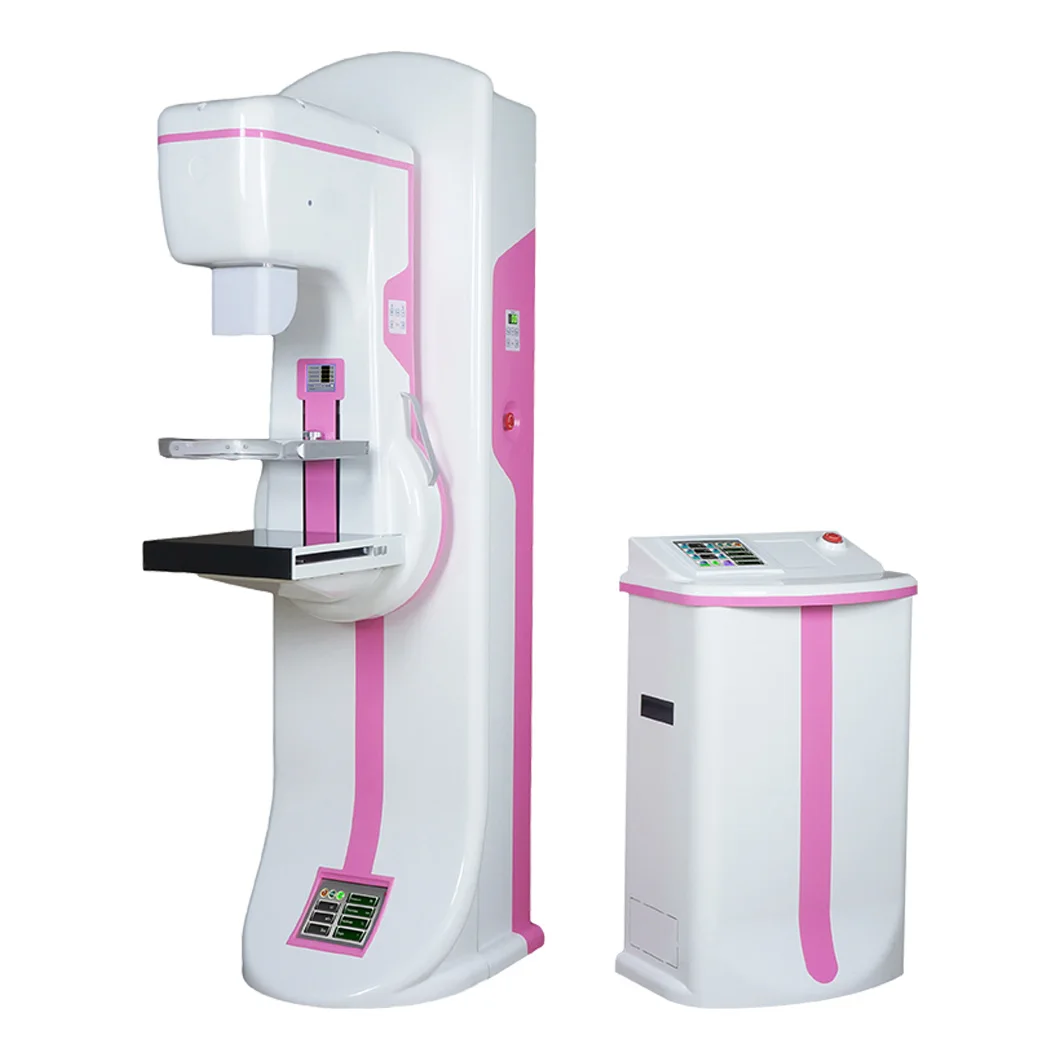

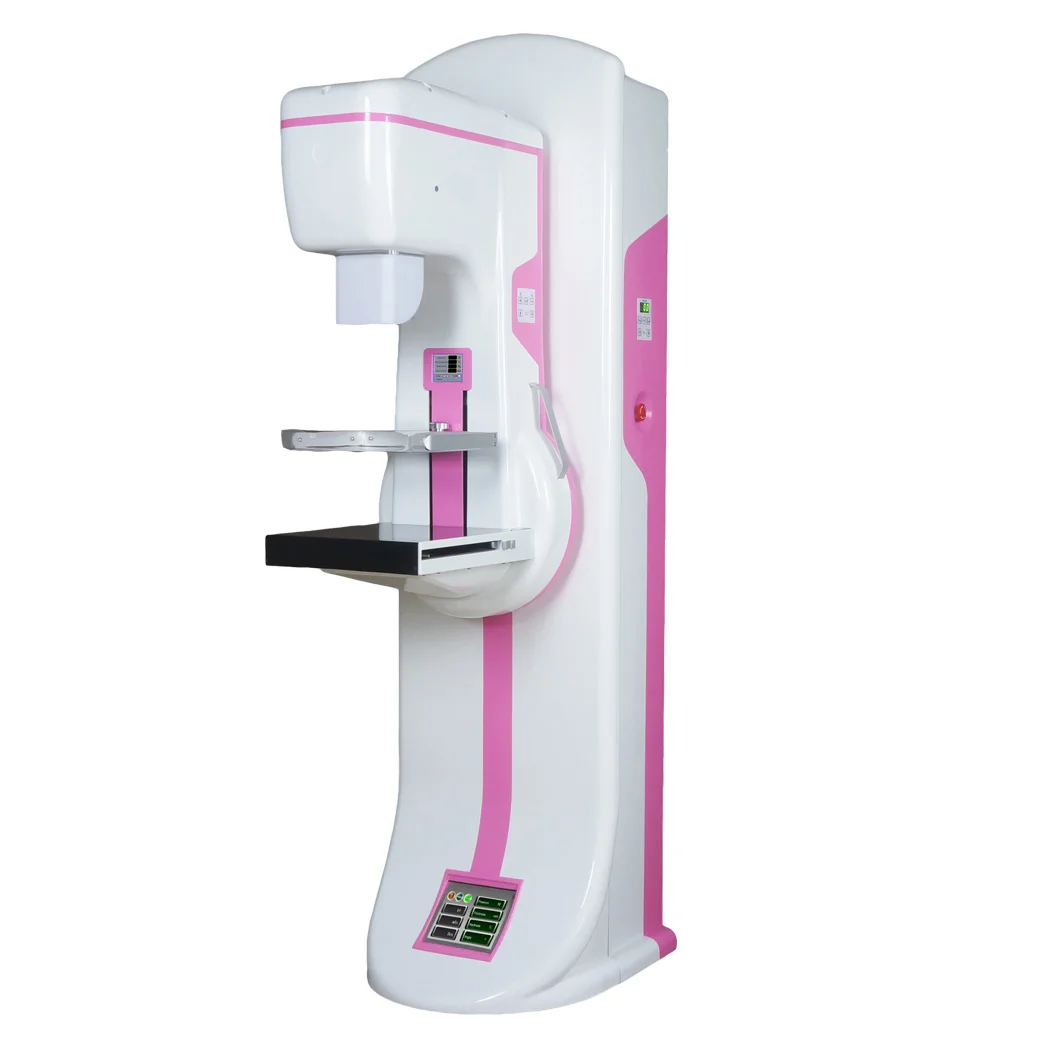

Molybdenum Target Mammography X-ray Machine For Breast Diagnostic Examination
Two different X-ray tubes to choose:
• Hangzhou LR01 tube from China
• IAE C339V tube from Italy
Features
1. The HM-9800D high frequency molybdenum target mammography machine are featured with very small focus, high resolution, low dosage and micro-computer controlled.
2. It is a high-performance breast screening machine for iconography examination of mammary diseases and with high sensitivity for mammary benign lumps, nodes, calcified points and early detection of malignant.
3. Easy to use user interface design with finger touch operation panel, fast reachable buttons and foot switch.
4. Streamlined compressor plate provides the intact breast images.
High quality carbon fiber catridge table with low X-ray absorption that reduces scattered X-ray.
5. The 80KHz high frequency generator designed with advanced IGBT high-frequency inversion technology and quasi-resonant ressure boosting technology.
6. It provides high efficiency, stable voltage, pure output spectral line that produces high-definition images.
7. Reliable and durable mechanical design provides:
Electrical up/down moving smoothly and quiet.
360 free rotation C-arm provides imaging flexibility.
Main Parameters
1. X-ray Generator
Complete solid-state high-frequency high-voltage generator.
Generator Type: High Frequency Inverter 80kHz
Input Power: Single phase 220VAC, 50/60Hz
Radiographic Ratings: Large Focal Point 20-35kV/10-510mAs
Small Focal Point 20-35kV/10-100mAs
Power Rating: 6kW
2. X-ray Tube
• Hangzhou LR01 tube from China
Focal Spot Size: Dual Focus 0.2 / 0.4mm
Target Material: Molybdenum (Mo)
Port Material: Beryllium (Be)
High-speed anode drive: 2800/1000rpm
Target angle: 12°/12°
Anode Heat Storage: 100KJ (150kHU)
Anode Cooling: Air cooling
Filtration: Mo（0.03mm）, Al（0.5mm）
• IAE C339V tube from Italy
Focal Spot Size: Dual Focus 0.1/0.3mm
Target Material: Molybdenum (Mo)
Port Material: Beryllium (Be)
High-speed anode drive: 2800/1000rpm
Target angle: 10°/16°
Anode Heat Storage: 210kJ (300kHU)
Anode Cooling: Air cooling
Filtration: Mo(0.03mm), Al(0.5mm)
3. Radiographic Stand
C-ARM: Vertical Movement: 590mm
Center of electric rotating C-arm, automatic return function by one key
Automatically released after the exposure pressure settings display
Compression flexible stepless speed.
Max. pressure: 200N
Max. travel: 150mm

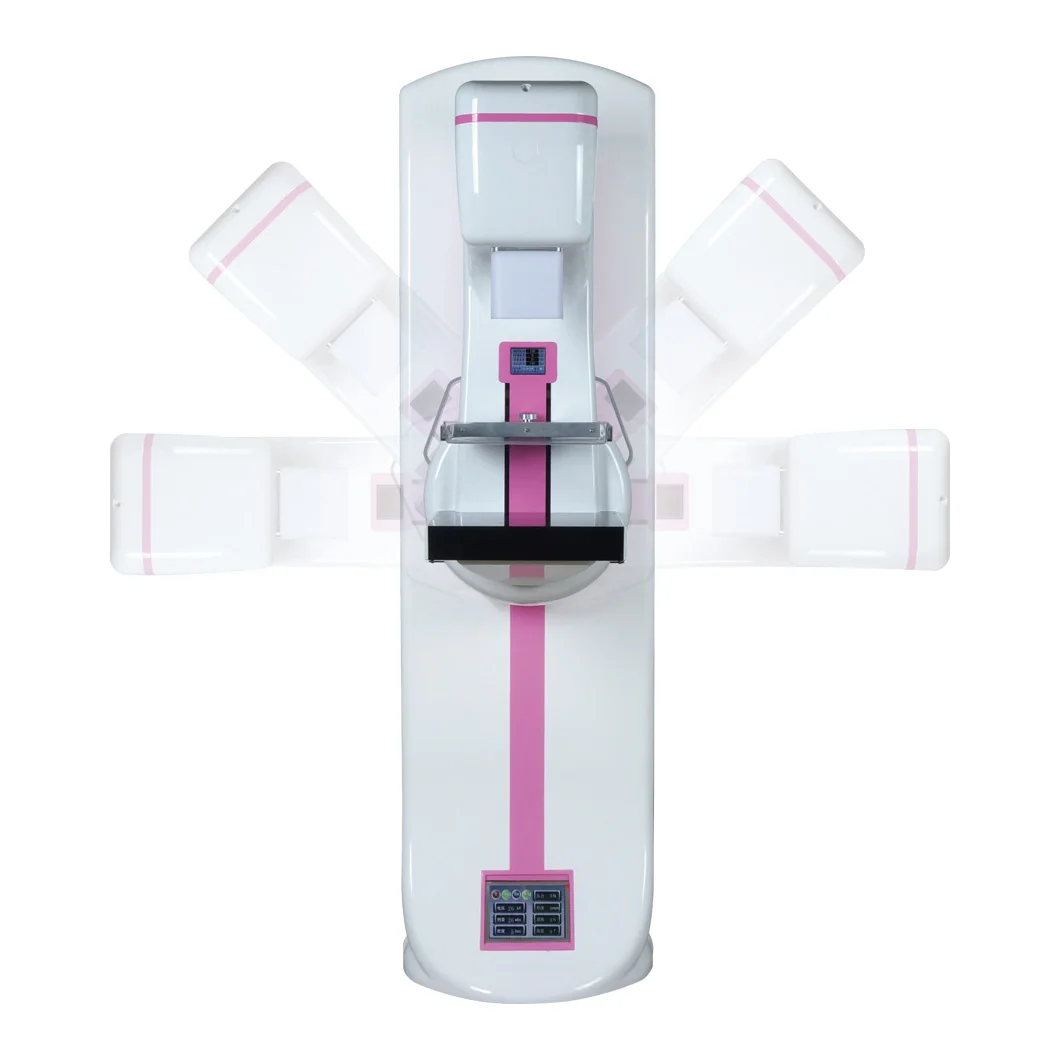

Rotations Deg: +90°~-90°
SID: 650mm
4. Cassette Image Receptor
18*24cm (24cm*30cm optional)
Bucky Device: 18*24cm Bucky drive mechanism,(24cm*30cm optional)
Grid Ratio: 5:1, 30 Line/cm
5. Line Voltage
220Vac@25A, Single phase
6. Weight and Size
240kg(Gross weight: 340kg)
L*W×H: 940mm*560mm*2000mm
Generator Type |
High Frequency Inverter 80kHz |
Power Rating |
6kW |
