Hot Sale Hospital Medical Laptop Handheld Full Digital Portable Ophthalmic A/B Ultrasound Scanner
- Overview
- Recommended Products
Products Description

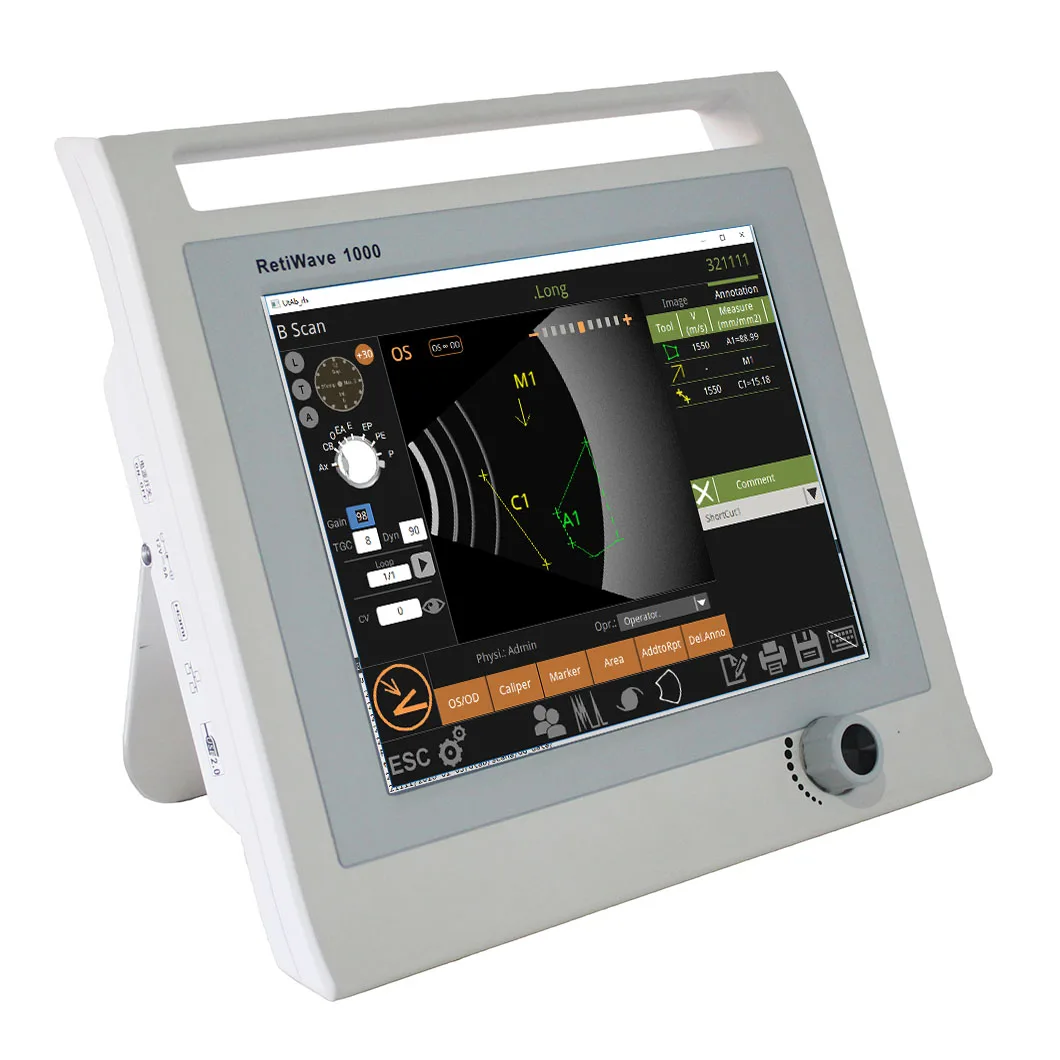

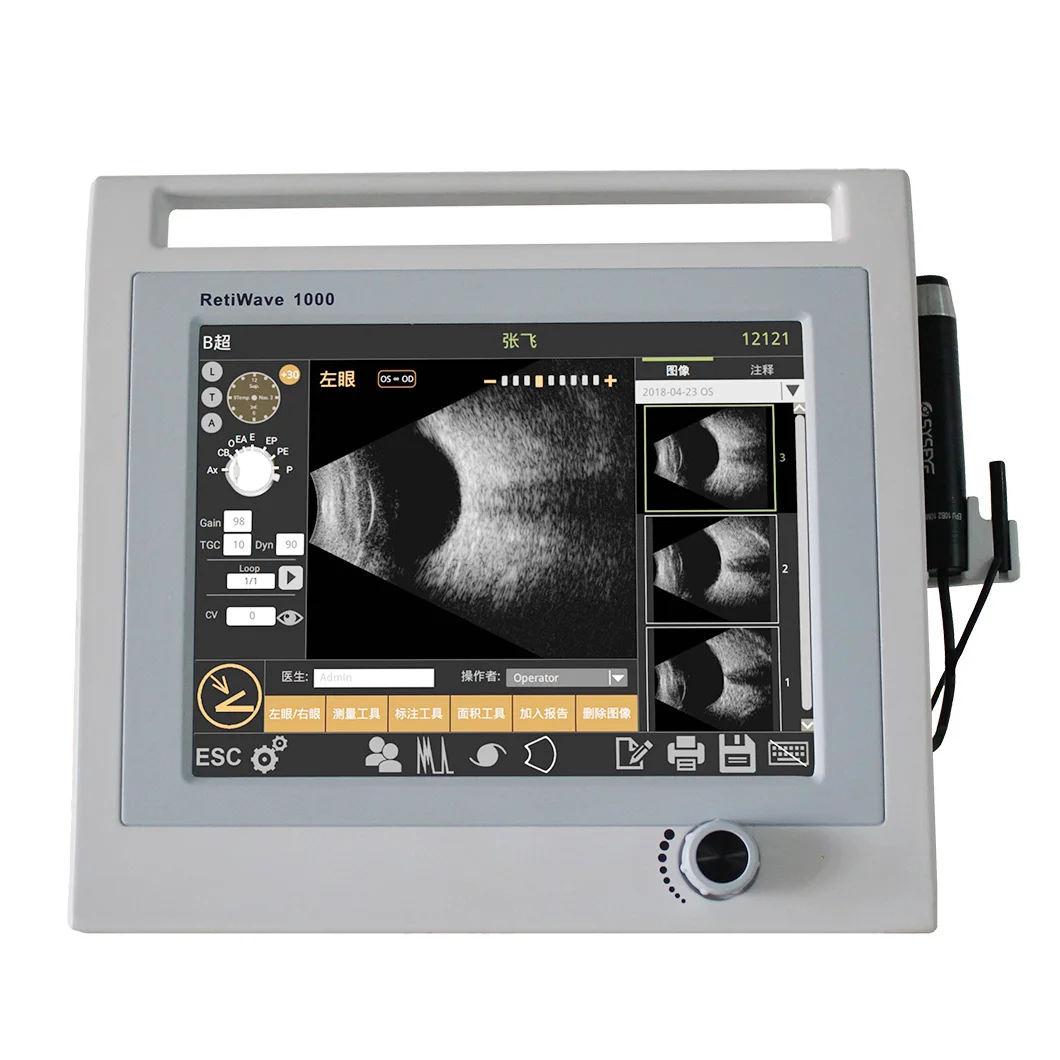

HAB-1000 Ultrasound Ophthalmic A / B Scanner
HAB-1000 is digital ultrasonic system for ophthalmology. With advanced intelligent digital software the parameters of freezed and stored images could be adjusted voluntarily.

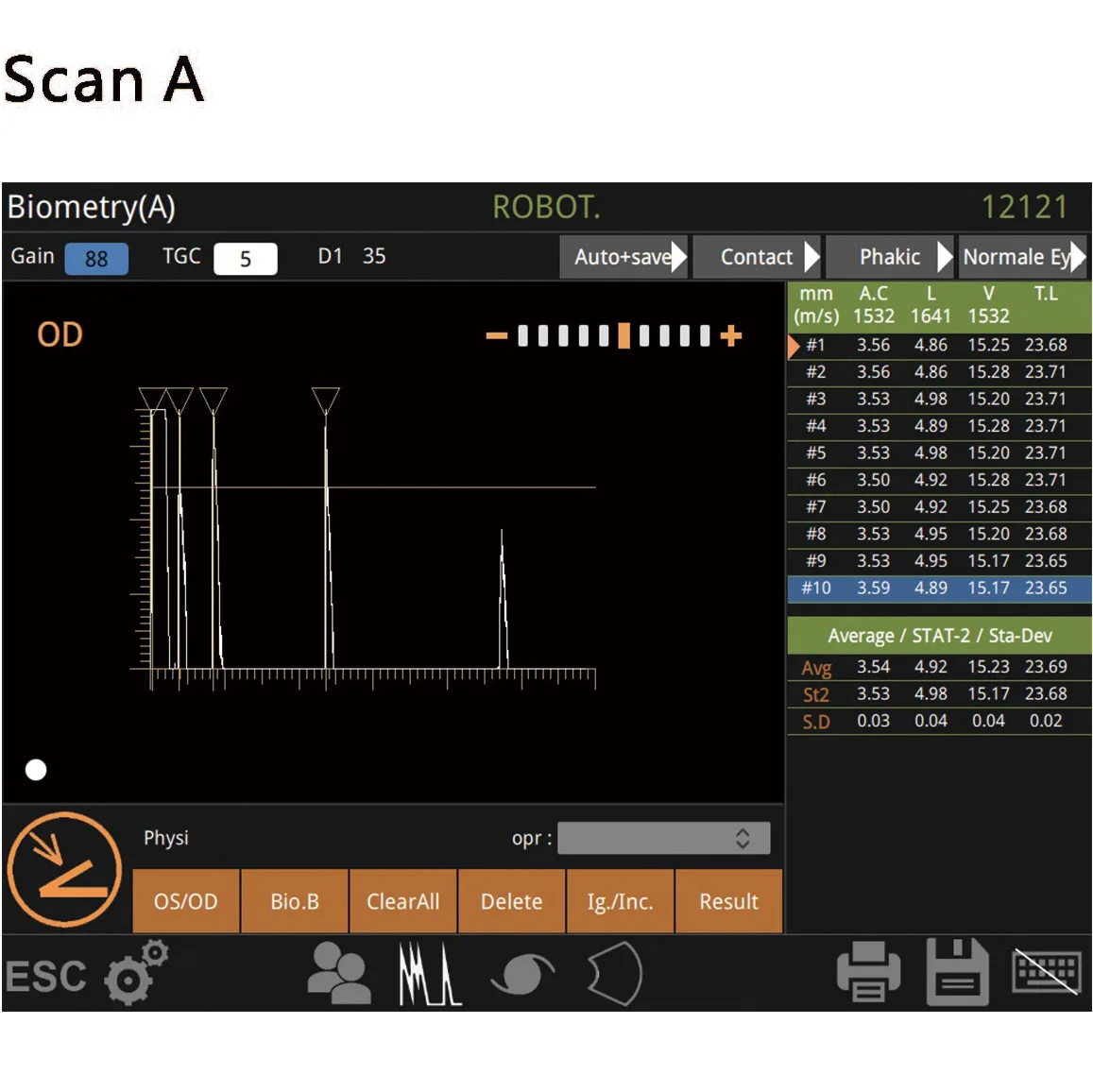

Scan A measures data for every part of the eyeball as anterior chamber depth, lens thickness, axial length and so on which are needed in ophthalmic surgeries, and calculates IOL by axial length.

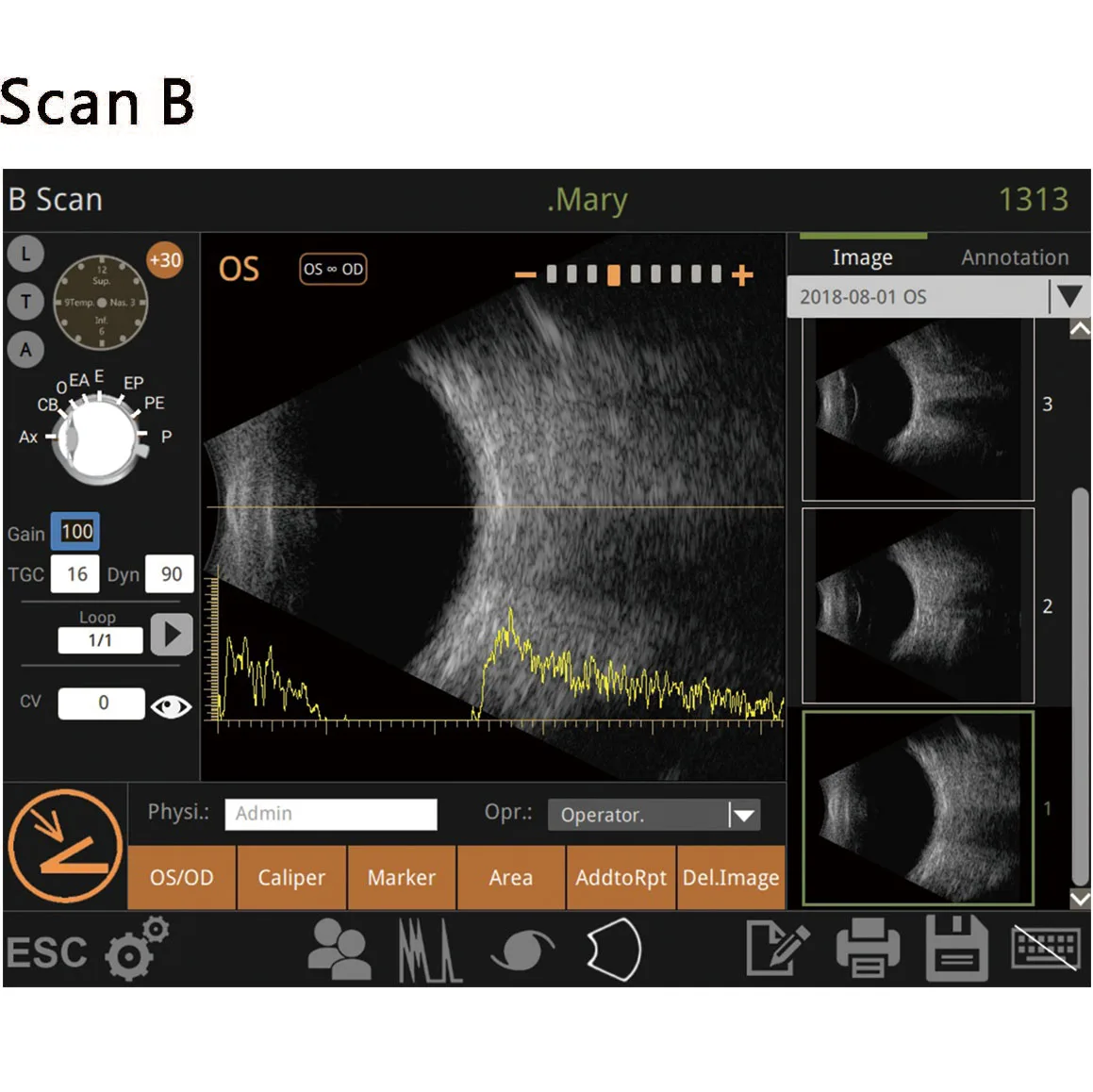

Scan B displays profile images of the eyeball clearly and directly. Scanning anatomical forms and nidi inside the eyeball, doctors can diagnose accurately for examination of cataract, vitreous body disease, ocular trauma, detachment of retina or choroid, macula disease, and intraocular tumor, etc..
A Scan biometry |
||
Probe frequency |
10MHz |
|
Measuring mode |
contact |
|
Measuring range |
Over 5mm-40mm |
|
Measuring error |
≤±0.05mm |
|
Measuring type |
Length of optic axis , automatic calculation , result analysis auto , |
|
Image freezing |
auto+preservable, manual |
|
Intraocular lens implantation (IOL)formula |
SRK-T, SRX II, HOLLADAY, BINKHORST-II, HOFFER-Q,HAIGIS |
|
Gain |
20-110dB |
|
Time gain adjustment |
0-30dB |
|
B Scan patterns |
||
Probe frequency |
10MHz |
|
Probing depth |
≥50mm |
|
Axial Resolution |
≤0.2mm |
|
Lateral resolution |
≤0.3mm |
|
Gain adjustment |
20-110dB |
|
Time gain adjustment |
0-30dB |
|
Operation mode |
Eyecup, gel, aqueous capsule |
|
Post-processing measuring tools |
Area, length, mark and annotation |
|
Review |
100 images available |
|
Others |
||
Size |
340mm*320mm*115mm |
|
weight |
10kg |
|
Power supply |
100-240V 50/60Hz |
|
Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
