Products Description

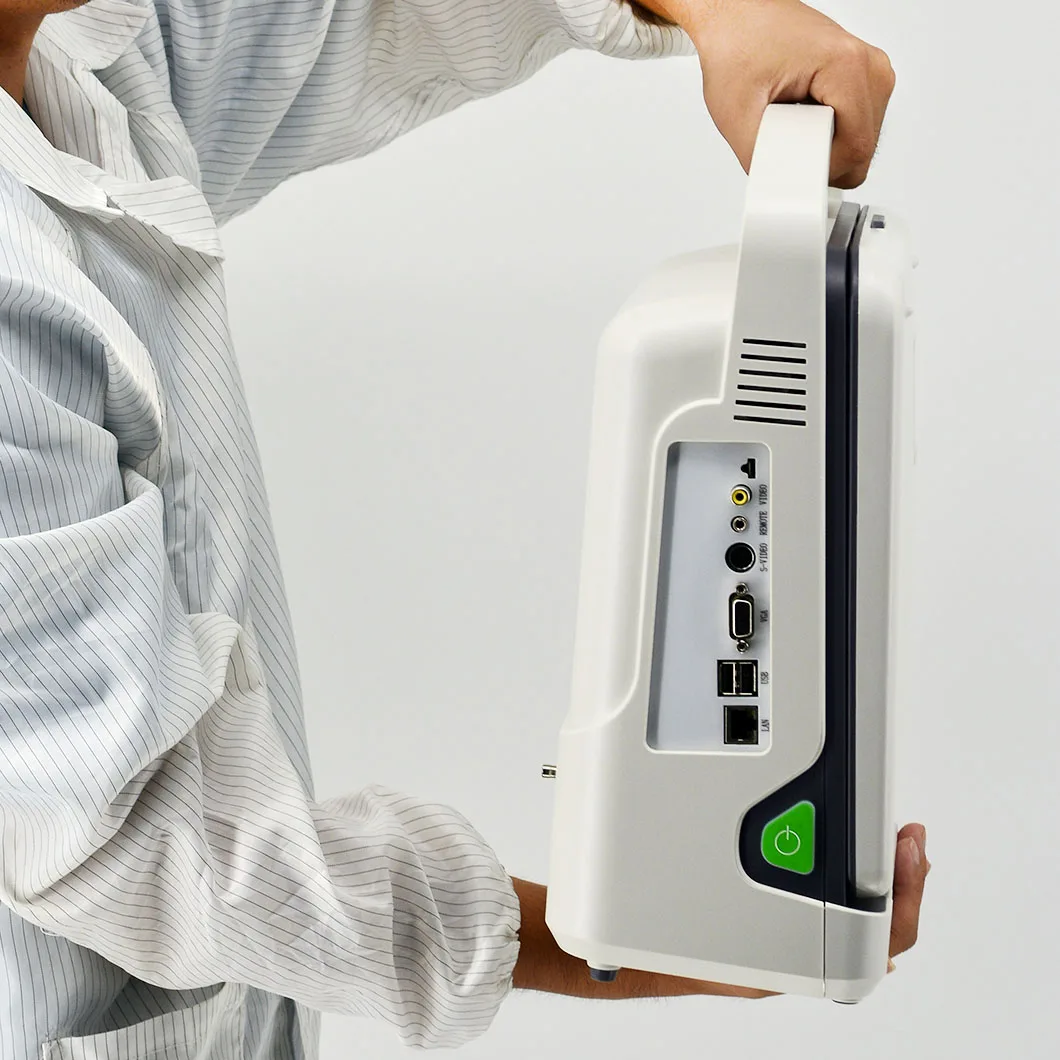

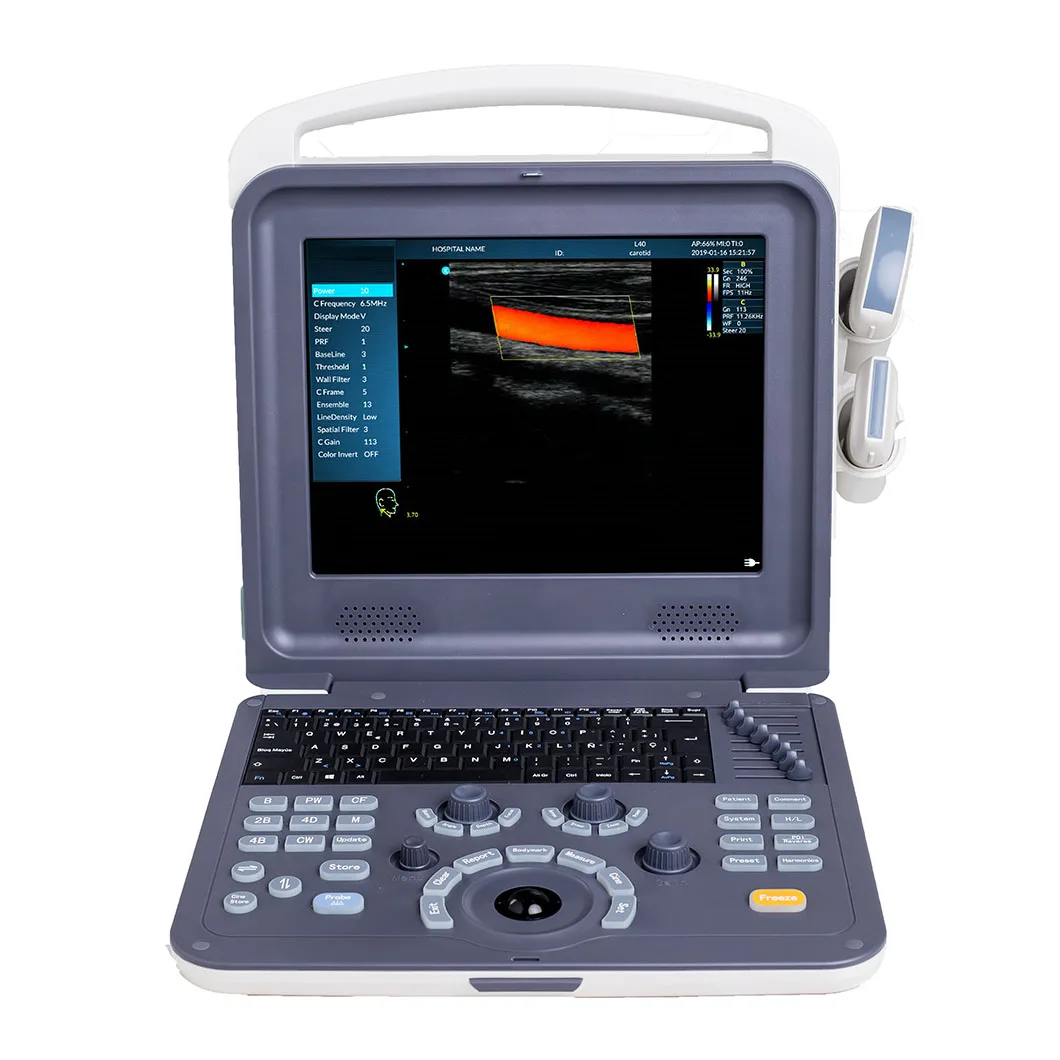

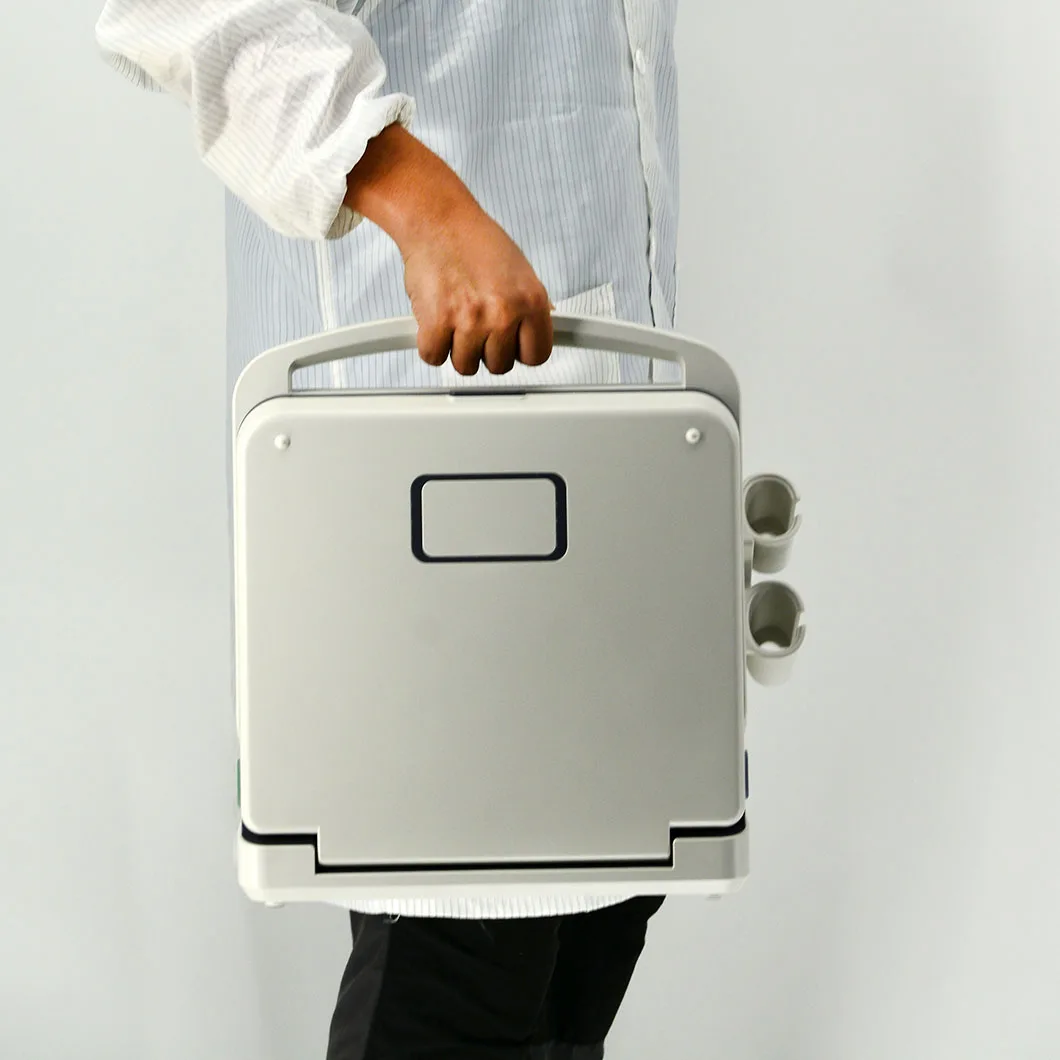

Portable PC Platform Color Full Digital Ultra Sound Scan Portable Laptop Ultrasound Machine

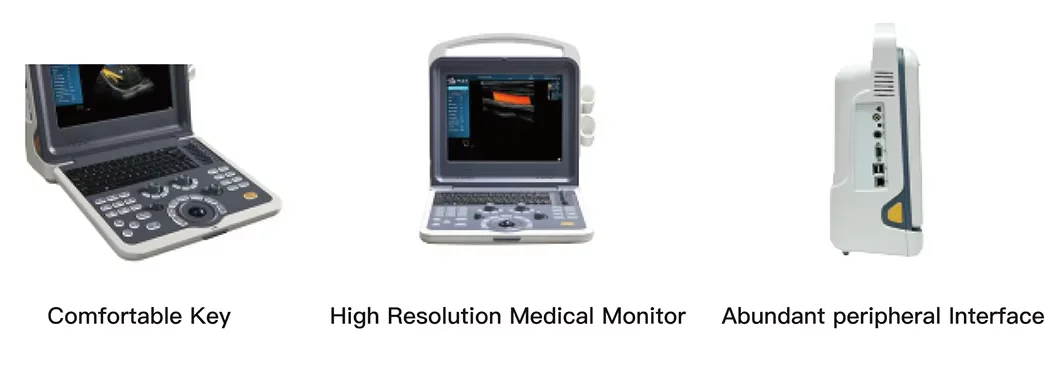

Smart design
• High Resolution Imaging System
• Easy-operation Ergonomic Design
• Better Optimize Image Quality
• Smart and Light -Weight Design
Technical Specifications |
||
Displaying mode |

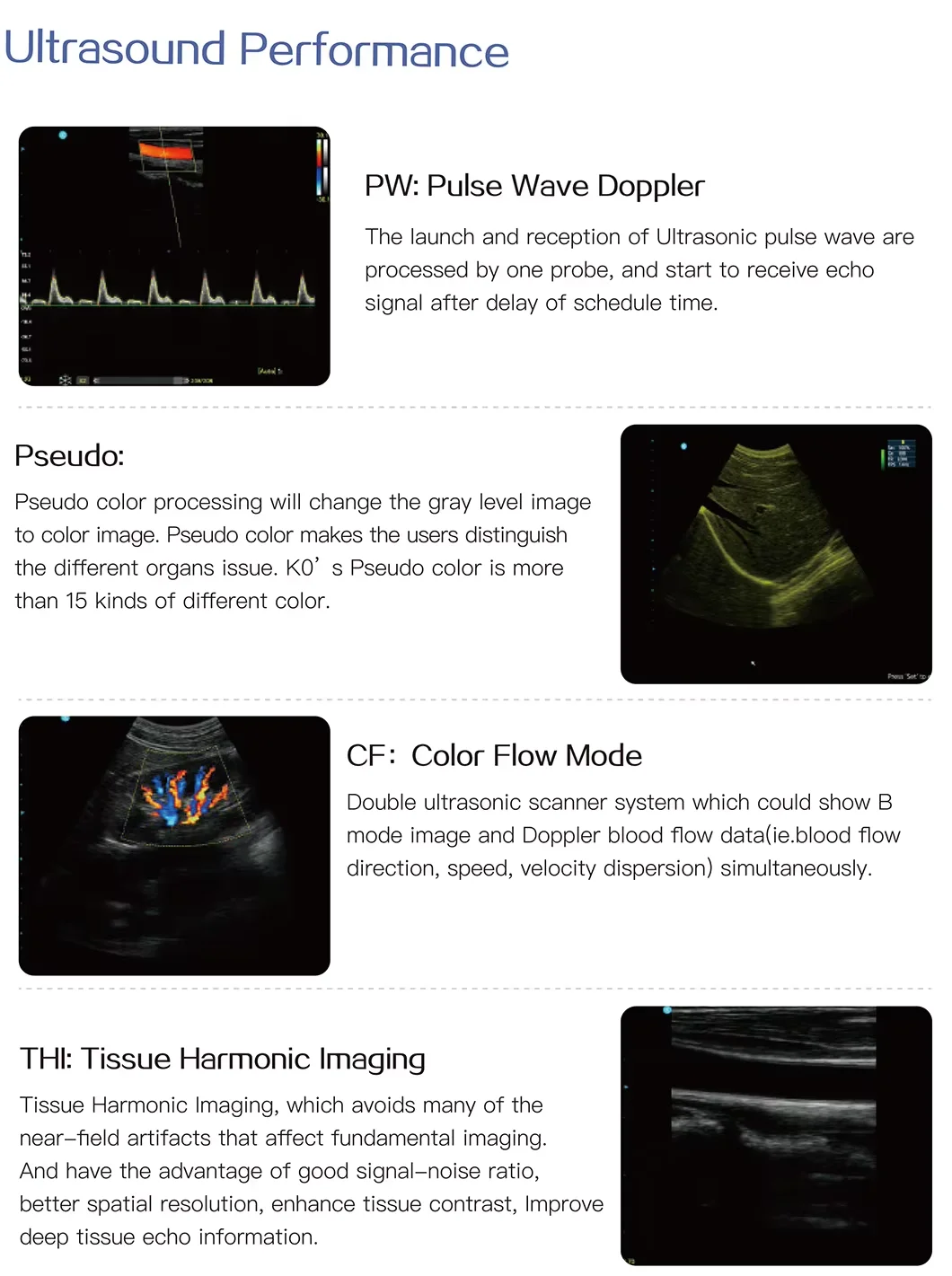

B,B/B,4B,B/M,M, B/C,B/C/D,B/D, duplex, triplex, CFM, PW |
|
Signal processing |
Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields |
|
Image processing |
THI Storage: 16G Power adjustable Smoothing function Edge enhancement One-key optimization Image conversion Wall filter adjustable Base line adjustable PRF adjustable AIO-Auto image optimization IZoom: Instant full screen image I-Image: intelligent optimization MBF: Multi Beam Former SA: Synthetic Aperture Ultrasonic imaging Iclear: Speckle Noise Reduction CDF: Contunuous Dynamic Focusing |
|
General measurement |
Normal, MSK, ABD, OB, Pelvic,Urology, Cardiac, Small Parts, Vascular |
|
Normal measurement |
Volume, V3L, STD_S, Area Trace,Mtime, MHR, D Time, DV, D Common, D Auto, Area, Angle, CrossLine, STD D, ParalleLine, Mdist,MV, D HR, DA, D Trace |
|
ABD packages |
ABD, Aorta, R_Kidney & L_Kidney, Bladder, Prostate |
|
OB Packages |
Early_OB, Rt-Ovary, Lt-Ovary, Uterus, Fetal_Biome, Long_Bones, AFI |
|
Pelvic Packages |
Uterus, Rt/Lt - Ovary, Rt/Lt-Follicle, |
|
Urology packages |
Rt/Lt- kidney measurement, Bladder, Prostate,Rt/Lt_Testicle |
|
Small Parts |
Rt/Lt_Thyroid, Rt/Lt_Testicle, Vessel, Breast |
|
Vascular |
Stenosis D, senosis A, Intima, Arterial, Venous |
|
MSK |
Distance, Area, Hip_Angle |
|
Scanning depth |
≥250mm |
|
Probe elements |
80 |
|
Cine loop |
Automatically & manually |
|
Image storage format |
BMP, JPEG, PNG, DICOM(Option) |
|
Input/output ports |
Video Port, S-Video Port, Remote Port, LAN1/2 Port, VGA |
|

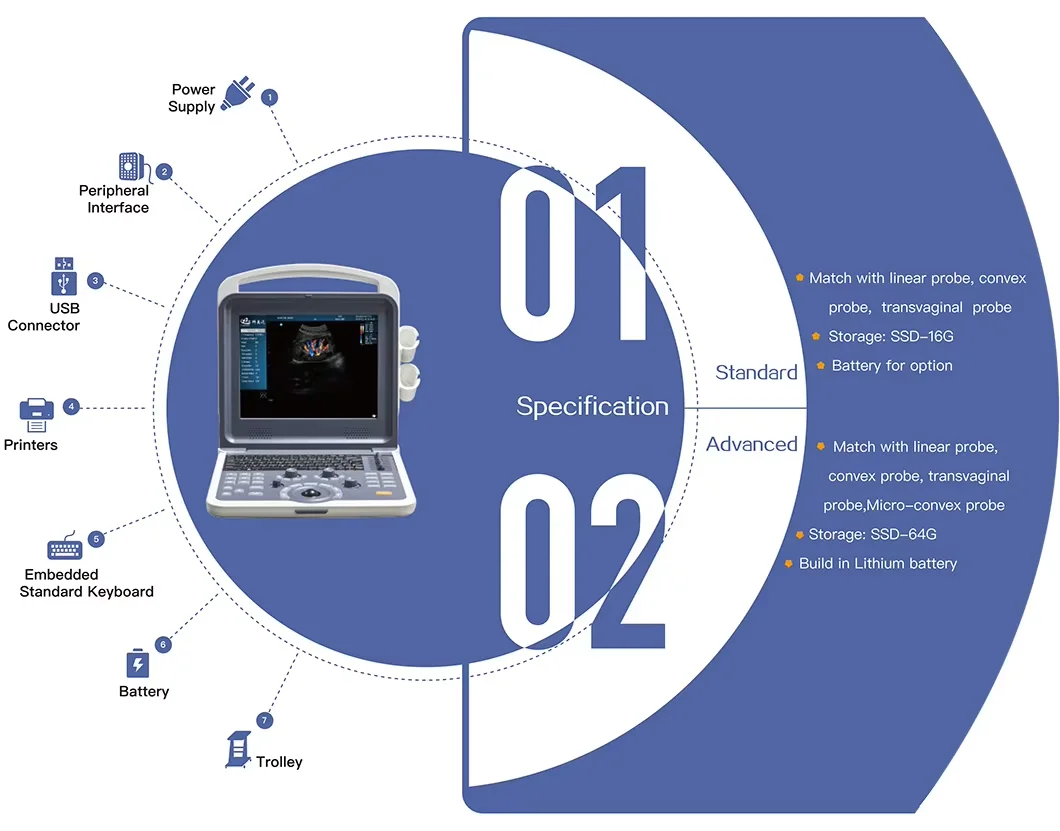

Standard Configuration |
Main unit, 12 inch LED monitor, 3.5Mhz convex probe, 7.5Mhz linear probe, 2 Probe connectors, User’s Manual, hard disk (SSD) |
|

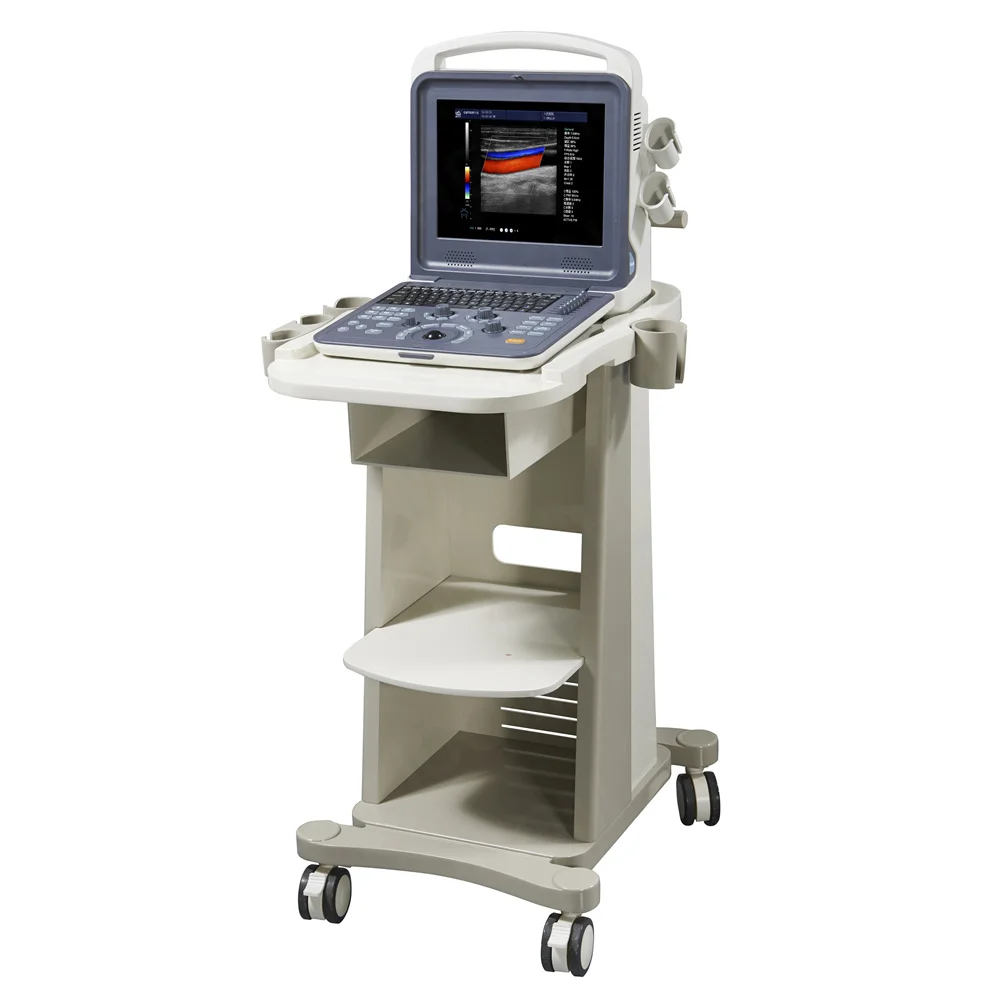

Options |
6.5Mhz Transvaginal Probe, 3.5Mhz Micro-convex Probe, Trolley, Printers, Biopsy kit，Aluminum case |
|
Customer Feedbacks

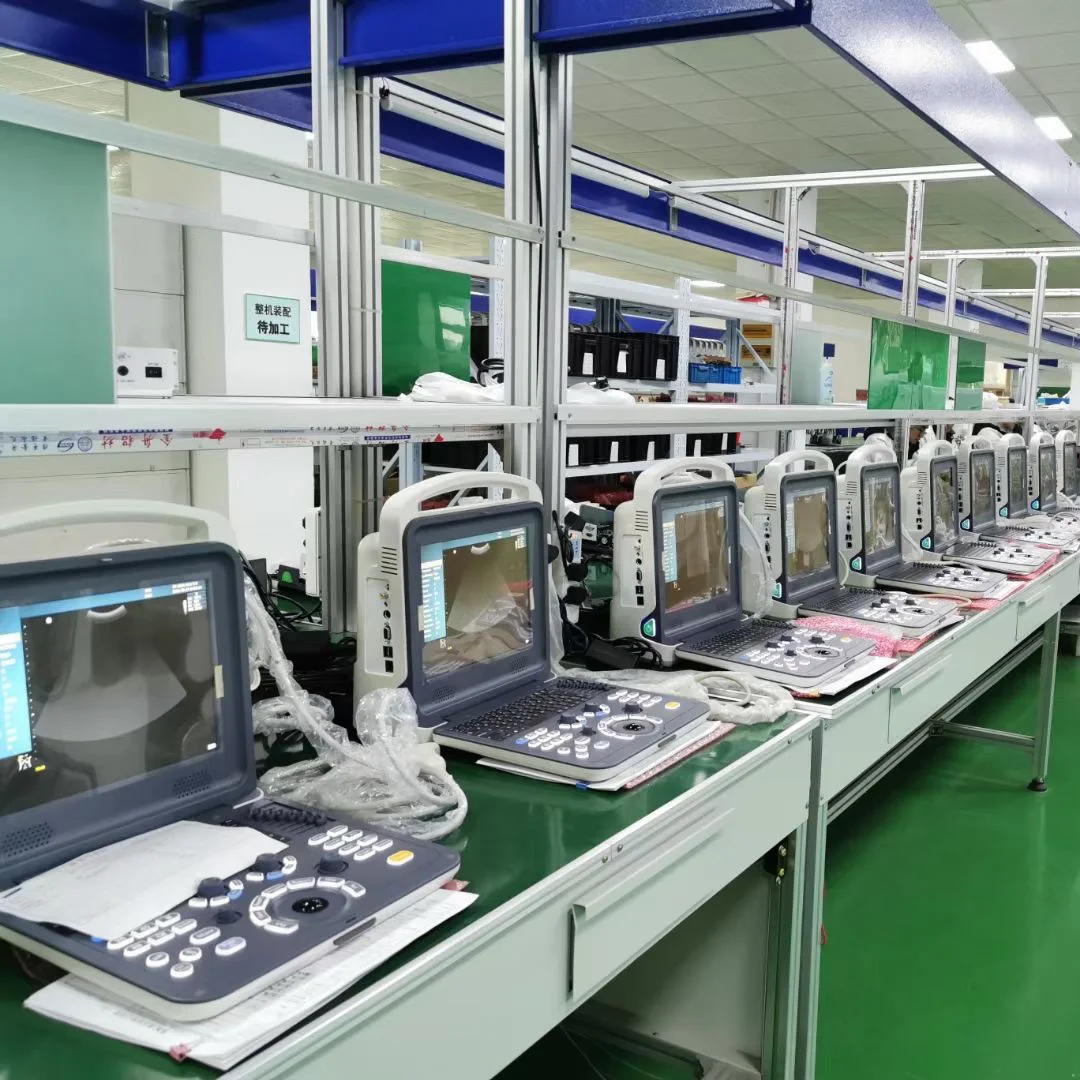

Company Profile
FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
