Products Description
Introduction

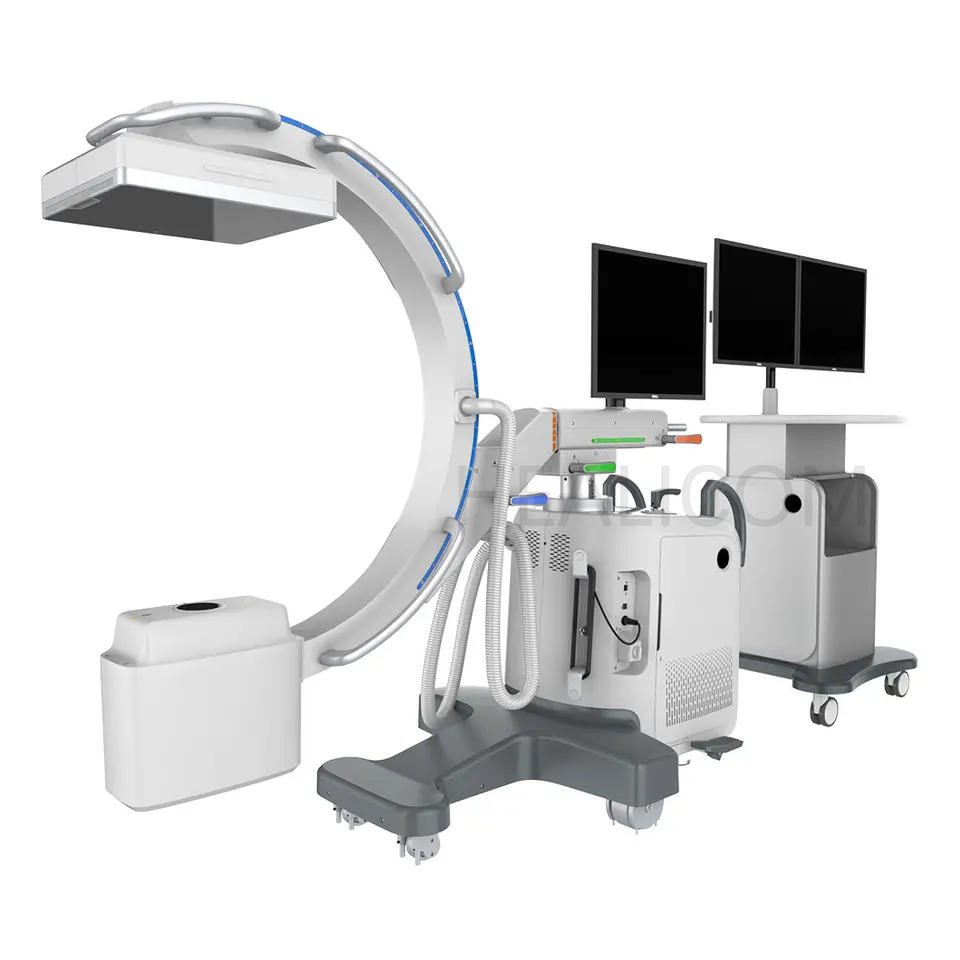

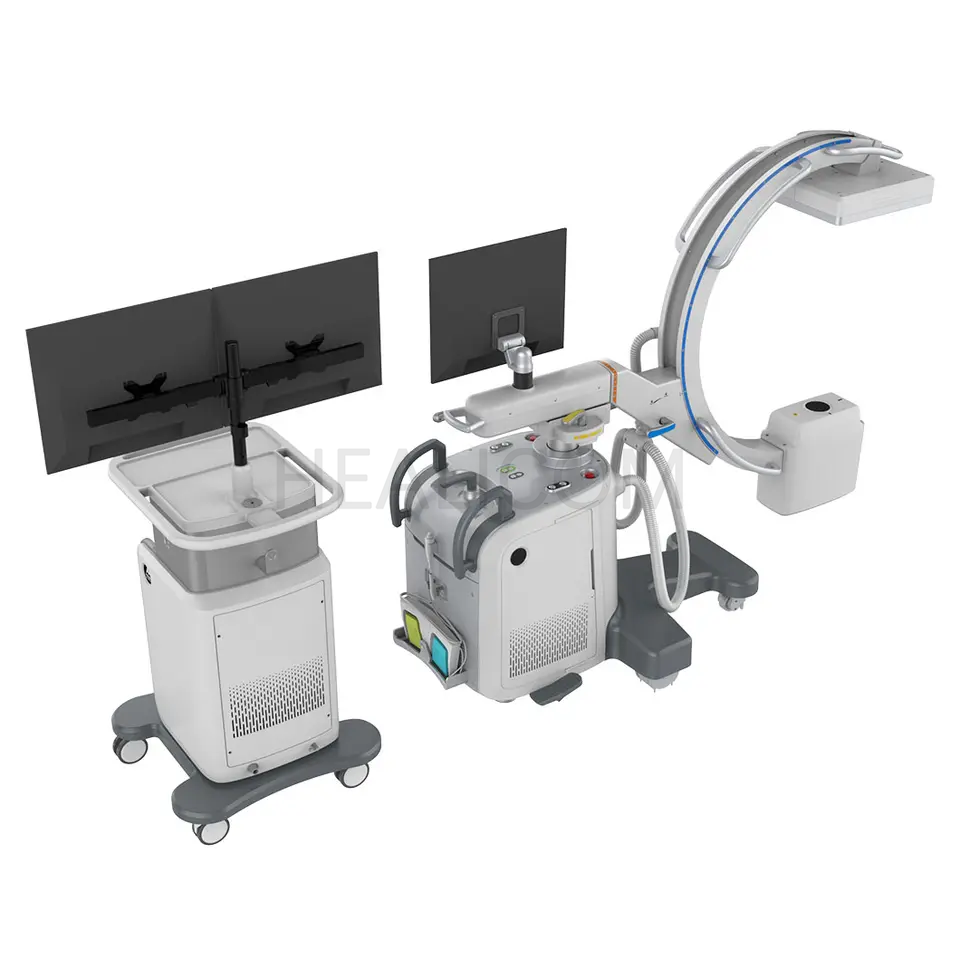

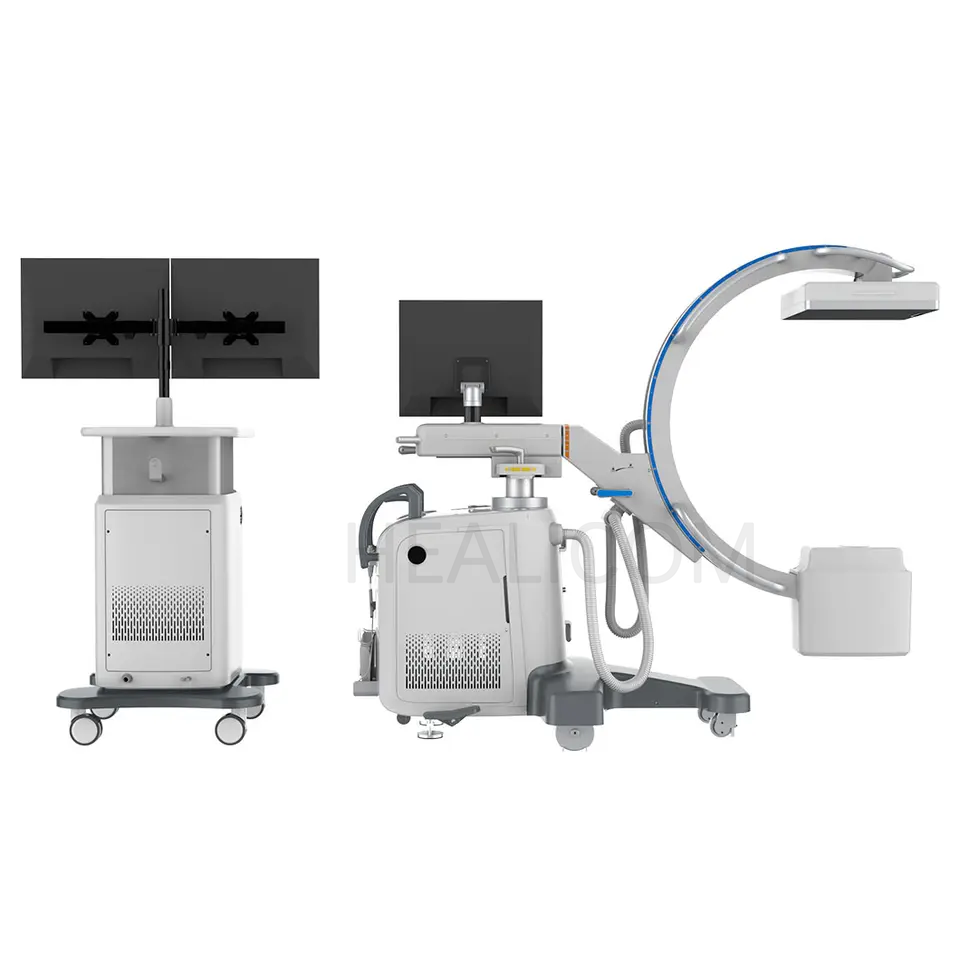

Multifunctional digital surgical system
iCM605 is a compact and versatile digital surgical system that saves space and improves productivity for providing radiological guidance and display for patient diagnosis, intervention and surgery.

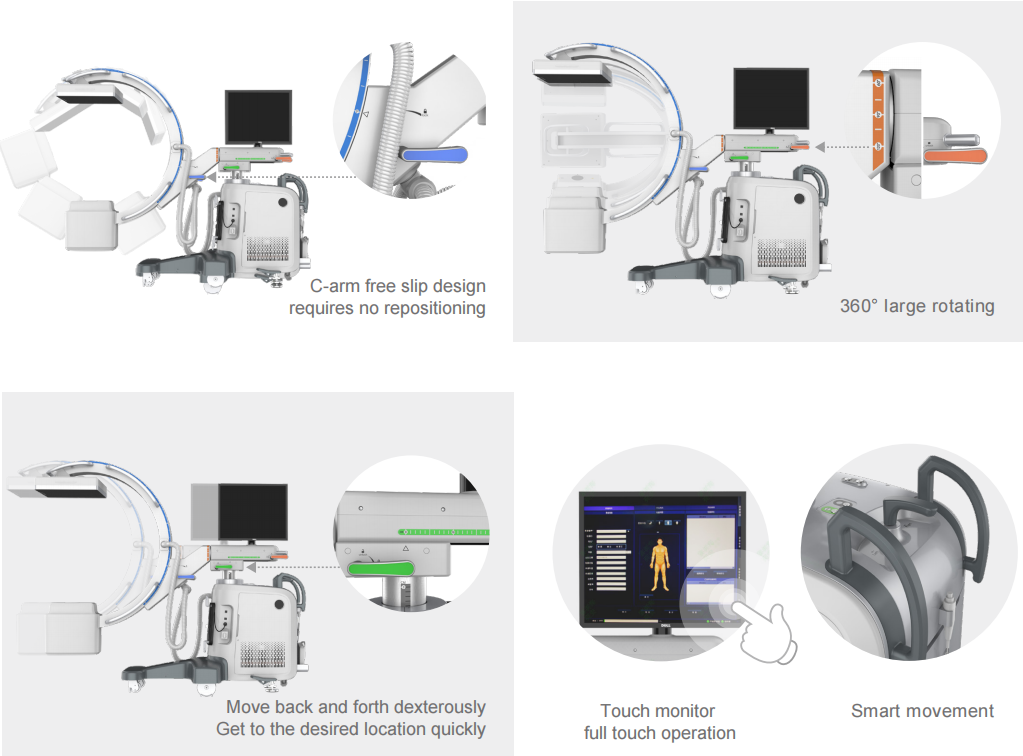

Product features

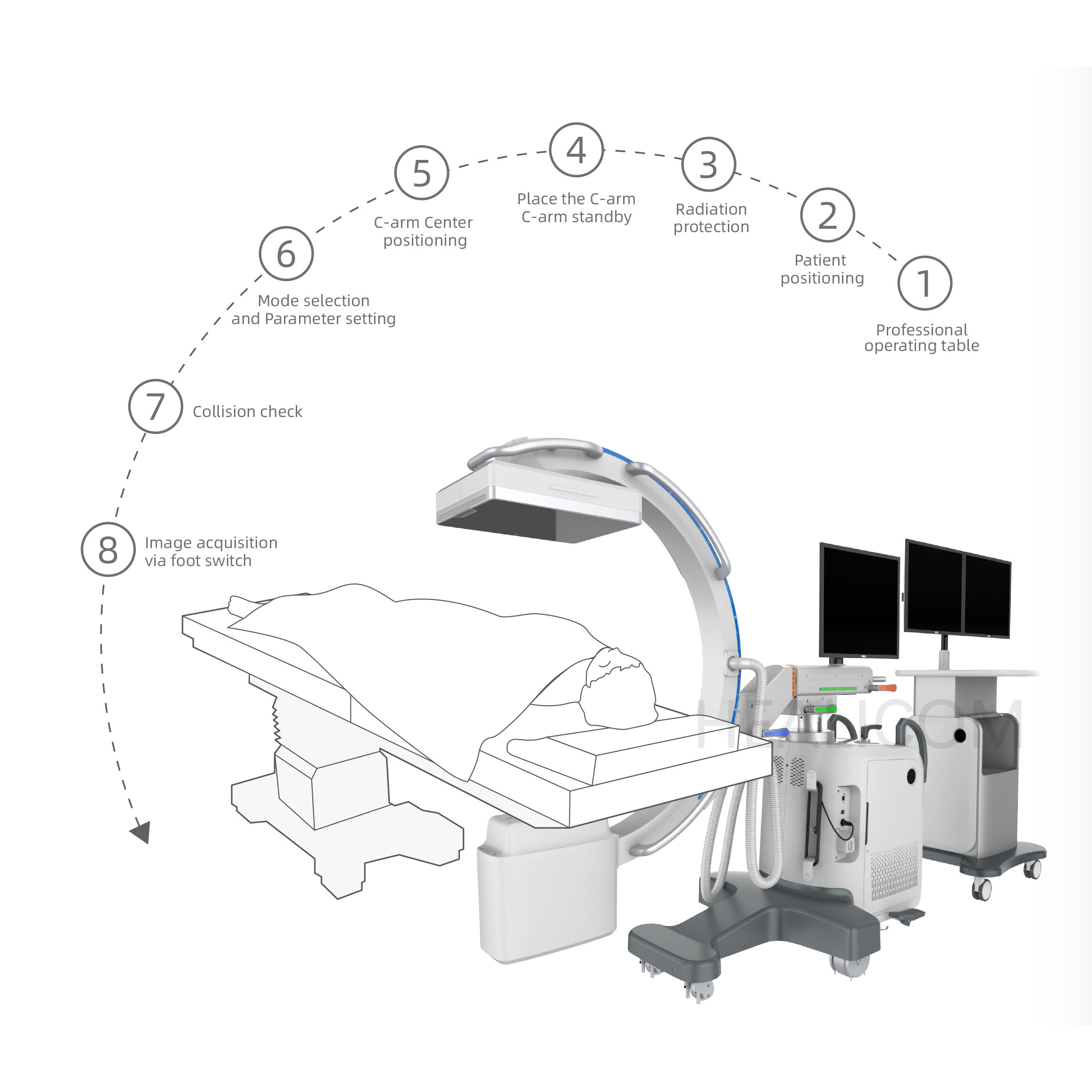

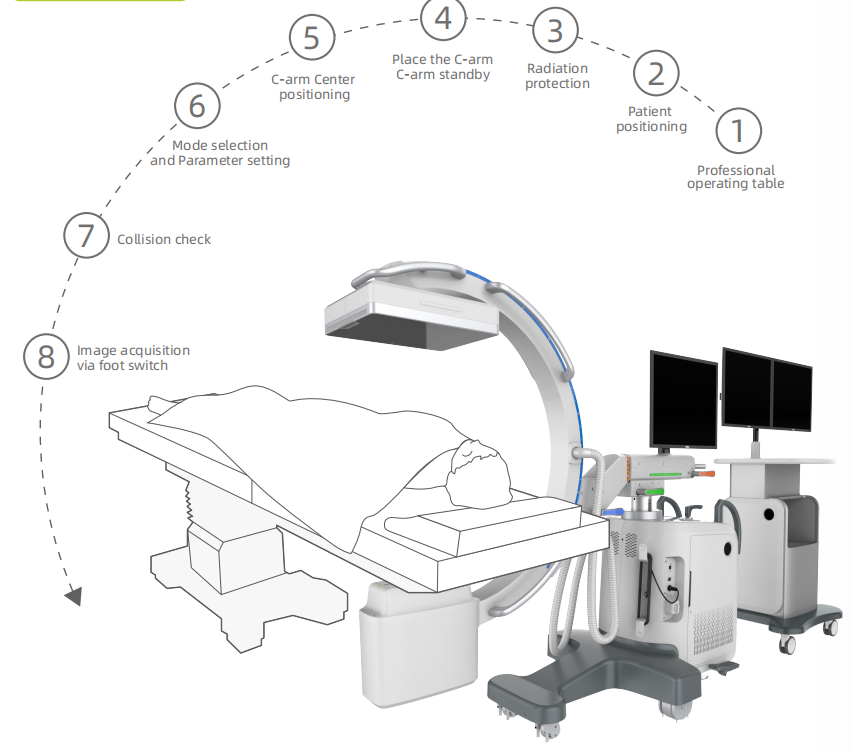

Application
Specifications
| Type | iCM605 - Mercu0909F | iCM605 - Mercu1212X |
|---|---|---|
| System Requirements | ||
| Electric source | 110VAC / 220VAC | 110VAC / 220VAC |
| Power | 5kW | 5kW |
| Detector | ||
| Resolution | 2.5lp/mm | 3.3 lp/mm |
| Active Matrix | 1024 × 1024 pixels | 2048 × 2048 pixels |
| Pixel Pitch | 205μm | 150μm |
| Removable grid | Yes | Yes |
| Active area | 210 × 210mm | 307.2 × 307.2mm |
| Interface | 1G Ethernet | 10G Ethernet |
| Generator | ||
| KV range | Spot / Pulse 40~125kV Continuity 40~110 kV | Spot / Pulse 40~125kV Continuity 40~110kV |
| mA range | Continuous:6.3mA Pulsed:32mA Digital spot:100mA | Continuous:6.3mA Pulsed:32mA Digital spot:100mA |
| ms range | 10~1600ms | 10~1600ms |
| Mas range | 0.2~100mAs | 0.2~100mAs |
| X-ray Tube | ||
| Type | Rotating | Rotating |
| Focal spots | 0.3/0.6 mm | 0.3/0.6 mm |
| C-arm | ||
| SID | 1000mm | 1000mm |
| Free space in arc | 784mm | 784mm |
| Depth in arc | 640mm | 640mm |
| Orbital rotation | 150°(117°~33°) | 150°(117°~33°) |
| Lateral rotation | 360°(±180°) | 360°(±180°) |

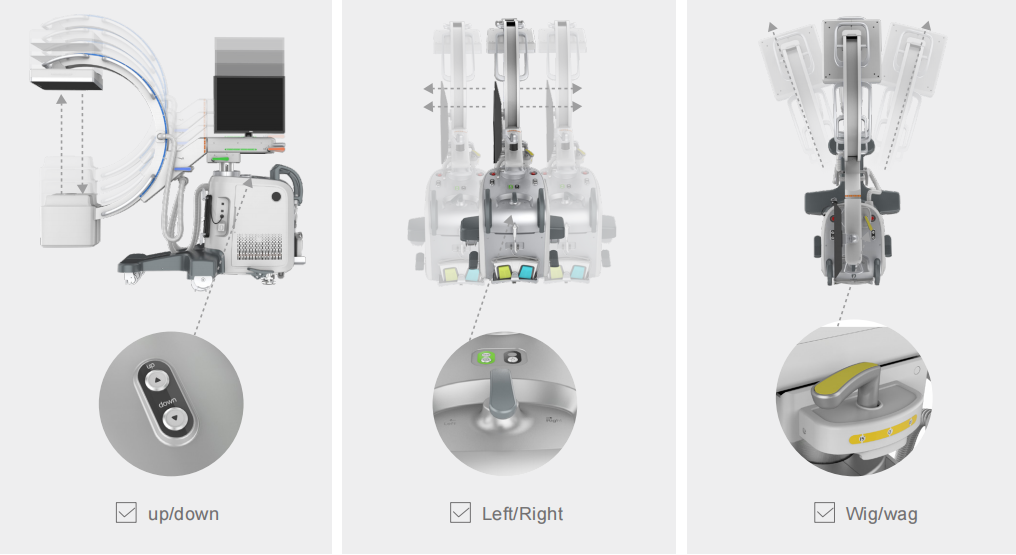

| Wig/wag | ±15° | ±15° |
| Horizontal travel | 200mm | 200mm |
| Vertical travel | 400mm | 400mm |

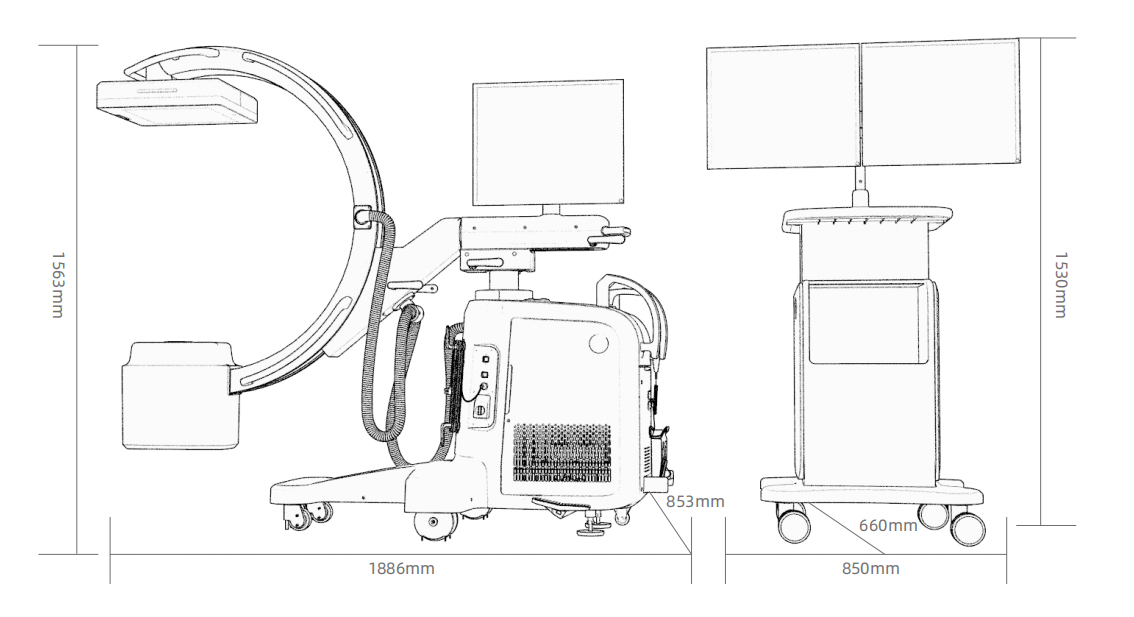

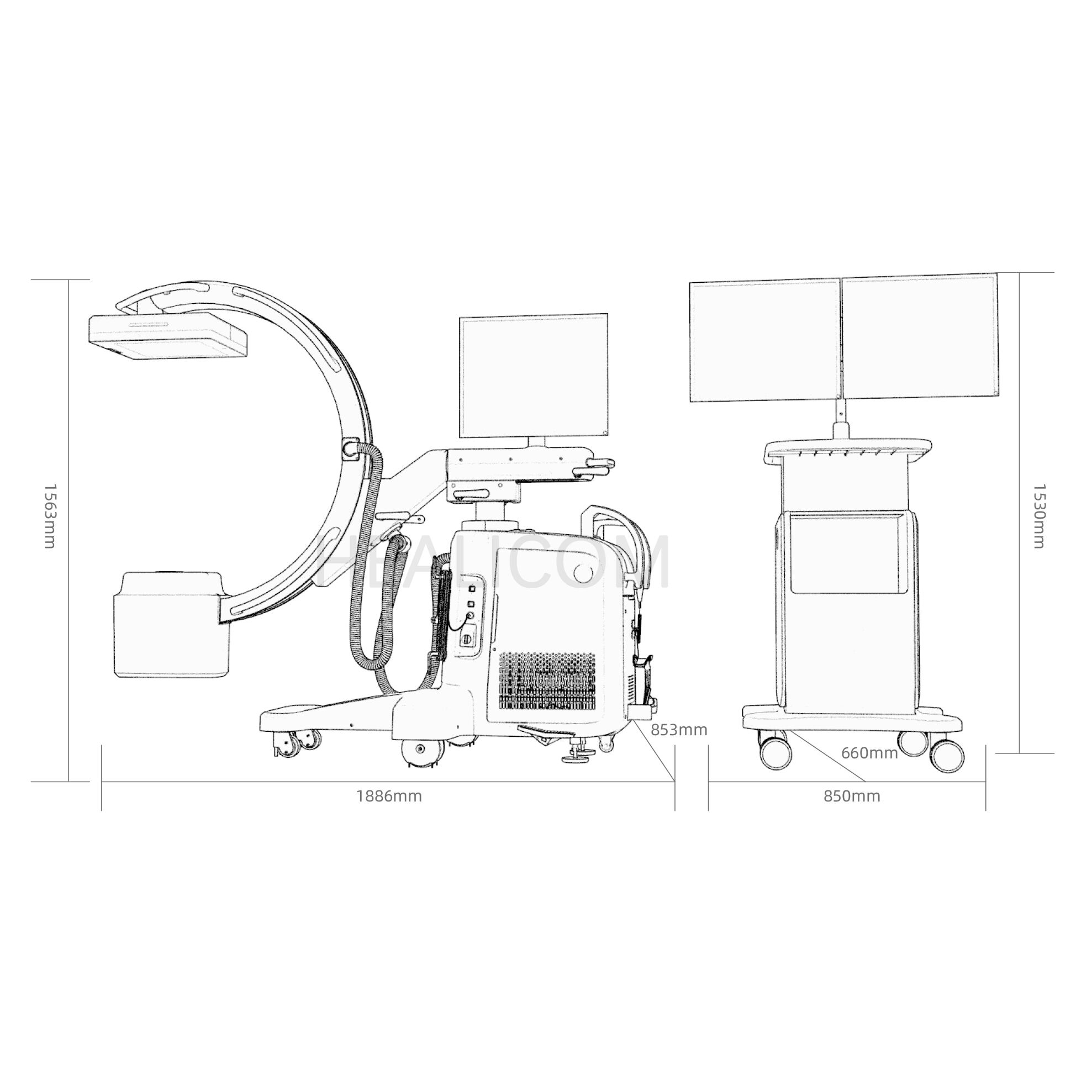

Dimension
Workshop
Related Products
Customer Feedbacks
Company Profile
FAQ
1. What about the price level? We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts. 2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same? As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper. 3. What is time of delivery? Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible. 4. What about quality assurance? We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. 5. What is payment terms? T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
