Products Description

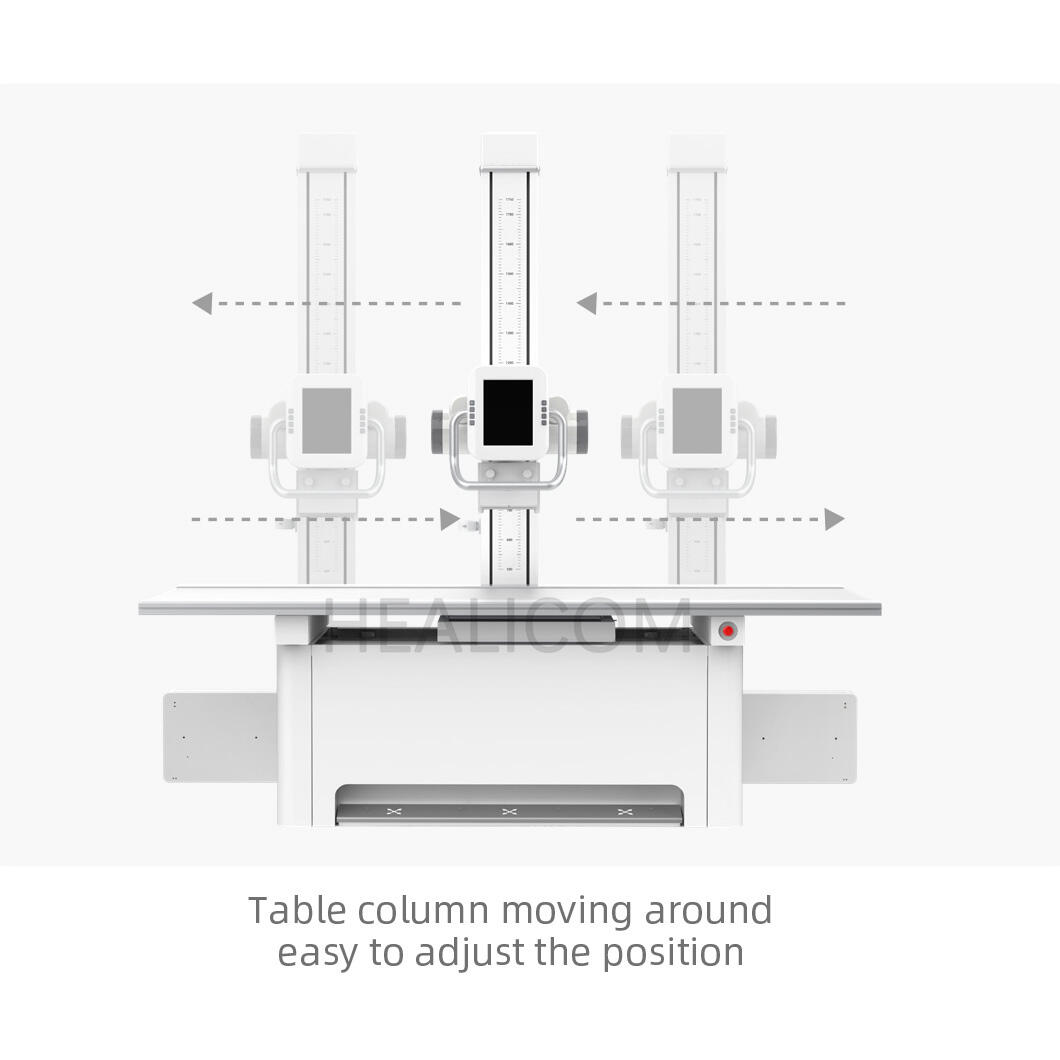

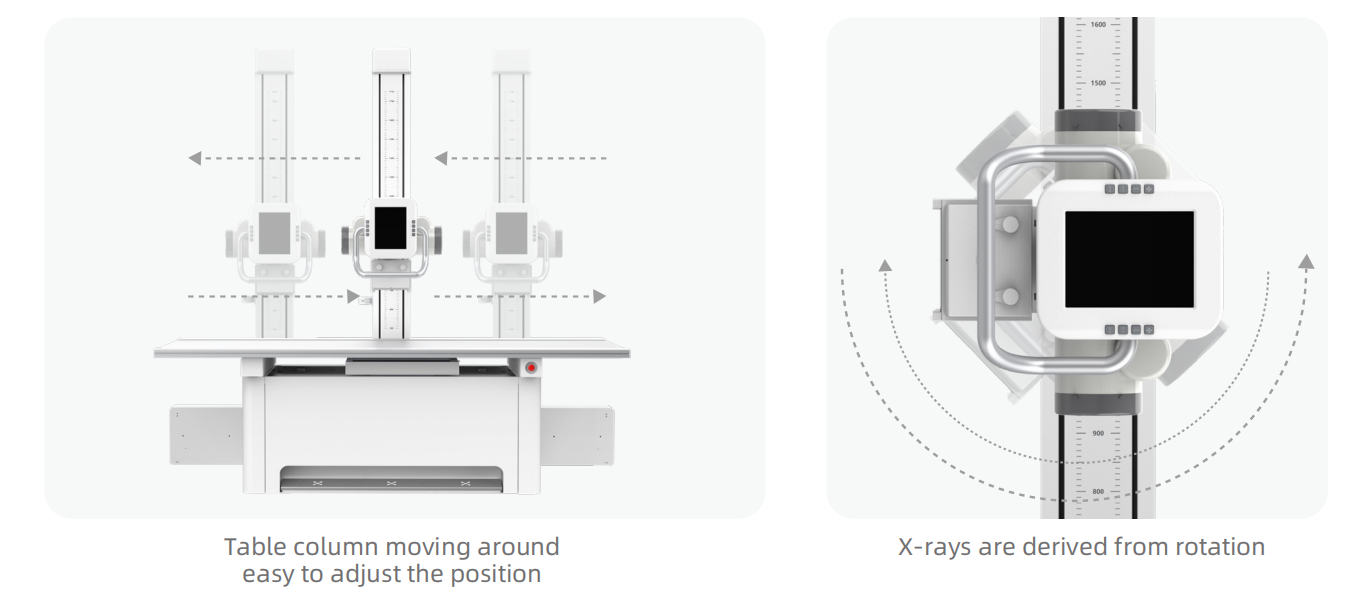

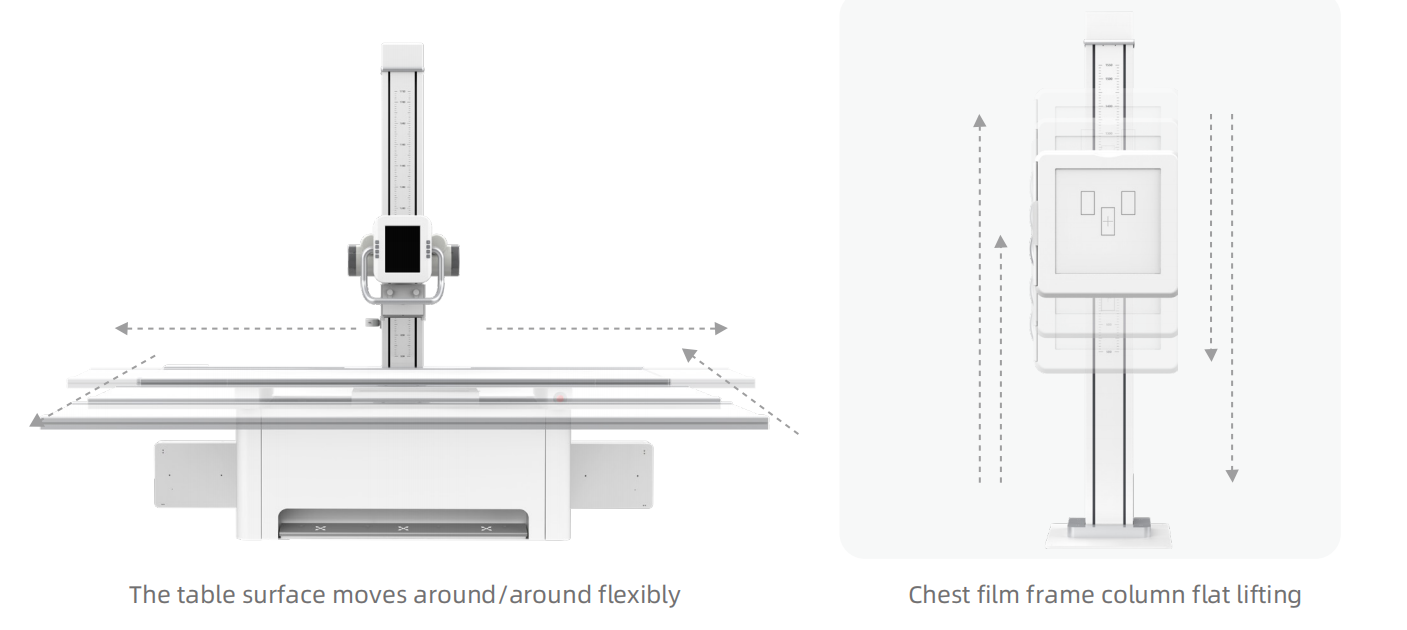

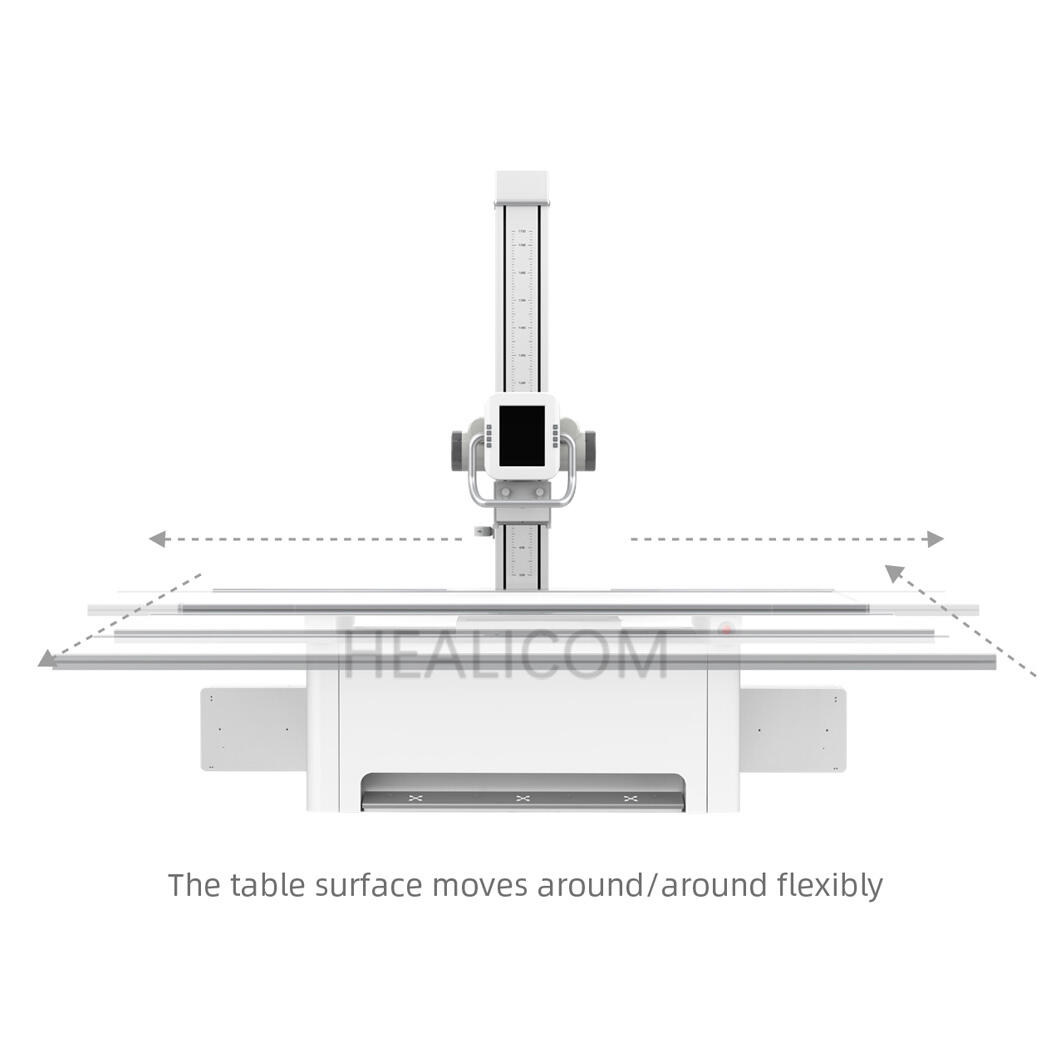

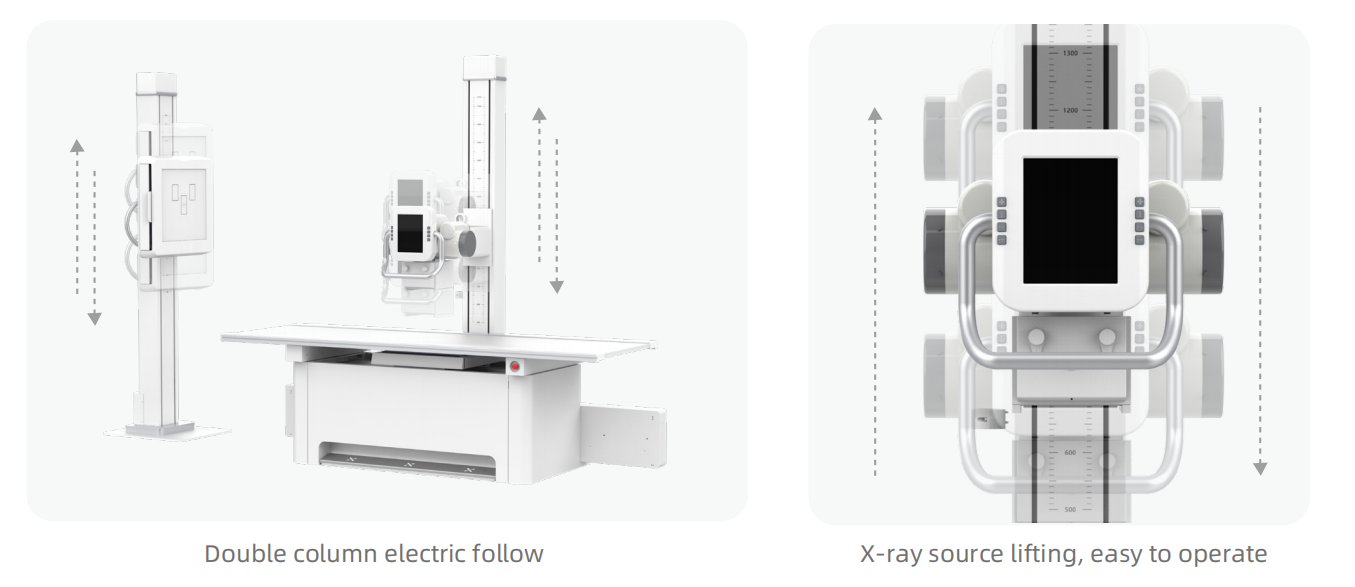

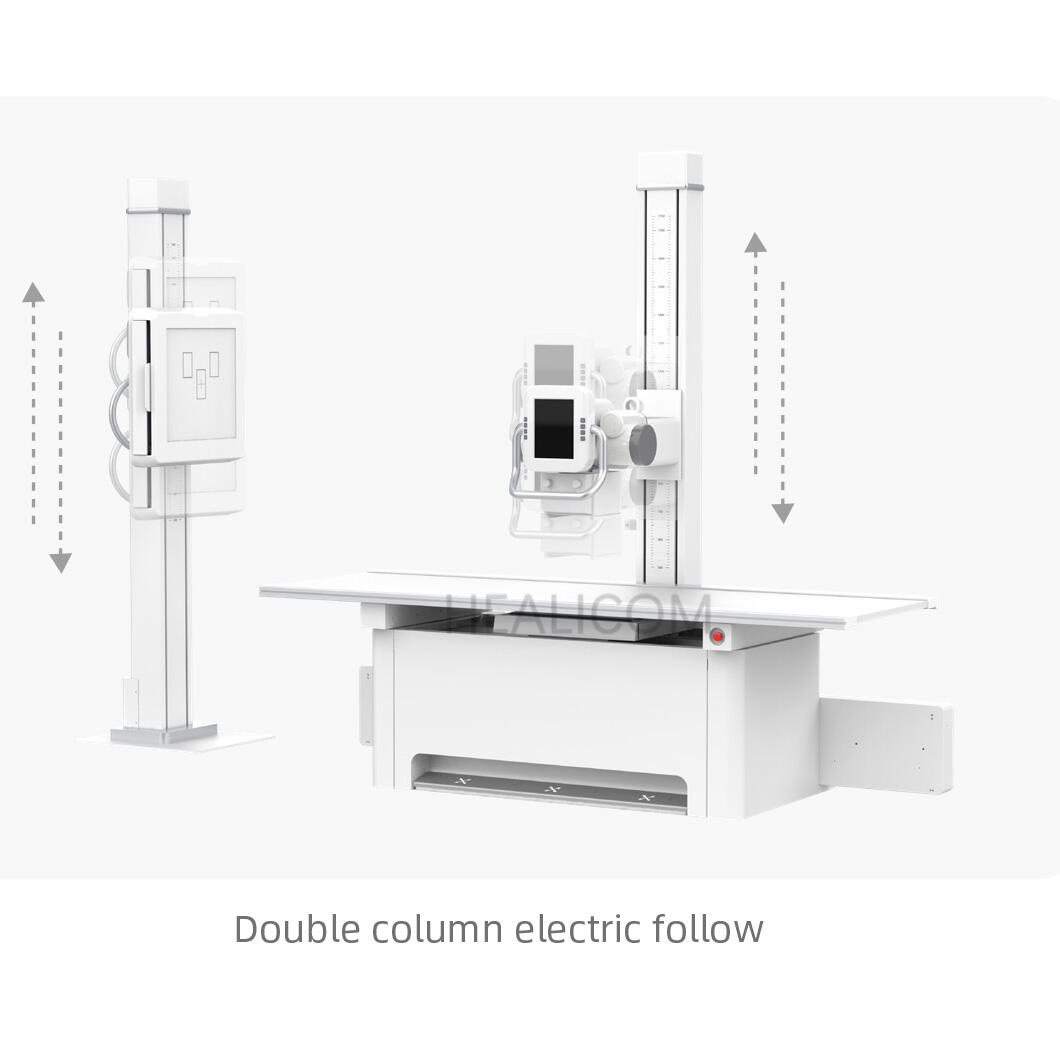

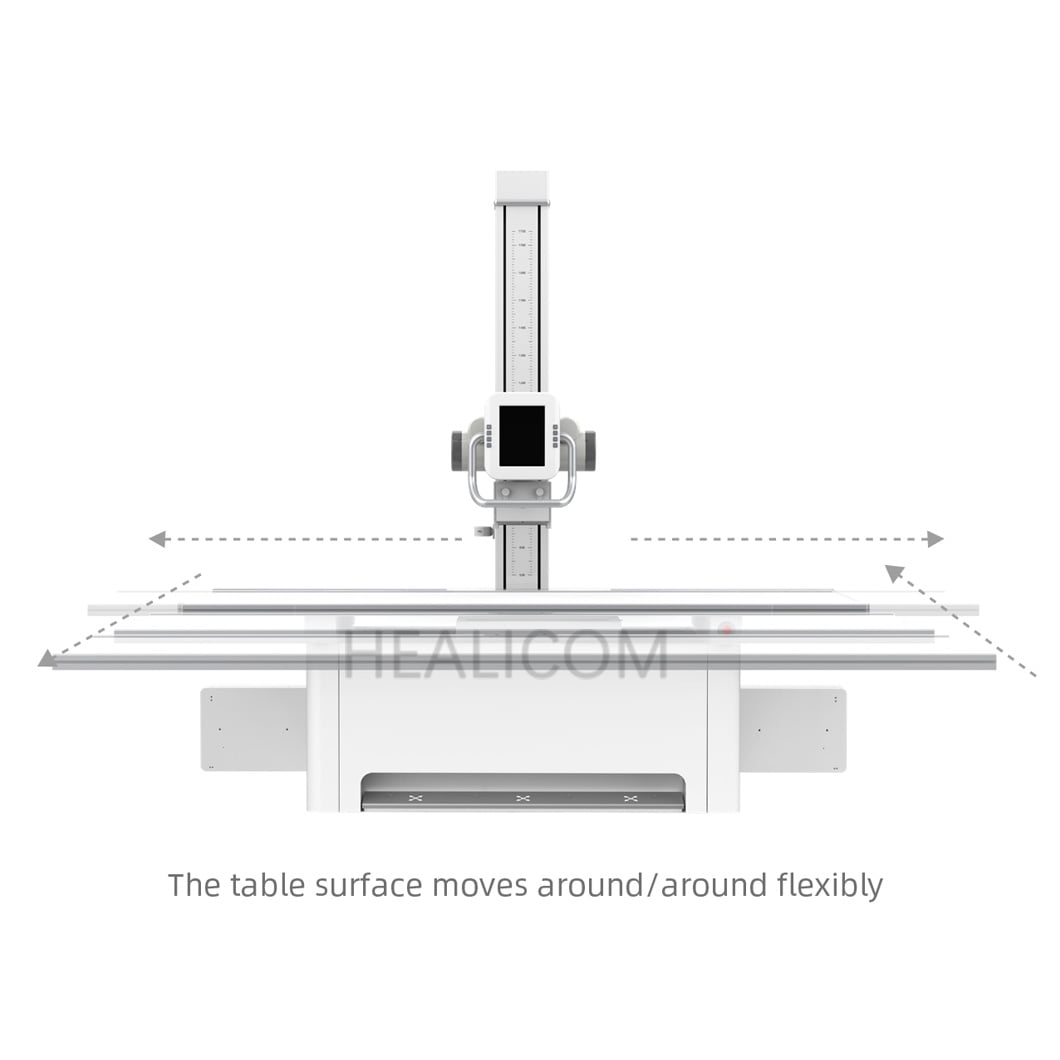

Double column DR adopts large span independent ball tube frame design, easy installation, small occupation area, convenient maintenance. Four-way floating bed surface, easy to use and positioning. The lifting and lifting of X-ray source and bidirectional follow-up of horizontal position of bed column can reduce the positioning time and meet the requirements of large-flow clinical examination.

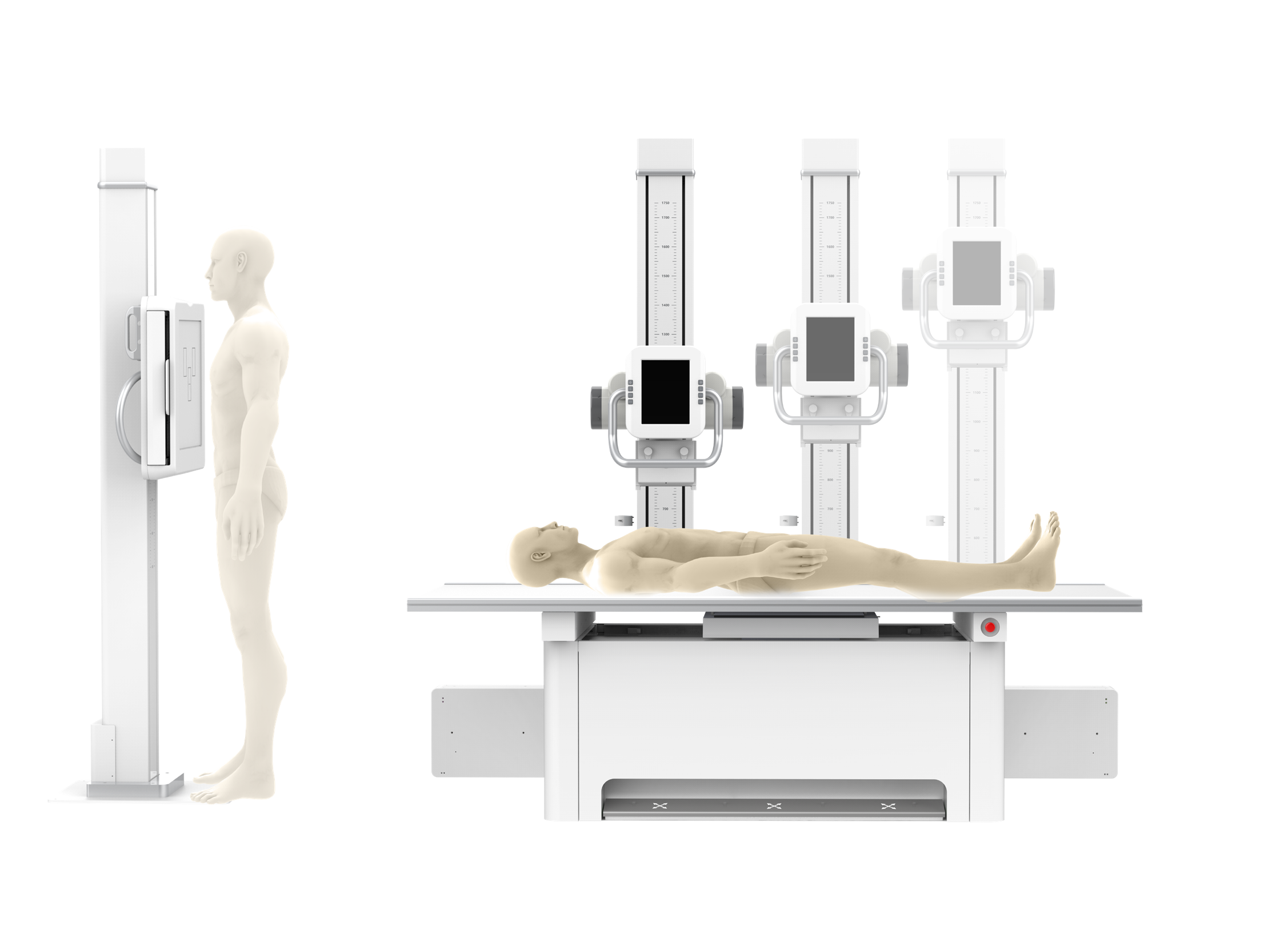

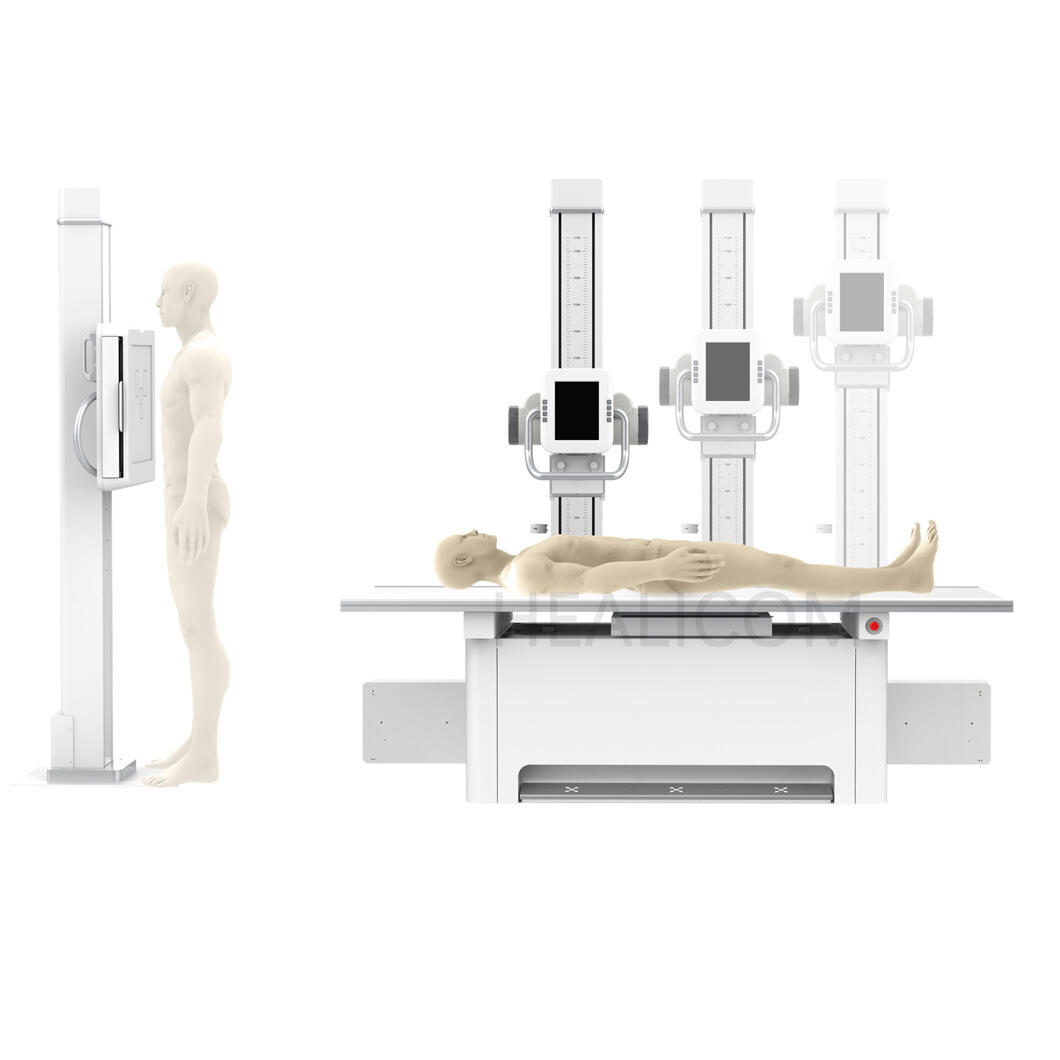

Application
Clinical images
Technical Parameters
| Model | HDR50X | |
| Whole machine | Electric source（V） | AC380/220 |
| Power（kW） | 50 | |
| Focal（mm） | 0.6/1.2 | |
| Flat panel detector | Type | Mars1717V |
| Semiconductor material | Amorphous Silicon | |
| Imaging effect | Static | |
| Pixel Pitch（μm） | 139 | |
| Active area（inch） | 17x17 | |
| Data Interface | Wireless | |
| Generator | Input voltage（V） | AC220 |
| Inverter frequency（Khz） | 70~250 | |
| Grid(selective assembly) | Grid ratio | 0.417361111 |
| AEC | Vision | 3 |
| Mainframe | Movement | Electric |
| Ray source | Up/down lift | |
| left/right rotation | ||
| Column | left/right move | |
| Chest X-ray Stand | Up/down | |
| Photography table | Four-way float |

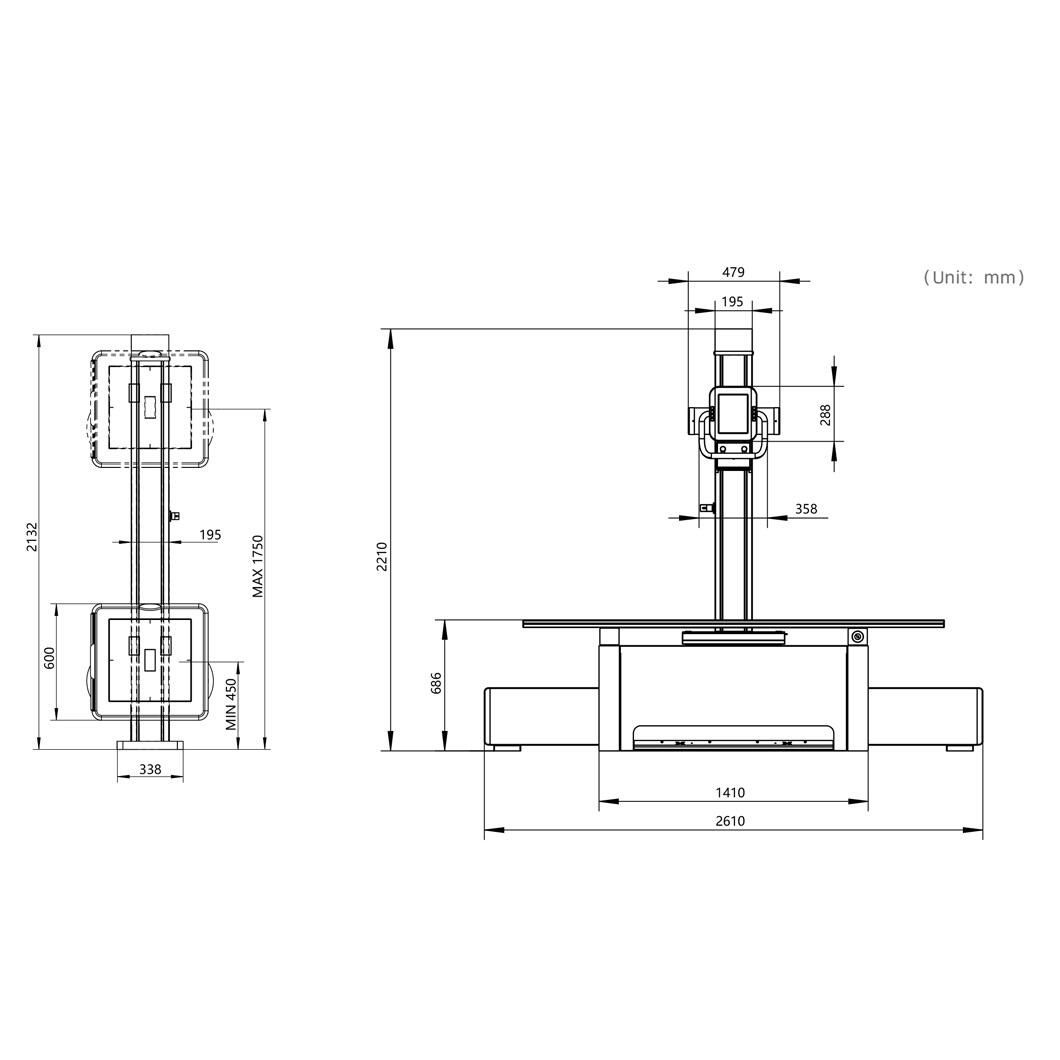

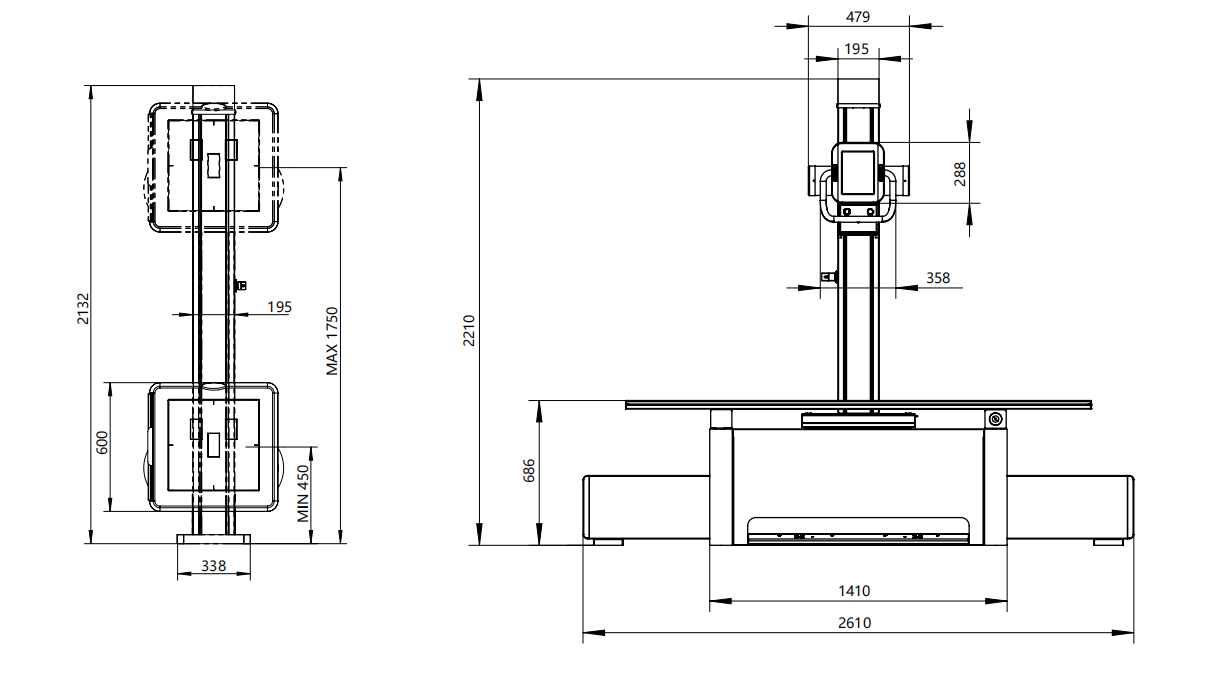

Dimension
Company Profile
FAQ
1. What about the price level? We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts. 2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same? As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper. 3. What is time of delivery? Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible. 4. What about quality assurance? We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. 5. What is payment terms? T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
